TGC1 subrack organization

+2.5 V 30 A. Controller. Controller. +4 V 65 A. +4 V 100 A. +4 V 100 A. 3.6 V 25 A. +5.8 V 3 A. TGC1 subrack organization. First 84 HP (19”) subrack Controller: 15 HP 6 HV distributors (54 chs): 36 HP 1 LV distributor (1 ch): 15 HP Free space in subrack: 18 HP 12 x 2 subracks.

libba
Télécharger la présentation

TGC1 subrack organization

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. +2.5 V 30 A Controller Controller +4 V 65 A +4 V 100 A +4 V 100 A • 3.6 V • 25 A +5.8 V 3 A TGC1 subrack organization First 84 HP (19”) subrack Controller: 15 HP 6 HV distributors (54 chs): 36 HP 1 LV distributor (1 ch): 15 HP Free space in subrack: 18 HP 12 x 2 subracks Second 84 HP (19”) subrack Controller: 15 HP 4 LV distributors (5 chs): 60 HP Free space in subrack: 9 HP 12 x 2 subracks

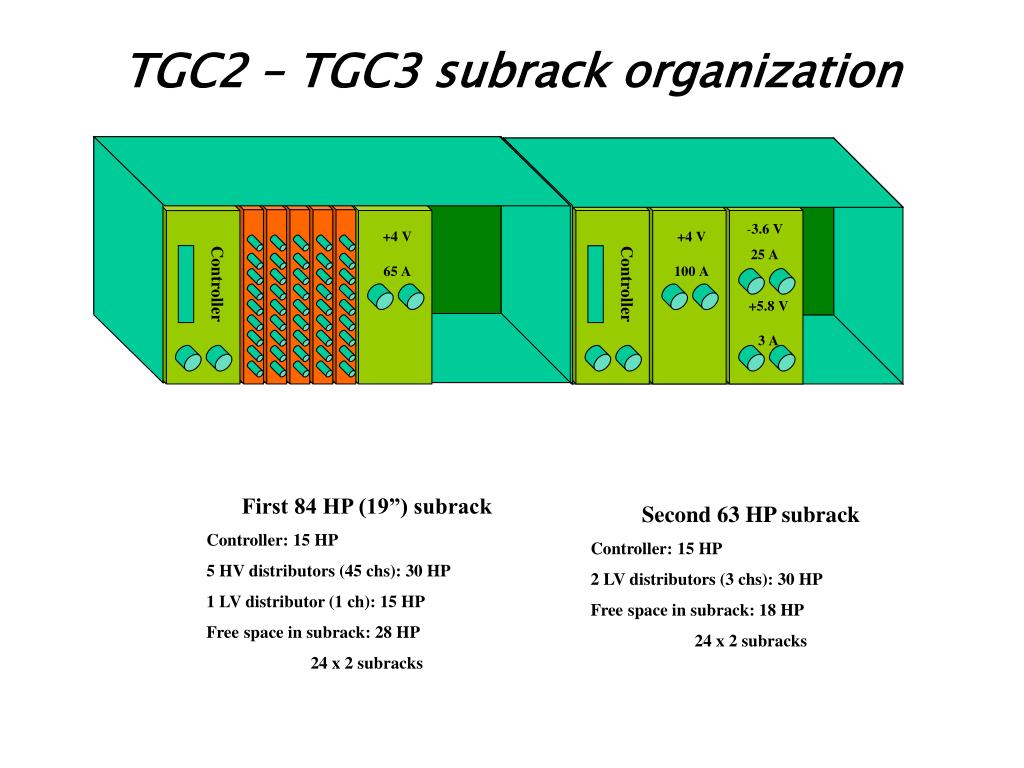

  2. Controller Controller +4 V 100 A +4 V 65 A • 3.6 V • 25 A +5.8 V 3 A TGC2 – TGC3 subrack organization First 84 HP (19”) subrack Controller: 15 HP 5 HV distributors (45 chs): 30 HP 1 LV distributor (1 ch): 15 HP Free space in subrack: 28 HP 24 x 2 subracks Second 63 HP subrack Controller: 15 HP 2 LV distributors (3 chs): 30 HP Free space in subrack: 18 HP 24 x 2 subracks

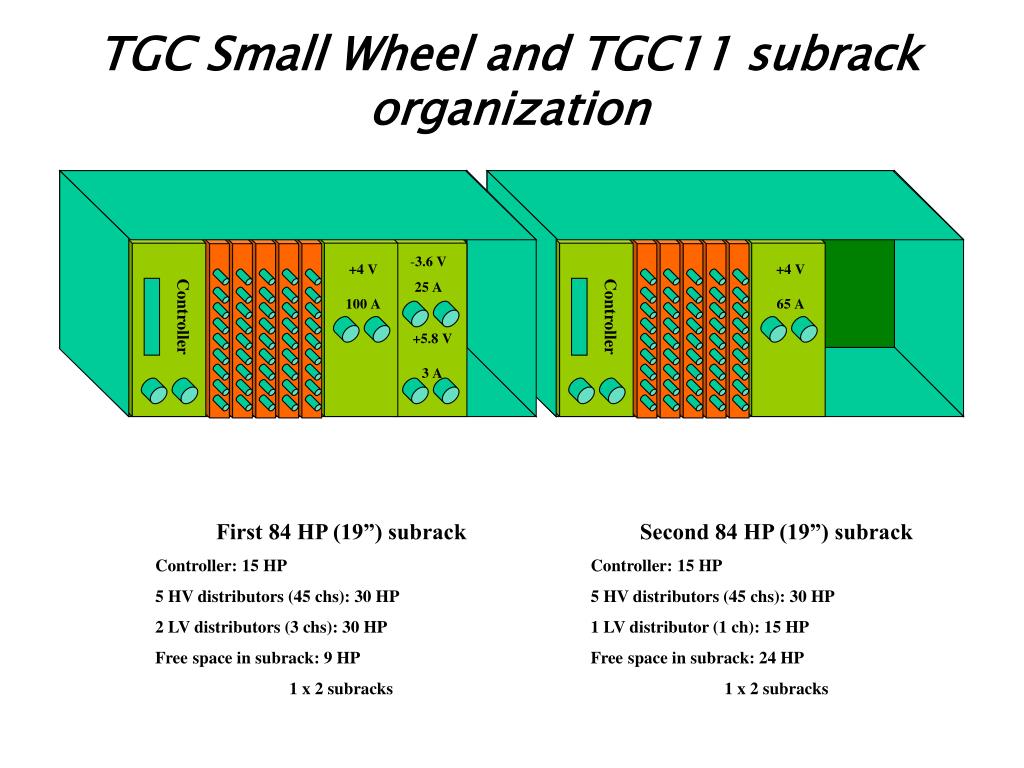

  3. Controller Controller +4 V 65 A +4 V 100 A • 3.6 V • 25 A +5.8 V 3 A TGC Small Wheel and TGC11 subrack organization First 84 HP (19”) subrack Controller: 15 HP 5 HV distributors (45 chs): 30 HP 2 LV distributors (3 chs): 30 HP Free space in subrack: 9 HP 1 x 2 subracks Second 84 HP (19”) subrack Controller: 15 HP 5 HV distributors (45 chs): 30 HP 1 LV distributor (1 ch): 15 HP Free space in subrack: 24 HP 1 x 2 subracks

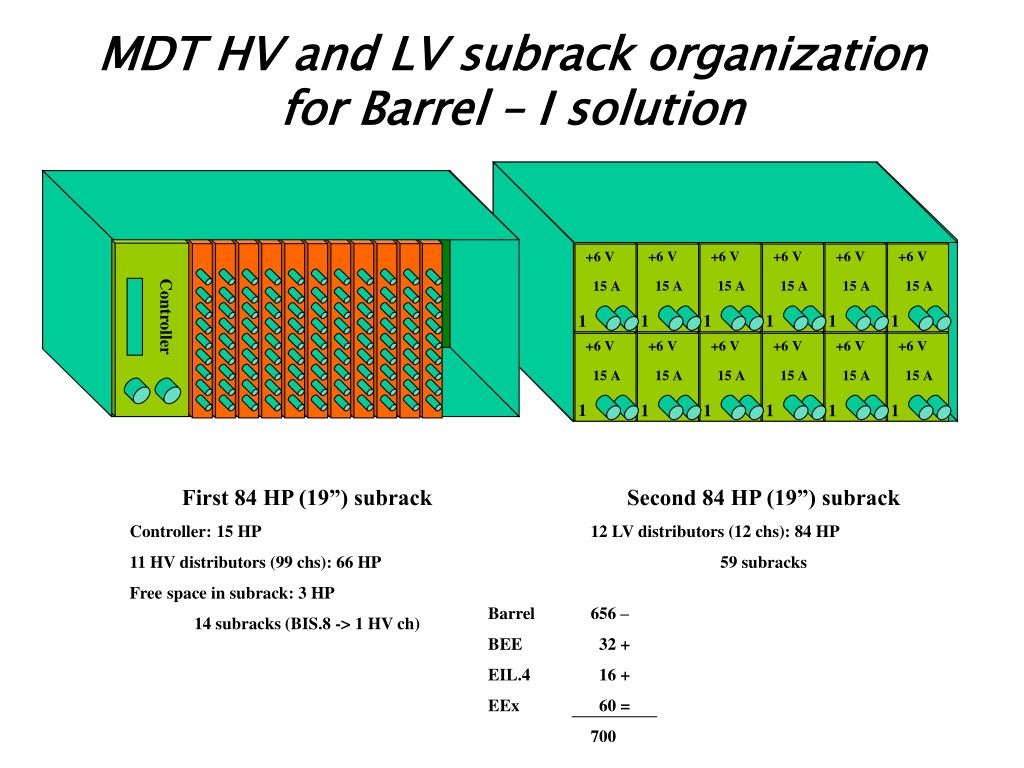

  4. Controller +6 V +6 V +6 V +6 V +6 V +6 V +6 V +6 V +6 V +6 V +6 V +6 V 15 A 15 A 15 A 15 A 15 A 15 A 15 A 15 A 15 A 15 A 15 A 15 A 1 1 1 1 1 1 1 1 1 1 1 1 MDT HV and LV subrack organization for Barrel – I solution First 84 HP (19”) subrack Controller: 15 HP 11 HV distributors (99 chs): 66 HP Free space in subrack: 3 HP 14 subracks (BIS.8 -> 1 HV ch) Second 84 HP (19”) subrack 12 LV distributors (12 chs): 84 HP 59 subracks Barrel 656 – BEE 32 + EIL.4 16 + EEx 60 = 700

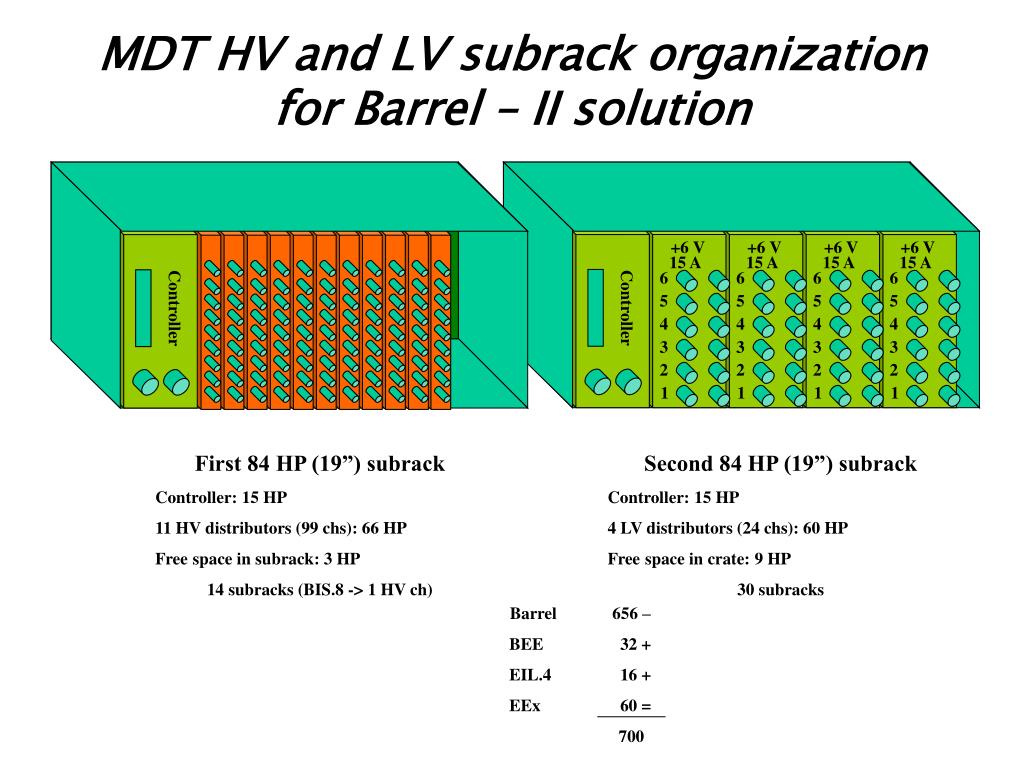

  5. Controller Controller +6 V +6 V +6 V +6 V 15 A 15 A 15 A 15 A 6 6 6 6 5 5 5 5 4 4 4 4 3 3 3 3 2 2 2 2 1 1 1 1 MDT HV and LV subrack organization for Barrel – II solution First 84 HP (19”) subrack Controller: 15 HP 11 HV distributors (99 chs): 66 HP Free space in subrack: 3 HP 14 subracks (BIS.8 -> 1 HV ch) Second 84 HP (19”) subrack Controller: 15 HP 4 LV distributors (24 chs): 60 HP Free space in crate: 9 HP 30 subracks Barrel 656 – BEE 32 + EIL.4 16 + EEx 60 = 700

  6. Controller +6 V +6 V +6 V +6 V +6 V +6 V +6 V +6 V +6 V +6 V +6 V +6 V 15 A 15 A 15 A 15 A 15 A 15 A 15 A 15 A 15 A 15 A 15 A 15 A 1 1 1 1 1 1 1 1 1 1 1 1 MDT HV and LV subrack organization for Small Wheel and BEE- I solution First 84 HP (19”) subrack Controller: 15 HP 10 HV distributors (82 chs): 60 HP Free space in subrack: 9 HP 1 x 2 subracks Second 84 HP (19”) subrack 12 LV distributors (12 chs): 84 HP 5 x 2 subracks (1 x 2 with 1 ch) Small Wheel 64 + BEE 32 + EEL.special 2 = 98

  7. Controller Controller +6 V +6 V +6 V +6 V 15 A 15 A 15 A 15 A 6 6 6 6 5 5 5 5 4 4 4 4 3 3 3 3 2 2 2 2 1 1 1 1 MDT HV and LV subrack organization for Small Wheel and BEE- II solution First 84 HP (19”) subrack Controller: 15 HP 10 HV distributors (82 chs): 60 HP Free space in subrack: 9 HP 1 x 2 subracks Second 84 HP (19”) subrack Controller: 15 HP 4 LV distributors (24 chs): 60 HP Free space in crate: 9 HP 3 x 2 subracks (1 x 2 with 1 ch) Small Wheel 64 + BEE 32 + EEL.special 2 = 98

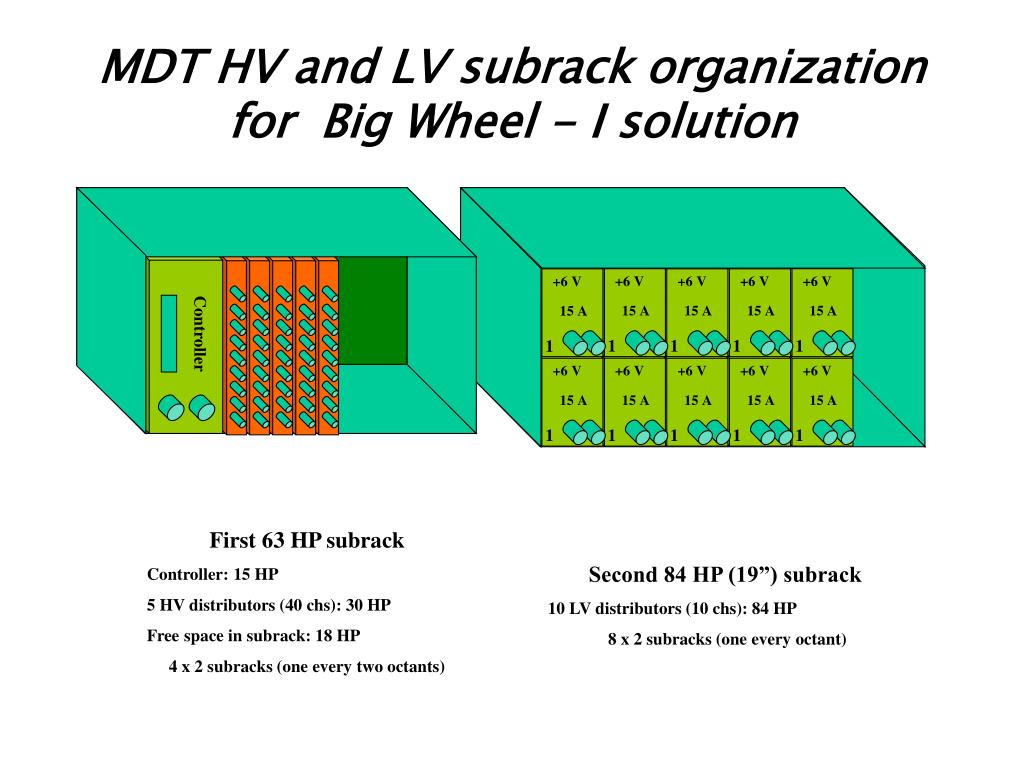

  8. Controller +6 V +6 V +6 V +6 V +6 V +6 V +6 V +6 V +6 V +6 V 15 A 15 A 15 A 15 A 15 A 15 A 15 A 15 A 15 A 15 A 1 1 1 1 1 1 1 1 1 1 MDT HV and LV subrack organization for Big Wheel - I solution First 63 HP subrack Controller: 15 HP 5 HV distributors (40 chs): 30 HP Free space in subrack: 18 HP 4 x 2 subracks (one every two octants) Second 84 HP (19”) subrack 10 LV distributors (10 chs): 84 HP 8 x 2 subracks (one every octant)

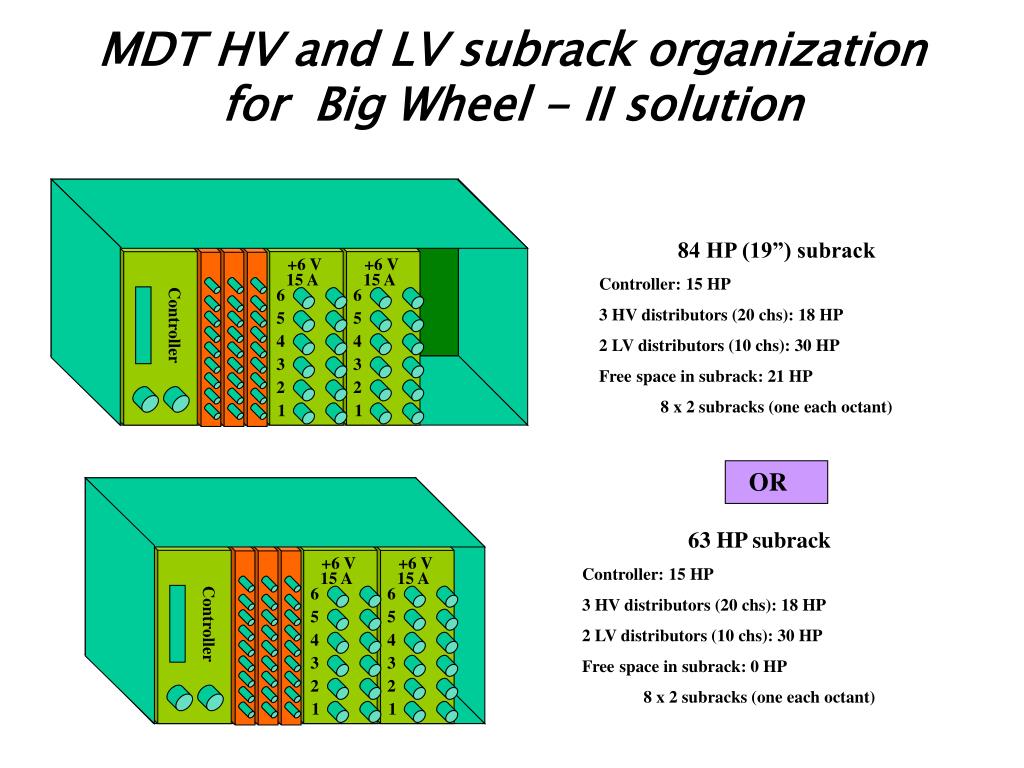

  9. Controller Controller +6 V +6 V +6 V +6 V 15 A 15 A 15 A 15 A 6 6 6 6 5 5 5 5 4 4 4 4 3 3 3 3 2 2 2 2 1 1 1 1 MDT HV and LV subrack organization for Big Wheel - II solution 84 HP (19”) subrack Controller: 15 HP 3 HV distributors (20 chs): 18 HP 2 LV distributors (10 chs): 30 HP Free space in subrack: 21 HP 8 x 2 subracks (one each octant) OR 63 HP subrack Controller: 15 HP 3 HV distributors (20 chs): 18 HP 2 LV distributors (10 chs): 30 HP Free space in subrack: 0 HP 8 x 2 subracks (one each octant)

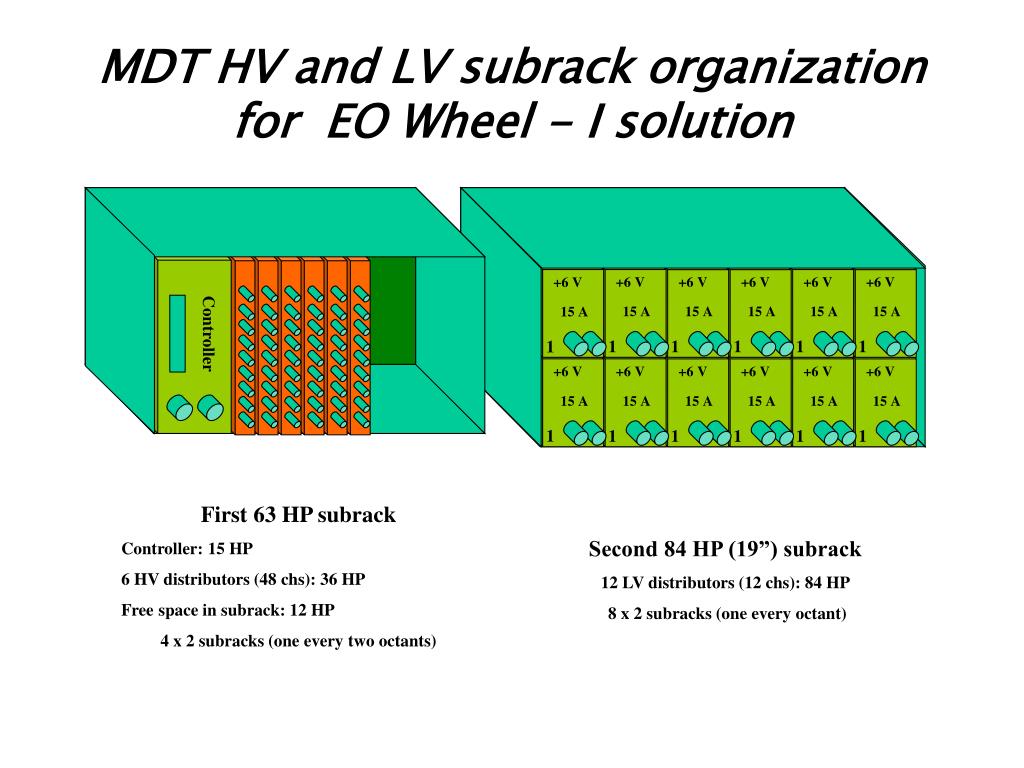

  10. Controller +6 V +6 V +6 V +6 V +6 V +6 V +6 V +6 V +6 V +6 V +6 V +6 V 15 A 15 A 15 A 15 A 15 A 15 A 15 A 15 A 15 A 15 A 15 A 15 A 1 1 1 1 1 1 1 1 1 1 1 1 MDT HV and LV subrack organization for EO Wheel - I solution First 63 HP subrack Controller: 15 HP 6 HV distributors (48 chs): 36 HP Free space in subrack: 12 HP 4 x 2 subracks (one every two octants) Second 84 HP (19”) subrack 12 LV distributors (12 chs): 84 HP 8 x 2 subracks (one every octant)

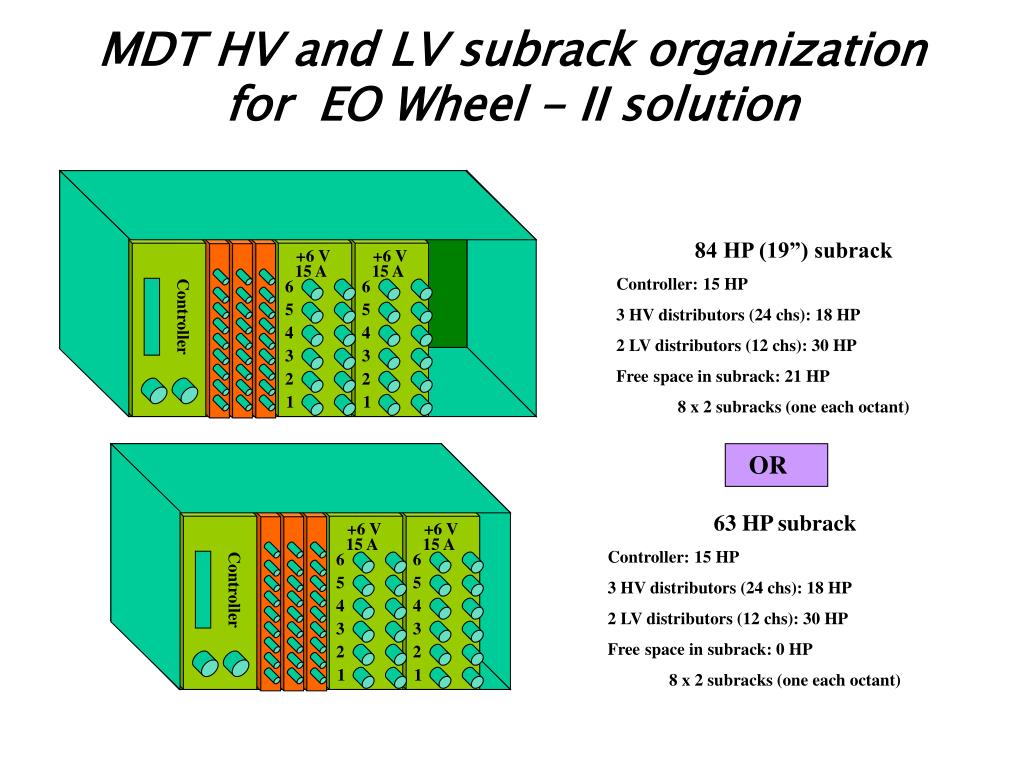

  11. Controller Controller +6 V +6 V +6 V +6 V 15 A 15 A 15 A 15 A 6 6 6 6 5 5 5 5 4 4 4 4 3 3 3 3 2 2 2 2 1 1 1 1 MDT HV and LV subrack organization for EO Wheel - II solution 84 HP (19”) subrack Controller: 15 HP 3 HV distributors (24 chs): 18 HP 2 LV distributors (12 chs): 30 HP Free space in subrack: 21 HP 8 x 2 subracks (one each octant) OR 63 HP subrack Controller: 15 HP 3 HV distributors (24 chs): 18 HP 2 LV distributors (12 chs): 30 HP Free space in subrack: 0 HP 8 x 2 subracks (one each octant)
