CARTS Architecture (Customer Assistance and Report Tracking System)

This document outlines the development of a Customer Assistance and Report Tracking System (CARTS) for Forseth Forever at North Dakota State University. It details hardware specifications including carts and display devices, outlines the wireless communication using 802.11n, and highlights software technologies like C++ and ASP.NET. A cost estimate for carts, server, and wireless infrastructure totals $300,000. The development is guided by the Function Point Estimation Model, estimating development costs at $170,000 with a total of 8,140 lines of C# code.

libby
Télécharger la présentation

CARTS Architecture (Customer Assistance and Report Tracking System)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

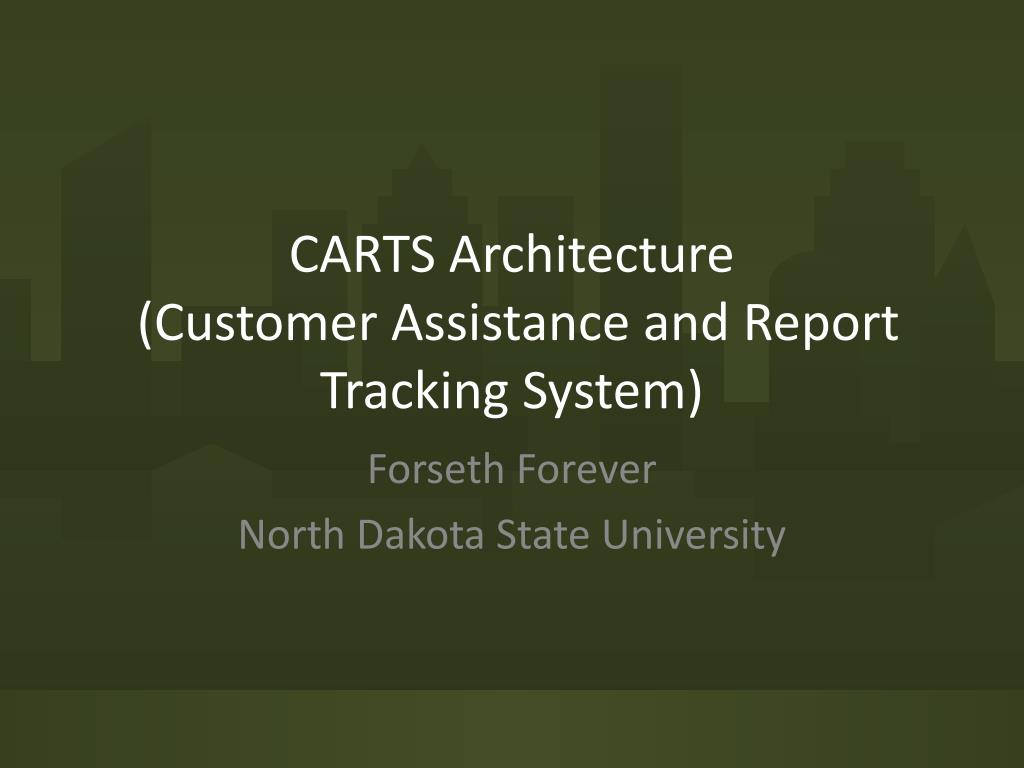

  1. CARTS Architecture (Customer Assistance and Report Tracking System) Forseth Forever North Dakota State University

  2. Specific Hardware • Cart • Display Device • Track • Wireless • 802.11n

  3. Languages • Cart Display • C++ • Website • ASP.NET • Logic and Communication • C#

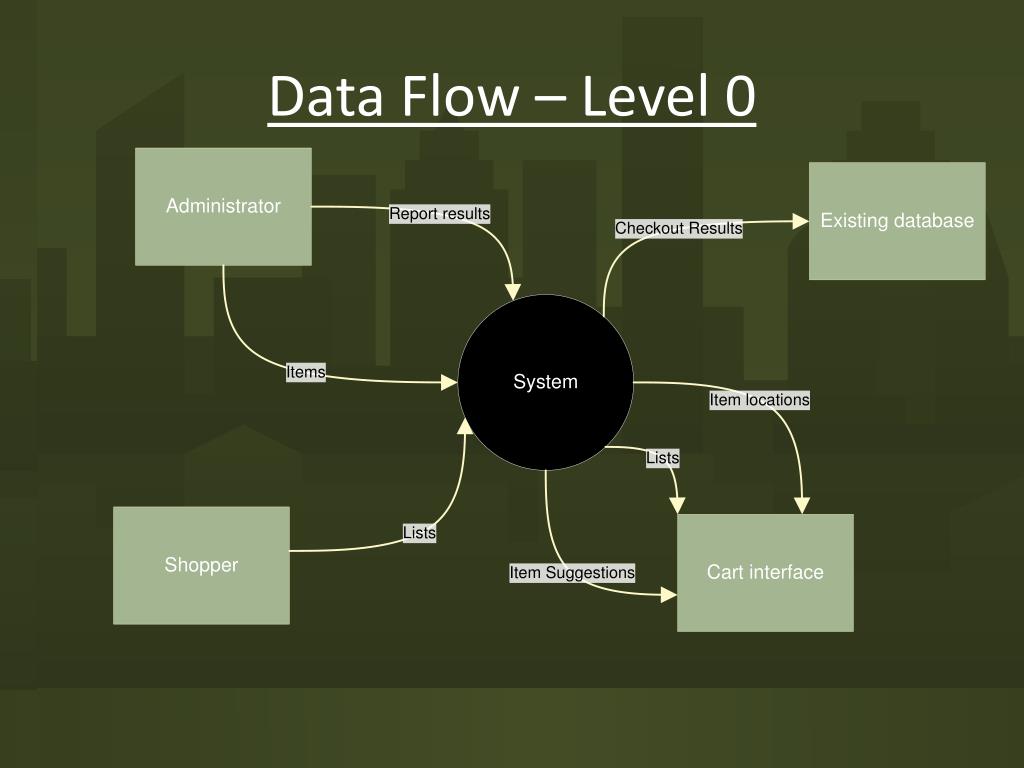

  4. Data Flow – Level 0

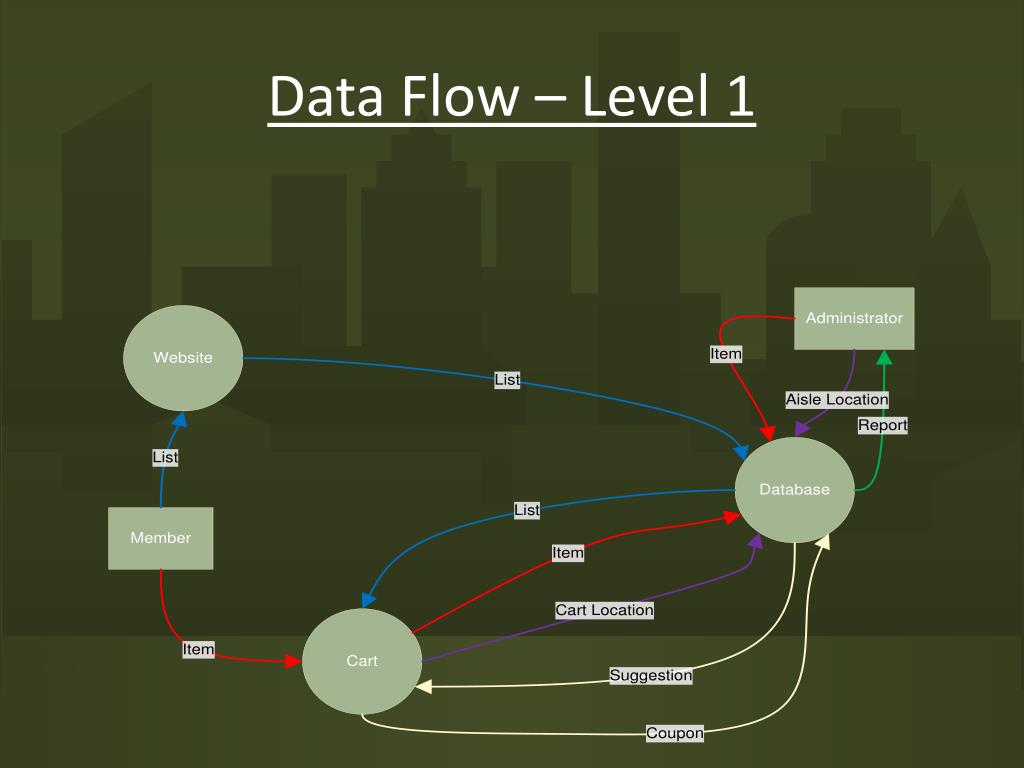

  5. Data Flow – Level 1

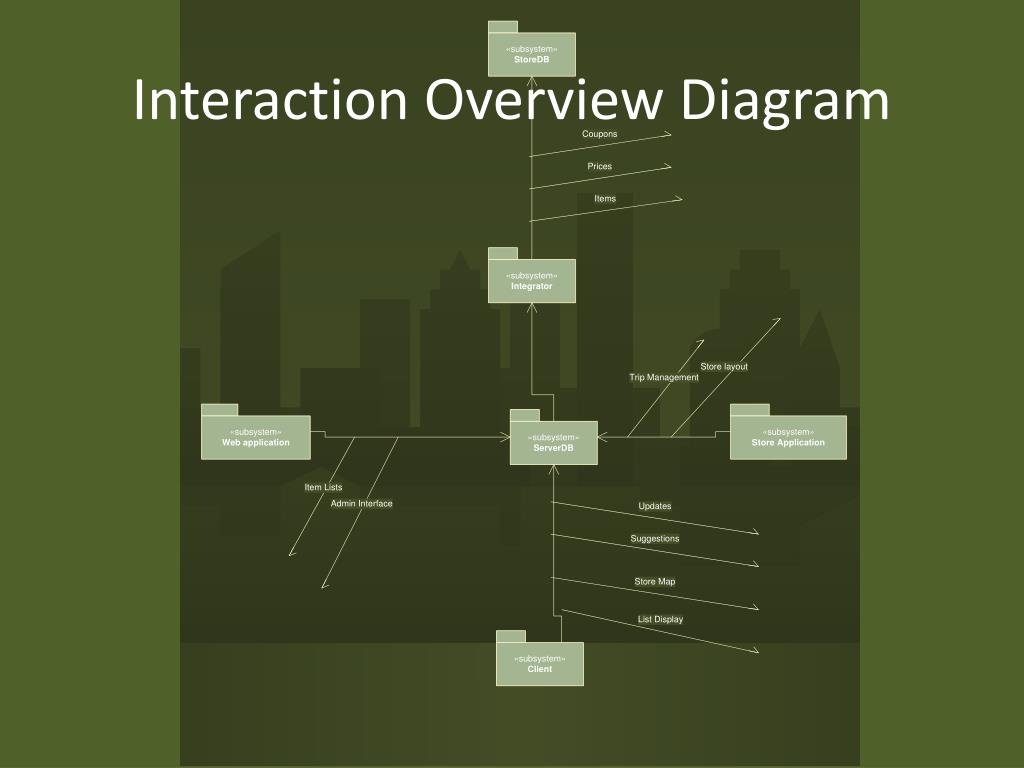

  6. Interaction Overview Diagram

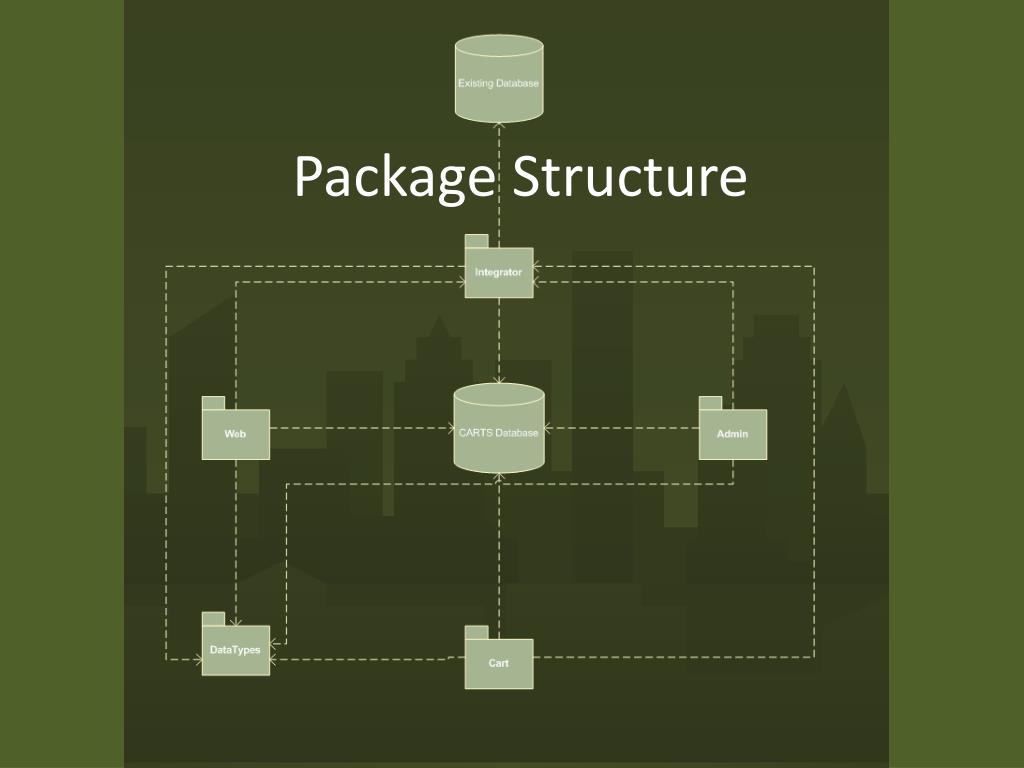

  7. Package Structure

  8. Cart Package Structure

  9. Web Package Structure

  10. Admin Package Structure

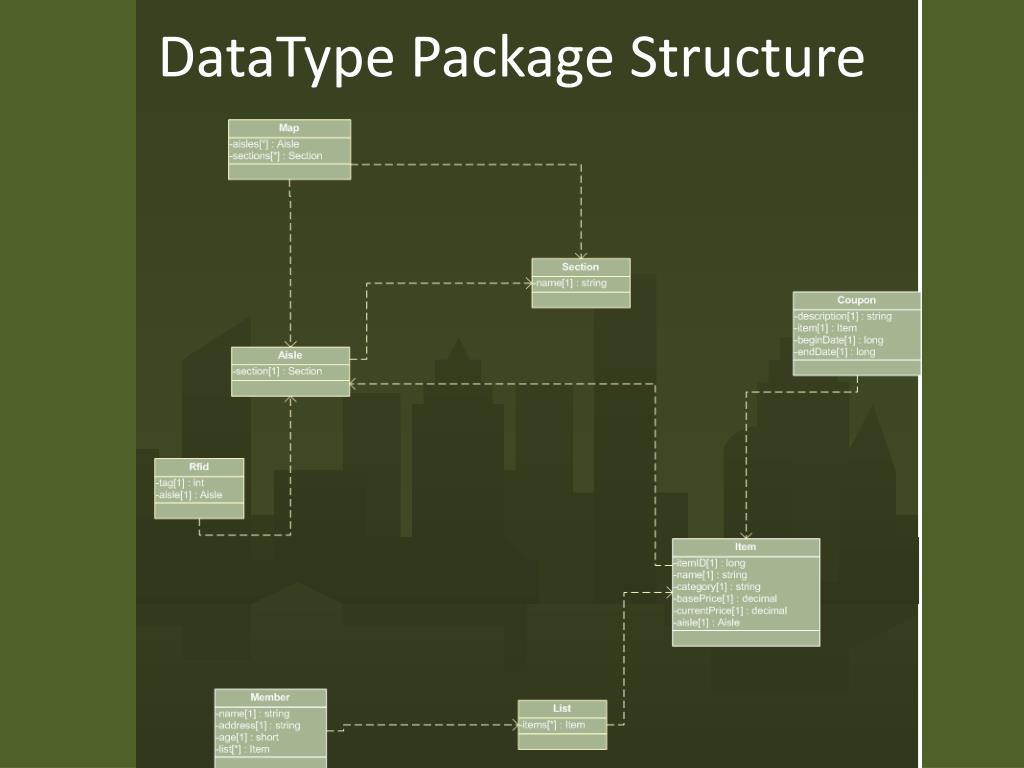

  11. DataType Package Structure

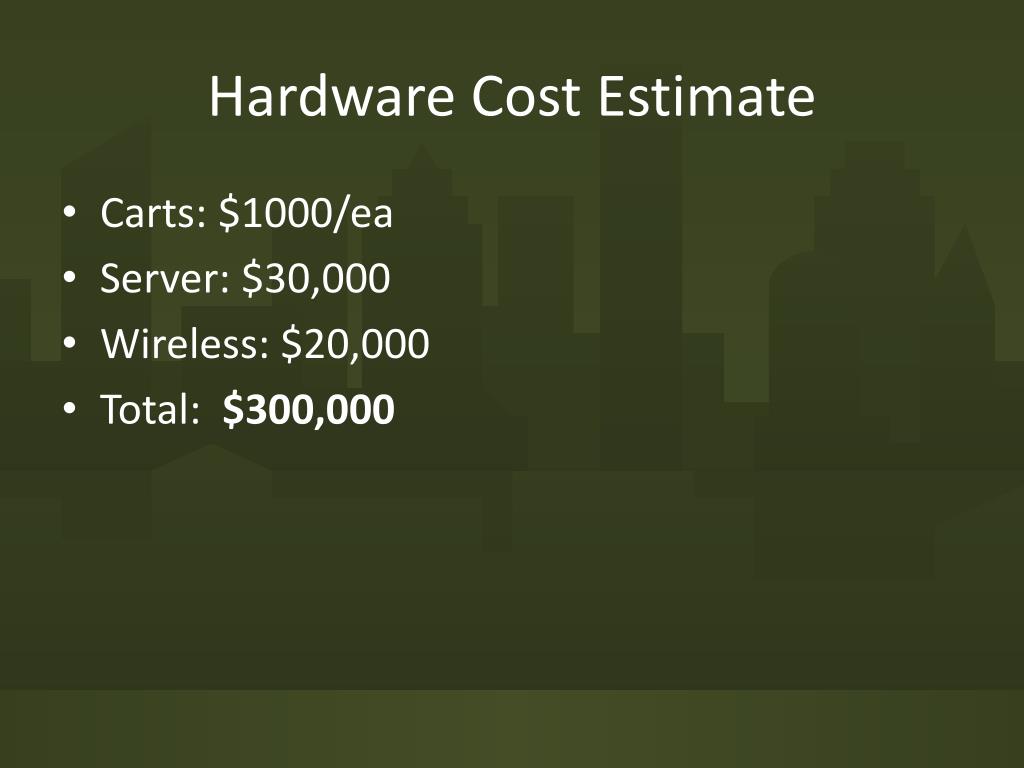

  12. Hardware Cost Estimate • Carts: $1000/ea • Server: $30,000 • Wireless: $20,000 • Total: $300,000

  13. Development Cost Estimate • Function Point Estimation Model • IBM - Allen Albrecht • Total Unadjusted Function Points: 197 • Adjusted processing Complexity: 0.75 • Total Adjusted Function Points: 148 • Total lines of C# code: 8140 • Person-months: 11.4 • Development cost: $170,000
