  1. Command: _insert  Specify insertion point or [Scale/X/Y/Z/Rotate/PScale/PX/PY/PZ/PRotate]: 65,40 Command:

  2. “Block”-ul patrulater

  3. Command: _insert  Specify insertion point or [Scale/X/Y/Z/Rotate/PScale/PX/PY/PZ/PRotate]: x  Specify X scale factor: 2  Specify insertion point: 50,80  Command:

  4. Command: _insert  Specify insertion point or [Scale/X/Y/Z/Rotate/PScale/PX/PY/PZ/PRotate]: s  Specify scale factor for XYZ axes: 1.3  Specify insertion point: 50,30  Command:

  5. Command: _insert  Specify insertion point or [Scale/X/Y/Z/Rotate/PScale/PX/PY/PZ/PRotate]: x  Specify X scale factor: 1.5  Specify insertion point: 50,70  Command:

  6. Command: _insert  Specify insertion point or [Scale/X/Y/Z/Rotate/PScale/PX/PY/PZ/PRotate]: y  Specify Y scale factor: 1.5  Specify insertion point: 50,30  Command:

  7. Command: _insert  Specify insertion point or [Scale/X/Y/Z/Rotate/PScale/PX/PY/PZ/PRotate]: r  Specify rotation angle: 45  Specify insertion point: 50,30  Command:

  8. Command: -block  Enter block name or [?]: simb-rug  Specify insertion base point: 50,40  Select objects: 1 found Select objects: 1 found, 2 total Select objects:  Command:

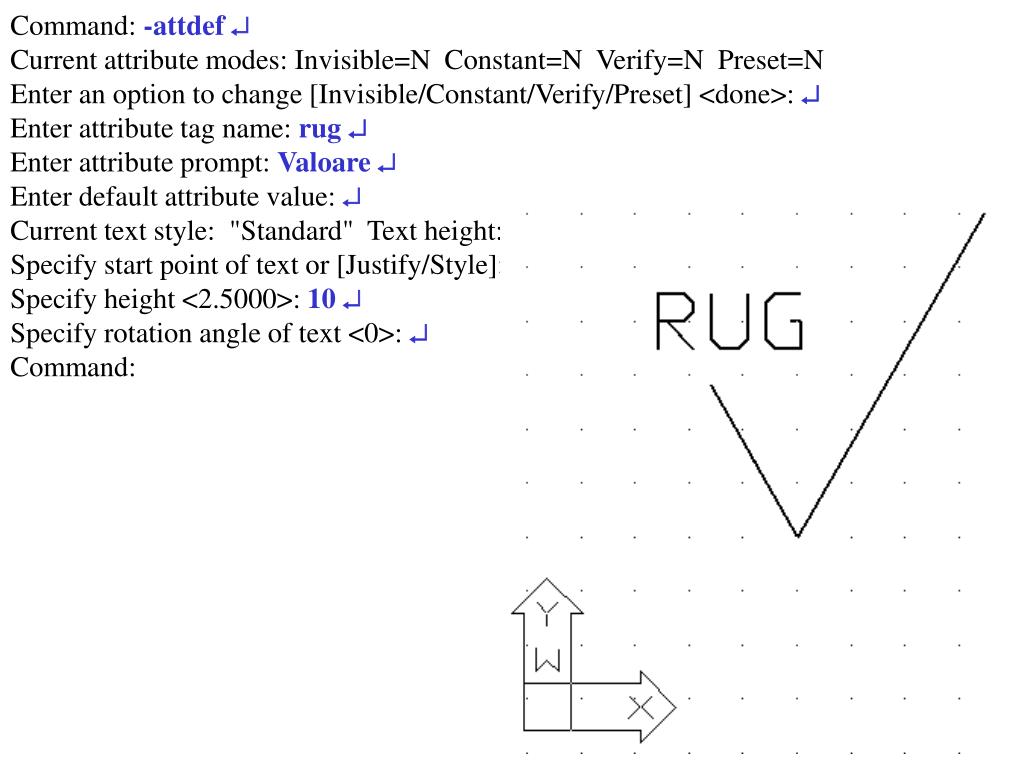

  9. Command: -attdef  Current attribute modes: Invisible=N Constant=N Verify=N Preset=N Enter an option to change [Invisible/Constant/Verify/Preset] <done>:  Enter attribute tag name: rug  Enter attribute prompt: Valoare  Enter default attribute value:  Current text style: "Standard" Text height: 2.5 Specify start point of text or [Justify/Style]: 24,75  Specify height <2.5000>: 10  Specify rotation angle of text <0>:  Command:

  10. Command: -attedit  Edit attributes one at a time? [Yes/No] <Y>:  Enter block name specification <*>:  Enter attribute tag specification <*>:  Enter attribute value specification <*>:  Select Attributes:  1 found Select Attributes:  1 attributes selected. Enter an option [Value/Position/Height/Angle/Style/Layer/Color/Next] <N>: v  Enter type of value modification [Change/Replace] <R>:  Enter new attribute value: Ra6,3  Enter an option [Value/Position/Height/Angle/Style/Layer/Color/Next] <N>:  Command:

  11. Command: -attedit  Edit attributes one at a time? [Yes/No] <Y>:  Enter block name specification <*>:  Enter attribute tag specification <*>:  Enter attribute value specification <*>:  Select Attributes:  1 found Select Attributes:  1 attributes selected. Enter an option [Value/Position/Height/Angle/Style/Layer/Color/Next] <N>: s  Enter new text style <Standard>: A2008  Enter an option [Value/Position/Height/Angle/Style/Layer/Color/Next] <N>: c  Enter new color name or value <BYLAYER>: 5  Enter an option [Value/Position/Height/Angle/Style/Layer/Color/Next] <N>:  Command:

  12. Command: -attedit  Edit attributes one at a time? [Yes/No] <Y>:  Enter block name specification <*>:  Enter attribute tag specification <*>:  Enter attribute value specification <*>:  Select Attributes:  1 found Select Attributes:  1 attributes selected. Enter an option [Value/Position/Height/Angle/Style/Layer/Color/Next] <N>: p  Specify new text insertion point <no change>: @-20,0  Enter an option [Value/Position/Height/Angle/Style/Layer/Color/Next] <N>:  Command:

  13. Command: -attedit  Edit attributes one at a time? [Yes/No] <Y>:  Enter block name specification <*>:  Enter attribute tag specification <*>:  Enter attribute value specification <*>:  Select Attributes:  1 found Select Attributes:  1 attributes selected. Enter an option [Value/Position/Height/Angle/Style/Layer/Color/Next] <N>: a  Specify new rotation angle <180>: 0

  14. Enter an option [Value/Position/Height/Angle/Style/Layer/Color/Next] <N>: p  Specify new text insertion point <no change>: 55,30  Enter an option [Value/Position/Height/Angle/Style/Layer/Color/Next] <N>:  Command:

  15. Command: -attdef  Current attribute modes:  Invisible=N Constant=N Verify=N Preset=N Lock position=Y Enter an option to change [Invisible/Constant/Verify/Preset/Lock position] <done>:  Enter attribute tag name: Des  Enter attribute prompt: Desenat  Enter default attribute value: Current text style: "A508" Text height: 5.0000 Specify start point of text or [Justify/Style]: 2,1  Specify rotation angle of text <0>: Command:

  16. Command:  -ATTDEF Current attribute modes:  Invisible=N Constant=N Verify=N Preset=N Lock position=Y Enter an option to change [Invisible/Constant/Verify/Preset/Lock position] <done>:  Enter attribute tag name: Data  Enter attribute prompt: Finalzare  Enter default attribute value:  Current text style: "A508" Text height: 5.0000 Specify start point of text or [Justify/Style]: 67,1  Specify rotation angle of text <0>:  Command:

  17. Command: -ATTDEF Current attribute modes:  Invisible=N Constant=N Verify=N Preset=N Lock position=Y Enter an option to change [Invisible/Constant/Verify/Preset/Lock position] <done>:  Enter attribute tag name: Ver  Enter attribute prompt: Verificat  Enter default attribute value:  Current text style: "A508" Text height: 5.0000 Specify start point of text or [Justify/Style]: 107,1  Specify rotation angle of text <0>:  Command:

  18. Command: -block  Enter block name or [?]: indic  Specify insertion base point: 170,0  Select objects: w  Specify first corner: -5,-5  Specify opposite corner: 175,15  9 found Select objects:  Command: Command: -insert  Enter block name or [?] <Indicator>: indic  Units: Millimeters Conversion: 1.0000  Specify insertion point or [Basepoint/Scale/X/Y/Z/Rotate/PScale/PX/PY/PZ/PRotate]: 170,0  Enter X scale factor, specify opposite corner, or [Corner/XYZ] <1>:  Enter Y scale factor <use X scale factor>:  Specify rotation angle <0>:  Enter attribute values Verificat: Popescu Nicolae  Finalizare: 20.03.2006  Desenat: Pop Gheorghe  Command:

  19. Command: m  MOVE Select objects:  1 found Select objects: 

  20. Command: m  MOVE Select objects: 1 found Select objects:  Specify base point or [Displacement] <Displacement>: end  of Specify second point or <use first point as displacement>: cen  of

  21. Command: m  MOVE Select objects: 1 found Select objects: Specify base point or [Displacement] <Displacement>:  Specify displacement <80.0000, 40.0000, 0.0000>: 120,50  Command:

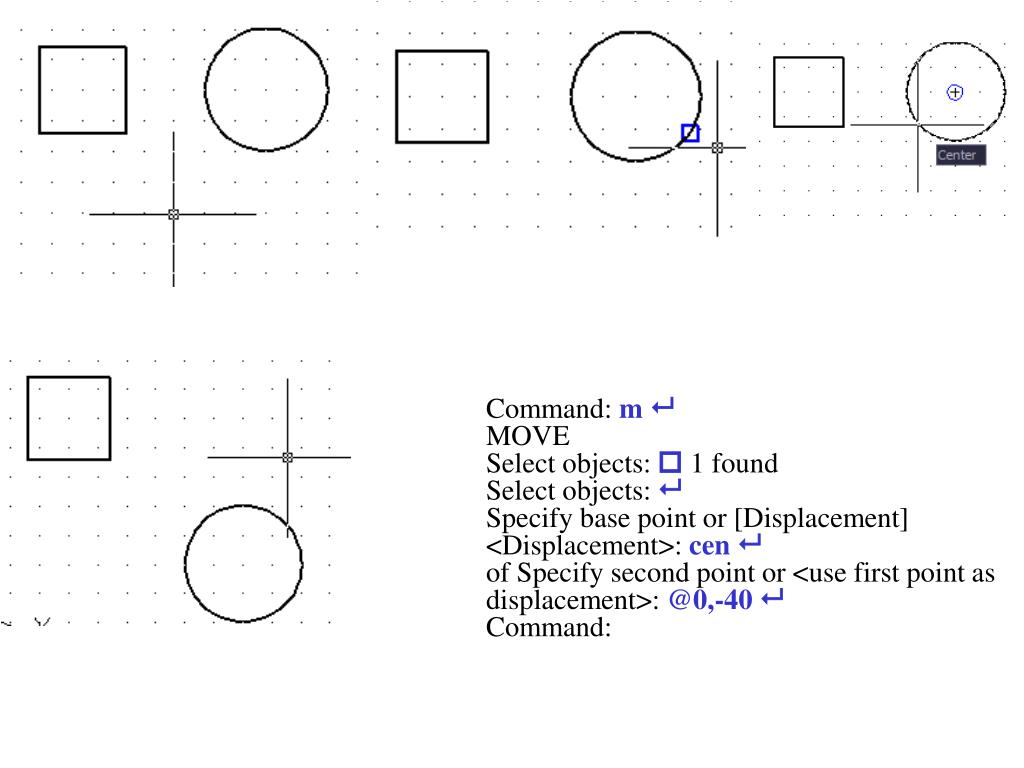

  22. Command: m  MOVE Select objects:  1 found Select objects:  Specify base point or [Displacement] <Displacement>: cen  of Specify second point or <use first point as displacement>: @0,-40  Command:

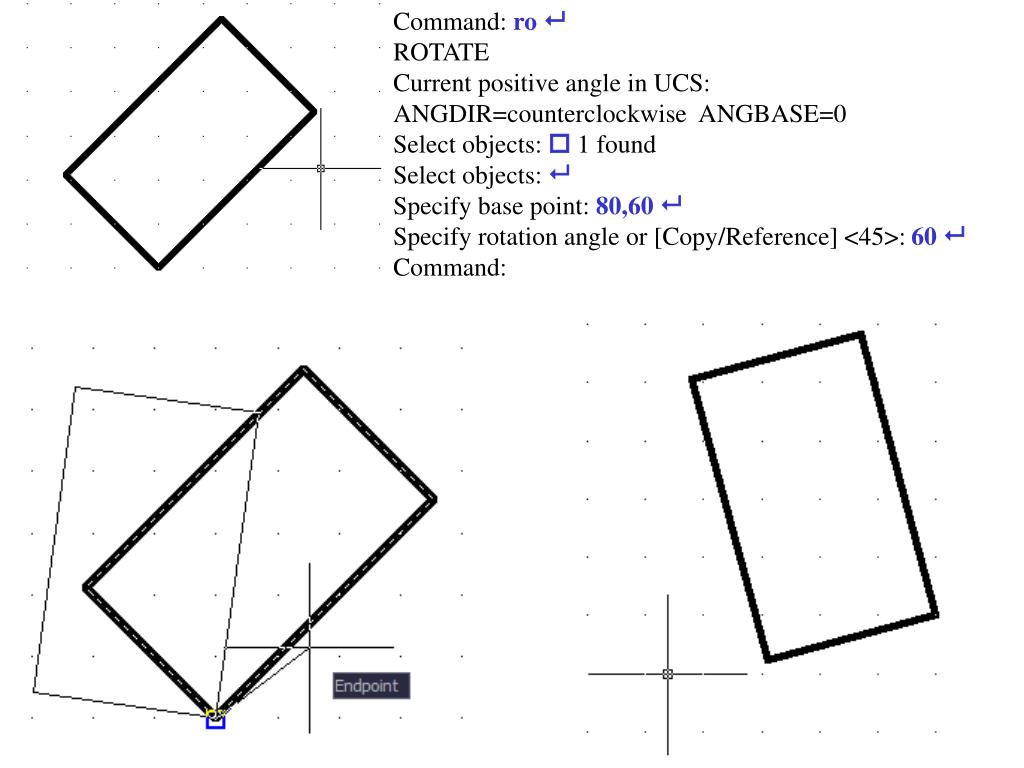

  23. Command: ro  ROTATE Current positive angle in UCS: ANGDIR=counterclockwise ANGBASE=0 Select objects:  1 found Select objects:  Specify base point: 80,60  Specify rotation angle or [Copy/Reference] <45>: 60  Command:

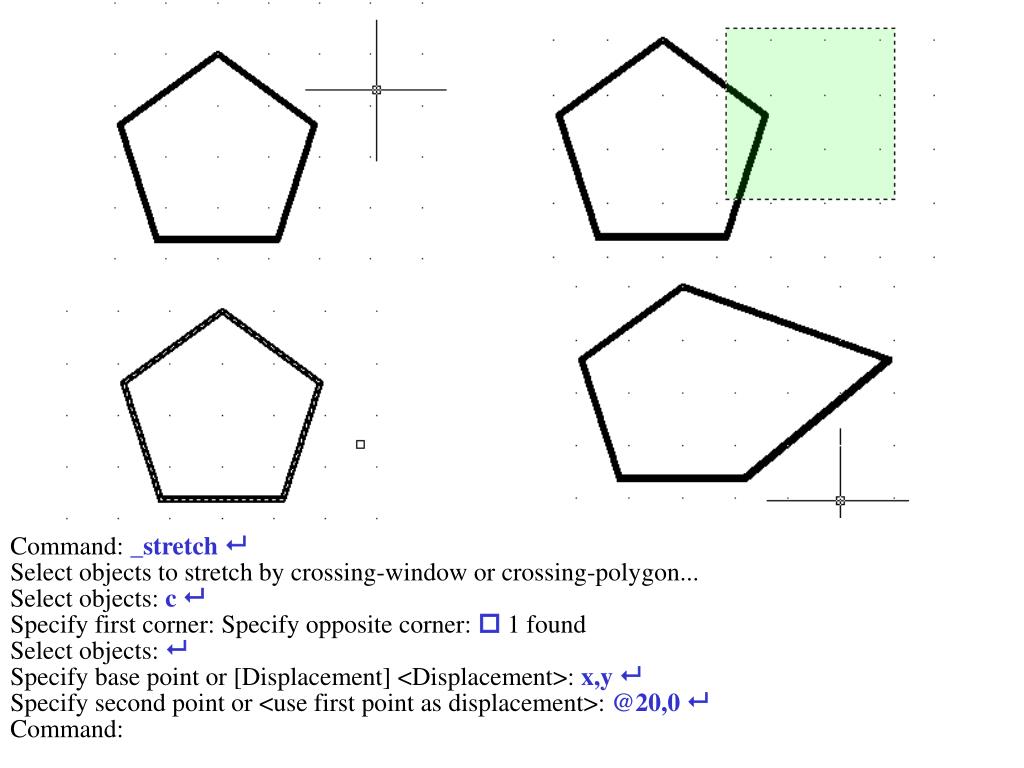

  24. Command: _stretch  Select objects to stretch by crossing-window or crossing-polygon... Select objects: c  Specify first corner: Specify opposite corner:  1 found Select objects:  Specify base point or [Displacement] <Displacement>: x,y  Specify second point or <use first point as displacement>: @20,0  Command:

  25. Command: _scale  Select objects: 1  found Select objects:  Specify base point: end  Of [varful din stanga jos] Specify scale factor or [Copy/Reference] <1.0000>: 1.5  Command:

  26. Command: _scale  Select objects:  1 found Select objects:  Specify base point: 0,0  Specify scale factor or [Copy/Reference] <1.0000>: 1.5  Command:
