  1. About Us • AdvOSS is a Canadian company and a developer and vendor of different high technology solutions for Communications Service Providers. • Target Markets • Telecom companies • Internet Service Providers (Wireline and Wireless) • Target Company Size • Tier-1 Operators • Tier-2 Operators

  2. AdvOSSDeployment Models

  3. AdvOSS Deployment Models AdvOSS Deployment models for different Tiers of Service Providers

  4. AdvOSS Deployment ModelsSmall to Medium Scale Deployments

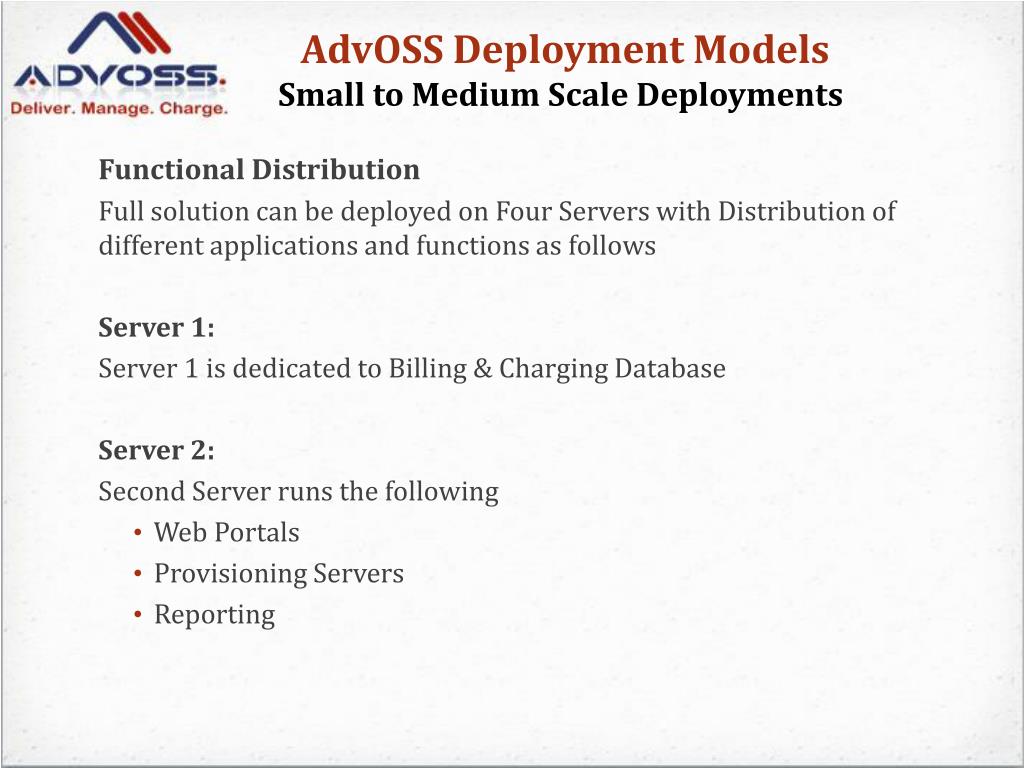

  5. AdvOSS Deployment ModelsSmall to Medium Scale Deployments Functional Distribution Full solution can be deployed on Four Servers with Distribution of different applications and functions as follows Server 1: Server 1 is dedicated to Billing & Charging Database Server 2: Second Server runs the following • Web Portals • Provisioning Servers • Reporting

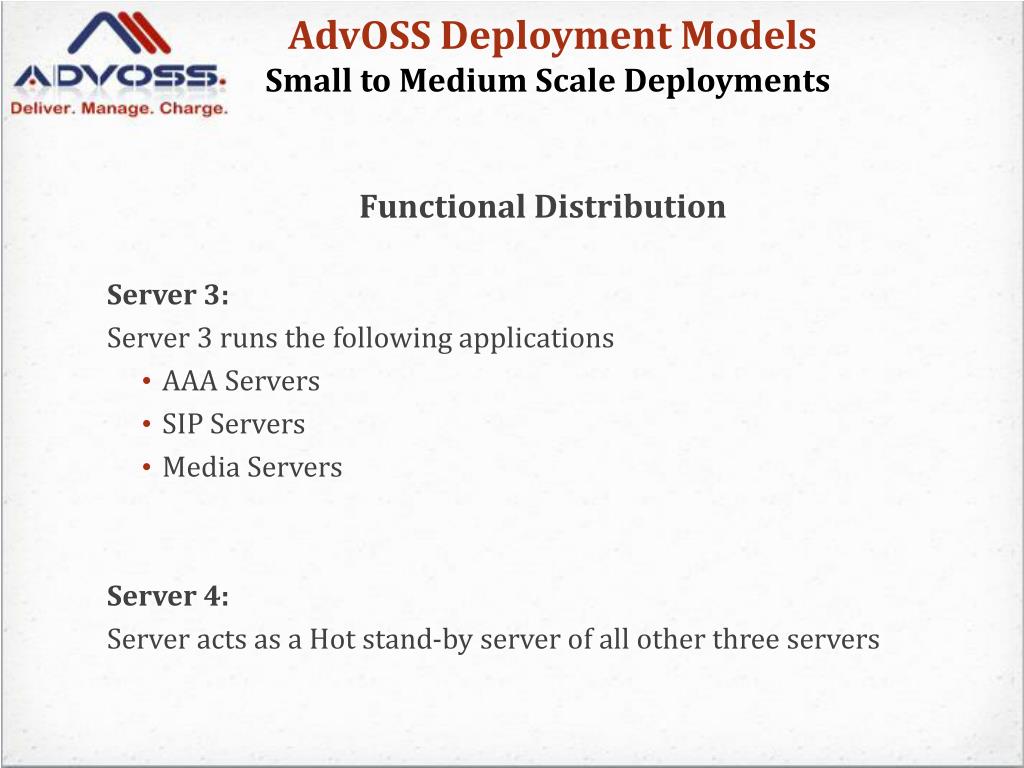

  6. AdvOSS Deployment ModelsSmall to Medium Scale Deployments Functional Distribution Server 3: Server 3 runs the following applications • AAA Servers • SIP Servers • Media Servers Server 4: Server acts as a Hot stand-by server of all other three servers

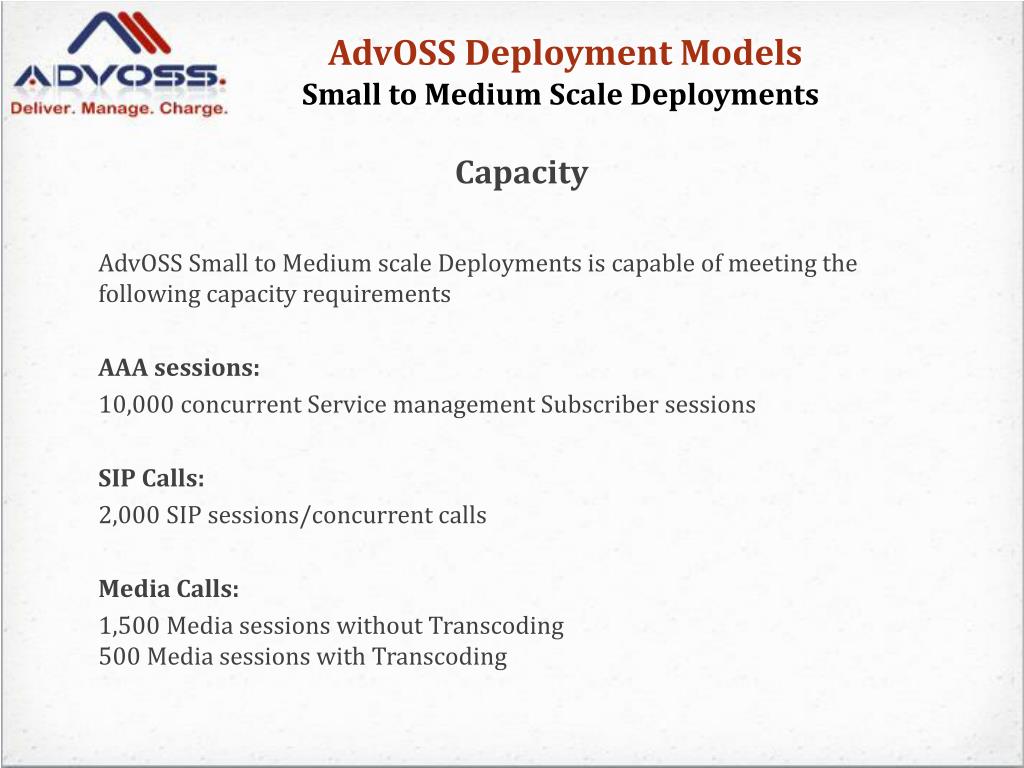

  7. AdvOSS Deployment ModelsSmall to Medium Scale Deployments Capacity AdvOSS Small to Medium scale Deployments is capable of meeting the following capacity requirements AAA sessions: 10,000 concurrent Service management Subscriber sessions SIP Calls: 2,000 SIP sessions/concurrent calls Media Calls: 1,500 Media sessions without Transcoding500 Media sessions with Transcoding

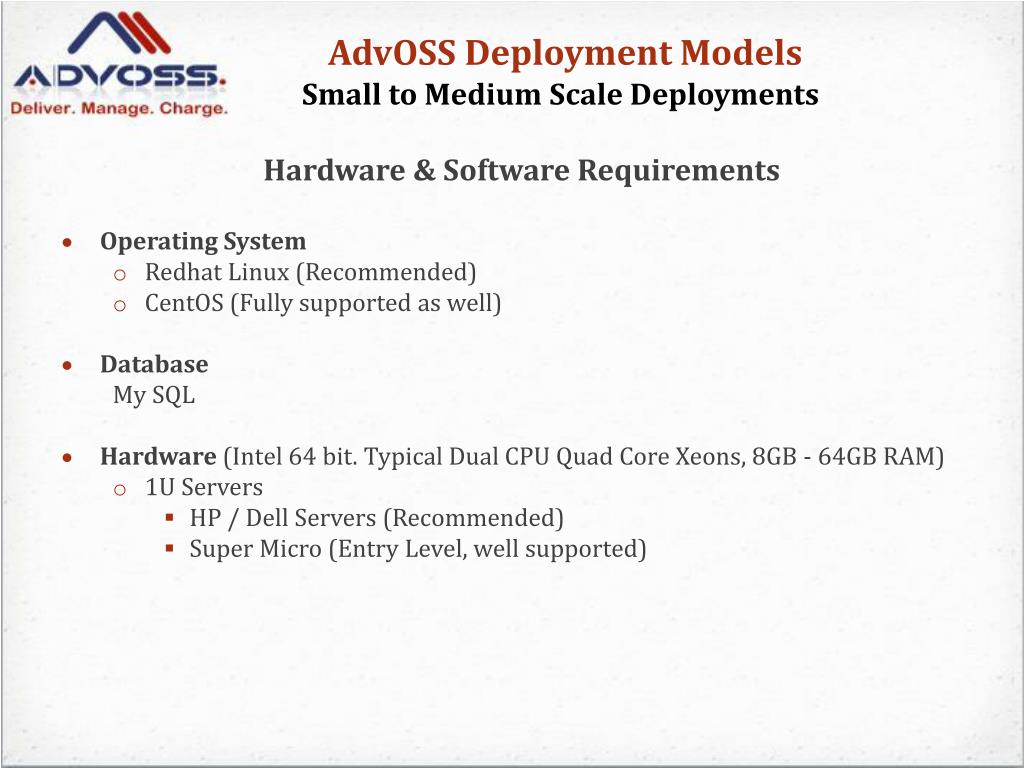

  8. AdvOSS Deployment ModelsSmall to Medium Scale Deployments Hardware & Software Requirements • Operating System • Redhat Linux (Recommended) • CentOS (Fully supported as well) • Database My SQL • Hardware(Intel 64 bit. Typical Dual CPU Quad Core Xeons, 8GB - 64GB RAM) • 1U Servers • HP / Dell Servers (Recommended) • Super Micro (Entry Level, well supported)

  9. AdvOSS Deployment ModelsSmall to Medium Scale Deployments • Appliance Option (4 Servers) • 1U Super Micro Servers • 64 Bit Dual CPU Quad Core • 16GB RAM • 2 x 1TB HDD in RAID 1 • Dual Gigabit LAN Cards • Redundant Power Supply (Optional) • CentOS Operating System • MySQL Database • 1 year warranty ex San Jose, USA • Pre-Configured and shipped by AdvOSS

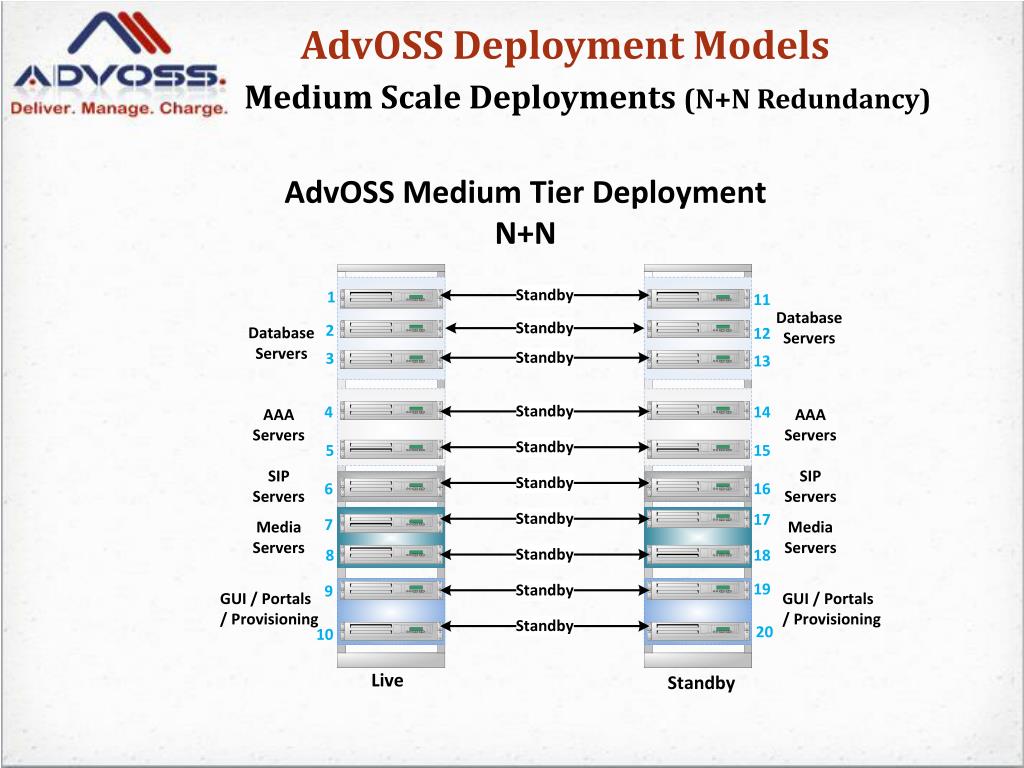

  10. AdvOSS Deployment ModelsMedium Scale Deployments (N+N Redundancy)

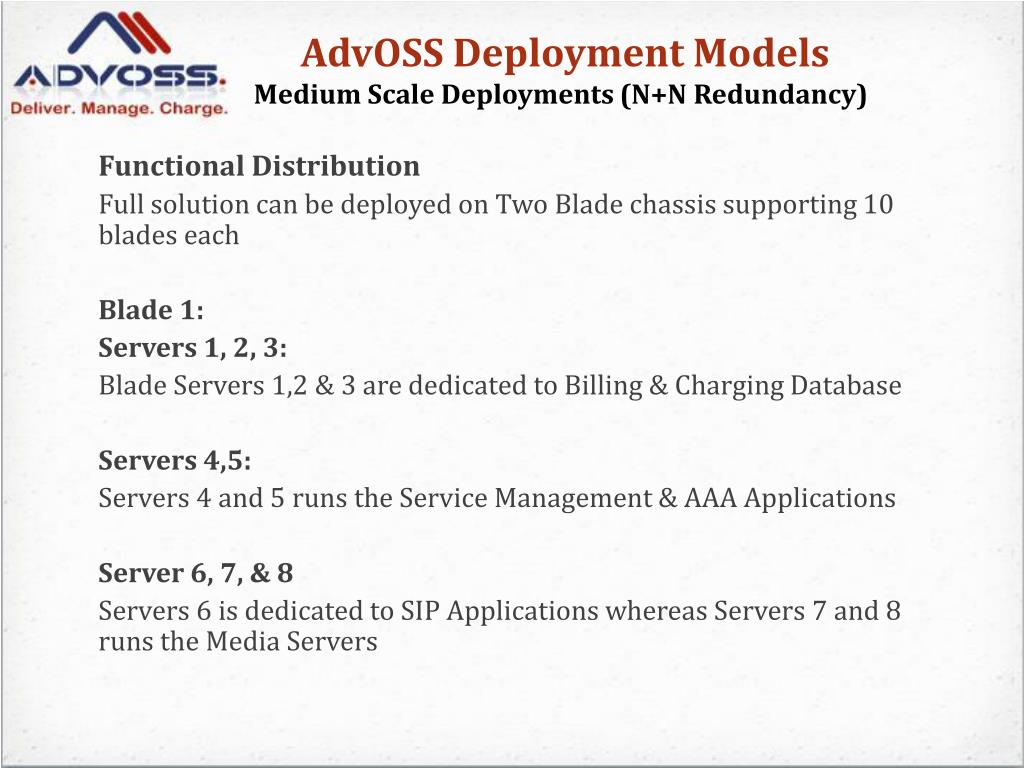

  11. AdvOSS Deployment ModelsMedium Scale Deployments (N+N Redundancy) Functional Distribution Full solution can be deployed on Two Blade chassis supporting 10 blades each Blade 1: Servers 1, 2, 3: Blade Servers 1,2 & 3 are dedicated to Billing & Charging Database Servers 4,5: Servers 4 and 5 runs the Service Management & AAA Applications Server 6, 7, & 8 Servers 6 is dedicated to SIP Applications whereas Servers 7 and 8 runs the Media Servers

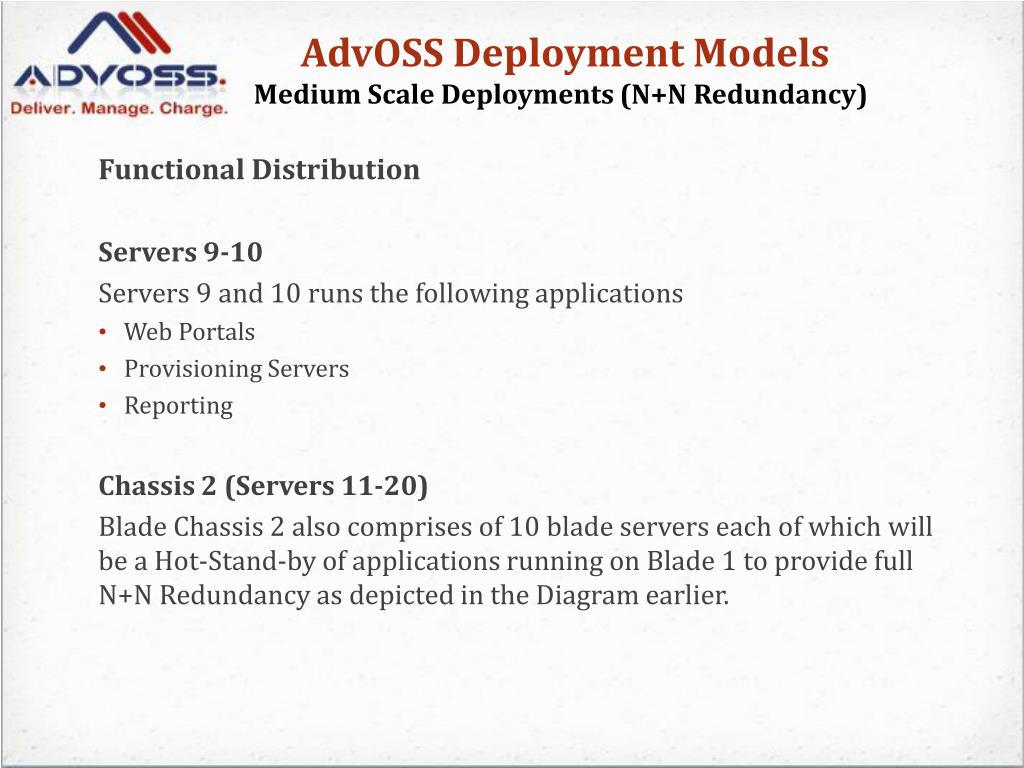

  12. AdvOSS Deployment ModelsMedium Scale Deployments (N+N Redundancy) Functional Distribution Servers 9-10 Servers 9 and 10 runs the following applications • Web Portals • Provisioning Servers • Reporting Chassis 2 (Servers 11-20) Blade Chassis 2 also comprises of 10 blade servers each of which will be a Hot-Stand-by of applications running on Blade 1 to provide full N+N Redundancy as depicted in the Diagram earlier.

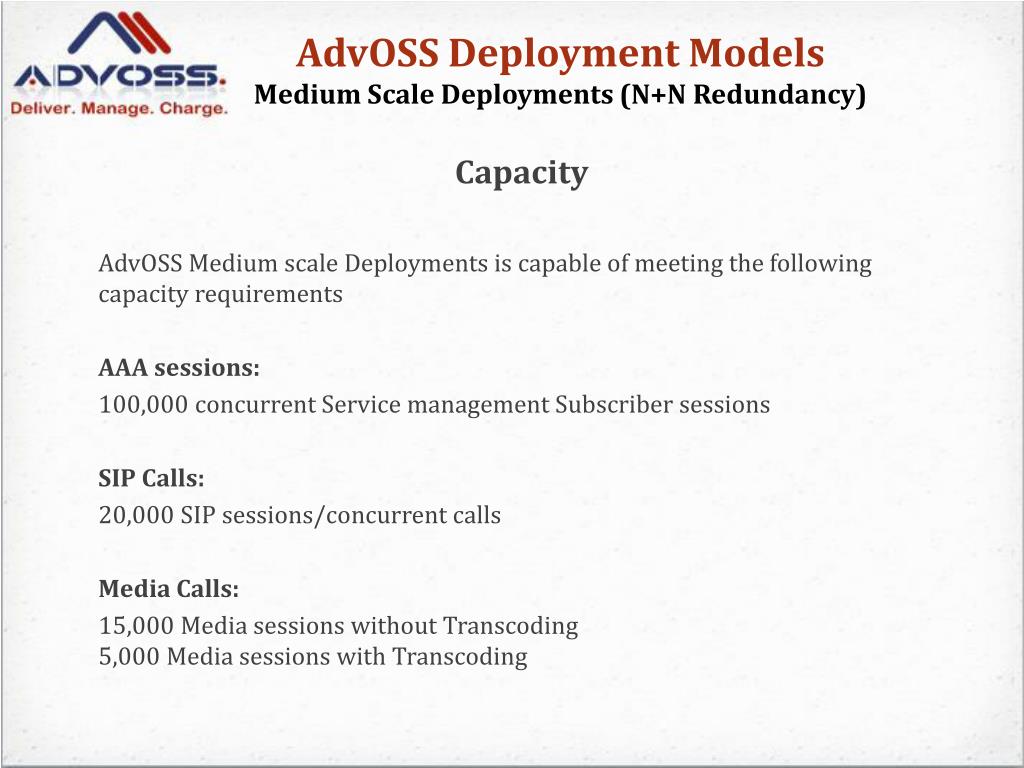

  13. AdvOSS Deployment ModelsMedium Scale Deployments (N+N Redundancy) Capacity AdvOSS Medium scale Deployments is capable of meeting the following capacity requirements AAA sessions: 100,000 concurrent Service management Subscriber sessions SIP Calls: 20,000 SIP sessions/concurrent calls Media Calls: 15,000 Media sessions without Transcoding5,000 Media sessions with Transcoding

  14. AdvOSS Deployment ModelsMedium Scale Deployments (N+1 Redundancy)

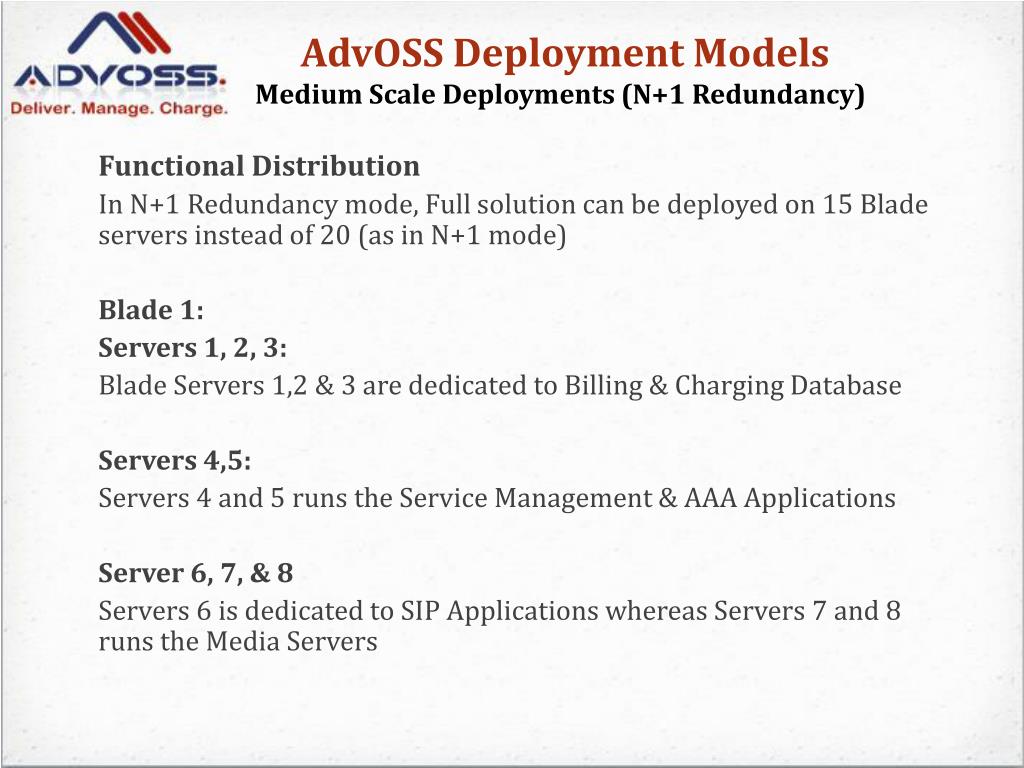

  15. AdvOSS Deployment ModelsMedium Scale Deployments (N+1 Redundancy) Functional Distribution In N+1 Redundancy mode, Full solution can be deployed on 15 Blade servers instead of 20 (as in N+1 mode) Blade 1: Servers 1, 2, 3: Blade Servers 1,2 & 3 are dedicated to Billing & Charging Database Servers 4,5: Servers 4 and 5 runs the Service Management & AAA Applications Server 6, 7, & 8 Servers 6 is dedicated to SIP Applications whereas Servers 7 and 8 runs the Media Servers

  16. AdvOSS Deployment ModelsMedium Scale Deployments (N+1 Redundancy) Functional Distribution Servers 9-10 Servers 9 and 10 runs the following applications • Web Portals • Provisioning Servers • Reporting

  17. AdvOSS Deployment ModelsMedium Scale Deployments (N+1 Redundancy) Functional Distribution: Hot Stand-by Servers Server 11: Server 11 is Hot Standby of Billing & Charging DB Servers Server 12: Server 12 acting as Hot Stand-by of AAA Servers Server 13: Server 13 will act as a Hot Stand-by of SIP Server Server 14: Hot Stand-by of Media Servers Server 15: Hot Stand-by of GUI & Provisioning Servers

  18. AdvOSS Deployment ModelsMedium Scale Deployments Hardware & Software Requirements • Operating System • Redhat Linux (Recommended) • CentOS (Fully supported as well) • Database My SQL Oracle (Recommended) • Hardware(Intel 64 bit. Typical Dual CPU Quad Core Xeons, 8GB - 64GB RAM) • 1U Servers • HP / Dell Servers (Recommended)

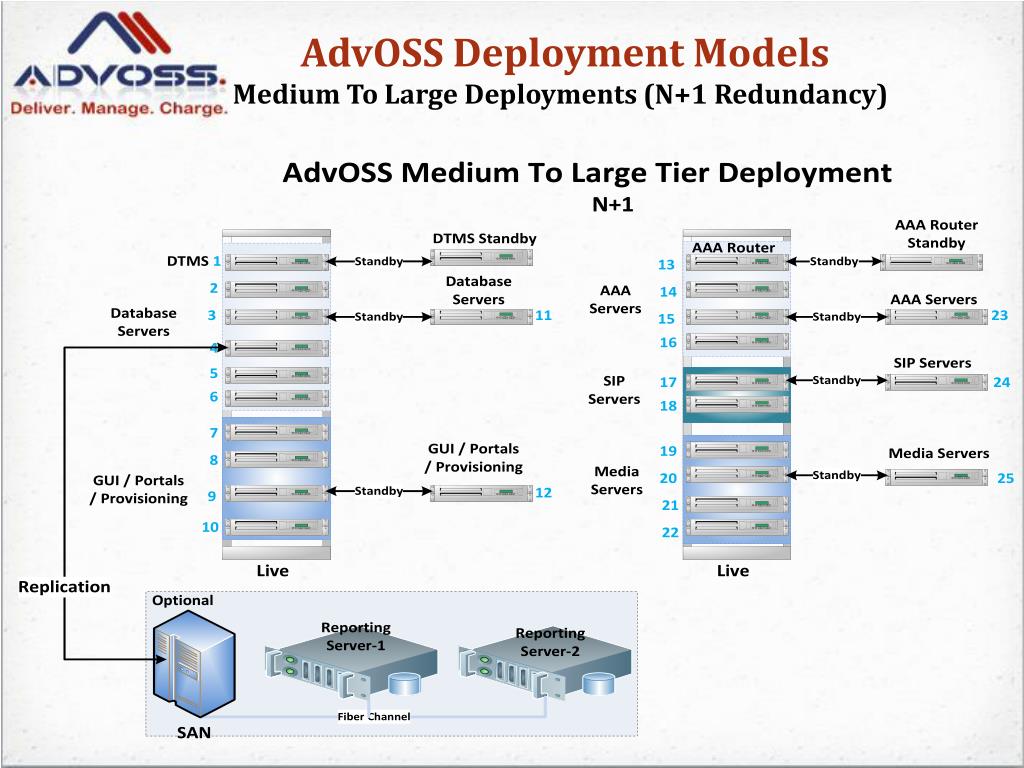

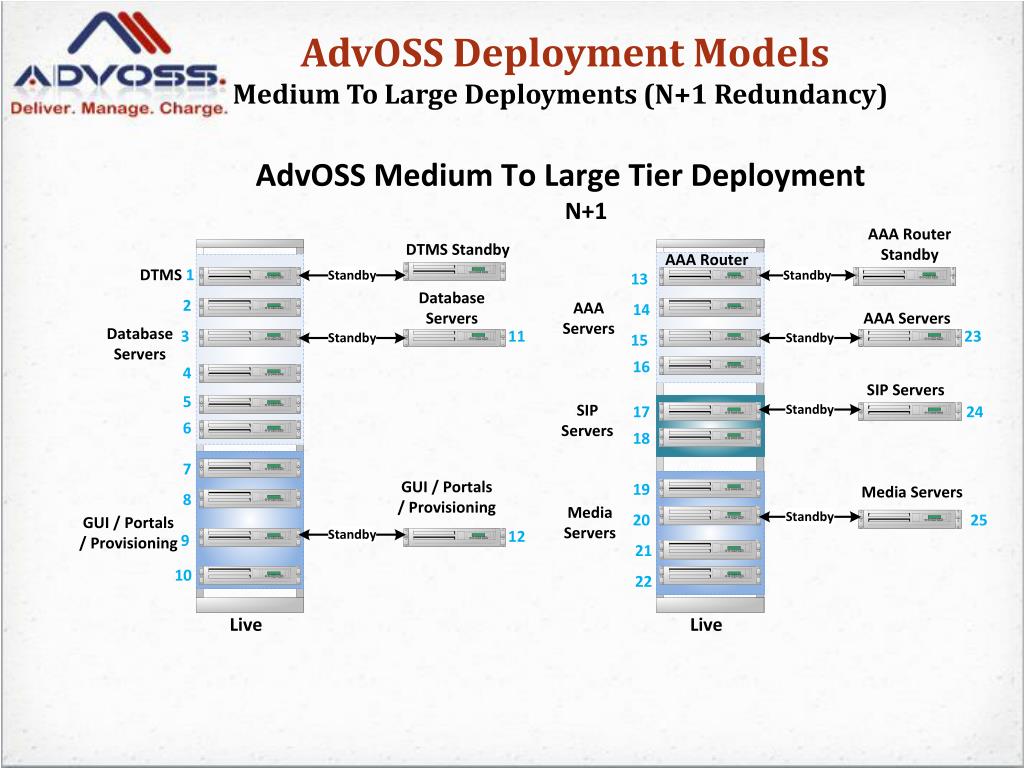

  19. AdvOSS Deployment ModelsMedium To Large Deployments (N+1 Redundancy)

  20. AdvOSS Deployment ModelsMedium To Large Deployments (N+1 Redundancy)

  21. AdvOSS Deployment ModelsLarge Scale Deployments (N+N Redundancy)

  22. AdvOSS Deployment ModelsLarge Scale Deployments (N+N Redundancy)

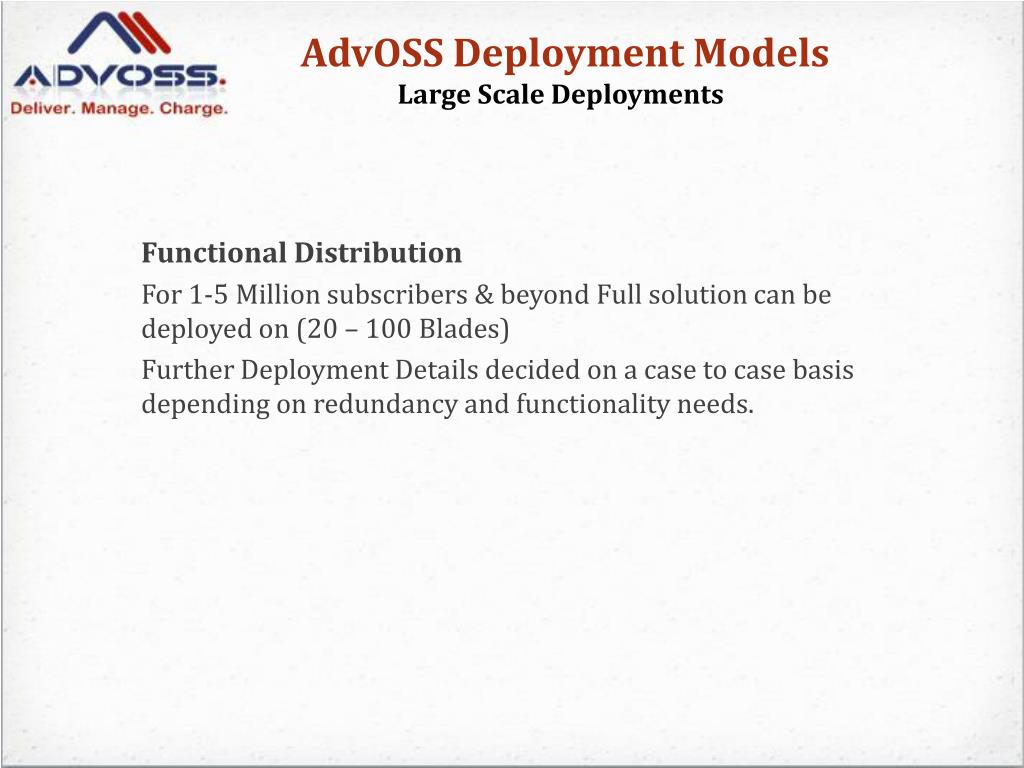

  23. AdvOSS Deployment ModelsLarge Scale Deployments Functional Distribution For 1-5 Million subscribers & beyond Full solution can be deployed on (20 – 100 Blades) Further Deployment Details decided on a case to case basis depending on redundancy and functionality needs.

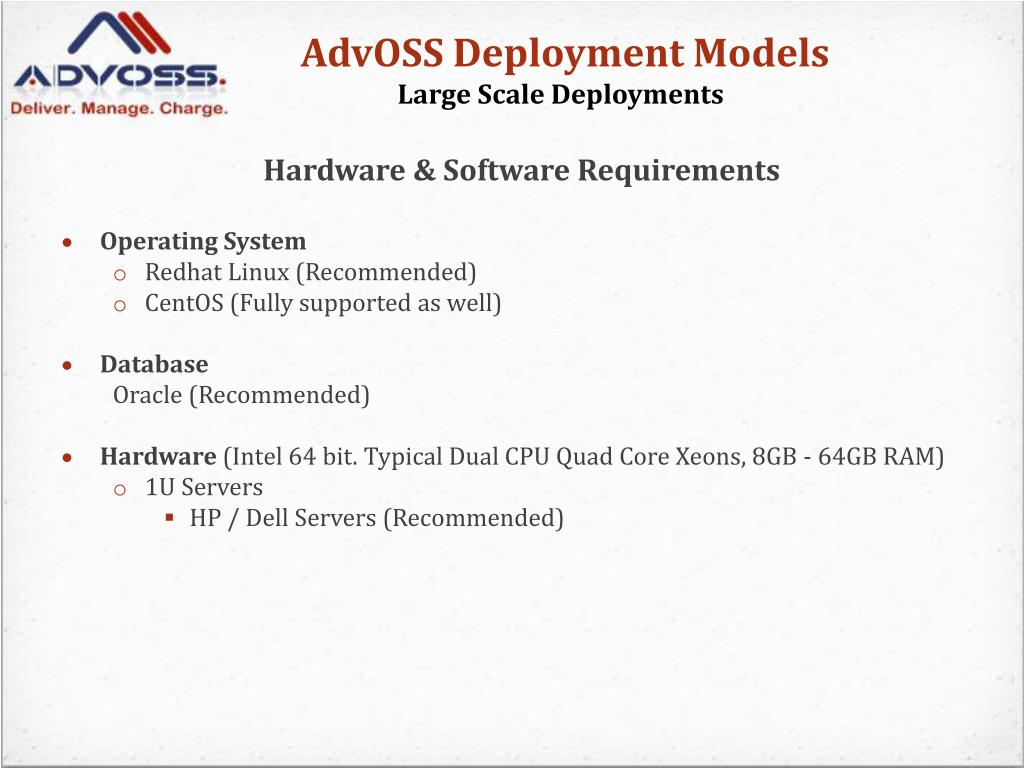

  24. AdvOSS Deployment ModelsLarge Scale Deployments Hardware & Software Requirements • Operating System • Redhat Linux (Recommended) • CentOS (Fully supported as well) • Database Oracle (Recommended) • Hardware (Intel 64 bit. Typical Dual CPU Quad Core Xeons, 8GB - 64GB RAM) • 1U Servers • HP / Dell Servers (Recommended)

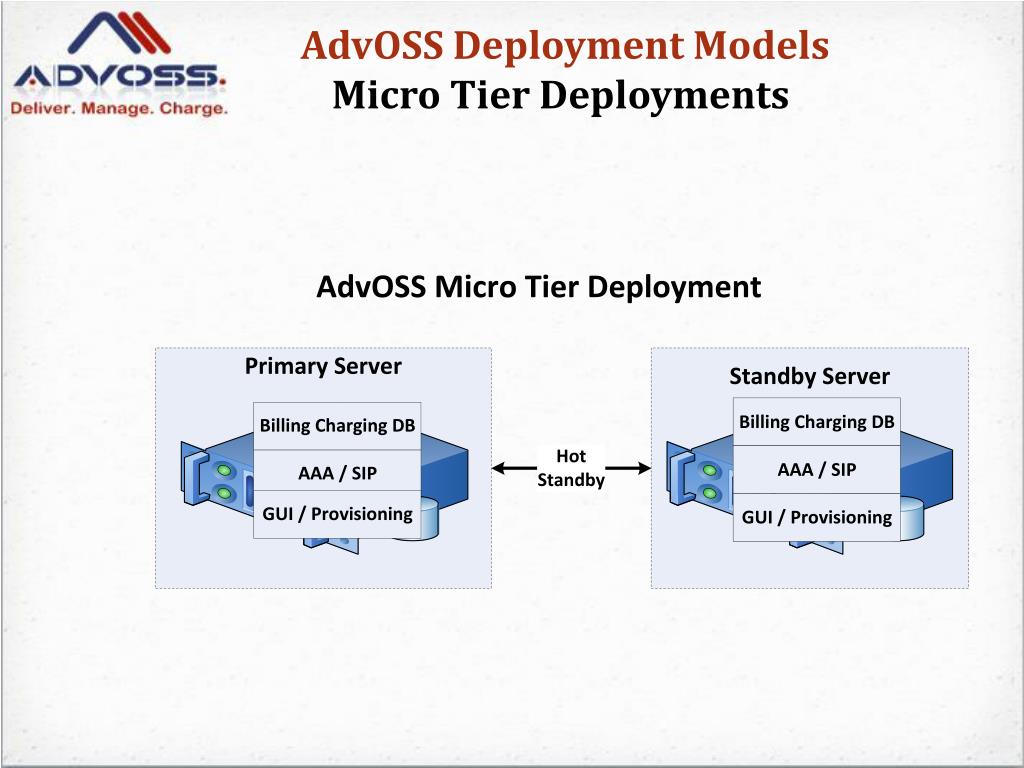

  25. AdvOSS Deployment ModelsMicro Tier Deployments

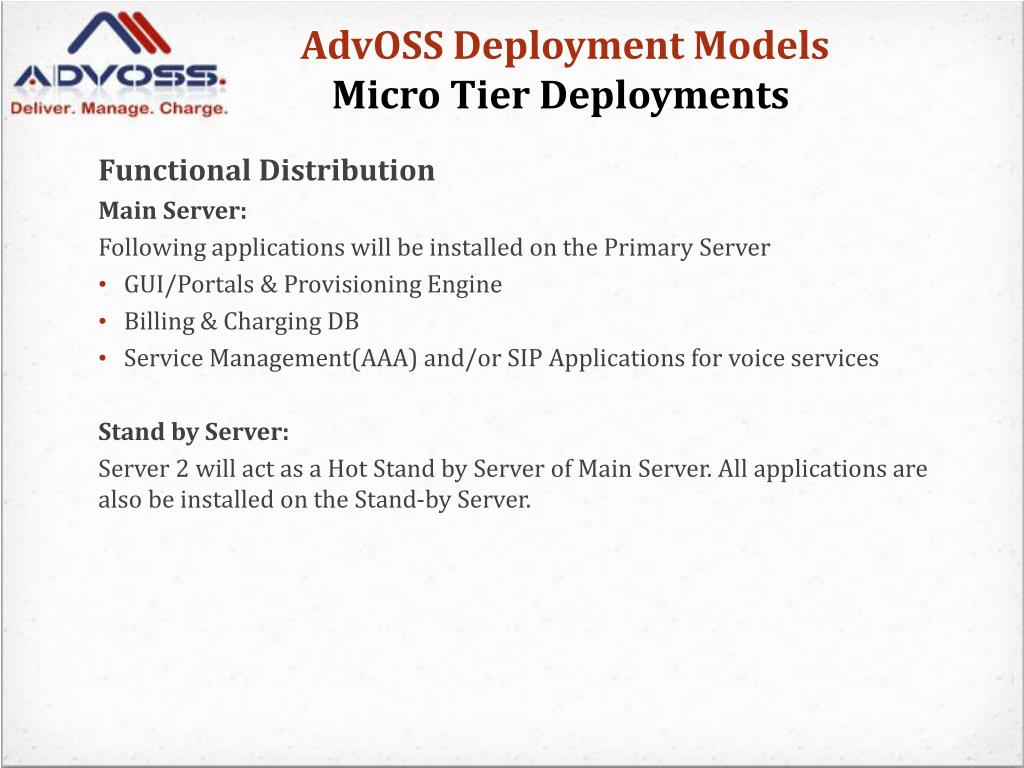

  26. AdvOSS Deployment ModelsMicro Tier Deployments Functional Distribution Main Server: Following applications will be installed on the Primary Server • GUI/Portals & Provisioning Engine • Billing & Charging DB • Service Management(AAA) and/or SIP Applications for voice services Stand by Server: Server 2 will act as a Hot Stand by Server of Main Server. All applications are also be installed on the Stand-by Server.

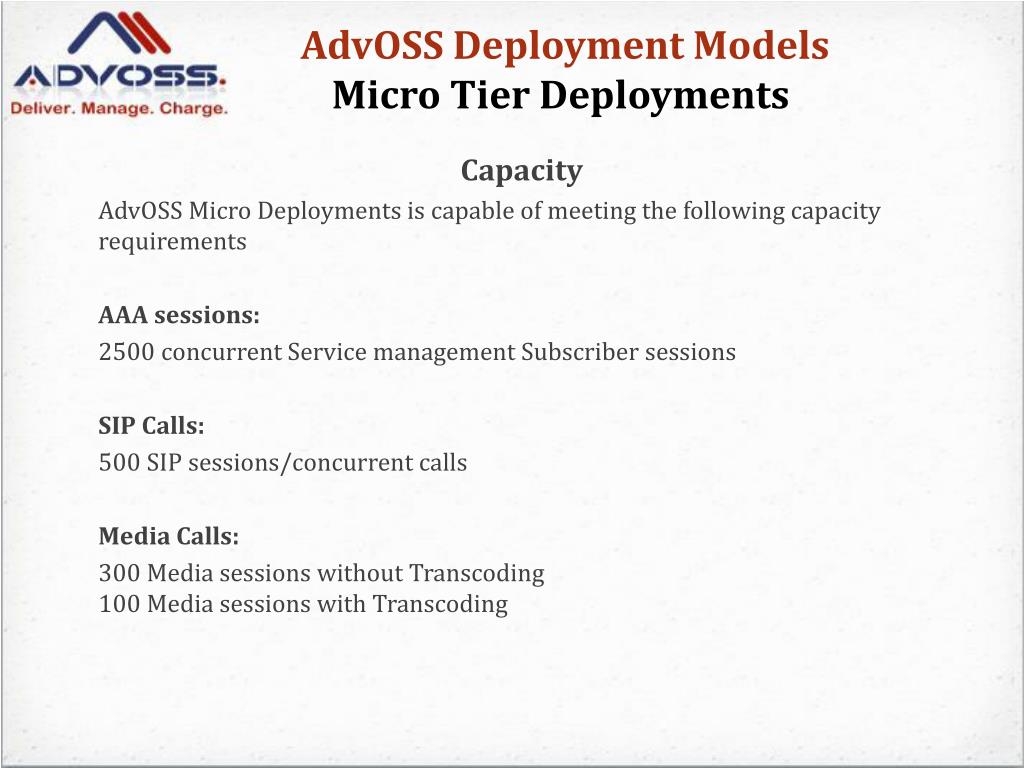

  27. AdvOSS Deployment ModelsMicro Tier Deployments Capacity AdvOSS Micro Deployments is capable of meeting the following capacity requirements AAA sessions: 2500 concurrent Service management Subscriber sessions SIP Calls: 500 SIP sessions/concurrent calls Media Calls: 300 Media sessions without Transcoding100 Media sessions with Transcoding

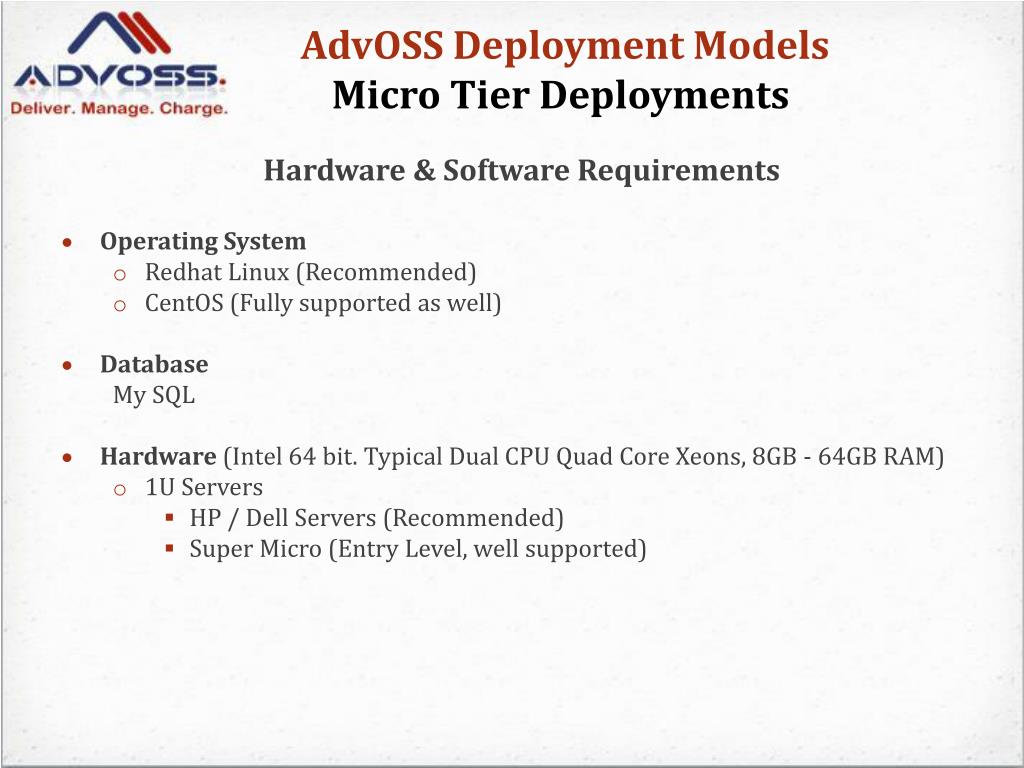

  28. AdvOSS Deployment ModelsMicro Tier Deployments Hardware & Software Requirements • Operating System • Redhat Linux (Recommended) • CentOS (Fully supported as well) • Database My SQL • Hardware(Intel 64 bit. Typical Dual CPU Quad Core Xeons, 8GB - 64GB RAM) • 1U Servers • HP / Dell Servers (Recommended) • Super Micro (Entry Level, well supported)

  29. AdvOSS Deployment ModelsMicro Tier Deployments • AdvOSS Appliance Option (2 Servers) • 1U Super Micro Servers • 64 Bit Dual CPU Quad Core • 16GB RAM • 2 x 1TB HDD in RAID 1 • Dual Gigabit LAN Cards • Redundant Power Supply (Optional) • CentOS Operating System • MySQL Database • 1 year warranty ex San Jose, USA • Pre-Configured and shipped by AdvOSS

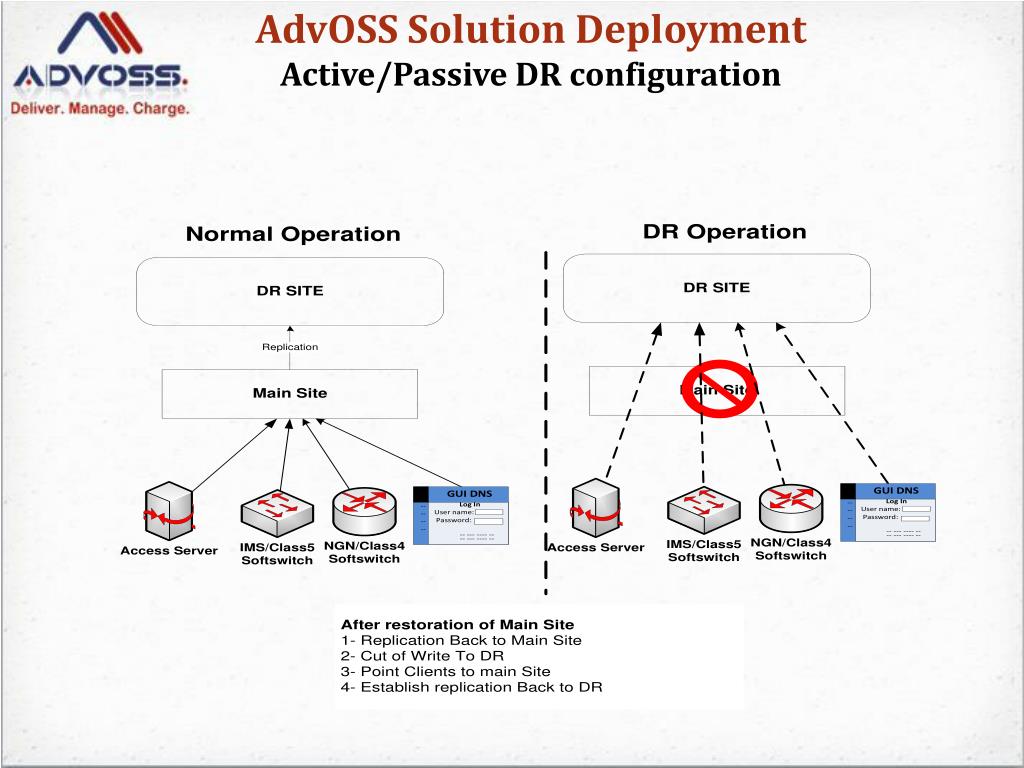

  30. AdvOSS Solution DeploymentActive/Passive DR configuration

  31. AdvOSS Solution DeploymentActive/Passive DR configuration • DR site is not use and only in Replication mode from Main site to DR site. • In case Main site is down all clients are pointed to the DR site

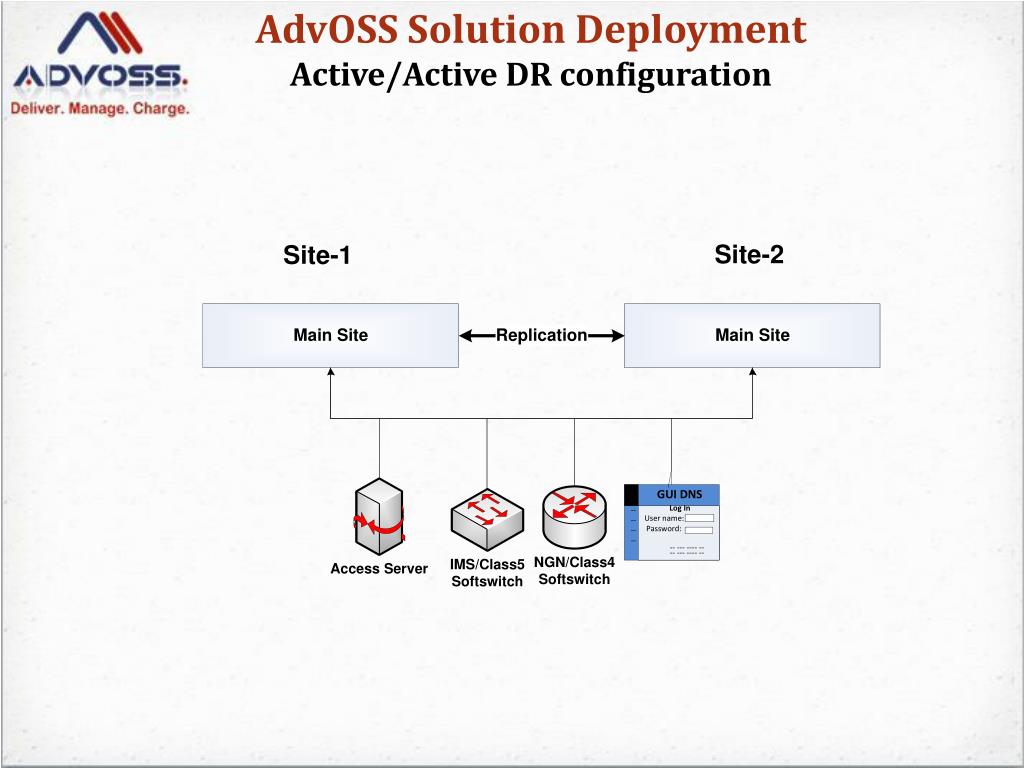

  32. AdvOSS Solution DeploymentActive/Active DR configuration

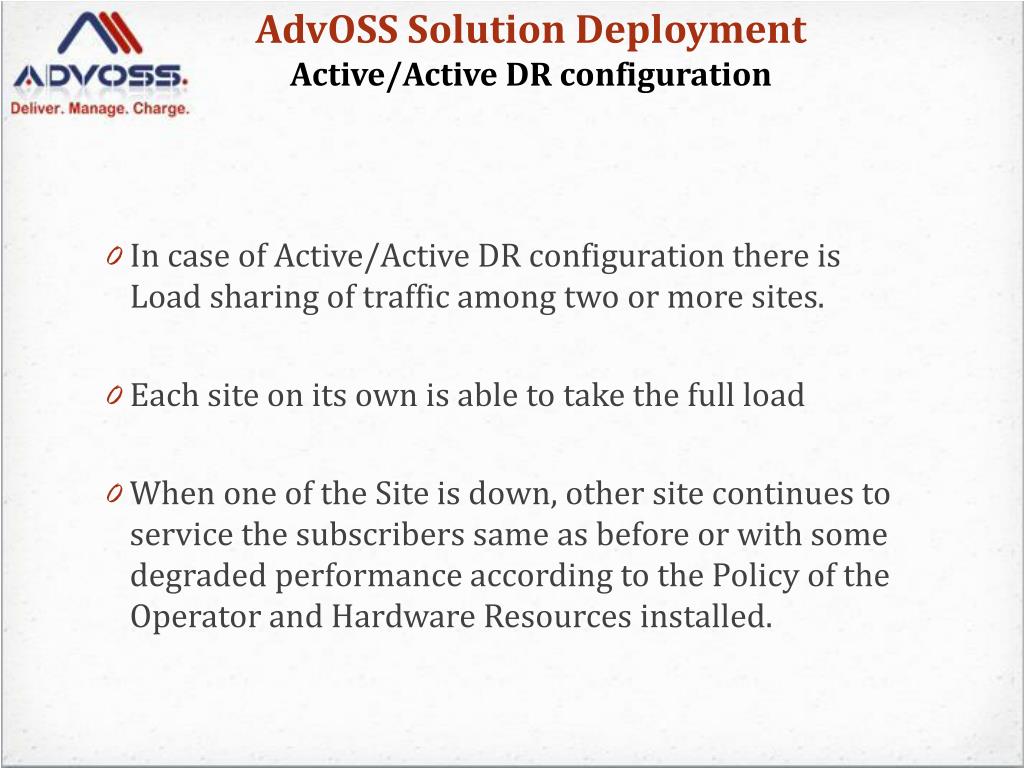

  33. AdvOSS Solution DeploymentActive/Active DR configuration • In case of Active/Active DR configuration there is Load sharing of traffic among two or more sites. • Each site on its own is able to take the full load • When one of the Site is down, other site continues to service the subscribers same as before or with some degraded performance according to the Policy of the Operator and Hardware Resources installed.

  34. AdvOSS SolutionsHigh Availability

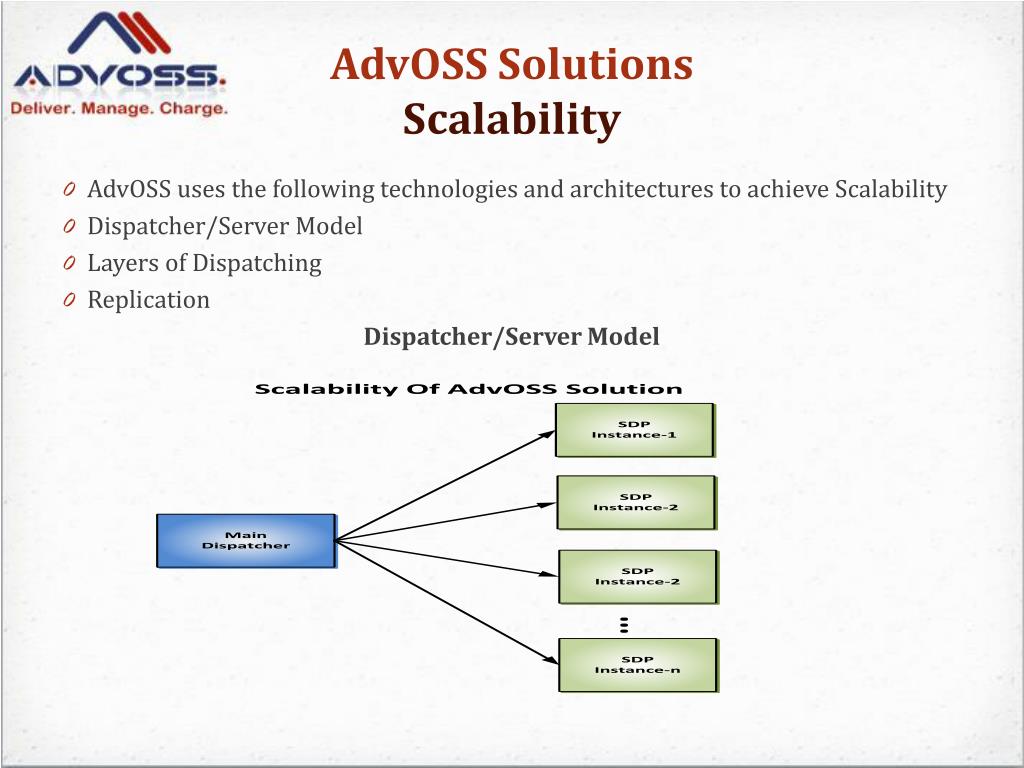

  35. AdvOSS SolutionsScalability • AdvOSS uses the following technologies and architectures to achieve Scalability • Dispatcher/Server Model • Layers of Dispatching • Replication Dispatcher/Server Model

  36. Contact Us Head Office: 10691 Shellbridge Way, Suite 120 Richmond, British Columbia V6X 2W8 Canada Tel: +1 (604) 800 0269 Website: http://AdvOSS.com Email: sales@advoss.com
