  1. Cryptography in World War II Jefferson Institute for Lifelong Learning at UVa Spring 2006David Evans Class 3: Captain Ridley’s Shooting Party Turing’s Hut 8 at Bletchley Park http://www.cs.virginia.edu/jillcrypto

  2. Enigma • Invented commercially, 1923 • Used by German Navy, Army, Air Force • About 50,000 in use • Modified throughout WWII, believed to be perfectly secure • Kahn’s Codebreakers (1967) didn’t know it was broken • Turing’s 1940 Treatise on Enigma declassified in 1996 Enigma machine at Bletchley Park

  3. Simple Substitution Ciphers(from Class 1) ABCDEFGHIJKLMNOPQRSTUVWXYZ encrypt decrypt JIDKQACRSHLGWNFEXUZVTPMYOB JILL  HSGG

  4. Rotating Substitution Cipher ABCDEFGHIJKLMNOPQRSTUVWXYZ encrypt JIDKQACRSHLGWNFEXUZVTPMYOBJID JIDKQACRSHLGWNFEXUZVTPMYOBJI JIDKQACRSHLGWNFEXUZVTPMYOBJ JIDKQACRSHLGWNFEXUZVTPMYOB J  H I  H L  N L  F JILL  HHNF

  5. Rotating Substitution Cipher • Rotates the mapping every letter • Hides simple statistical properties of plaintext: • Frequency analysis defeated: E encrypts to different letters • Repeated letter will not encrypt the same way in different positions

  6. Rotating Substitution Weaknesses • Will repeat after 26 letters • If there is a lot of ciphertext, can still do frequency analysis on every 26th letter slides • Some properties revealed • If we see repeated letters in ciphertext, what does it mean? JILL  HHNF

  7. Multiple Substitution Ciphers ABCDEFGHIJKLMNOPQRSTUVWXYZ This doesn’t help at all: Any number of multiple simple substitutions can be replaced by one substitution! JIDKQACRSHLGWNFEXUZVTPMYOB ABCDEFGHIJKLMNOPQRSTUVWXYZ SQHLZNYKXUWVJRDFBETIMOGACP J  K

  8. Multiple Rotating Substitutions ABCDEFGHIJKLMNOPQRSTUVWXYZ Now it only repeats when both wheels have cycled: 26*26 = 676 letters! Wheel 1: Rotate one position every letter JIDKQACRSHLGWNFEXUZVTPMYOB ABCDEFGHIJKLMNOPQRSTUVWXYZ Wheel 2: Rotate one position every 26 letters SQHLZNYKXUWVJRDFBETIMOGACP

  9. Multiple Rotating Substitutions ABCDEFGHIJKLMNOPQRSTUVWXYZ Wheel 1: Rotate one position every letter Now it only repeats when all 3 wheels have cycled: 26*26 * 26 = 17576 letters! JIDKQACRSHLGWNFEXUZVTPMYOB ABCDEFGHIJKLMNOPQRSTUVWXYZ Wheel 2: Rotate one position every 26 letters SQHLZNYKXUWVJRDFBETIMOGACP ABCDEFGHIJKLMNOPQRSTUVWXYZ Wheel 3: Rotate one position when wheel 2 cycles UAVGRDCBESYHLZOQKXTIMNJWFP

  10. Enigma

  11. Enigma Mechanics • Three rotors (chosen from 5), scrambled letters • Each new letter, first rotor advances • Other rotors advance when ring is hit • Reflector • Plugboard

  12. Rotor Wheel Simple substitution No letter maps to itself Latch turns next rotor once per rotation

  13. Settings • Plugboard: swap pairs of letters • Number of plugs varied ( 6 until 1939, up to 10 after) • Rotors • Before 1939 – Three rotors (choose order) • After – Choose 3 from set of 5 rotors • Orientations (3) – start orientations of the 3 rotors • Ring settings (2) – when next ring advances • Reflector • Fixed symmetric substitution (ABBA) Involution: if we do it twice, get original back

  14. Image from http://en.wikipedia.org/wiki/Image:Enigma-action.png

  15. Three Rotor Wheels

  16. L Rotor 1 N Rotor 3 R Reflector B Plugboard M Rotor 2 Plaintext Ciphertext Enigma Schematic Turns every letter Ciphertext = B-1L-1M-1N-1RNMLB(Plaintext)

  17. L Rotor 1 N Rotor 3 R Reflector B Plugboard M Rotor 2 Plaintext Ciphertext Does Decryption Work? C = B-1L-1M-1N-1RNMLB(P) P = B-1L-1M-1N-1RNMLB(C) = B-1L-1M-1N-1RNMLB(B-1L-1M-1N-1RNMLB(P)) R is an involution (ABBA)

  18. L Rotor 1 N Rotor 3 R Reflector B Plugboard M Rotor 2 Plaintext Ciphertext Key Space Plugboard with 6 plugs: (26 * 25/2) * … * (16*15 / 2) / 6!  1011 Rotors: (26!)3 4 * 1026 Ring settings: 262 = 676 Message Key: 263 = 17576 • Reflector: • (26 * 25 / 2) * (24 * 23 / 2) • * … * (2 * 2) / 13!  8 * 1012 Total:  6 * 10110(not all are different) >> 1084 atoms in the universe

  19. Reducing Key Space Plugboard with 6 plugs  1011 Rotors: (26!)3 4 * 1026 Ring settings: 262 = 676 Message Key: 263 = 17576 Reflector: 8 * 1012

  20. Capture a Machine “This fictional movie about a fictional U.S. submarine mission is followed by a mention in the end credits of those actual British missions. Oh, the British deciphered the Enigma code, too. Come to think of it, they pretty much did everything in real life that the Americans do in this movie.” Roger Ebert’s review of U-571

  21. Codebook (Rotor Settings) Captured from a U-Boat

  22. Key Space B Plugboard Plaintext Ciphertext L Rotor 1 Plugboard with 6 plugs: (26 * 25/2) * … * (16*15 / 2) / 6!  1011 M Rotor 2 5 C 3 = 60 Rotors: (26!)3 4 * 1026 Ring settings: 262 = 676 Message Key: 263 = 17576 N Rotor 3 R Reflector • Reflector: • (26 * 25 / 2) * (24 * 23 / 2) • * … * (2 * 2) / 13!  8 * 1012 1 Total:  7 * 1019 (> 264, still too big for exhaustive search)

  23. Plugless Enigma L Rotor 1 N Rotor 3 R Reflector M Rotor 2 Plaintext Ciphertext C = L-1M-1N-1RNML(P) Used in Spanish Civil War (1937-9) by all participants (including British, Germans and Spanish)

  24. Plugless Enigma L Rotor 1 N Rotor 3 R Reflector M Rotor 2 Plaintext Z Ciphertext Probable words (4-10 letters) What is the probability that Rotor 2 and Rotor 3 do not move in 4 letter crib? C = L-1ZL(P) L(C) = ZL(P) = 22/26 = .85

  25. Plugless Enigma L Rotor 1 N Rotor 3 R Reflector M Rotor 2 Plaintext C = L-1ZL(P) L(C) = ZL (P) Z Ciphertext Z is a fixed substitution (monoalphabetic) if R2&3 don’t move Guess a crib – have C and Pguess L(C) = ZL(Pguess) Try possible rotors and starting positions for L: 3 rotor choices * 26 starting positions = 78 Li = effect of Rotor 1 in the ith rotation position

  26. Batons Attack ABCDEFGHIJKLMNOPQRSTUVWXYZ EKMFLGDQVZNTOWYHXUSPAIBRCJ JEKMFLGDQVZNTOWYHXUSPAIBRC CJEKMFLGDQVZNTOWYHXUSPAIBR RCJEKMFLGDQVZNTOWYHXUSPAIB BRCJEKMFLGDQVZNTOWYHXUSPAI IBRCJEKMFLGDQVZNTOWYHXUSPA AIBRCJEKMFLGDQVZNTOWYHXUSP C = XTSWVUINZ Pguess = wehrmacht (“armed forces”) L1 (X) = Z L1 (w) L2 (T) = Z L2 (e) L3 (S) = Z L3 (h) L4 (W) = Z L4 (r) L5 (V) = Z L5 (m) L6 (U) = Z L6 (a) L7 (I) = Z L7 (c) For a given starting rotor setting, solve for Z 1: R = Z(B) 2: S = Z(F) 3: X = Z(G) 4: P = Z(Y) 5: U = Z(V) 6: H = Z(I) 7: M = Z(B)

  27. Batons Attack • We know Z is: • Function: contradiction if Z(x) Z(x) • Involution:contradiction if Z(x) = y & Z(y) x • Find a rotor setting with no contradictions • Long enough crib, there will only be one • But if crib is too long, need to deal with R2 moving • List of probable 4-10 letter words • Catalog to map Z to rotor settings for R2 and R3

  28. Plugless Enigma L Rotor 1 N Rotor 3 R Reflector M Rotor 2 Plaintext Ciphertext Ideas for making Batons attack harder?

  29. L Rotor 1 N Rotor 3 R Reflector B Plugboard M Rotor 2 Plaintext Ciphertext Enter the Plugboard 6 plugs: (26*25)/2 * (24*23)/2 * … * (16*15/2) / 6! ~ 1011 times more keys

  30. Operation • Day key (distributed in code book) • Each message begins with message key (“randomly” chosen by sender) encoded using day key • Message key sent twice to check • After receiving message key, re-orient rotors according to key

  31. Codebook Zoom

  32. Repeated Message Key P = P1P2P3P1P2P3 C1 = E1 (P1)=B-1L1-1M-1N-1RNML1B(P1) C4 = E4 (P1) =B-1L4-1M-1N-1RNML4B(P1) P1 = E1 (C1) = B-1L1-1M-1N-1RNML1B(C1) P1 = E4 (C4) = B-1L4-1M-1N-1RNML4B(C4) E4oE1 (C1) = E4 (P1) = C4 E4oE1 = B-1L1-1M-1N-1RNML1B B-1L4-1M-1N-1RNML4B = B-1L1-1M-1N-1RNML1L4-1M-1N-1RNML4B

  33. Letter Permutations Symmetry of Enigma: if Epos (x) = y we know Epos (y) = x Given message openings DMQ VBM E1(m1) = D E4(m1) = VE1oE4(D) = V VON PUY => E1(D) = m1 PUC FMQ => E4 (E1 (D)) = V With enough message openings, we can build complete cycles for each position pair: E1oE4 = (DVPFKXGZYO) (EIJMUNQLHT) (BC) (RW) (A) (S) Note: Cycles must come in pairs of equal length

  34. Composing Involutions • E1 and E2 are involutions (x  y  y  x) • Without loss of generality, we can write: E1 contains (a1a2) (a3a4) … (a2k-1a2k) E2 contains (a2a3) (a4a5) … (a2ka1) E1 E2 a1  a2 a2 x = a3 orx = a1 a3  a4 a4 x = a5 orx = a1 Why can’t x be a2 or a3?

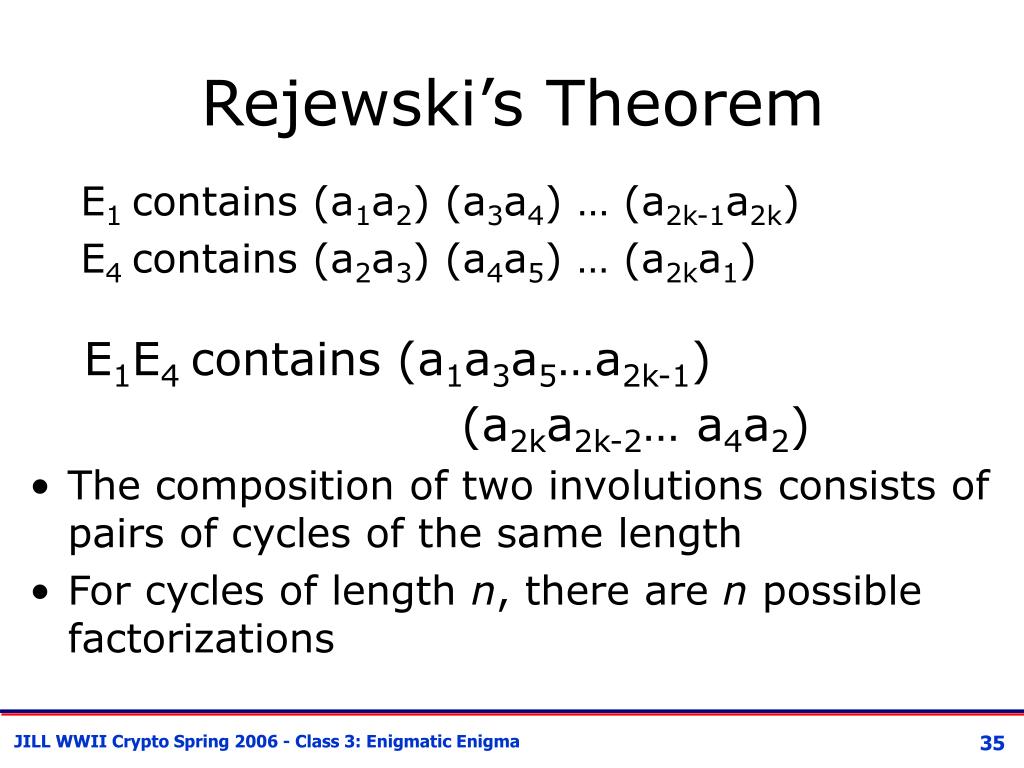

  35. Rejewski’s Theorem E1 contains (a1a2) (a3a4) … (a2k-1a2k) E4 contains (a2a3) (a4a5) … (a2ka1) E1E4 contains (a1a3a5…a2k-1) (a2ka2k-2… a4a2) • The composition of two involutions consists of pairs of cycles of the same length • For cycles of length n, there are n possible factorizations

  36. Factoring Permutations E1E4 = (DVPFKXGZYO) (EIJMUNQLHT) (BC) (RW) (A) (S) (A) (S) = (AS) o (SA) (BC) (RW) = (BR)(CW) o (BW)(CR) or = (BW)(RC) o (WC) (BR) (DVPFKXGZYO) (EIJMUNQLHT) = (DE)(VI)… or (DI)(VJ) … or (DJ)(VM) … … (DT)(VE) 10 possibilities

  37. How many factorizations? (DVPFKXGZYO) (EIJMUNQLHT) E1 E2 D  a2 a2 V V  a4 a4 P • Once we guess a2 everything else must follow! • So, only n possible factorizations for an n-letter cycle • Total to try = 2 * 10 = 20 • E2E5 andE3E6 likely to have about 20 to try also • About 203 (8000) factorizations to try (still too many in pre-computer days)

  38. Luckily… • Operators picked message keys (“cillies”) • Identical letters • Easy to type (e.g., QWE) • If we can guess P1 =P2 =P3(or known relationships) can reduce number of possible factorizations • If we’re lucky – this leads to E1 …E6

  39. Solving? E1 = B-1L-1QLB E2 = B-1L-2QL2B E3 = B-1L-3QL3B E4 = B-1L-4QL4B E5 = B-1L-5QL5B E6 = B-1L-6QL6B 6 equations, 3 unknowns Not known to be efficiently solvable

  40. Solving? Often, know plugboard settings (didn’t change frequently) E1 = B-1L-1QLB BE1B-1 = L-1QL 6 equations, 2 unknowns – solvable 6 possible arrangements of 3 rotors, 263 starting locations = 105,456 possibilities Poles spent a year building a catalog of cycle structures covering all of them (until Nov 1937): 20 mins to break Then Germans changed reflector and they had to start over.

  41. 1939 • Early 1939 – Germany changes scamblers and adds extra plugboard cables, stop double-transmissions • Poland unable to cryptanalyze • 25 July 1939 – Rejewski invites French and British cryptographers • Gives England replica Enigma machine constructed from plans, cryptanalysis • 1 Sept 1939 – Germany invades Poland, WWII starts

  42. Alan Turing • Leads British effort to crack Enigma • Use cribs (“WETTER” transmitted every day at 6am) to find structure of plugboard settings • 10,000 people worked at Bletchley Park on breaking Enigma (100,000 for Manhattan Project)

  43. Alan Turing’s “Bombe” Steps through all possible rotor positions (263), testing for probable plaintext; couldn’t search all plugboard settings (> 1012); take advantage of loops in cribs

  44. “Bombes” • Idea by Alan Turing • Name from Rejewski’s “Bomba” machine (Polish for bomb) • “for lack of a better idea” (Rejewki’s paper) • Design by “Doc” Keen, British Tabulating Machine Co. • First machine, “Victory”: Bletchley Park, March 1940

  45. Enigma Cryptanalysis • Relied on combination of sheer brilliance, mathematics, espionage, operator errors, and hard work • Huge impact on WWII • Britain knew where German U-boats were • Advance notice of bombing raids • But...keeping code break secret more important than short-term uses or giving credit: Turing’s Enigma report declassified in 1996!

  46. Turing after the War • Made several major contributions to Computer Science (both before and after) • Most important award is named “Turing Award” • Prosecuted for homosexuality • Illegal in Britain • Forced hormone treatment • 1954 – died of cyanide poisoning from eating apple (believed to be suicide)

  47. Next Class: Modern Crypto • Strong Symmetric Ciphers • How they are similar and different • How hard to break • How two people who have never met can communicate securely • Public-key Cryptography • What it means when you see the key symbol on your web browser
