Investigating Cu Oxidation: Effects of Thermal Treatment on Electrical Conductivity and Surface Color

This study examines the oxidation of copper (Cu) under various thermal conditions. Initial oxidation produced a thick Cu2O layer (~15 nm) after 48 hours at 125°C, resulting in a purple surface with no loss of electrical conductivity. However, extending the treatment to 72 hours at 200°C resulted in a reddish-brown surface with potential CuO regions and unclear layer thickness. Initial low conductivity improved after exposure to less than 20 sparks. Continuing tests suggest a possible increase in effectiveness with greater thickness despite challenging initial results.

ling
Télécharger la présentation

Investigating Cu Oxidation: Effects of Thermal Treatment on Electrical Conductivity and Surface Color

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

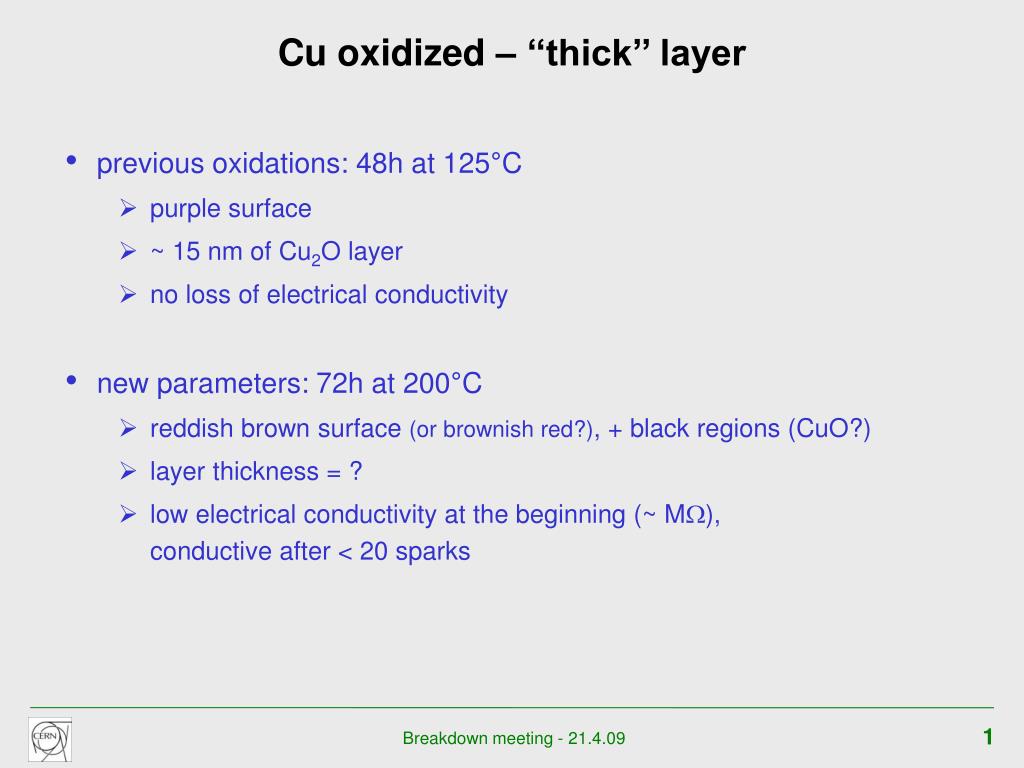

  1. Cu oxidized – ‘‘thick’’ layer • previous oxidations: 48h at 125°C • purple surface • ~ 15 nm of Cu2O layer • no loss of electrical conductivity • new parameters: 72h at 200°C • reddish brown surface (or brownish red?), + black regions (CuO?) • layer thickness = ? • low electrical conductivity at the beginning (~ MW), conductive after < 20 sparks

  2. Cu oxidized – ‘‘thick’’ layer • similar results until now (tests are still running) possible slight gain with increased thickness

  3. … the first spot was really bad at the beginning (with a completely oxidized anode) Cu oxidized – ‘‘thick’’ layer • BUT...
