Algorithm Design and Analysis (ADA) 242-535, Semester 1 2013-2014 • Objective • look at several divide and conquer examples (merge sort, binary search), and 3 approaches for calculating their running time 4. Divide and Conquer

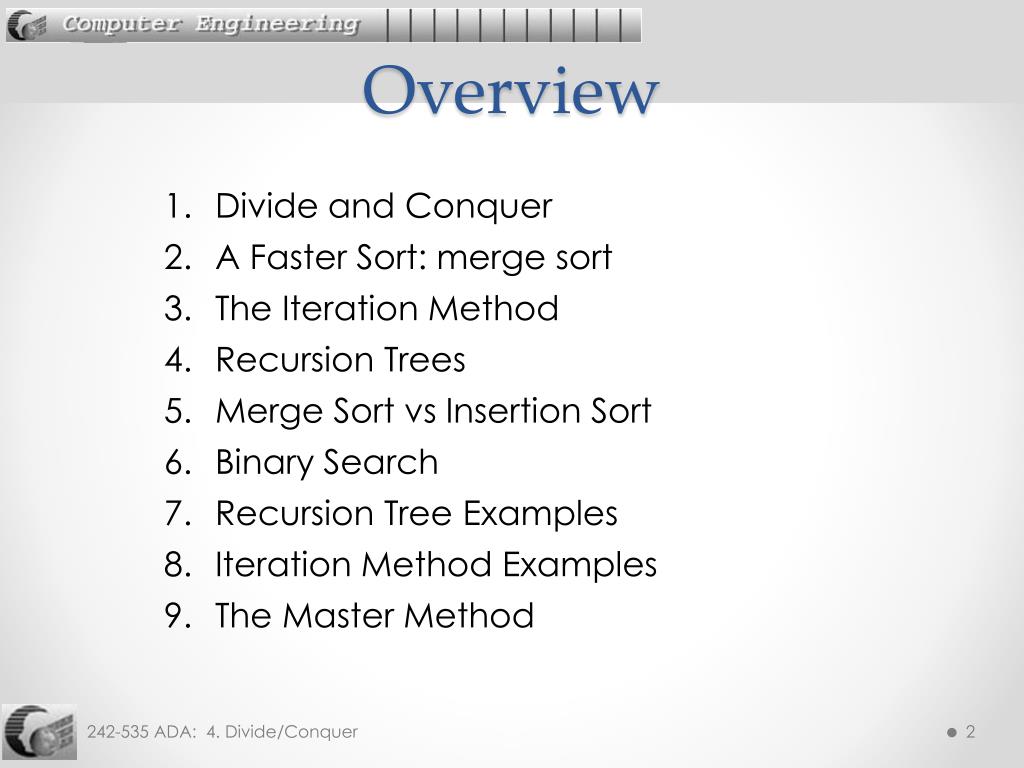

Overview • Divide and Conquer • A Faster Sort: merge sort • The Iteration Method • Recursion Trees • Merge Sort vs Insertion Sort • Binary Search • Recursion Tree Examples • Iteration Method Examples • The Master Method

1. Divide and Conquer • Divide the problem into subproblems • Conquerthe subproblems by solving them recursively • Combine subproblem solutions.

2. A Faster Sort: Merge Sort MERGESORT(A, left, right) • Ifleft < right, // if left ≥ right, do nothing • mid := floor(left+right)/2) • MergeSort(A, left, mid) • MergeSort( A, mid+1,right) • Merge(A, left, mid, right) • return Initial call: MergeSort(A, 1, n)

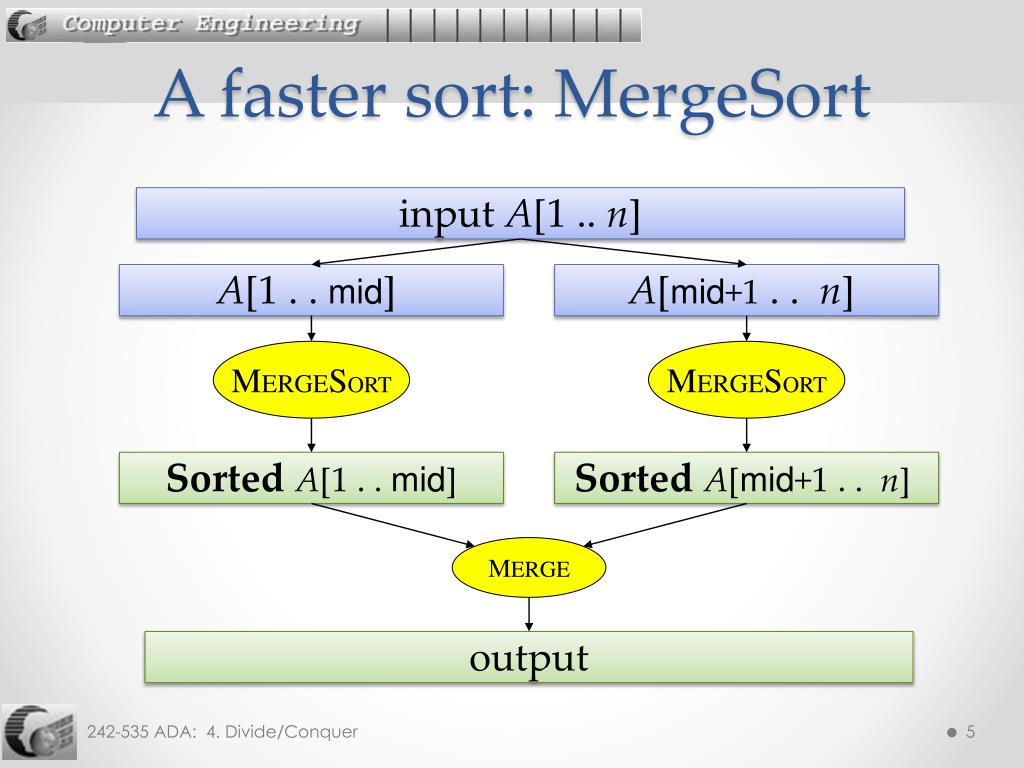

A faster sort: MergeSort input A[1 .. n] A[1 . . mid] A[mid+1. . n] MERGESORT MERGESORT SortedA[1 . . mid] SortedA[mid+1 . . n] MERGE output

Tracing MergeSort() merge

Merging two sorted arrays 20 13 7 2 12 11 9 1 20 13 7 2 12 11 9 20 13 7 12 11 9 20 13 12 11 9 20 13 12 11 20 13 12 1 2 7 9 11 12 Time = one pass through each array = O(n) to merge a total of n elements (linear time).

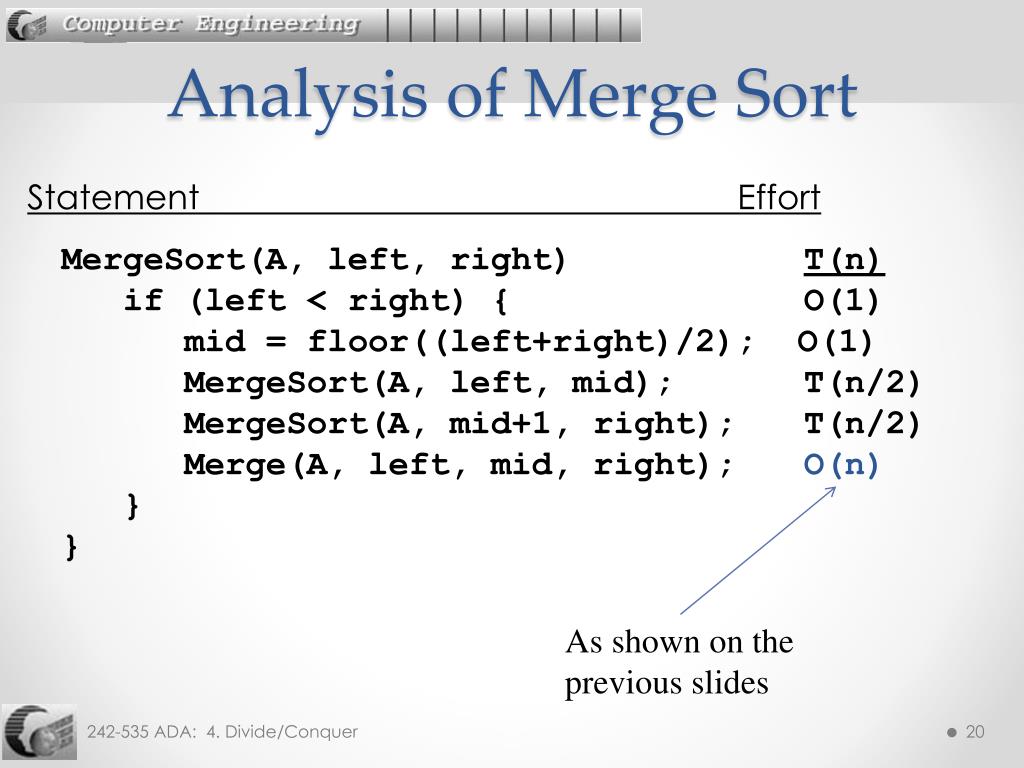

Analysis of Merge Sort Statement Effort MergeSort(A, left, right) T(n) if (left < right) { O(1) mid = floor((left+right)/2); O(1) MergeSort(A, left, mid); T(n/2) MergeSort(A, mid+1, right); T(n/2) Merge(A, left, mid, right); O(n) } } As shown on the previous slides

merge() Code • merge(A, left, mid, right) • Merges two adjacent subranges of an array A • left == the index of the first element of the first range • mid == the index of the last element of the first range • right == to the index of the last element of the second range

void merge(int[] A, int left, int mid, int right) { int[] temp = new int[right–left + 1]; int aIdx = left; int bIdx = mid+1; for (int i=0; i < temp.length; i++){ if(aIdx > mid) temp[i] = A[bIdx++]; // copy 2nd range else if (bIdx > right) temp[i] = A[aIdx++]; // copy 1st range else if (a[aIdx] <= a[bIdx]) temp[i] = A[aIdx++]; else temp[i] = A[bIdx++]; } // copy back into A for (int j = 0; j < temp.length; j++) A[left+j] = temp[j]; }

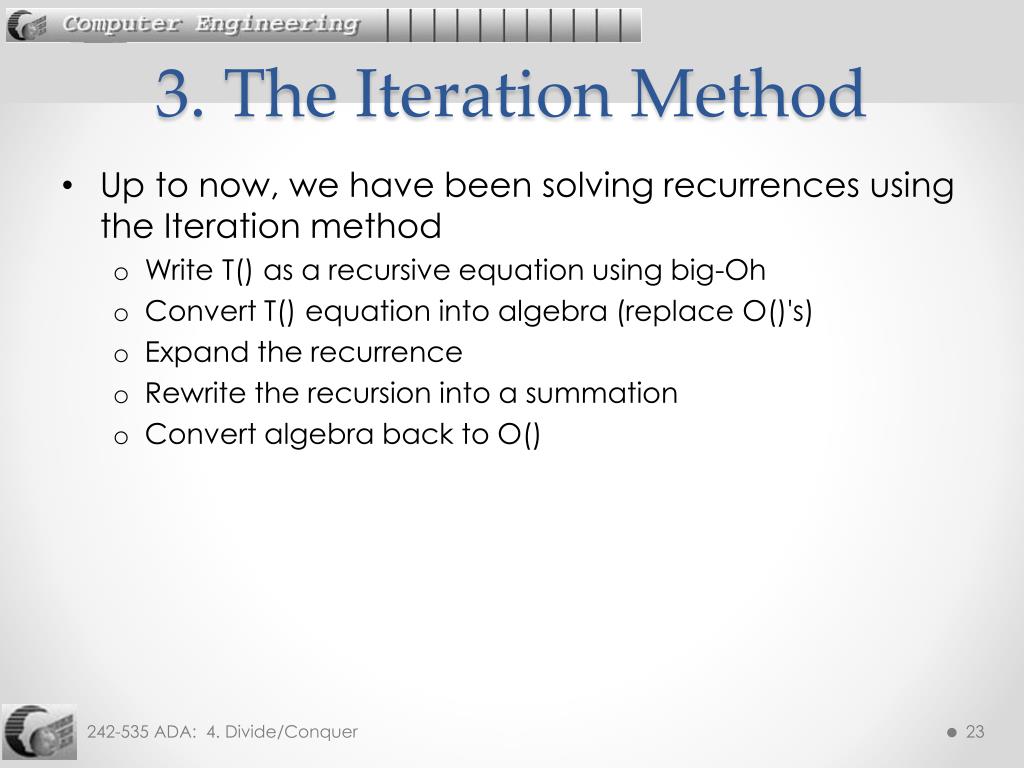

3. The Iteration Method • Up to now, we have been solving recurrences using the Iteration method • Write T() as a recursive equation using big-Oh • Convert T() equation into algebra (replace O()'s) • Expand the recurrence • Rewrite the recursion into a summation • Convert algebra back to O()

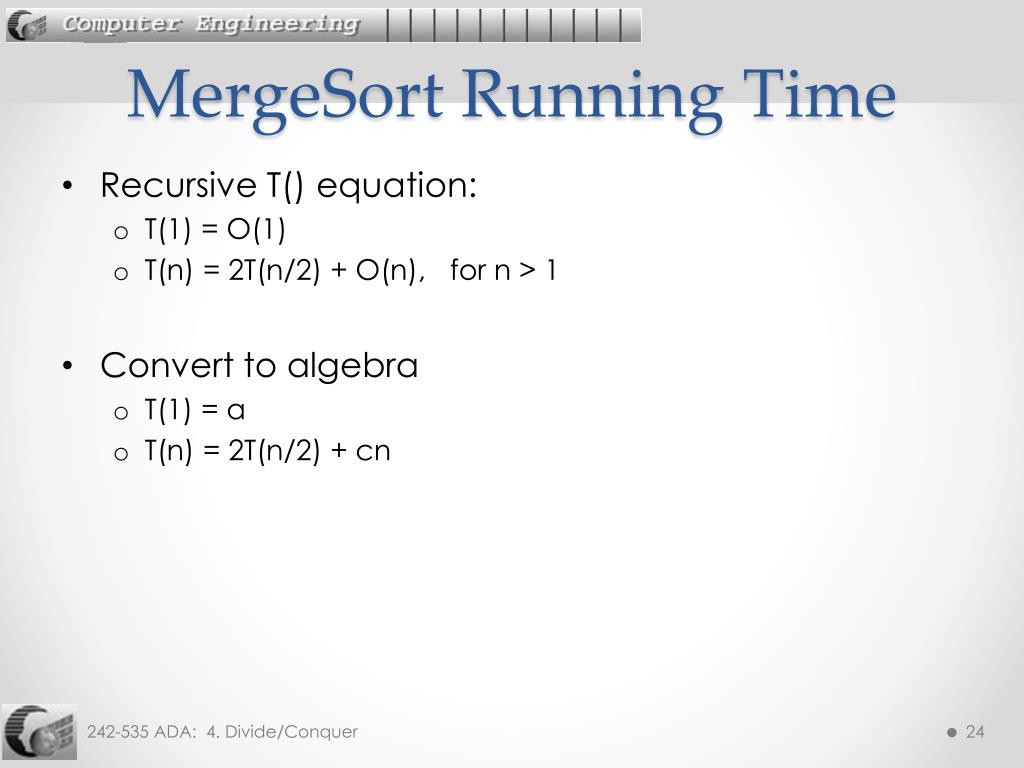

MergeSort Running Time • Recursive T() equation: • T(1) = O(1) • T(n) = 2T(n/2) + O(n), for n > 1 • Convert to algebra • T(1) = a • T(n) = 2T(n/2) + cn

Recurrence for Merge Sort • The expression:is called a recurrence. • A recurrence is an equation that describes a function in terms of its value for smaller function calls.

T(n) = 2T(n/2) + cn 2(2T(n/2/2) + cn/2) + cn 22T(n/22) + cn2/2 + cn 22T(n/22) + cn(2/2 + 1) 22(2T(n/22/b) + cn/22) + cn(2/2 + 1) 23T(n/23) + cn(22/22) + cn(2/2 + 1) 23T(n/23) + cn(22/22 +2/2 + 1) … 2kT(n/2k) + cn(2k-1/2k-1 + 2k-2/2k-2 + … + 22/22 + 2/2 + 1)

So we have • T(n) = 2kT(n/2k) + cn(2k-1/2k-1 + ... + 22/22 + 2/2 + 1) • For k = log2 n • n = 2k, so T() argument becomes 1 • T(n) = 2kT(1) + cn(k-1+1) = na + cn(log2 n) = O(n) + O(n log2n) = O(n log2 n) k-1 of these

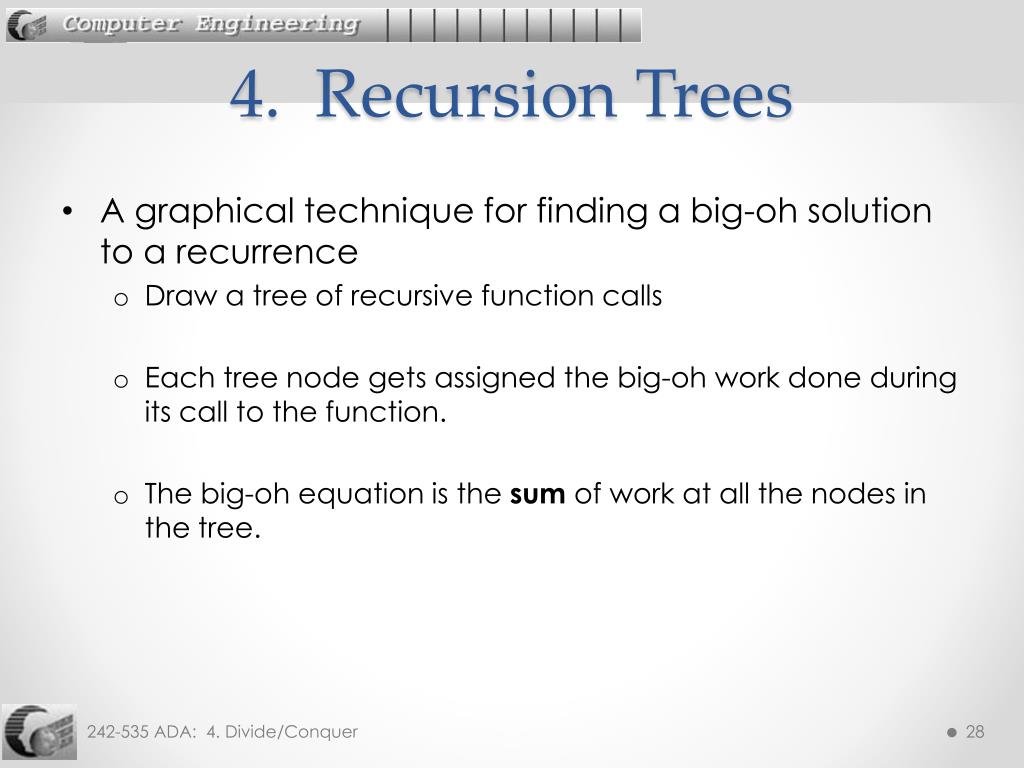

4. Recursion Trees • A graphical technique for finding a big-oh solution to a recurrence • Draw a tree of recursive function calls • Each tree node gets assigned the big-oh work done during its call to the function. • The big-oh equation is the sum of work at all the nodes in the tree.

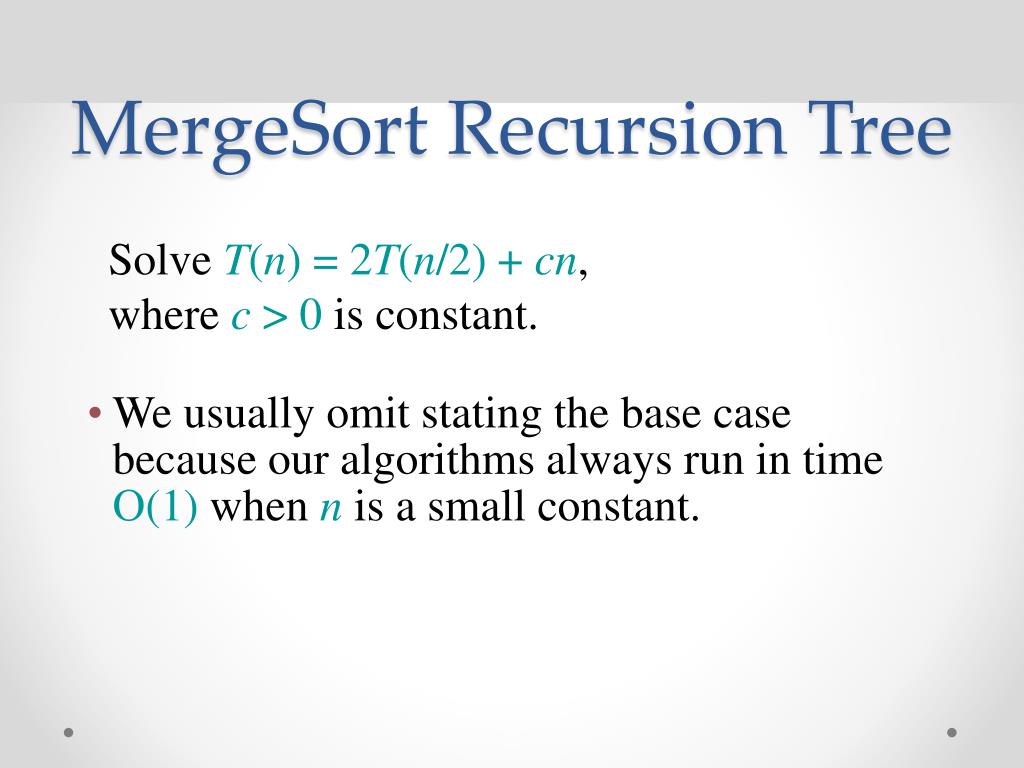

MergeSort Recursion Tree Solve T(n) = 2T(n/2) + cn, where c > 0 is constant. • We usually omit stating the base case because our algorithms always run in time O(1) when n is a small constant.

MergeSort Recursion Tree Solve T(n) = 2T(n/2) + cn, where c > 0 is constant. T(n)

MergeSort Recursion Tree cn T(n/2) T(n/2) Solve T(n) = 2T(n/2) + cn, where c > 0 is constant.

MergeSort Recursion Tree cn cn/2 cn/2 T(n/4) T(n/4) T(n/4) T(n/4) Solve T(n) = 2T(n/2) + cn, where c > 0 is constant.

MergeSort Recursion Tree Solve T(n) = 2T(n/2) + cn, where c > 0 is constant. cn cn cn/2 cn cn/2 h = log n cn/4 cn/4 cn cn/4 cn/4 … … O(1) #leaves = n O(n) Total = O(n log n)

Height and no. of Leaves • Node value: n  n/2  n2/4  ...  1 •  n(1/2)h = 1 // height = h •  n = 2h // take logs of both sides •  log2n = h • No. of nodes: 1  2  22 --> ... --> no. of leaves • no. of leaves = 2h = = = n1 = n h steps why?

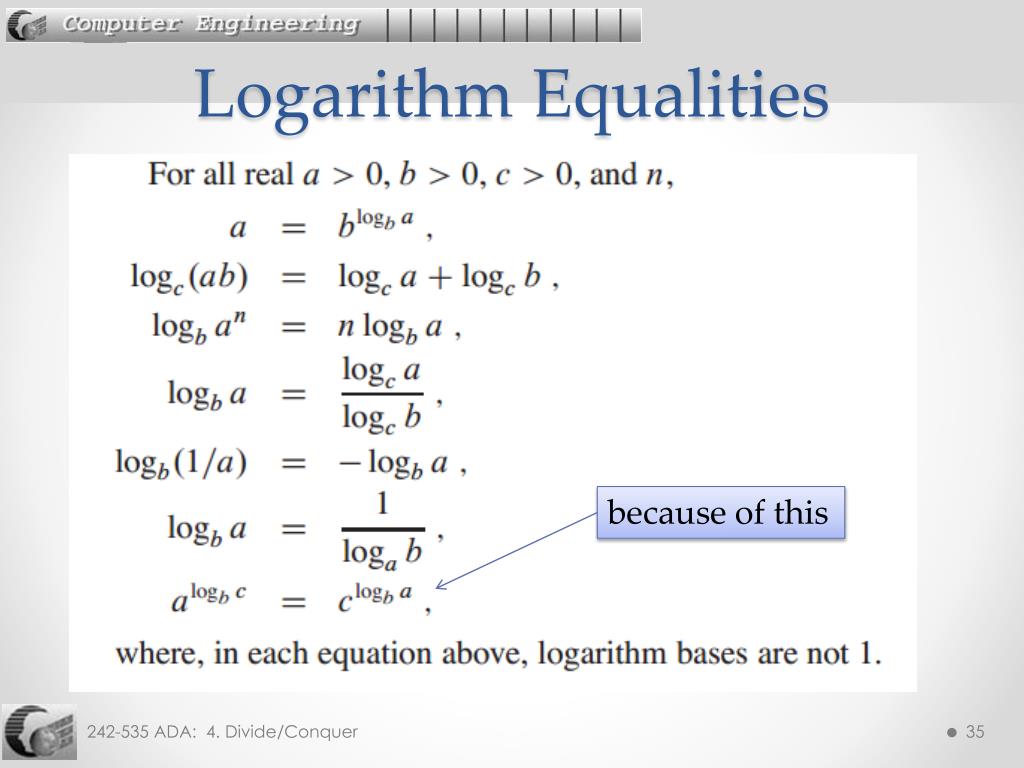

Logarithm Equalities because of this

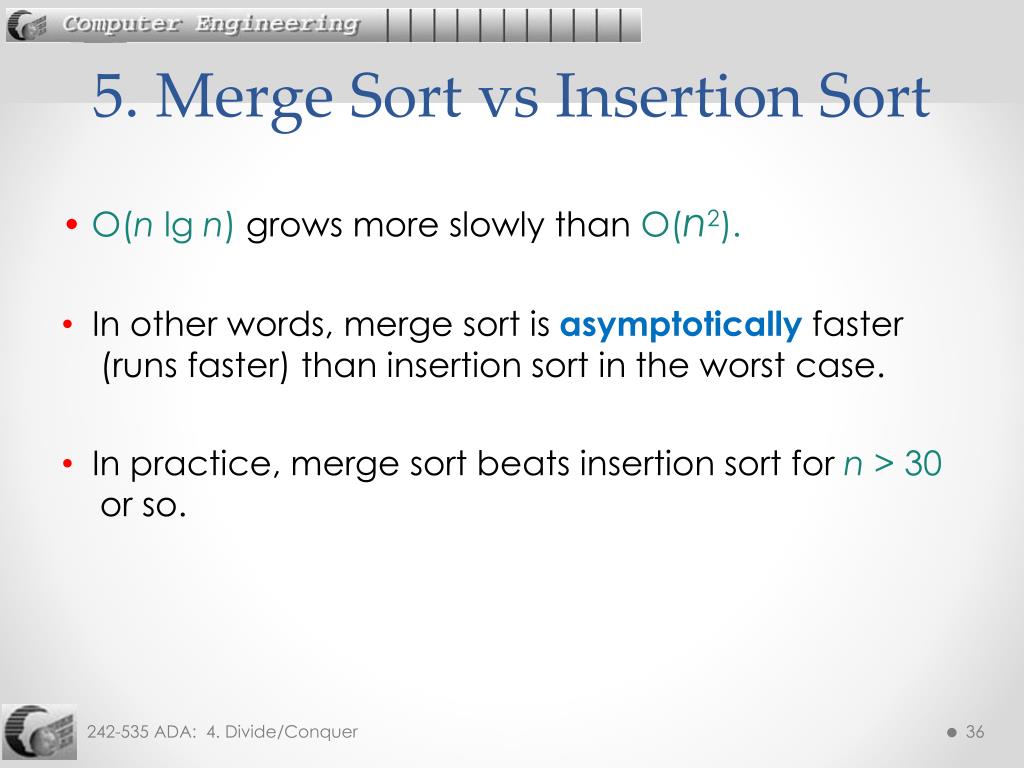

5. Merge Sort vs Insertion Sort •O(n lg n) grows more slowly than O(n2). • In other words, merge sort is asymptotically faster (runs faster) than insertion sort in the worst case. • In practice, merge sort beats insertion sort for n > 30 or so.

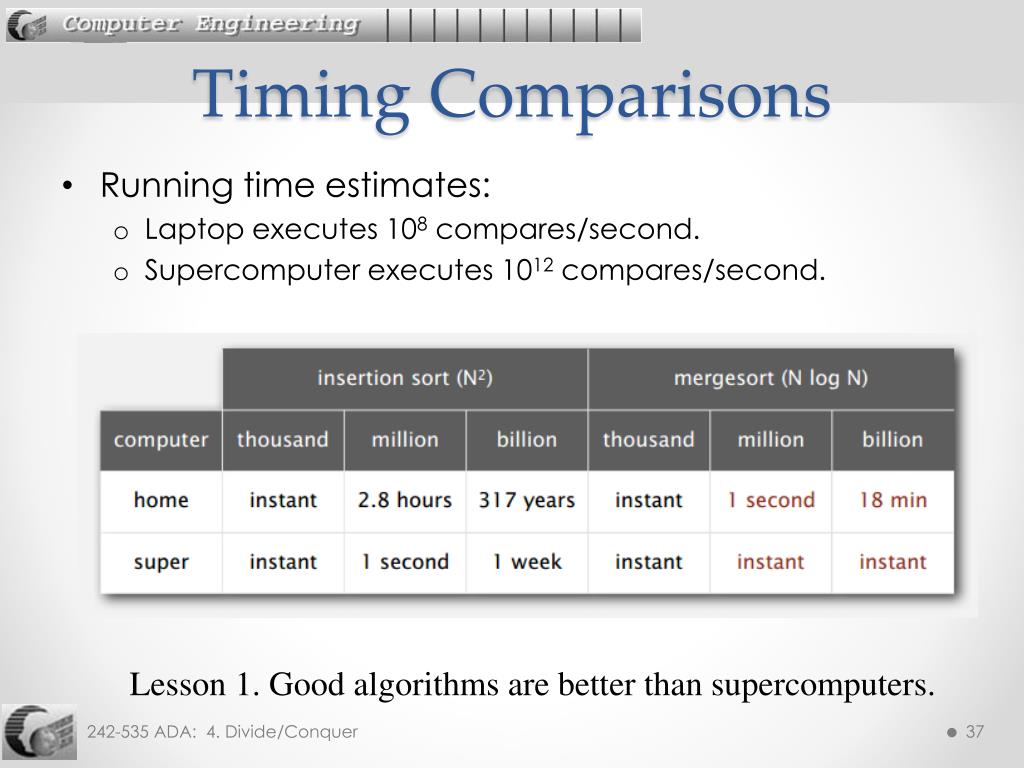

Timing Comparisons • Running time estimates: • Laptop executes 108 compares/second. • Supercomputer executes 1012 compares/second. Lesson 1. Good algorithms are better than supercomputers.

6. Binary Search Example: Find 9 3 5 7 8 9 12 15 • Binary Search from part 3 is a divide and conquer algorithm. • Find an element in a sorted array: • Divide: Check middle element. • Conquer: Recursively search 1 subarray. • Combine: Easy; return index

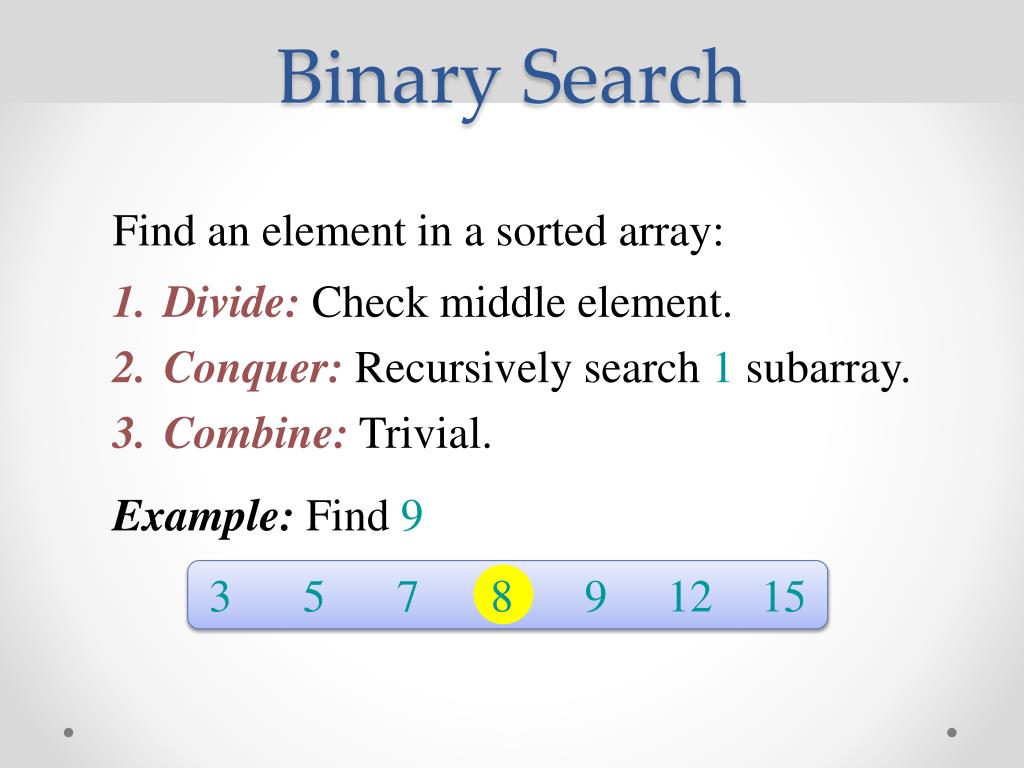

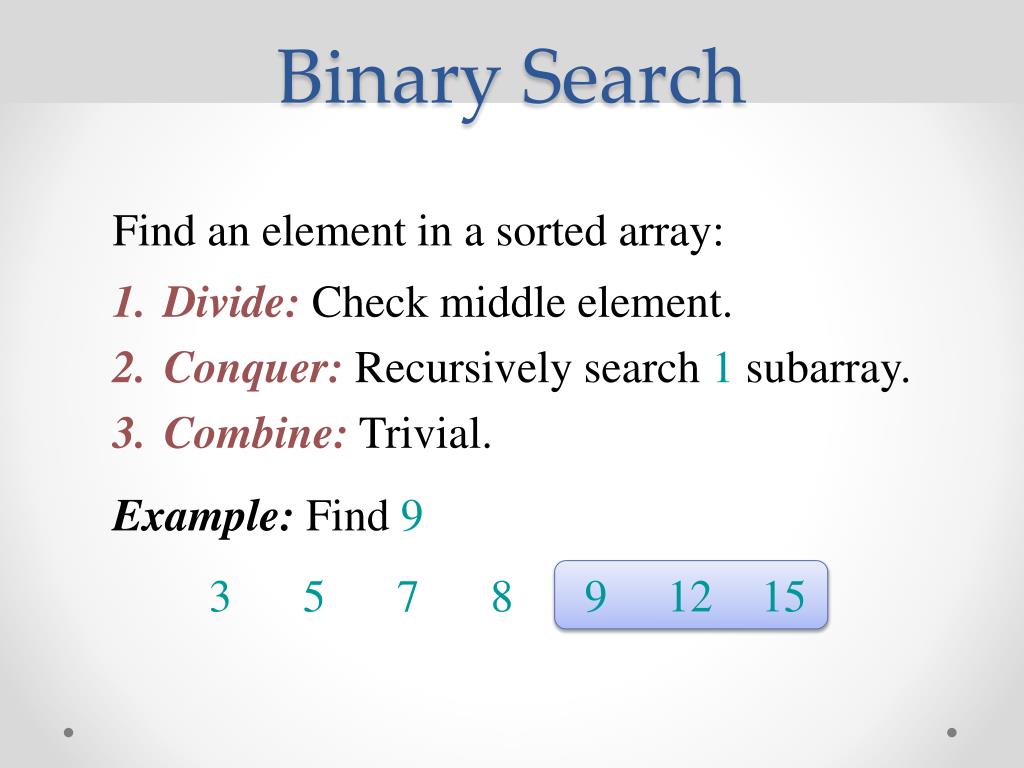

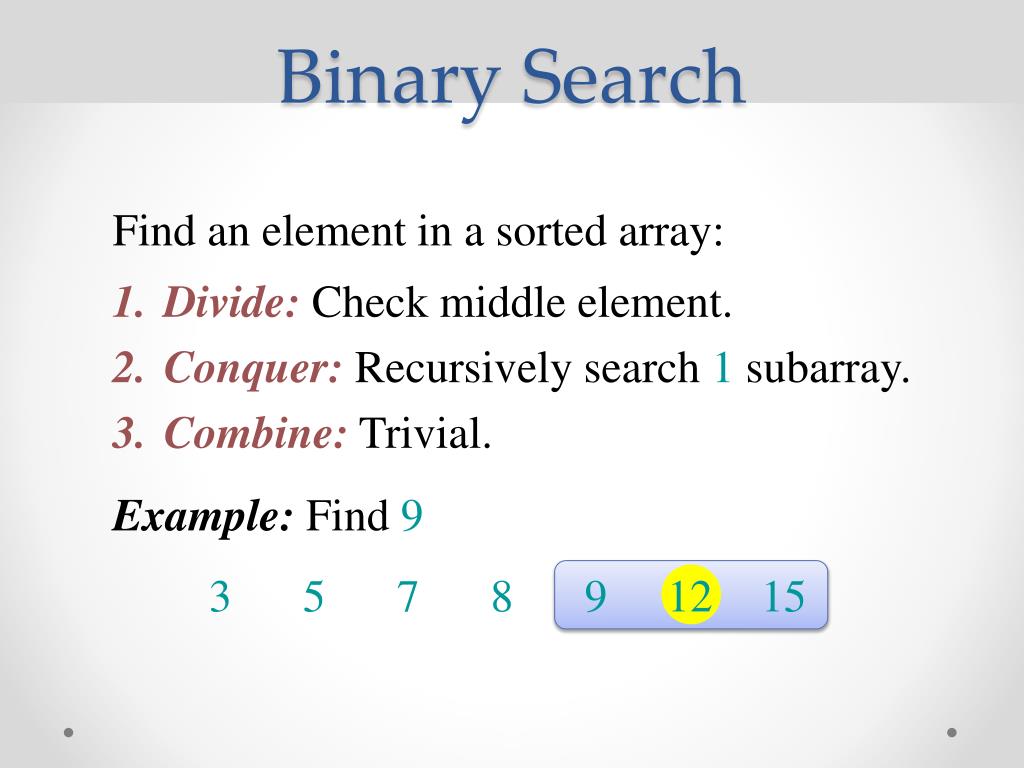

Binary Search Find an element in a sorted array: • Divide: Check middle element. • Conquer: Recursively search 1 subarray. • Combine: Trivial. 3 5 7 8 9 12 15 Example: Find 9

Binary Search Code (again) int binSrch(char A[], int i,int j, char key){ int k; if (i > j) /* key not found */ return -1; k = (i+j)/2; if (key == A[k]) /* key found */ return k; if (key < A[k]) j = k-1; /* search left half */ else i = k+1; /* search right half */ return binSrch(A, i, j, key);}

Running Time (again) n == the range of the arraybeing looked at • Using big-oh. • Basis: T(1) = O(1) • Induction: T(n) = O(1) + T(< n/2 >), for n > 1 • As algebra • Basis: T(1) = a • Induction: T(n) = c + T(< n/2 >), for n > 1 • Running time for binary search is O(log2 n).

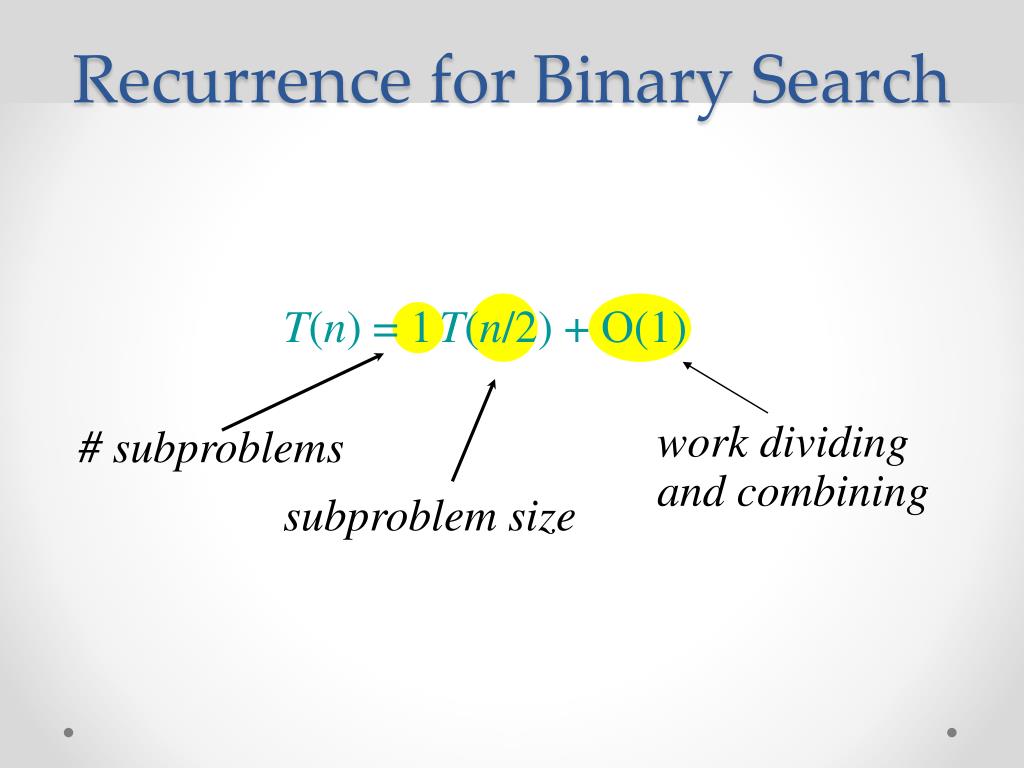

Recurrence for Binary Search T(n) = 1T(n/2) + O(1) # subproblems work dividing and combining subproblem size

BS Recursion tree Solve T(n) = T(n/2) + c, where c > 0 is constant. • We usually don't bother with the base case because our algorithms always run in time O(1) when n is a small constant.

BS Recursion tree Solve T(n) = T(n/2) + c, where c > 0 is constant. T(n)

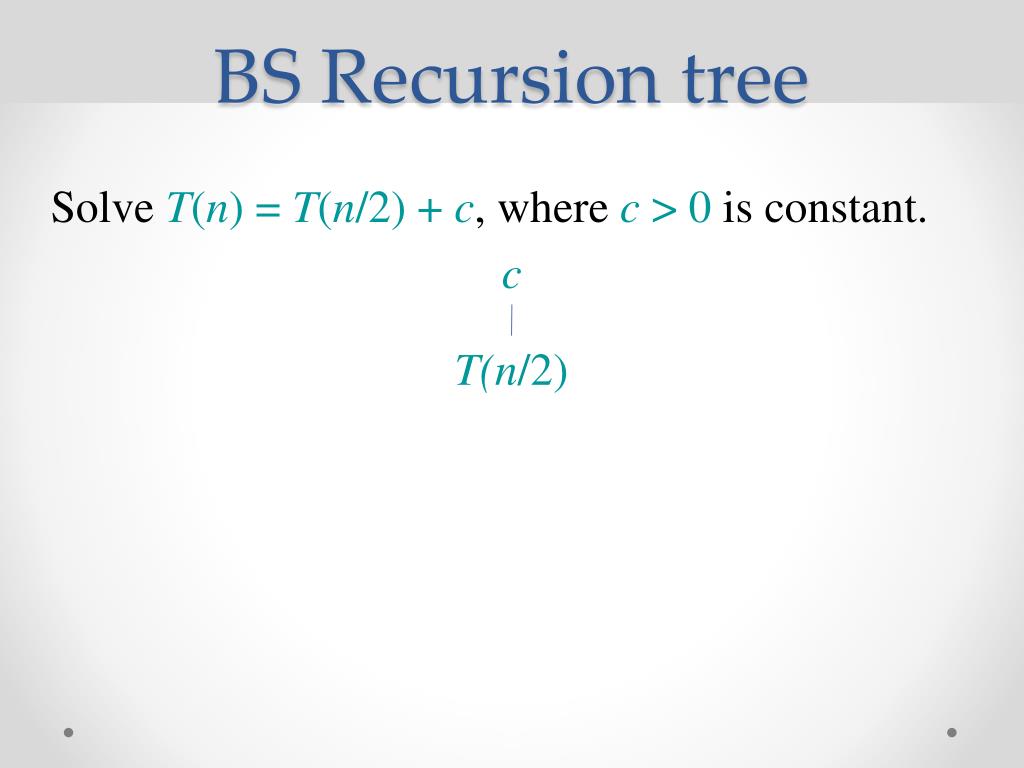

BS Recursion tree Solve T(n) = T(n/2) + c, where c > 0 is constant. c T(n/2)

BS Recursion tree Solve T(n) = T(n/2) + c, where c > 0 is constant. c c T(n/4)

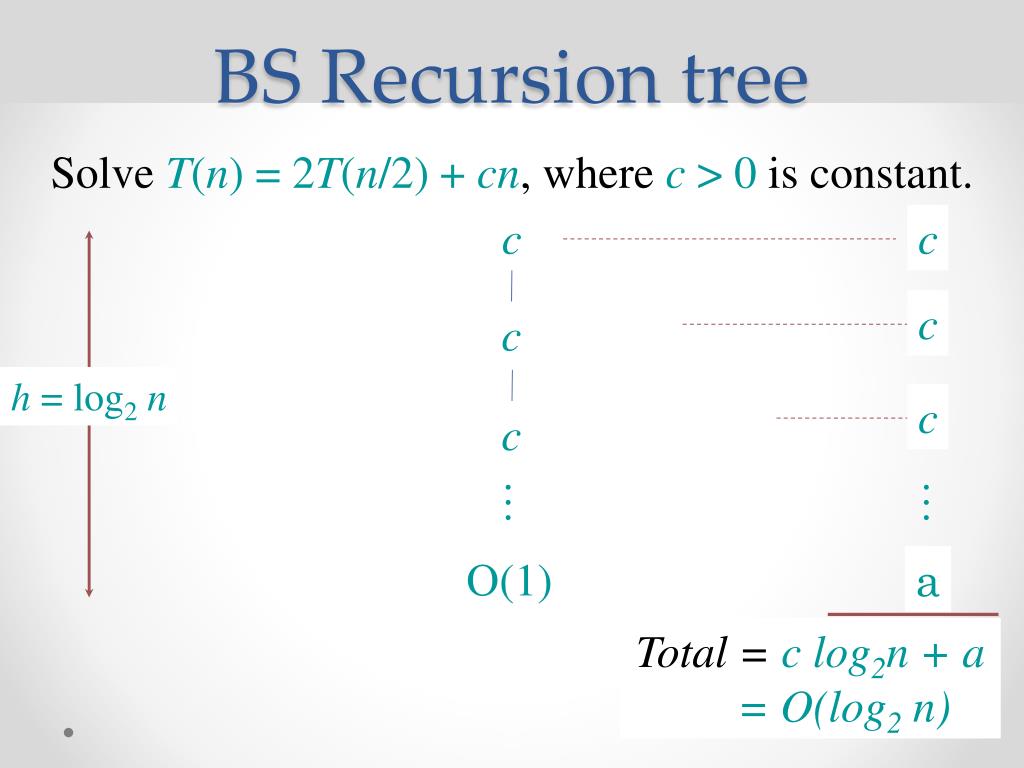

BS Recursion tree Solve T(n) = 2T(n/2) + cn, where c > 0 is constant. c c c c h = log2n c c … … O(1) a Total = c log2n + a = O(log2 n)

Two recurrences so far • Merge SortT(n) = 2T(n/2) + O(n) = O(n log n) • Binary SearchT(n) = T(n/2) + O(1) = O(log n) • The big-oh running times were calculated in two ways: the iteration method and using recursion trees. • Let's do some more example of both.

7. Recursion Tree Examples 1 Solve T(n) = T(n/4) + T(n/2) + n2:

Example 1 Solve T(n) = T(n/4) + T(n/2) + n2: T(n)

Example 1 Solve T(n) = T(n/4) + T(n/2) + n2: n2 T(n/2) T(n/4)

Example 1 Solve T(n) = T(n/4) + T(n/2) + n2: n2 (n/2)2 (n/4)2 T(n/16) T(n/8) T(n/8) T(n/4)

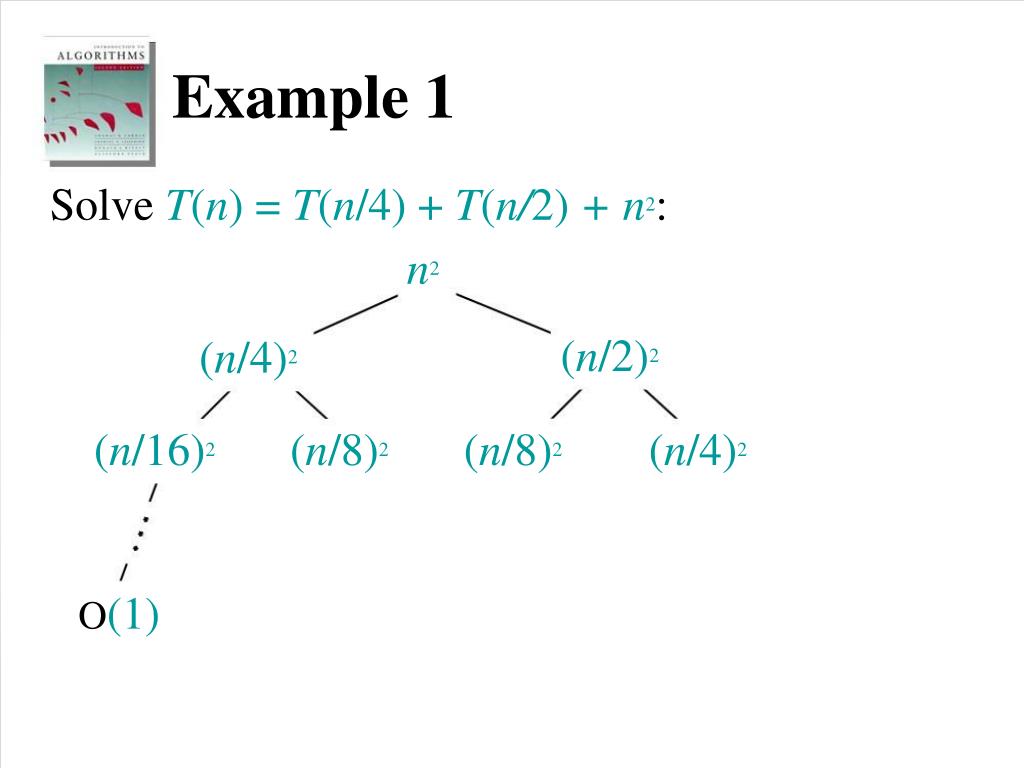

Example 1 Solve T(n) = T(n/4) + T(n/2) + n2: n2 (n/2)2 (n/4)2 (n/16)2 (n/8)2 (n/8)2 (n/4)2 O(1)

Example 1 Solve T(n) = T(n/4) + T(n/2) + n2: n2 2 n (n/2)2 (n/4)2 • (n/8)2 (n/4)2 • (n/16)2 (n/8)2 O(1)

Example 1 Solve T(n) = T(n/4) + T(n/2) + n2: n2 2 n • (n/2)2(n/8)2 (n/4)2 5 2 (n/4)2 n 16 • (n/16)2 (n/8)2 O(1)

Example 1 Solve T(n) = T(n/4) + T(n/2) + n2: n2 2 n • (n/2)2(n/8)2 (n/4)2 5 2 (n/4)2 n 16 25 2 • (n/16)2 (n/8)2 n 256 O(1)

Example 1 Solve T(n) = T(n/4) + T(n/2) + n2: n2 2 n • (n/2)2(n/8)2 (n/4)2 • (n/4)2(n/16)2 (n/8)2 5 2 n 16 25 2 n 256 O(1) 2 2 3 5 5 5 + ( ) + ( ) +L ) Total = n (1 + 16 16 16 = 16/11*n2 = O(n2) geometric series

Geometric Series Reminder for x¹ 1 for |x| < 1
