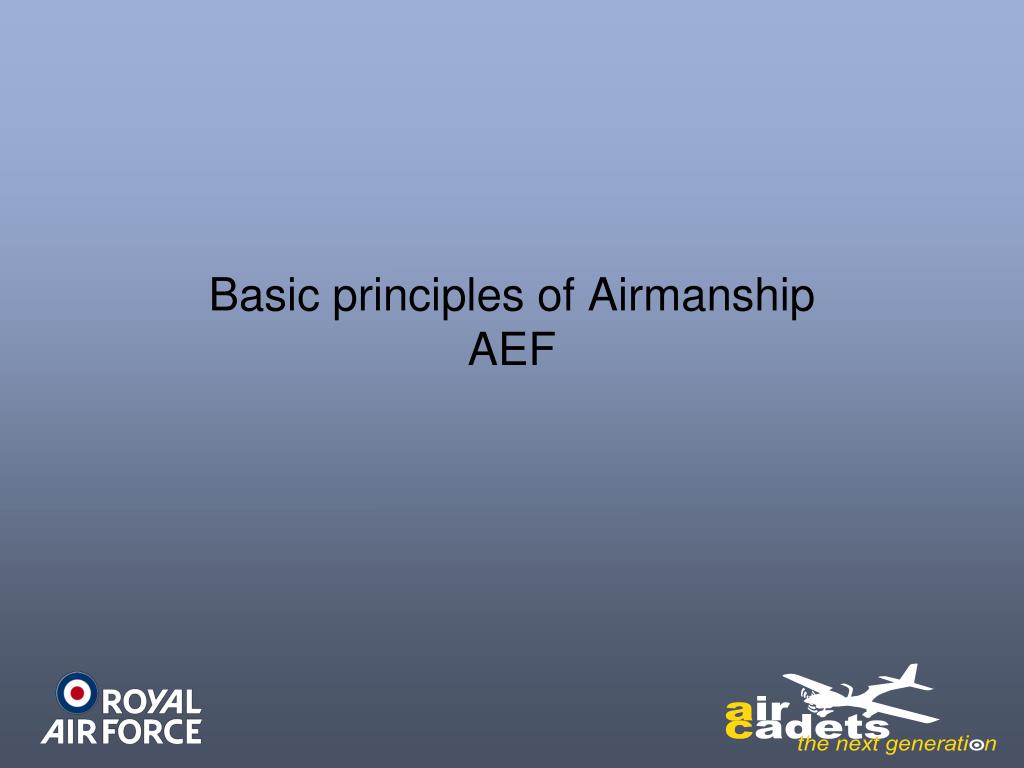

  1. Basic principles of AirmanshipAEF

  2. Objectives Understand the types of AEF in the ATC Introduce the ATC Basic Trainer –The Tutor Have a basic understanding of Flight Controls Understand ‘Safety in the Air’ Understand ‘Safety on the Ground’ Review the Tutor Passenger Brief Video

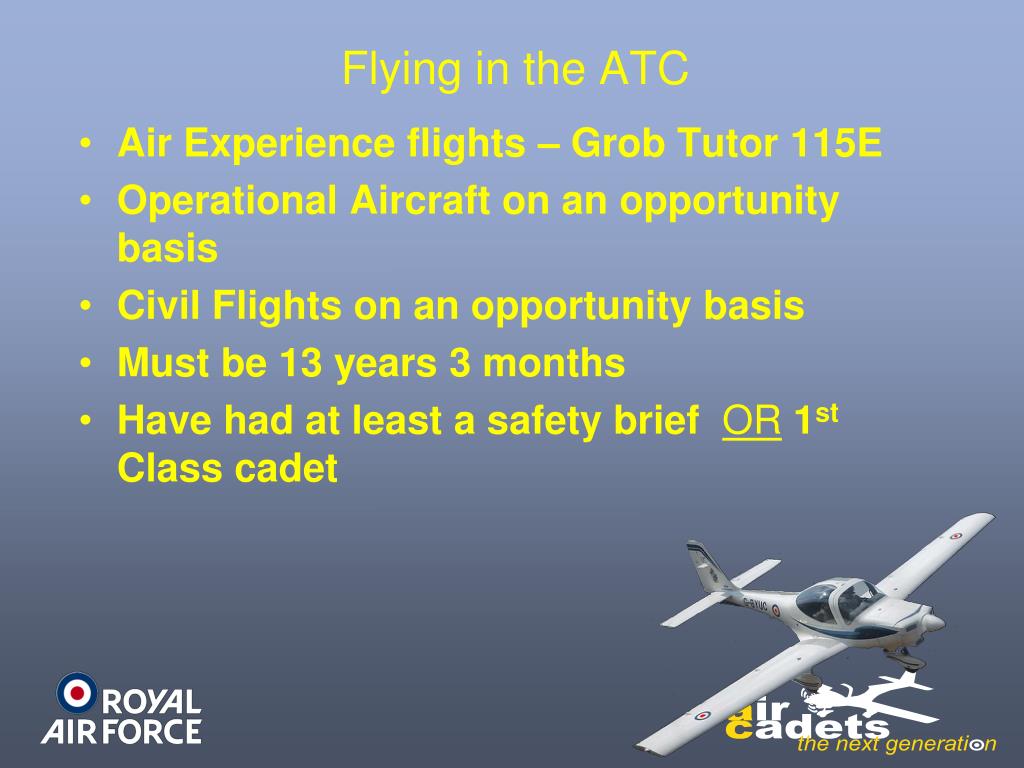

  3. Flying in the ATC Air Experience flights – Grob Tutor 115E Operational Aircraft on an opportunity basis Civil Flights on an opportunity basis Must be 13 years 3 months Have had at least a safety brief OR 1st Class cadet

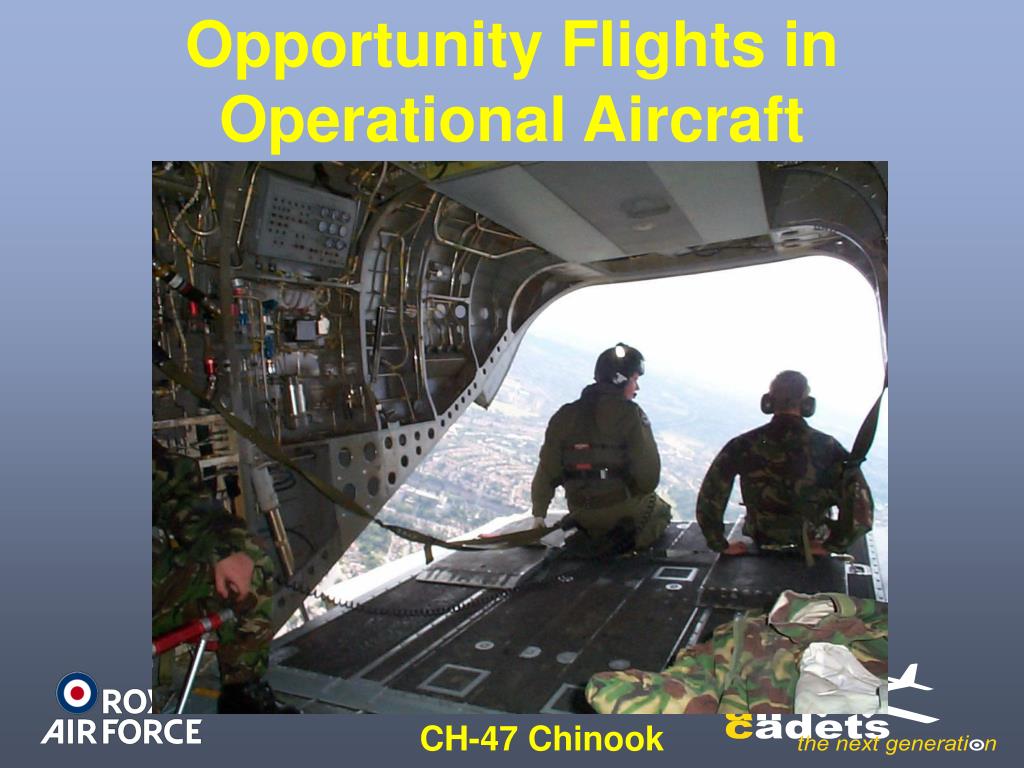

  4. Opportunity Flights in Operational Aircraft CH-47 Chinook

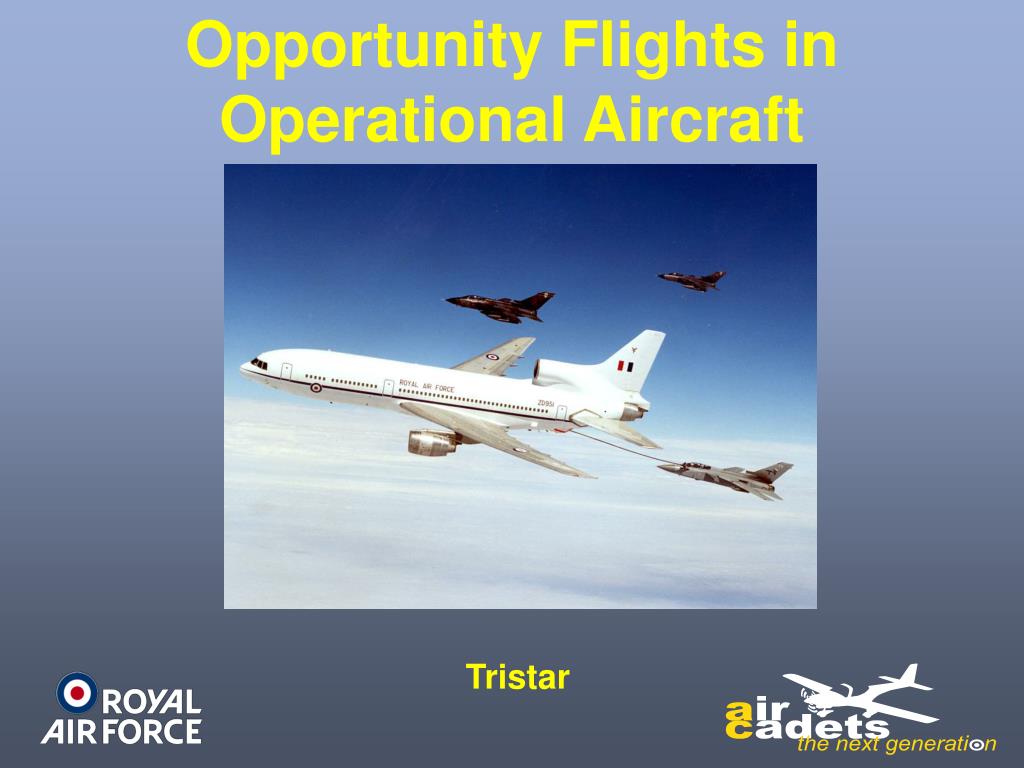

  5. Opportunity Flights in Operational Aircraft Tristar

  6. Opportunity Flights in Operational Aircraft C-130 Hercules

  7. Your Local Air Experience Flight Click here to view AEF Locations in Google Earth

  8. 1 Air Experience FlightRAF St Athan Return to Map Next Slide

  9. 2 Air Experience FlightBoscombe Down Return to Map Next Slide

  10. 3 Air Experience FlightColerne Return to Map Next Slide

  11. 4 Air Experience FlightGlasgow Airport Return to Map Next Slide

  12. 5 Air Experience FlightRAF Wyton Return to Map Next Slide

  13. 6 Air Experience FlightRAF Benson Return to Map Next Slide

  14. 7 Air Experience FlightRAF Cranwell Return to Map Next Slide

  15. 8 Air Experience FlightRAF Cosford Return to Map Next Slide

  16. 9 Air Experience FlightRAF Church Fenton Return to Map Next Slide

  17. 10 Air Experience FlightWoodvale Return to Map Next Slide

  18. 11 Air Experience FlightRAF LEEMING Return to Map Next Slide

  19. 12 Air Experience FlightRAF Kinloss Return to Map Next Slide

  20. Grob Tutor 115E

  21. Grob Tutor 115E

  22. Grob Tutor 115E

  23. Grob Tutor 115E

  24. Grob Tutor 115E

  25. Grob Tutor 115E Wingspan: 10.0m Length: 7.6m Height: 2.8m Max Weight: 990Kg Engine: 180hp Max Speed: 185Kts Side-by-side 2 seat Carbon Fibre construction

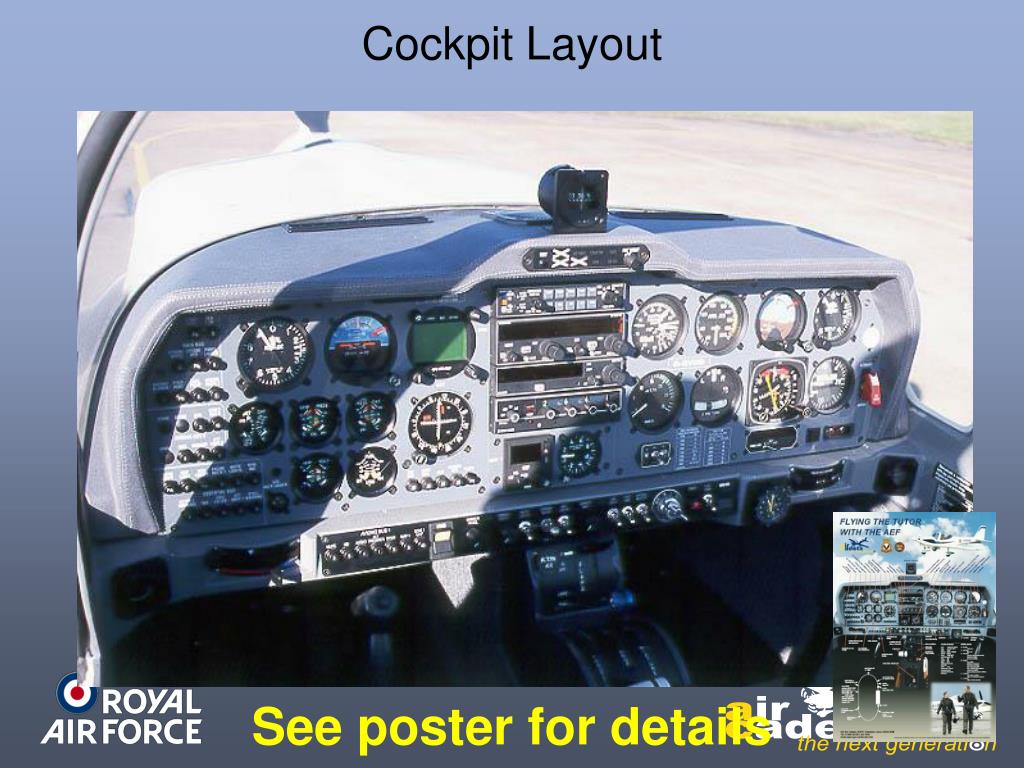

  26. Cockpit Layout See poster for details

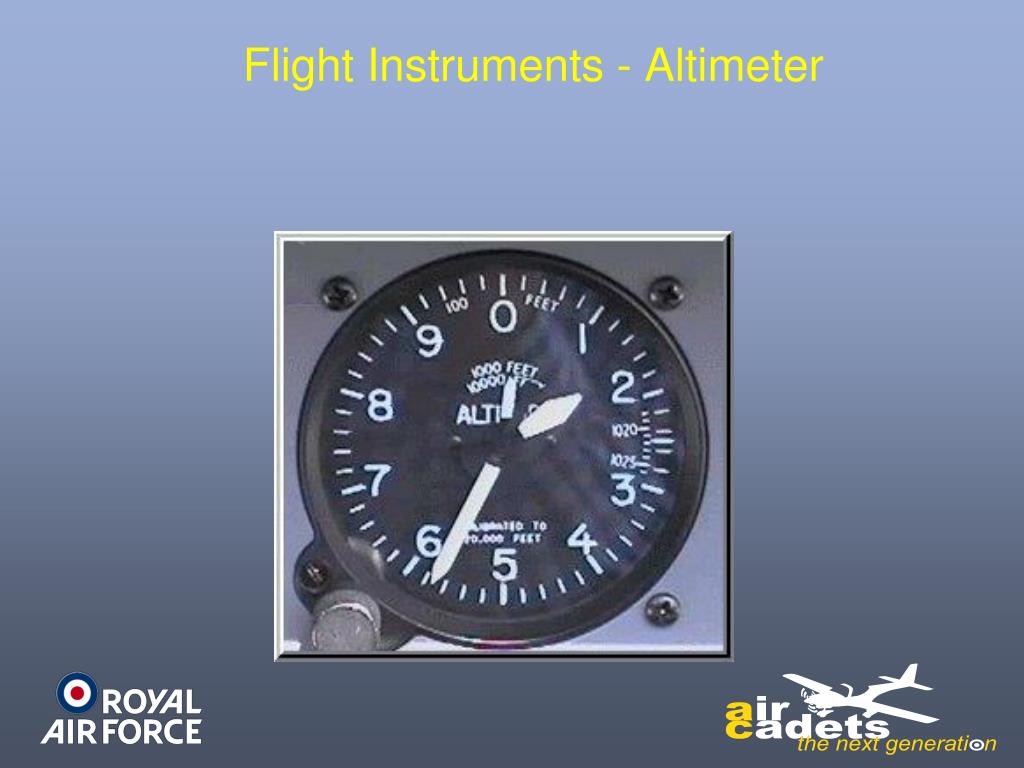

  27. Flight Instruments - Altimeter

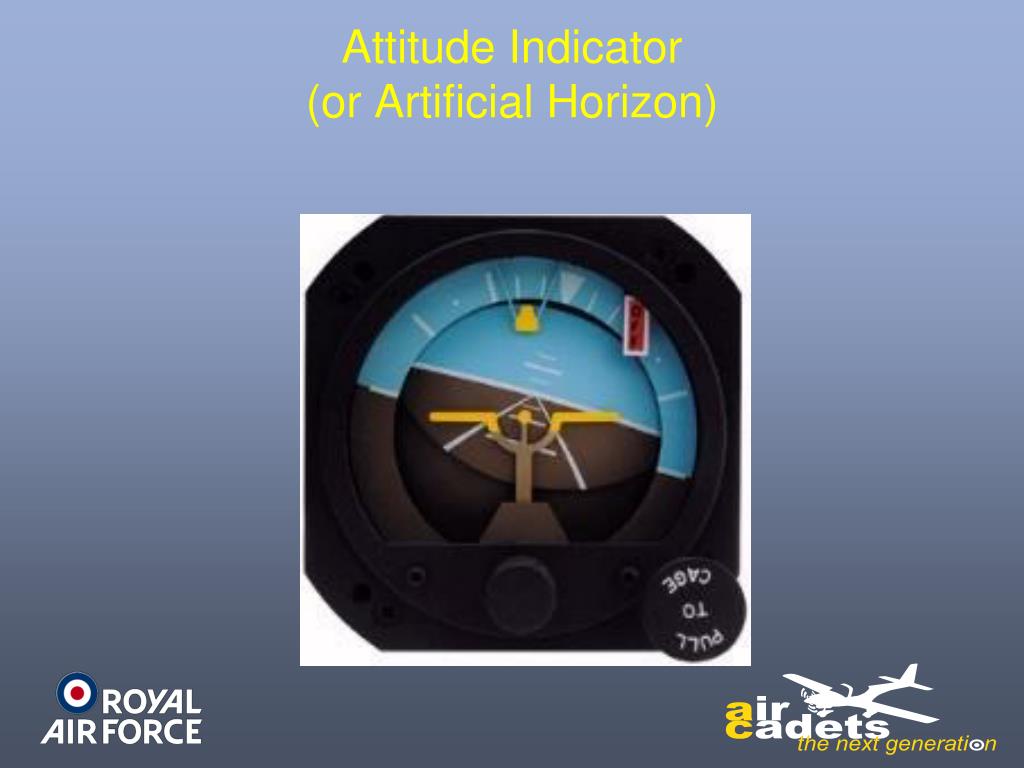

  28. Attitude Indicator (or Artificial Horizon)

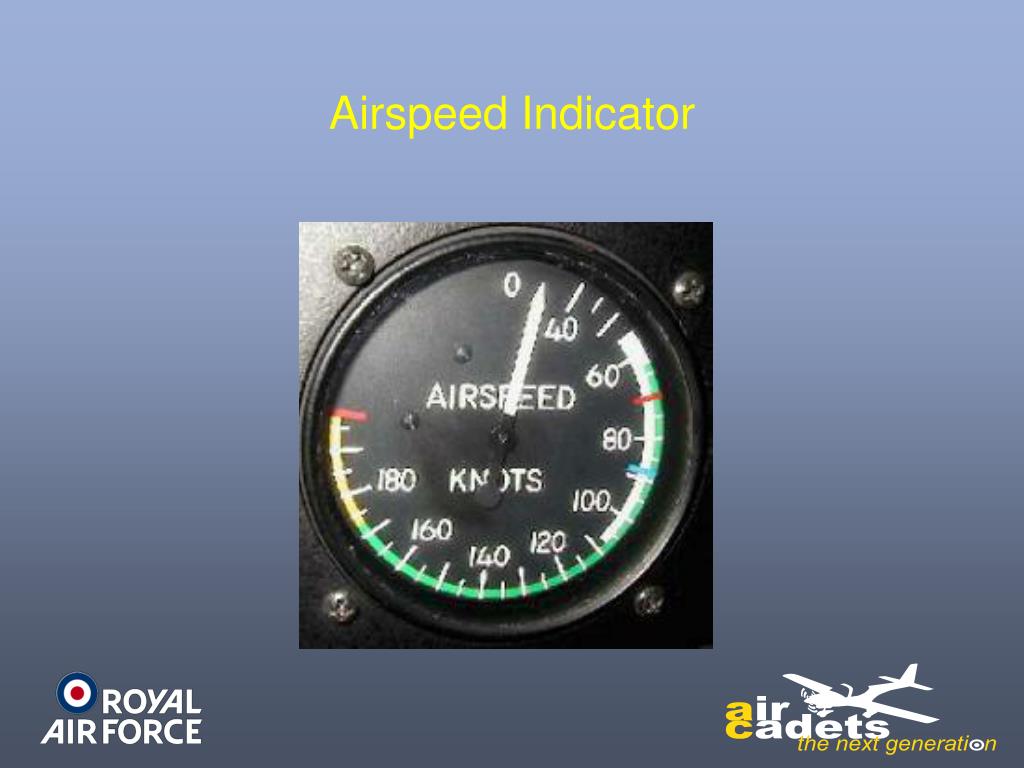

  29. Airspeed Indicator

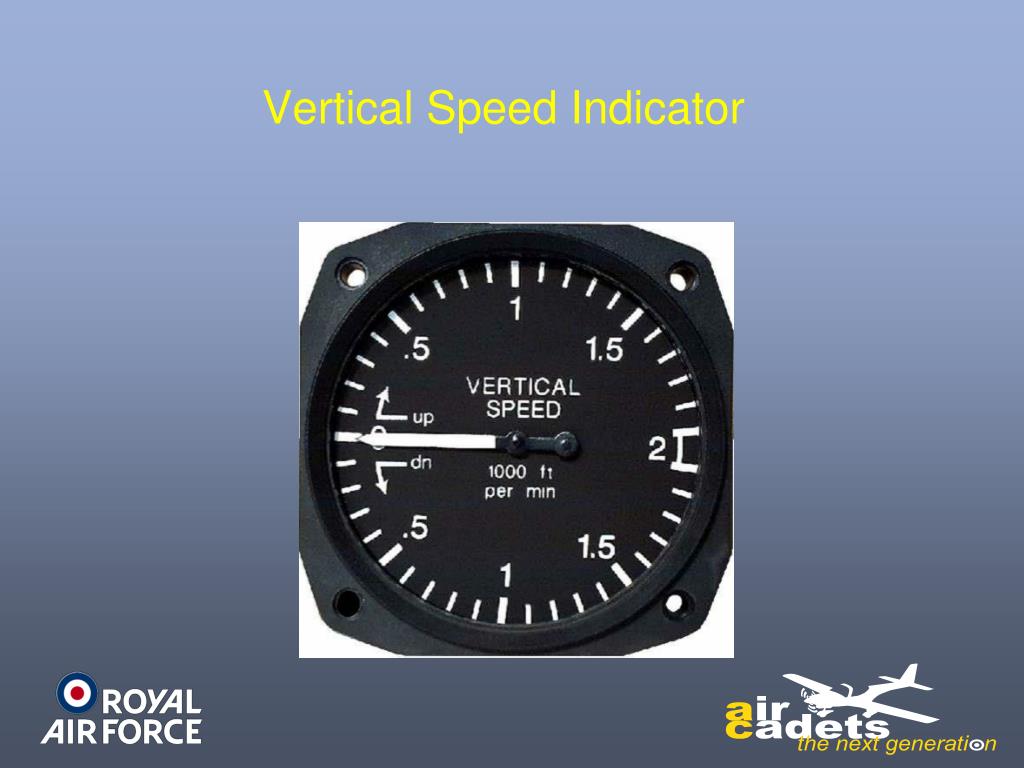

  30. Vertical Speed Indicator

  31. FLIGHT CONTROLS

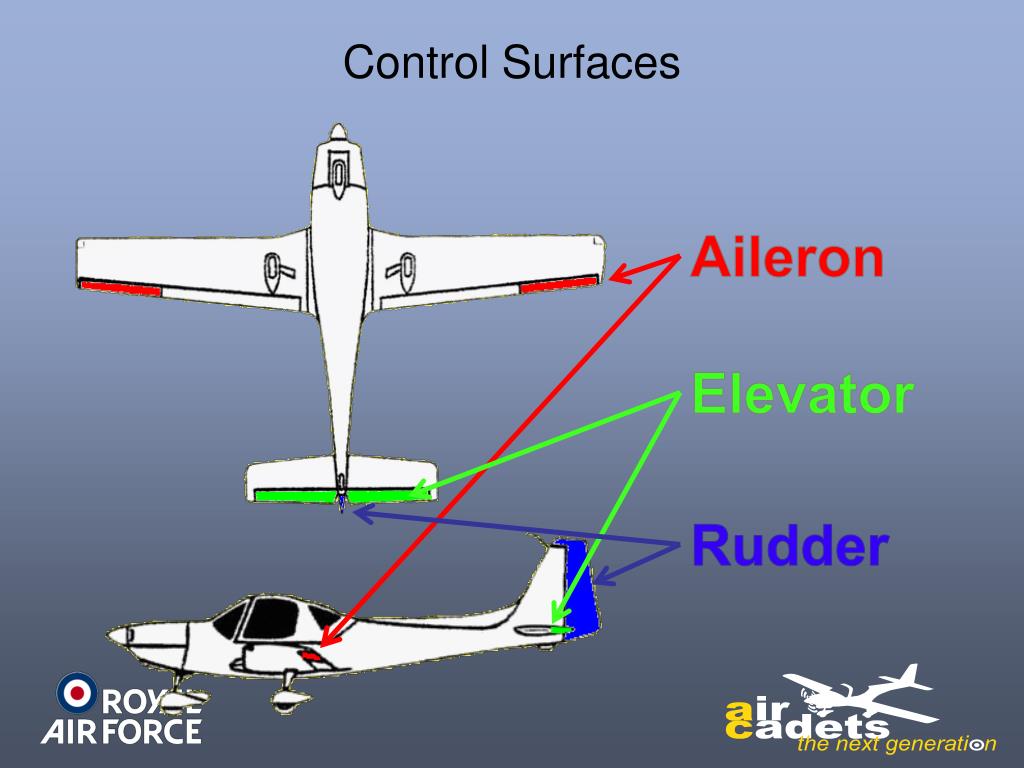

  32. Control Surfaces Aileron Elevator Rudder

  33. Control Surfaces – what do they look like in real life??? Rudder Aileron Elevator

  34. Control Surfaces – what do they look like in real life??? Aileron Elevator Rudder

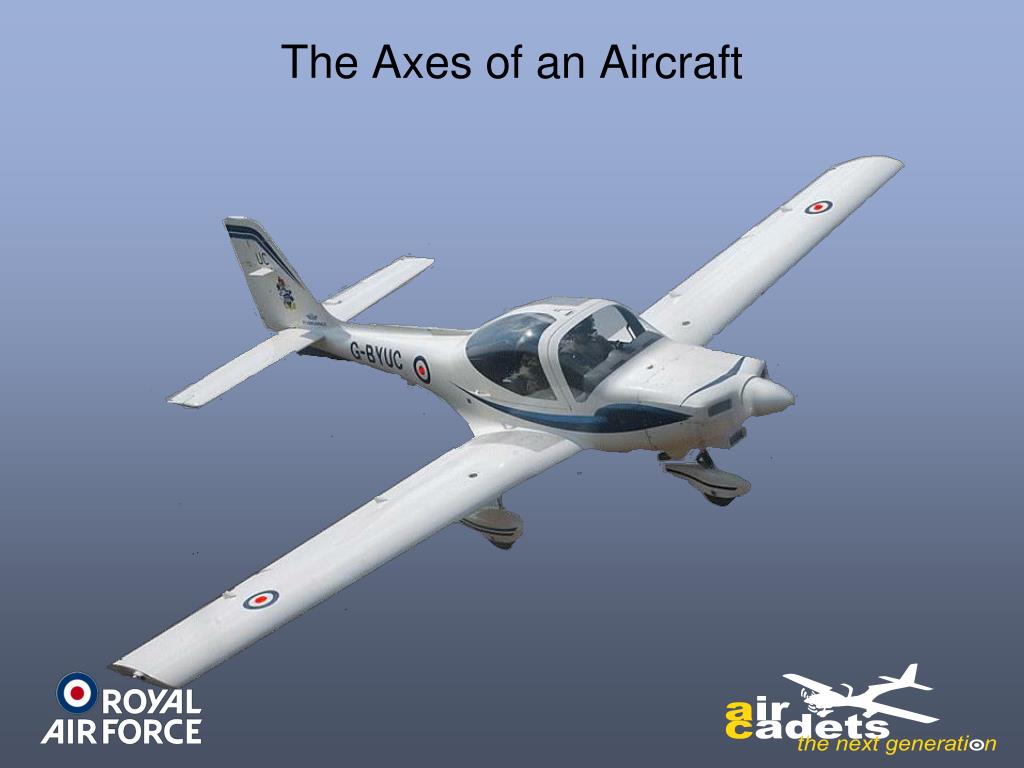

  35. The Axes of an Aircraft

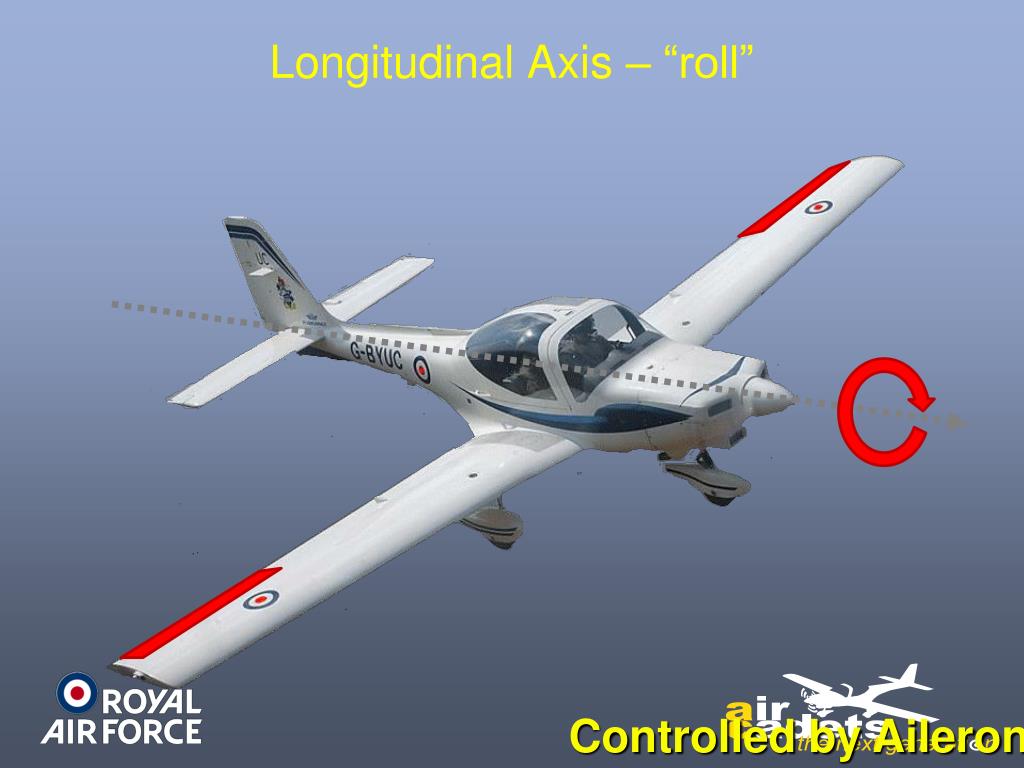

  36. Longitudinal Axis – “roll” Controlled by Ailerons

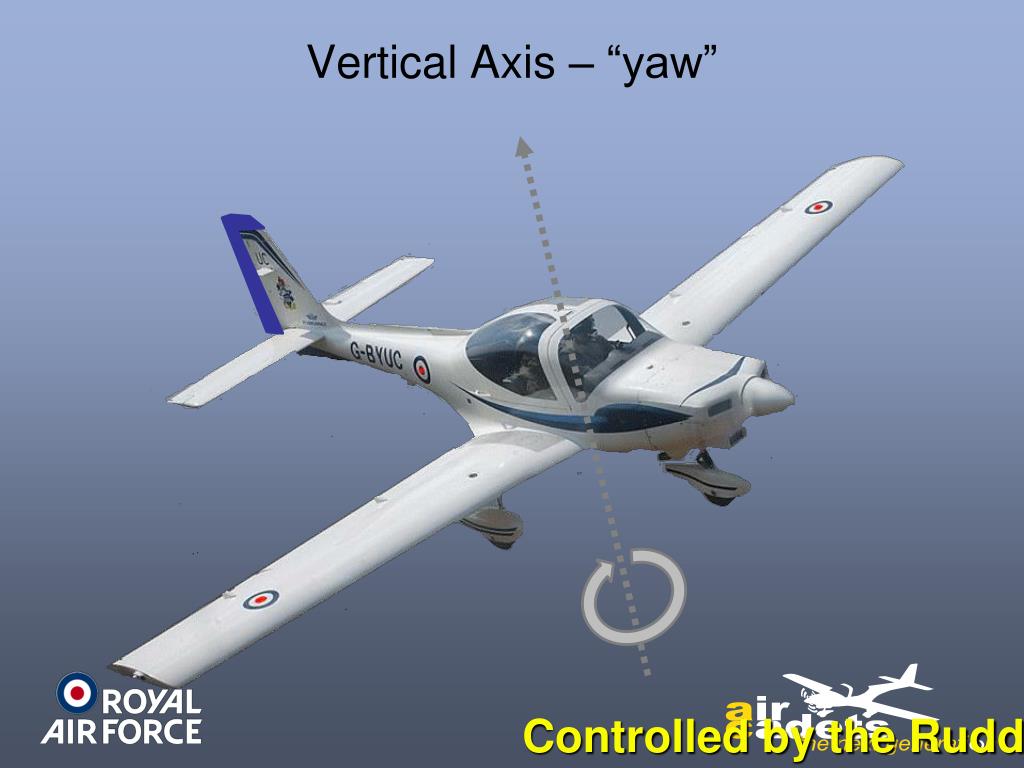

  37. Vertical Axis – “yaw” Controlled by the Rudder

  38. Lateral Axis – “pitch” Controlled by Elevators

  39. Ailerons

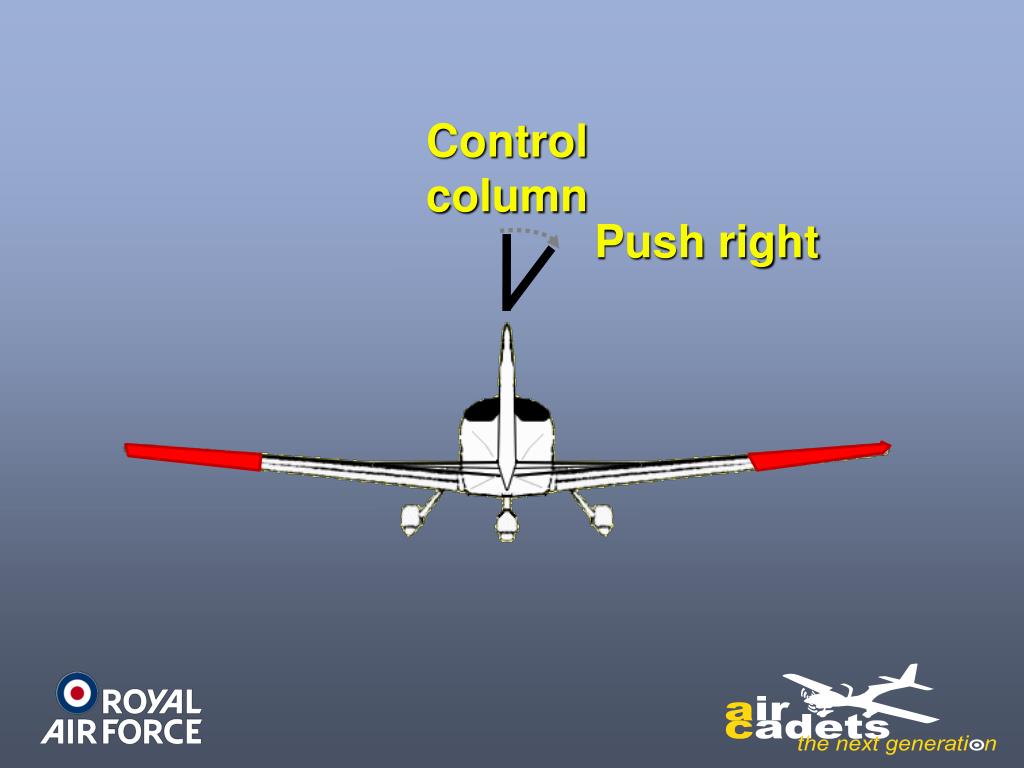

  40. Control column Push right

  41. Left aileron down Right aileron up

  42. Aircraft rolls right

  43. Aircraft rolls right

  44. And continues to do so until the control column is placed in the neutral position Aircraft rolls right

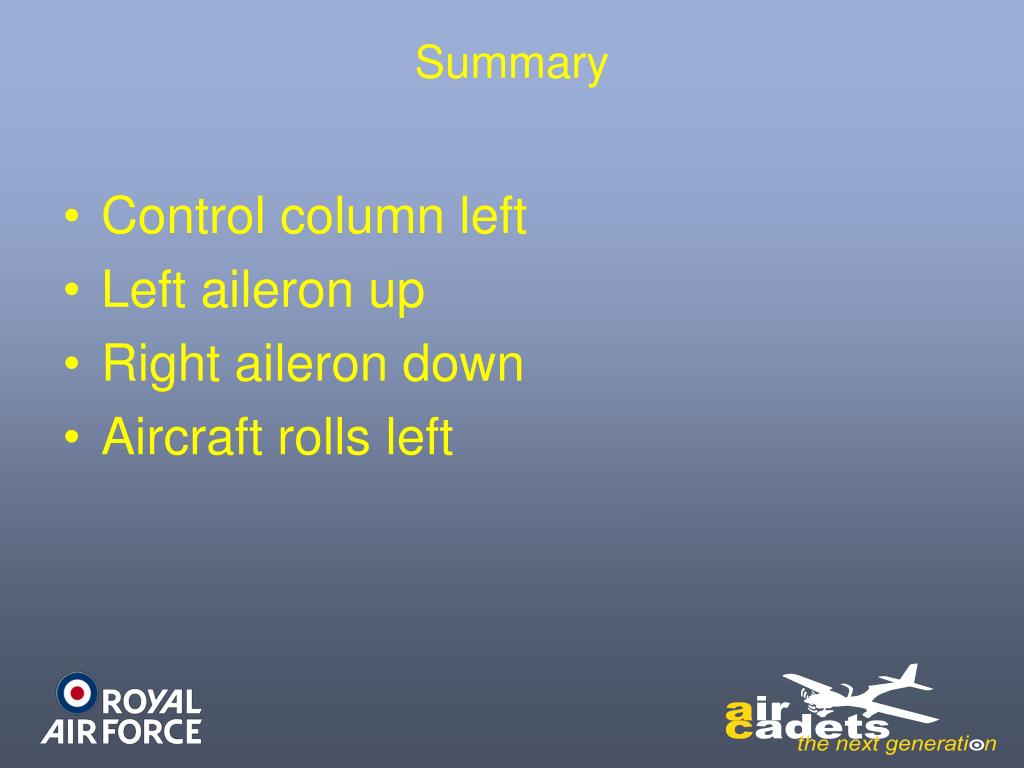

  45. Summary Control column left Left aileron up Right aileron down Aircraft rolls left

  46. Rudder

  47. The rudder is controlled by ‘Rudder Pedals’ in the cockpit

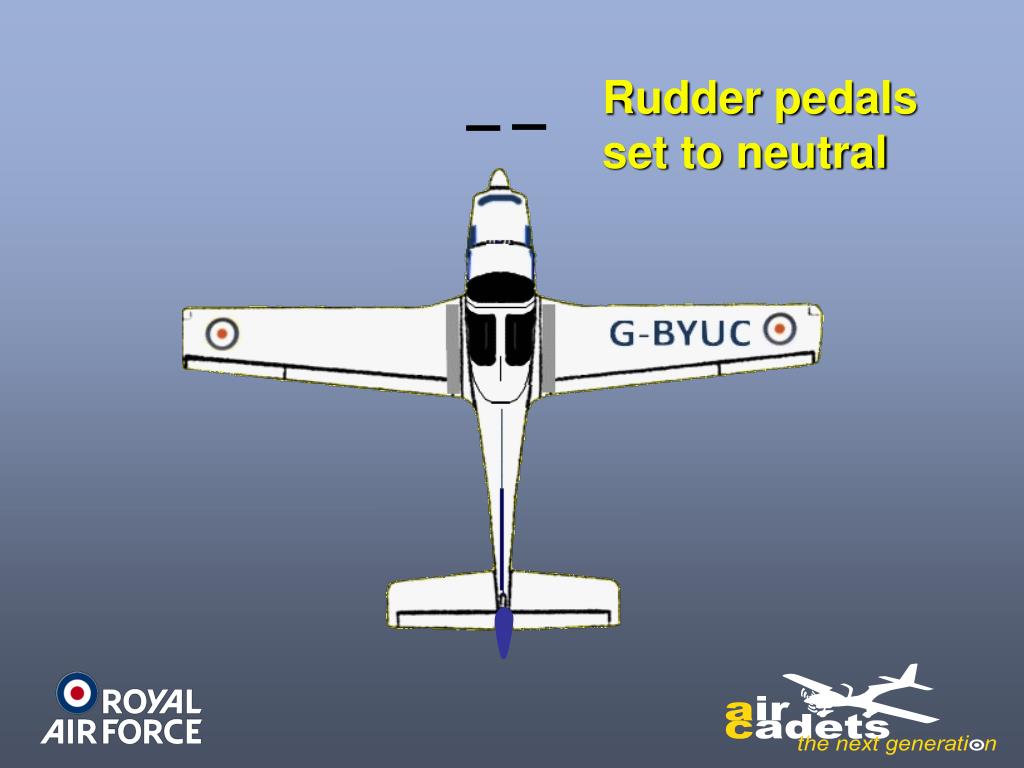

  48. Rudder pedals set to neutral

  49. Push right pedal forwards (left will come back towards you!) Rudder moves right

  50. Aircraft yaws right
