The GEOSS Seismic Workshop held on August 23-24, 2005, brought together experts like Peter Davis from the Scripps Institution of Oceanography and USGS to discuss advanced seismic data management on a global scale. The workshop focused on integrating data streams from various instruments, enhancing data storage, and developing robust systems for real-time data transmission. By leveraging the strength of networks like IRIS/IDA and employing modern telemetry strategies, the initiative aims to revolutionize seismic data handling, offering invaluable insights for global monitoring and disaster response.

#global management of seismic data: insights from the geoss seismic workshop #global management of seismic data: insights from the geoss seismic workshop ppt #powerpoint #presentation
Global Management of Seismic Data: Insights from the GEOSS Seismic Workshop - slide 1
01 / 18Global Management of Seismic Data: Insights from the GEOSS Seismic Workshop
1 / 17

Télécharger la présentation

Global Management of Seismic Data: Insights from the GEOSS Seismic Workshop
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

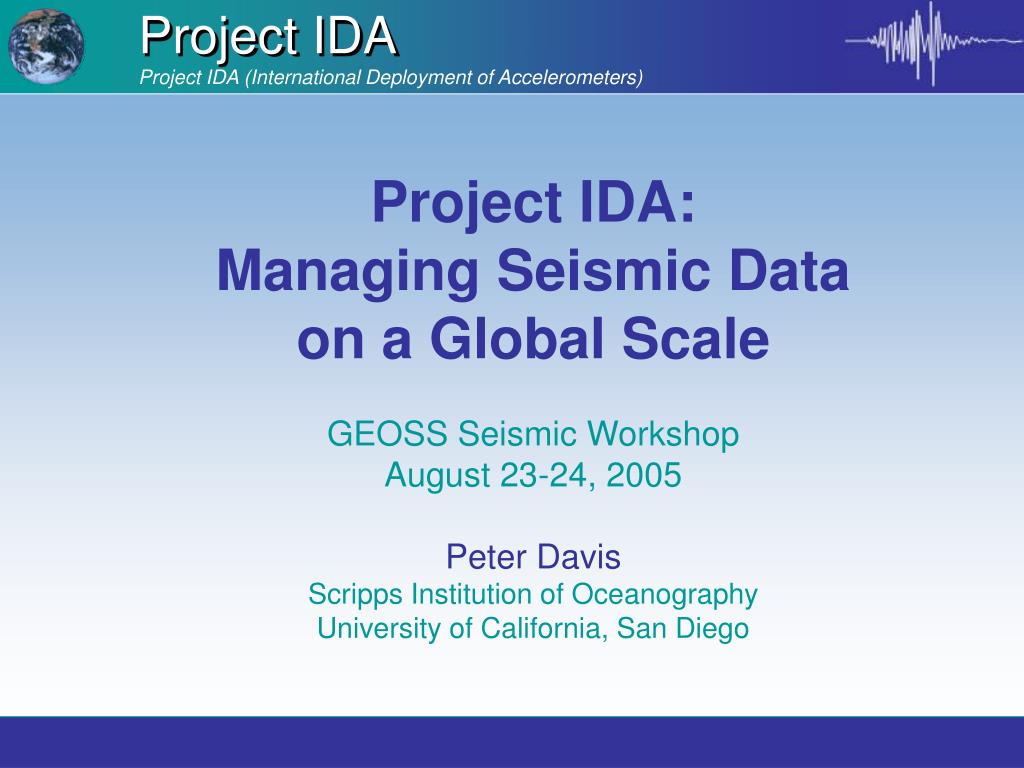

  1. Project IDA:Managing Seismic Dataon a Global ScaleGEOSS Seismic WorkshopAugust 23-24, 2005Peter DavisScripps Institution of OceanographyUniversity of California, San Diego

  2. - USGS Albuquerque Seismological Laboratory - IRIS/IDA Group at IGPP, Scripps Institution of Oceanography University of California, San Diego - University Networks and Affiliates GSN NETWORK OPERATORS

  3. GSN Station South Georgia Island • A host organization - university, government lab, or commercial organization. Provides land and in-country operational support. • $250k - $500k facilities • On-going O&M support

  4. Local data acquisition requirements: • Acquire time series from variety of instruments • Persistent data storage for arbitrary interval • Unattended operation • Operator interface for command/control

  5. MK8 DAS IDA Station Processor TCP/IP MK7 DAS NRTS async serial TCP/IP site specific TCP/IP IDA NRTS Gateway to San Diego IMS GCI Gateway to IMS

  6. Data display for local operator: Shift, left click drag (easy!)

  7. UCSD’s experience: base all long haul communication upon TCP/IP Original circuit linking Obninsk to San Diego, 1990-1997

  8. Telemetry links: • local area network (LAN) • leased lines / VSATs • local Internet service provider (ISP) • International dialup Mbarara, Uganda

  9. IRIS/IDA Telemetry Topology

  10. IDA Near Real Time System (NRTS): • developed by UCSD to support GSN communications • handles continuous or segmented time series • manages multiple, simultaneous data connections to distinct locations • provides format conversion tools (miniSEED, SAC, CSS 3.0, CM6) • clients based on toolkit (Antelope, Earthworm, VDL) • autoDRM • supports draft GSN telemetry formats and protocols

  11. NRTS data servers: • Each station may serve data to many recipients • With limited bandwidth, usually serves only one • Hubs positioned for broadband access • Hubs concentrate data from multiple stations

  12. Networks integrating IRIS/IDA Data

  13. IDA Data Collection Center: Comprehensive data analysis

  14. Network Data Collection Center Functions: • Verify precision of timing • Data/data flow problem detection • Metadata management • Maintenance activity reporting

  15. Network Data Collection Center Hardware: • twin SunFire dual processor V240 data servers • SunFire V100 telemetry server • 3.2 Tbyte RAID storage

  16. Data Delivery to IRIS DMC: • immediate forwarding of telemetered data • quality control of telemetered data within 2-3 days • reconciliation with station media within 60 days

  17. What GSN brings to GEOSS: • substantial infrastructure for data collection and dissemination • software architecture adaptable to additional data protocols and formats

  18. How GEOSS will help GSN data management: • Web services holds potential to revolutionize seismic data processing throughout the developing world
