  1. April 14th 2011 - Workshop on High Performance Applications of Cloud and Grid Tools Jason Zurawski, Research Liaison Scientific Networking: The Cause of and Solution to All Problems

  2. And Now for Something Completely Different • Topics so far on the core design and operation of Grid/Cloud infrastructures • Fertile area for work • Lots of advancement – being driven by scientific needs (e.g. Physics, Biology, Climate, etc.) • Achilles Heal of Grid/Cloud computing = infrastructure that links the components • Distributed CPU, Disk, and Users • Earlier efforts to improve the overall performance (e.g. Logistical Networking) • Role of Networking • “Under the hood”. Should enable science, but stay out of the way • Lots of advancement, highlight 2 efforts today: • DYNES – Dynamic Networking to end sites • LHCONE – Dedicated resources for data movement

  3. DYNES • Data movement to support science: • Increasing in size (100s of TBs in the LHC World) • Becoming more frequent (multiple times per day) • Reaching more consumers (VO size stands to increase) • Time sensitivity (data may grow “stale” if not processed immediately) • Traditional networking: • R&E or Commodity “IP” connectivity is subject to other users • Supporting large sporadic flows is challenging for the engineers, and frustrating for the scientists

  4. DYNES • Solution • Dedicated bandwidth (over the entire end to end path) to move scientific data • Invoke this “on demand” instead of relying on permanent capacity (cost, complexity) • Exists in harmony with traditional IP networking • Connect to facilities that scientists need to access • Integration with data movement applications • Invoke the connectivity when the need it, based on network conditions • Prior Work • “Dynamic Circuit” Networking – creation of Layer 2 point to point VLANs • Transit the Campus, Regional, and Backbone R&E networks • Software to manage the scheduling and negotiation of resources

  5. DYNES • NSF Funded “Cyber-Instrument” • Internet2/Caltech/University of Michigan/Vanderbilt University • Provide equipment and software to extend the Internet2 ION service into Campus and Regional networks • Build using the OSCARS IDC software (based on work in OGF NSI Working Group) • perfSONAR Monitoring (based on work in the OGF NM, NMC, and NML Working Groups) • FDT (Fast Data Transfer) data movement

  6. DYNES • Deployment Targets: • 25 End Sites • 8 Regional Networks • Collaboration with like minded efforts (DoE ESCPS) • Plans to consider provisional applications (send email to dynes-questions@internet2.edu if you are interested) • Supporting all science - early focus on Physics (LHC) sites

  7. DYNES Infrastructure Overview

  8. DYNES Standard Equipment • Inter-domain Controller (IDC) Server and Software • IDC creates virtual LANs (VLANs) dynamically between the FDT server, local campus, and wide area network • Dell R410 (1U) Server • Fast Data Transfer (FDT) server • Fast Data Transfer (FDT) server connects to the disk array via the SAS controller and runs the FDT software • Dell R510 (2U) Server • DYNES Ethernet switch options (emerging): • Dell PC6248 (48 1GE ports, 4 10GE capable ports (SFP+, CX4 or optical) • Dell PC8024F (24 10GE SFP+ ports, 4 “combo” ports supporting CX4 or optical)

  9. DYNES Data Flow Overview

  10. DYNES Current Status • 4 Project Phases • Phase 1: Planning (Completed in Feb 2011) • Phase 2: Initial Deployment (Feb 2011 through July 2011) • Phase 3: Full Deployment (July 2011 through Sept 2011) • Phase 4: Testing and Evaluation (Oct 2011 through August 2012) • A draft DYNES Program Plan document is available with additional details on the project plan and schedule: • http://www.internet2.edu/dynes • Questions can be sent to the mailing list: • dynes-questions@internet2.edu

  11. Inductive Step • Campus connectivity is just one part of a solution • Campus has been the traditional bottleneck • Using a traffic engineering solution like DYNES will connect sites on a national level in a point to point fashion • What about transit to non-DYNES sites? What about other countries? • Resources on a national and international level • Investment in networking is still strong • Backbone capacity upgrades coupled with availability of new sites (U.S. UCAN)

  12. Inductive Step • Scientific networking needs to be pervasive • Availability where the science is, e.g. “everywhere” • Linking the resources that require this capability • Clusters and Supercomputers • Data stores • Scientific Instruments (Telescopes, Colliders). • LHC Community: • Pro-active in terms of network preparedness • Designing next generation connectivity options to meet the needs of the VO as a whole • Sensitive to funding, but always wanting the best for the community to support scientific activity for the next 10+ years

  13. LHC Open Network Environment (LHCONE) • The goal of LHCONE is to provide a collection of access locations that are effectively entry points into a network that is private to the LHC • It is anticipated that LHCONE access locations will be provided in countries / regions in a number and location so as to best address the issue of ease of access • In the US, LHCONE access locations might be co-located with the existing R&E exchange points and/or national backbone nodes • A similar situation exists in Europe and Southeast Asia.

  14. LHCONE – North America • Proposed installation of two nodes to provide immediate service • Chicago • New York • Interconnected via Internet2 IP Network • Generally has 9 Gbps of available capacity for initial best-effort traffic use • Potential to provide a dedicated backbone circuit to provide 10G of capacity just for LHCONE (or shared with other scientific VOs) • It is certain that this bandwidth will grow as the Internet2 network upgrades its backbone links to 100 Gbps in 2011.

  15. Sample Architecture and Connectivity

  16. LHCONE Access Methodology • Designed to be “come as you are” • Network connectivity is expensive, budgets are tight • Funding opportunities can accommodate increased connectivity in the future • Short term is to offer several methods • There will be three primary methods of connection to the LHCONE-NA architecture. • Direct Connection to LHCONE-NA Nodes • Layer2 Connectivity via Internet2 Network (e.g. ION) • Layer3 Connectivity via Internet2 Network

  17. Direct Connection to LHCONE-NA Nodes • Normally an expensive option, but one that provides the greatest access • Physical connection from end site to connection point • Initially Chicago and New York, others over time • 10GE anticipated • Mimics the current Tier1 to Tier2 connectivity via static circuits

  18. Layer2 Connectivity via Internet2 Network • Two basic approaches discussed • Static connectivity into Internet2 at some other location (e.g. not in Chicago or New York) • Facilitates end sites with this network option already in place • Dynamic connectivity via the ION service • Inexpensive way to manage traffic through existing network connections • Takes advantage of newly deployed infrastructure for DYNES

  19. Layer3 Connectivity via Internet2 Network • Option that will appeal to many Tier3 facilities without dedicated connections for science traffic • Cost effective • Additional hardware is not needed • In most cases, R&E IP access is sufficient (e.g. 10G or less) • Use the R&E connectivity of their institution • Best effort in terms of bandwidth • Harder to manage traffic flows

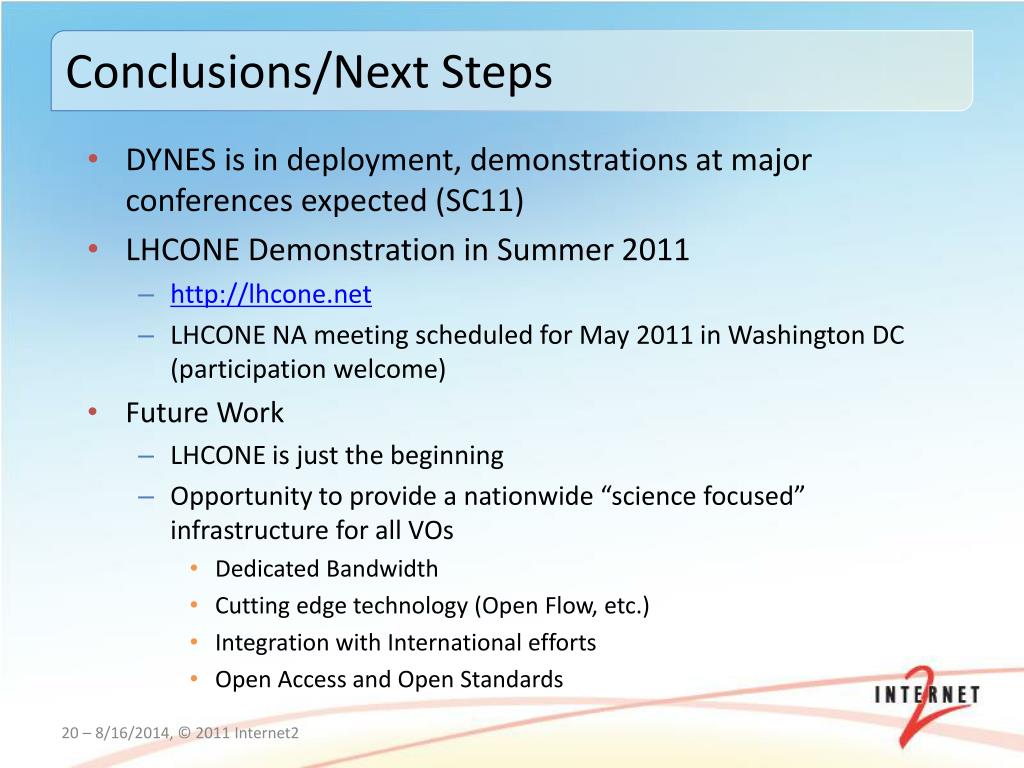

  20. Conclusions/Next Steps • DYNES is in deployment, demonstrations at major conferences expected (SC11) • LHCONE Demonstration in Summer 2011 • http://lhcone.net • LHCONE NA meeting scheduled for May 2011 in Washington DC (participation welcome) • Future Work • LHCONE is just the beginning • Opportunity to provide a nationwide “science focused” infrastructure for all VOs • Dedicated Bandwidth • Cutting edge technology (Open Flow, etc.) • Integration with International efforts • Open Access and Open Standards

  21. Scientific Networking: The Cause of and Solution to All Problems April 18th 2011, Workshop on High Performance Applications of Cloud and Grid Tools Jason Zurawski, Research Liaison For more information, visit http://www.internet2.edu
