Dynamic Range

Dynamic Range. DR(dB) = 20*log(Vsat / Vnoise). Example: 1V max linear output from pixel 200uV input referred read noise DR = 74 dB. Stouffer Chart. Reading the chart. Enhance contrast, and find last visible step. Every step is 2dB in dynamic range. HDR sensor Stouffer Chart. Tint2.

livia
Télécharger la présentation

Dynamic Range

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

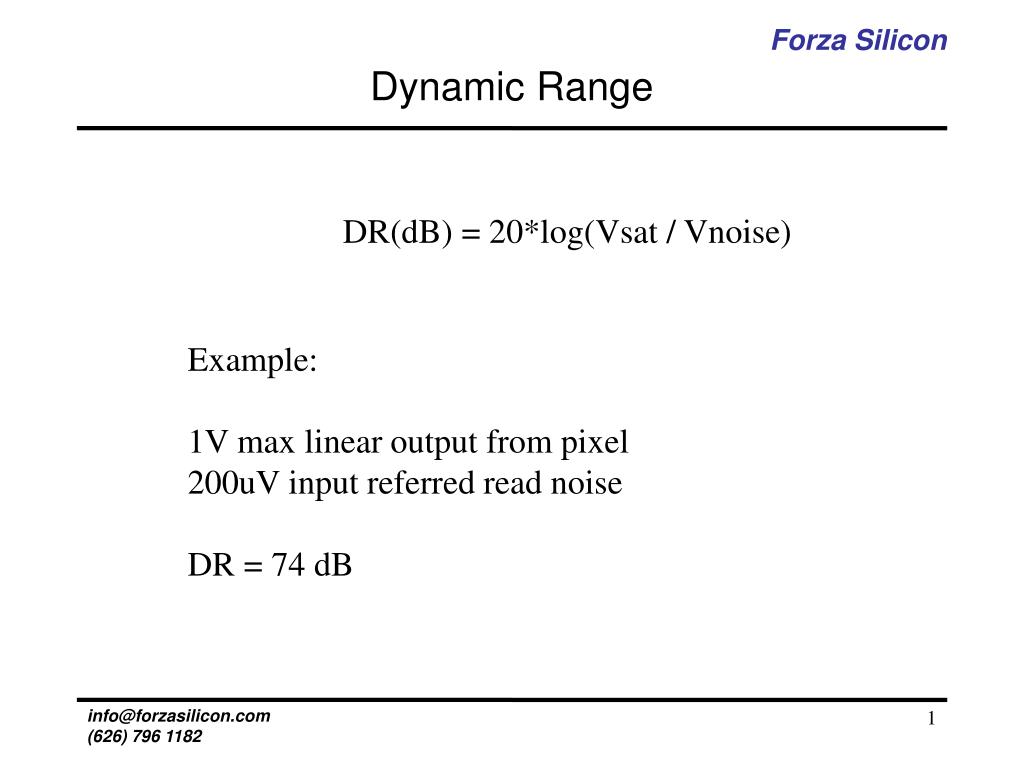

  1. Dynamic Range DR(dB) = 20*log(Vsat / Vnoise) Example: 1V max linear output from pixel 200uV input referred read noise DR = 74 dB

  2. Stouffer Chart

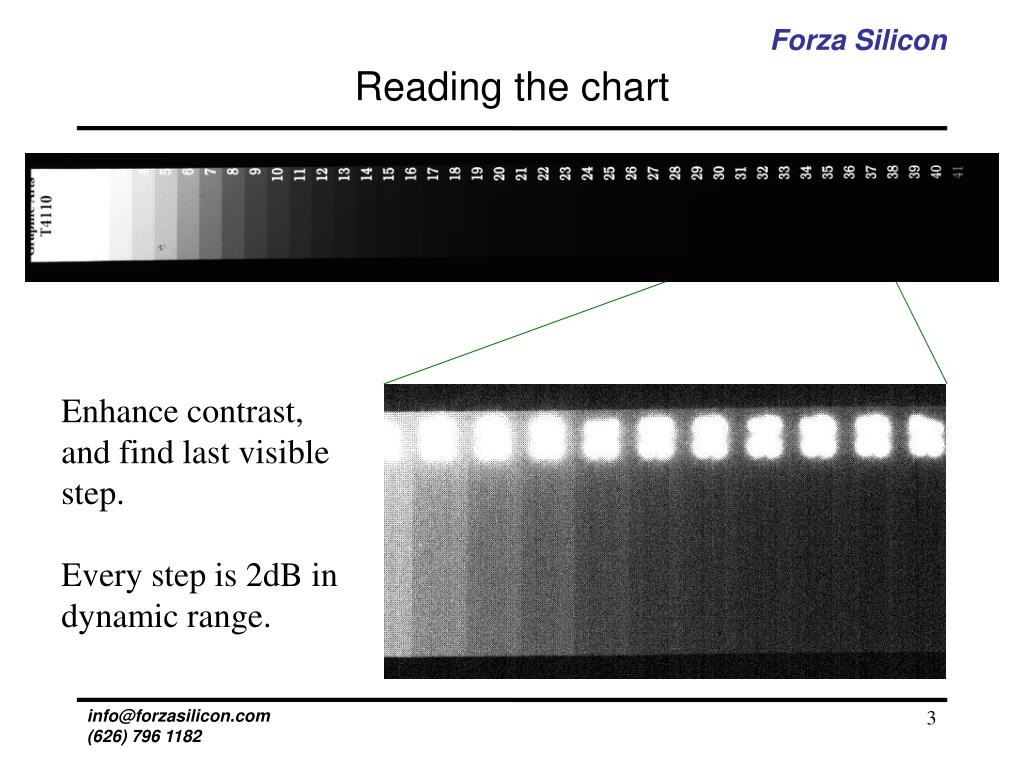

  3. Reading the chart Enhance contrast, and find last visible step. Every step is 2dB in dynamic range.

  4. HDR sensor Stouffer Chart Tint2 Tint1 Tint3 All the bars are visible to 41 > 82dB dynamic range Need a longer Stouffer Chart!

  5. 0 dB -20 dB -40 dB -60 dB -80 dB -100 dB -120 dB Dynamic Range TestFraunhofer Diffraction Pattern • 50 um pinhole • 633 nm laser beam
