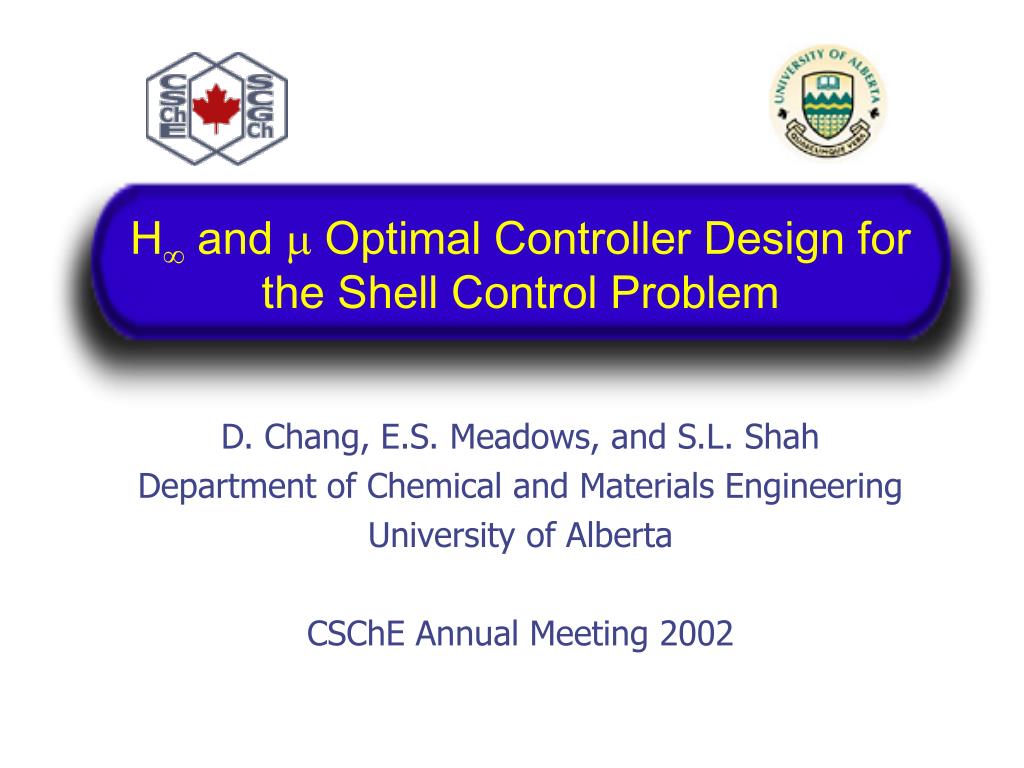

  1. H and  Optimal Controller Design for the Shell Control Problem D. Chang, E.S. Meadows, and S.L. Shah Department of Chemical and Materials Engineering University of Alberta CSChE Annual Meeting 2002

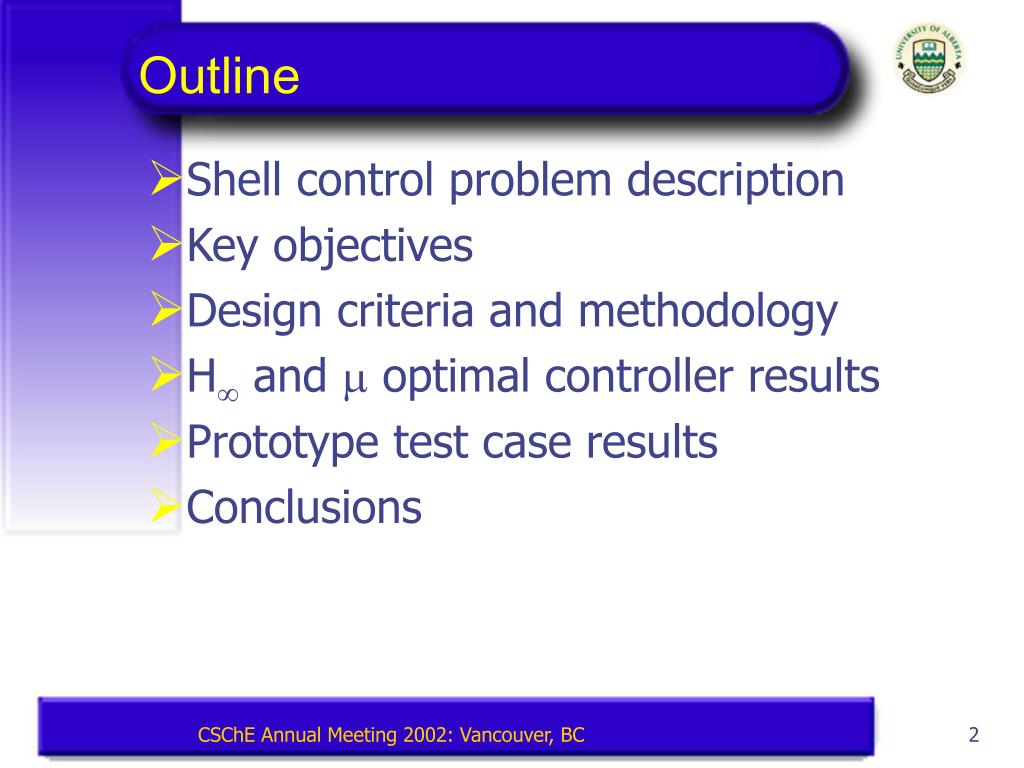

  2. Outline • Shell control problem description • Key objectives • Design criteria and methodology • H and  optimal controller results • Prototype test case results • Conclusions CSChE Annual Meeting 2002: Vancouver, BC

  3. Shell Control Problem Prett and Morari. Shell Process Control Workshop, 1987. CSChE Annual Meeting 2002: Vancouver, BC

  4. Key Objectives • Design a robustly stable controller satisfying the following constraints: • top end point and bottom reflux temperature is constrained between 0.5 and –0.5 • top draw, side draw and bottoms reflux duty is constrained between 0.5 and –0.5 • Manipulated variables have maximum move sizes between 0.05 and –0.05 CSChE Annual Meeting 2002: Vancouver, BC

  5. Generalized Plant Structure CSChE Annual Meeting 2002: Vancouver, BC

  6. Block Singularity spy(D) spy(D’) Avoid singular control problems and Meaning D12 must be full column and D21 must be full row rank. (Zhou, Doyle, and Glover, 1996) D before addition of setpoints D’ after addition of setpoints CSChE Annual Meeting 2002: Vancouver, BC

  7. Exogenous Inputs Revisited Prett and Morari. Shell Process Control Workshop, 1987. CSChE Annual Meeting 2002: Vancouver, BC

  8. Open Loop Characteristics CSChE Annual Meeting 2002: Vancouver, BC

  9. Exogenous Output Weights Performance weight • Crossover = 0.006 rad/sec  167 sec • 10% S.S. offset Controller output weight • Crossover = 0.9 rad/sec  1.1 sec CSChE Annual Meeting 2002: Vancouver, BC

  10. H Controller Response CSChE Annual Meeting 2002: Vancouver, BC

  11. Robust Stability of H Controller CSChE Annual Meeting 2002: Vancouver, BC

  12.  Optimal Response iteration 1 iteration 2 iteration 3 iteration 4 CSChE Annual Meeting 2002: Vancouver, BC

  13. Prototype Test Cases Worst case uncertainty set calculated by Matlab: 1= 1 2= -1, 3= -0.7585, 4= -0.5549, 5= 0.2497 CSChE Annual Meeting 2002: Vancouver, BC

  14.  Optimal Time Response CSChE Annual Meeting 2002: Vancouver, BC

  15. Worst Case Input Frequency w 0.2754 rad/s CSChE Annual Meeting 2002: Vancouver, BC

  16. Input and Rate Responses CSChE Annual Meeting 2002: Vancouver, BC

  17. Conclusions • A robustly stable multivariate controller can be designed with relative ease • All of the input, output and rate constraints were met for the Shell control problem •  analysis provides a consistent framework for evaluating robust performance for all controllers CSChE Annual Meeting 2002: Vancouver, BC

  18. Acknowledgements • Dr. E.S. Meadows • Dr. S.L. Shah • CPC group at U of A • NSERC • iCore CSChE Annual Meeting 2002: Vancouver, BC

  19. Questions? CSChE Annual Meeting 2002: Vancouver, BC
