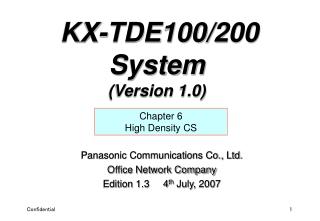

  1. KX-TDE100/200 System(Version 1.0) Panasonic Communications Co., Ltd. Office Network Company Edition 1.3 4th July, 2007 Chapter 6High Density CS

  2. Chapter 6High Density CS 1. High Density CS 2. High Density CS – Wiring 3. High Density CS - Additional

  3. 1. High Density CS (1/3) The TDE100/200 supports the new TDA0158CE (High Density CS) and TDA0141CE (Standard CS) by connecting to DPT ports (The TDA0142CE is also supported but requires installation of a separate CS I/F card). The TDA0158CE supports 8 speech paths. 2 DPT Port CS 8DPT Port CS = High Density CS

  4. 1. High Density CS (2/3) High Density CS KX-TDA0158CE Information Max. Number of CSs 1. High Density CS (TDA0158) is counted 2. 2. Existing CS (TDA0141/0142) is counted 1. 3. TDE100 can connect Max.16 High density CSs. 4. TDE200 can connect Max.16 High density CSs. TDE100/200 CS Lineup

  5. 1. High Density CS (3/3) MPR Version and CS compatibility 8 Lines 2 Lines 2 Lines 2 Lines RJ45 TDA0158CE (High Density CS) 2 Lines DLC8/DLC16/DHLC8

  6. 2. High Density CS – Wiring (1/3) DPT Port DPT Port DPT Port DPT Port DPT Port LPR Card A LPR Card B Installation Conditions (1) Data Port/Speech Path lines must be connected. (2) Data port and speech path lines must be 4 sequential DPT Ports. DPT/SLT XDP-SLT Data Port / Speech path Line Speech path Line DPT Port DPT Port

  7. TDE programming tool Menu Item 1-1-Physical Slot-DLC/DHLC-Port Property 2. High Density CS – Wiring (2/3) To Check The Cable Connection Sequence Use the TDE Programming Tool to show the port properties of the desired DLC/DHLC card. The cell station links will be shown in the ‘Telephone Type’ column. CS-M = Master CS-S1/S2/S3 = Secondary Links Cabling Distances φ0.4222m φ0.5347m φ0.6500m CAT5347m

  8. 2. High Density CS – Wiring (3/3)

  9. 3. High Density CS – Additional LED Status Reference Off Off Green (Solid) Standby/No Calls Green (Slow Flash) Active Calls Green (Moderate Flash) 8 Active calls (Max) Red (Solid) Initializing/Fault Red (Flash) OUS/Startup, linking to PBX. Power Unit Requirements TDA0158 8 TDA0142 4 TDA0141 4

  10. Chapter 6High Density CS Thank you very much !
