  1. Signals • Analog and digital • Aperiodic and periodic signals • Analog signals The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

  2. Figure 4-1 Transformation of Information to Signals The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

  3. Figure 4-2 Analog and Digital Clocks The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

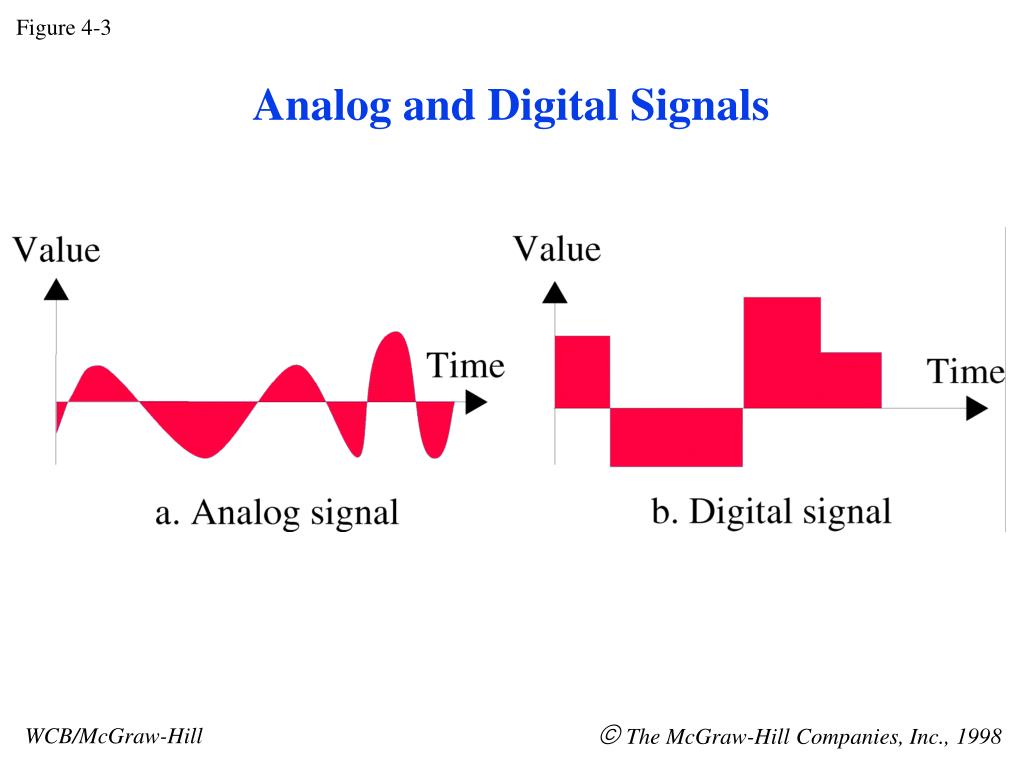

  4. Figure 4-3 Analog and Digital Signals The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

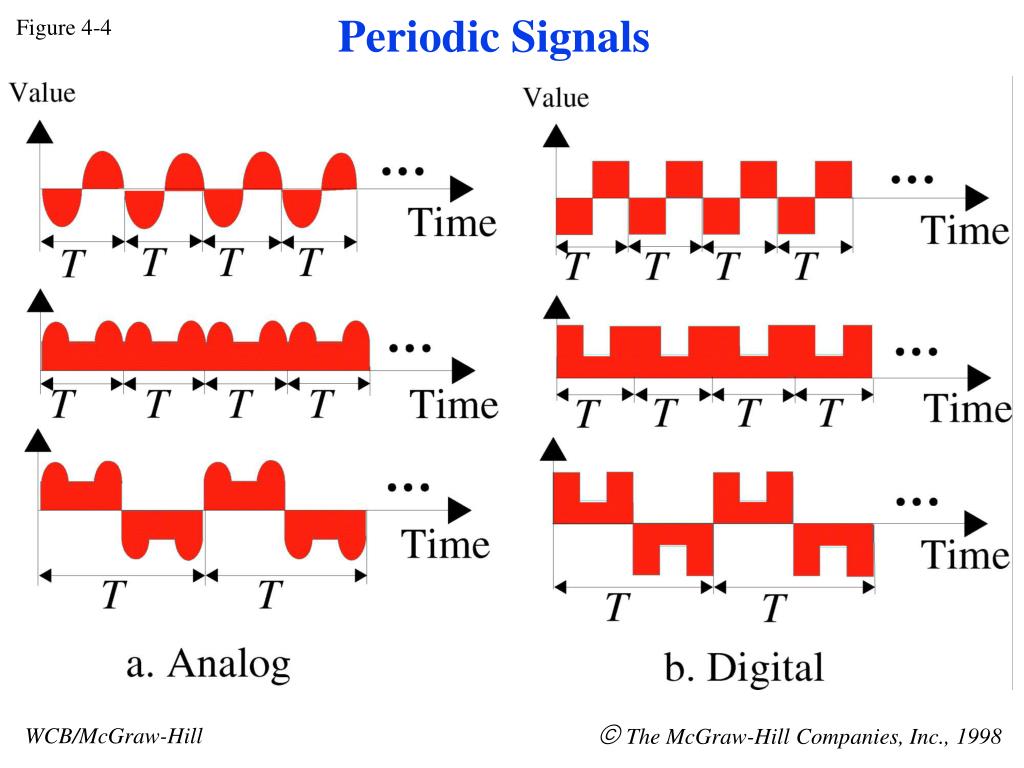

  5. Periodic Signals Figure 4-4 The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

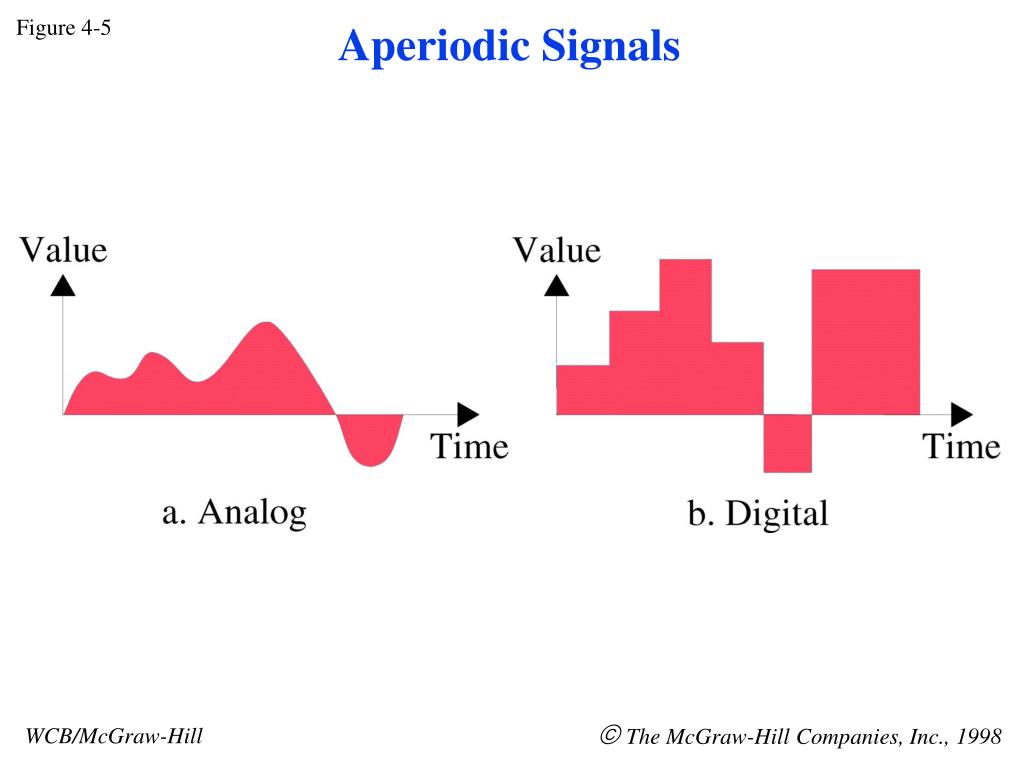

  6. Figure 4-5 Aperiodic Signals The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

  7. Figure 4-6 Sine Wave The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

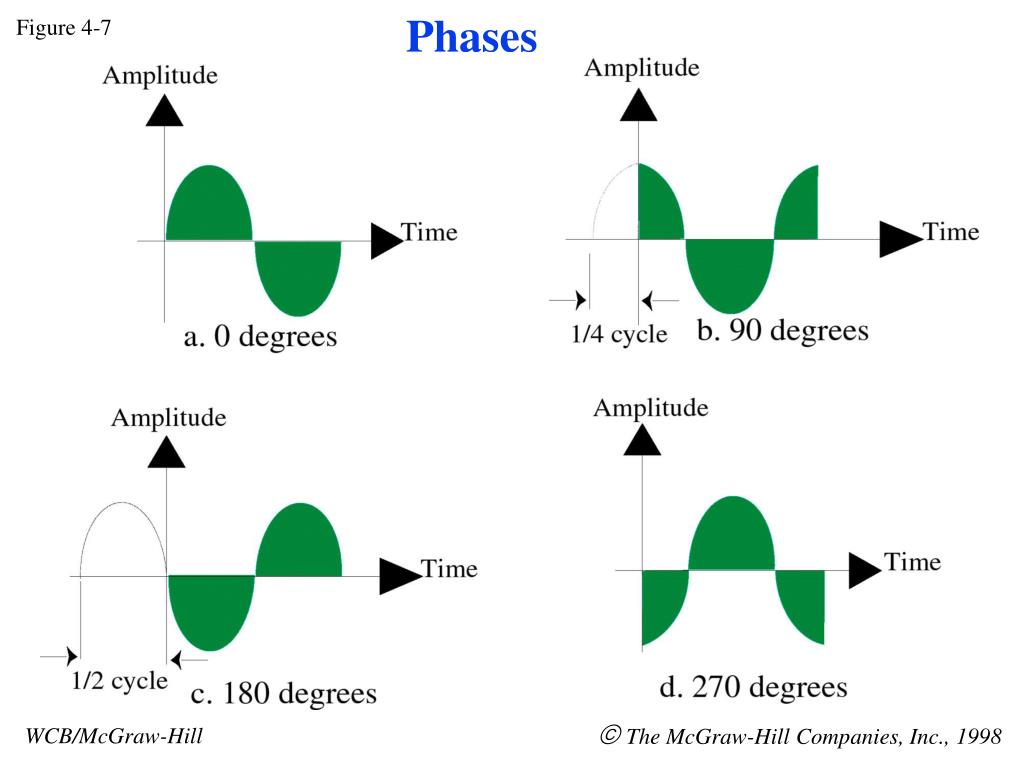

  8. Phases Figure 4-7 The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

  9. Figure 4-8 Amplitude Change The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

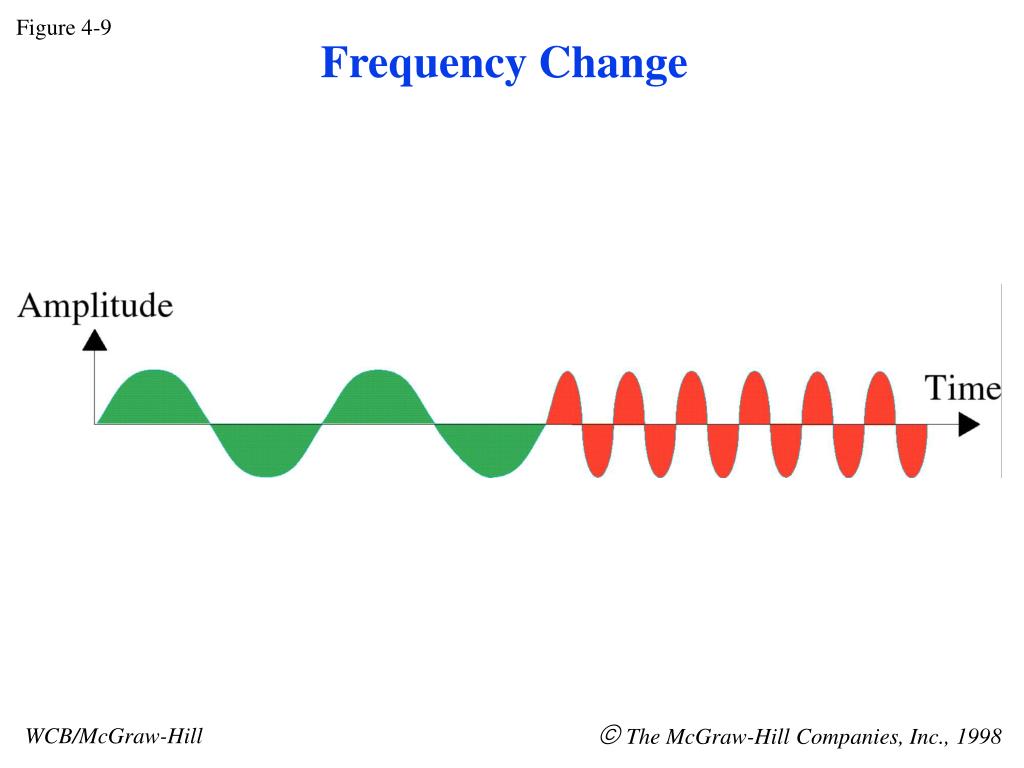

  10. Figure 4-9 Frequency Change The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

  11. Figure 4-10 Phase Change The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

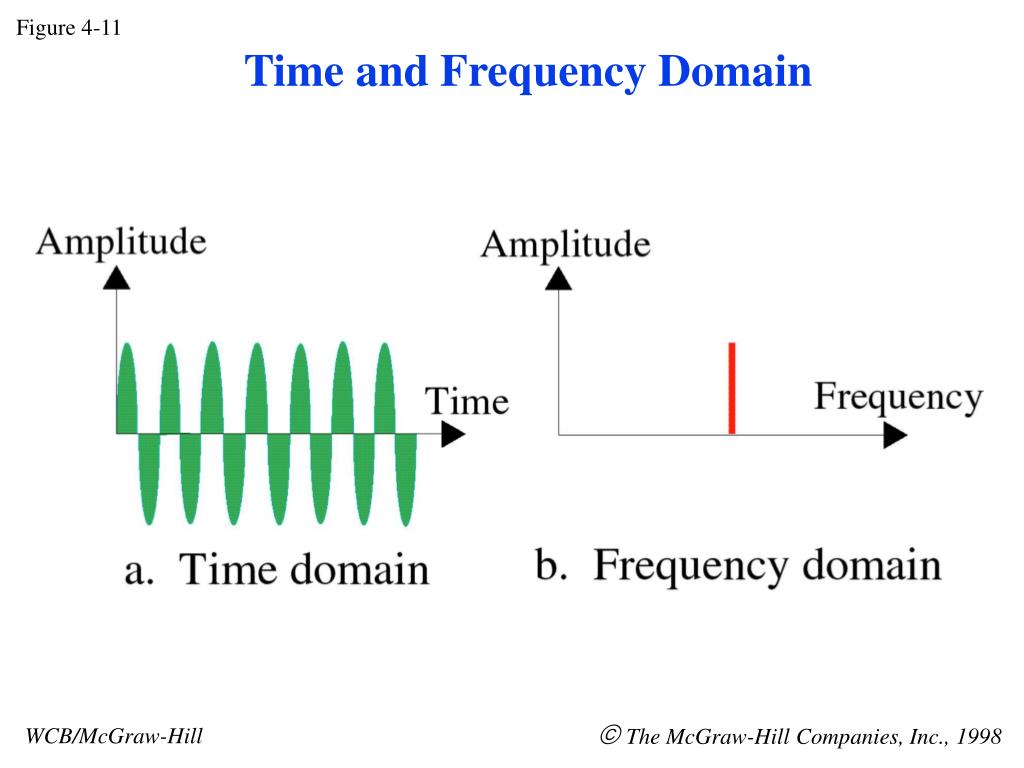

  12. Figure 4-11 Time and Frequency Domain The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

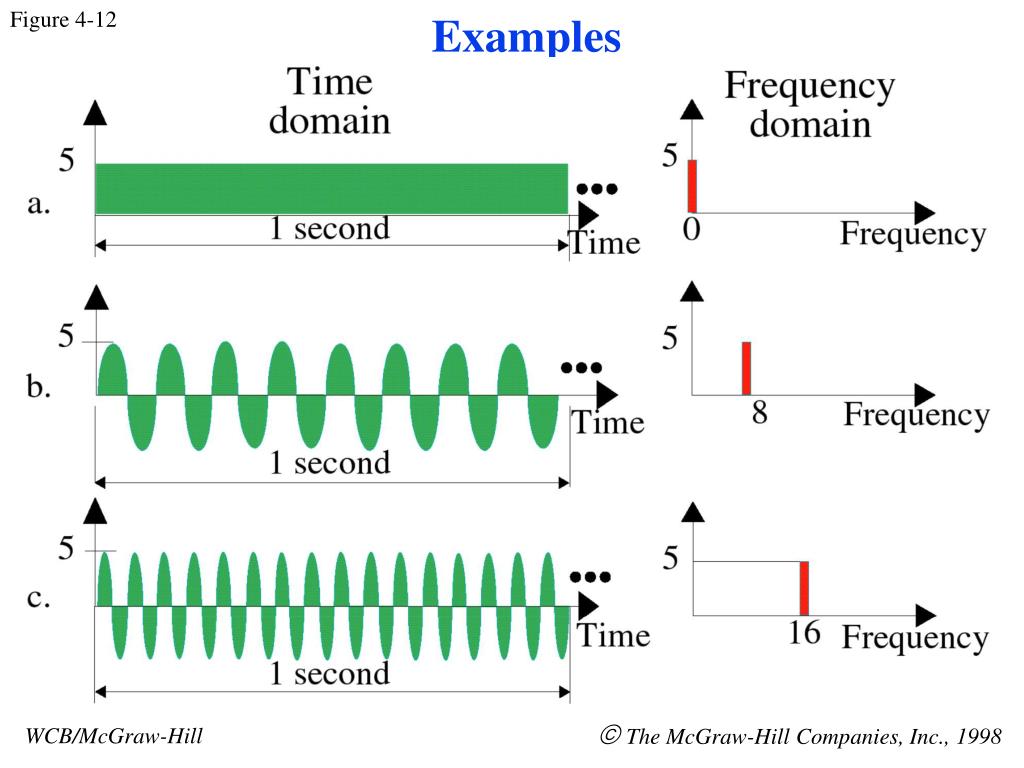

  13. Figure 4-12 Examples The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

  14. Figure 4-14 Complex Waveform The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

  15. Figure 4-15 Bandwidth The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

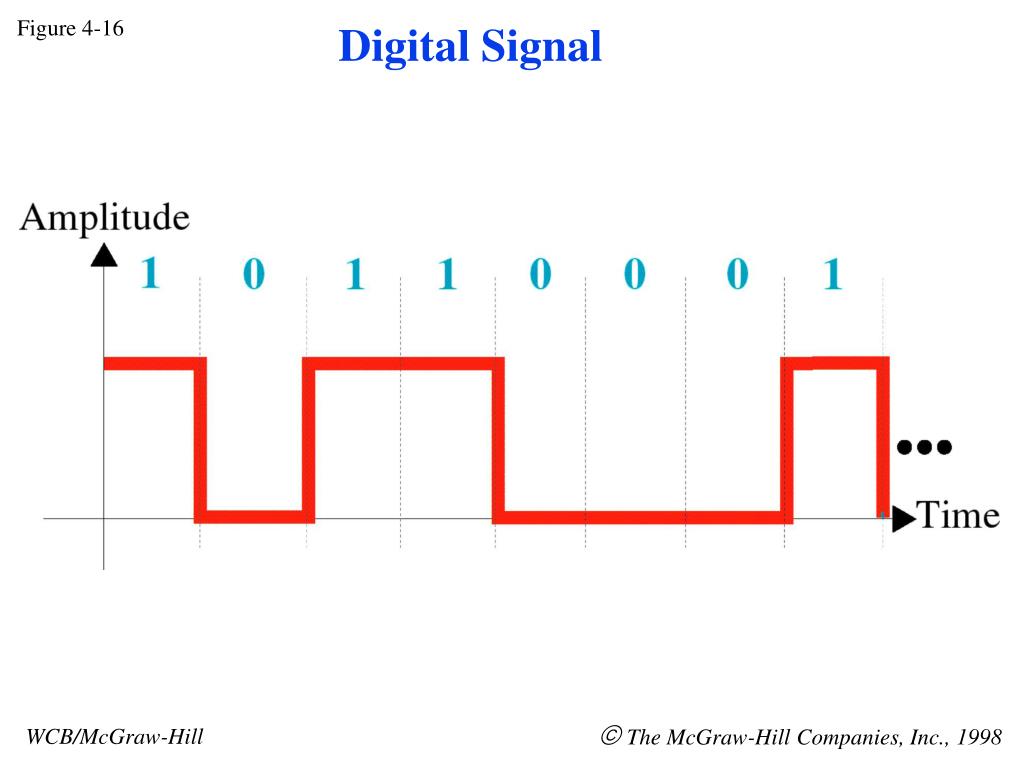

  16. Figure 4-16 Digital Signal The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

  17. Figure 4-17 Amplitude, Period, and Phase for a Digital Signal The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

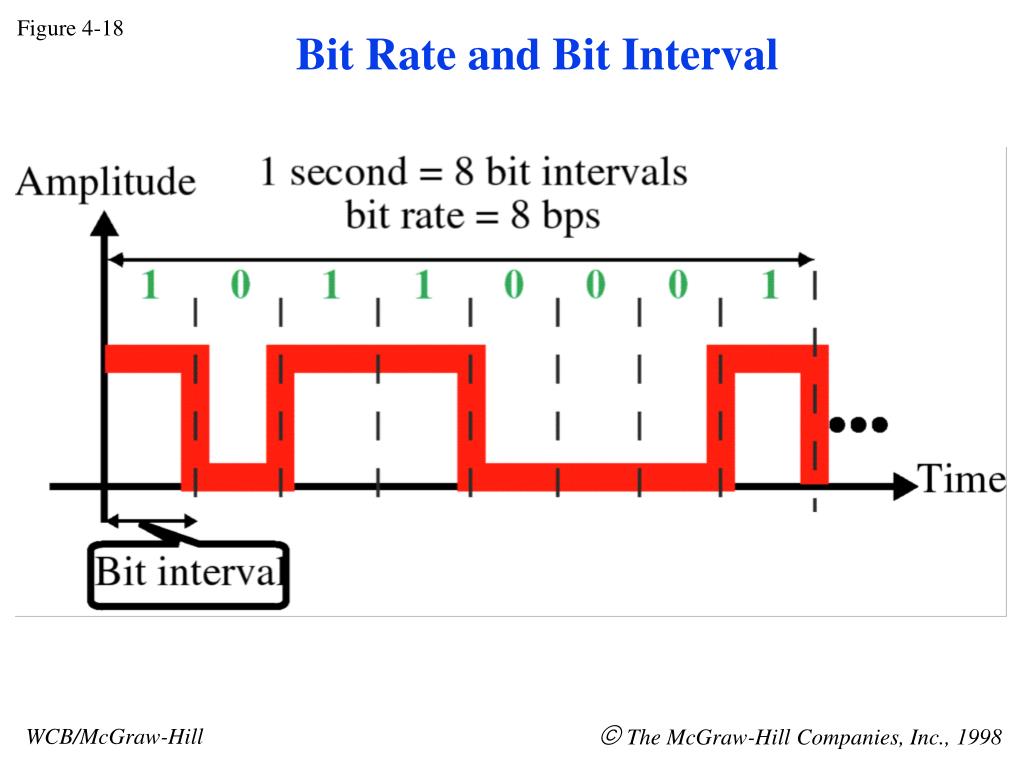

  18. Figure 4-18 Bit Rate and Bit Interval The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill
