  1. BizTalk & „Fremd“ – Sprachenvon RFID bis EDI David Schwingenschuh cubidobusinesssolutions GmbH

  2. Customer Customer Logistics Bank EDI Internet Contoso RosettaNet SWIFT HR System XML Supplier eComm CRM ERP Das Leben an der Grenze

  3. EAI B2B Customer Customer Logistics Bank Internet Contoso HR System Supplier eComm CRM ERP Das Leben an der Grenze EDI EDI XML SWIFT RosettaNet

  4. BizTalk ein „Fremdsprachen“ Talent? 1. RFID TagEvents -> SQL Server 2. SQL Server -> Sharepoint/Infopath 3. Infopath -> EDI

  5. „The physicalinternet“ BizTalk RFID

  6. Barcode

  7. Was ist RFID? Tags Reader and Antenna Middleware Enterprise Applications Microsoft RFID

  8. RFID Passive Tags Chip Antenna

  9. RFID Active Tags Battery Chip Antenna

  10. RFID Readers and Antennas

  11. Identification

  12. Real-Time Location

  13. Operational Efficiencies

  14. Inventory management

  15. Development Pains and Barriers • Hardware management • Hardware diversity • Multiple standards Common device interface

  16. Development Pains and Barriers • ‘Noise’ tags • Large event volumes Smart filtering at the edge Smart data processing at the edge

  17. Microsoft RFID Architecture

  18. Device Service Provider

  19. BizTalk Demo EDI

  20. BizTalk RFID in Action DEMO Teil 1: RFID -> SQL

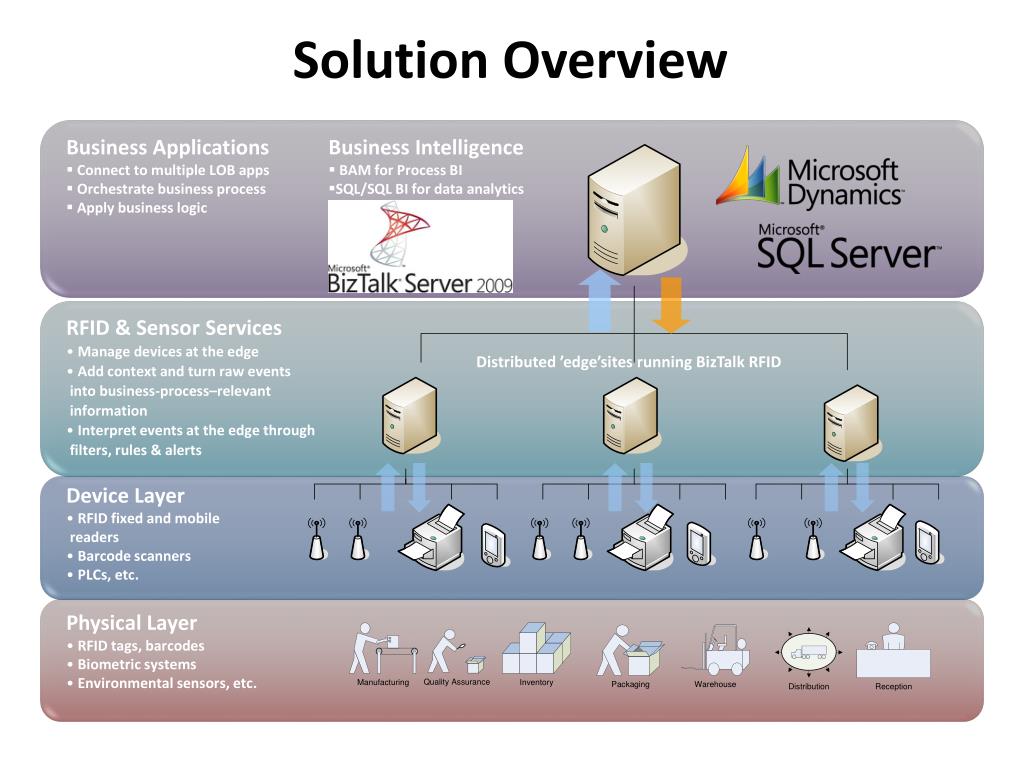

  21. Solution Overview • Business Applications • Connect to multiple LOB apps • Orchestrate business process • Apply business logic • Business Intelligence • BAM for Process BI • SQL/SQL BI for data analytics • RFID & Sensor Services • Manage devices at the edge • Add context and turn raw events • into business-process–relevant • information • Interpret events at the edge through • filters, rules & alerts Distributed ’edge’sites running BizTalk RFID • Device Layer • RFID fixed and mobile readers • Barcode scanners • PLCs, etc. • Physical Layer • RFID tags, barcodes • Biometric systems • Environmental sensors, etc.

  22. BizTalk & BizTalk RFID Hier Vermittlung – Was kann ich für sie tun?

  23. Anforderungen an ein Messaging Framework • Rasche Umsetzung von Schnittstellenformaten (XML, CSV, EDI, etc.) • Messaging für gängige Protokolle (FTP, HTTP, Message Queue etc.) • Transformation zwischen Formaten (am besten grafisch) • Workflows (Umsetzung von Geschäftsprozessen, am besten grafisch) • Monitoring • Ausfallssicherheit • Anbindung an „meine“ Systeme (SAP, Oracle, SQL Server etc.)

  24. VereinfachteInteroperabilität BizTalk Server – “Adapters in the Box” MQ MSMQ WSE HTTP SMTP File FTP POP3 SOAP SWIFT HL7 RosettaNet HIPAA SQL WCF Adapter SharePoint • PeopleSoft • JD Edwards • OneWorld XE • Enterprise1 • Oracle ODBC • Siebel • TIBCO Rendezvous • TIBCO EMS • SAP • EDI/AS2 • X12 and EDIFACT support • Drummond Interoperability Certification • Host Applications • IBM mainframe zSeries(CICS and IMS) • Midrange iSeries(AS/400) • IBM DB2 • Mainframe DB2for z/OS • Midrange DB2/400 • DB2 Universal Database for open platforms (AIX, Linux, Solaris, and Windows) • Host Files IBM EDI & LOB-Applikationen Microsoft

  25. Maps BizTalk – Was ist das? Message Message BizTalk Receive Port Send Port Group Send Port(File Drop) Receive Location(File Drop) Map Receive Location(HTTP) Send Port(HTTP) Message Map MessageBox Send Port(HTTP) Messages Map Subscriptions

  26. BizTalk und MOSS DEMO Teil2: SQL -> Infopath/MOSS

  27. BizTalk 2009 – EDI-Features • EDI-Framework integraler Bestandteil von BizTalk 2009 (kein Adapter!) • Senden und Empfangen von EDI-Messages inkl. Verarbeitung von ACK-Messages • Batching von Messages • 8000+ vordefinierte Message-Formate • Messages anpassbar • Trading-Partner-Management http://www.microsoft.com/biztalk/techinfo/2009features.mspx

  28. BizTalk im B2B Bereich DEMO TEIl3: INFOPATH -> EDI

  29. Zusammengefasst EDI
