  1. Optimizing Mixing in Pervasive Networks: AGraph-Theoretic Perspective MurtuzaJadliwala, Igor Bilogrevic and Jean-Pierre Hubaux ESORICS, 2011

  2. Wireless Trends Smart Phones Vehicles • Always on • Background apps Cameras Watches Passports

  3. Peer-to-Peer Wireless Networks 1 2 Identifier Message

  4. Examples VANETs • Social networks Nokia Instant Community • Urban Sensing networks • Delay tolerant networks • Peer-to-peer file exchange

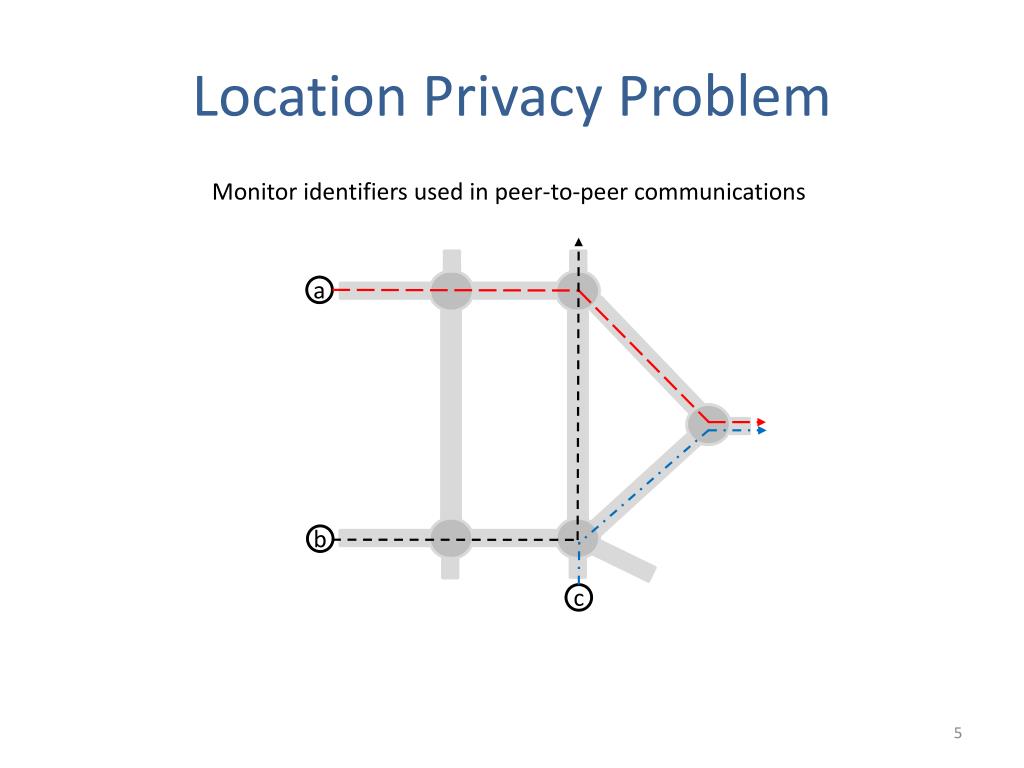

  5. Location Privacy Problem Monitor identifiers used in peer-to-peer communications a b c

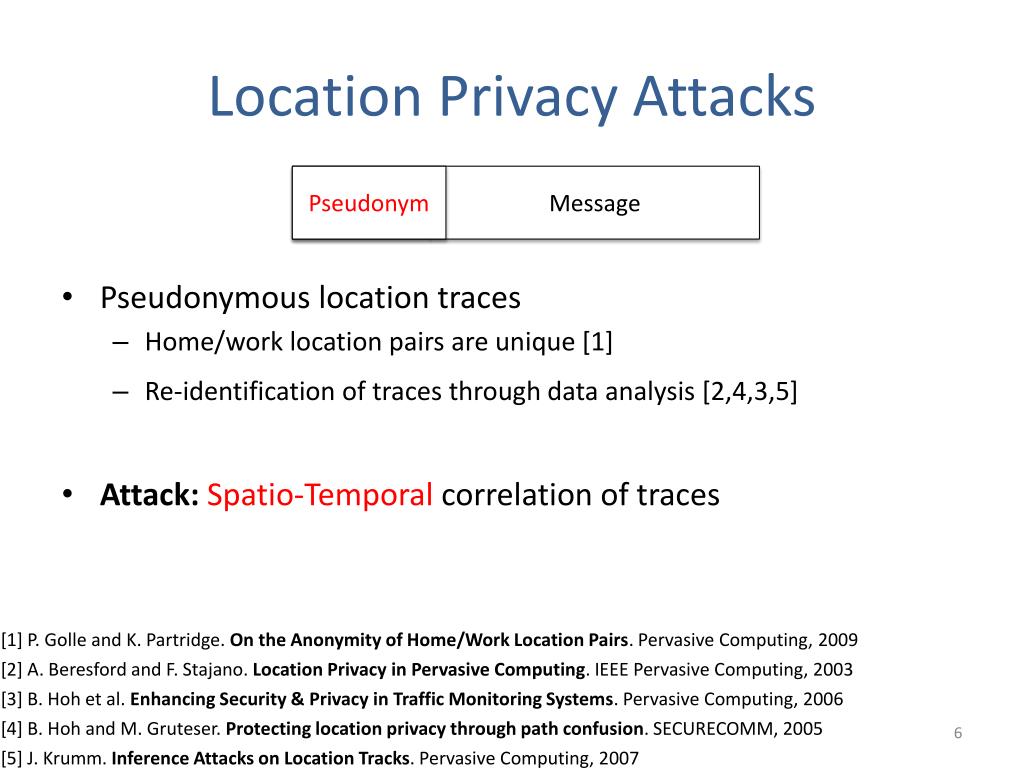

  6. Location Privacy Attacks Pseudonym • Pseudonymous location traces • Home/work location pairs are unique [1] • Re-identification of traces through data analysis [2,4,3,5] • Attack:Spatio-Temporalcorrelation of traces Identifier Message [1] P. Golle and K. Partridge. On the Anonymity of Home/Work Location Pairs. Pervasive Computing, 2009 [2] A. Beresford and F. Stajano. Location Privacy in Pervasive Computing. IEEE Pervasive Computing, 2003 [3] B. Hoh et al. Enhancing Security & Privacy in Traffic Monitoring Systems. Pervasive Computing, 2006 [4] B. Hoh and M. Gruteser. Protecting location privacy through path confusion. SECURECOMM, 2005 [5] J. Krumm. Inference Attacks on Location Tracks. Pervasive Computing, 2007

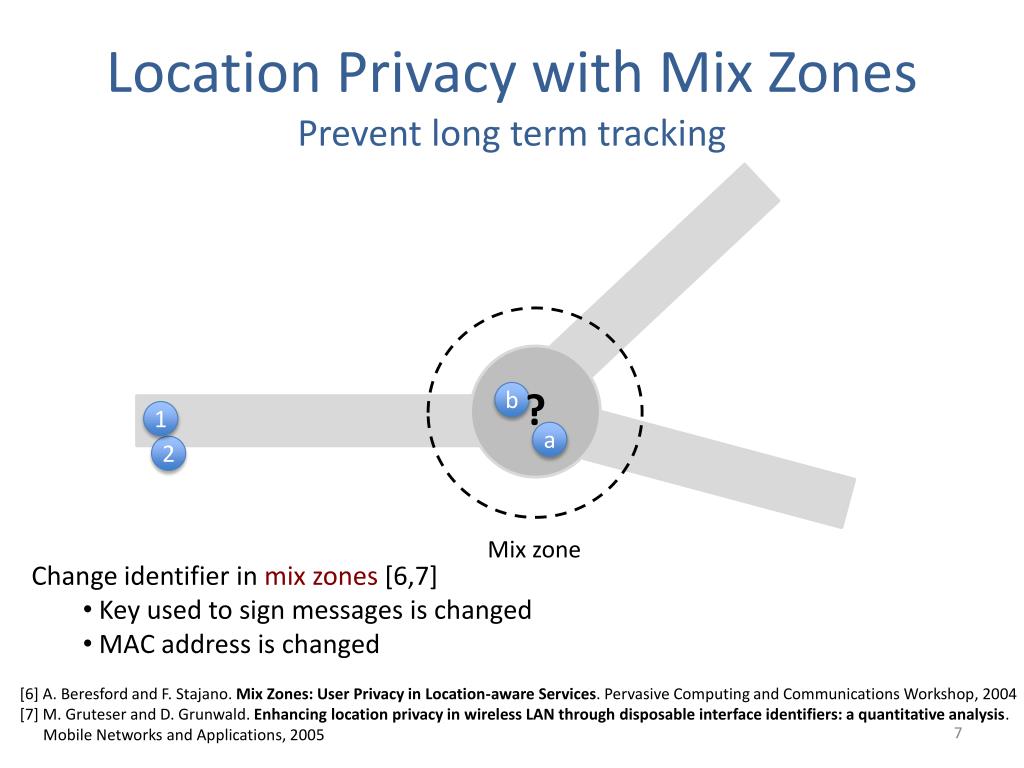

  7. Location Privacy with Mix ZonesPrevent long term tracking ? b 1 a 2 Mix zone • Change identifier in mix zones [6,7] • Key used to sign messages is changed • MAC address is changed [6] A. Beresford and F. Stajano. Mix Zones: User Privacy in Location-aware Services. Pervasive Computing and Communications Workshop, 2004 [7] M. Gruteser and D. Grunwald. Enhancing location privacy in wireless LAN through disposable interface identifiers: a quantitative analysis. Mobile Networks and Applications, 2005

  8. Mix-zone Placement in Road Networks • Mix zone placement most effective at intersections [8] • Enables mixing (covers) at roads leading in and out of the intersection • Mix-zones incur cost • Communication loss • Routing delays • Cost vary from intersection to intersection • How to place mix-zones? • All roads are covered • Overall cost is minimized • Mix Cover problem [8] L. Buttyan, T. Holczer, and I. Vajda. On the effectiveness of changing pseudonyms to provide location privacy in VANETs. ESAS 2007

  9. Previous Work on Mix zone Placement • Optimization Approach [9] • Mixing effectiveness using a flow-based metric • Given upper bound on mix zones, max. distance between them and cost, where to place mix zones that maximizes mixing effectiveness • Do not address the coverage problem • Game-theoretic Approach [10,11] • Game-theoretic model of optimal attack and defense strategies • Only consider local, and not network-wide, intersection characteristics – – [9] J. Freudiger, R. Shokri, and J-P. Hubaux. On the optimal placement of mix zones. PETS 2009 [10] M. Humbert, M. H. Manshaei, J. Freudiger, and J-P. Hubaux. Tracking games in mobile networks. GameSec 2010 [11] T. Alpcan and S. Buchegger. Security games for vehicular networks. IEEE Transactions on Mobile Computing, 2011

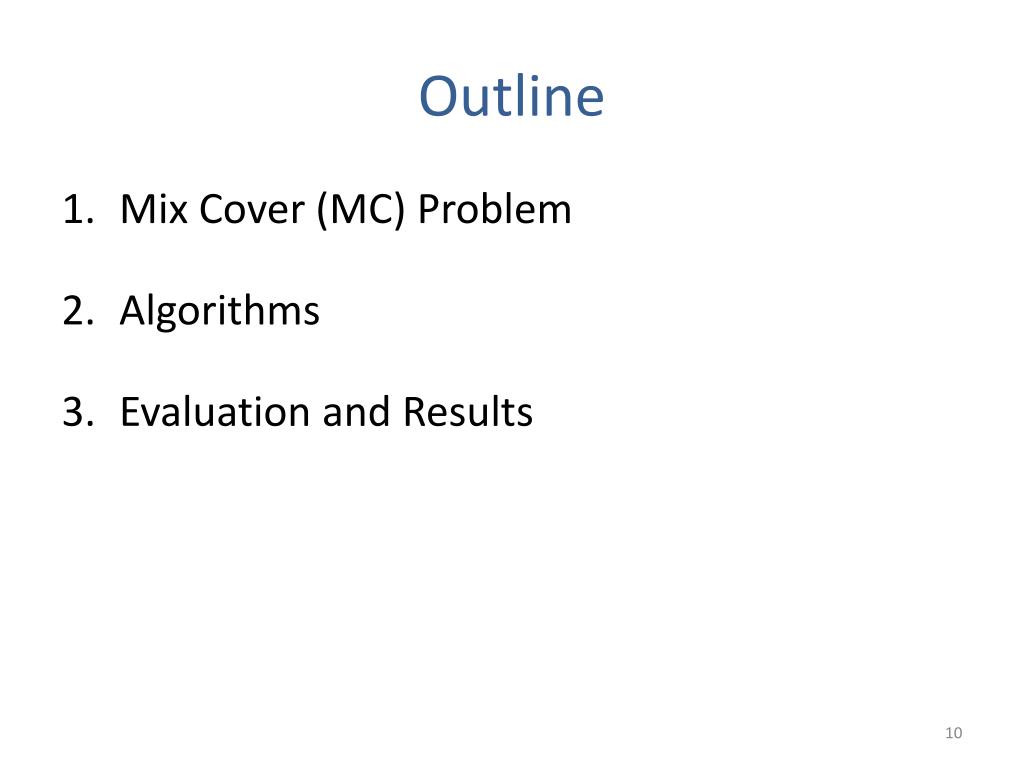

  10. Outline • Mix Cover (MC) Problem • Algorithms • Evaluation and Results

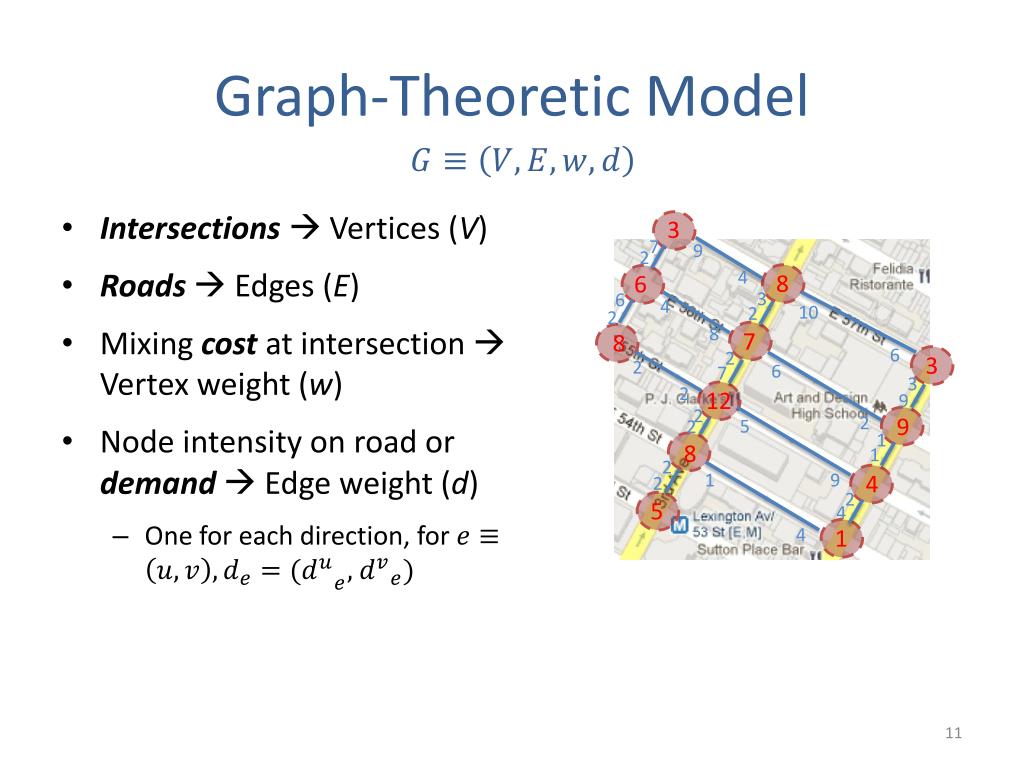

  11. Graph-Theoretic Model • Intersections Vertices (V) • Roads  Edges (E) • Mixing cost at intersection  Vertex weight (w) • Node intensity on road or demand  Edge weight (d) • One for each direction, for 3 7 9 2 4 8 6 3 6 4 10 2 2 8 7 8 6 2 3 2 6 7 3 2 12 9 2 2 9 5 2 1 8 1 2 9 1 4 2 2 5 4 4 1

  12. Mix Cover (MC) Problem • Determine a subset and a capacity s.t. • at least one of or • , for all covered by (capacity indicates the largest demand the intersection can handle) • Total weighted cost is minimized 3 10 7 9 6 2 4 8 6 3 6 4 10 2 2 8 7 8 6 2 7 3 2 6 7 3 2 12 9 2 2 9 9 5 2 1 8 1 2 9 1 4 2 2 2 5 4 4 1 4 6x6 + 2x5 + 7x12+ 10x8 + 4x1 + 9x9 = 295

  13. Why Mix Cover? Mix zone deployment that provides two guarantees: • Privacy guarantee • All roads are covered at least at one end • Nodes go without mixing over at most one intersection • Cost guarantee • Minimum network-wide mixing cost A mix cover provides both these!

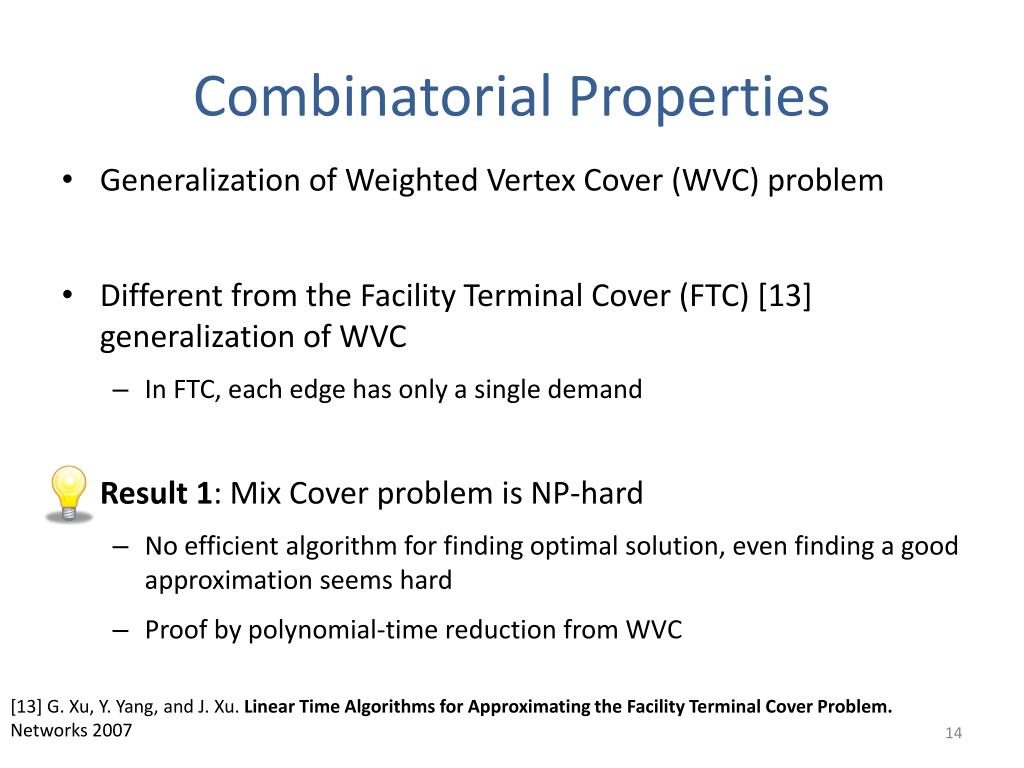

  14. Combinatorial Properties • Generalization of Weighted Vertex Cover (WVC) problem • Different from the Facility Terminal Cover (FTC) [13] generalization of WVC • In FTC, each edge has only a single demand • Result 1: Mix Cover problem is NP-hard • No efficient algorithm for finding optimal solution, even finding a good approximation seems hard • Proof by polynomial-time reduction from WVC [13] G. Xu, Y. Yang, and J. Xu. Linear Time Algorithms for Approximating the Facility Terminal Cover Problem.Networks 2007

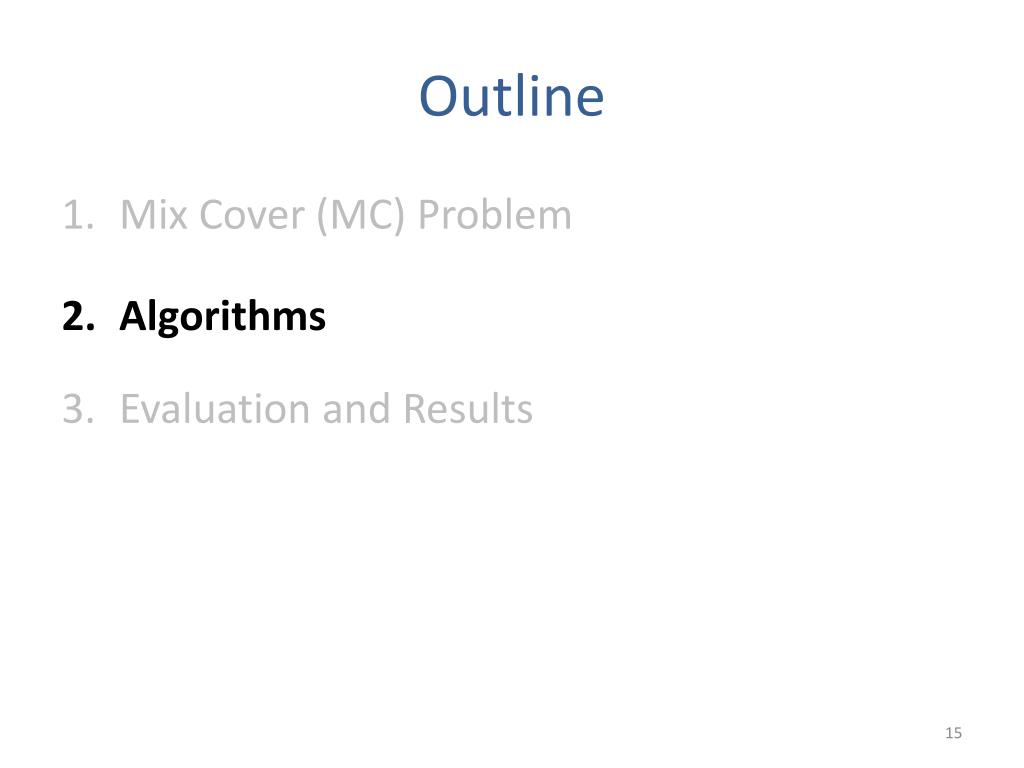

  15. Outline • Mix Cover (MC) Problem • Algorithms • Evaluation and Results

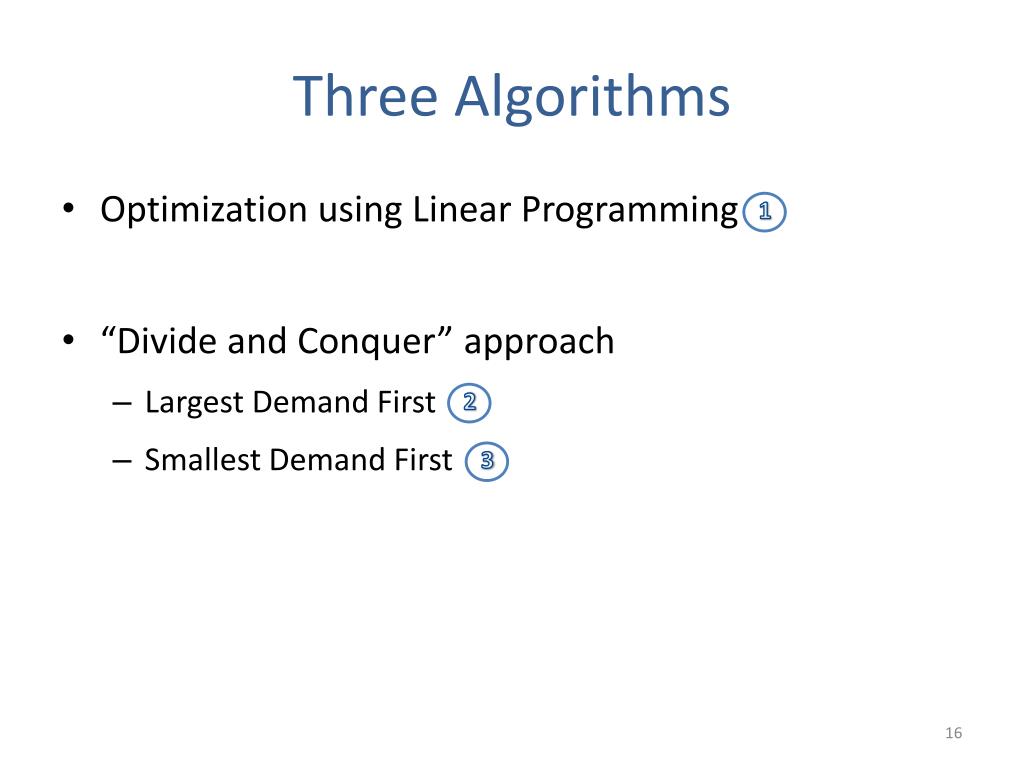

  16. Three Algorithms • Optimization using Linear Programming • “Divide and Conquer” approach • Largest Demand First • Smallest Demand First 1 2 3

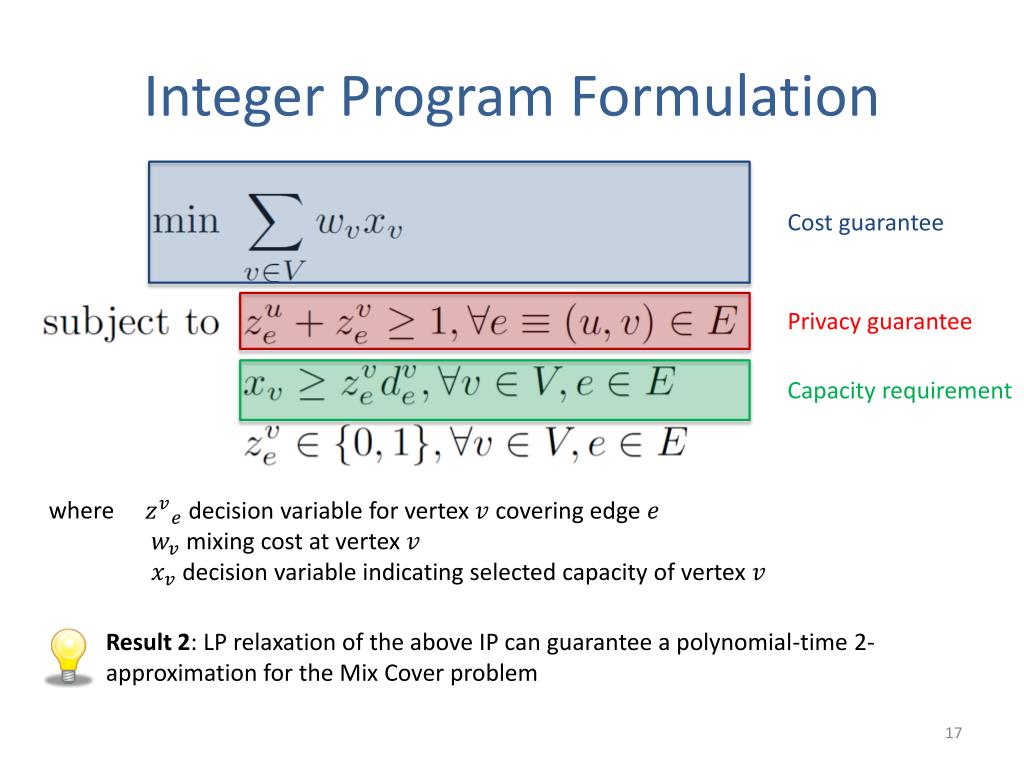

  17. Integer Program Formulation Cost guarantee Privacy guarantee Capacity requirement where mixing cost at vertex decision variable indicating selected capacity of vertex decision variable for vertex covering edge Result 2: LP relaxation of the above IP can guarantee a polynomial-time 2-approximation for the Mix Cover problem

  18. Largest Demand First (LDF) • For each edge, replace smaller demand with larger demand • Round off the demands to the closest power of 2 • Divide into subgraphs based on the rounded edge demands • Obtain for each • For all , , where • Output

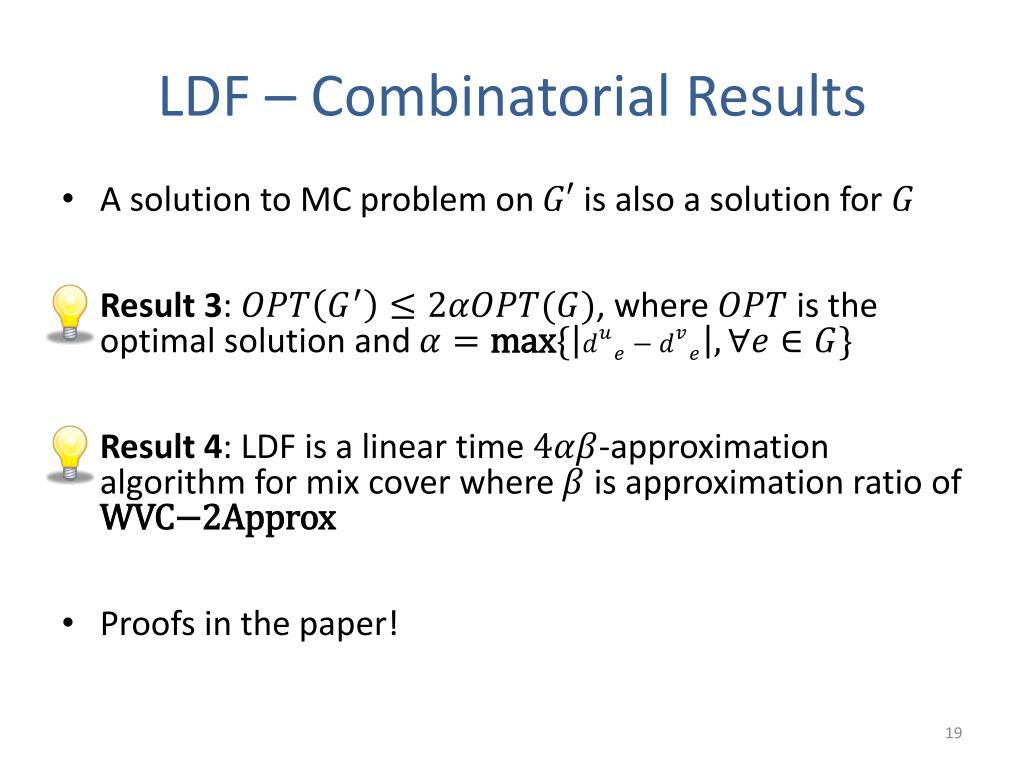

  19. LDF – Combinatorial Results • A solution to MC problem on is also a solution for • Result 3: , where is the optimal solution and • Result 4: LDF is a linear time -approximation algorithm for mix cover where is approximation ratio of • Proofs in the paper!

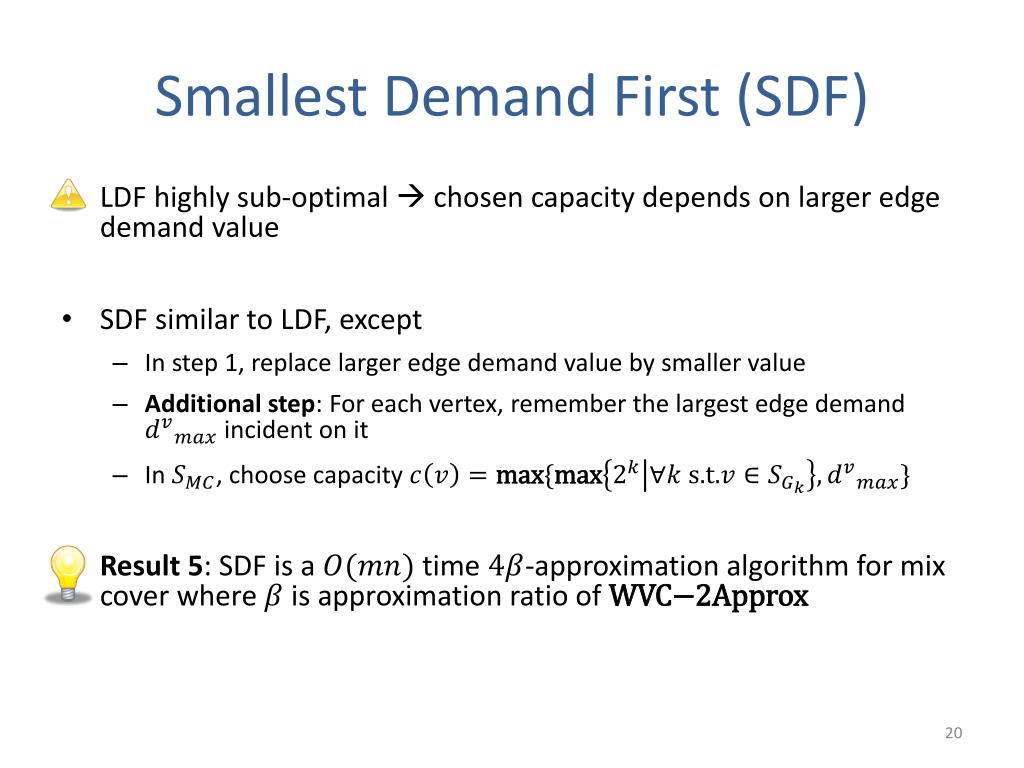

  20. Smallest Demand First (SDF) • LDF highly sub-optimal  chosen capacity depends on larger edge demand value • SDF similar to LDF, except • In step 1, replace larger edge demand value by smaller value • Additional step: For each vertex, remember the largest edge demand incident on it • In , choose capacity • Result 5: SDF is a time -approximation algorithm for mix cover where is approximation ratio of

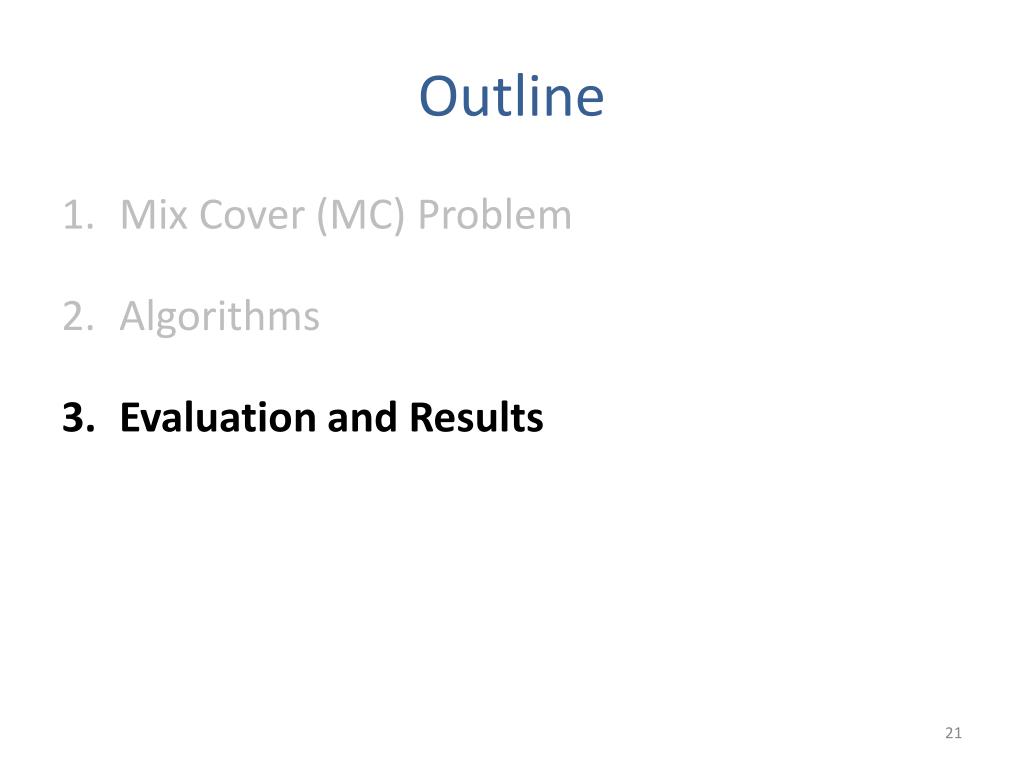

  21. Outline • Mix Cover (MC) Problem • Algorithms • Evaluation and Results

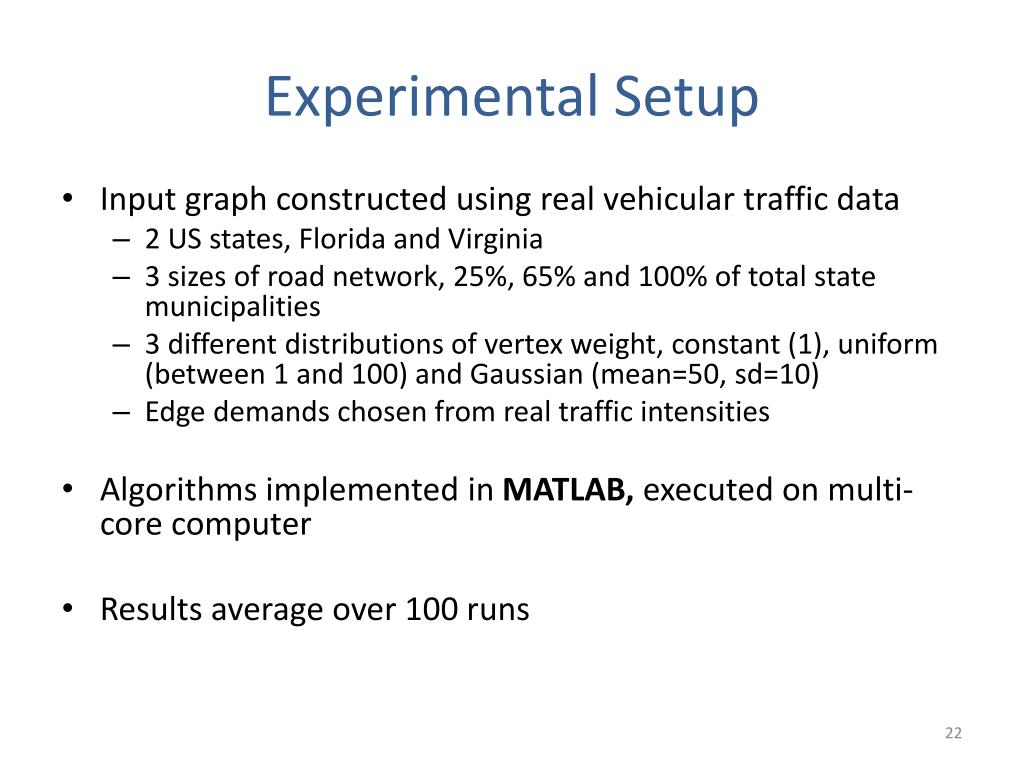

  22. Experimental Setup • Input graph constructed using real vehicular traffic data • 2 US states, Florida and Virginia • 3 sizes of road network, 25%, 65% and 100% of total state municipalities • 3 different distributions of vertex weight, constant (1), uniform (between 1 and 100) and Gaussian (mean=50, sd=10) • Edge demands chosen from real traffic intensities • Algorithms implemented in MATLAB, executed on multi-core computer • Results average over 100 runs

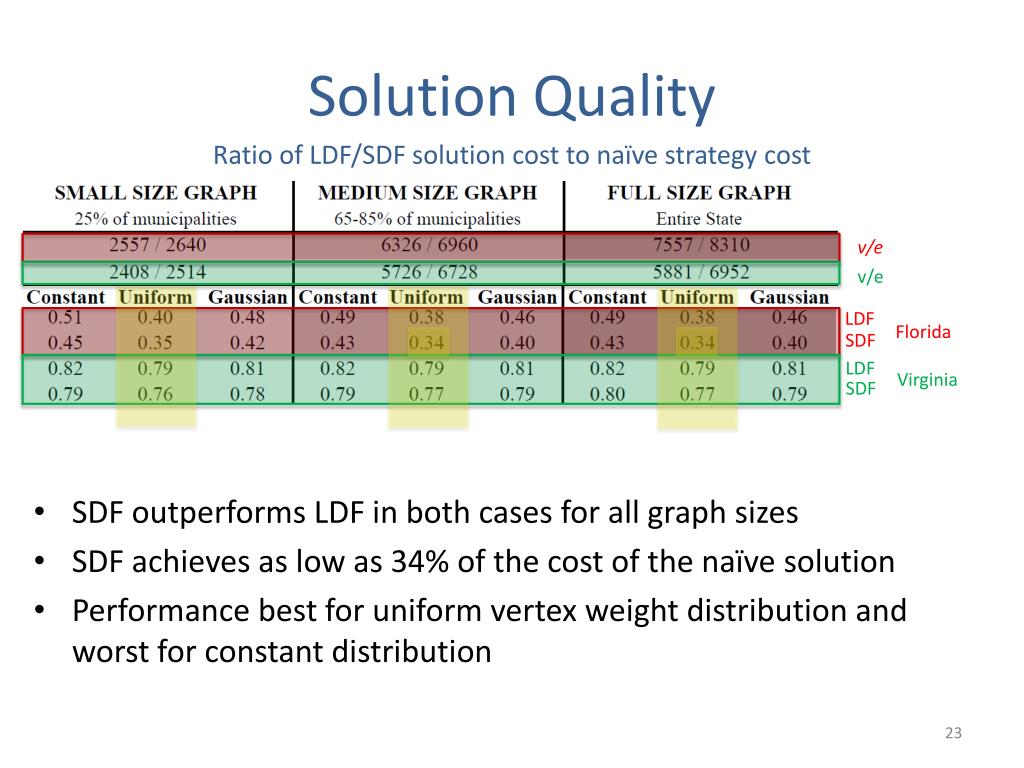

  23. Solution Quality Ratio of LDF/SDF solution cost to naïve strategy cost • Naïve solution: Select all vertices in final solution • SDF outperforms LDF in both cases for all graph sizes • SDF achieves as low as 34% of the cost of the naïve solution • Performance best for uniform vertex weight distribution and worst for constant distribution v/e v/e LDF Florida SDF LDF Virginia SDF

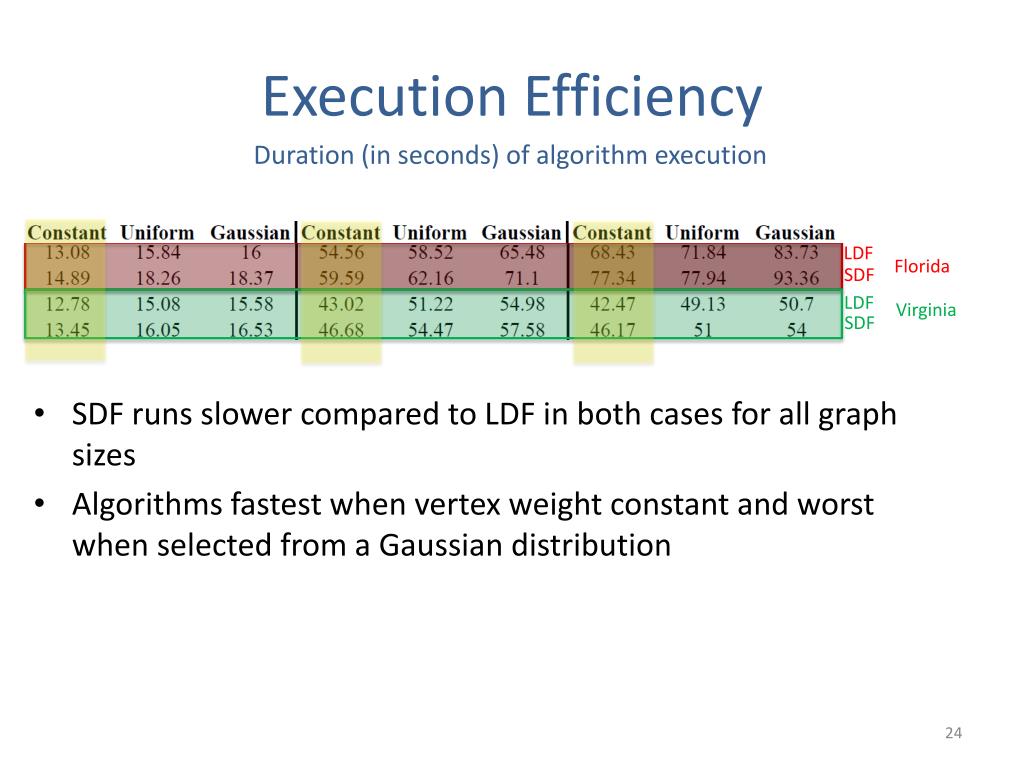

  24. Execution Efficiency Duration (in seconds) of algorithm execution • SDF runs slower compared to LDF in both cases for all graph sizes • Algorithms fastest when vertex weight constant and worst when selected from a Gaussian distribution LDF Florida SDF LDF Virginia SDF

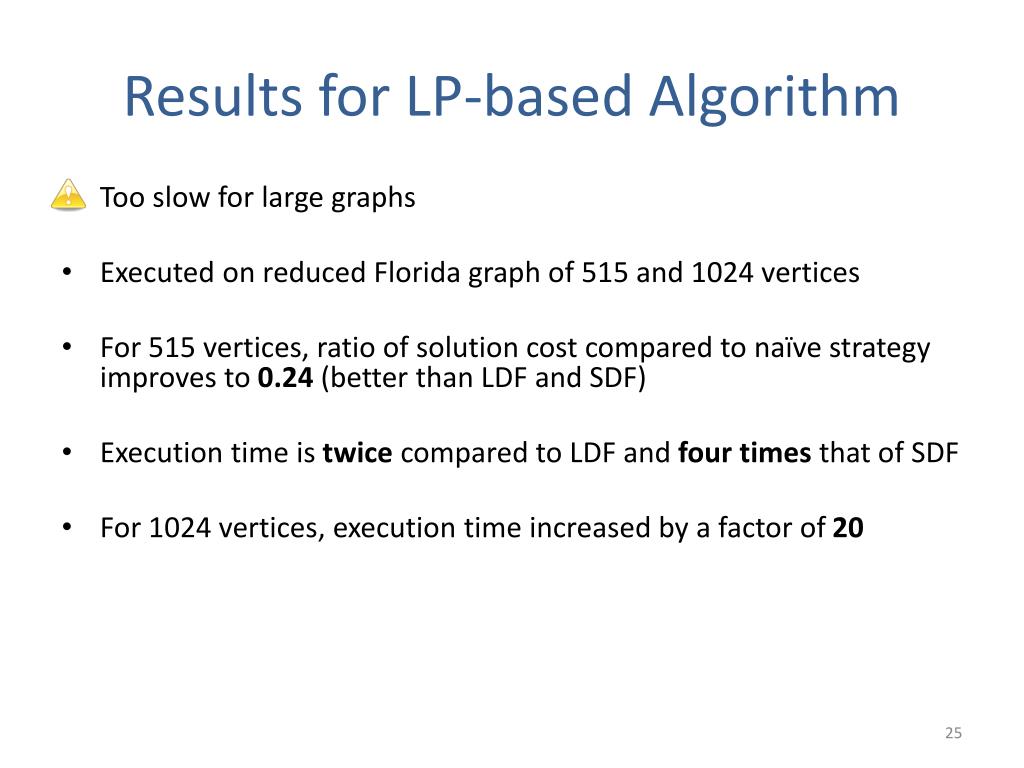

  25. Results for LP-based Algorithm • Too slow for large graphs • Executed on reduced Florida graph of 515 and 1024 vertices • For 515 vertices, ratio of solution cost compared to naïve strategy improves to 0.24 (better than LDF and SDF) • Execution time is twice compared to LDF and four times that of SDF • For 1024 vertices, execution time increased by a factor of 20

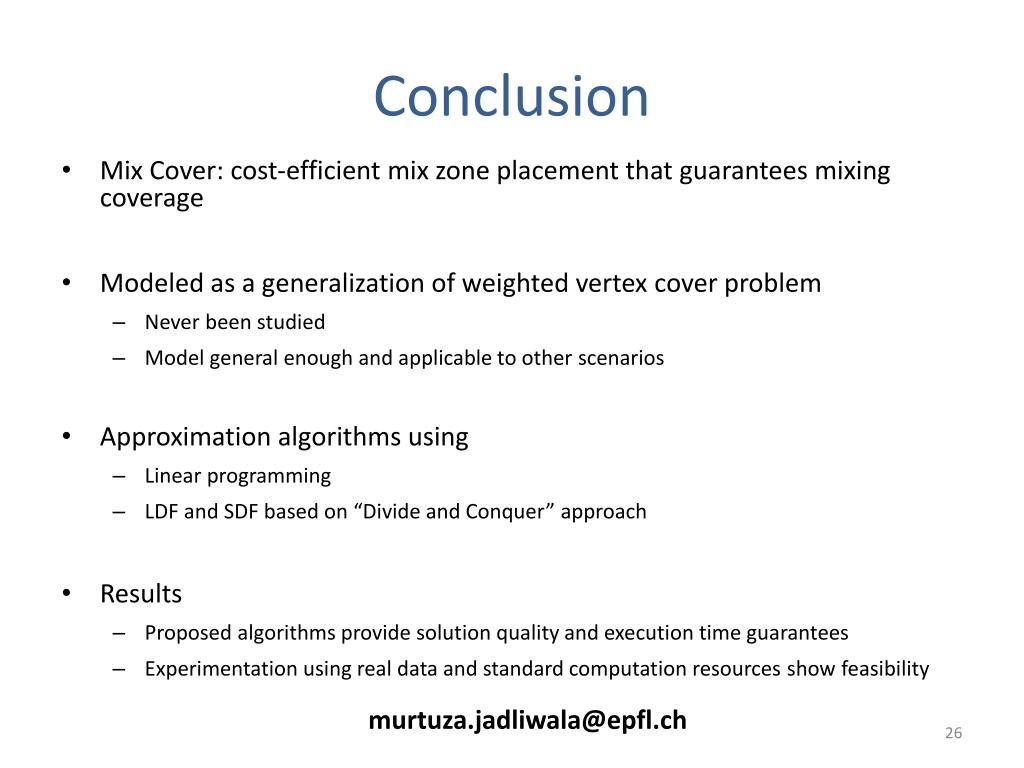

  26. Conclusion • Mix Cover: cost-efficient mix zone placement that guarantees mixing coverage • Modeled as a generalization of weighted vertex cover problem • Never been studied • Model general enough and applicable to other scenarios • Approximation algorithms using • Linear programming • LDF and SDF based on “Divide and Conquer” approach • Results • Proposed algorithms provide solution quality and execution time guarantees • Experimentation using real data and standard computation resources show feasibility murtuza.jadliwala@epfl.ch

  27. Backup Slides

  28. How to obtain mix zones? • Silent mix zones • Turn off transceiver • Passive mix zones • Where adversary is absent • Before connecting to Wireless Access Points • Encrypt communications • With help of infrastructure • Distributed

  29. bluetoothtracking.org

  30. Pleaserobme.com

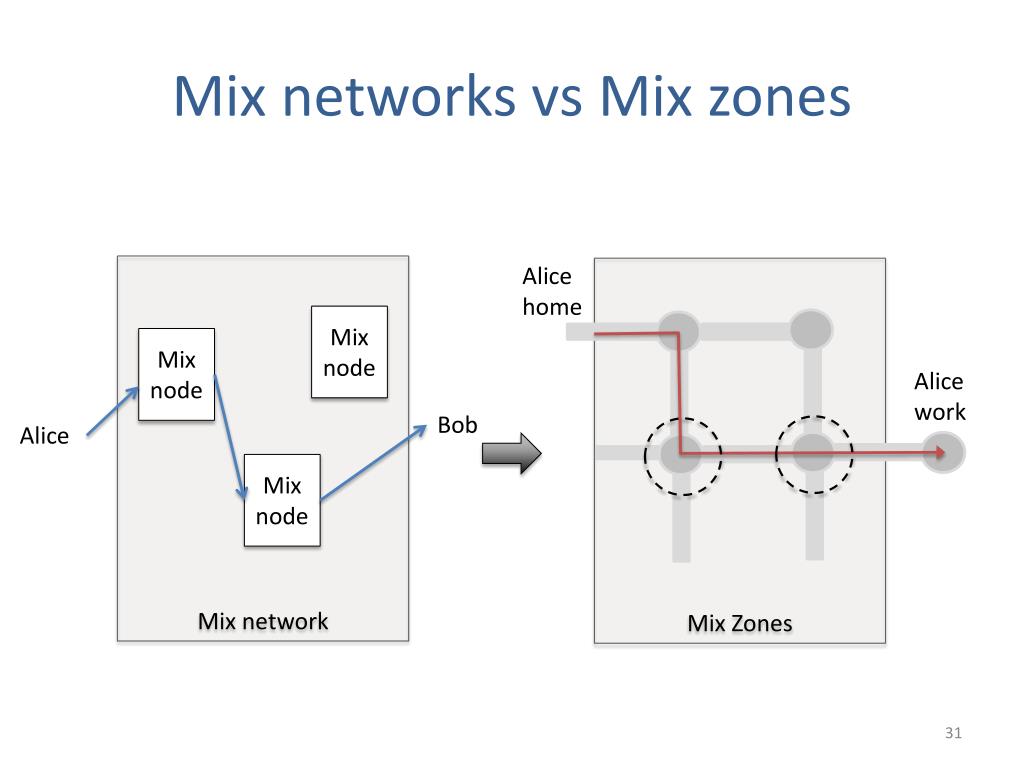

  31. Mix networks vs Mix zones Alice home Mix network Mix Zones Mix node Mix node Alice work Bob Alice Mix node

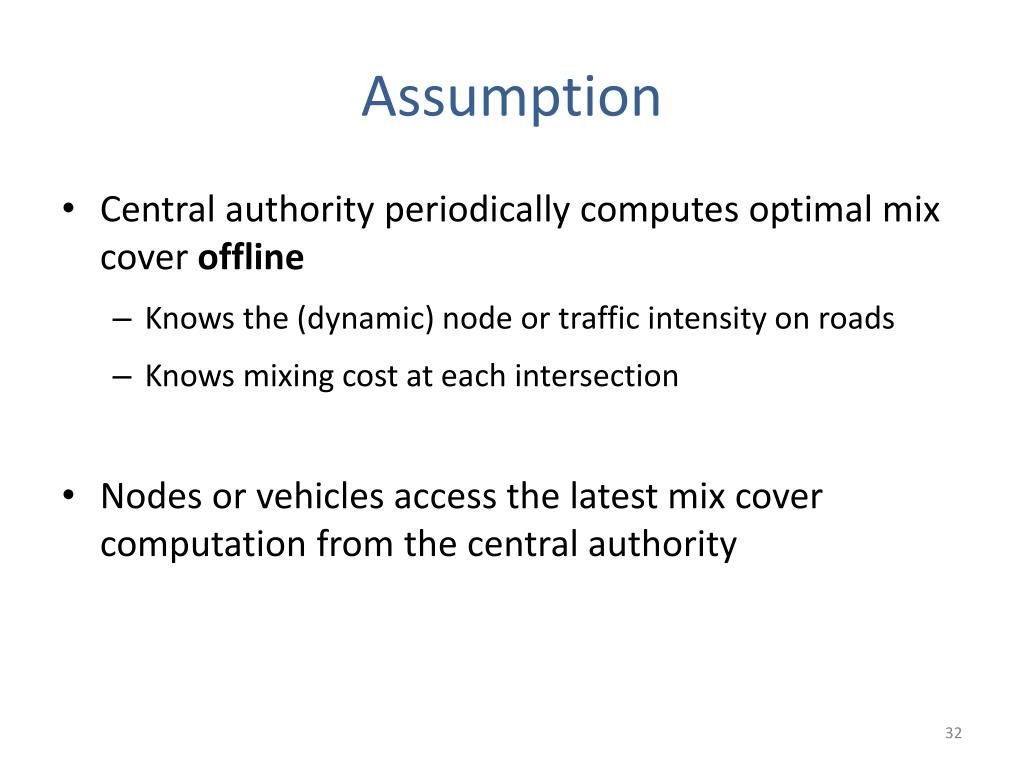

  32. Assumption • Central authority periodically computes optimal mix cover offline • Knows the (dynamic) node or traffic intensity on roads • Knows mixing cost at each intersection • Nodes or vehicles access the latest mix cover computation from the central authority

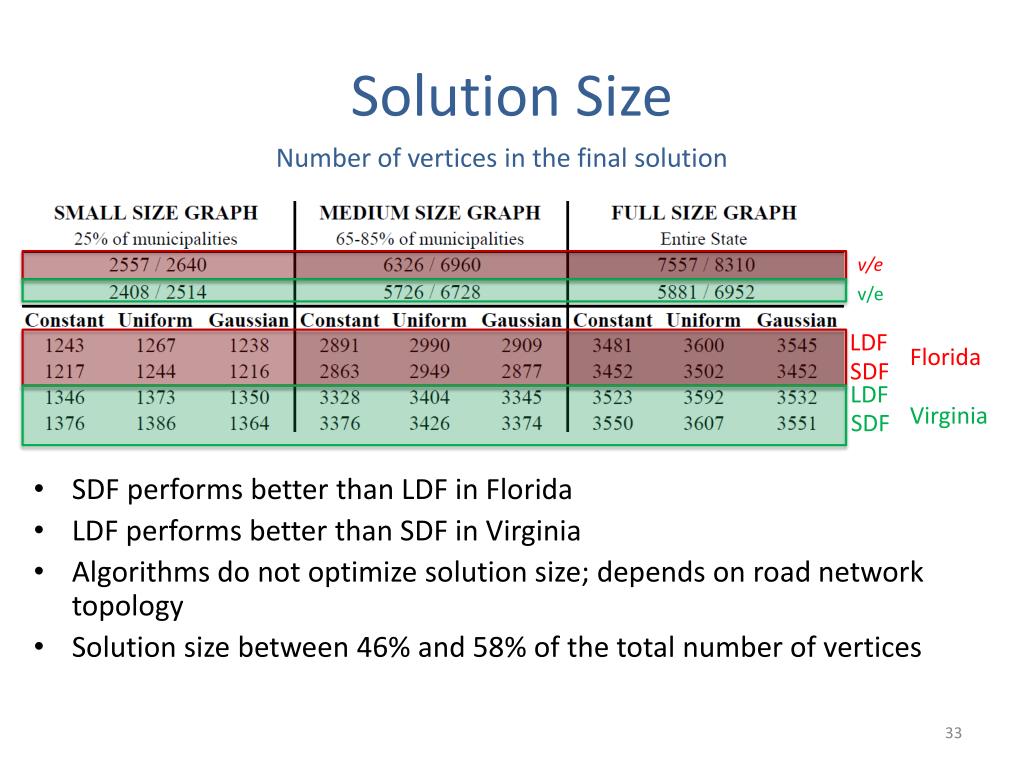

  33. Solution Size Number of vertices in the final solution • SDF performs better than LDF in Florida • LDF performs better than SDF in Virginia • Algorithms do not optimize solution size; depends on road network topology • Solution size between 46% and 58% of the total number of vertices v/e v/e LDF Florida SDF LDF Virginia SDF
