Presentation Transcript

  1. ACE Overview Presented by: CBNetworks Technical Support Email : support.technique@cbnetworks.fr

  2. Agenda • Introduction • RAD ATM Products • Typical Applications • Key Features • Summary - Worldwide References

  3. ATM Market Trends • ATM still remains a major data transport network technology for incumbent carriers • Carriers can use ATM to generate new revenue using existing infrastructures • Deployment of 3G cellular networks • Continuing growth in DSL leads to increased investments in ATM

  4. Important Benefits of ATM • Proven reliability • Allows flexible multiservice traffic adaptation • Scalability based on existing infrastructure • QoS assurance based on the OAM functionality • Traffic Management - allows network bandwidth utilization • New services based on GbE/MPLS infrastructure are emerging but ATM is still more widespread

  5. Common ATM Applications • Native ATM • Legacy services emulation (LAN, TDM, FR etc.) • VLAN applications over ATM • DSL service concentrator • Cellular backhauling Legacy services Existing CPE’s New services & CPE’s IP, LAN ATM Access Concentrator Ethernet Switch Ethernet NTU PBX-Voice

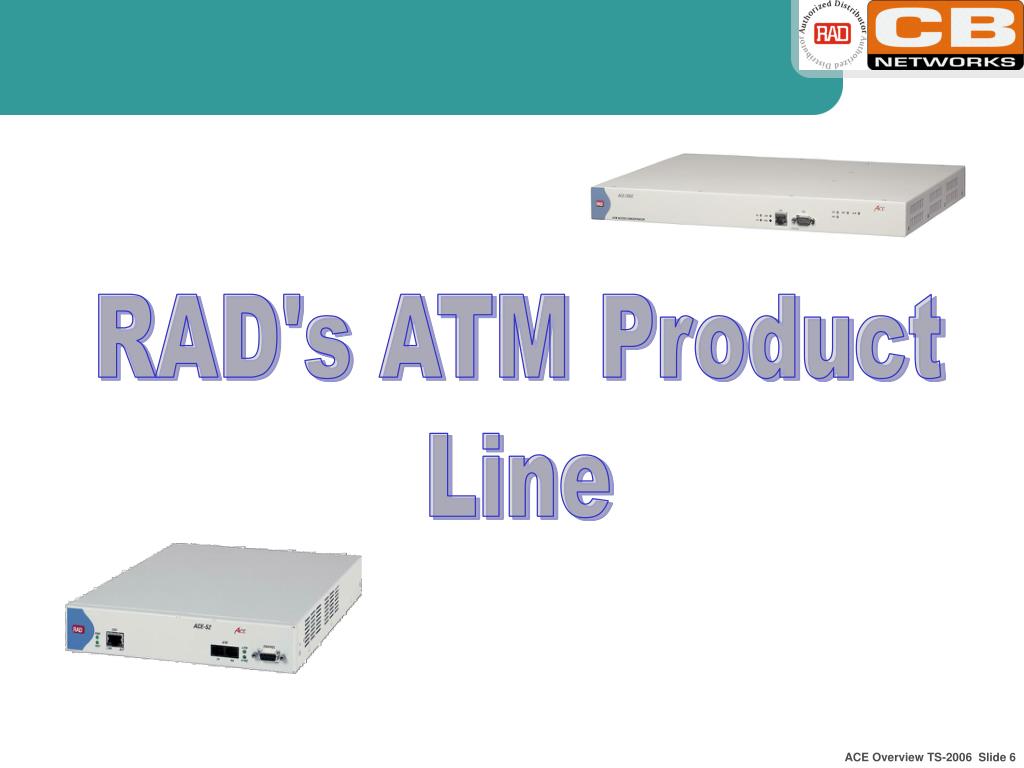

  6. RAD's ATM Product Line

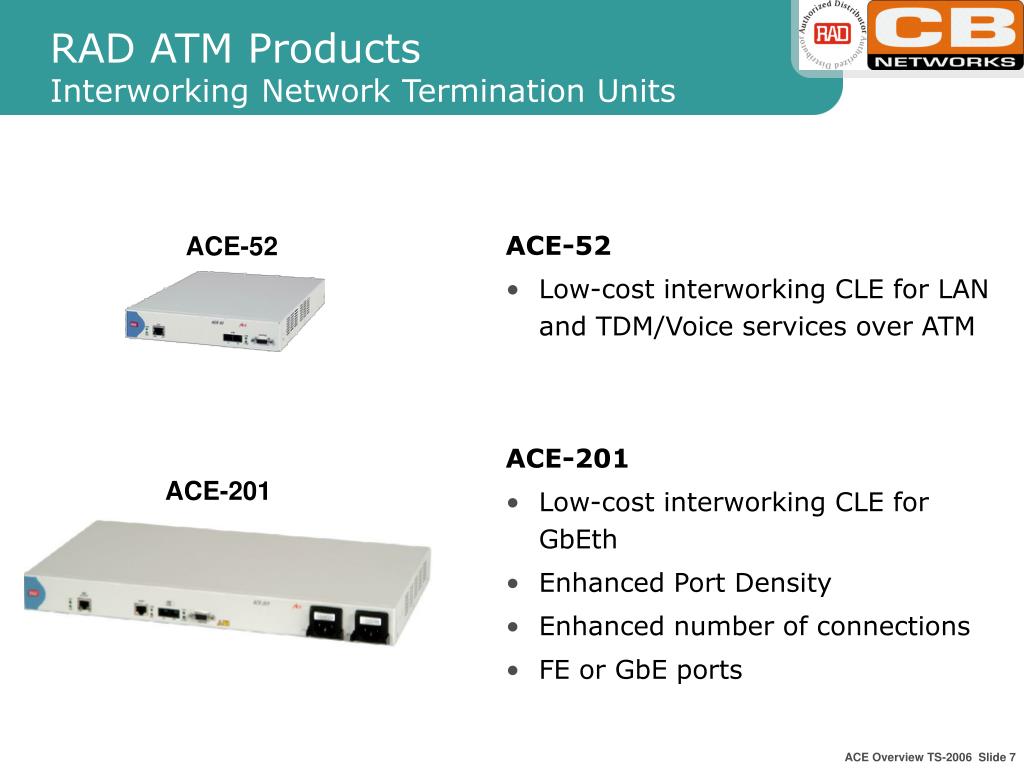

  7. ACE-52 Low-cost interworking CLE for LAN and TDM/Voice services over ATM ACE-201 Low-cost interworking CLE for GbEth Enhanced Port Density Enhanced number of connections FE or GbE ports ACE-52 ACE-201 RAD ATM ProductsInterworking Network Termination Units

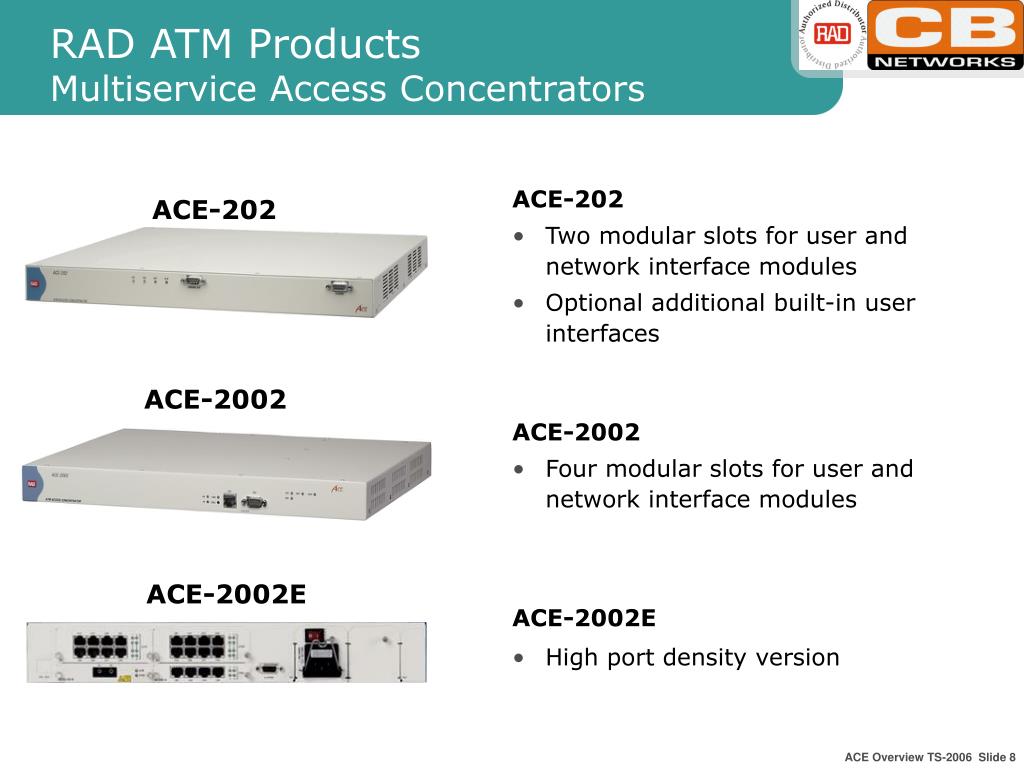

  8. ACE-202 Two modular slots for user and network interface modules Optional additional built-in user interfaces ACE-2002 Four modular slots for user and network interface modules ACE-202 ACE-2002 ACE-2002E RAD ATM ProductsMultiservice Access Concentrators ACE-2002E • High port density version

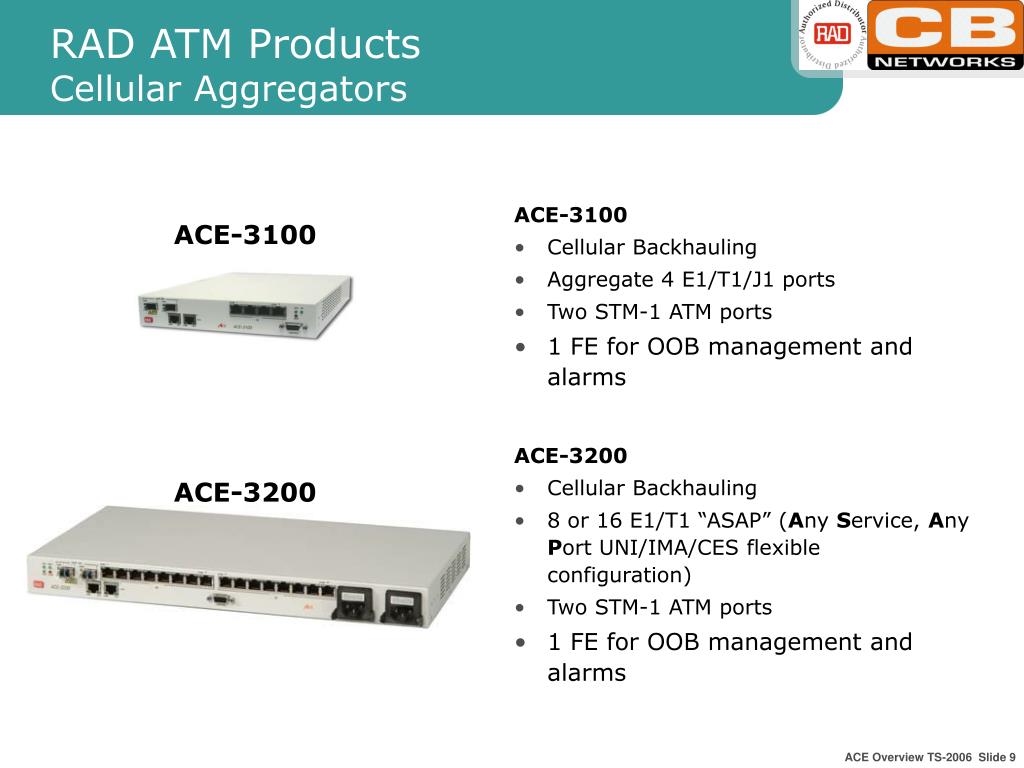

  9. ACE-3100 Cellular Backhauling Aggregate 4 E1/T1/J1 ports Two STM-1 ATM ports 1 FE for OOB management and alarms ACE-3200 Cellular Backhauling 8 or 16 E1/T1 “ASAP” (Any Service, Any Port UNI/IMA/CES flexible configuration) Two STM-1 ATM ports 1 FE for OOB management and alarms ACE-3100 ACE-3200 RAD ATM ProductsCellular Aggregators

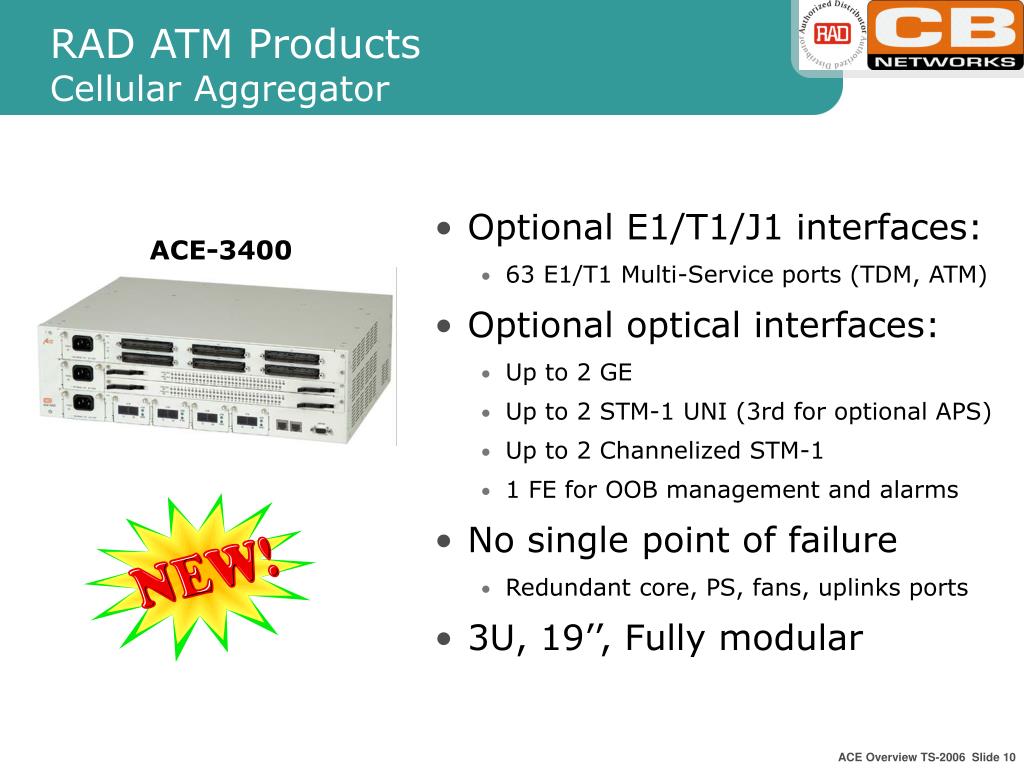

  10. ACE-3400 RAD ATM ProductsCellular Aggregator • Optional E1/T1/J1 interfaces: • 63 E1/T1 Multi-Service ports (TDM, ATM) • Optional optical interfaces: • Up to 2 GE • Up to 2 STM-1 UNI (3rd for optional APS) • Up to 2 Channelized STM-1 • 1 FE for OOB management and alarms • No single point of failure • Redundant core, PS, fans, uplinks ports • 3U, 19’’, Fully modular

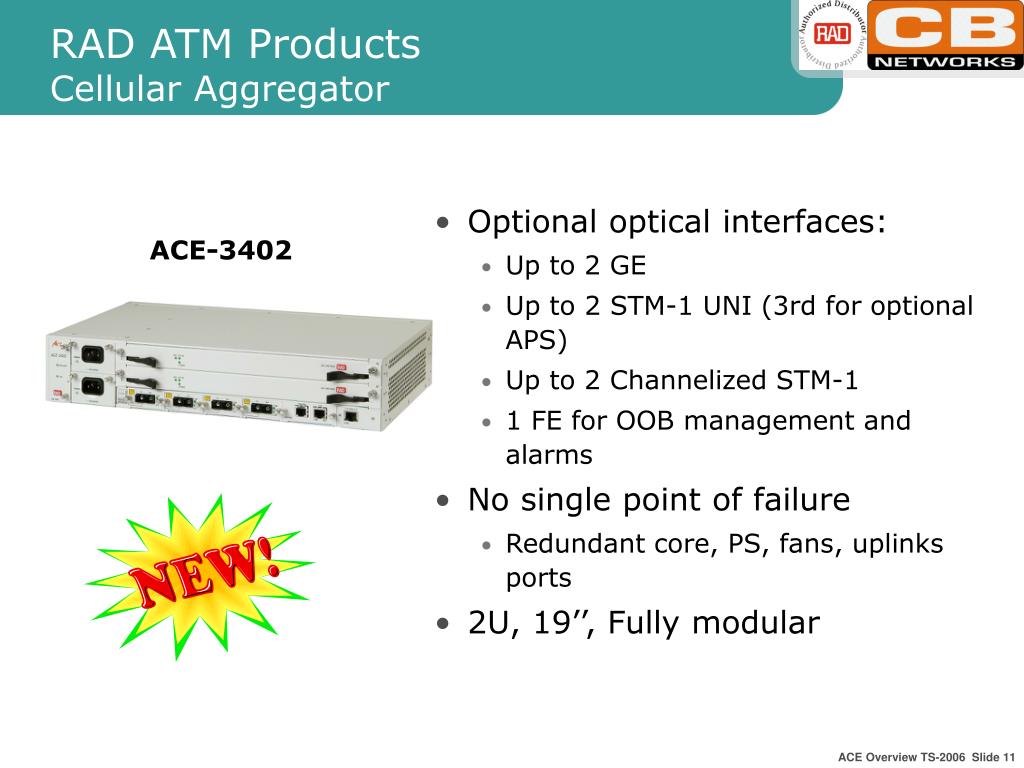

  11. ACE-3402 RAD ATM ProductsCellular Aggregator • Optional optical interfaces: • Up to 2 GE • Up to 2 STM-1 UNI (3rd for optional APS) • Up to 2 Channelized STM-1 • 1 FE for OOB management and alarms • No single point of failure • Redundant core, PS, fans, uplinks ports • 2U, 19’’, Fully modular

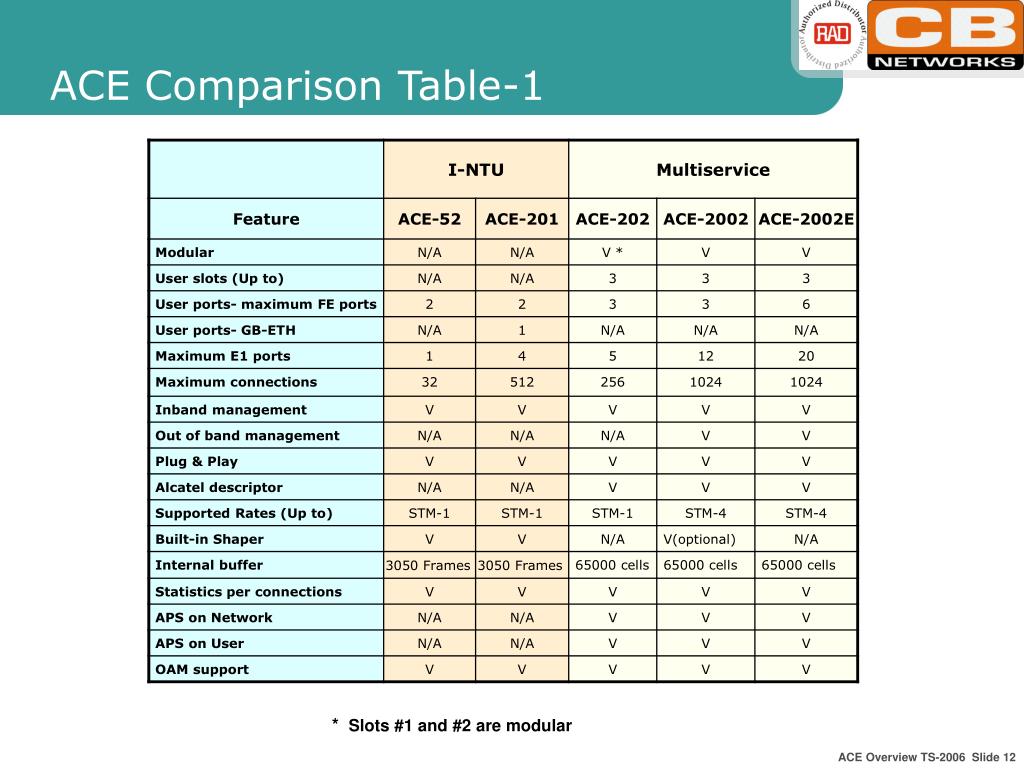

  12. ACE Comparison Table-1 * Slots #1 and #2 are modular

  13. ACE Comparison Table-2

  14. Typical Applications

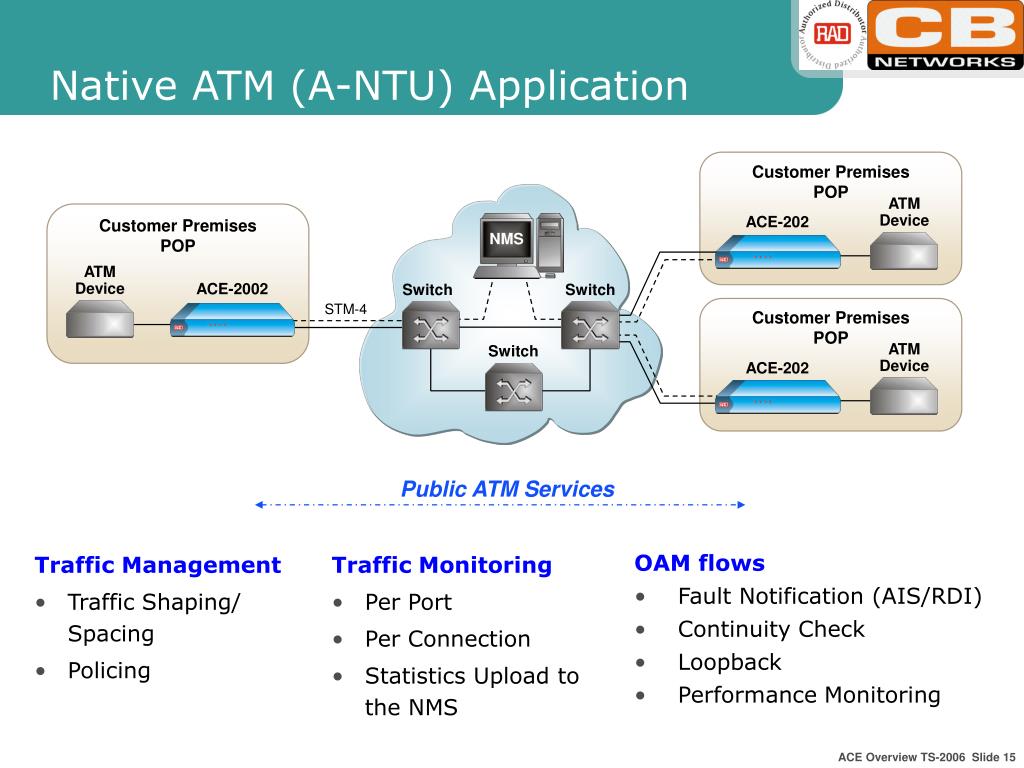

  15. OAM flows Fault Notification (AIS/RDI) Continuity Check Loopback Performance Monitoring Native ATM (A-NTU) Application Customer Premises POP ATM Device Traffic Management • Traffic Shaping/Spacing • Policing ACE-202 Customer Premises POP NMS ATM Device ACE-2002 Switch Switch STM-4 Customer Premises POP ATM Device Switch ACE-202 Public ATM Services Traffic Monitoring • Per Port • Per Connection • Statistics Upload tothe NMS

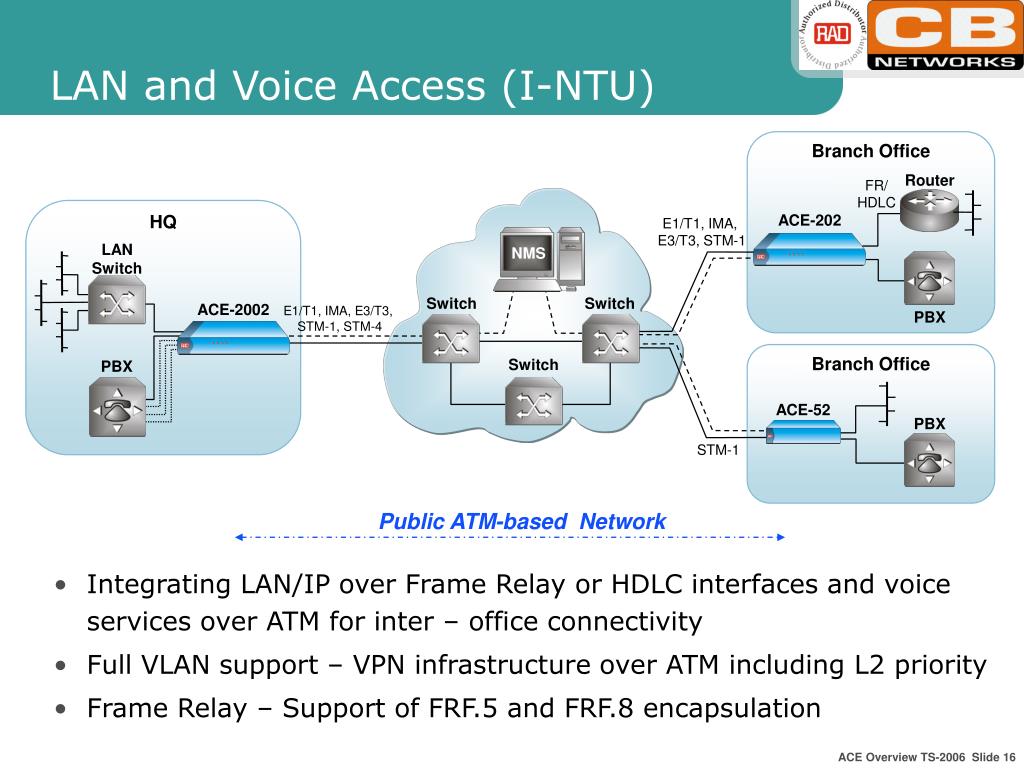

  16. LAN and Voice Access (I-NTU) Branch Office Router FR/ HDLC • Integrating LAN/IP over Frame Relay or HDLC interfaces and voice services over ATM for inter – office connectivity • Full VLAN support – VPN infrastructure over ATM including L2 priority • Frame Relay – Support of FRF.5 and FRF.8 encapsulation E1/T1, IMA, E3/T3, STM-1 ACE-202 HQ LAN Switch NMS Switch Switch E1/T1, IMA, E3/T3, STM-1, STM-4 ACE-2002 PBX Branch Office Switch PBX ACE-52 PBX STM-1 Public ATM-based Network

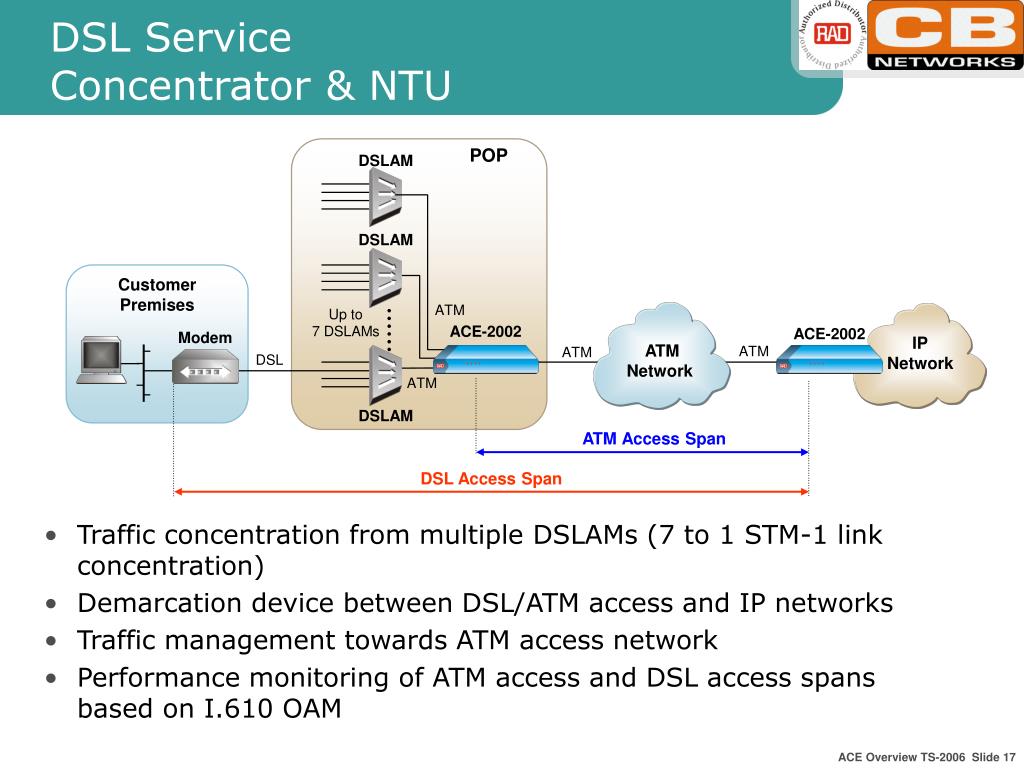

  17. DSL ServiceConcentrator & NTU POP DSLAM • Traffic concentration from multiple DSLAMs (7 to 1 STM-1 link concentration) • Demarcation device between DSL/ATM access and IP networks • Traffic management towards ATM access network • Performance monitoring of ATM access and DSL access spans based on I.610 OAM DSLAM Customer Premises ATM Up to 7 DSLAMs ACE-2002 ACE-2002 Modem IP Network ATM ATM ATM Network DSL ATM DSLAM ATM Access Span DSL Access Span

  18. VLAN Stacking SP VLAN* C VLAN* Frame C VLAN Frame Local Customer Adding SP VLAN according to VC • The ACE acts as an ATM gateway, extending Metro services to remote customers over wide span ATM network • Similarly, the ACE can be used to connect ‘islands’ of metro Ethernet over ATM national network • To allow this application VLAN stacking was added to the ACE so each ATM VC is mapped to a Service Provider (SP) VLAN ACE-2002 ACE-52 Metro Ethernet ATM Network Ethernet STM-1 Remote Customer Removing the SP VLAN Local Customer SP VLAN C VLAN Frame C VLAN Frame *SP VLAN – Service Provider VLAN *C VLAN – Customer VLAN

  19. Key Features - Product Level

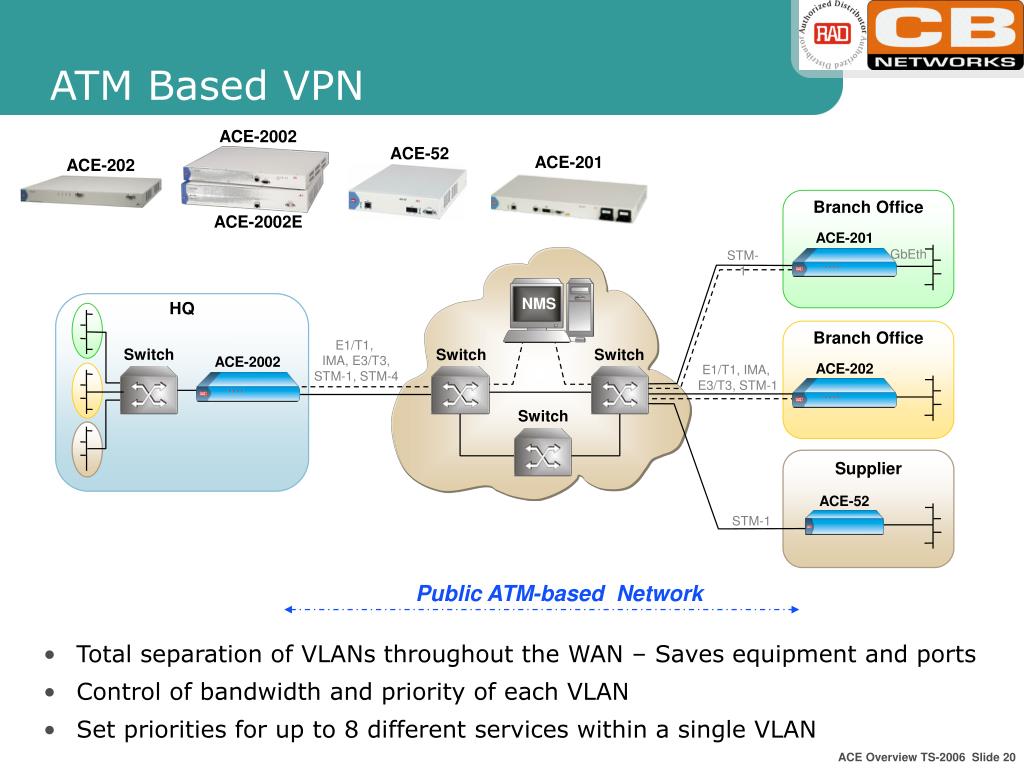

  20. ACE-201 ACE-2002 ACE-202 ACE-52 ACE-2002E ATM Based VPN • Total separation of VLANs throughout the WAN – Saves equipment and ports • Control of bandwidth and priority of each VLAN • Set priorities for up to 8 different services within a single VLAN Branch Office GbEth STM-1 ACE-201 NMS HQ Branch Office E1/T1, IMA, E3/T3, STM-1, STM-4 Switch Switch Switch ACE-2002 E1/T1, IMA, E3/T3, STM-1 ACE-202 Switch Supplier ACE-52 STM-1 Public ATM-based Network

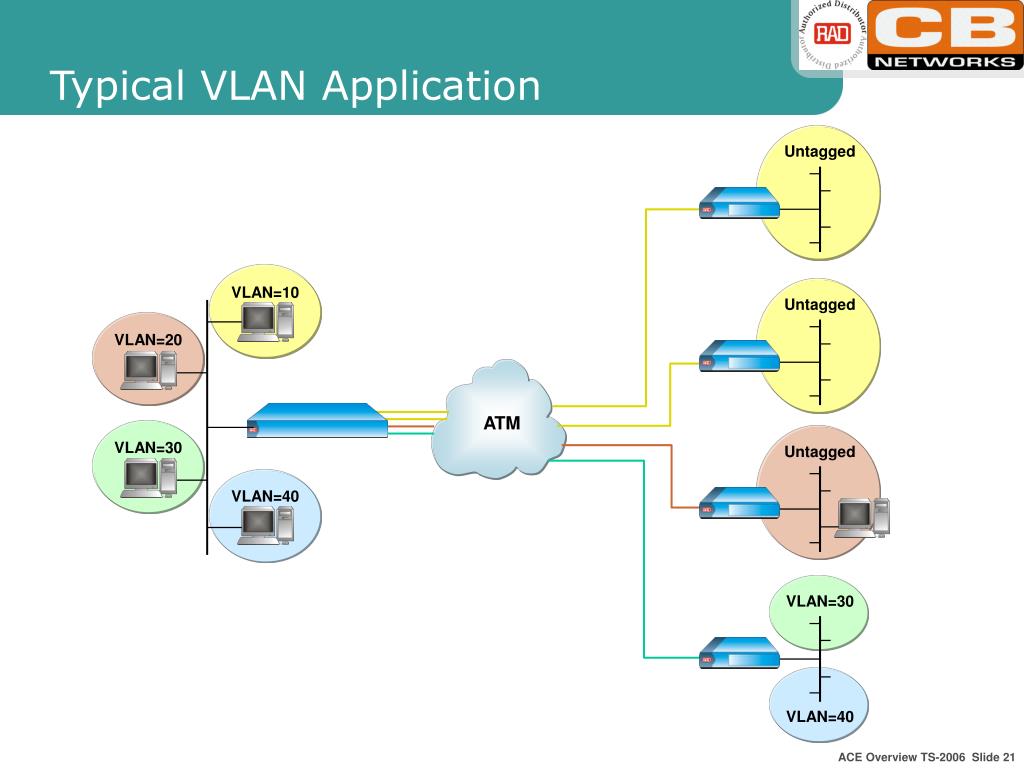

  21. Typical VLAN Application Untagged VLAN=10 Untagged VLAN=20 ATM VLAN=30 Untagged VLAN=40 VLAN=30 VLAN=40

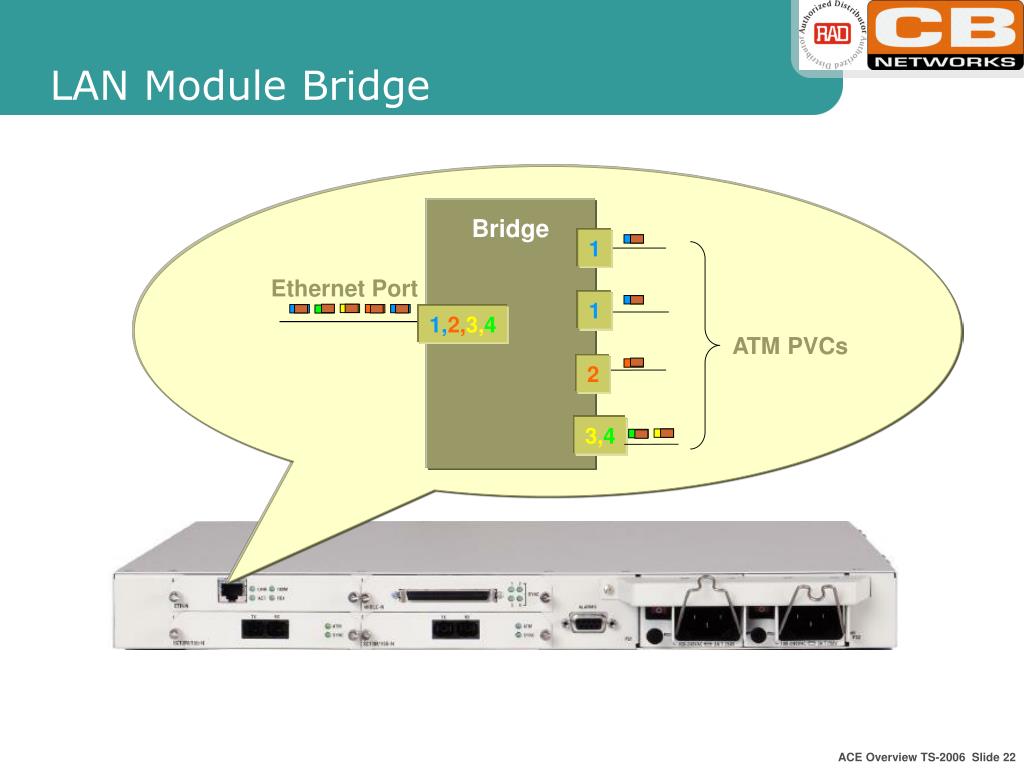

  22. LAN Module Bridge Bridge 1 Ethernet Port 1 1,2,3,4 ATM PVCs 2 3,4

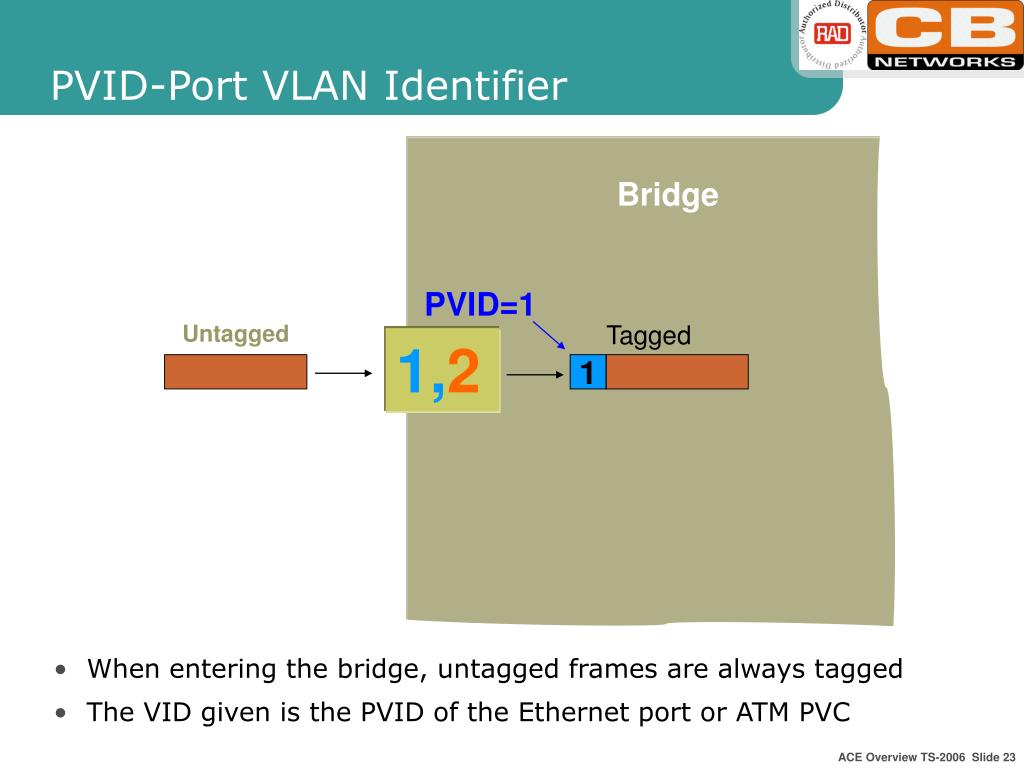

  23. PVID-Port VLAN Identifier Bridge • When entering the bridge, untagged frames are always tagged • The VID given is the PVID of the Ethernet port or ATM PVC PVID=1 Untagged Tagged 1,2 1

  24. Transmit Frame Type VLAN 1: Transmit Frame Type = Tagged VLAN 2: Transmit Frame Type = Untagged • Configurable per VLAN per port (Ethernet/ATM PVC) Bridge Tagged Tagged 1,2 1 1 Tagged Untagged 2

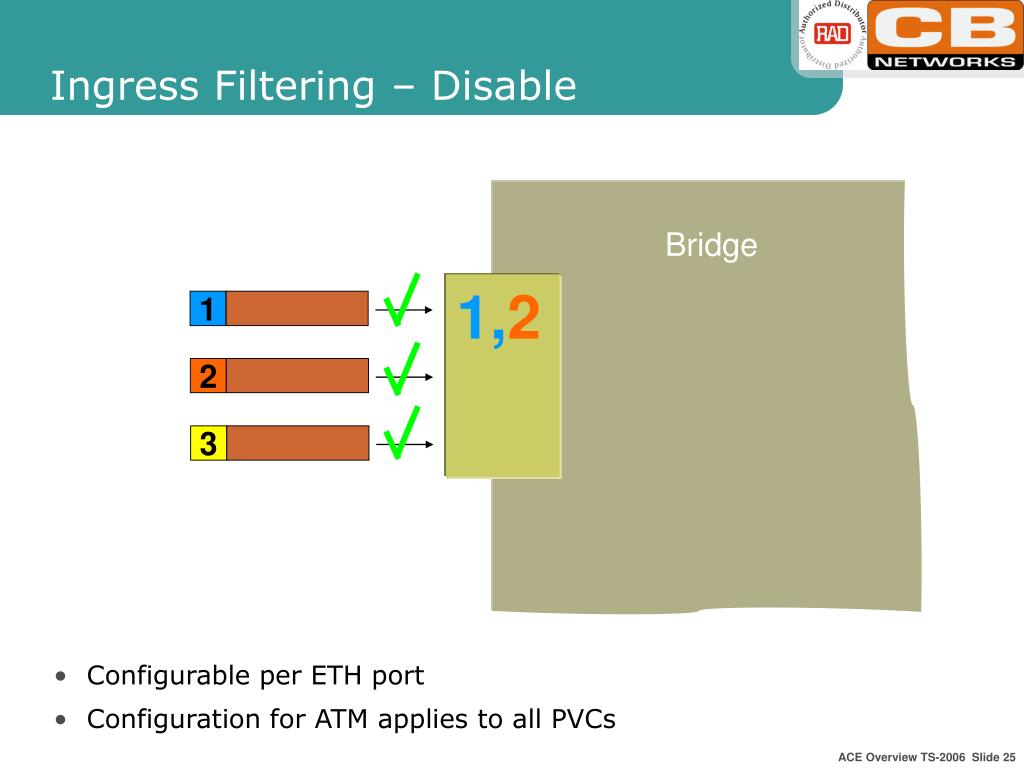

  25. Ingress Filtering – Disable • Configurable per ETH port • Configuration for ATM applies to all PVCs Bridge 1,2 1 2 3

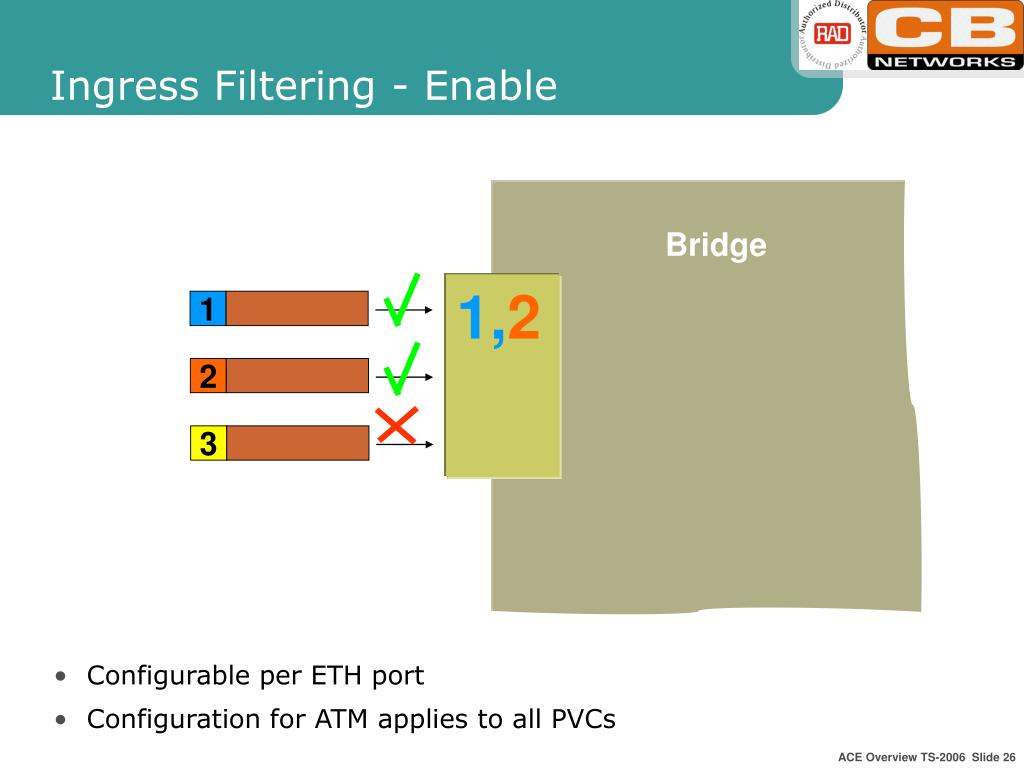

  26. Ingress Filtering - Enable • Configurable per ETH port • Configuration for ATM applies to all PVCs Bridge 1,2 1 2 3

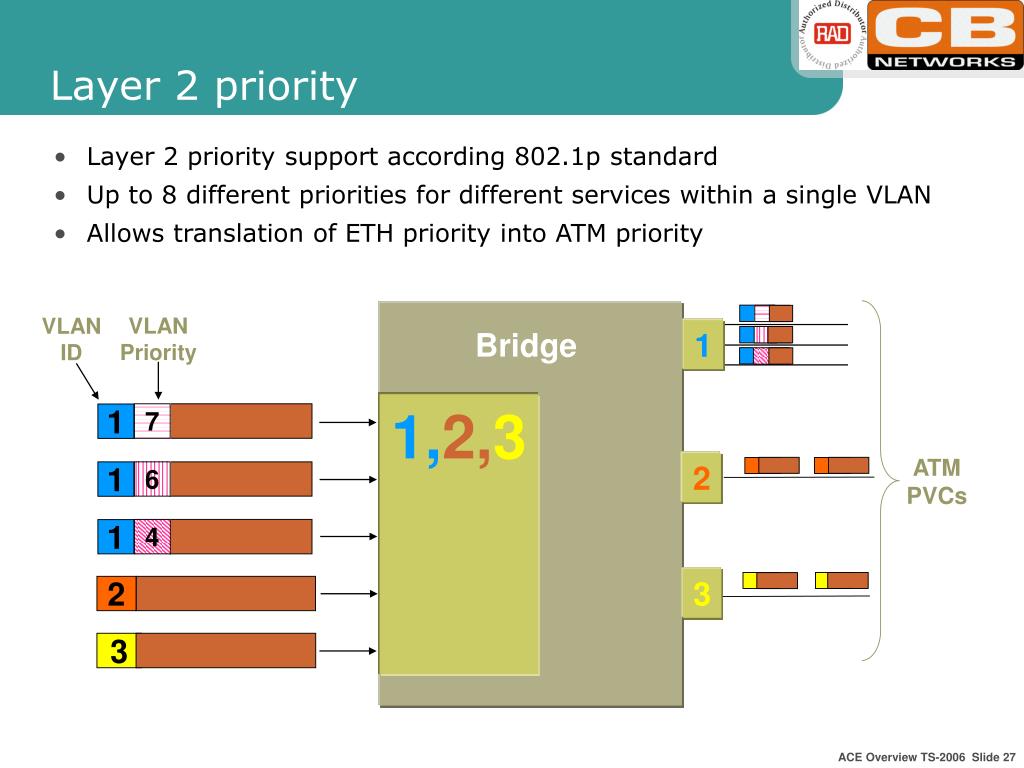

  27. 2 Layer 2 priority • Layer 2 priority support according 802.1p standard • Up to 8 different priorities for different services within a single VLAN • Allows translation of ETH priority into ATM priority VLAN Priority VLAN ID Bridge 1 1,2,3 7 1 ATM PVCs 2 1 6 4 1 3 3

  28. Priorities per Logical Interface ACE-202/2002/2002E: • CBR - Highest priority • VBR RT- Second highest priority • Per-VC queue according to peak limit and weight • UBR - lowest priority ACE-52/201/3100/3200/3400/3402: • CBR - Highest priority • VBR - Second highest priority • UBR+ - Third priority • UBR - lowest priority

  29. First the VCs are Policed/Spaced according to their Traffic Descriptors Then the entire VP is limited according to the VP Tunnel Traffic Descriptor ACE-202 VP Tunneling • Enables grouping of VCCs from different user interfaces (ATM, LAN, CES, FR and management) into a single VPC (VP tunnel) • Category of service and traffic parameters configured individually for each VP tunnel (up to 30 VP tunnels) ACE-2002 LAN Switch ACE-2002E LAN ACE PBX CES

  30. Shared Queue or Per VC WFQ ACE-2002 ACE-202 VP Tunnel Port Pacing ACE-2002E Hierarchical Traffic Management • ACE-202/2002/2002E has three levels of traffic management • VC Shared Queue and Per VC WFQ (Weight Fair Queue) • VP Tunnel with shaping/limiting all passing through VCCs • Physical interface (module) Rate Pacing

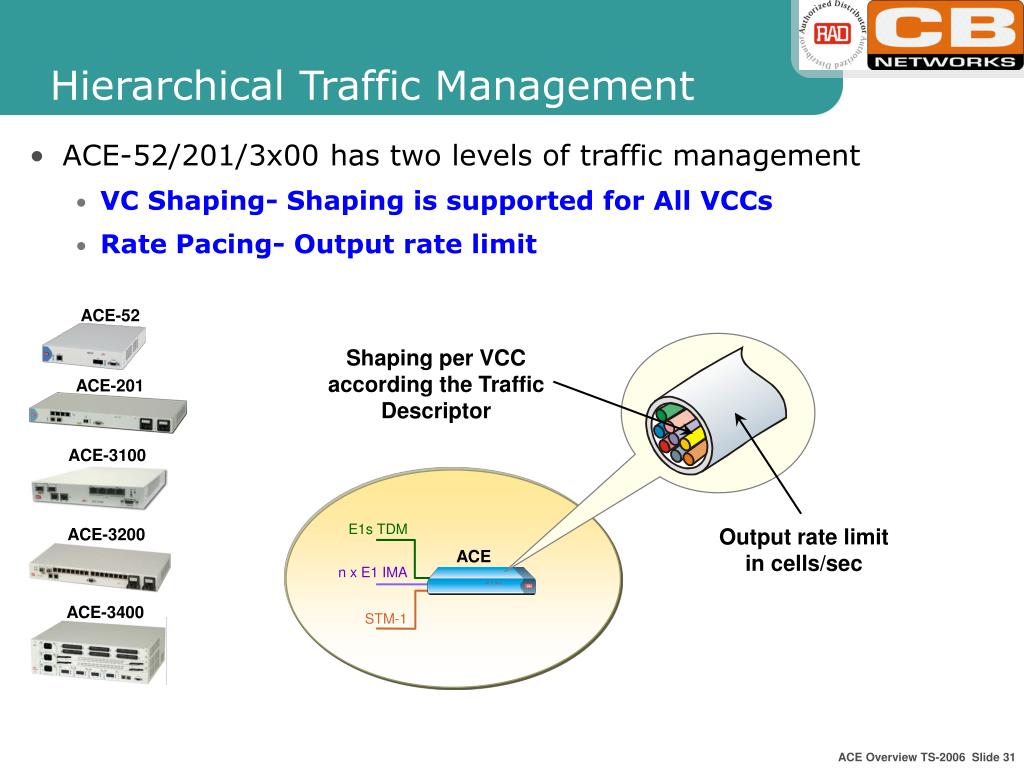

  31. ACE-52 ACE-201 ACE-3100 ACE-3200 ACE-3400 Hierarchical Traffic Management • ACE-52/201/3x00 has two levels of traffic management • VC Shaping- Shaping is supported for All VCCs • Rate Pacing- Output rate limit Shaping per VCC according the Traffic Descriptor Output rate limit in cells/sec E1s TDM ACE n x E1 IMA STM-1

  32. ACE-2002 ACE-202 ACE-2002E Spacing • Buffering according to the PCR - output will not exceed PCR • Non-conforming cells are buffered and not discarded • Supported in ACE-202/ACE-2002/ACE-2002E • EPD support TD parameters PCR=6000 cps Output Traffic Input Traffic Cell rate (cps) PCR = Peak Cell Rate EPD = Early Packet Discard

  33. Shaping • Built-in Shaper for all traffic classes on the ACE-52, ACE-201, ACE-3x00 • Optional H/W Shaper for VBR-rt and VBR-nrt on the ACE-2002 • EPD support TD parameters PCR=2000 cps SCR=1000 cps MBS=500 cells Input Traffic Output Traffic Cell rate (cps) TD=Traffic Descriptor MBS=Max Burst Size PCR= Peak Cell Rate SCR= Sustainable Cell Rate

  34. ACE-3400 ACE-2002 ACE-202 ACE-3402 ACE-2002E Automatic Protection System (APS) • STM-1 only • ACE-202/2002/2002E • G.783 Annex A and B • Uni-Directional • 1:N Compatible • 1+1 Optimized • Y-Cable (proprietary) • Manual switching • New Dual APS module • ACE-3xxx • G.841(the new G.783) Annex B • 1+1 Optimized • APS for CH-STM-1 New

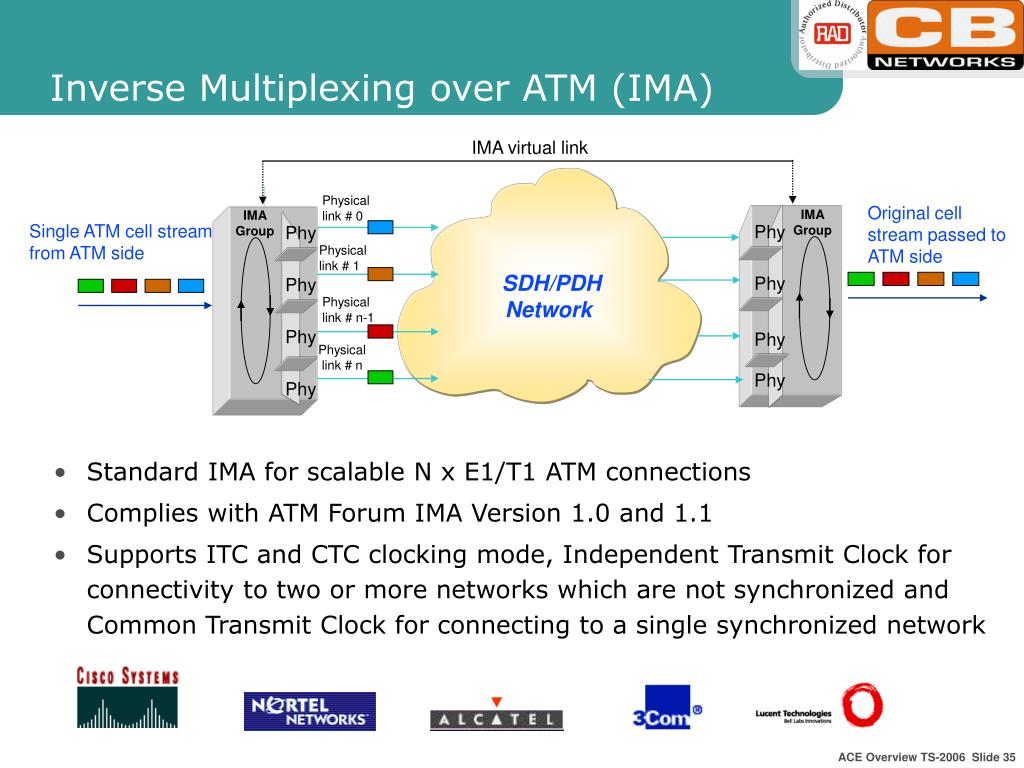

  35. Inverse Multiplexing over ATM (IMA) IMA virtual link Physical link # 0 • Standard IMA for scalable N x E1/T1 ATM connections • Complies with ATM Forum IMA Version 1.0 and 1.1 • Supports ITC and CTC clocking mode, Independent Transmit Clock for connectivity to two or more networks which are not synchronized and Common Transmit Clock for connecting to a single synchronized network Original cell stream passed to ATM side IMA Group IMA Group Single ATM cell stream from ATM side Phy Phy Physical link # 1 SDH/PDHNetwork Phy Phy Physical link # n-1 Phy Phy Physical link # n Phy Phy

  36. Management

  37. Management Options Management Applications: • All ACEs can be managed locally and remotely • RADview HPOV – ACE-202/2002/2002EFull configuration and diagnostic via any IP based connection (in-band or out-of-band) using a Unix based GUI.(ACE-202/2002/2002E) • RADview EMS –ACE-52/201/3100/3200/3400/3402Full configuration and diagnostic via any IP based connection (in-band or out-of-band) using a GUI. Server-client CORBA based topology – may run on a PC or UNIX stations • ConfiguRAD – ACE-3100/3200/3400/3402Web based element management (HTTP server). The implementation will allow full configuration and diagnostic via any IP based connection

  38. Management Options Download/Upload • Software, configuration, statistics or any other file from the file system • Two ways for downloading & uploading files • X-Modem – via a serial interface • TFTP – via In-Band or Out-Of-Band management

  39. Alcatel Management System • Integrating RAD SNMP using dedicated Descriptors Alcatel Backbone Network Descriptor Files Managed Access Network 5620 NM 5620 DM

  40. 5620 Descriptor Modules • Part of the 5620 Descriptor Modules • Identify and map third-party SNMP objects for the 5620 • Dedicated descriptor per product • 5620 maintains multiple descriptors ACE-50 ACE-50 ACE-202 Descriptor Files ACE-202 5620 DM SNMP Based ManagedAccess Network

  41. References

  42. RAD’s ACE Broadband Successes

  43. thank you for your attention Technical Support CBNetworks Email: support.technique@cbnetworks.fr http://www.cbnetworks.fr
