Understanding Ionic and Covalent Bonding: Properties and Applications

This article explores ionic and covalent bonding, the fundamental forces that shape chemical compounds. Ionic bonds form between metals and non-metals through the transfer of electrons, resulting in charged ions, or cations and anions, that attract each other. Ionic compounds are typically crystalline with high melting points and are soluble in water. Conversely, covalent bonds involve the sharing of electrons, forming molecules with varying bond types, such as single, double, and triple bonds, featuring distinct properties. This comprehensive guide highlights their implications in technology, such as superconductors.

lorie
Télécharger la présentation

Understanding Ionic and Covalent Bonding: Properties and Applications

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Bonding Periodic Table Stuff & Redox

  2. Bonding in Ionic Compounds

  3. Ionic Bonds (Salts) • Between a metal (usually) and a non-metal (usually). The metal gives up its electron to the non-metal. Giving up electrons turns the metal into a positively charged ion called a cation. Gaining the electrons turns the non-metal into a negtatively charged ion called an anion. • The positive and negative charges attract each other. This is the ionic bond. • Ionic compounds are crystals – the formula shows the ratio of the elements in the compound. It is known as a formula unit. • They have high melting points. • They are more likely to be soluble in water, the universal solvent. • They are electrolytes.

  4. CaF2 CsCl

  5. Experienced chemists can often predict the structure that a given ionic species will adopt, based on the nature of the ions involved. This means that it is often possible to design ionic compounds having certain well-defined and desirable properties. As an example, chemists have been able to make high-temperature superconductors, such as the complicated ionic compound, YBa2Cu3O4. This solid conducts electricity with no resistance at all at low temperature (below ca. -100 degrees centigrade). Previous superconductors only had this property at much lower temperatures. The lack of resistance makes superconductors very useful in a number of technological applications - e.g. in designing high-speed trains that levitate above the track! The repeating structure of this solid is shown below (oxygen is large and red, barium large and yellow-ish, yttrium small and pink, and copper small and blue). Notice how many oxygen ions surround each barium and yttrium ion.

  6. Covalent Bonds (Not-Salts) • The electrons are shared between compounds. This allows each atom to have a full outer shell for stability. • Covalent compounds are represented by true molecules. The formula represents how many of each atom there are in the molecule. • 1 electron each shared is a single bond, 2 electrons each is a double bond and 3 electrons each is a triple bond. • They have low melting points. • They don’t usually dissolve well in water. • They are not electrolytes.

  7. Bonding in Covalent Compounds Plot of region where e- sit. Not localized.

  8. Bonding in Metals

  9. Bonding in Covalent Compounds – VSEPR shapes

  10. Bonding in Covalent Compounds – Polarities of Molecules

  11. Bonding between Molecules – Intermolecular Bonding: Hydrogen Bonding

  12. Bonding between Molecules – Intermolecular Bonding: Dipole - Dipole Bonding & Induced Dipole Bonding (london dispersion) Collectively: van der waals forces http://chemsite.lsrhs.net/bonding/LondonDispersion.html

  13. Families/Groups; Periodic Law; Ionization energy & Electronegativity

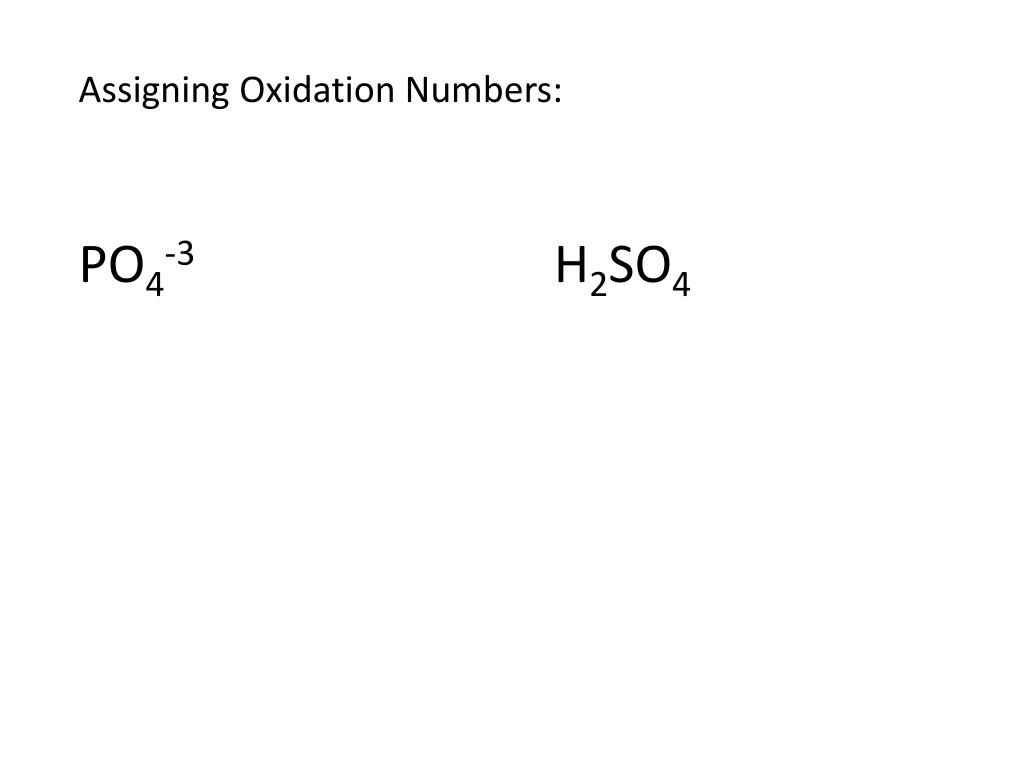

  14. Assigning Oxidation Numbers: PO4-3 H2SO4

  15. OIL RIG
