  1. Preliminary Analysis of PM2.5 Speciation Data in Puget Sound Puget Sound Clean Air Agency Mike Gilroy, Erik Saganic

  2. Overview • Site Introduction • Review of Speciation Parameters • Aethalometer Introduction • Aethalometer Data Analysis • Conclusions

  3. Network “Big Picture” “Almost Pure” Wood Smoke Darrington Site Marysville Wood Smoke North Site Lake Forest Park Wood Smoke North Site Olive Street Freeway Site Duwamish Industrial Site Beacon Hill Urban Background Site South Tacoma Wood Smoke South Site Network Scope 110 Miles Blue Sites denote Speciation Network

  4. Olive Street – Highway Site Beacon Hill – Residential Site Duwamish – Industrial Site

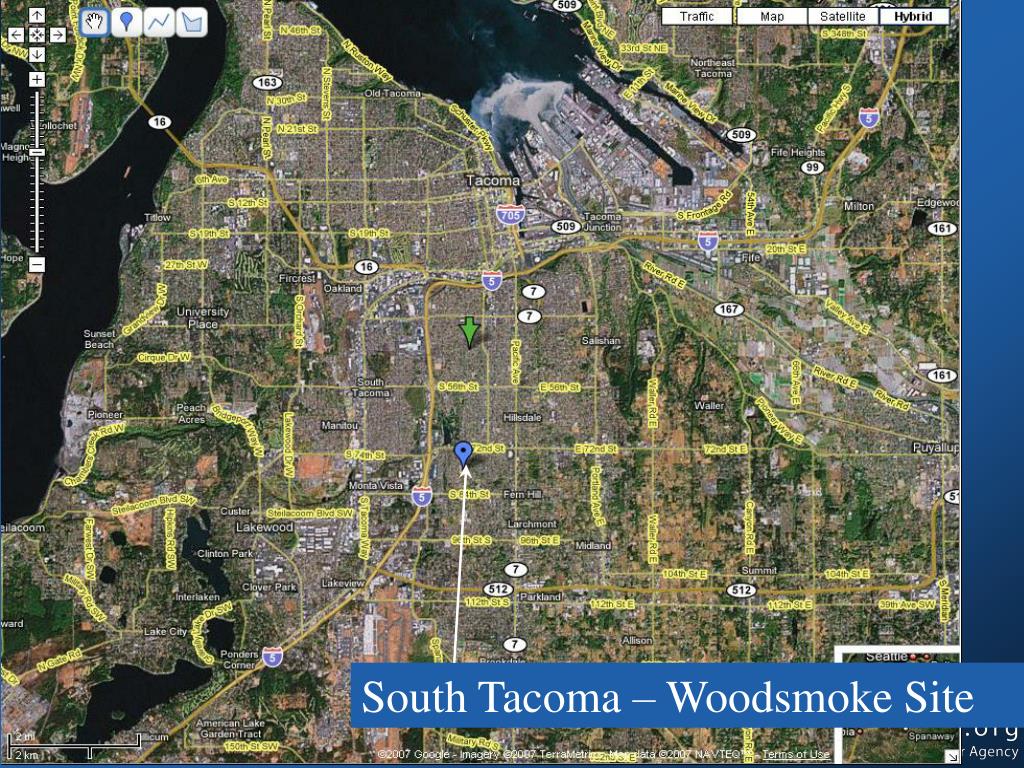

  5. South Tacoma – Woodsmoke Site

  6. Lake Forest Park – Residential Site

  7. Olive Street, Seattle – Mobile Source Site

  8. Duwamish, Seattle – Industrial Site

  9. South Tacoma Site – Wood Smoke/Residential Site

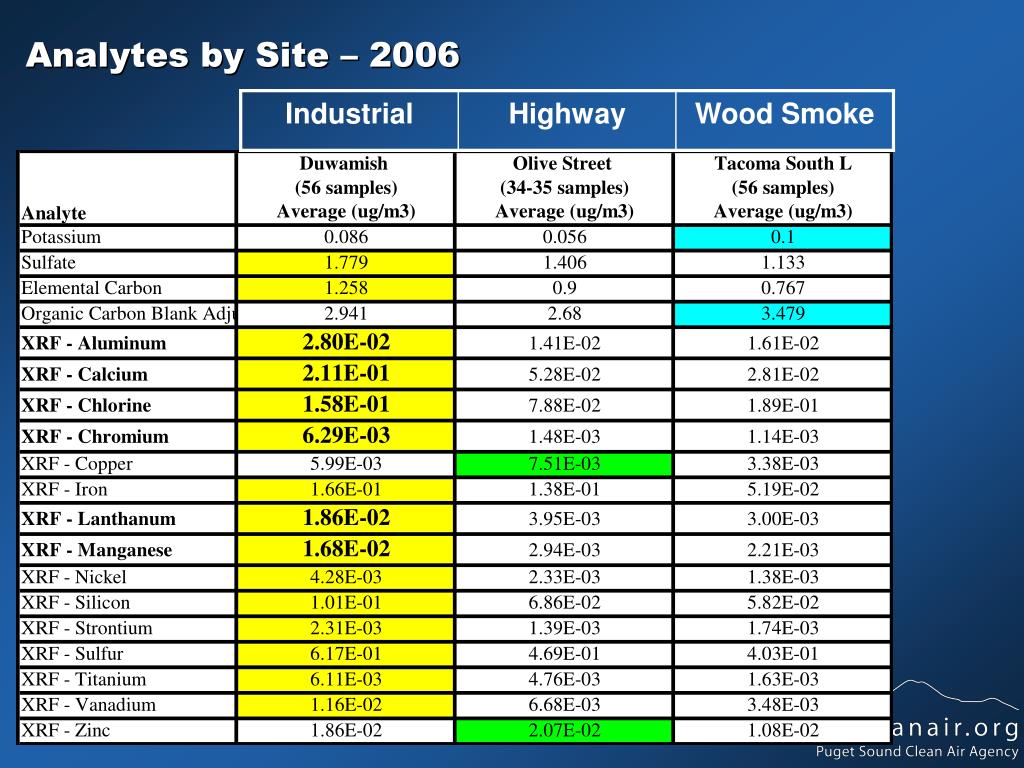

  10. Analytes by Site – 2006

  11. Highway Site

  12. Industrial Site

  13. Wood Smoke Site

  14. Wood Smoke Site

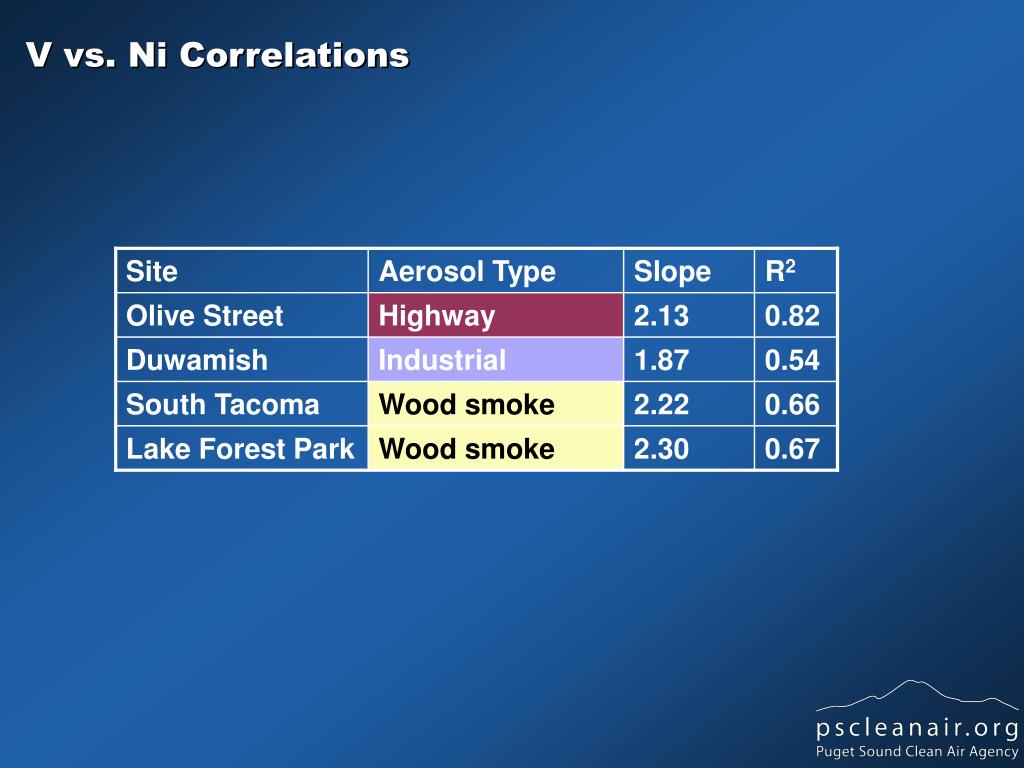

  15. V vs. Ni Correlations

  16. EC/OC Ratio vs. PM2.5

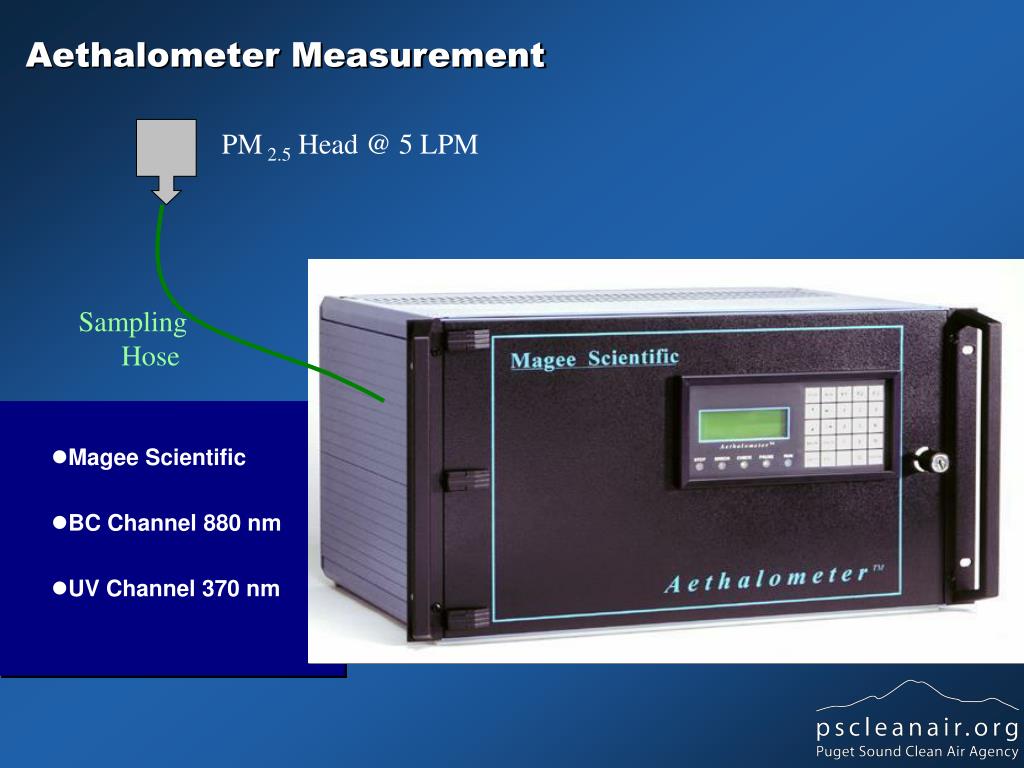

  17. Aethalometer Measurement • Magee Scientific • BC Channel 880 nm • UV Channel 370 nm PM 2.5 Head @ 5 LPM Sampling Hose

  18. Industrial Site

  19. Wood Smoke Site

  20. Industrial Site

  21. Wood Smoke Site

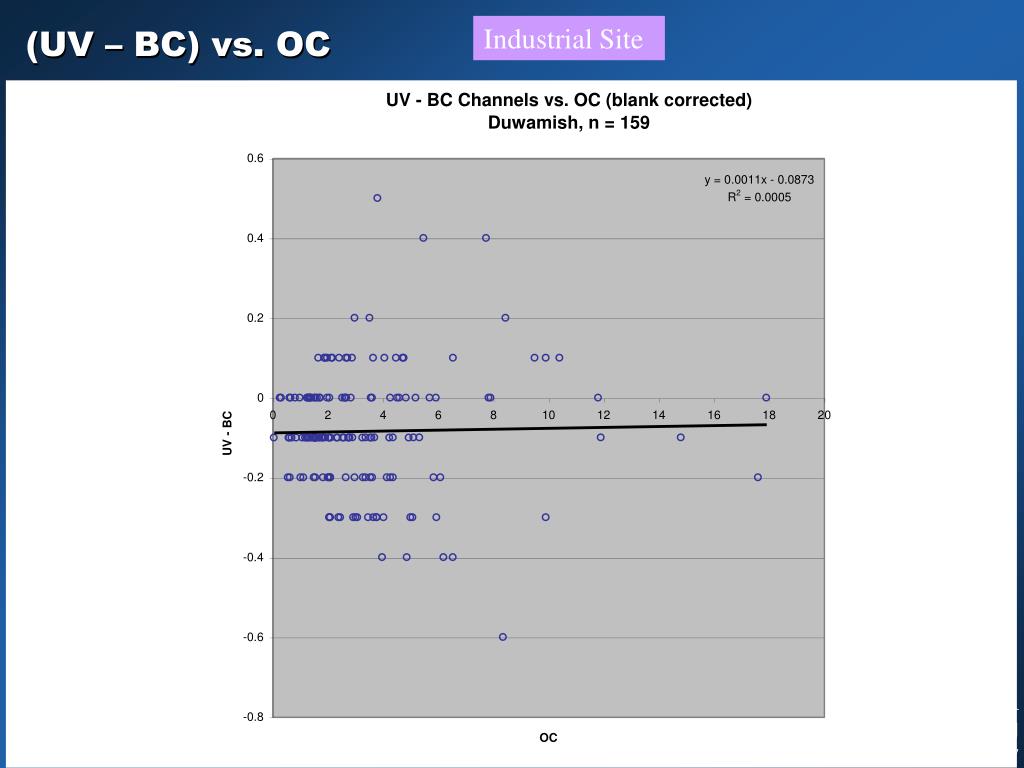

  22. (UV – BC) vs. OC Industrial Site

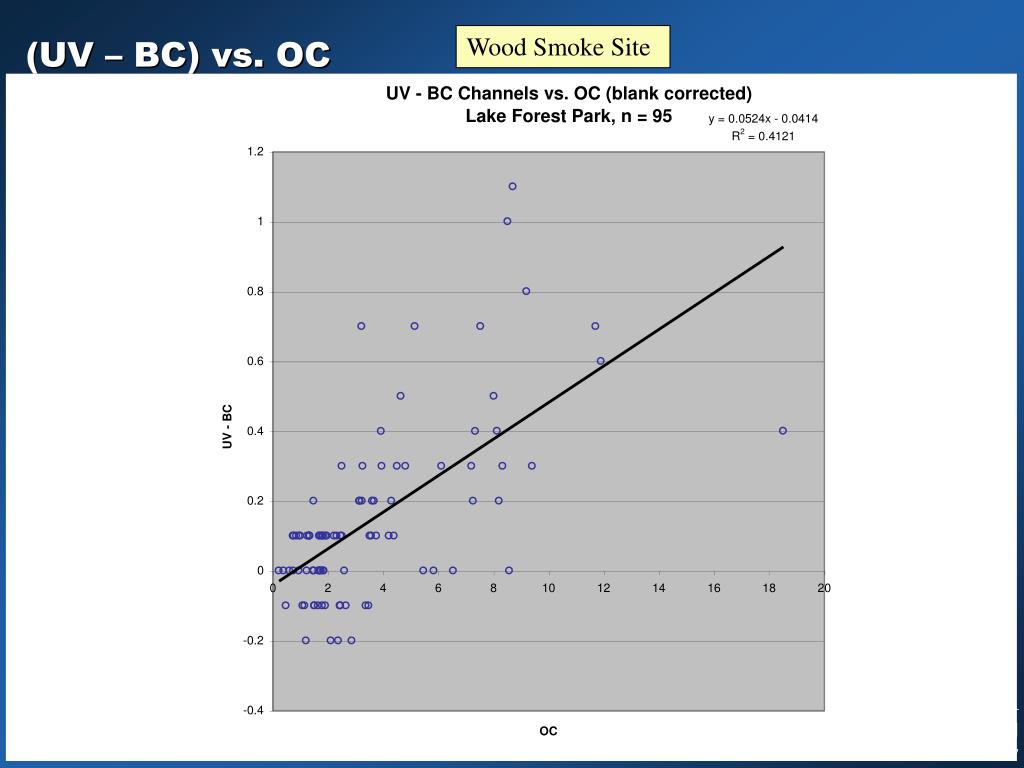

  23. (UV – BC) vs. OC Wood Smoke Site

  24. (UV – BC) Over Time

  25. (UV – BC) Over Time

  26. Wind Roses – UV Channel South Tacoma Duwamish

  27. Conclusions • We can use this data to better understand our emission sources • Using a suite of continuous monitors (FDMS, nephelometer, aethalometer, etc) is essential to enriching the understanding of the data • Rich data sets currently available • Continuous monitors like the Aethalometer can provide: • Real-time data • Cheaper sampling • More data • Currently packaged in a few of our publicly available products
