Feature-Preserving Reconstruction of Singular Surfaces

with Tamal Dey , Qichao Que , Issam Safa , Lei Wang, Yusu Wang Computer science and Engineering The Ohio State University. Feature-Preserving Reconstruction of Singular Surfaces. Xiaoyin Ge. Problem statement. Surface reconstruction of singular surface. input. output.

louise
Télécharger la présentation

Feature-Preserving Reconstruction of Singular Surfaces

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. with TamalDey, QichaoQue, IssamSafa, Lei Wang, Yusu Wang Computer science and Engineering The Ohio State University Feature-Preserving Reconstruction of Singular Surfaces XiaoyinGe

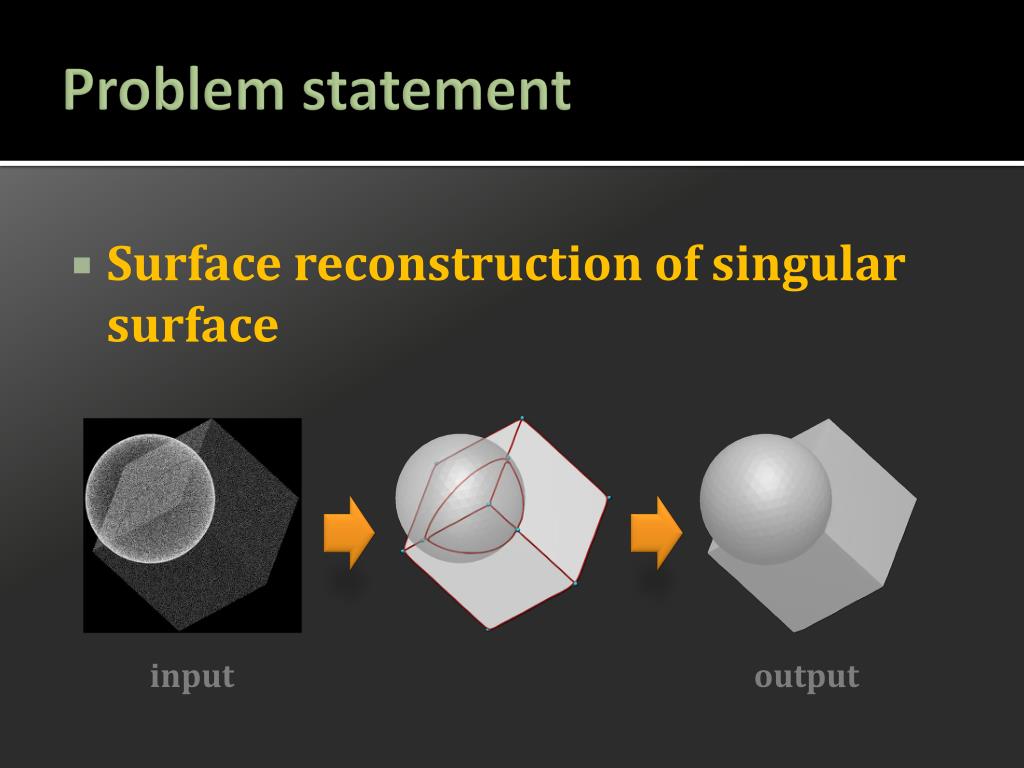

  2. Problem statement • Surface reconstruction of singular surface input output

  3. Problem statement Singular surface A collection of smooth surface patches with boundaries. boundary glue intersect

  4. Motivation and Previous work 2D manifold reconstruction • [AB99] Surface reconstruction by Voronoi filtering. AMENTA N., BERN M. • [ACDL02] A simple algorithm for homeomorphic surface reconstruction. AMENTA N., et. al. • [BC02] Smooth surface reconstruction via natural neighbor interpolation of distance functions. BOISSONNAT et. Al • [ABCO01] Point set surfaces. ALEXA et. al. • …

  5. Motivation and Previous work Feature aware method • [LCOL07] Data dependent MLS for faithful surface approximation. LIPMAN , et. al. • [ÖGG09] Feature preserving point set surfaces based on non-linear kernel regression, ÖZTIRELI, et.al • [CG06] Delaunay triangulation based surface reconstruction, CAZALS, et.al • [FCOS05] Robust moving least-squares fitting with sharp features, FLEISHMAN, et.al • …

  6. Motivation Need a simple yet effective reconstruction algorithm for all three singular surfaces.

  7. Our method: outline Identify feature points Reconstruct feature curves Reconstruct singular surface

  8. Our method: outline Identify feature points Reconstruct feature curves Reconstruct singular surface

  9. (I) Identify feature point • Gaussian-weighted graph Laplacian ( [BN02], Belkin-Niyogi, 2002)

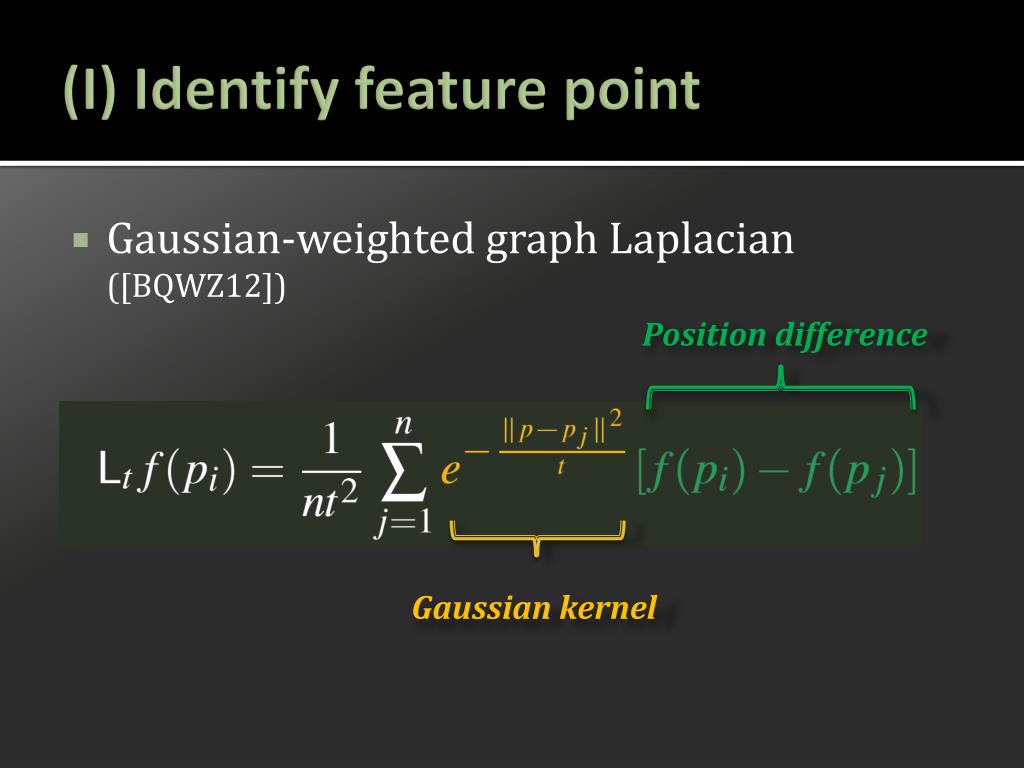

  10. (I) Identify feature point • Gaussian-weighted graph Laplacian([BQWZ12]) Position difference Gaussian kernel

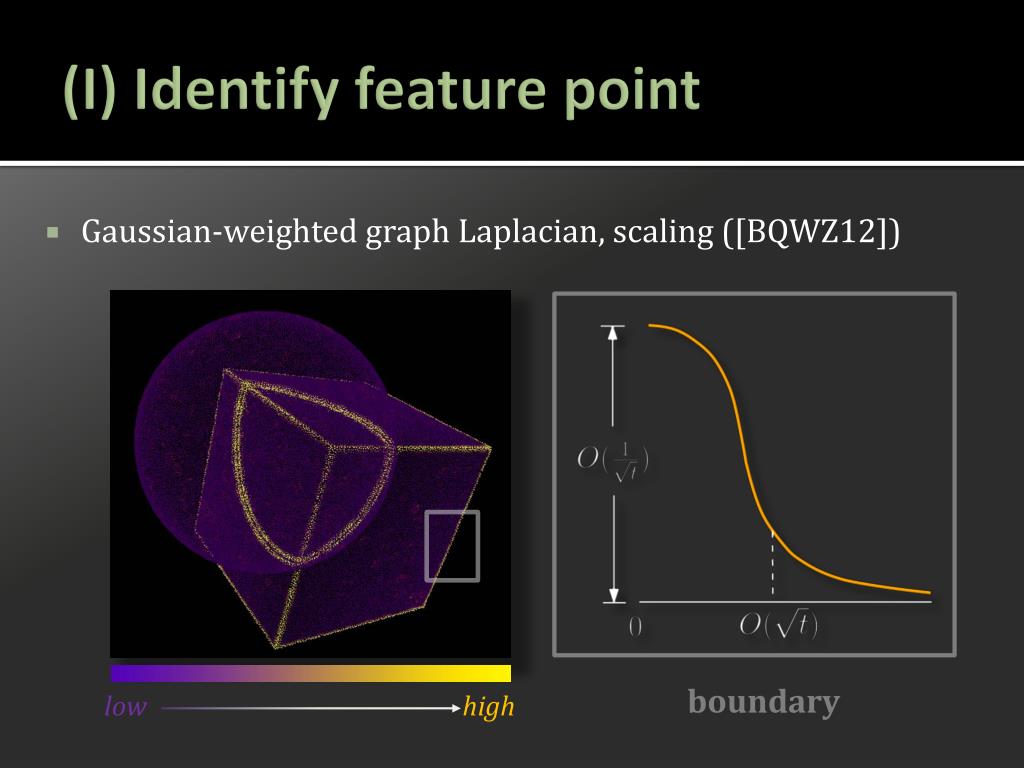

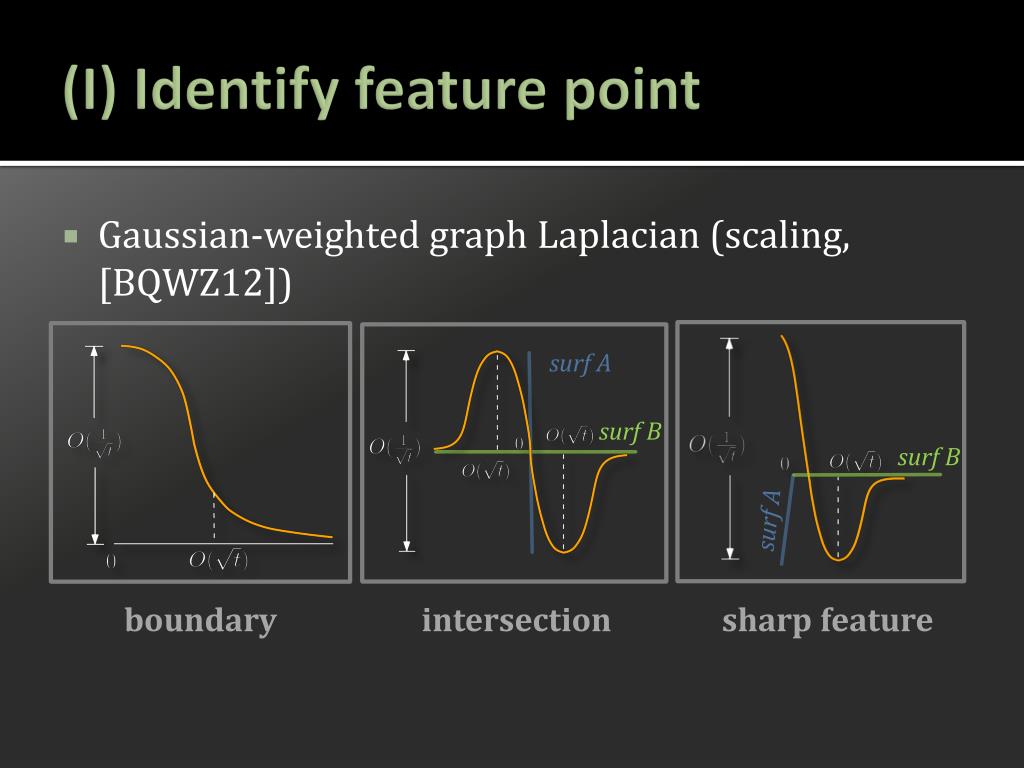

  11. (I) Identify feature point • Gaussian-weighted graph Laplacian, scaling ([BQWZ12]) boundary low high

  12. (I) Identify feature point • Gaussian-weighted graph Laplacian, scaling ([BQWZ12]) surf A surf B intersection low high

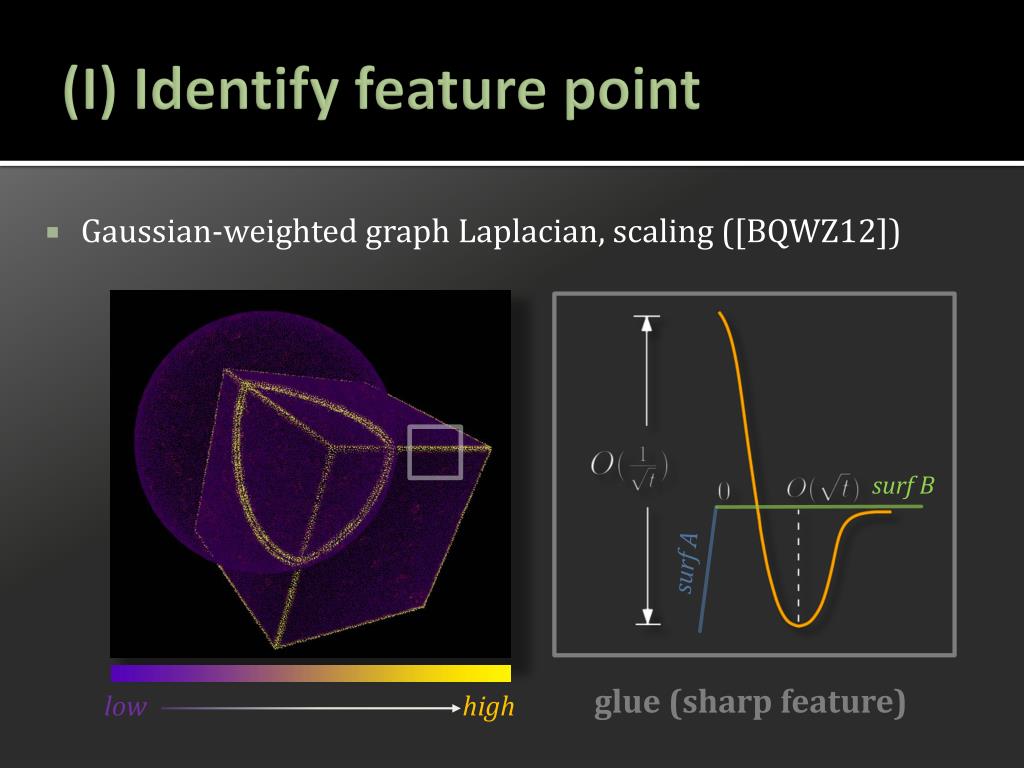

  13. (I) Identify feature point • Gaussian-weighted graph Laplacian, scaling ([BQWZ12]) surf B surf A glue (sharp feature) low high

  14. (I) Identify feature point • Gaussian-weighted graph Laplacian (scaling, [BQWZ12]) surf A surf B surf B surf A boundary intersection sharp feature

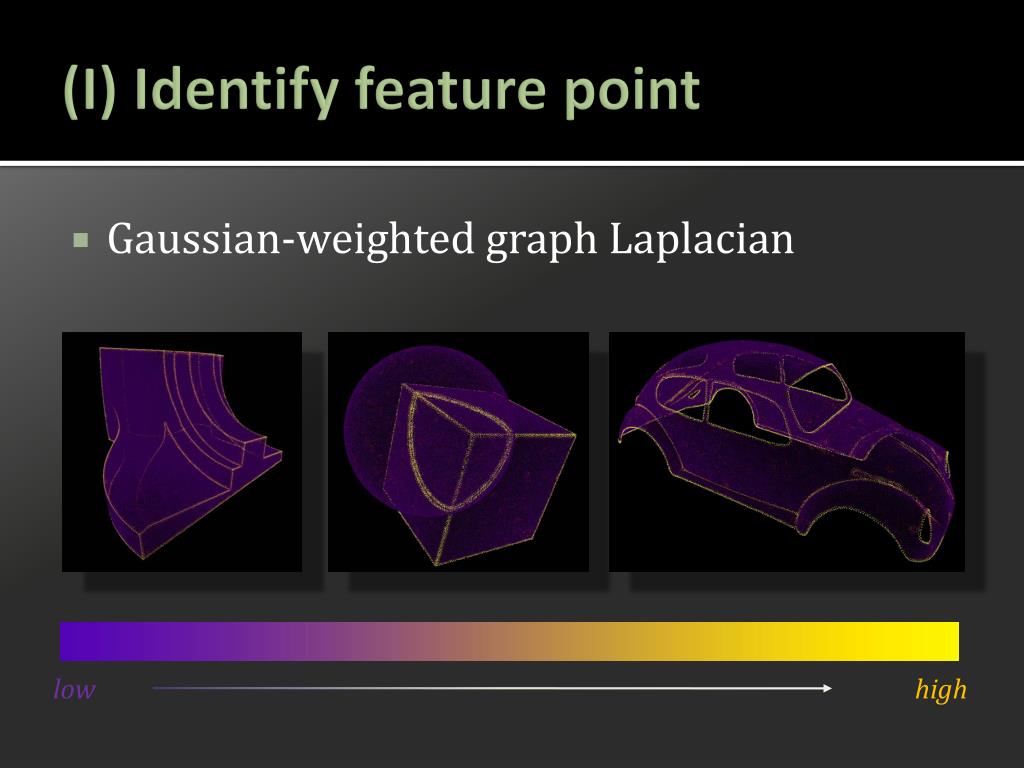

  15. (I) Identify feature point • Gaussian-weighted graph Laplacian low high

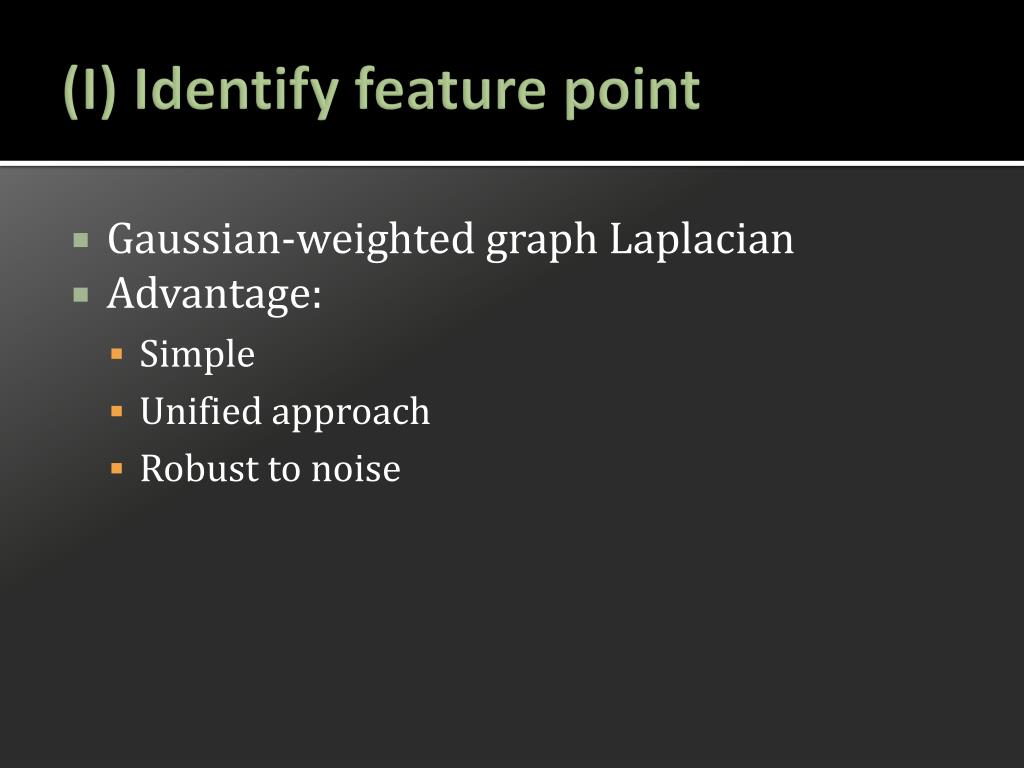

  16. (I) Identify feature point • Gaussian-weighted graph Laplacian • Advantage: • Simple • Unified approach • Robust to noise

  17. Our method: outline Identify feature points Reconstructfeaturecurves Reconstruct singular surface

  18. (II) reconstruct feature curve • Graph method proposed by [GSBW11] [ Data skeletonization via reeb graphs, Ge, et.al , 2011]

  19. (II) reconstruct feature curve • Reeb graph ( from Rips-complex [DW11] ) Reeb graph (abstract) Reeb graph (augmented) Rips complex

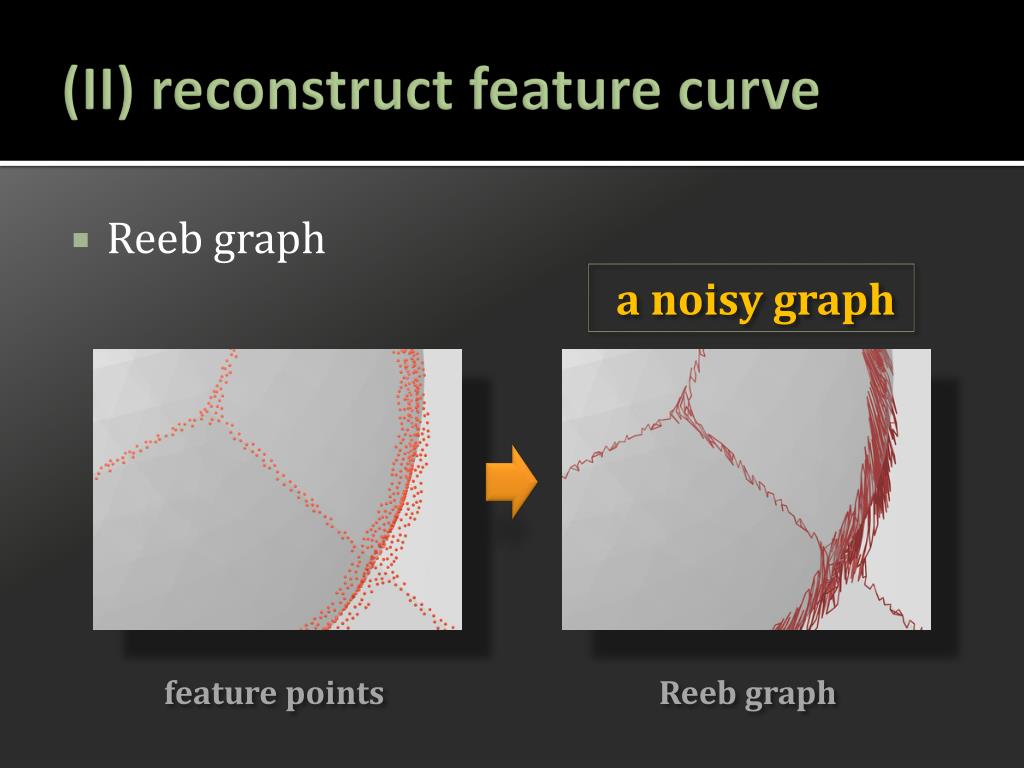

  20. (II) reconstruct feature curve • Reeb graph a noisy graph feature points Reeb graph

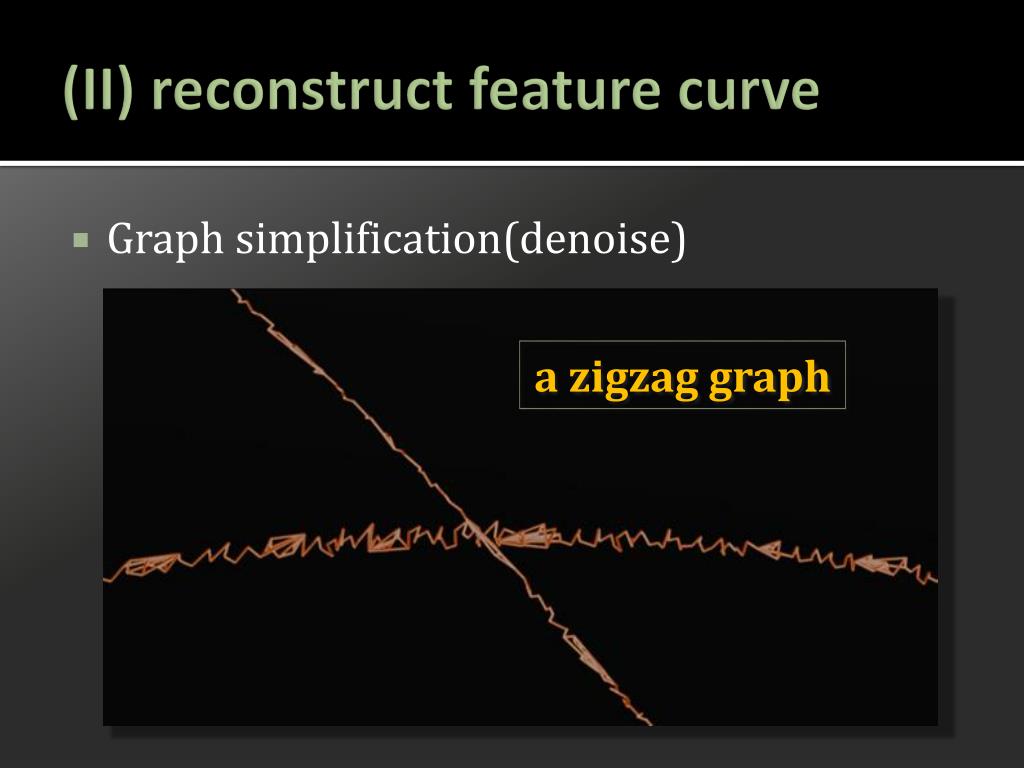

  21. (II) reconstruct feature curve • Graph simplification(denoise) a zigzag graph

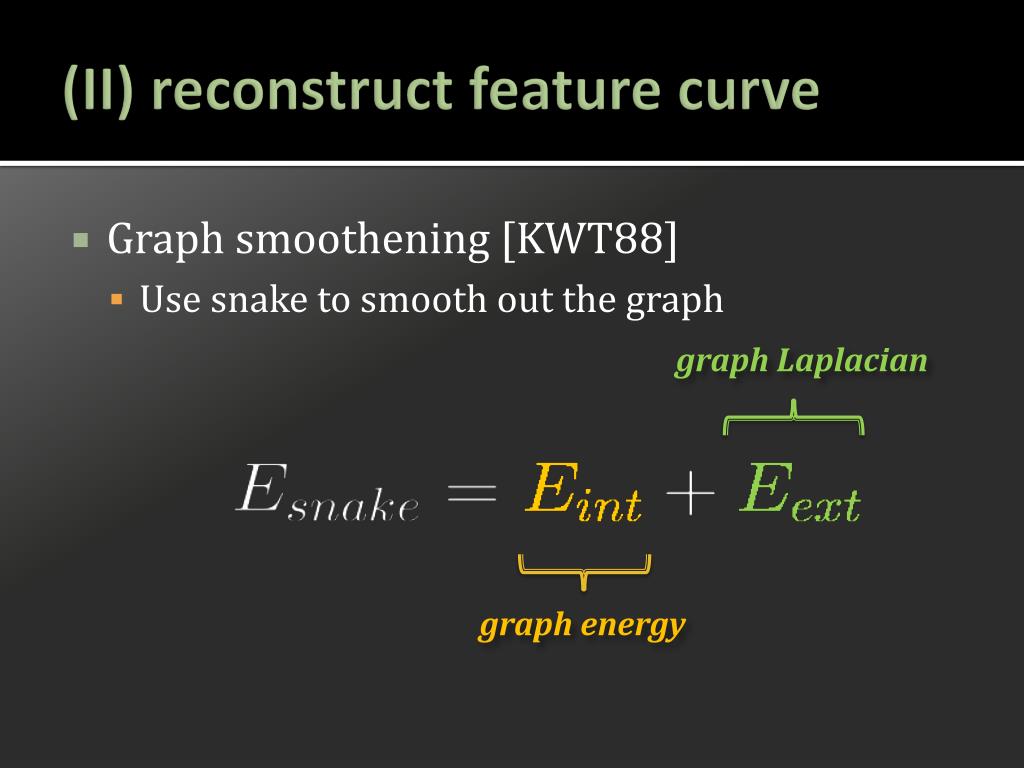

  22. (II) reconstruct feature curve • Graph smoothening [KWT88] • Use snake to smooth out the graph graph Laplacian graph energy

  23. (II) reconstruct feature curve • Graph smoothening • Use snake to smoothen graph align along feature graph Laplacian min( ) graph energy smoothen graph

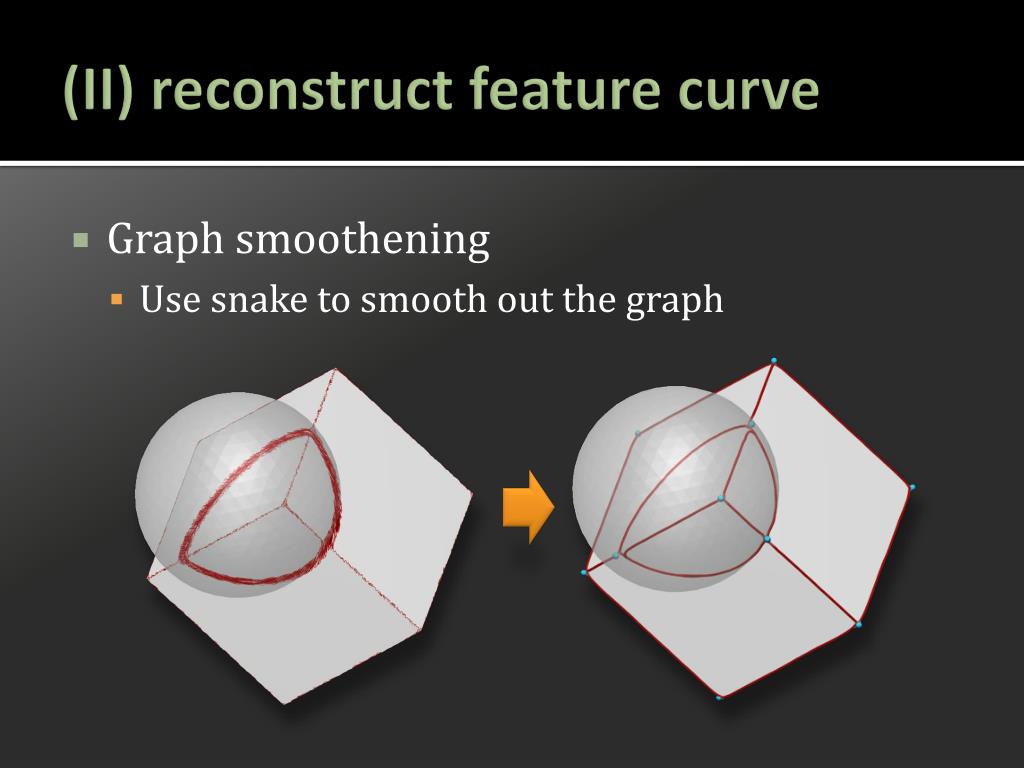

  24. (II) reconstruct feature curve • Graph smoothening • Use snake to smooth out the graph

  25. Our method: outline Identify feature points Reconstruct feature curves Reconstruct singular surface

  26. (III) Reconstruct singular surface • Reconstruction [CDR07][CDL07] [CDL07] A Practical Delaunay Meshing Algorithm for a Large Class of Domains, Cheng, et.al [CDR07] Delaunay Refinement for Piecewise Smooth Complexes, Cheng-Dey-Ramos, 2007

  27. (III) Reconstruct singular surface • Weighted cocone weighted Delaunay cocone [ACDL00] A simple algorithm for homeomorphic surface reconstruction, Amenta,-Choi-Dey -Leekha

  28. (III) Reconstruct singular surface • Weighted cocone weighted point un-weighted point

  29. (III) Reconstruct singular surface • Reconstruction • Voronoi cell size ∝ weight • Give higher weight to points on the feature curve

  30. Experiment results a. Octaflower 107K b. Fandisk 114K c. SphCube 65K a b c d. Beetle 63K d

  31. Experiment results • Robust to noise input with 1% noise result

  32. Experiment results • Perform much better than un-weighted cocone Our method Cocone

  33. Conclusion and Future work • Conclusion • Unified and simple method to handle all three types of singular surfaces • Robust to noise • Future work • More robust system for real data • Concave corner

  34. Acknowledgement We thank all people who have helped us to demonstrate this method ! Most of the models used in this paper are courtesy of AIM@SHAPE Shape Repository. The authors acknowledge the support of NSF under grants CCF-1048983, CCF-1116258 and CCF-0915996.

  35. Thank you!

  36. Conclusion and Future work • Real scanned data
