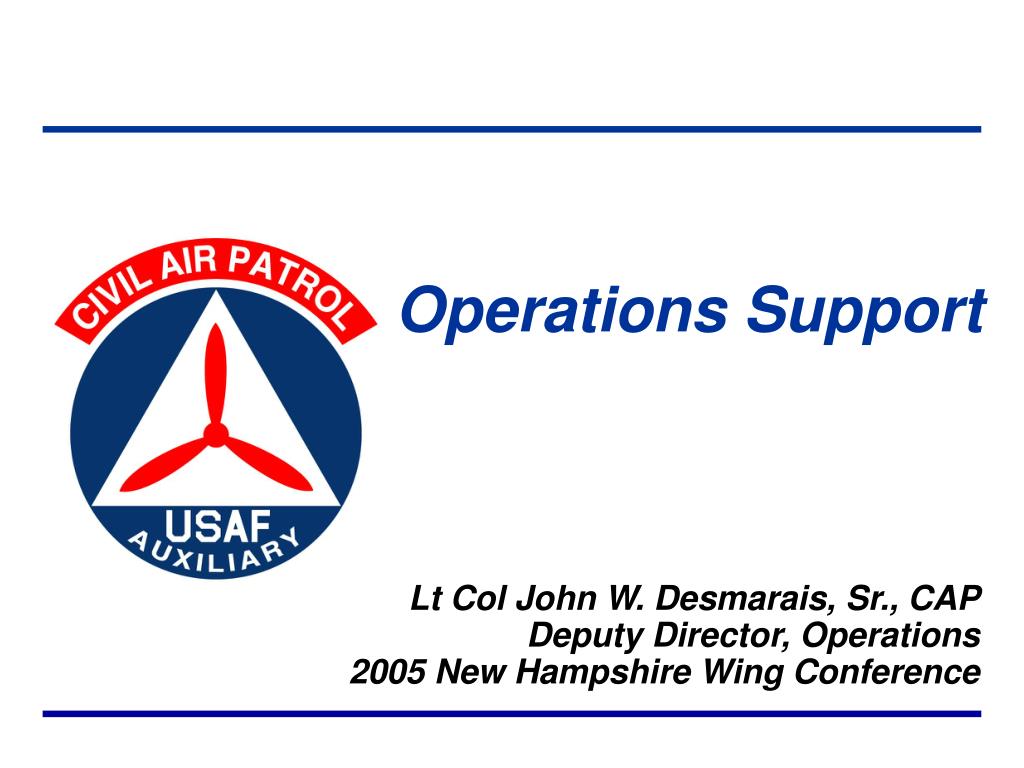

1. Operations Support Lt Col John W. Desmarais, Sr., CAP Deputy Director, Operations 2005 New Hampshire Wing Conference

2. Overview • HQ CAP/DO Organization • Technology Enhancements • National Operations Center • Operations Training • National Technology Center • Reports & Tools

3. HQ CAP/DO Organizational Chart Other Useful Information NOC Toll Free: 888-211-1812 NOC E-mail: opscenter@cap.gov NTC Toll Free: 866-600-2071 NTC Fax: 804-279-2511 DO Toll Free Fax: 800-555-7902

4. Technology Enhancements SDIS & ARCHER

5. SDIS What is SDIS? Satellite Digital Imaging System

6. Technology that enables CAP to send high resolution digital imagery from CAP aircraft to anyone anywhere in the world Images are sent as JPEG attachments via standard e-mail to multiple addresses and/or a password-protected website Imagery is transmitted near real-time. Files take less than 2 minutes to transmit. SDIS Continued

7. SDIS Continued E-mail with image sent by satellite to Globalstar Internet Gateway Image attached to an e-mail and sent via satellite phone Digital Photo automatically loaded into aircraft laptop World Wide Web Locate the target. Take a digital photo Our Customers View in WMIRS

8. Satellite Digital Imaging System

9. Hyperspectral Imaging (HSI) What is ARCHER? Airborne Real-Time Cueing Hyperspectral Enhanced Recon …… SeARCHERs’Edge

10. Partner Support • Air Force Research Lab (AFRL) • Naval Research Lab (NRL) • U.S. Coast Guard Research and Development Center

11. HSI – What does it do? • HSI Technology allows a sensor on a moving platform to detect reflected radiation (light) from objects on the ground. • Algorithms allow ARCHER to: • Detect spectral anomalies (things that do not “belong”) • Detect specific spectral signatures using matched filters (find things with known spectral properties) • Detect changes over time • Algorithms are applied in real-time, and require little to no user input

12. HSI Operational Impact Visible Hyperspectral Imaging Sensor On-Board Hyperspectral Display with Real-Time Detection Cues Target

13. ARCHER Target Detection & Data Red box – Match Filter Detection Yellow box - Anomaly Detection Purple box - Chip On Demand Multiple Cue Detections: Algorithms are applied in real-time, and require little user input.

14. ARCHER Chip Viewer Window ARCHER Target Detection & Data

15. Updated ARCHER Timeline • Jan – Jun 2005: Final OT&E • Jul 2005: First Production System Delivered • Aug 2005 – Jun 2006: Estimated delivery of 2 systems per month • All Deliveries and Initial Crew Training Complete June 2006

16. National Operations Center

17. Role of the NOC • Act as the coordinating element between customers and the US Air Force for CAP support in Air Force Assigned Missions • Assist CAP Units in coordinating requests for additional resources to support local missions • Assist members in reporting mission results • Serve as the focal point for emergency notification NOC C2 = Coordination & Communication

18. NOC Mission Requests/Approvals • Customer Driven Requirements • Written Requests • Mission description • NOC will ask questions • Pilot qualifications • Posse Comitatus • Air Force Assigned Missions (CAP as AFA) • Fed Agencies, Mil, American Red Cross • CD - Federal Agency Validation • Corporate Missions (CAP) • State, Local Agencies • Processing Time • Transportation Missions • Mission Priorities

19. Know the Mission & System • CAP Mission is always support • Customer needs to request specific support • “Photo Recon of Evac Routes • Not “Have CAP Fly…..” • Customer may not know system • Be ready to advise • Don’t be afraid to refer them

20. Operations Training

21. Air Force Mission Training $ • Use NEC approved formula for initial allocation: • Square Miles of the wing – 10% • Total Wing Membership – 15% • Qualified Mission Pilots – 40% • Qualified Mission Observers – 35% • Utilize observer and pilot data in MIMS – that includes roll-ins from WMU, Paperless Wing, and other systems coordinated with CAP/IT & DO. • Wing budgets have been decreased to support training for new systems and aircraft as well as more focused training through the Pilot Continuation Training Program • Regions can and do hold training funds for region level training programs, and may re-distribute funds when wings are under executing their programs.

22. Cessna Glass Cockpit Training • Training for 42 Personnel (2 per new aircraft) • Need highly experienced check pilots/CFIIs • Ideally personnel comfortable working with high tech equipment should be selected • Personnel need a full week to complete training • 2 days for travel (one on each end) • 5 days of intensive classroom and in-flight training • Lodging and Per Diem in accordance with the Joint Federal Travel Regulations will be reimbursed • Estimated Total Cost: $71K, split between FY05 ($44K) and FY06 ($27K)

23. ARCHER Training • Training for 162 Personnel • Need highly experienced crew members, not necessarily pilots • Personnel must be comfortable working with high tech equipment in flight • May be necessary to require personnel to be capable of maintaining a Secret Security Clearance • Personnel need 5 full days to complete training • 2 days for travel (one on each end) • 3 days of intensive classroom and in-flight training • Lodging and Per Diem in accordance with the Joint Federal Travel Regulations will be reimbursed • Estimated Total Cost: $122K split between FY05 ($27K) and FY06 ($95K)

24. GA-8 Training • Training for 32 Personnel (2 per new aircraft) • Need highly experienced check pilot/CFIIs • Personnel need 5 full days to complete training • 2 days for travel (one on each end) • 3 days of intensive classroom and in-flight training • Lodging and Per Diem in accordance with the Joint Federal Travel Regulations will be reimbursed • Estimated Total Cost: $39K (All in FY05)

25. USAF National SAR School 2006 Inland SAR Planner Course Schedule Apply Online at: https://ntc.cap.af.mil/ops/inland_sar/

26. National Emergency Services Academy (NESA) • 11 Courses in three schools • National Ground Search And Rescue School (NGSAR) • 2 Basic Courses • 2 Advanced Courses • Team Leader Course • Wilderness First Responder Course • Incident Command System School (ICSS) • Basic Course • Advanced Course • Mission Aircrew School (MAS) • Mission Pilot Course • Mission Observer Course • NESA will be run from 22 July – 7 August 2006, in two session weeks, running Sunday to Saturday (Staff arrives one day early)

27. National Emergency Services Academy Continued • All Courses are conducted at Camp Atterbury, Edinburgh, IN with support from the Indiana National Guard • 2006 Student Fee: Expected to be $155 for any course • Limited scholarships are available from the NESA Alumni Association – Contact HQ CAP/DOS for more information • Students can take multiple courses in back to back sessions, but not in the same week • Personnel completing all requirements for emergency services specialties on site will receive 101 cards on site in accordance with CAPR 60-3, and take home necessary training documentation • Participants are responsible for their own transportation and equipment though some assistance may be available upon request • Interested personnel can find additional information about any course and apply online at: http://www.homestead.com/ngsar/home.html

28. Emergency Services Curriculum • Training materials are available in multiple formats: • Electronically via the Web • Most Up To Date including equivalencies for outside training (i.e.: ICS) • Electronically via CD-Rom • Distributed at least Annually to all Units (Expect in Fall) • On Special Request as staffing allows • Limited Paper via CAPMart • Task Guides are currently available • More available soon • What’s coming in the future?: • Updated Slides for Primary Training Programs • More Courses and materials for SDIS & ARCHER

29. Online Training in FY04

30. Online Training in FY05

31. What Training is Available Online? • General ES Training (CAPT 116) • ES Continuing Education (CAPT 117) • CAPF 5 Online Course • Flight Release Officer Training Course • Satellite Digital Imaging System Training Course • Communications Specialty Track Courses • NCPSC & other flight clinic type courses • Cadet Orientation Pilot Course • GA-8 Familiarization Course • Maule Familiarization Course • Skills Evaluator Training • Counterdrug Orientation & Refresher Training • Glider Tow Pilot and Wing Runner Courses • Numerous Aerospace Education and Cadet Program Exams are also available online

32. National Technology Center

33. What is the NTC? • Formed in June of 1997 • Detachment of CAP National Headquarters • Made part of the Operations Directorate • Located on the Defense Supply Center Richmond (DSCR) • Near equipment sources • DoD Logistics Support

34. What do they do? • Depot-Level Maintenance Facility • Procurement and Distribution of all new Communications & Electronics equipment for CAP Units nationwide • $5.84M just announced for infrastructure replacement • Repair defective units from the field and return to user without charge • Coordinate repairs to equipment by vendors • Engineering assistance and consultation • Avionics Exchange Program • Assigned after the CAP Supply Depot closure

35. What do they do? • Radio Communications Center • Provides C3 Communications support to CAP Field Operating Units nationwide • Supports other Departments and Agencies as needed • Back-Up to CAP National Operations Center • Operation & Maintenance of Mission Essential Computer Systems • Used daily by CAP units nationwide • Supports some external customers

36. What do they do? • Maintenance and Storage of CAP Special Activity and Emergency Response Radio Kits • VHF & UHF Portable Radios • VHF & UHF Temp Base Stations • HF-SSB Rapid Deployment Kits

37. What do they do? • Provide Emergency Support • DSCR Crisis Action Team • AF HFGCS Nets • FEMA / NECN • NCS / SHARES

38. What do they do? AFRCC COOP Site

39. What do they do? • Ops Support and R&D • Supports the ATG in deploying SDIS & ARCHER • HF E-Mail Systems • Aircraft UHF carry-on package

40. Reports &Tools

41. Communications EquipmentManagement System (CEMS) • Web-based equipment accounting system • Puts control of comm assets at the wing level • Wing DC can delegate appropriate actions to units • True “Cradle to Grave” life-cycle tracking and management of resources • Tracks assignment down to the member, vehicle or site • Warns DC 30 days before a membership expires • Reminds communications officer when annual revalidations are needed • Fills out and prints all required forms • Provides automatic email notification of on-line actions to NHQ, commander, wing DC, SD, or whoever needs it • Bar coded ID tags for ease of inventory

42. CEMS Example

44. NRCG Repeater Coverage Plots

45. Web Mission Information Reporting System (WMIRS) • Active Mission Tracking & Reporting • Aircraft Status & Flying Hour Reporting (CAPF 18) • Alert Resource Reporting • Key Resource Tracking • SDIS • ARCHER • New Tools are being developed every day to meet internal and external customer requirements

49. CAPF 18 Reporting • Reports are due by the 20th of each month • Fiscal year flying hour reports must be updated by 31 October of the next FY to meet other national reporting requirements • Negative reports are required • Be sure to include member owned flying time and report aircraft maintenance down days • Make sure aircraft maintainers and responsible staff officers update the aircraft status • If you need assistance assigning additional personnel privileges contact HQ CAP/DOS (Terry Raymond) • It is possible to assign individual aircraft custodians privileges – don’t be afraid to ask
