  1. Next Generation Internet:China Report Jianping WU Prof. of Tsinghua Univ. Director of CERNET Network Center APAN Chair Oct. 20, 2008

  2. Contents • Internet Development in China • Research Networks in China • Next Generation Internet and IPv6 • IPv6 and its development in China • CNGI Project • CNGI-CERNET2 and its Progress • International Collaboration

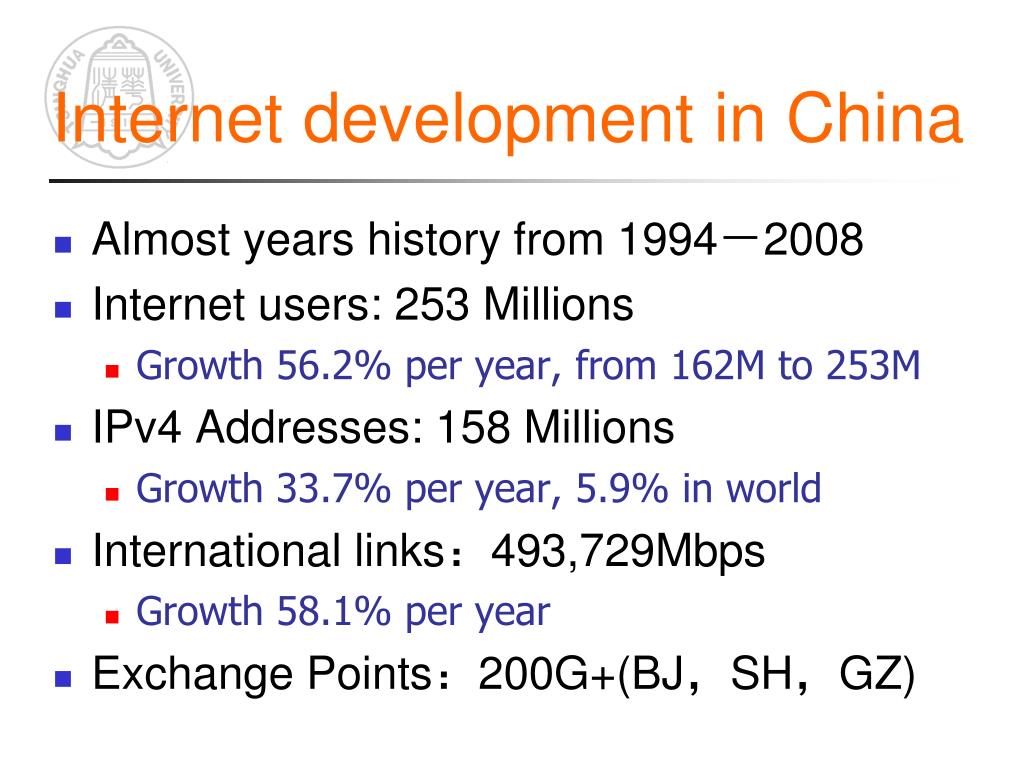

  3. Internet development in China • Almost years history from 1994－2008 • Internet users: 253 Millions • Growth 56.2% per year, from 162M to 253M • IPv4 Addresses: 158 Millions • Growth 33.7% per year, 5.9% in world • International links：493,729Mbps • Growth 58.1% per year • Exchange Points：200G+(BJ，SH，GZ)

  4. Population of Internet in China

  5. Movement of Proportion

  6. Proportion in the world

  7. Age of Internet Users in China

  8. CERNET IPv4 Backbone

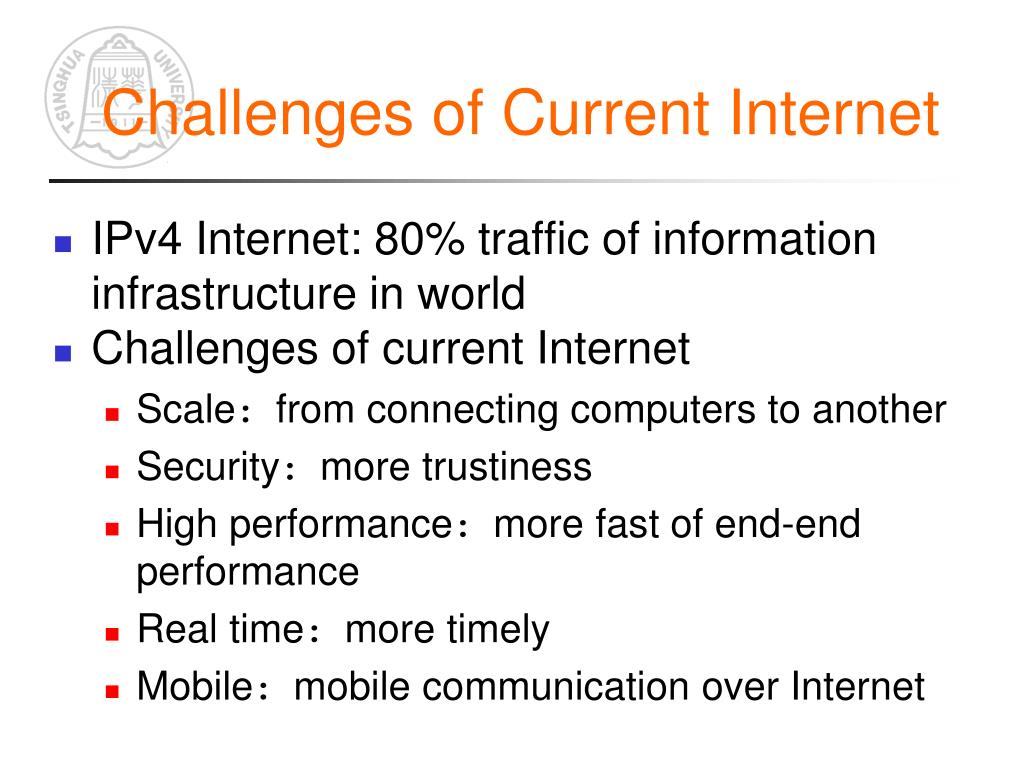

  9. Challenges of Current Internet • IPv4 Internet: 80% traffic of information infrastructure in world • Challenges of current Internet • Scale：from connecting computers to another • Security：more trustiness • High performance：more fast of end-end performance • Real time：more timely • Mobile：mobile communication over Internet

  10. NGI Development in the World • NGI Testbed have been connected together in the the world from 1998 • Internet2，Geant2，APAN/TEIN2，…… • NGI and IPv6 Standard Development • IETF • Industry is ready • CISCO, Juniper, Huawei • Microsoft, SUN • Future Internet Research Project • GENI and FIND

  11. IPv4 and IPv6 Internet

  12. AS’s/Addresses in IPv4 and IPv6

  13. Internet2 Backbone

  14. GEANT2

  15. Asia-Pacific Advanced Network

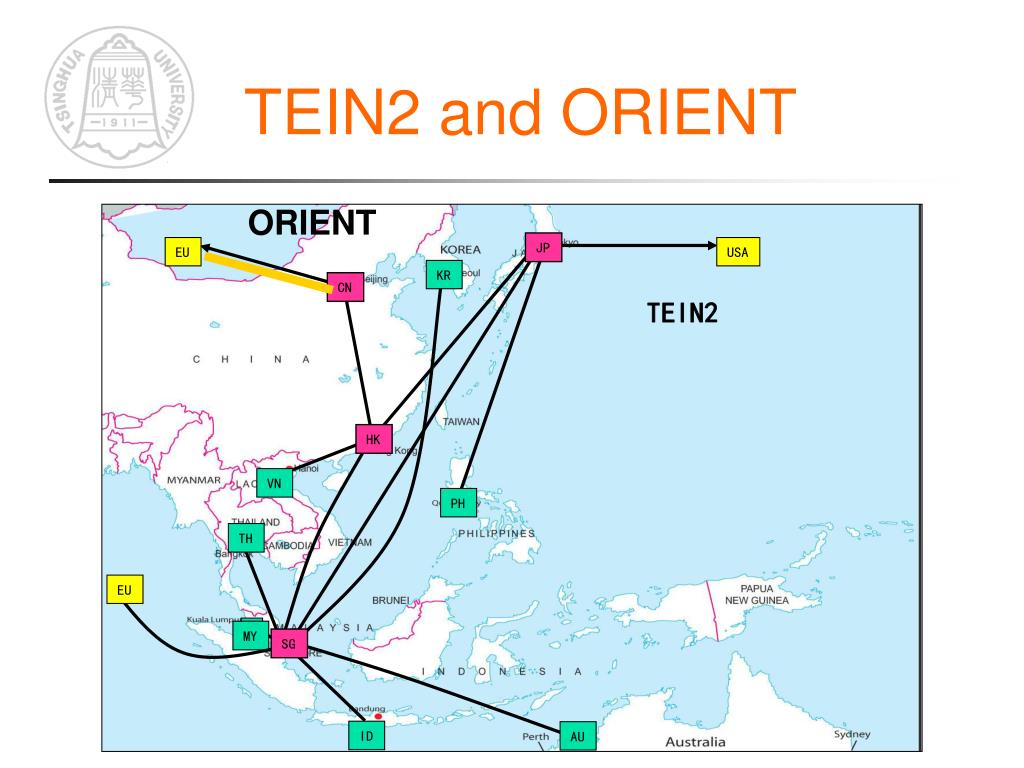

  16. JP EU USA KR CN TEIN2 HK VN PH TH EU SG MY ID AU TEIN2 and ORIENT ORIENT

  17. Emergency for NGI Development • IPv4 Addresses will be finished in 2010 or 2011 • 69th IETF Meeting: large scale addressing and routing • Problem: 10,000M IP active addresses and 10M Multi-homing IP addresses • 70th IETF Meeting: IPv6 • Problem: IPv6 Internet operation and management; transition from IPv4 to IPv6 • 71th IETF Meeting: IPTV • 72th IETF Meeting: IPv6 Experiences from the Field

  18. Internet Research in China • First phase: 1994-1999 • Internet enter China: construction and usage • Begin internet research • Second phase: 1999-2004 • Development on Internet IPv4/v6 Router • Research on implementation of Internet • Third phase: 2004-? • Ask why? • How to improve current Internet better? • Internet architecture and its theory

  19. NGI Development in China • 1999-2002 • NSFCNET: connecting Internet2 • CERNET IPv6 Testbed • 2003-2010 • NSFC: Basic Research on Future Internet • MOST-973: Research on Future Internet Architecture • MOST-863: Next Generation Internet • CNGI: First Phase

  20. CNGI Project • Initiated from 2002 and approved by in 2003 • Leaded by National Reform and Development Committee • Joint with MST, MOE, CAS, MII, NSFC, CAE, … • Main contents • CNGI Backbone: nation wide, 30-40 Giga POPs and 300 campus networks, international links • Network technology and applications • Delivery to information industry • All NSPs have jointed this project • CERNET, China telecom，Unicom，Netcom/CSTNET，China Mobile, China Railcom

  21. 863 project Application and IT service CNGI Project Network and software 973 NSFC NGI and operation CNGI Project and its Impact

  22. Internet2/GEANT2 /APAN 城域网 城域网 核心网 CNGI-6IX Beijing CNGI-6IX Shanghai 接入网/CPN 接入网/CPN 接入网/CPN GigaPoP GigaPoP GigaPoP 主干网1 主干网6 GigaPoP GigaPoP GigaPoP GigaPoP 主干网2 GigaPoP GigaPoP 接入网/CPN 接入网/CPN CNGI Infrastructure

  23. The Global Reach of CNGI

  24. CNGI－CERNET2 Backbone

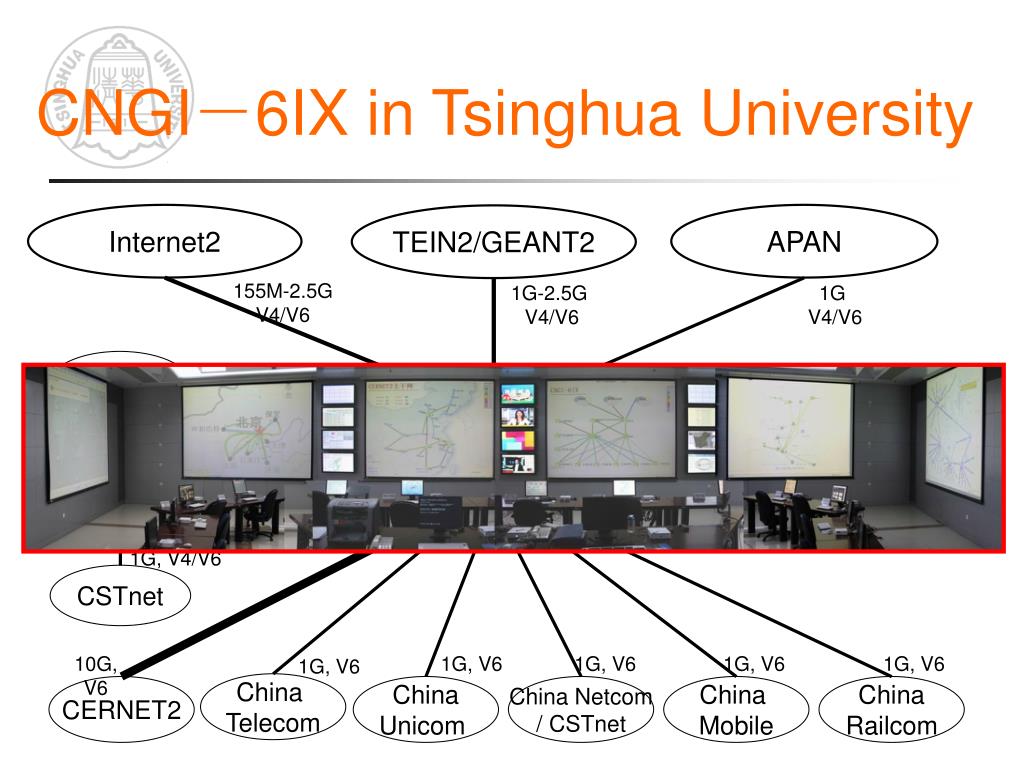

  25. Internet2 APAN TEIN2/GEANT2 155M-2.5GV4/V6 1G-2.5G V4/V6 1G V4/V6 CERNET 1G, V4 CNGI-6IX 1G, V6 CJ-IPv6 1G, V4/V6 NSFCNET 1G, V4/V6 CSTnet 10G, V6 1G, V6 1G, V6 1G, V6 1G, V6 1G, V6 China Telecom CERNET2 ChinaUnicom China Netcom / CSTnet China Mobile China Railcom CNGI－6IX in Tsinghua University

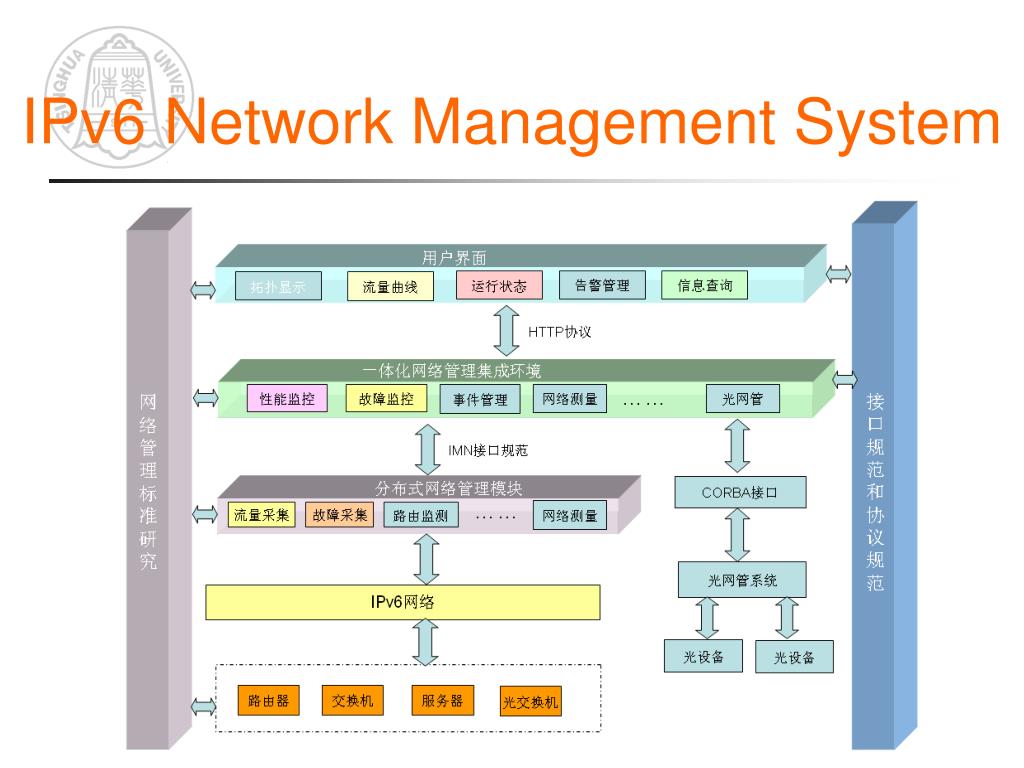

  26. IPv6 Network Management System

  27. CNGI-CERNET2/6IX and Experiences • Native IPv6 Network: the largest one in the world • Large scale IPv6 addressing and routing • Authentic IPv6 Addressing Architecture • SAVA: Source Address Validation Architecture • SAVI: a new IETF working group in 2008 • RFC 5210 • IPv4 over IPv6: transition from IPv4 to IPv6 • Softwire: a new IETF working group in 2006 • RFC 4925 • Many Technology Examinations and Applications

  28. Backbone using Multi-vender Routers

  29. SAVA: Source Address Validation Architecture

  30. IPv4 Over IPv6
