Schema Refinement (end) Relational Algebra

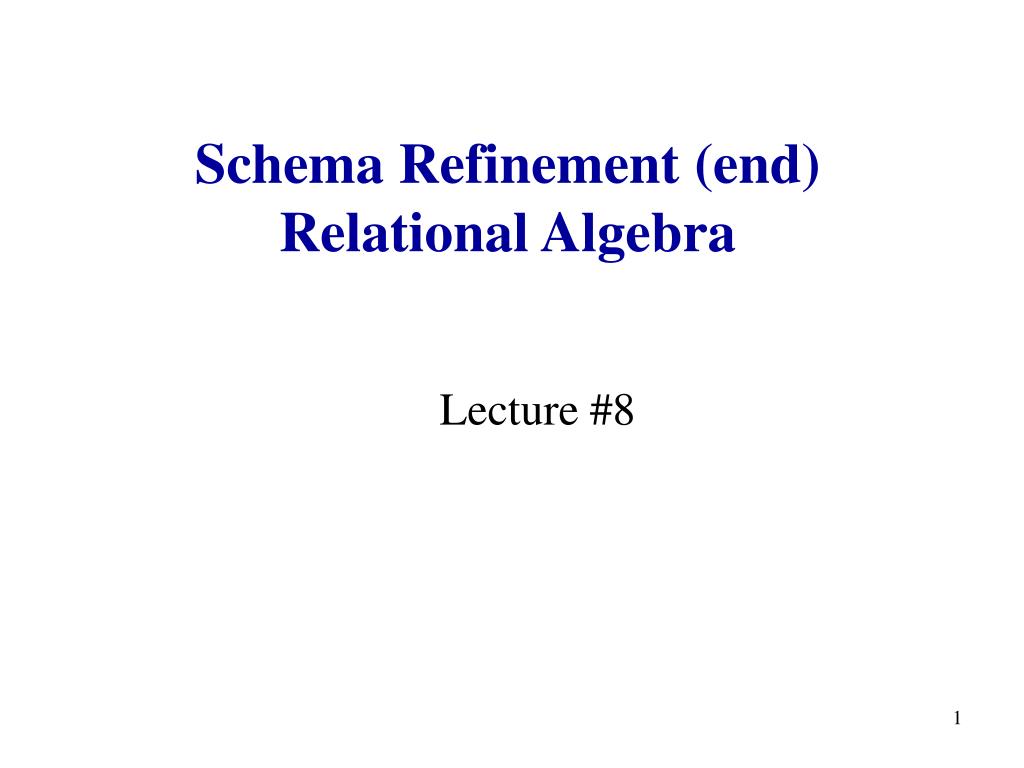

1. Schema Refinement (end)Relational Algebra Lecture #8

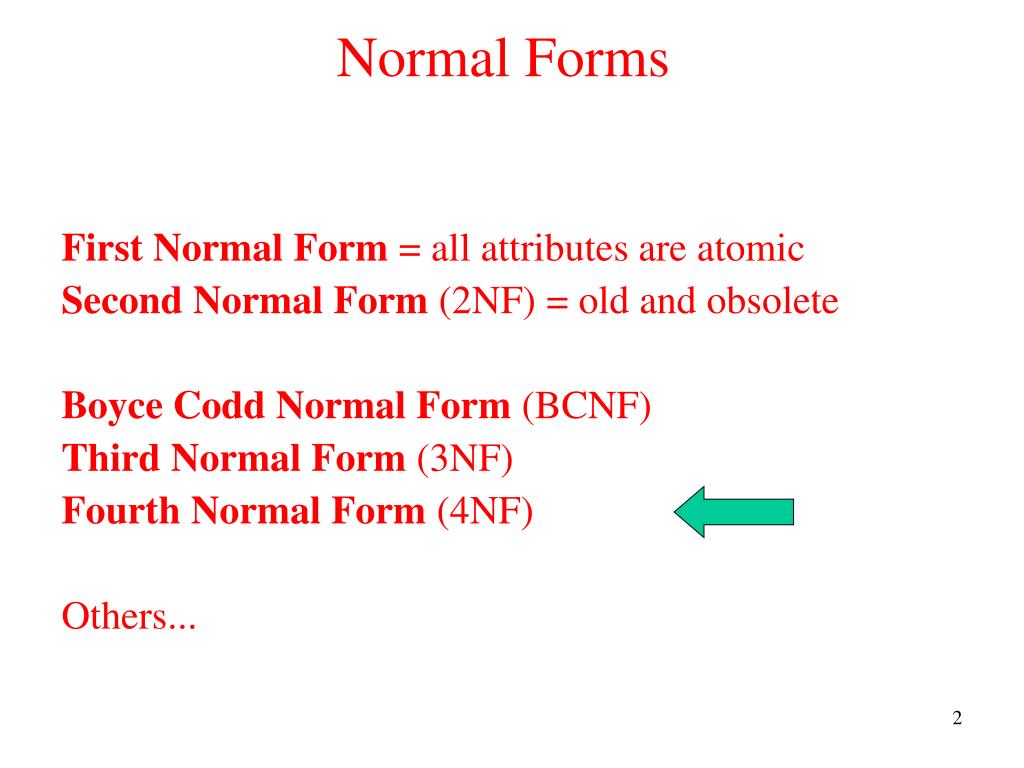

2. Normal Forms First Normal Form = all attributes are atomic Second Normal Form (2NF) = old and obsolete Boyce Codd Normal Form (BCNF) Third Normal Form (3NF) Fourth Normal Form (4NF) Others...

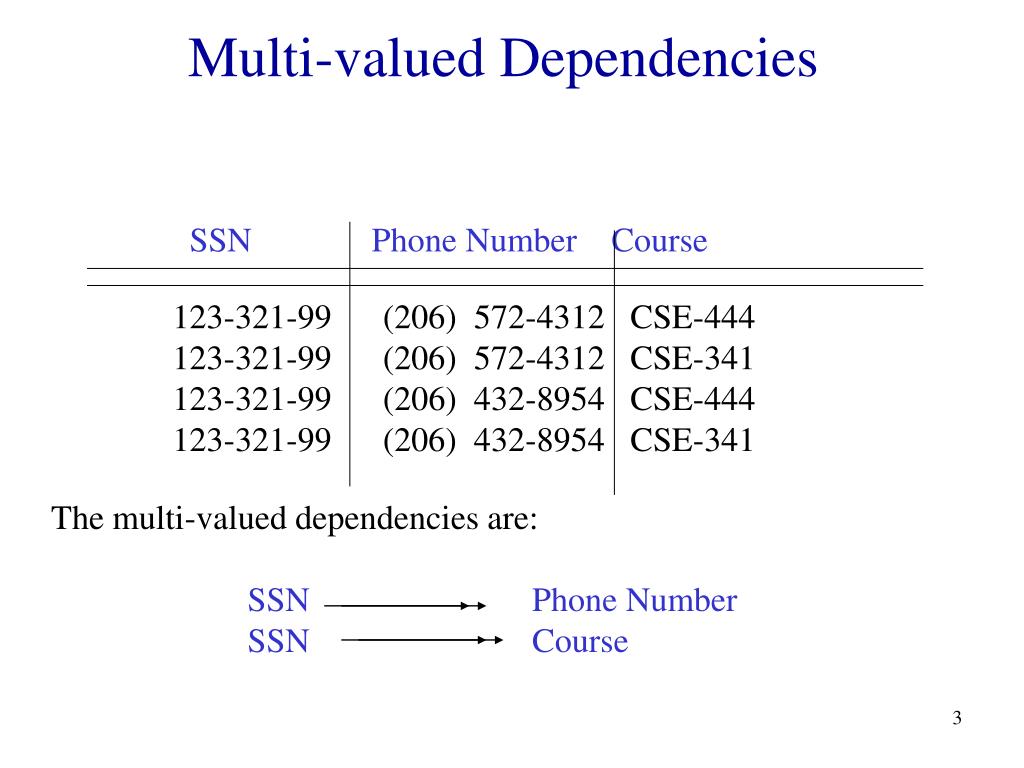

3. Multi-valued Dependencies SSN Phone Number Course 123-321-99 (206) 572-4312 CSE-444 123-321-99 (206) 572-4312 CSE-341 123-321-99 (206) 432-8954 CSE-444 123-321-99 (206) 432-8954 CSE-341 The multi-valued dependencies are: SSN Phone Number SSN Course

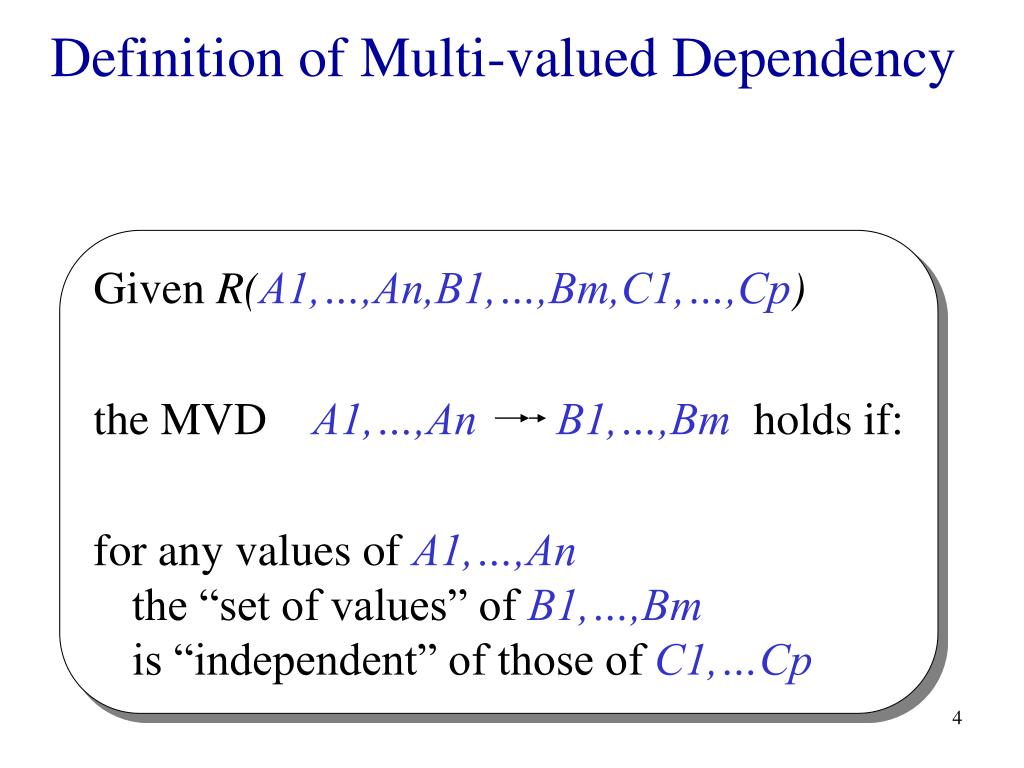

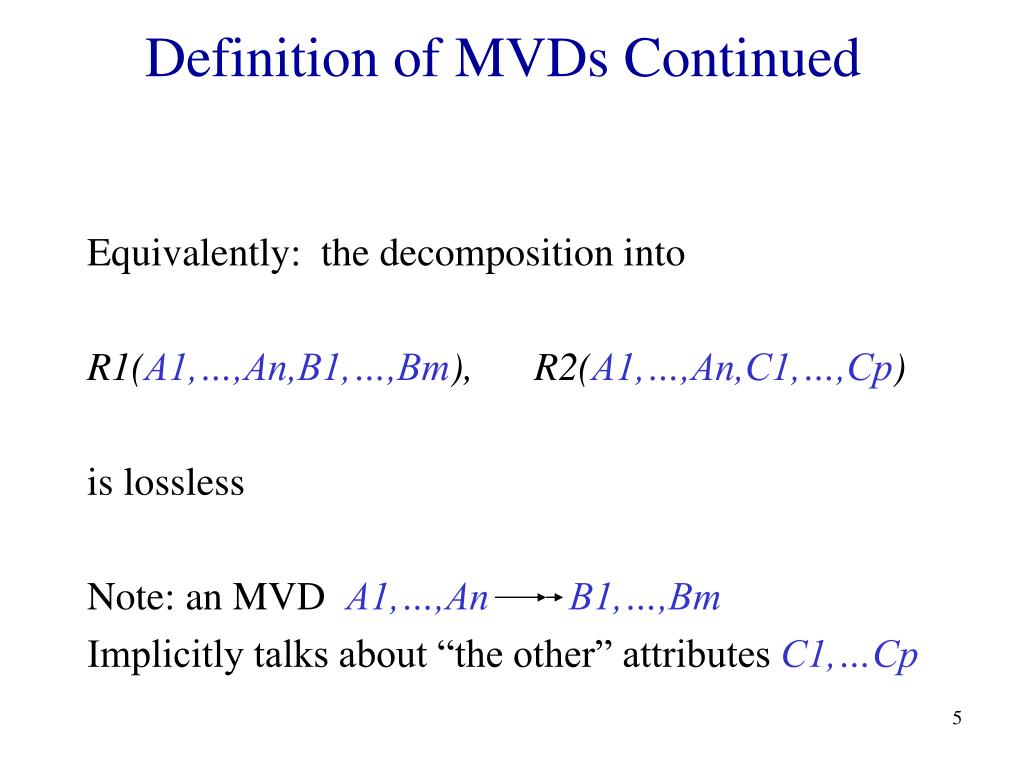

4. Definition of Multi-valued Dependency Given R(A1,…,An,B1,…,Bm,C1,…,Cp) the MVD A1,…,An B1,…,Bm holds if: for any values of A1,…,Anthe “set of values” of B1,…,Bmis “independent” of those of C1,…Cp

5. Definition of MVDs Continued Equivalently: the decomposition into R1(A1,…,An,B1,…,Bm), R2(A1,…,An,C1,…,Cp) is lossless Note: an MVD A1,…,An B1,…,Bm Implicitly talks about “the other” attributes C1,…Cp

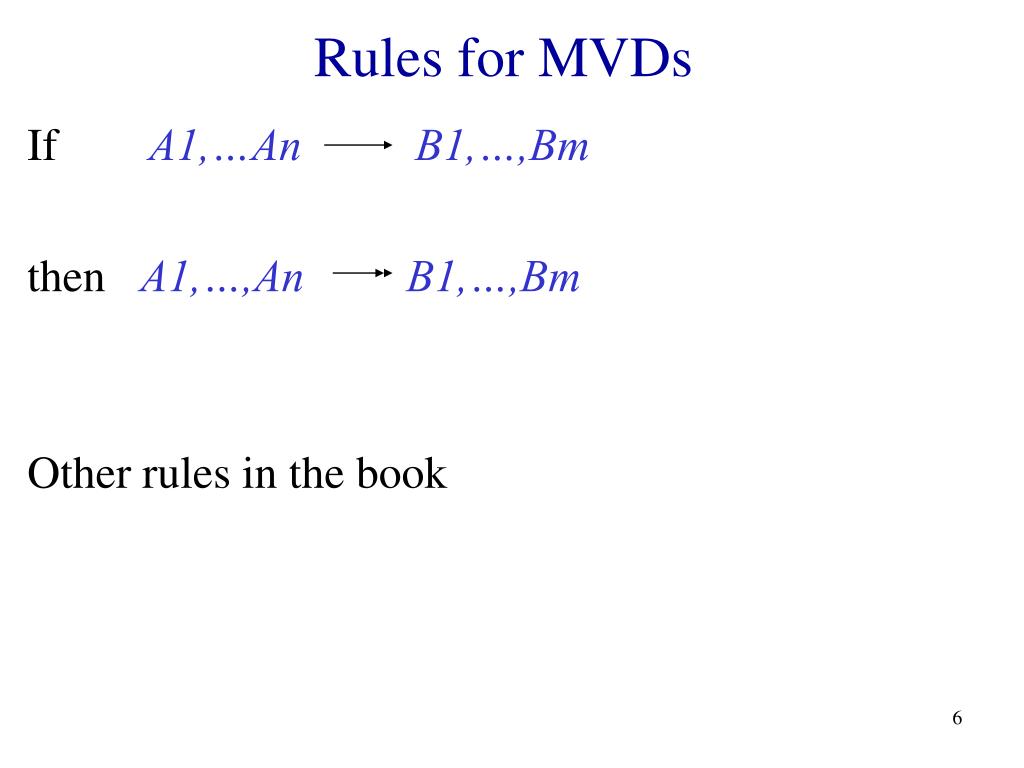

6. Rules for MVDs If A1,…An B1,…,Bm then A1,…,An B1,…,Bm Other rules in the book

7. 4th Normal Form (4NF) R is in 4NF if whenever: A1,…,An B1,…,Bm is a nontrivial MVD, then A1,…,An is a superkey Same as BCNF with FDs replaced by MVDs

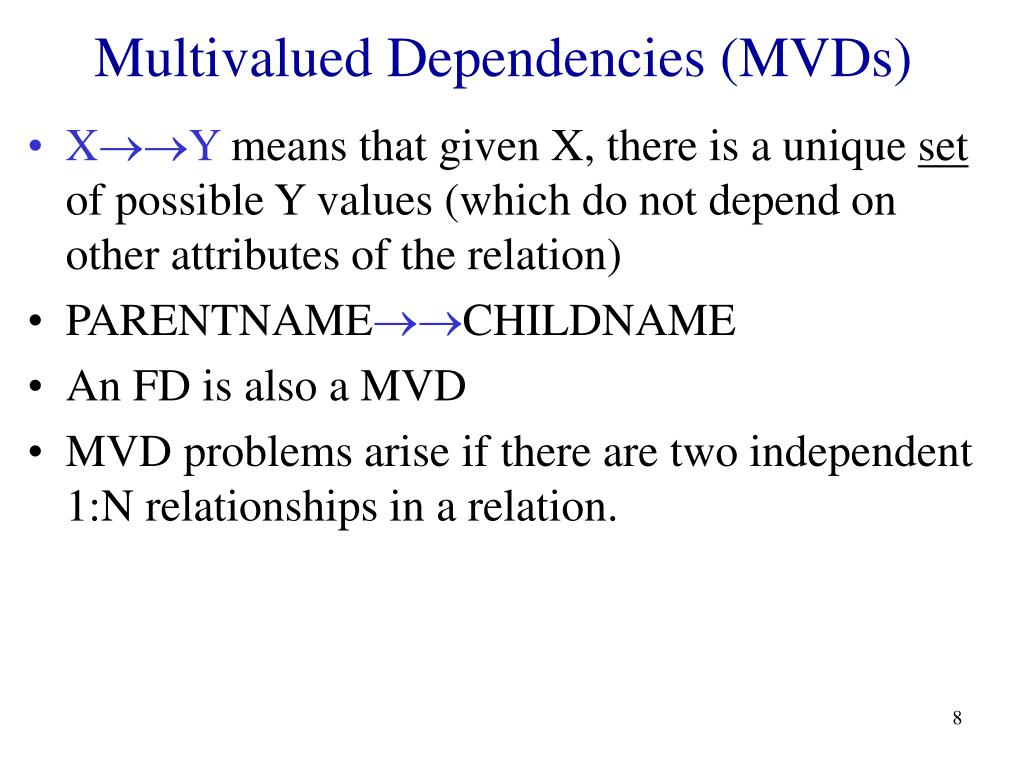

8. Multivalued Dependencies (MVDs) • XY means that given X, there is a unique set of possible Y values (which do not depend on other attributes of the relation) • PARENTNAMECHILDNAME • An FD is also a MVD • MVD problems arise if there are two independent 1:N relationships in a relation.

9. Confused by Normal Forms ? 3NF BCNF 4NF In practice: (1) 3NF is enough, (2) don’t overdo it !

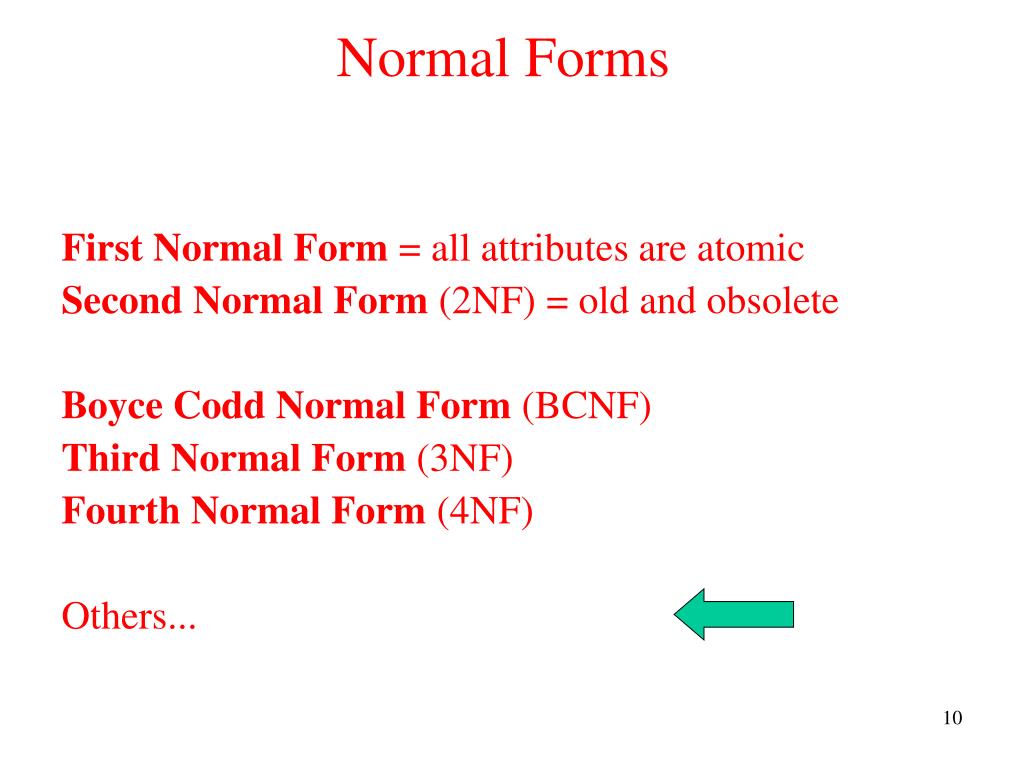

10. Normal Forms First Normal Form = all attributes are atomic Second Normal Form (2NF) = old and obsolete Boyce Codd Normal Form (BCNF) Third Normal Form (3NF) Fourth Normal Form (4NF) Others...

11. Fifth Normal Form • Sometimes a relation cannot be losslessly decomposed into two relations, but can be into three or more. • 5NF captures the idea that a relation scheme must have some particular lossless decomposition ("join dependency"). • Finding actual 5NF cases is difficult.

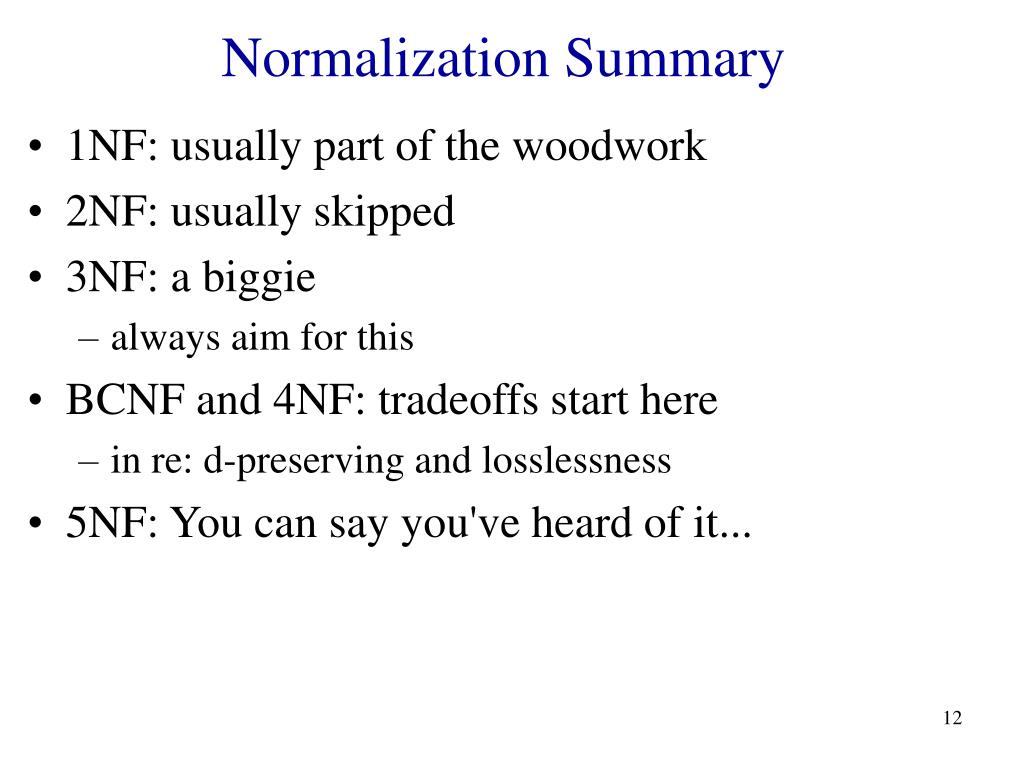

12. Normalization Summary • 1NF: usually part of the woodwork • 2NF: usually skipped • 3NF: a biggie • always aim for this • BCNF and 4NF: tradeoffs start here • in re: d-preserving and losslessness • 5NF: You can say you've heard of it...

13. Caveat • Normalization is not the be-all and end-all of DB design • Example: suppose attributes A and B are always used together, but normalization theory says they should be in different tables. • decomposition might produce unacceptable performance loss (extra disk reads) • Plus -- there are constraints other than FDs and MVDs

14. Current Trends • Object DBs and Object-Relational DB’s • may permit complex attributes • 1st normal form unnecessary • Data Warehouses • huge historical databases, seldom or never updated after creation • joins expensive or impractical • argues against normalization • Everyday relational DBs • aim for BCNF, settle for 3NF

15. Relational Algebra

16. Querying the Database • Goal: specify what we want from our database Find all the employees who earn more than $50,000 and pay taxes in Champaign-Urbana. • Could write in C++/Java, but bad idea • Instead use high-level query languages: • Theoretical: Relational Algebra, Datalog • Practical: SQL • Relational algebra: a basic set of operations on relations that provide the basic principles.

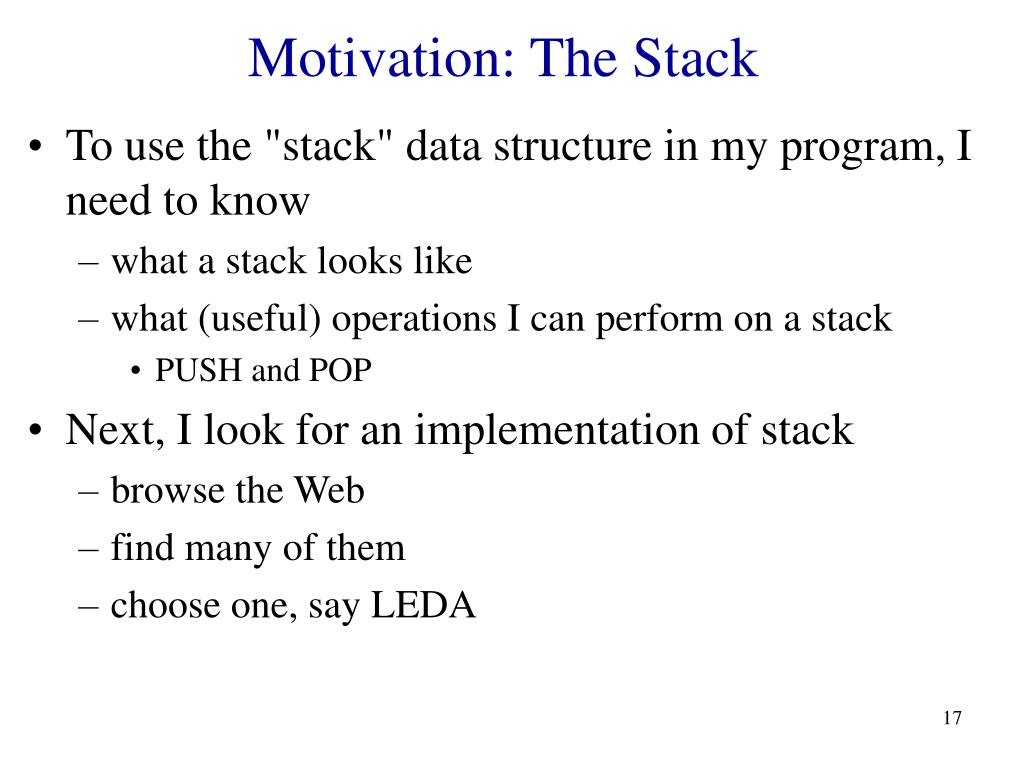

17. Motivation: The Stack • To use the "stack" data structure in my program, I need to know • what a stack looks like • what (useful) operations I can perform on a stack • PUSH and POP • Next, I look for an implementation of stack • browse the Web • find many of them • choose one, say LEDA

18. Motivation: The Stack (cont.) • LEDA already implement PUSH and POP • It also gives me a simple language L, in which to define a stack and call PUSH and POP • S = init_stack(int); • S.push(3); S.push(5); • int x = S.pop(); • Can also define an expression of operations on stacks • T = init_stack(int); • T.push(S.pop());

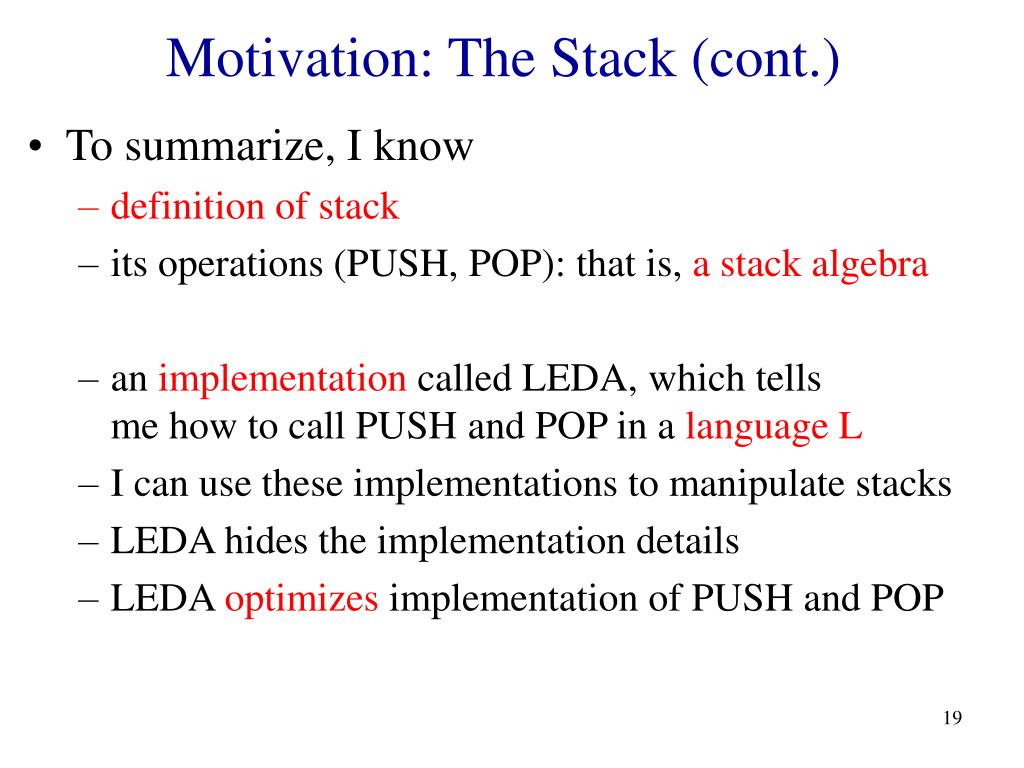

19. Motivation: The Stack (cont.) • To summarize, I know • definition of stack • its operations (PUSH, POP): that is, a stack algebra • an implementation called LEDA, which tells me how to call PUSH and POP in a language L • I can use these implementations to manipulate stacks • LEDA hides the implementation details • LEDA optimizes implementation of PUSH and POP

20. Now Contrast It with Rel. Databases def of relations relational algebra • To summarize, I know • definition of stack • its operations (PUSH, POP): that is, a stack algebra • an implementation called LEDA, which tells me how to call PUSH and POP in a language L • I can use these implementations to manipulate stacks • LEDA hides the implementation details • LEDA optimizes implementation of PUSH and POP SQL language operation and query optimization

21. What is an “Algebra” • Mathematical system consisting of: • Operands --- variables or values from which new values can be constructed. • Operators --- symbols denoting procedures that construct new values from given values.

22. What is Relational Algebra? • An algebra whose operands are relations or variables that represent relations. • Operators are designed to do the most common things that we need to do with relations in a database. • The result is an algebra that can be used as a query language for relations.

23. Relational Algebra at a Glance • Operators: relations as input, new relation as output • Five basic RA operations: • Basic Set Operations • union, difference (no intersection, no complement) • Selection: s • Projection: p • Cartesian Product: X • When our relations have attribute names: • Renaming: r • Derived operations: • Intersection, complement • Joins (natural,equi-join, theta join, semi-join)

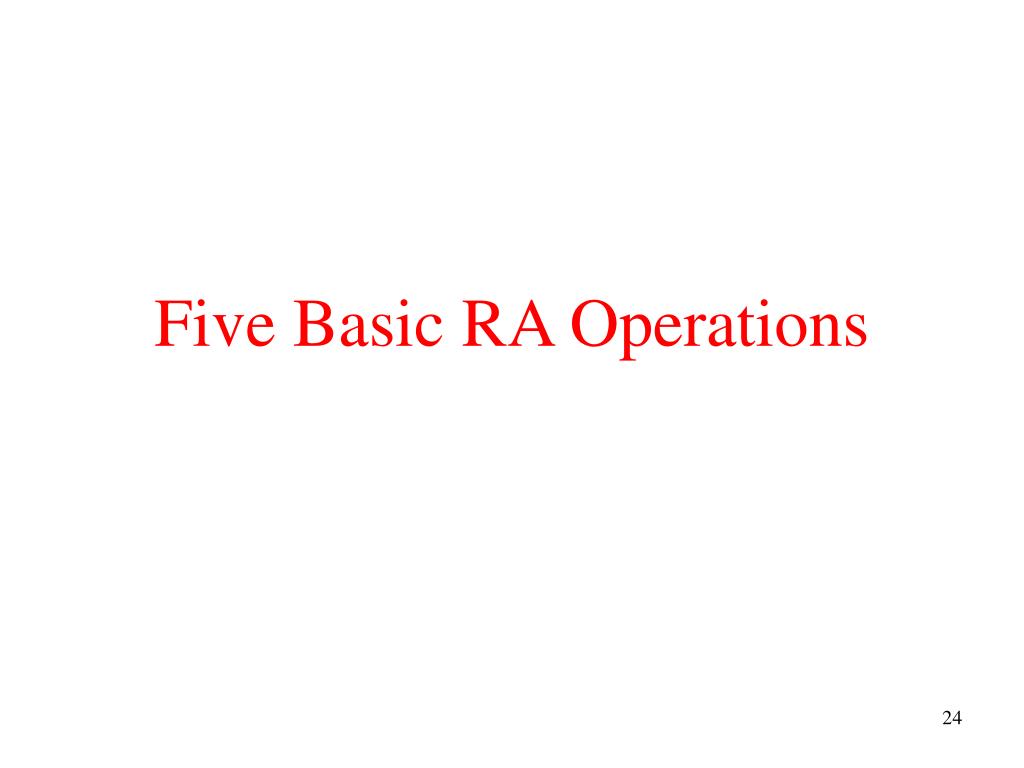

24. Five Basic RA Operations

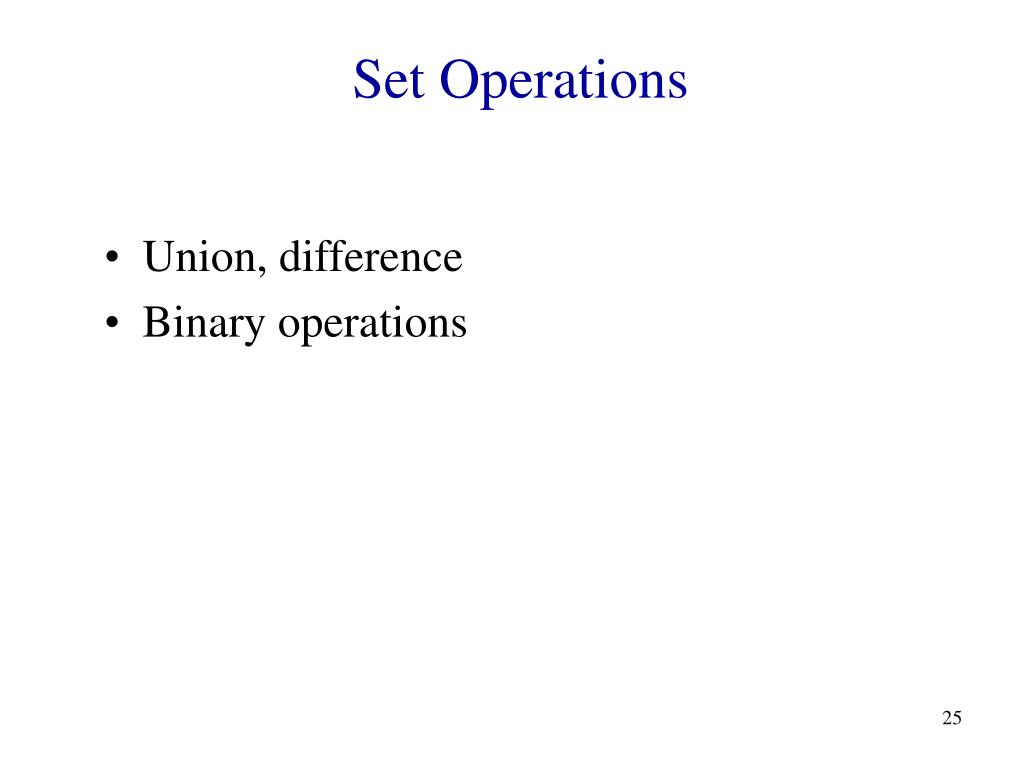

25. Set Operations • Union, difference • Binary operations

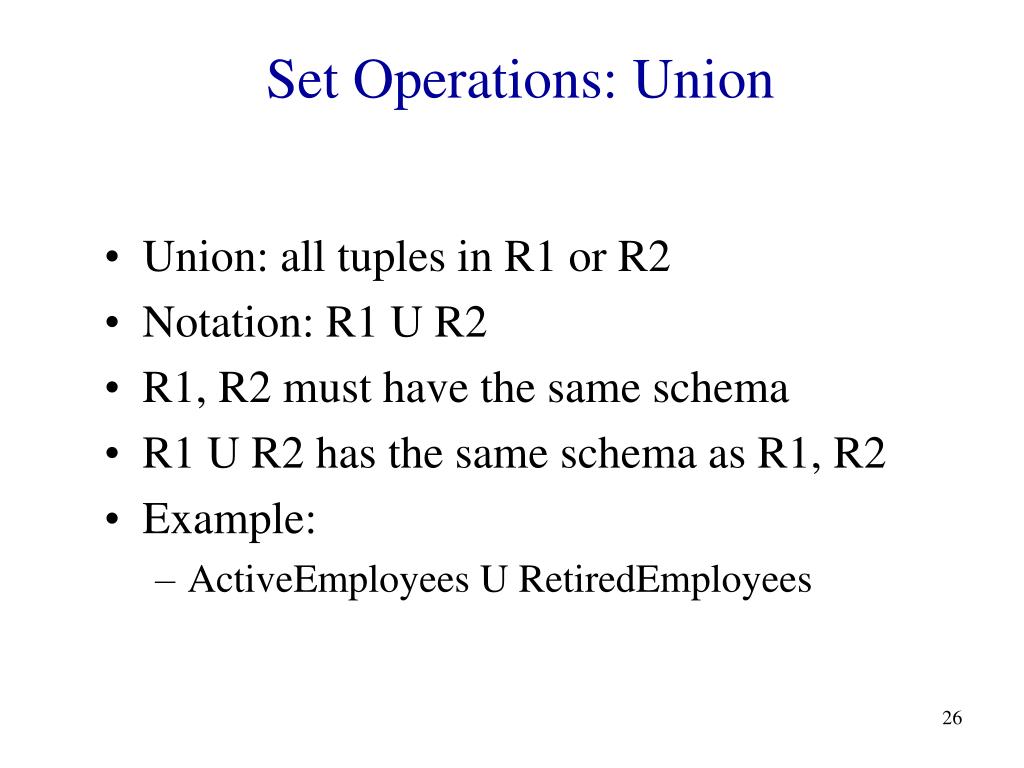

26. Set Operations: Union • Union: all tuples in R1 or R2 • Notation: R1 U R2 • R1, R2 must have the same schema • R1 U R2 has the same schema as R1, R2 • Example: • ActiveEmployees U RetiredEmployees

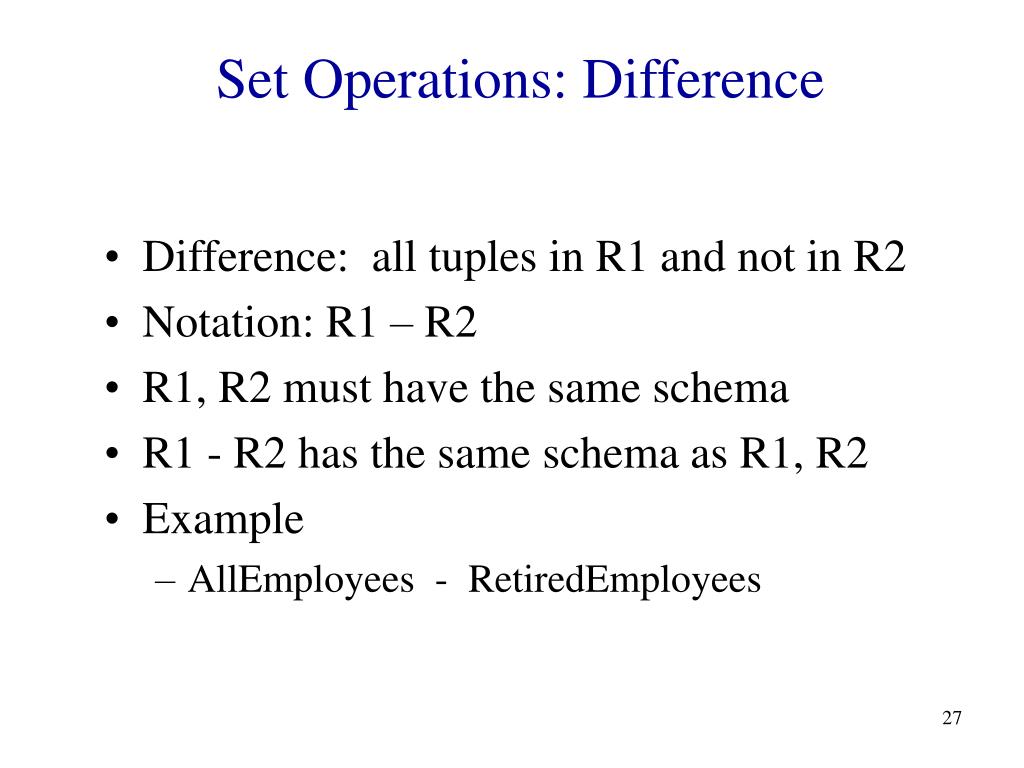

27. Set Operations: Difference • Difference: all tuples in R1 and not in R2 • Notation: R1 – R2 • R1, R2 must have the same schema • R1 - R2 has the same schema as R1, R2 • Example • AllEmployees - RetiredEmployees

28. Selection • Returns all tuples which satisfy a condition • Notation: sc(R) • c is a condition: =, <, >, and, or, not • Output schema: same as input schema • Find all employees with salary more than $40,000: • sSalary > 40000(Employee)

29. Find all employees with salary more than $40,000. s Salary > 40000(Employee)

30. Ullman: Selection • R1 := SELECTC (R2) • C is a condition (as in “if” statements) that refers to attributes of R2. • R1 is all those tuples of R2 that satisfy C.

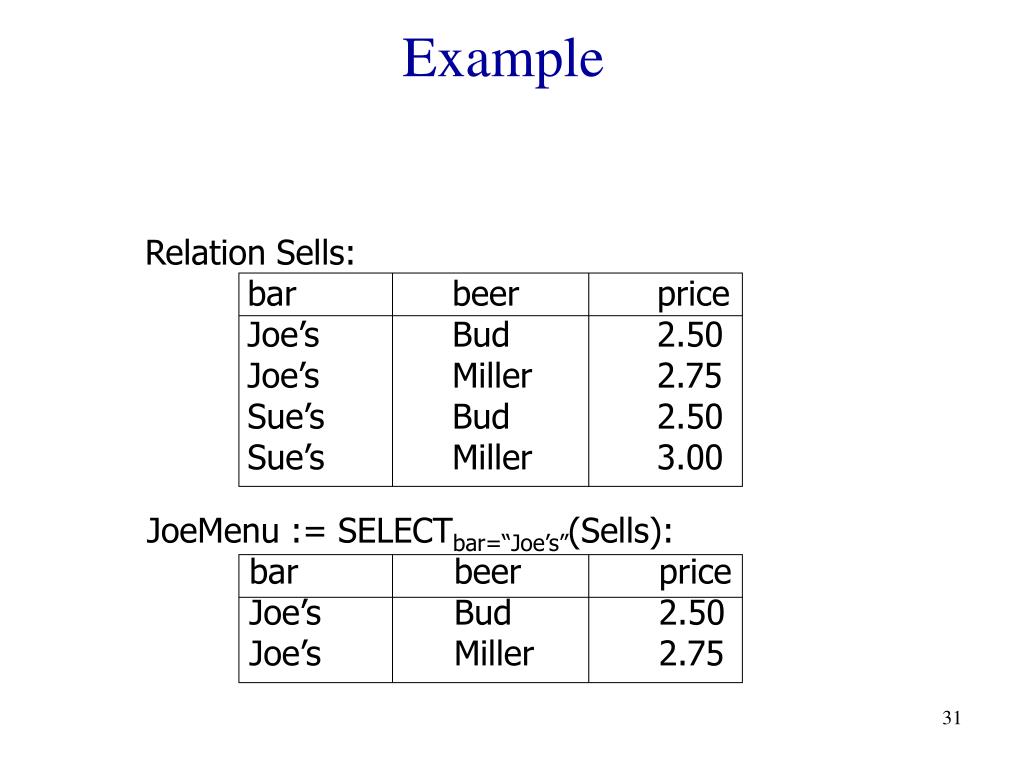

31. JoeMenu := SELECTbar=“Joe’s”(Sells): bar beer price Joe’s Bud 2.50 Joe’s Miller 2.75 Example Relation Sells: bar beer price Joe’s Bud 2.50 Joe’s Miller 2.75 Sue’s Bud 2.50 Sue’s Miller 3.00

32. Projection • Unary operation: returns certain columns • Eliminates duplicate tuples ! • Notation: P A1,…,An(R) • Input schema R(B1,…,Bm) • Condition: {A1, …, An} {B1, …, Bm} • Output schema S(A1,…,An) • Example: project social-security number and names: • PSSN, Name (Employee)

33. PSSN, Name (Employee)

34. Projection • R1 := PROJL (R2) • L is a list of attributes from the schema of R2. • R1 is constructed by looking at each tuple of R2, extracting the attributes on list L, in the order specified, and creating from those components a tuple for R1. • Eliminate duplicate tuples, if any.

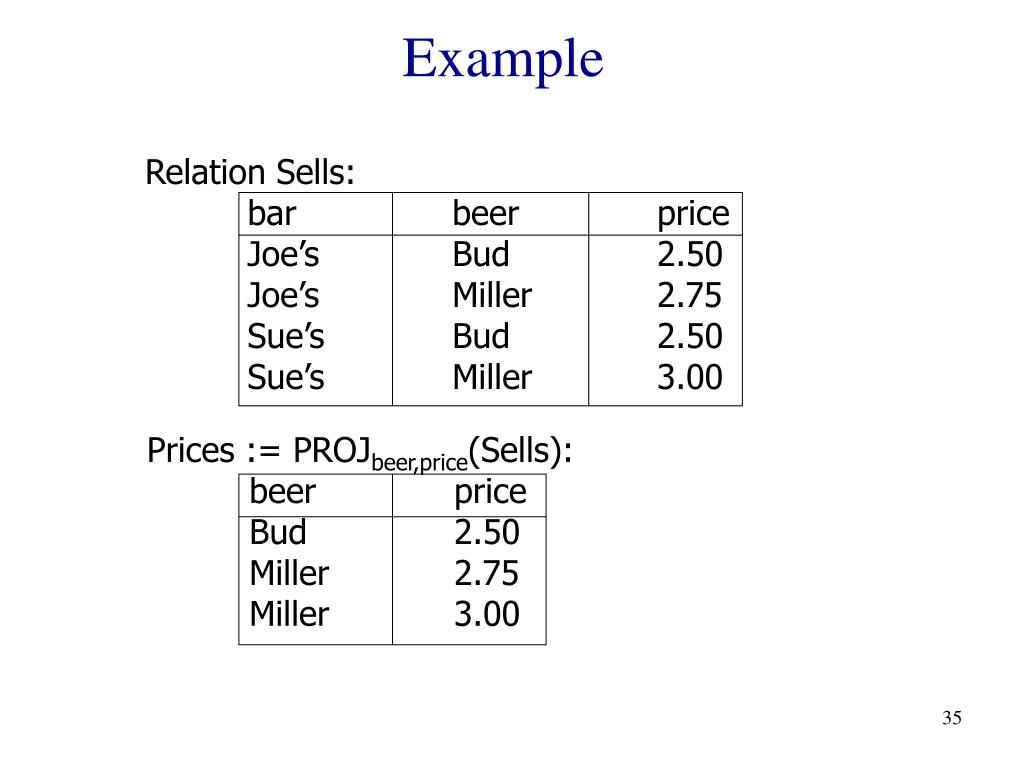

35. Prices := PROJbeer,price(Sells): beer price Bud 2.50 Miller 2.75 Miller 3.00 Example Relation Sells: bar beer price Joe’s Bud 2.50 Joe’s Miller 2.75 Sue’s Bud 2.50 Sue’s Miller 3.00

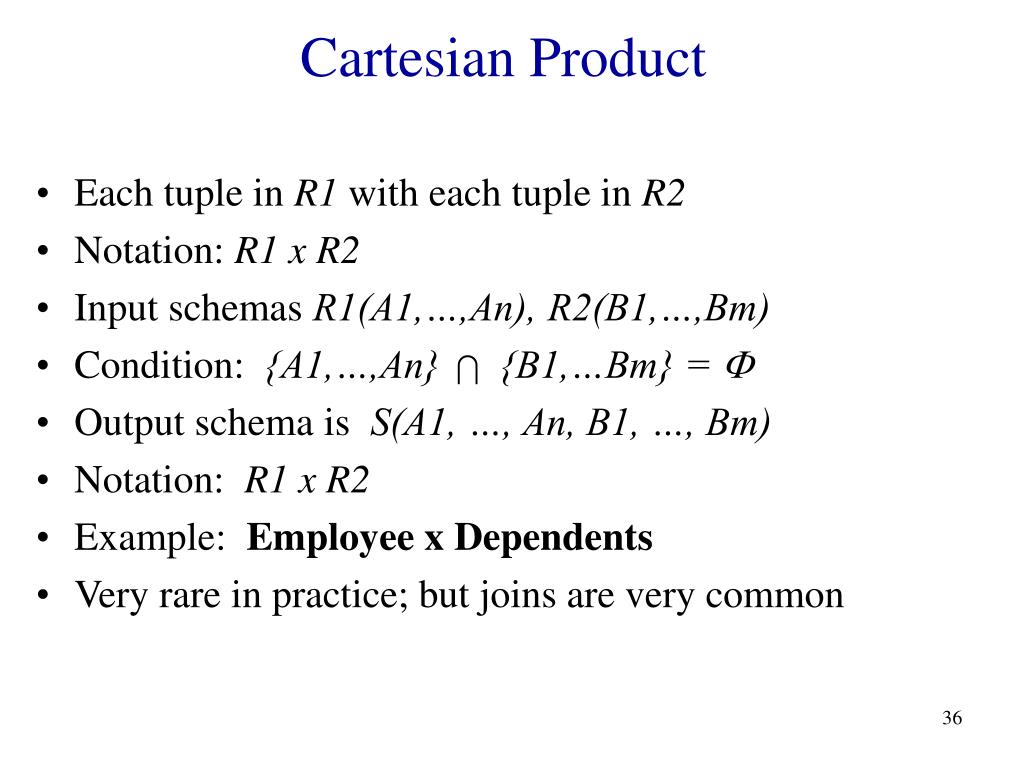

36. Cartesian Product • Each tuple in R1 with each tuple in R2 • Notation: R1 x R2 • Input schemas R1(A1,…,An), R2(B1,…,Bm) • Condition: {A1,…,An} {B1,…Bm} = F • Output schema is S(A1, …, An, B1, …, Bm) • Notation: R1 x R2 • Example: Employee x Dependents • Very rare in practice; but joins are very common

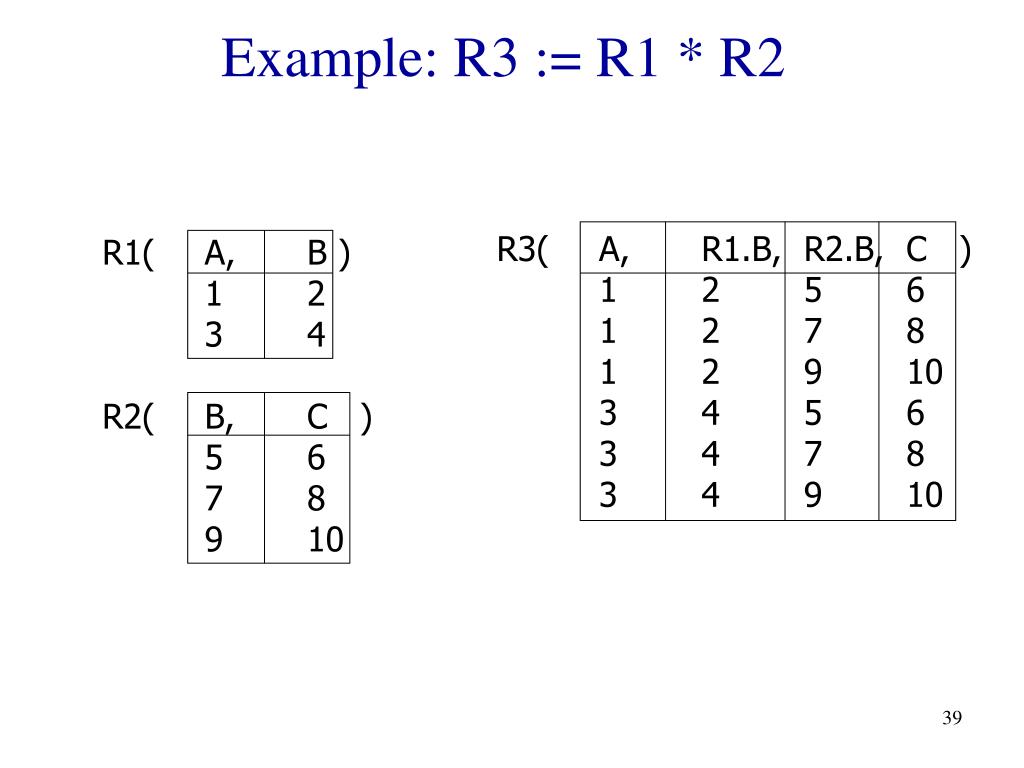

38. Product • R3 := R1 * R2 • Pair each tuple t1 of R1 with each tuple t2 of R2. • Concatenation t1t2 is a tuple of R3. • Schema of R3 is the attributes of R1 and R2, in order. • But beware attribute A of the same name in R1 and R2: use R1.A and R2.A.

39. R3( A, R1.B, R2.B, C ) 1 2 5 6 1 2 7 8 1 2 9 10 3 4 5 6 3 4 7 8 3 4 9 10 Example: R3 := R1 * R2 R1( A, B ) 1 2 3 4 R2( B, C ) 5 6 7 8 9 10

40. Renaming • Does not change the relational instance • Changes the relational schema only • Notation: rB1,…,Bn (R) • Input schema: R(A1, …, An) • Output schema: S(B1, …, Bn) • Example: • LastName, SocSocNo (Employee)

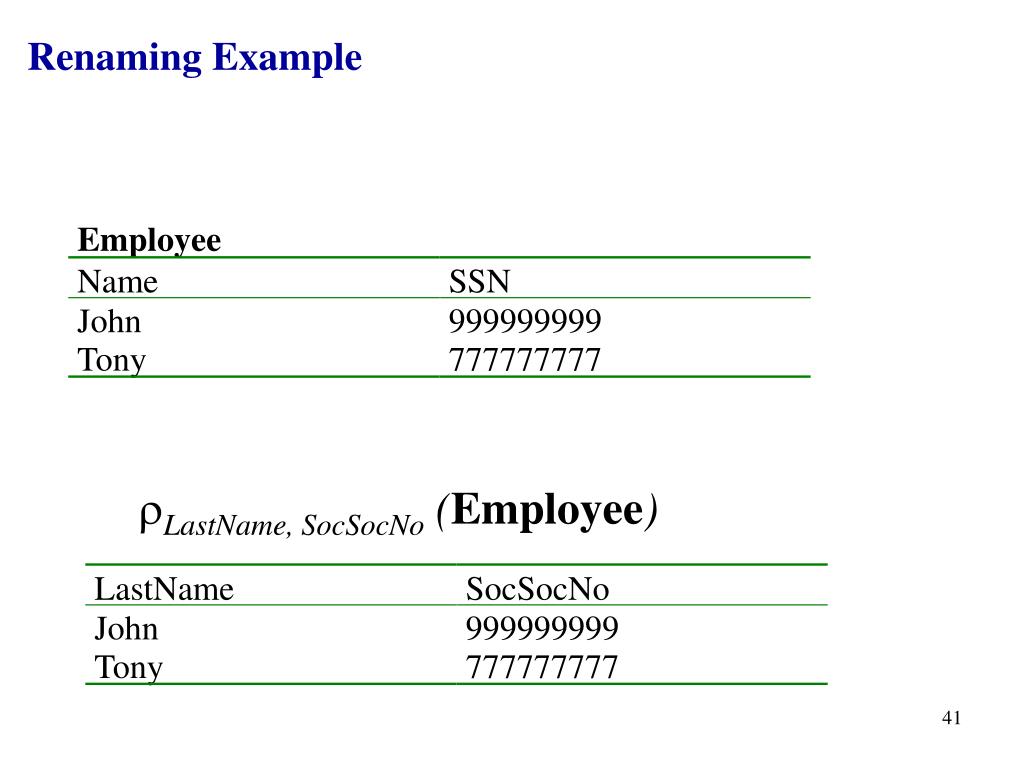

41. Renaming Example Employee Name SSN John 999999999 Tony 777777777 • LastName, SocSocNo (Employee) LastName SocSocNo John 999999999 Tony 777777777

42. Renaming • The RENAME operator gives a new schema to a relation. • R1 := RENAMER1(A1,…,An)(R2) makes R1 be a relation with attributes A1,…,An and the same tuples as R2. • Simplified notation: R1(A1,…,An) := R2.

43. R( bar, addr ) Joe’s Maple St. Sue’s River Rd. Example Bars( name, addr ) Joe’s Maple St. Sue’s River Rd. R(bar, addr) := Bars

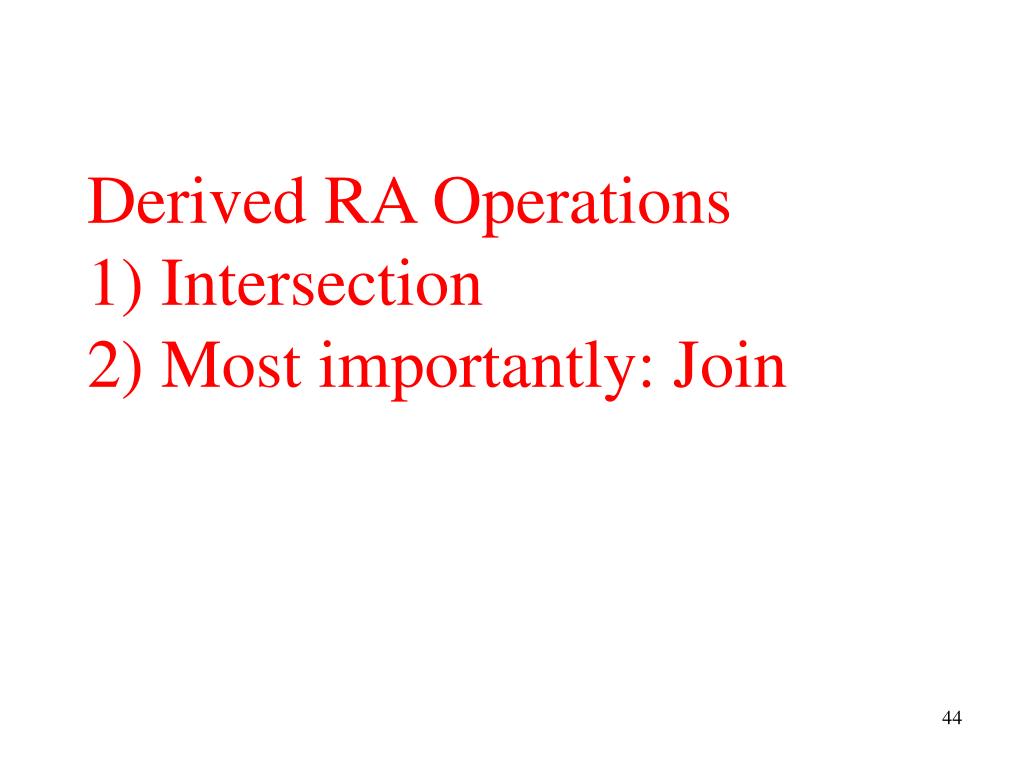

44. Derived RA Operations1) Intersection2) Most importantly: Join

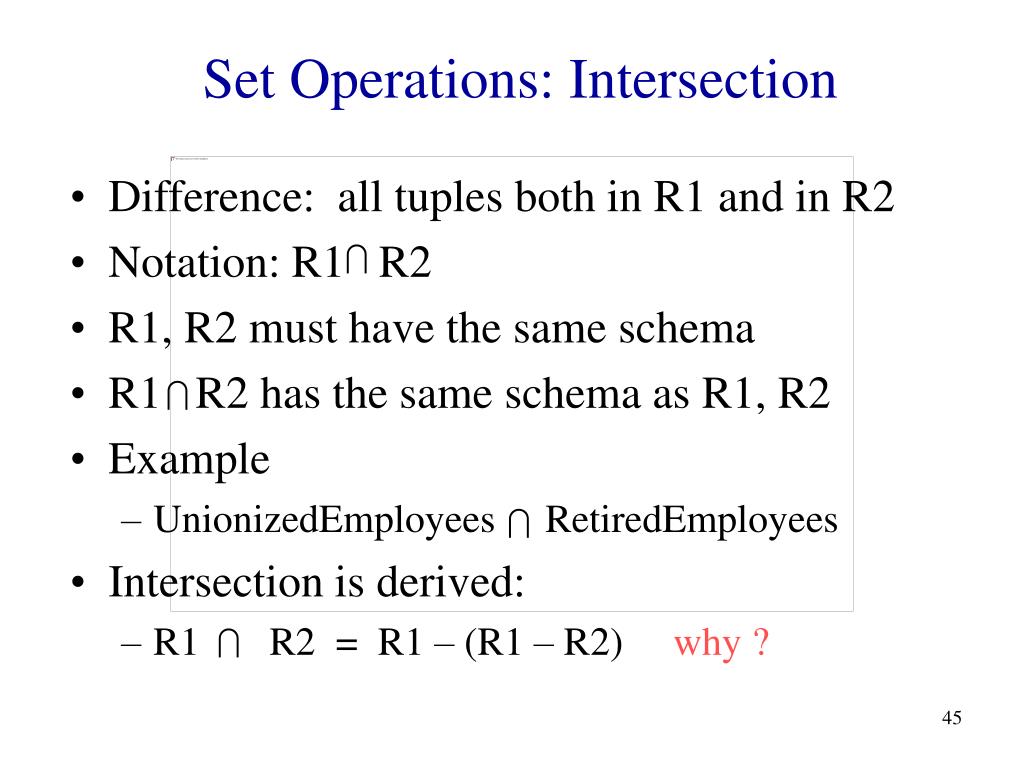

45. Set Operations: Intersection • Difference: all tuples both in R1 and in R2 • Notation: R1 R2 • R1, R2 must have the same schema • R1 R2 has the same schema as R1, R2 • Example • UnionizedEmployees RetiredEmployees • Intersection is derived: • R1 R2 = R1 – (R1 – R2) why ?

46. Joins • Theta join • Natural join • Equi-join • Semi-join • Inner join • Outer join • etc.

47. Theta Join • A join that involves a predicate • Notation: R1 q R2 where q is a condition • Input schemas: R1(A1,…,An), R2(B1,…,Bm) • {A1,…An} {B1,…,Bm} = f • Output schema: S(A1,…,An,B1,…,Bm) • Derived operator: R1 q R2 = sq (R1 x R2)

48. Theta-Join • R3 := R1 JOINC R2 • Take the product R1 * R2. • Then apply SELECTC to the result. • As for SELECT, C can be any boolean-valued condition. • Historic versions of this operator allowed only A theta B, where theta was =, <, etc.; hence the name “theta-join.”

49. BarInfo( bar, beer, price, name, addr ) Joe’s Bud 2.50 Joe’s Maple St. Joe’s Miller 2.75 Joe’s Maple St. Sue’s Bud 2.50 Sue’s River Rd. Sue’s Coors 3.00 Sue’s River Rd. Example Sells( bar, beer, price ) Bars( name, addr ) Joe’s Bud 2.50 Joe’s Maple St. Joe’s Miller 2.75 Sue’s River Rd. Sue’s Bud 2.50 Sue’s Coors 3.00 BarInfo := Sells JOIN Sells.bar = Bars.name Bars

50. Natural Join • Notation: R1 R2 • Input Schema: R1(A1, …, An), R2(B1, …, Bm) • Output Schema: S(C1,…,Cp) • Where {C1, …, Cp} = {A1, …, An} U {B1, …, Bm} • Meaning: combine all pairs of tuples in R1 and R2 that agree on the attributes: • {A1,…,An} {B1,…, Bm} (called the join attributes) • Equivalent to a cross product followed by selection • Example Employee Dependents
