  1. Web Servers: Implementation and Performance Erich Nahum IBM T.J. Watson Research Center www.research.ibm.com/people/n/nahum nahum@us.ibm.com Erich Nahum

  2. Contents of This Tutorial • Introduction to HTTP • HTTP Servers: • Outline of an HTTP Server Transaction • Server Models: Processes, Threads, Events • Event Notification: Asynchronous I/O • HTTP Server Workloads: • Workload Characteristics • Workload Generation • Server TCP Issues: • Introduction to TCP • Server TCP Dynamics • Server TCP Implementation Issues Erich Nahum

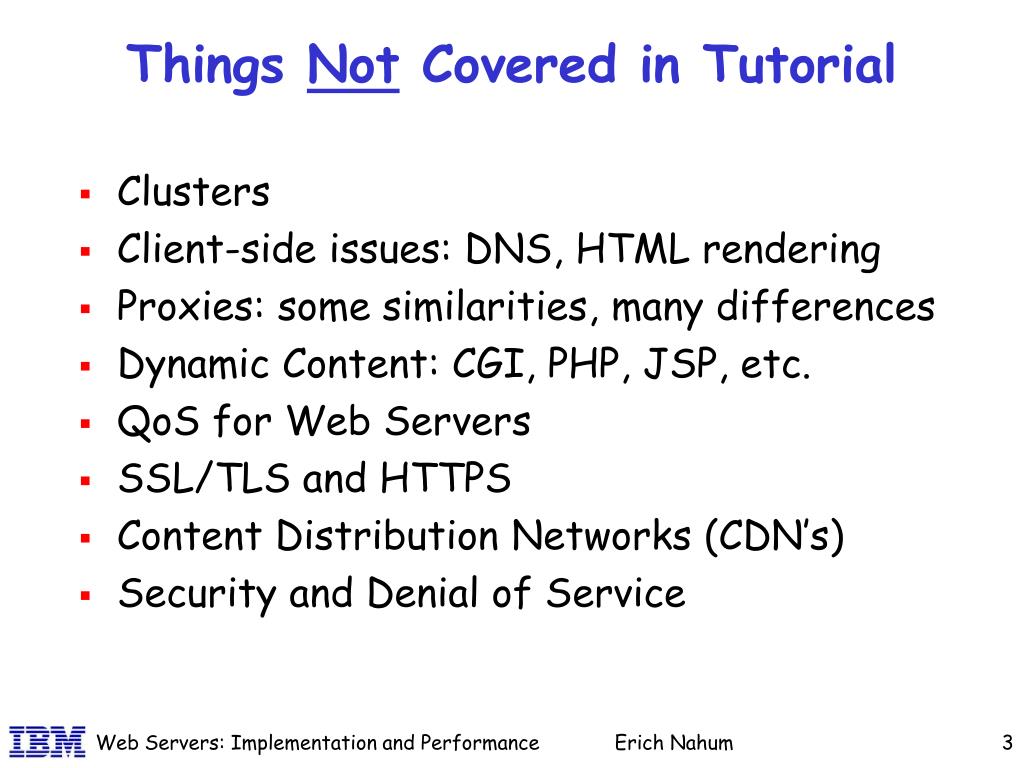

  3. Things Not Covered in Tutorial • Clusters • Client-side issues: DNS, HTML rendering • Proxies: some similarities, many differences • Dynamic Content: CGI, PHP, JSP, etc. • QoS for Web Servers • SSL/TLS and HTTPS • Content Distribution Networks (CDN’s) • Security and Denial of Service Erich Nahum

  4. Assumptions and Expectations • Some familiarity with WWW as a user (Has anyone here not used a browser?) • Some familiarity with networking concepts (e.g., unreliability, reordering, race conditions) • Familiarity with systems programming (e.g., know what sockets, hashing, caching are) • Examples will be based on C & Unix taken from BSD, Linux, AIX, and real servers (sorry, Java and Windows fans) Erich Nahum

  5. Objectives and Takeaways After this tutorial, hopefully we will all know: • Basics of server implementation & performance • Pros and cons of various server architectures • Difficulties in workload generation • Interactions between HTTP and TCP • Design loop of implement, measure, profile, debug, and fix Many lessons should be applicable to any networked server, e.g., files, mail, news, DNS, LDAP, etc. Erich Nahum

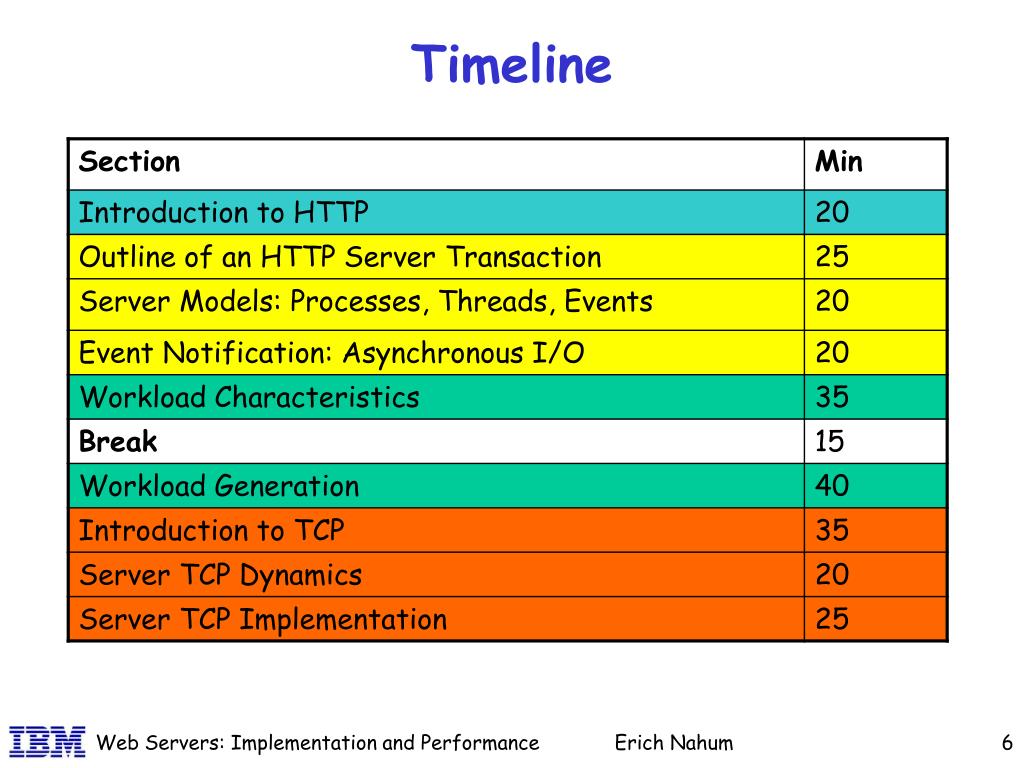

  6. Timeline Erich Nahum

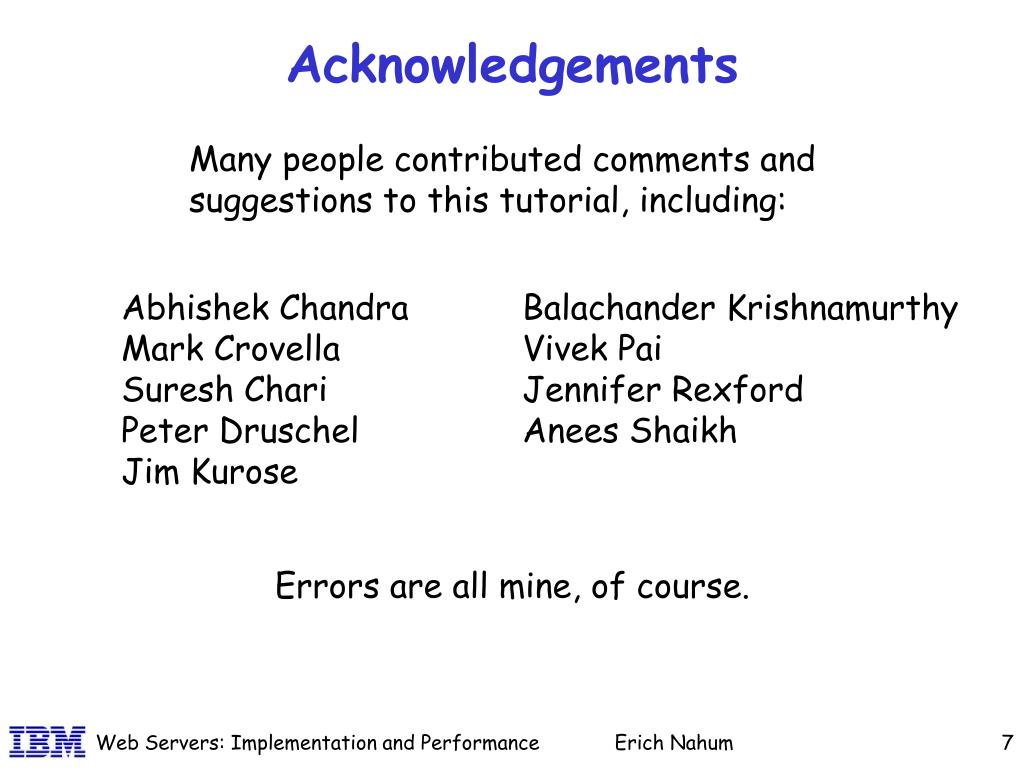

  7. Acknowledgements Many people contributed comments and suggestions to this tutorial, including: Abhishek Chandra Mark Crovella Suresh Chari Peter Druschel Jim Kurose Balachander Krishnamurthy Vivek Pai Jennifer Rexford Anees Shaikh Errors are all mine, of course. Erich Nahum

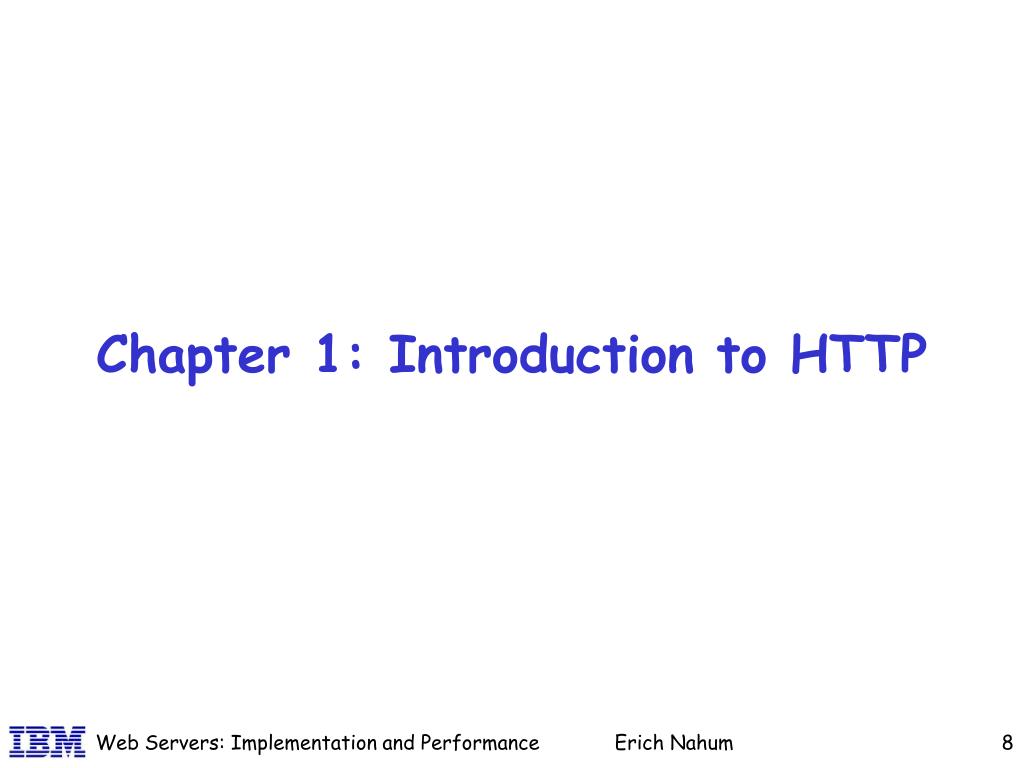

  8. Chapter 1: Introduction to HTTP Erich Nahum

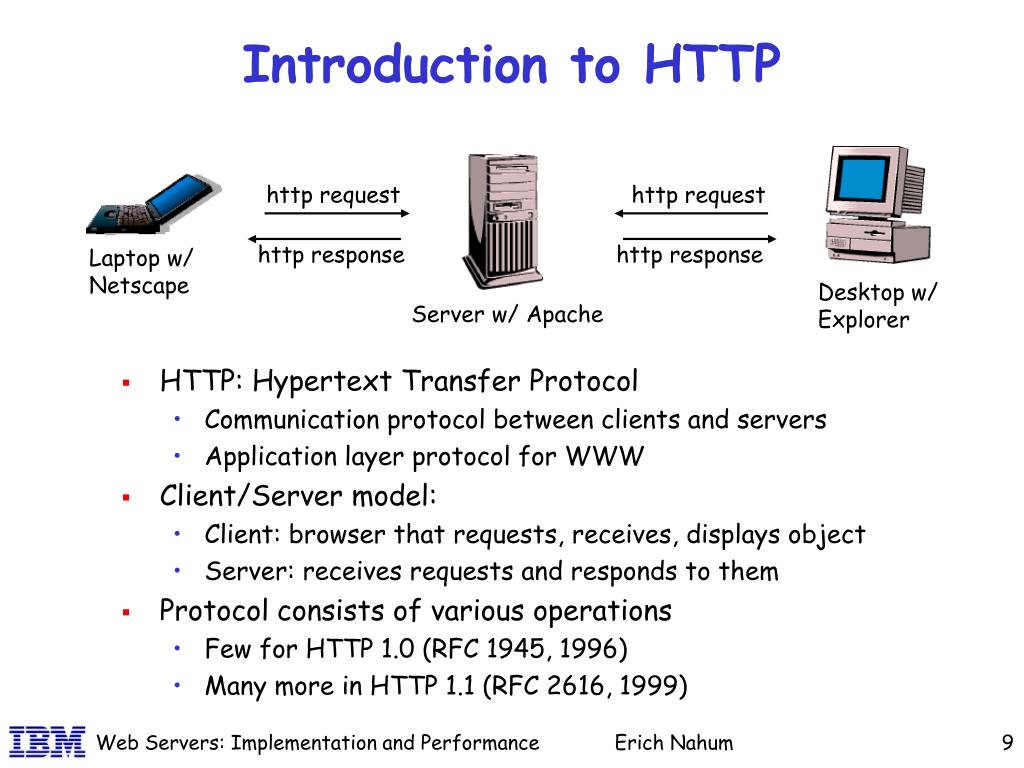

  9. Introduction to HTTP http request http request • HTTP: Hypertext Transfer Protocol • Communication protocol between clients and servers • Application layer protocol for WWW • Client/Server model: • Client: browser that requests, receives, displays object • Server: receives requests and responds to them • Protocol consists of various operations • Few for HTTP 1.0 (RFC 1945, 1996) • Many more in HTTP 1.1 (RFC 2616, 1999) http response http response Laptop w/ Netscape Desktop w/ Explorer Server w/ Apache Erich Nahum

  10. How are Requests Generated? • User clicks on something • Uniform Resource Locator (URL): • http://www.nytimes.com • https://www.paymybills.com • ftp://ftp.kernel.org • news://news.deja.com • telnet://gaia.cs.umass.edu • mailto:nahum@us.ibm.com • Different URL schemes map to different services • Hostname is converted from a name to a 32-bit IP address (DNS resolve) • Connection is established to server Most browser requests are HTTP requests. Erich Nahum

  11. What Happens Then? <html> <head> <meta name=“Author” content=“Erich Nahum”> <title> Linux Web Server Performance </title> </head> <body text=“#00000”> <img width=31 height=11 src=“ibmlogo.gif”> <img src=“images/new.gif> <h1>Hi There!</h1> Here’s lots of cool linux stuff! <a href=“more.html”> Click here</a> for more! </body> </html> • Client downloads HTML document • Sometimes called “container page” • Typically in text format (ASCII) • Contains instructions for rendering (e.g., background color, frames) • Links to other pages • Many have embedded objects: • Images: GIF, JPG (logos, banner ads) • Usually automatically retrieved • I.e., without user involvement • can control sometimes (e.g. browser options, junkbusters) sample html file Erich Nahum

  12. So What’s a Web Server Do? • Respond to client requests, typically a browser • Can be a proxy, which aggregates client requests (e.g., AOL) • Could be search engine spider or custom (e.g., Keynote) • May have work to do on client’s behalf: • Is the client’s cached copy still good? • Is client authorized to get this document? • Is client a proxy on someone else’s behalf? • Run an arbitrary program (e.g., stock trade) • Hundreds or thousands of simultaneous clients • Hard to predict how many will show up on some day • Many requests are in progress concurrently Server capacity planning is non-trivial. Erich Nahum

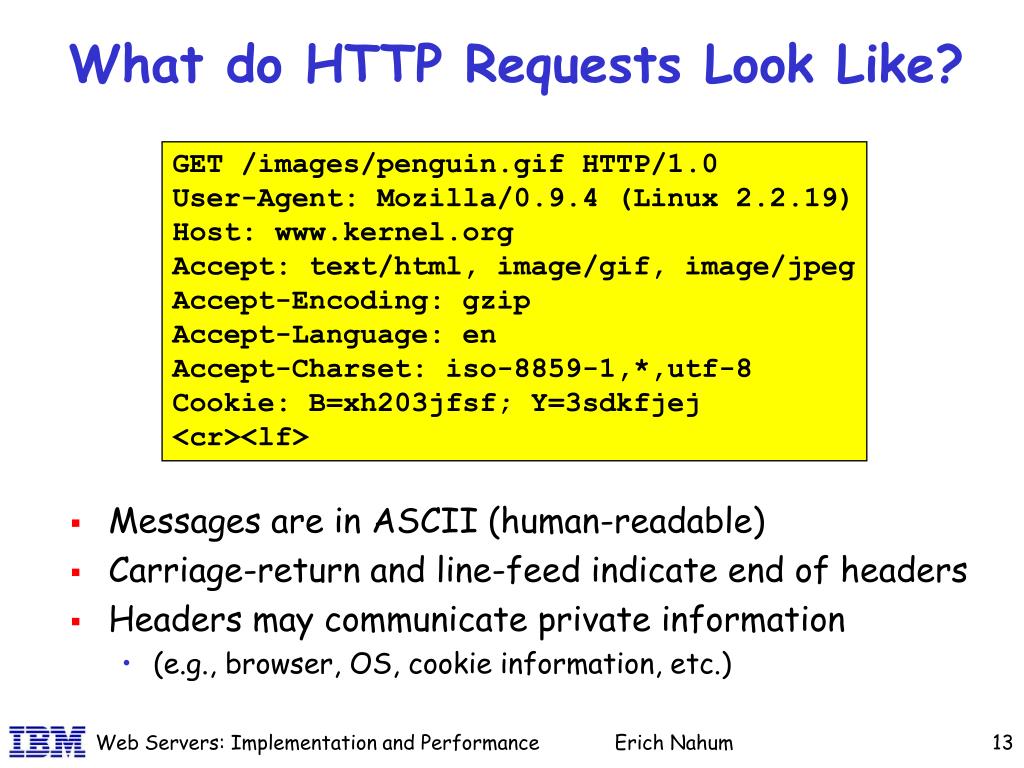

  13. What do HTTP Requests Look Like? GET /images/penguin.gif HTTP/1.0 User-Agent: Mozilla/0.9.4 (Linux 2.2.19) Host: www.kernel.org Accept: text/html, image/gif, image/jpeg Accept-Encoding: gzip Accept-Language: en Accept-Charset: iso-8859-1,*,utf-8 Cookie: B=xh203jfsf; Y=3sdkfjej <cr><lf> • Messages are in ASCII (human-readable) • Carriage-return and line-feed indicate end of headers • Headers may communicate private information • (e.g., browser, OS, cookie information, etc.) Erich Nahum

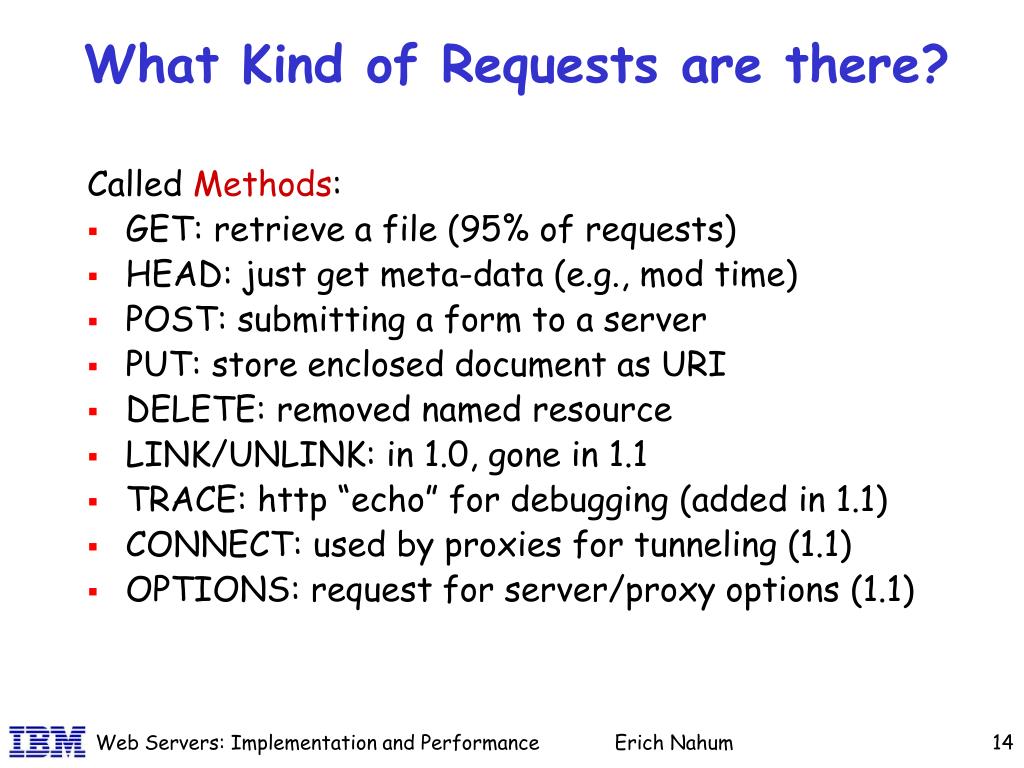

  14. What Kind of Requests are there? Called Methods: • GET: retrieve a file (95% of requests) • HEAD: just get meta-data (e.g., mod time) • POST: submitting a form to a server • PUT: store enclosed document as URI • DELETE: removed named resource • LINK/UNLINK: in 1.0, gone in 1.1 • TRACE: http “echo” for debugging (added in 1.1) • CONNECT: used by proxies for tunneling (1.1) • OPTIONS: request for server/proxy options (1.1) Erich Nahum

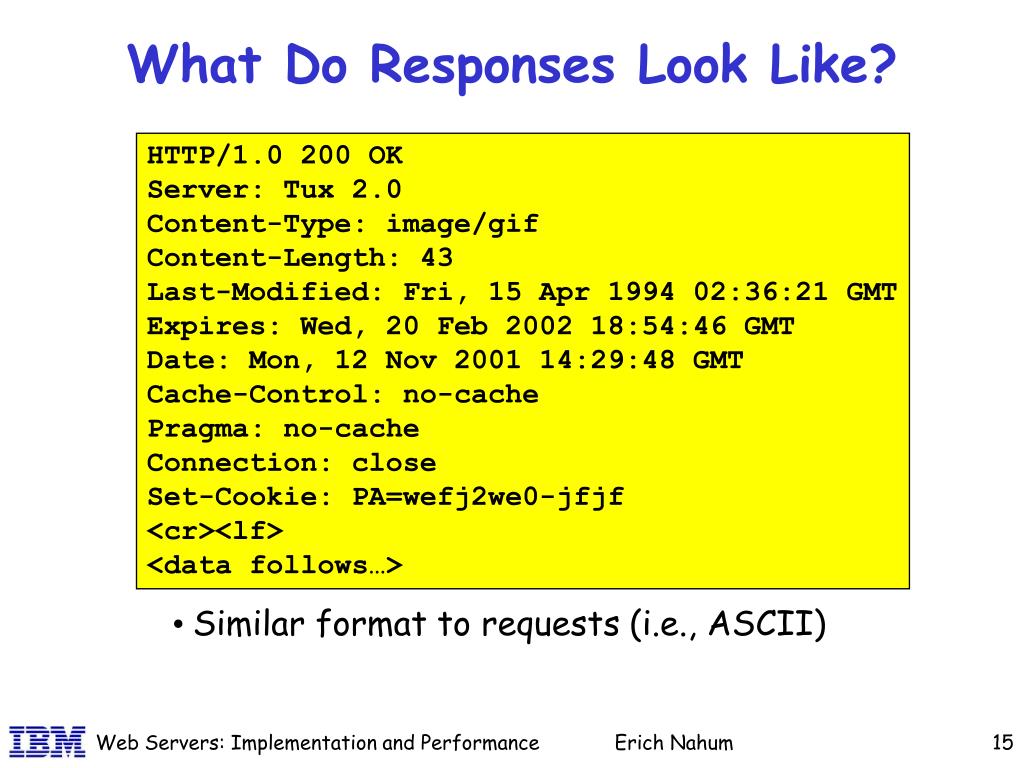

  15. What Do Responses Look Like? HTTP/1.0 200 OK Server: Tux 2.0 Content-Type: image/gif Content-Length: 43 Last-Modified: Fri, 15 Apr 1994 02:36:21 GMT Expires: Wed, 20 Feb 2002 18:54:46 GMT Date: Mon, 12 Nov 2001 14:29:48 GMT Cache-Control: no-cache Pragma: no-cache Connection: close Set-Cookie: PA=wefj2we0-jfjf <cr><lf> <data follows…> • Similar format to requests (i.e., ASCII) Erich Nahum

  16. What Responses are There? • 1XX: Informational (def’d in 1.0, used in 1.1) 100 Continue, 101 Switching Protocols • 2XX: Success 200 OK, 206 Partial Content • 3XX: Redirection 301 Moved Permanently, 304 Not Modified • 4XX: Client error 400 Bad Request, 403 Forbidden, 404 Not Found • 5XX: Server error 500 Internal Server Error, 503 Service Unavailable, 505 HTTP Version Not Supported Erich Nahum

  17. What are all these Headers? Specify capabilities and properties: • General: Connection, Date • Request: Accept-Encoding, User-Agent • Response: Location, Server type • Entity: Content-Encoding, Last-Modified • Hop-by-hop: Proxy-Authenticate, Transfer-Encoding Server must pay attention to respond properly. Erich Nahum

  18. Summary: Introduction to HTTP • The major application on the Internet • Majority of traffic is HTTP (or HTTP-related) • Client/server model: • Clients make requests, servers respond to them • Done mostly in ASCII text (helps debugging!) • Various headers and commands • Too many to go into detail here • We’ll focus on common server ones • Many web books/tutorials exist (e.g., Krishnamurthy & Rexford 2001) Erich Nahum

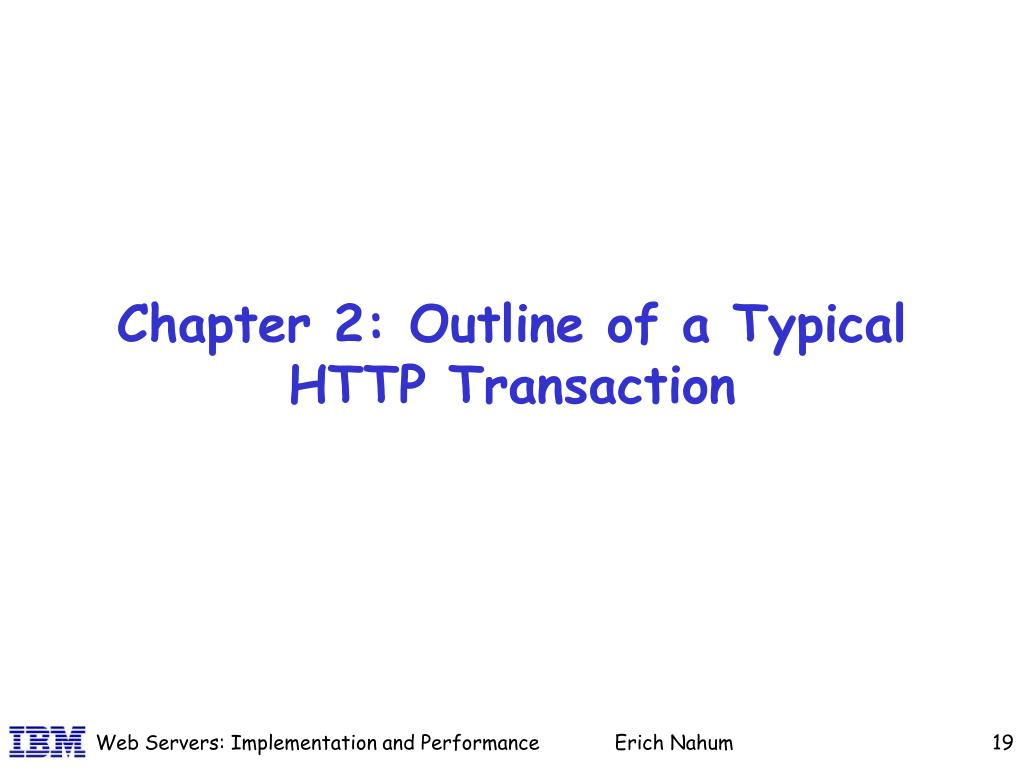

  19. Chapter 2: Outline of a Typical HTTP Transaction Erich Nahum

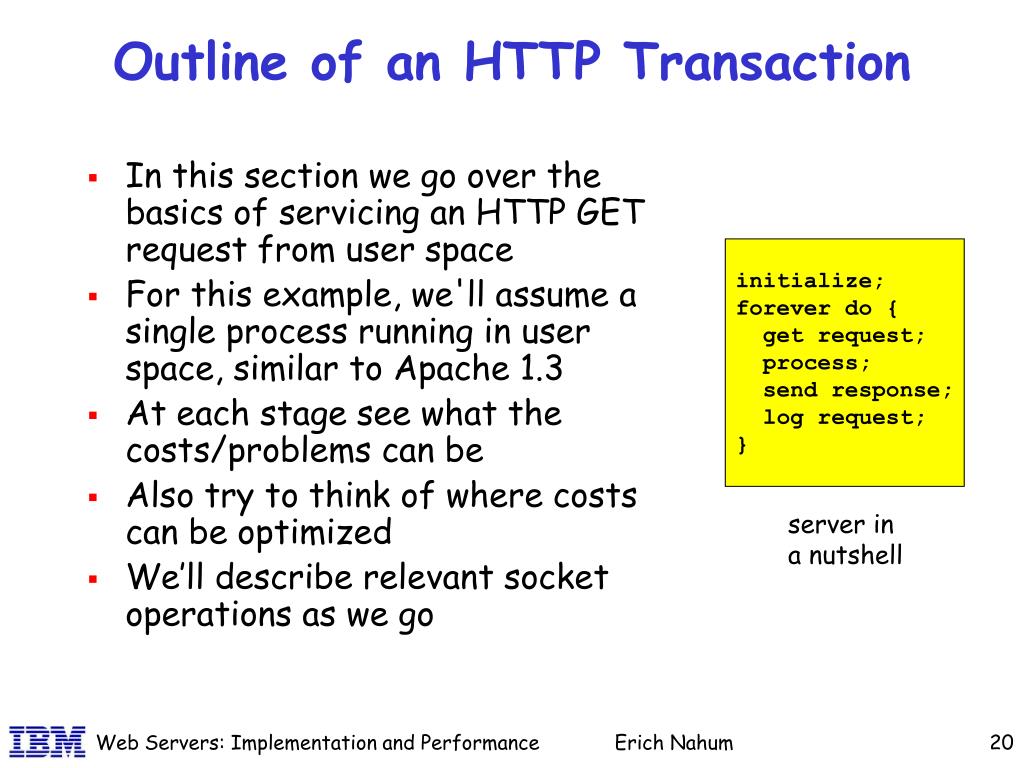

  20. Outline of an HTTP Transaction • In this section we go over the basics of servicing an HTTP GET request from user space • For this example, we'll assume a single process running in user space, similar to Apache 1.3 • At each stage see what the costs/problems can be • Also try to think of where costs can be optimized • We’ll describe relevant socket operations as we go initialize; forever do { get request; process; send response; log request; } server in a nutshell Erich Nahum

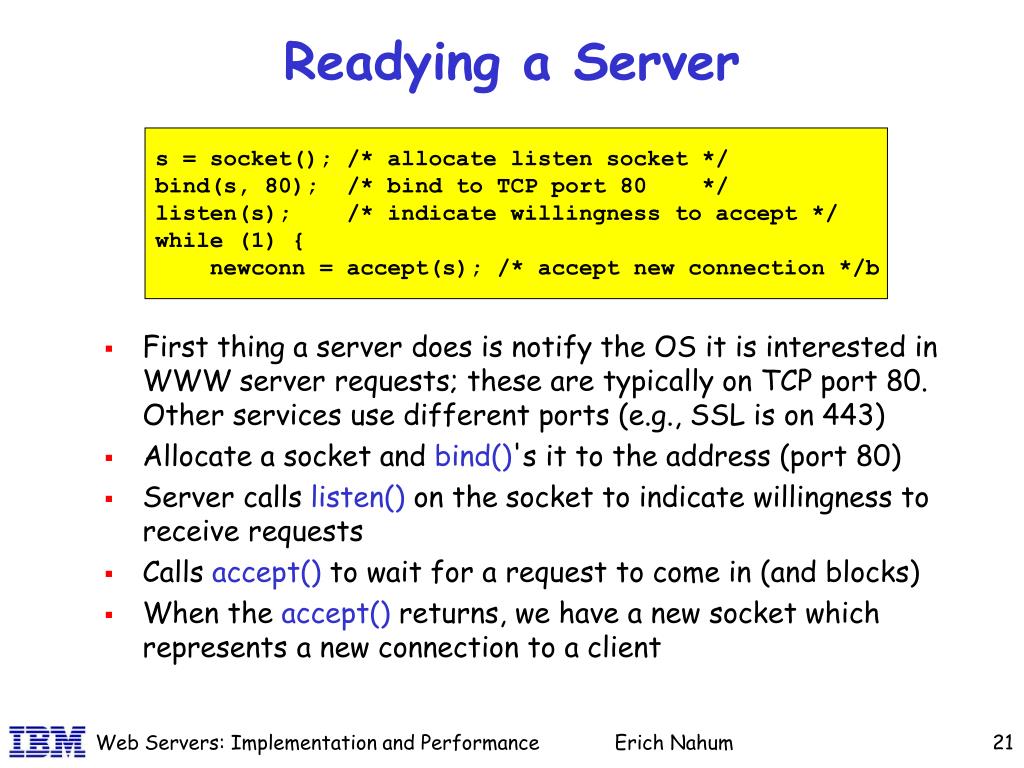

  21. Readying a Server s = socket(); /* allocate listen socket */ bind(s, 80); /* bind to TCP port 80 */ listen(s); /* indicate willingness to accept */ while (1) { newconn = accept(s); /* accept new connection */b • First thing a server does is notify the OS it is interested in WWW server requests; these are typically on TCP port 80. Other services use different ports (e.g., SSL is on 443) • Allocate a socket and bind()'s it to the address (port 80) • Server calls listen() on the socket to indicate willingness to receive requests • Calls accept() to wait for a request to come in (and blocks) • When the accept() returns, we have a new socket which represents a new connection to a client Erich Nahum

  22. Processing a Request remoteIP = getsockname(newconn); remoteHost = gethostbyname(remoteIP); gettimeofday(currentTime); read(newconn, reqBuffer, sizeof(reqBuffer)); reqInfo = serverParse(reqBuffer); • getsockname() called to get the remote host name • for logging purposes (optional, but done by most) • gethostbyname() called to get name of other end • again for logging purposes • gettimeofday() is called to get time of request • both for Date header and for logging • read() is called on new socket to retrieve request • request is determined by parsing the data • “GET /images/jul4/flag.gif” Erich Nahum

  23. Processing a Request (cont) fileName = parseOutFileName(requestBuffer); fileAttr = stat(fileName); serverCheckFileStuff(fileName, fileAttr); open(fileName); • stat() called to test file path • to see if file exists/is accessible • may not be there, may only be available to certain people • "/microsoft/top-secret/plans-for-world-domination.html" • stat() also used for file meta-data • e.g., size of file, last modified time • "Have plans changed since last time I checked?“ • might have to stat() multiple files just to get to end • e.g., 4 stats in bill g example above • assuming all is OK, open() called to open the file Erich Nahum

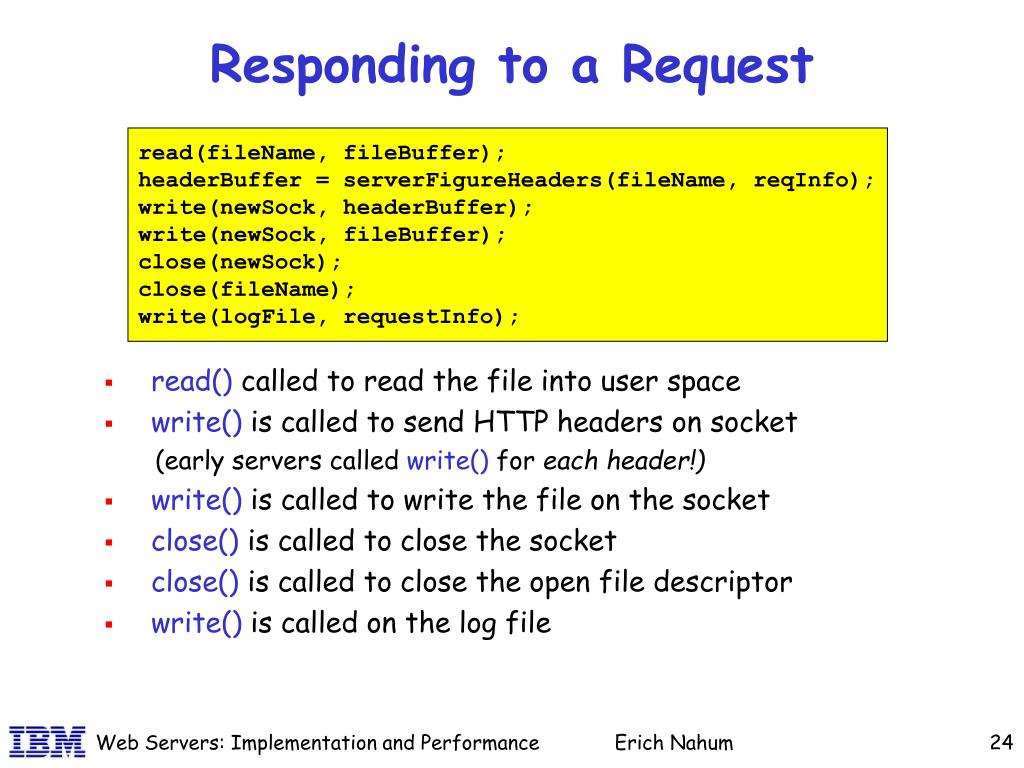

  24. Responding to a Request read(fileName, fileBuffer); headerBuffer = serverFigureHeaders(fileName, reqInfo); write(newSock, headerBuffer); write(newSock, fileBuffer); close(newSock); close(fileName); write(logFile, requestInfo); • read() called to read the file into user space • write() is called to send HTTP headers on socket (early servers called write() for eachheader!) • write() is called to write the file on the socket • close() is called to close the socket • close() is called to close the open file descriptor • write() is called on the log file Erich Nahum

  25. Optimizing the Basic Structure • As we will see, a great deal of locality exists in web requests and web traffic. • Much of the work described above doesn't really need to be performed each time. • Optimizations fall under 2 categories: caching and custom OS primitives. Erich Nahum

  26. Optimizations: Caching Idea is to exploit locality in client requests. Many files are requested over and over (e.g., index.html). • Again, cache HTTP header info on a per-url basis, rather than re-generating info over and over. • Why open and close files over and over again? Instead, cache open file FD’s, manage them LRU. fileDescriptor = lookInFDCache(fileName); metaInfo = lookInMetaInfoCache(fileName); headerBuffer = lookInHTTPHeaderCache(fileName); • Why stat them again and again? Cache path name access characteristics. Erich Nahum

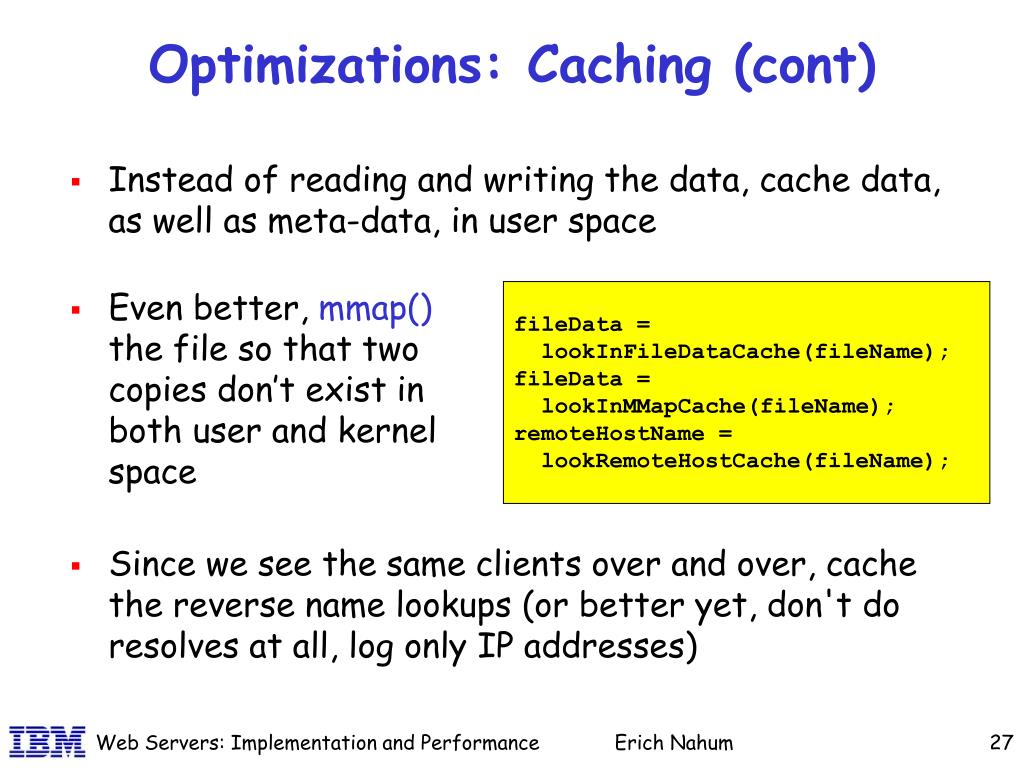

  27. Optimizations: Caching (cont) • Instead of reading and writing the data, cache data, as well as meta-data, in user space • Even better, mmap() the file so that two copies don’t exist in both user and kernel space fileData = lookInFileDataCache(fileName); fileData = lookInMMapCache(fileName); remoteHostName = lookRemoteHostCache(fileName); • Since we see the same clients over and over, cache the reverse name lookups (or better yet, don't do resolves at all, log only IP addresses) Erich Nahum

  28. Optimizations: OS Primitives • Rather than call accept(), getsockname() & read(), add a new primitive, acceptExtended(), which combines the 3 primitives acceptExtended(listenSock, &newSock, readBuffer, &remoteInfo); currentTime = *mappedTimePointer; buffer[0] = firstHTTPHeader; buffer[1] = secondHTTPHeader; buffer[2] = fileDataBuffer; writev(newSock, buffer, 3); • Instead of calling gettimeofday(), use a memory-mapped counter that is cheap to access (a few instructions rather than a system call) • Instead of calling write() many times use writev() Erich Nahum

  29. OS Primitives (cont) • Rather than calling read() & write(), or write() with an mmap()'ed file, use a new primitive called sendfile() (or transmitfile()). Bytes stay in the kernel. • While we're at it, add a header option to sendfile() so that we don't have to call write() at all. httpInfo = cacheLookup(reqBuffer); sendfile(newConn, httpInfo->headers, httpInfo->fileDescriptor, OPT_CLOSE_WHEN_DONE); • Also add an option to close the connection so that we don't have to call close() explicitly. All this assumes proper OS support. Most have it these days. Erich Nahum

  30. An Accelerated Server Example acceptex(socket, newConn, reqBuffer, remoteHostInfo); httpInfo = cacheLookup(reqBuffer); sendfile(newConn, httpInfo->headers, httpInfo->fileDescriptor, OPT_CLOSE_WHEN_DONE); write(logFile, requestInfo); • acceptex() is called • gets new socket, request, remote host IP address • string match in hash table is done to parse request • hash table entry contains relevant meta-data, including modification times, file descriptors, permissions, etc. • sendfile() is called • pre-computed header, file descriptor, and close option • log written back asynchronously (buffered write()). That’s it! Erich Nahum

  31. Complications • Custom APIs have problems: • Additional test coverage is required • API may not be sufficiently general to be worth it • Take, for example, acceptex(): • Work has shown it doesn’t make a big difference • Some server applications write before reading (e.g., FTP) • Result is no OS’s outside of MS have it • Counter-example is sendfile(): • Useful for many types of servers (Web, FTP, SMB, NFS) • Result is available on virtually every OS Erich Nahum

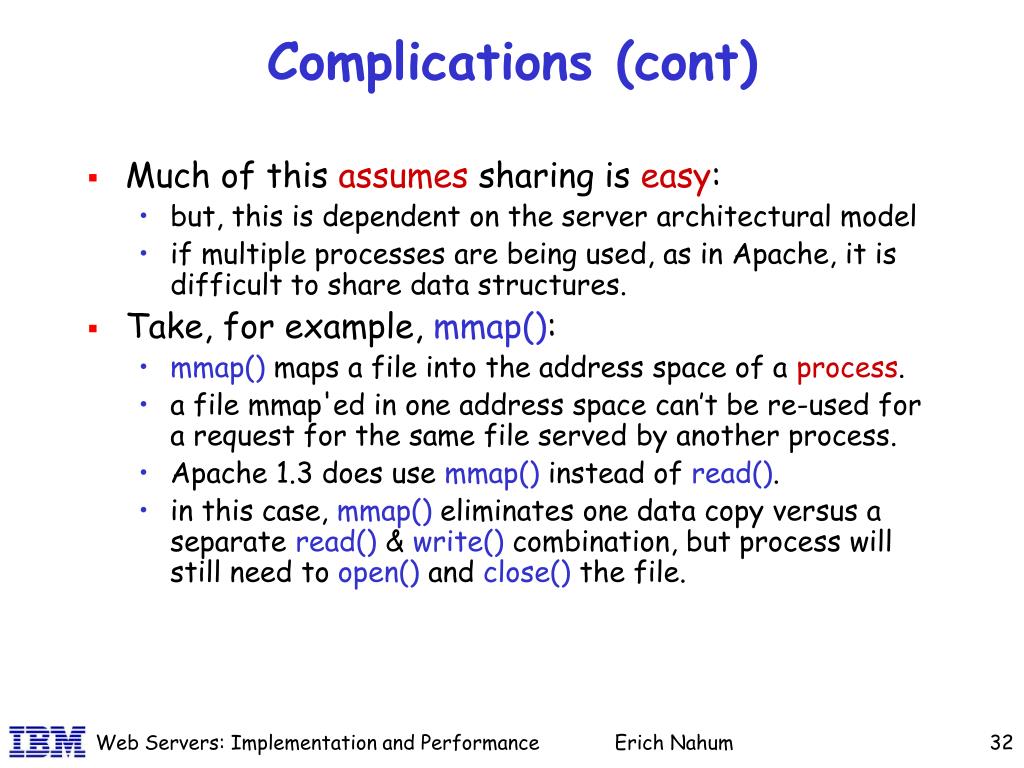

  32. Complications (cont) • Much of this assumes sharing is easy: • but, this is dependent on the server architectural model • if multiple processes are being used, as in Apache, it is difficult to share data structures. • Take, for example, mmap(): • mmap() maps a file into the address space of a process. • a file mmap'ed in one address space can’t be re-used for a request for the same file served by another process. • Apache 1.3 does use mmap() instead of read(). • in this case, mmap() eliminates one data copy versus a separate read() & write() combination, but process will still need to open() and close() the file. Erich Nahum

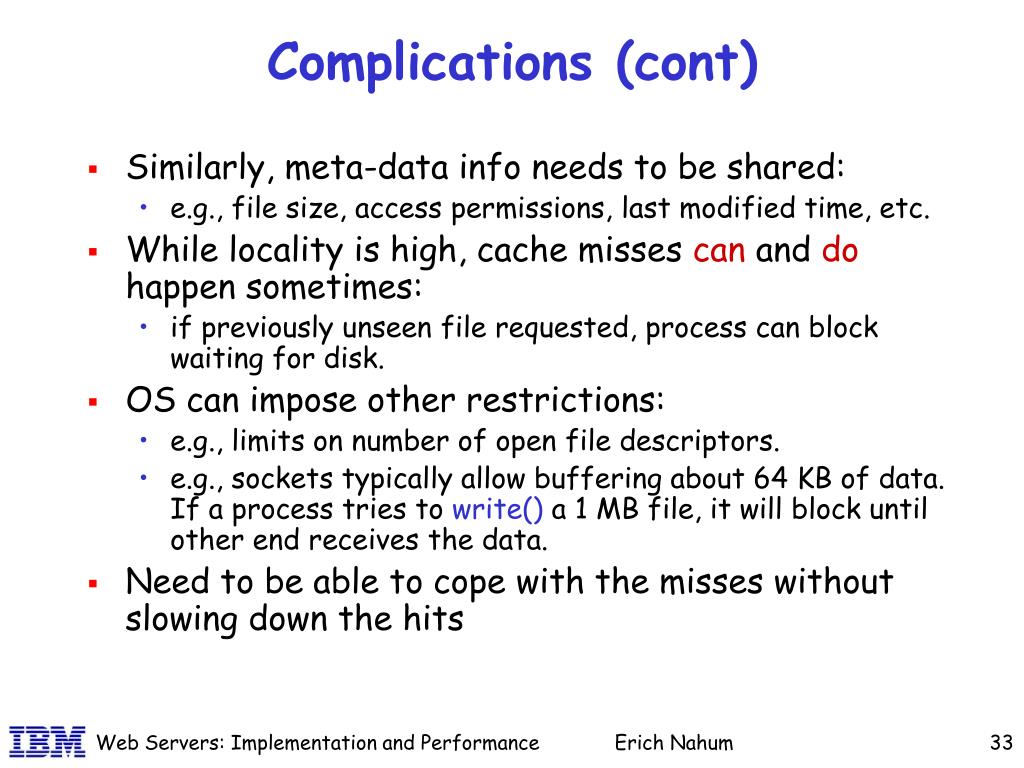

  33. Complications (cont) • Similarly, meta-data info needs to be shared: • e.g., file size, access permissions, last modified time, etc. • While locality is high, cache misses can and do happen sometimes: • if previously unseen file requested, process can block waiting for disk. • OS can impose other restrictions: • e.g., limits on number of open file descriptors. • e.g., sockets typically allow buffering about 64 KB of data. If a process tries to write() a 1 MB file, it will block until other end receives the data. • Need to be able to cope with the misses without slowing down the hits Erich Nahum

  34. Summary: Outline of a Typical HTTP Transaction • A server can perform many steps in the process of servicing a request • Different actions depending on many factors: • e.g., 304 not modified if client's cached copy is good • e.g., 404 not found, 401 unauthorized • Most requests are for small subset of data: • we’ll see more about this in the Workload section • we can leverage that fact for performance • Architectural model affects possible optimizations • we’ll go into this in more detail in the next section Erich Nahum

  35. Chapter 3: Server Architectural Models Erich Nahum

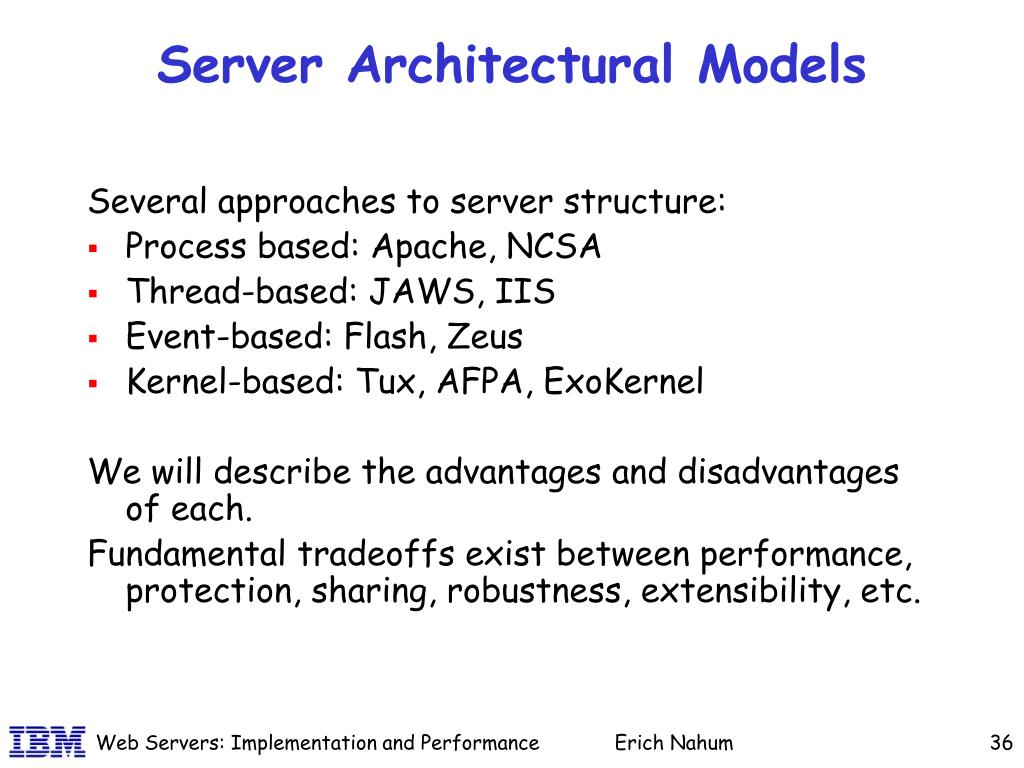

  36. Server Architectural Models Several approaches to server structure: • Process based: Apache, NCSA • Thread-based: JAWS, IIS • Event-based: Flash, Zeus • Kernel-based: Tux, AFPA, ExoKernel We will describe the advantages and disadvantages of each. Fundamental tradeoffs exist between performance, protection, sharing, robustness, extensibility, etc. Erich Nahum

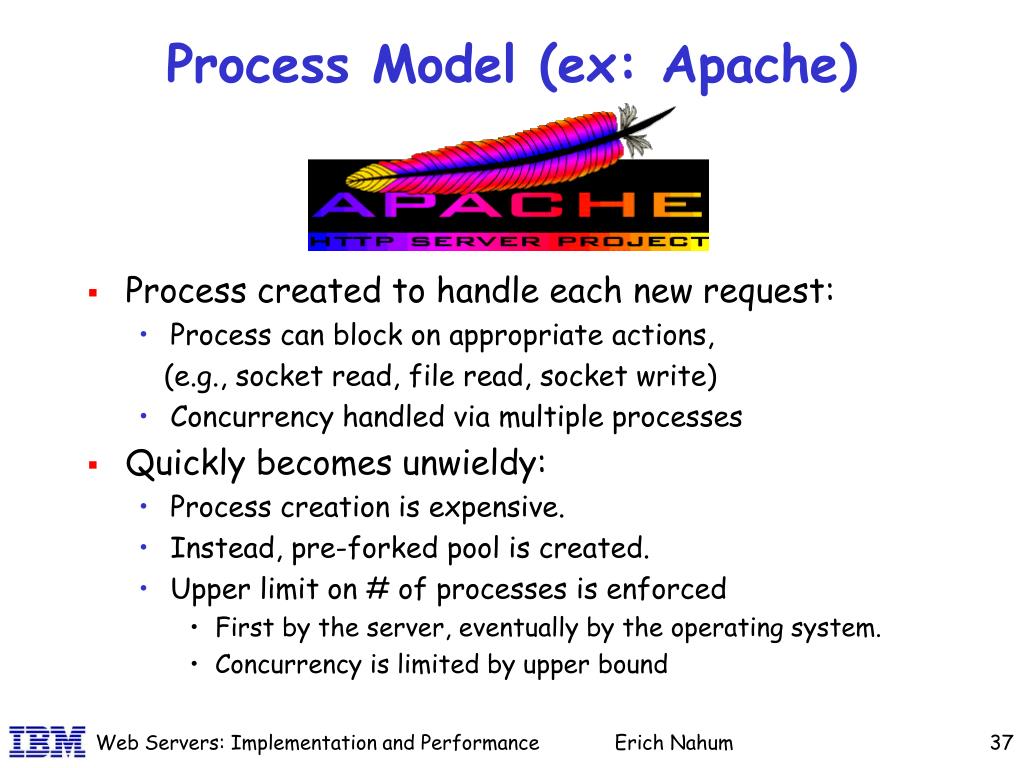

  37. Process Model (ex: Apache) • Process created to handle each new request: • Process can block on appropriate actions, (e.g., socket read, file read, socket write) • Concurrency handled via multiple processes • Quickly becomes unwieldy: • Process creation is expensive. • Instead, pre-forked pool is created. • Upper limit on # of processes is enforced • First by the server, eventually by the operating system. • Concurrency is limited by upper bound Erich Nahum

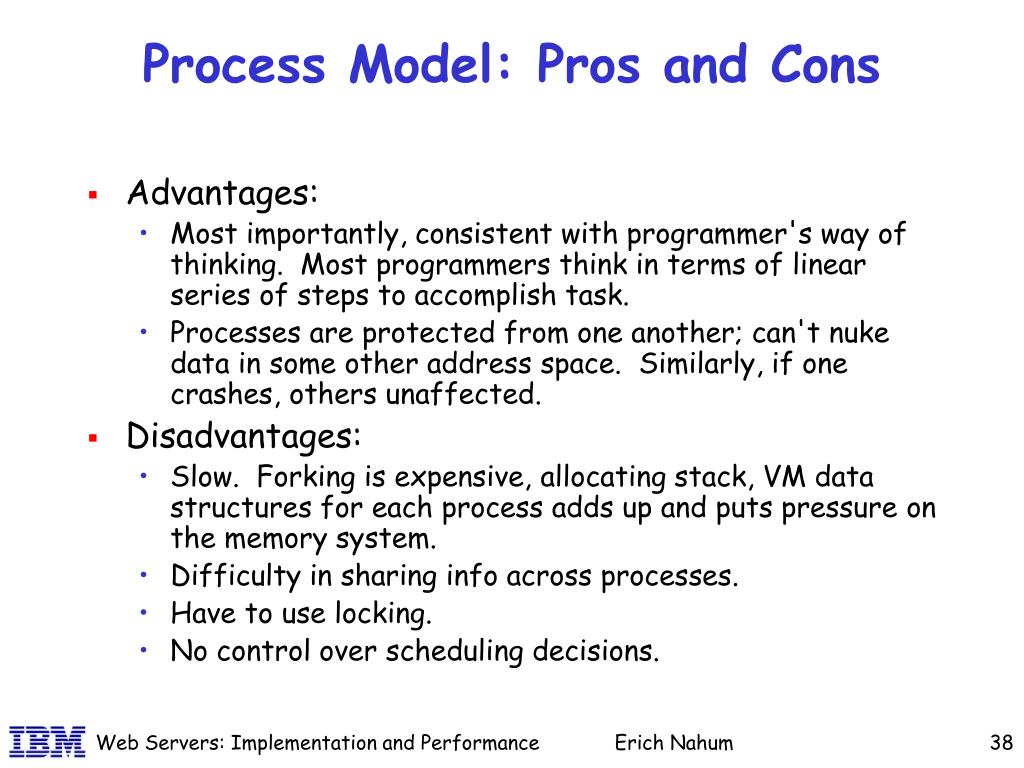

  38. Process Model: Pros and Cons • Advantages: • Most importantly, consistent with programmer's way of thinking. Most programmers think in terms of linear series of steps to accomplish task. • Processes are protected from one another; can't nuke data in some other address space. Similarly, if one crashes, others unaffected. • Disadvantages: • Slow. Forking is expensive, allocating stack, VM data structures for each process adds up and puts pressure on the memory system. • Difficulty in sharing info across processes. • Have to use locking. • No control over scheduling decisions. Erich Nahum

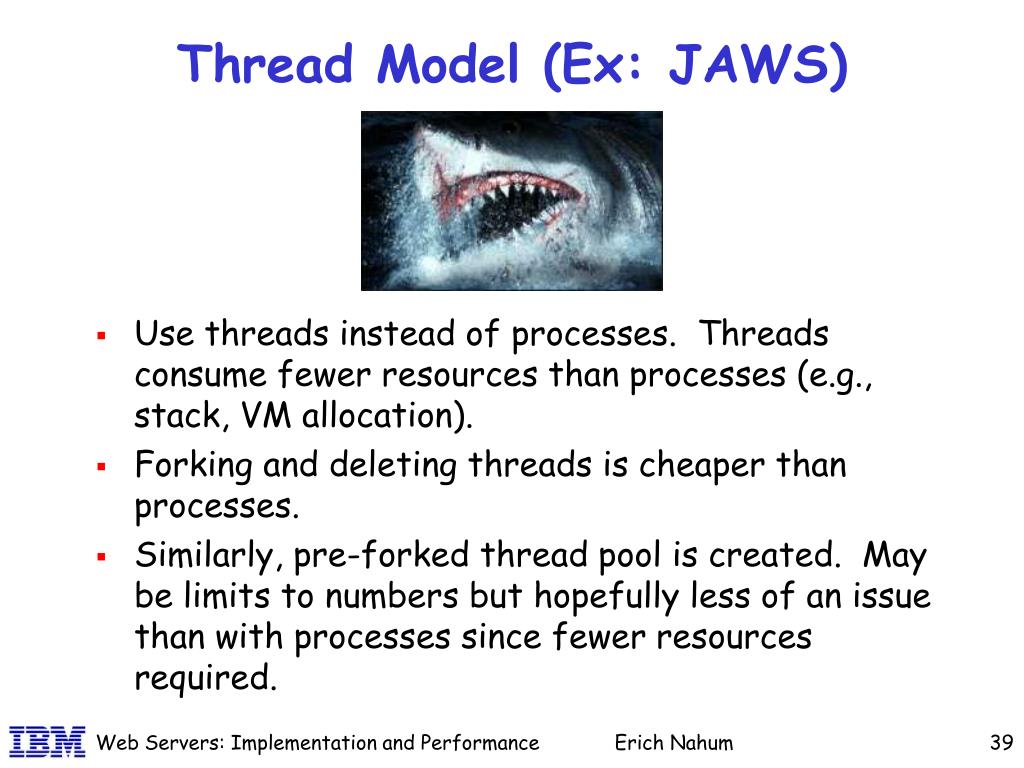

  39. Thread Model (Ex: JAWS) • Use threads instead of processes. Threads consume fewer resources than processes (e.g., stack, VM allocation). • Forking and deleting threads is cheaper than processes. • Similarly, pre-forked thread pool is created. May be limits to numbers but hopefully less of an issue than with processes since fewer resources required. Erich Nahum

  40. Thread Model: Pros and Cons • Advantages: • Faster than processes. Creating/destroying cheaper. • Maintains programmer's way of thinking. • Sharing is enabled by default. • Disadvantages: • Less robust. Threads not protected from each other. • Requires proper OS support, otherwise, if one thread blocks on a file read, will block all the address space. • Can still run out of threads if servicing many clients concurrently. • Can exhaust certain per-process limits not encountered with processes (e.g., number of open file descriptors). • Limited or no control over scheduling decisions. Erich Nahum

  41. Event Model (Ex: Flash) while (1) { accept new connections until none remaining; call select() on all active file descriptors; for each FD: if (fd ready for reading) call read(); if (fd ready for writing) call write(); } • Use a single process and deal with requests in a event-driven manner, like a giant switchboard. • Use non-blocking option (O_NDELAY) on sockets, do everything asynchronously, never block on anything, and have OS notify us when something is ready. Erich Nahum

  42. Event-Driven: Pros and Cons • Advantages: • Very fast. • Sharing is inherent, since there’s only one process. • Don't even need locks as in thread models. • Can maximize concurrency in request stream easily. • No context-switch costs or extra memory consumption. • Complete control over scheduling decisions. • Disadvantages: • Less robust. Failure can halt whole server. • Pushes per-process resource limits (like file descriptors). • Not every OS has full asynchronous I/O, so can still block on a file read. Flash uses helper processes to deal with this (AMPED architecture). Erich Nahum

  43. In-Kernel Model (Ex: Tux) HTTP HTTP SOCK TCP TCP IP IP ETH ETH user/ kernel boundary user/ kernel boundary • Dedicated kernel thread for HTTP requests: • One option: put whole server in kernel. • More likely, just deal with static GET requests in kernel to capture majority of requests. • Punt dynamic requests to full-scale server in user space, such as Apache. user-space server kernel-space server Erich Nahum

  44. In-Kernel Model: Pros and Cons • In-Kernel Event Model: • Avoids transitions to user space, copies across u-k boundary, etc. • Leverages already existing asynchronous primitives in the kernel (kernel doesn't block on a file read, etc.). • Advantages: • Extremely fast. Tight integration with kernel. • Small component without full server optimizes common case. • Disadvantages: • Less robust. Bugs can crash whole machine, not just server. • Harder to debug and extend, since kernel programming required, which is not as well-known as sockets. • Similarly, harder to deploy. APIs are OS-specific (Linux, BSD, NT), whereas sockets & threads are (mostly) standardized. • HTTP evolving over time, have to modify kernel code in response. Erich Nahum

  45. So What’s the Performance? • Graph shows server throughput for Tux, Flash, and Apache. • Experiments done on 400 MHz P/II, gigabit Ethernet, Linux 2.4.16, 8 client machines, WaspClient workload generator • Tux is fastest, but Flash close behind Erich Nahum

  46. Summary: Server Architectures • Many ways to code up a server • Tradeoffs in speed, safety, robustness, ease of programming and extensibility, etc. • Multiple servers exist for each kind of model • Not clear that a consensus exists. • Better case for in-kernel servers as devices • e.g. reverse proxy accelerator, Akamai CDN node • User-space servers have a role: • OS should provides proper primitives for efficiency • Leave HTTP-protocol related actions in user-space • In this case, event-driven model is attractive • Key pieces to a fast event-driven server: • Minimize copying • Efficient event notification mechanism Erich Nahum

  47. Chapter 4: Event Notification Erich Nahum

  48. Event Notification Mechanisms • Recall how Flash works: • One process, many FD's, calling select() on all active socket descriptors. • All sockets are set using O_NDELAY flag (non-blocking) • Single address space aids sharing for performance • File reads and writes don't have non-blocking support, thus helper processes (AMPED architecture) • Point is to exploit concurrency/parallelism: • Can read one socket while waiting to write on another • Event notification: • Mechanism for kernel and application to notify each other of interesting/important events • E.g., connection arrivals, socket closes, data available to read, space available for writing Erich Nahum

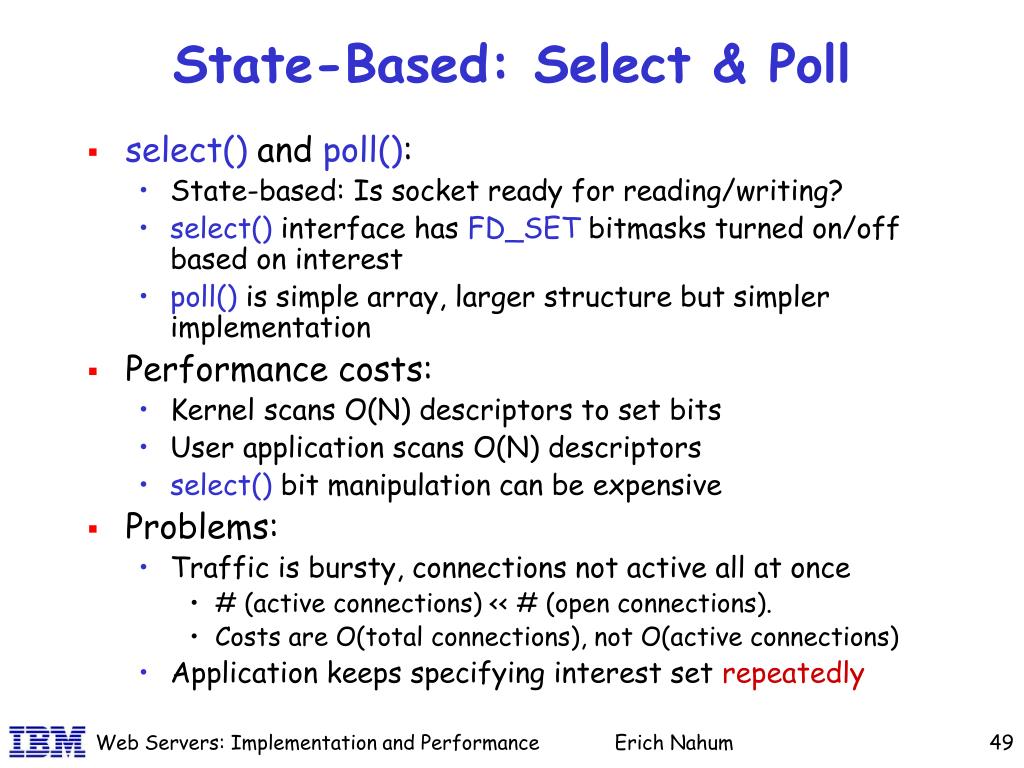

  49. State-Based: Select & Poll • select() and poll(): • State-based: Is socket ready for reading/writing? • select() interface has FD_SET bitmasks turned on/off based on interest • poll() is simple array, larger structure but simpler implementation • Performance costs: • Kernel scans O(N) descriptors to set bits • User application scans O(N) descriptors • select() bit manipulation can be expensive • Problems: • Traffic is bursty, connections not active all at once • # (active connections) << # (open connections). • Costs are O(total connections), not O(active connections) • Application keeps specifying interest set repeatedly Erich Nahum

  50. Event-Based Notification Banga, Mogul & Druschel (USENIX 99) • Propose an event based approach, rather than state-based: • Something just happened on socket X, rather than socket X is ready for reading or writing • Server takes event as indication socket might be ready • Multiple events can happen on a single socket (e.g., packets draining (implying writeable) or accumulating (readable)) • API has following: • Application notifies kernel by calling declare_interest() once per file descriptor (e.g., after accept()), rather than multiple times like in select()/poll() • Kernel queues events internally • Application calls get_next_event() to see changes Erich Nahum
