  1. IBMKVM Solution

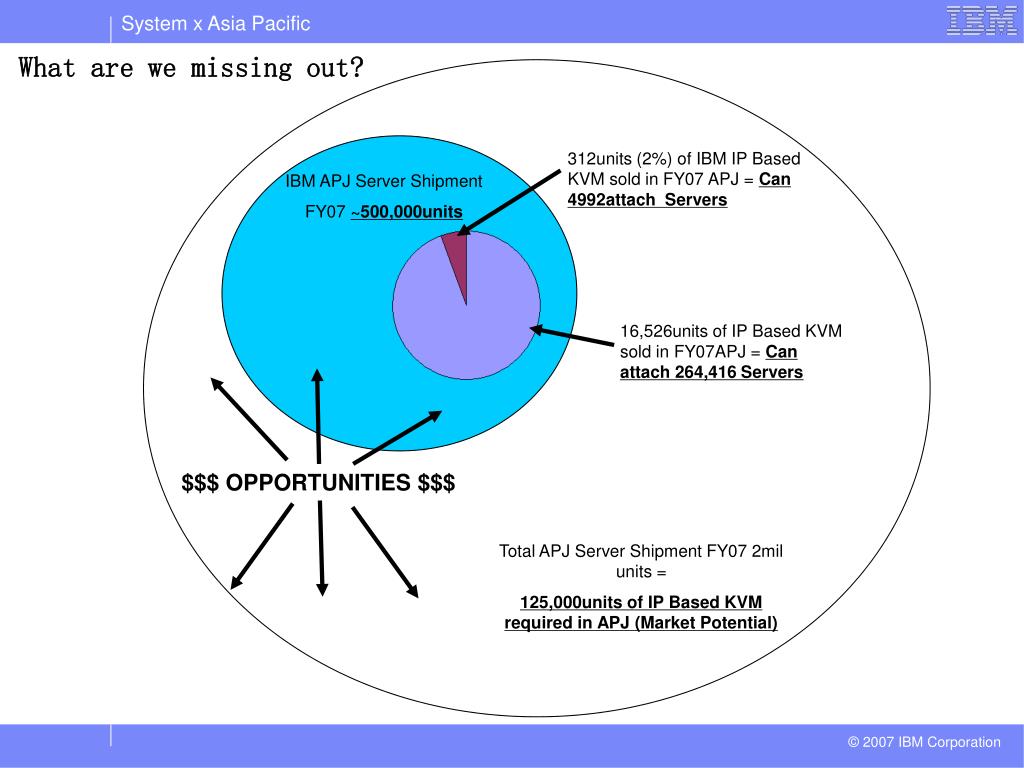

  2. What are we missing out? 312units (2%) of IBM IP Based KVM sold in FY07 APJ = Can 4992attach Servers IBM APJ Server Shipment FY07 ~500,000units 16,526units of IP Based KVM sold in FY07APJ = Can attach 264,416 Servers $$$ OPPORTUNITIES $$$ Total APJ Server Shipment FY07 2mil units = 125,000units of IP Based KVM required in APJ (Market Potential)

  3. Where to Sell IBM KVM?

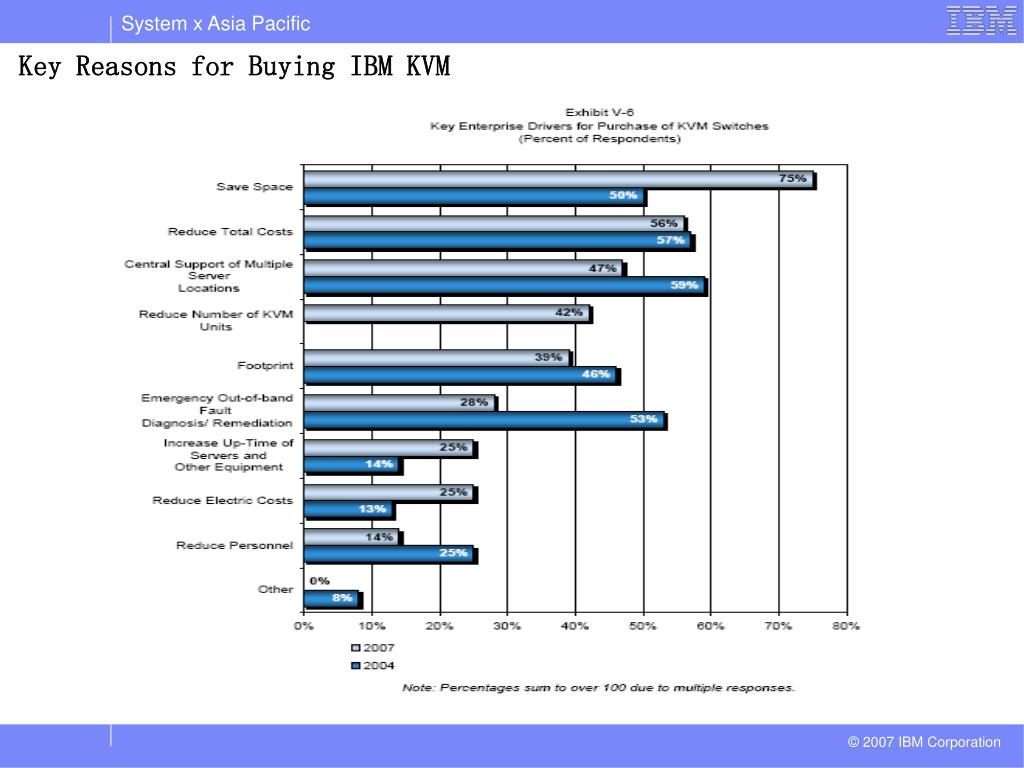

  4. Key Reasons for Buying IBM KVM

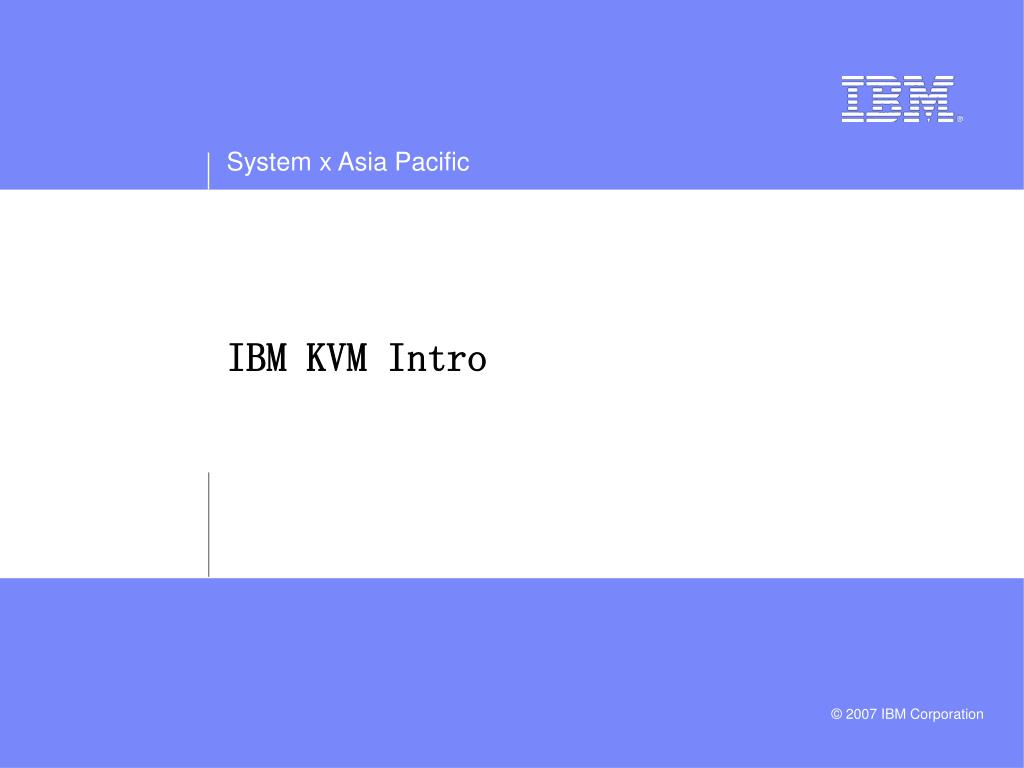

  5. IBM KVM Intro

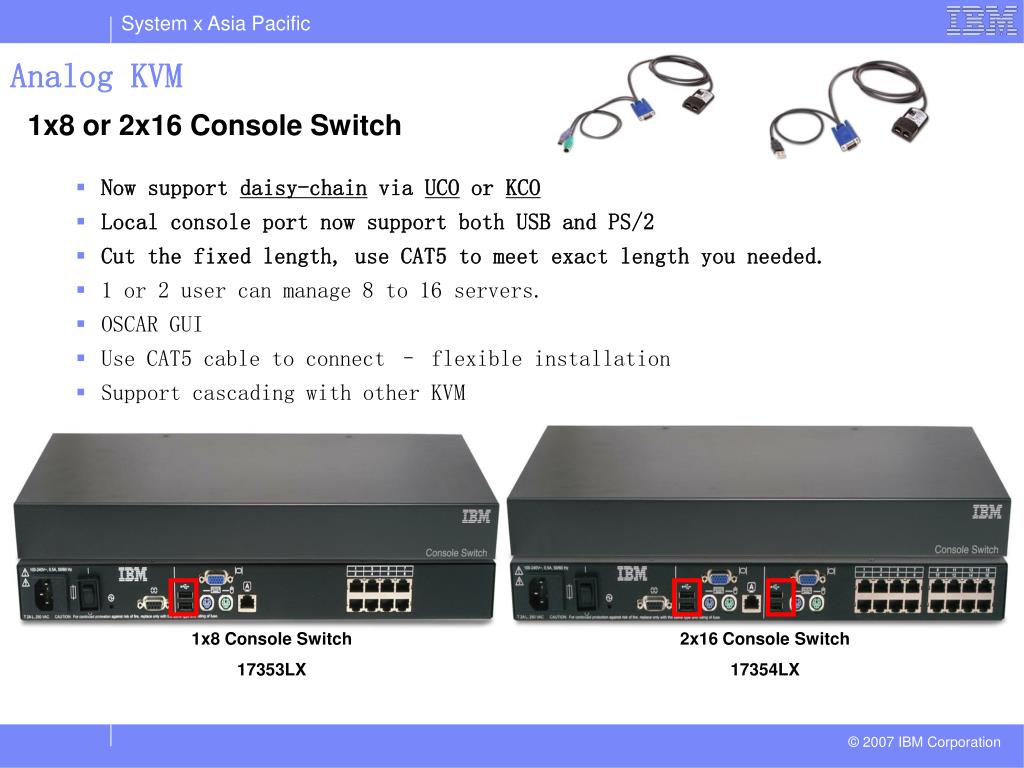

  6. Analog KVM 1x8 or 2x16 Console Switch • Now support daisy-chain via UCO or KCO • Local console port now support both USB and PS/2 • Cut the fixed length, use CAT5 to meet exact length you needed. • 1 or 2 user can manage 8 to 16 servers. • OSCAR GUI • Use CAT5 cable to connect – flexible installation • Support cascading with other KVM 1x8 Console Switch 17353LX 2x16 Console Switch 17354LX

  7. IBM LCM2 • LCM2: • 2 localusers x 8 server ports • Local console ports support both USB and PS/2 • Support daisy-chain • Can use virtual media when connected via VCO cable • Support 3 levels cascading Local console A Local console B Power (ARI) server port Serial port Local USB port, can connect USB Keyboard, mouse and other USB devices FW upgrade only (ACI) Tiering port VCO cable: must use it for virtual media feature

  8. IBM analog KVM cabling Connect your local keyboard, mouse and video to local console port Use OSCAR to access servers Connect UCO or KCO to servers Use CAT5 cable connect UCO or KCO to KVM UCO and KCO cable support daisy-chain, up to 16 servers can be attached in 1 daisy-chain Connect your local keyboard, mouse and video to local console ports Connect UCO or KCO to servers Use OSCAR to access servers

  9. IBM Digital KVM (GCM2 and GCM4) Local console port supports USB, PS/2 keyboard and mouse Can connect 16 servers This is a IBM GCM2 KVM It has 1 Local console port for local user, support 2 remote users It has 16 server ports connect to servers This is a IBM GCM4 KVM It has 1 Local consoles port for local users, support 4 remote users It has 16 server ports connect to servers Local console port supports USB, PS/2 keyboard and mouse Can connect 16 servers

  10. IBM Digital KVM cabling 2 (using GCM2) or 4 (using GCM4) remote users access from network Connect to existing IP infrastructure 1 Local console port Remote users use VCS or web browser to access servers Local user use OSCAR to access servers or Use CAT5 cable connect UCO, KCO or VCO to KVM Connect UCO, KCO or VCO to servers . . . . . Attach 16 direct target Servers

  11. KVM installation

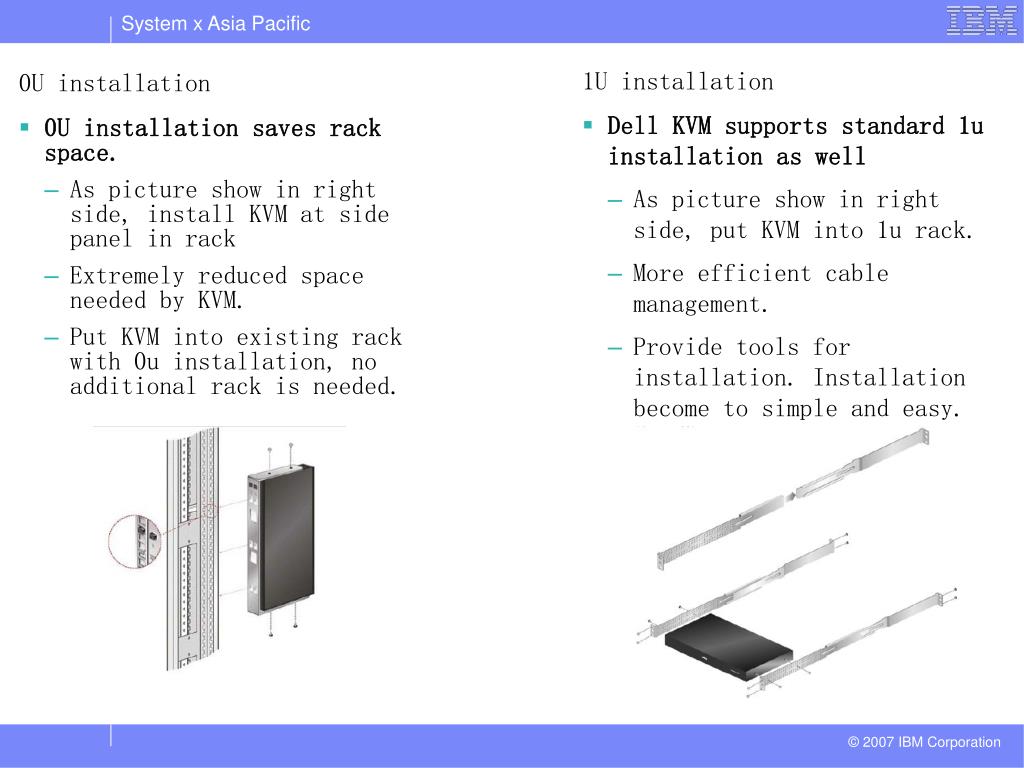

  12. 1U installation 0U installation • Dell KVM supports standard 1u installation as well • As picture show in right side, put KVM into 1u rack. • More efficient cable management. • Provide tools for installation. Installation become to simple and easy. • 0U installation saves rack space. • As picture show in right side, install KVM at side panel in rack • Extremely reduced space needed by KVM. • Put KVM into existing rack with 0u installation, no additional rack is needed.

  13. VCS and IBM digitalKVM feature

  14. VCS - Virtual Console Software • We can use VCS to do almost all tasks of GCM2/4 • VCS is a software that we are design for remote user access KVM. • VCS can configure KVM, access target server, FW upgrade and so on. • VCSalso can enable SNMP service, integrate with LDAP, encrypt data. • VCSis free for customer, and LDAP license KEY is free for customer too.

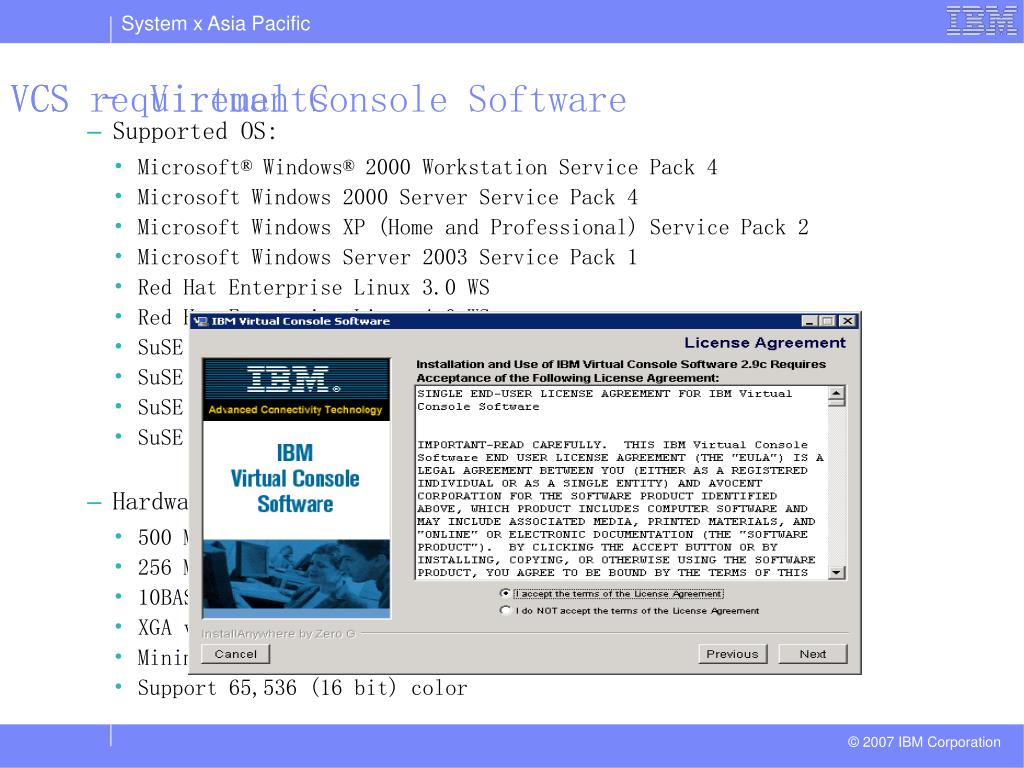

  15. VCS – Virtual Console Software VCS requirements • Supported OS: • Microsoft® Windows® 2000 Workstation Service Pack 4 • Microsoft Windows 2000 Server Service Pack 4 • Microsoft Windows XP (Home and Professional) Service Pack 2 • Microsoft Windows Server 2003 Service Pack 1 • Red Hat Enterprise Linux 3.0 WS • Red Hat Enterprise Linux 4.0 WS • SuSE Linux Enterprise Server 8 • SuSE Linux Enterprise Server 9 • SuSE Linux 9.2 • SuSE Linux 9.3 • Hardware requirements: • 500 MHz Pentium III • 256 MB RAM • 10BASE-T or100BASE-T NIC • XGA video card with acceleration • Minimal resolution 800 x 600 • Support 65,536 (16 bit) color

  16. IBM digital KVM features Digital KVMunique features 1. Scan mode -can scan up to 16 servers in a window. -PCAnywhere andTerminal Services or any other software solution does not support this. 2. Digital sharing -3 modes are active, passive and stealth mode 3. Virtual Media -user can map a USB device to target server via remote or local. 4. Integrated with LDAP -authorization and authentication by a centre user database -LDAP license KEY included (Free) 5. Unlimited scalability -you can add digital KVM to existing analogue KVM environment to gain ability of remote access.

  17. Scan mode

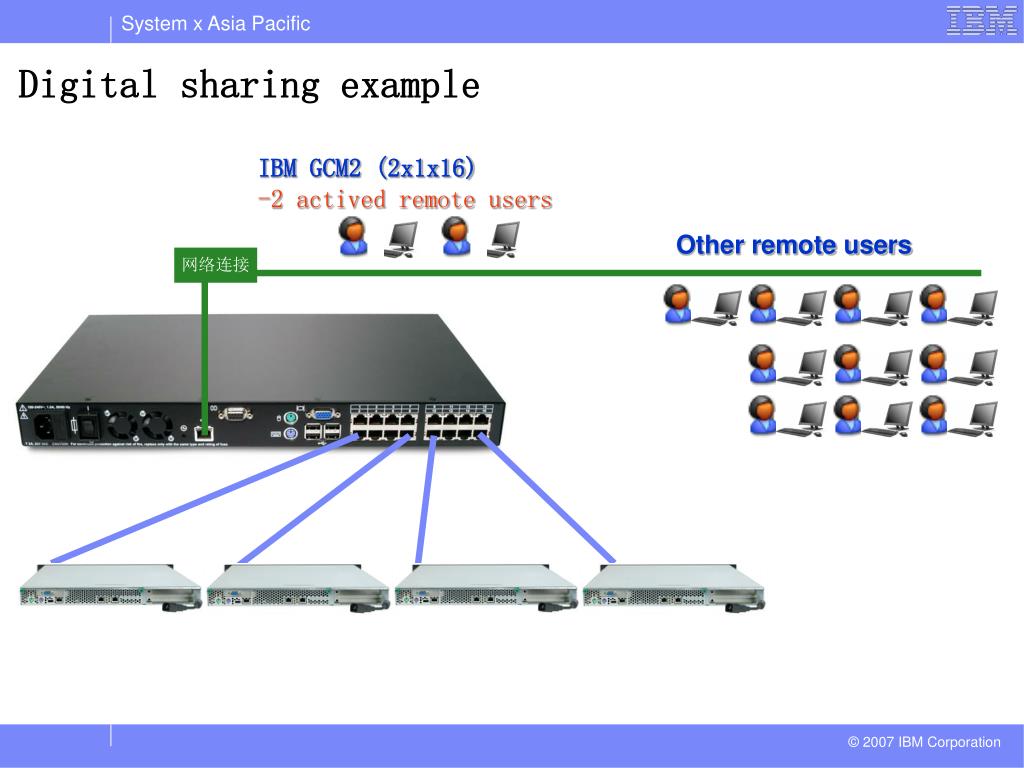

  18. Digital sharing example IBM GCM2 (2x1x16) -2 actived remote users Other remote users 网络连接

  19. Remote virtual media example VCO adapter USB CD-ROM USB CD-ROM

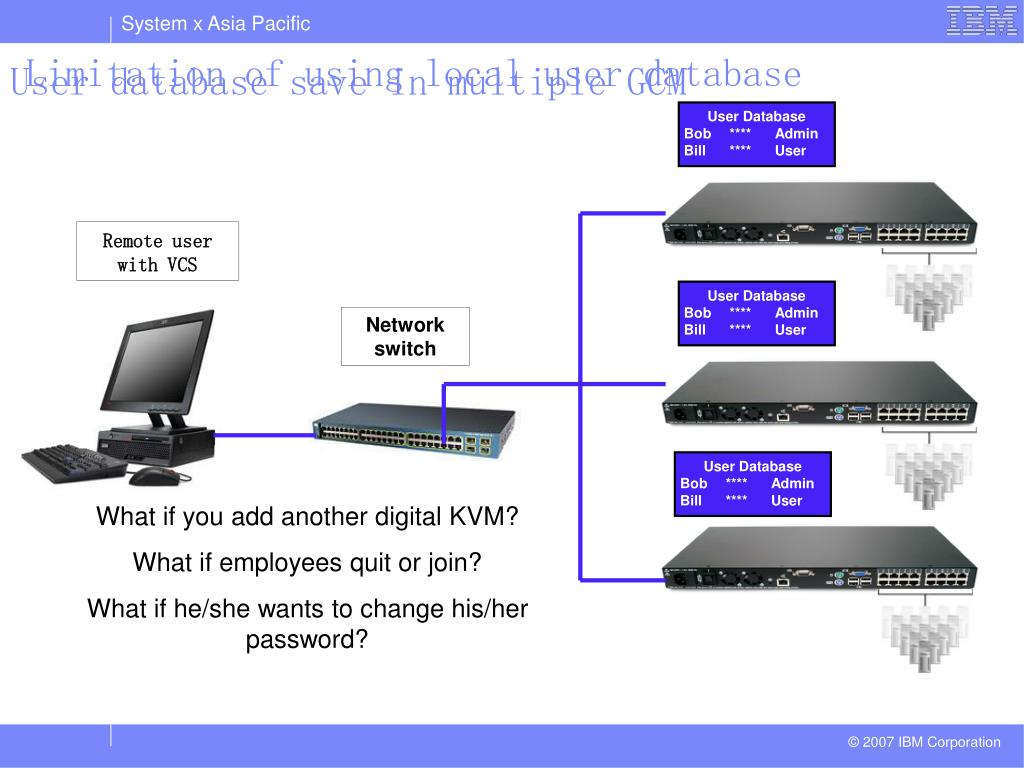

  20. Limitation of using local user database User database save in multiple GCM User Database Bob **** Admin Bill **** User Remote user with VCS User Database Bob **** Admin Bill **** User Network switch User Database Bob **** Admin Bill **** User What if you add another digital KVM? What if employees quit or join? What if he/she wants to change his/her password?

  21. Integrate with LDAP Remote user running VCS Network switch • use existing centre user database to save user information • avoid user database redundancy • can use existing group and accounts Existing User Database abc **** Admin xyz **** User AD server

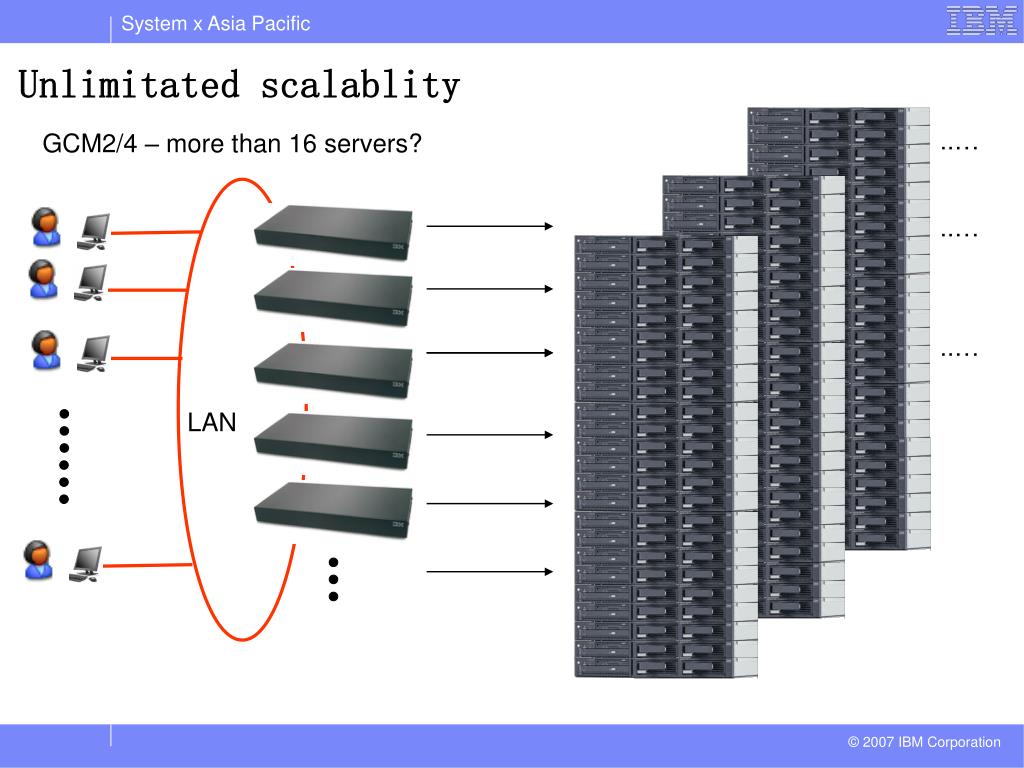

  22. Unlimitated scalablity ..… GCM2/4 – more than 16 servers? ..… ..… LAN

  23. Directly Cascade with other KVM Via daisy-chain Method to connect a server Use CAT5 or above to connect

  24. IBM LCM2 3 levels cascading (max 512 servers) Local console port IBM LCM2 (2x8) KVM CAT5 (ACI) tiering port 8Units of IBM LCM2 (2x8) KVM 64units ofIBM LCM2 (2x8) KVM CAT5 512 servers

  25. IBM GCM2/4 3 levels cascading (max 2048 servers) Local console port Network port IBM GCM2/4 KVM CAT5 (ACI) tiering port 16Units of IBM LCM2 (2x8) KVM 128units ofIBM 2X16 KVM CAT5 2048 servers

  26. Note when you cascading: • Use a CAT5 cable connect to top level KVM server port, and another end of CAT5 connect to second level KVM ACI port. • Maximum cascading is 3 levels. • Maximum servers can be attached on KVM is 2048(16x8x16) • One of local console port of second level KVM will be blocked when cascading • Digital KVM does not cascade each other • Digital KVM must be first level when cascading.

  27. New features added!!! • IBM GCM2/4 will support OBWI (on-board web interface) technology. It is another way to access GCM2/4 via web browser. • Avocent DSView 3.6 (will release soon) has ability to access GCM2/4 (a plug-in is required). Both Avocent KVM and IBM GCM2/4 can be managed by DSView 3.6.

  28. IBM 2x16 analog KVMswitch List around USD3,199 with 16 UCO adapters Can cascade to manage maximum 256 servers It has 2 local console ports User work at local only IBM GCM2 (2x1x16)digital KVM List around USD5,999 with 16 UCO adapters Can cascade to manage maximum 256 servers It supports 1 local user and 2 remote users access concurrently User could access target server in anytime at anywhere across world Saves travel time and travel expenses Minimizes downtime Provides the same access as at-the-rack Leverage current resources across multiple locations View all servers from a single screen Digital KVM can save more $ than analog does!!! $$$ Price differences: USD2,800 Value or Cost opportunities of having the power to be there without being there physically: Priceless… $$$ $$$

  29. IBM Digital KVM (GCM2 and GCM4) Local console port supports USB, PS/2 keyboard and mouse Can connect 16 servers This is a IBM GCM2 KVM It has 1 Local console port for local user, support 2 remote users It has 16 server ports connect to servers This is a IBM GCM4 KVM It has 1 Local consoles port for local users, support 4 remote users It has 16 server ports connect to servers Local console port supports USB, PS/2 keyboard and mouse Can connect 16 servers

  30. IBM iDataPlex – MP5300

  31. MergePoint 5300 Appliance Details • 1U rack mount appliance • Two Ethernet ports • Serial console for initial setup • User interfaces: Web UI and CLI (based on SMASH CLP) • 1 model, includes support for 64 targets • Optional licenses for additional 64 or 128 targets • Up to 256 targets per appliance © 2008 AVOCENT CORPORATION

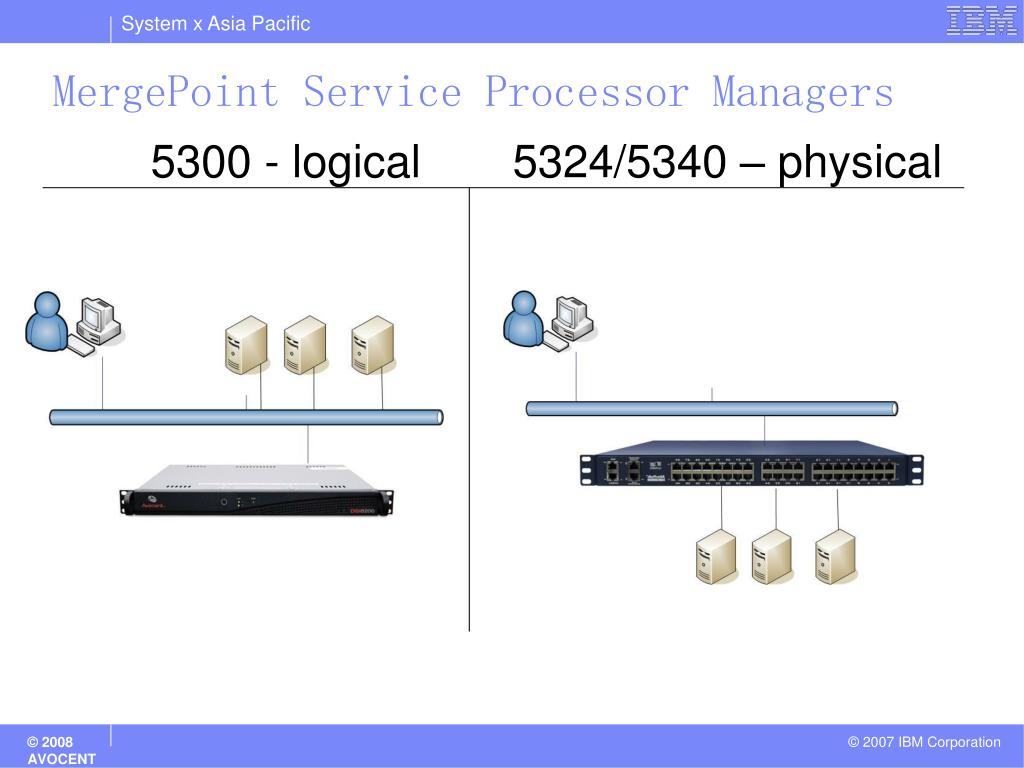

  32. MergePoint Service Processor Managers 5300 - logical 5324/5340 – physical © 2008 AVOCENT CORPORATION

  33. Common Service Processors © 2008 AVOCENT CORPORATION

  34. MergePoint – Supported SPs • IPMI 1.5 • IPMI 2.0 • HP integrated Lights Out (iLO) • Dell Remote Access Cards (DRAC III XT) • IBM RSA (RSA II) • Sun ALOM • Sun ILOM © 2008 AVOCENT CORPORATION

  35. Thank you… Terence Teng OEM Sales Director – APAC Avocent Corporation, OEM Division Mobile Phone: +65-90018808 Terence.Teng@avocent.com Wei pengchong OEM Sales engineer Avocent Corporation, OEM Division Mobile Phone: +86-136 5164 9889 Pengchong.wei@avocent.com CheeKeong Ooi OEM Sales engineer Avocent Corporation, OEM Division Mobile Phone: +6012 455 5506 cheekeong.ooi@avocent.com
