Nanoimprint Lithography for Hybrid Plastic Electronics Michael C. McAlpine, Robin S. Friedman, and Charles M. Lieber Harvard UniVersity Chieh Chang EE 235 – Presentation I March 20, 2007

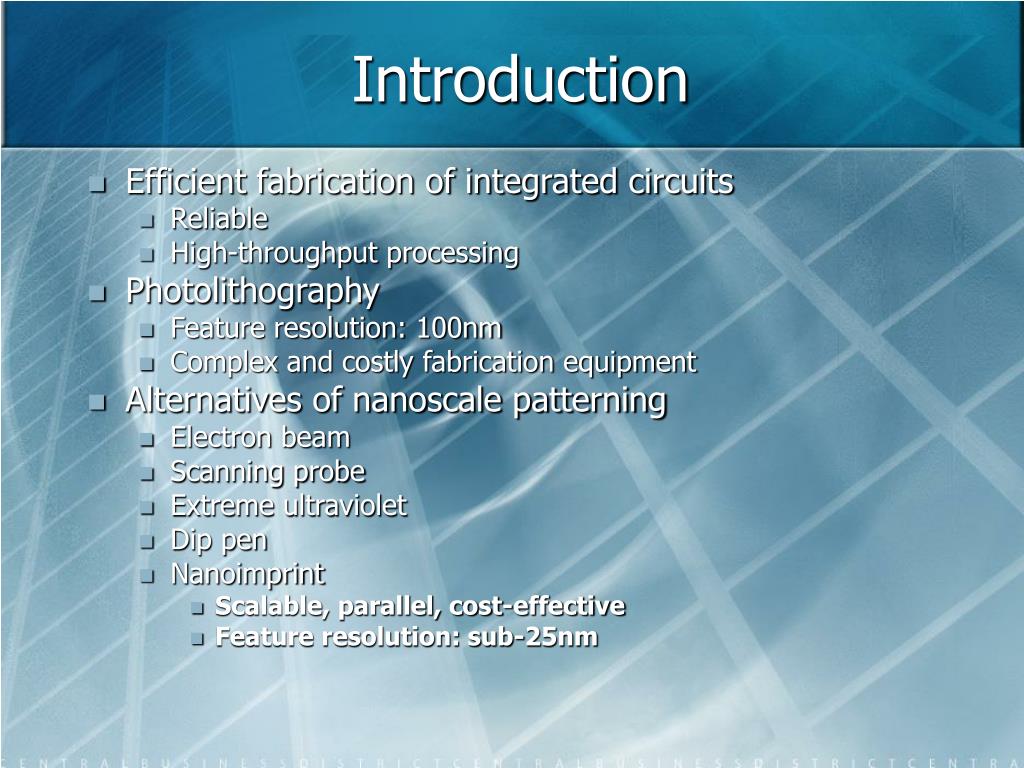

Introduction • Efficient fabrication of integrated circuits • Reliable • High-throughput processing • Photolithography • Feature resolution: 100nm • Complex and costly fabrication equipment • Alternatives of nanoscale patterning • Electron beam • Scanning probe • Extreme ultraviolet • Dip pen • Nanoimprint • Scalable, parallel, cost-effective • Feature resolution: sub-25nm

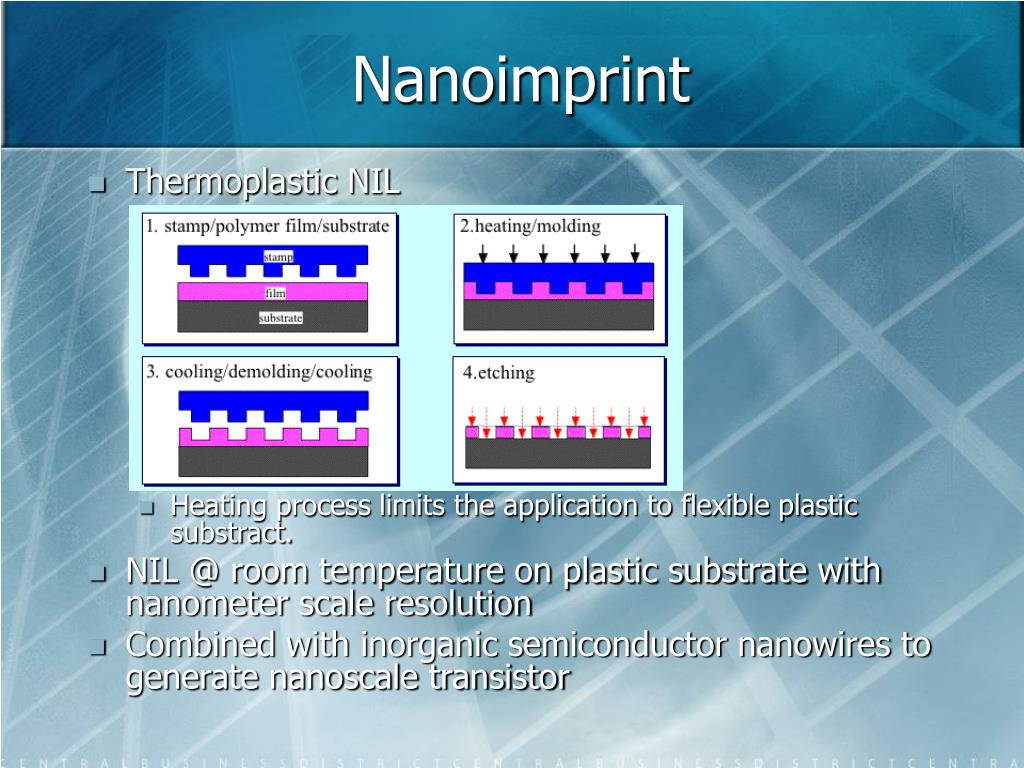

Nanoimprint • Thermoplastic NIL • Heating process limits the application to flexible plastic substract. • NIL @ room temperature on plastic substrate with nanometer scale resolution • Combined with inorganic semiconductor nanowires to generate nanoscale transistor

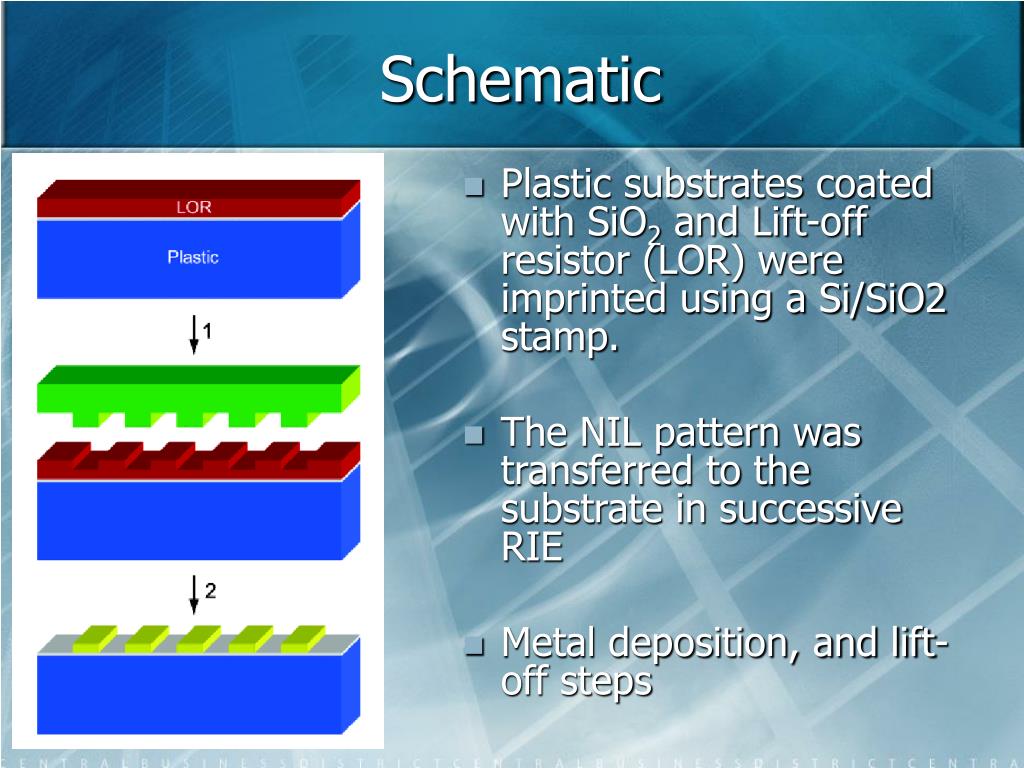

Schematic • Plastic substrates coated with SiO2 and Lift-off resistor (LOR) were imprinted using a Si/SiO2 stamp. • The NIL pattern was transferred to the substrate in successive RIE • Metal deposition, and lift-off steps

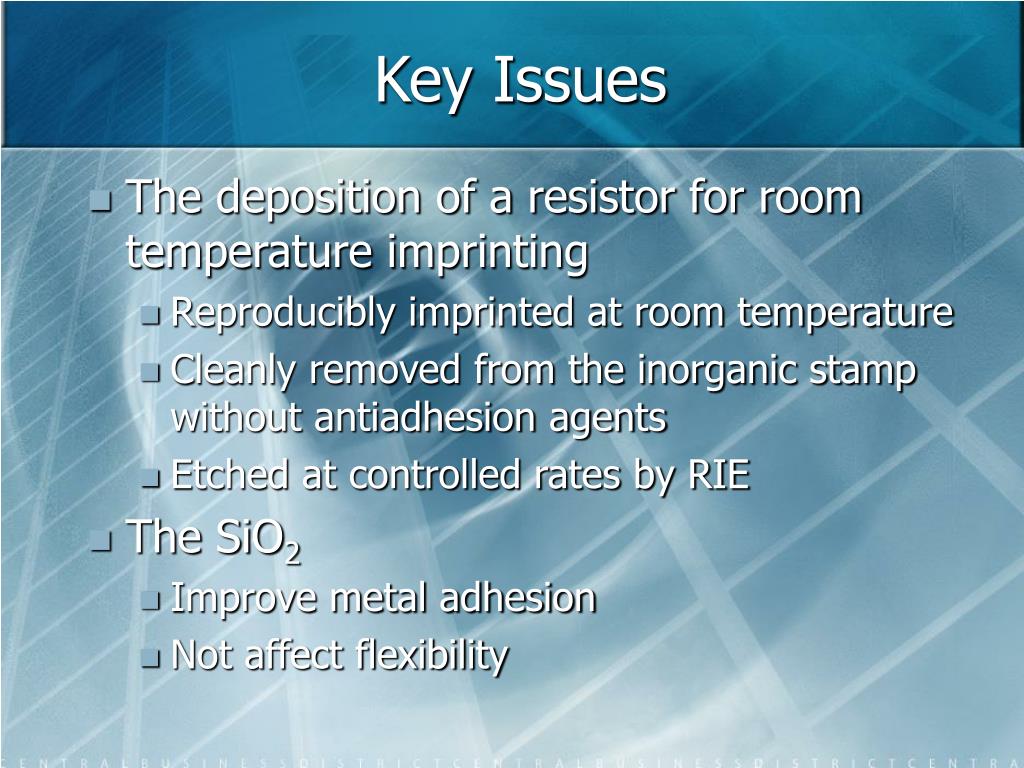

Key Issues • The deposition of a resistor for room temperature imprinting • Reproducibly imprinted at room temperature • Cleanly removed from the inorganic stamp without antiadhesion agents • Etched at controlled rates by RIE • The SiO2 • Improve metal adhesion • Not affect flexibility
Results • (A) Optical image of S-D array and interconnect wires; scale bar, 100 um • (B) Optical image of 200 nm S-D lines and 1 um interconnect lines; scale bar, 25 um • (C) SEM image of S-D array of 2um pitch, and 500nm gap; scale bar ,20 um • (Inset) SEM image of 200 nm width channel lines; scale bar, 200nm
Results • (D) Optical image of patterned Mylar substrate • (E) Optical image of hierarchically patterned arrays of gate electrodes; scale bar, 100 um • (Inset) SEM image of a gate array block, where corner squares are alignment marks; scale bar, 5 um

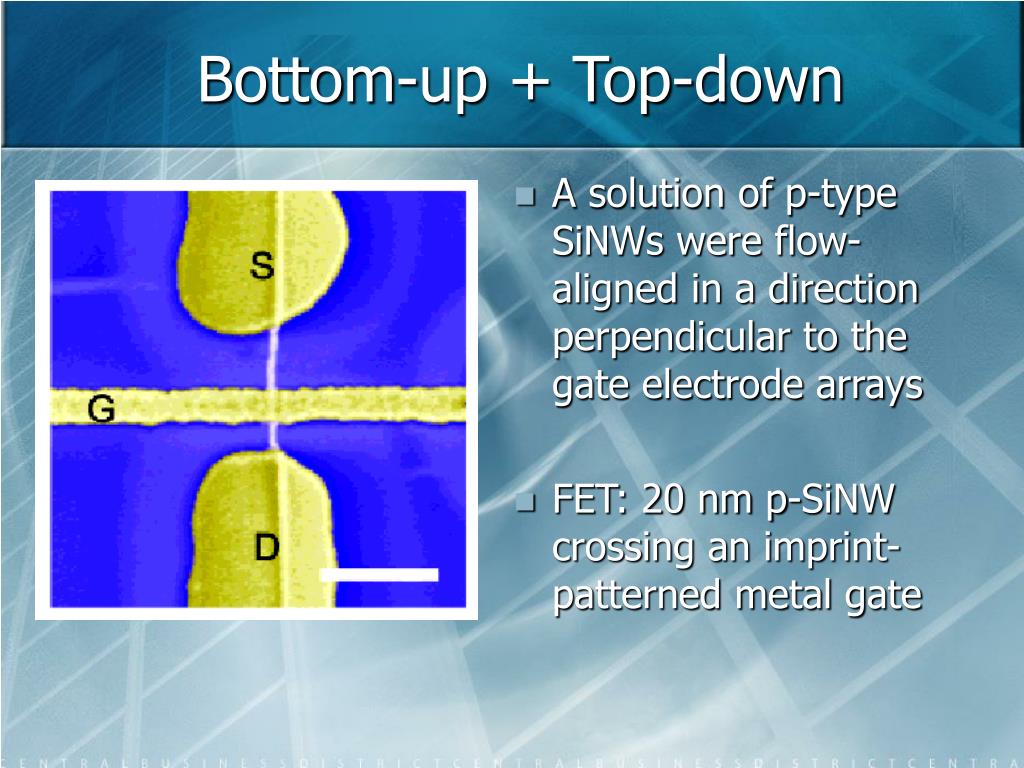

Bottom-up + Top-down • A solution of p-type SiNWs were flow-aligned in a direction perpendicular to the gate electrode arrays • FET: 20 nm p-SiNW crossing an imprint-patterned metal gate
Measurement • Current versus S-D voltage (I-Vsd) data recorded on a typical crossed-junction p-SiNW FET. • The S-D contacts are ohmic. • As Vg is increased, the slopes of the individual I-Vsd curves decrease as expected for a p-type FET.

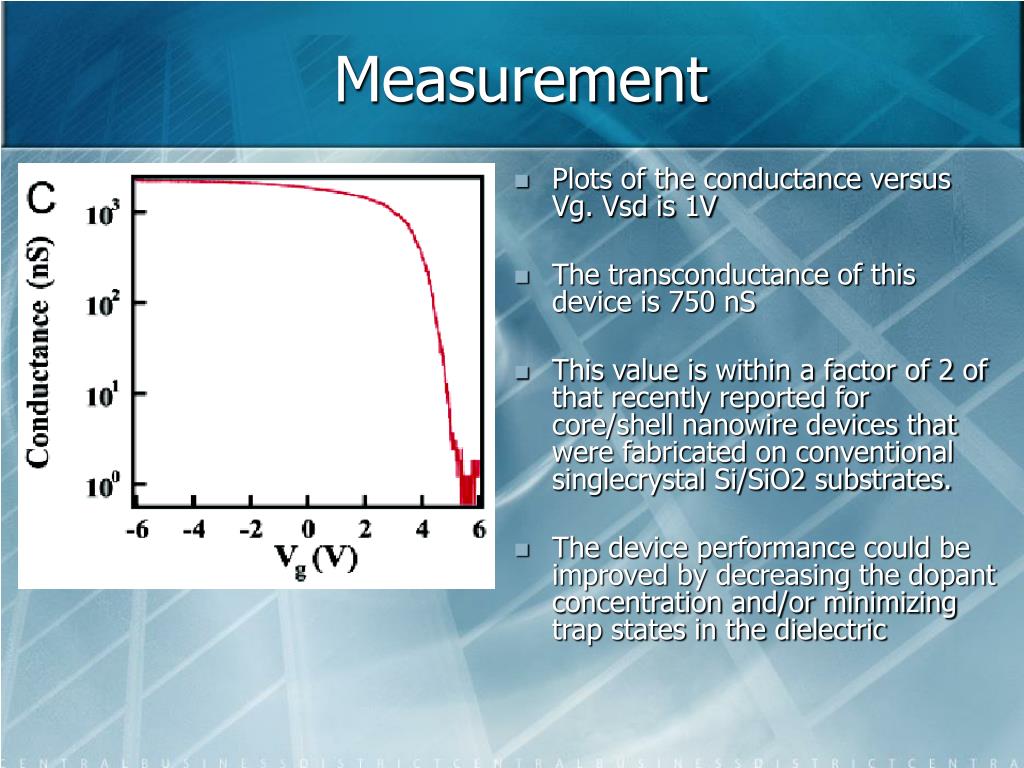

Measurement • Plots of the conductance versus Vg. Vsd is 1V • The transconductance of this device is 750 nS • This value is within a factor of 2 of that recently reported for core/shell nanowire devices that were fabricated on conventional singlecrystal Si/SiO2 substrates. • The device performance could be improved by decreasing the dopant concentration and/or minimizing trap states in the dielectric

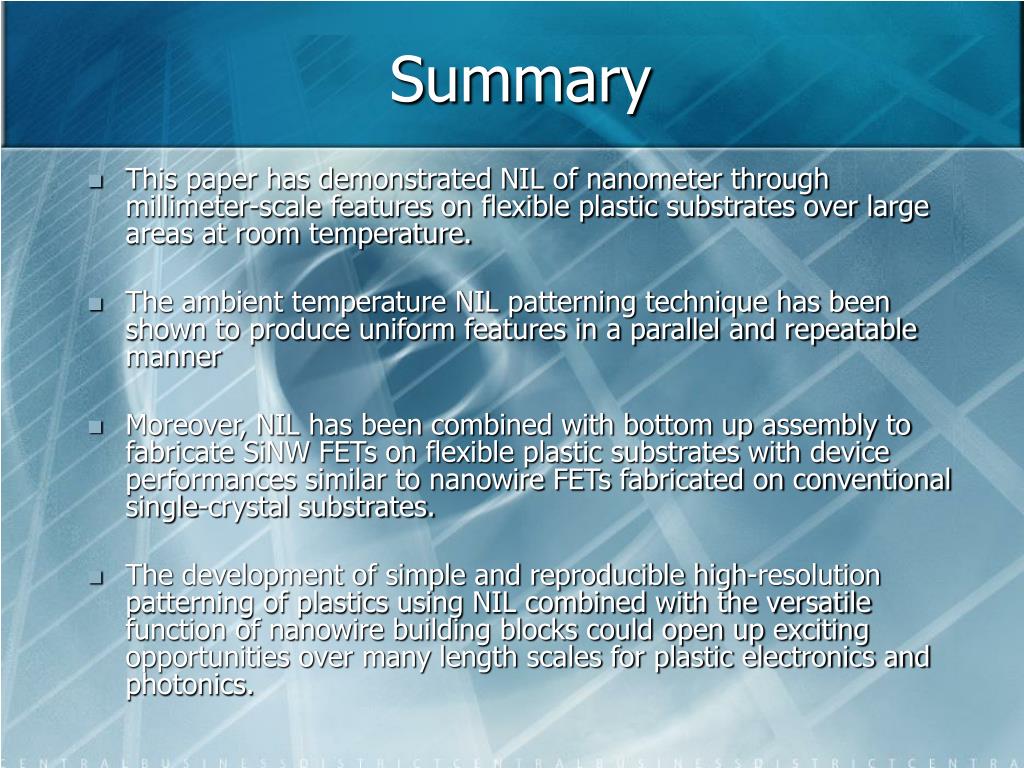

Summary • This paper has demonstrated NIL of nanometer through millimeter-scale features on flexible plastic substrates over large areas at room temperature. • The ambient temperature NIL patterning technique has been shown to produce uniform features in a parallel and repeatable manner • Moreover, NIL has been combined with bottom up assembly to fabricate SiNW FETs on flexible plastic substrates with device performances similar to nanowire FETs fabricated on conventional single-crystal substrates. • The development of simple and reproducible high-resolution patterning of plastics using NIL combined with the versatile function of nanowire building blocks could open up exciting opportunities over many length scales for plastic electronics and photonics.
