The dynamical behavior of surface roughness in a random-walker model

2005 년도 가을물리학회 학술발표 대회. The dynamical behavior of surface roughness in a random-walker model. B young-sun A HN , Sooyeon Y OON, Soon-Hyung YOOK, Y up KIM Dept. of Phys. , Kyung Hee Univ. 2. Introduction. Flux fluctuation σ :.

luke
Télécharger la présentation

The dynamical behavior of surface roughness in a random-walker model

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

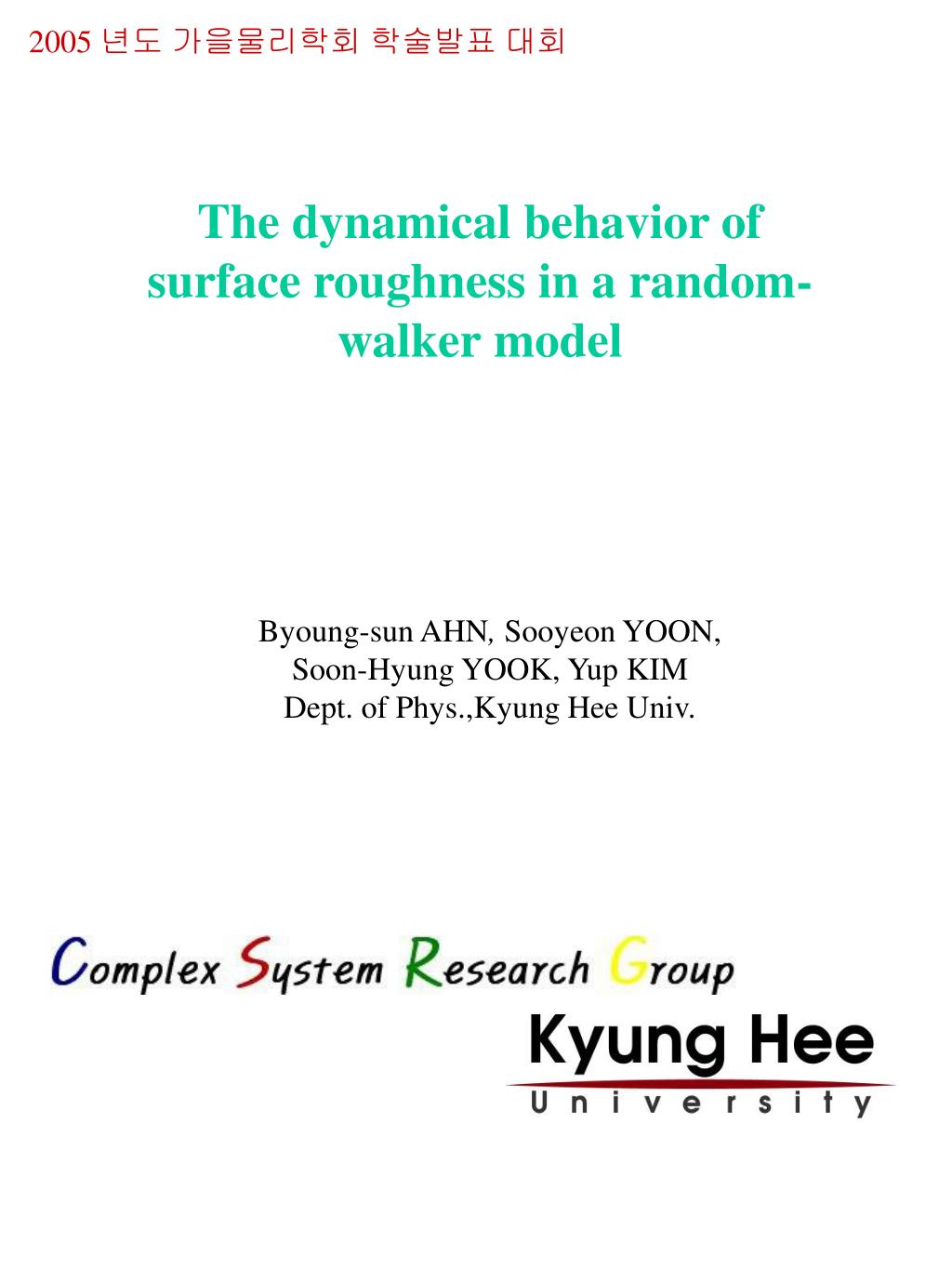

  1. 2005 년도 가을물리학회 학술발표 대회 The dynamical behavior of surface roughness in a random-walker model Byoung-sun AHN, Sooyeon YOON, Soon-Hyung YOOK, YupKIM Dept. of Phys.,Kyung Hee Univ.

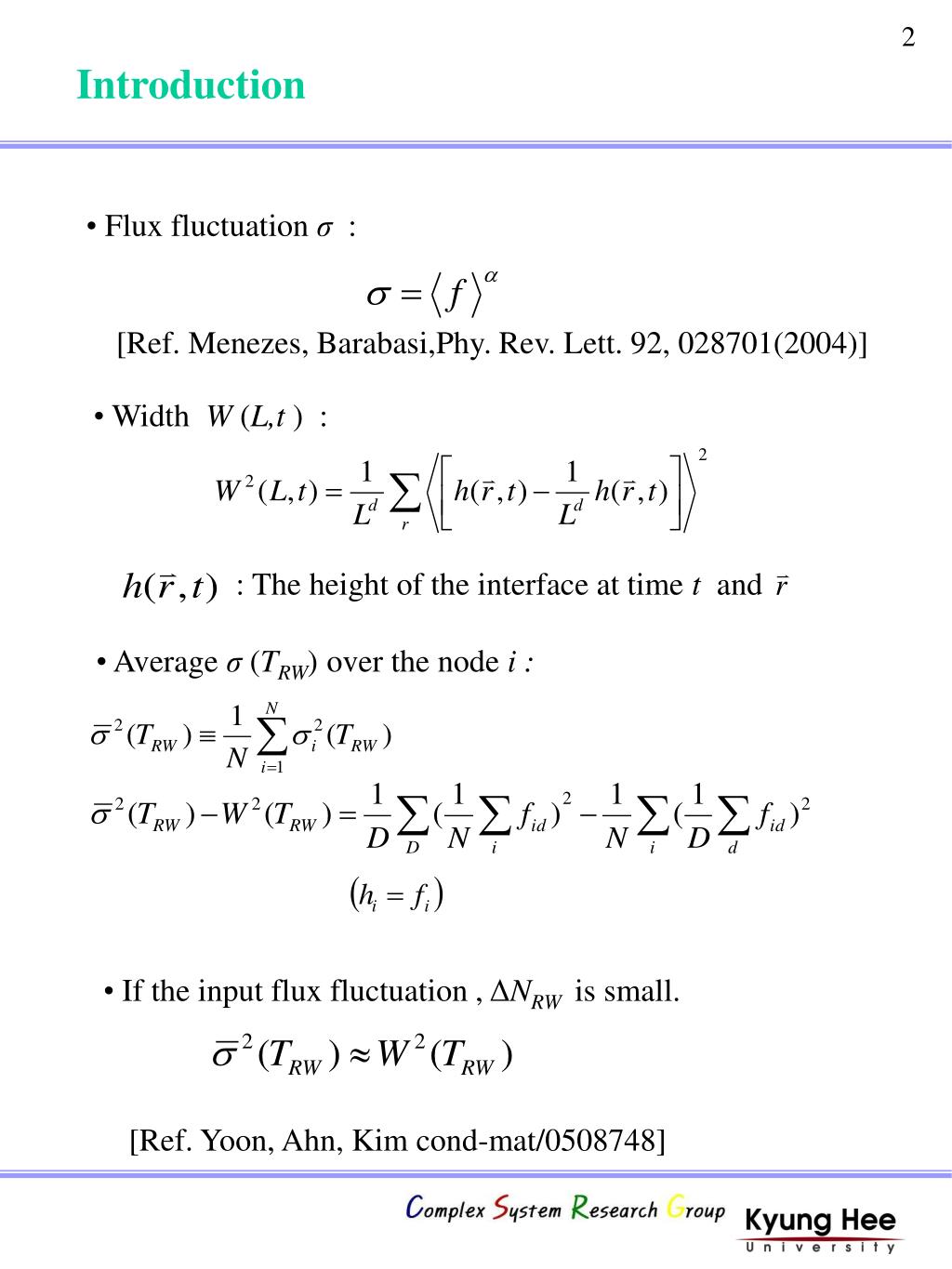

  2. 2 Introduction • Flux fluctuation σ : [Ref. Menezes, Barabasi,Phy. Rev. Lett. 92, 028701(2004)] • Width W (L,t ) : : The height of the interface at time t and • Average σ(TRW) over the node i : • If the input flux fluctuation , ΔNRW is small. [Ref. Yoon, Ahn, Kim cond-mat/0508748]

  3. 3 • Random walks on Lattices (homogenous networks) and Networks.

  4. 4  RWs on Graph with finite sizes.

  5. 5

  6. R.W 6 Model • A random walker starts from a randomly selected site (or node) i. • The random walker drops a particle (hi  hi+1 or • fi  fi+1) onto a site (or node) where the random walker visits. • We used regular lattice (1D, 2D and 3D) & • complex network (RN, SFN)

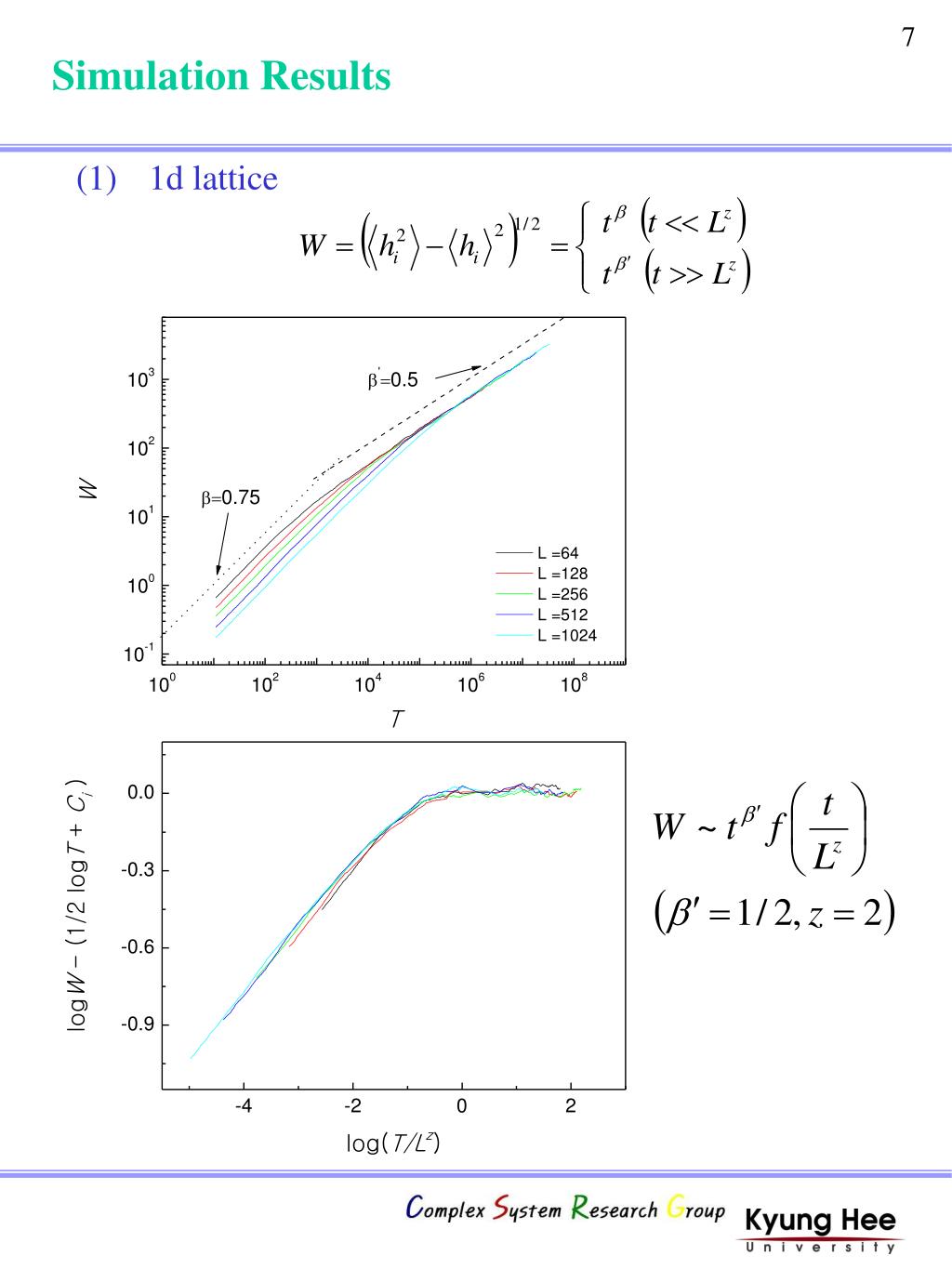

  7. 7 Simulation Results • 1d lattice

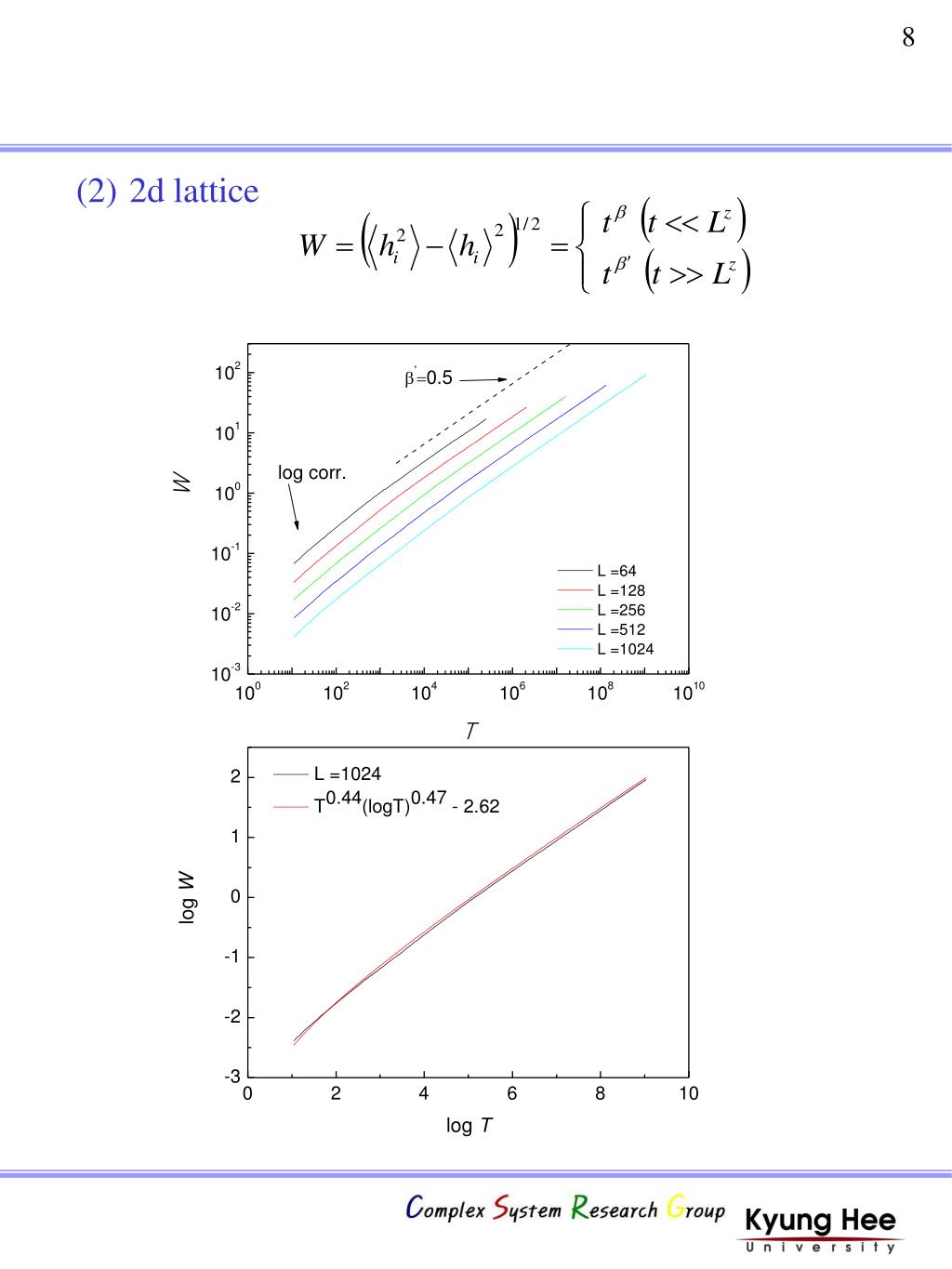

  8. 8 (2)2d lattice

  9. 9 (3)3d lattice

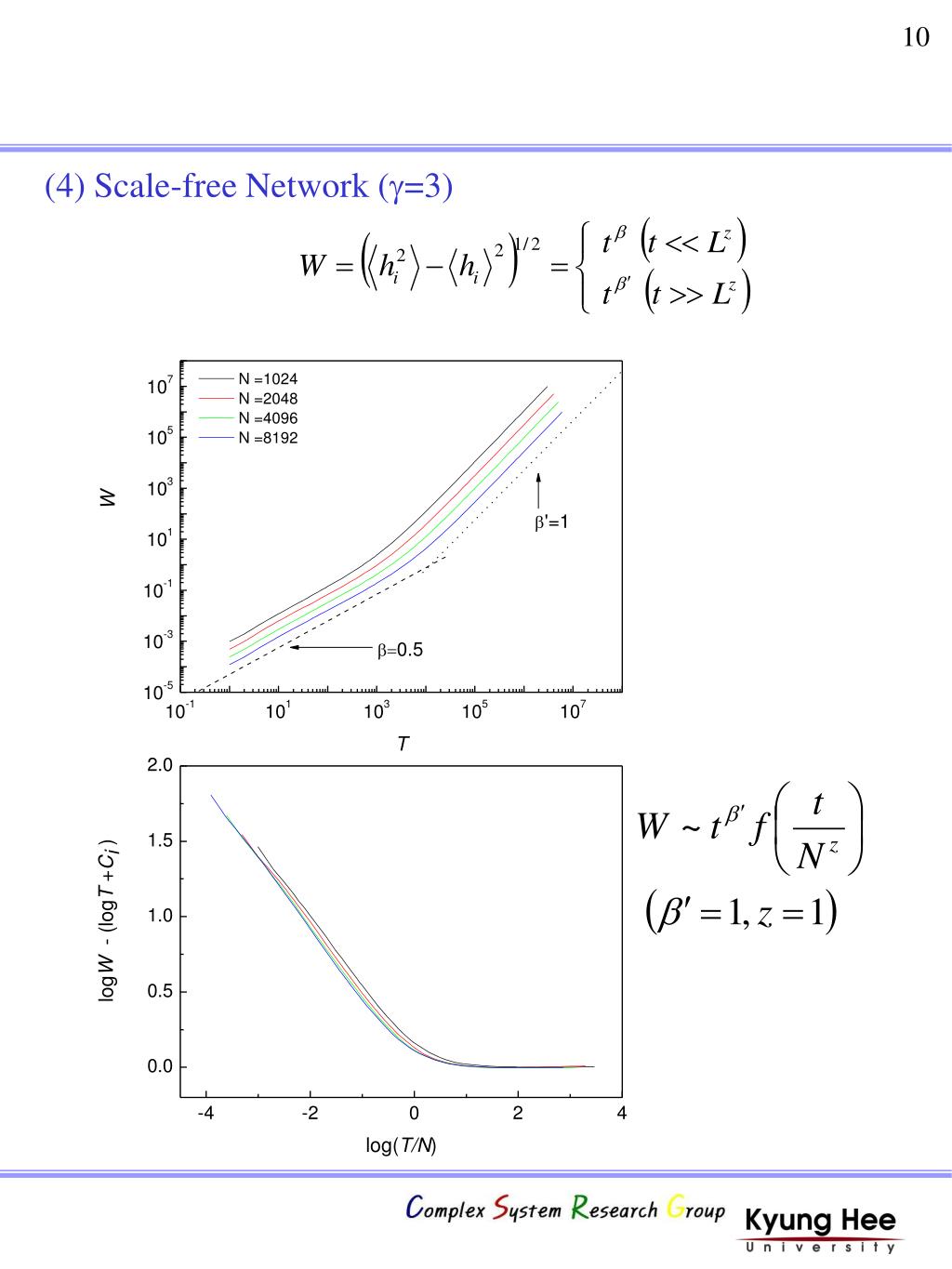

  10. 10 (4) Scale-free Network (=3)

  11. 11 (5) Random Network

  12. 12 Multiple Random Walkers 1d lattice L=10000, NRW=10000 Complex Network N=10000, NRW=10000

  13. 13 Summary ★ Width Correlated noise random noise Random noise random noise ★ Flux fluctuation Complex network : α = 0.5 (for all T )
