1. Troubleshooting Group Policy Jeremy Moskowitz, Group Policy MVP Chief Propeller-Head: GPanswers.com Founder: PolicyPak Software (policypak.com) Twitter: @jeremymoskowitz

2. Our Trouble Spot Road Map • New Areas – New potential problems • Updated “under the hood” changes • The Central Store. The “Why” and “Problems” • Updated logging model • RSoP differences for Windows XP vs. Windows Vista+ clients • Troubleshooting Group Policy Preference Extensions

3. Under the hood changes • “No Brain energy required” • Group Policy runs as a “hardened” service • 3rd party CSEs are isolated • Changes in behavior when clients are offline for a while… (next slide)

4. Network Location Awareness: NLA 2.0 • Offline for a while? Get Group Policy next time you connect. • No more “ping”/ ICMP requirement • Key takeaway: • Group Policy refreshes only if you missed your last refresh cycle

5. NLA / Reporting • Look for NLA events with slow ? fast link transitions

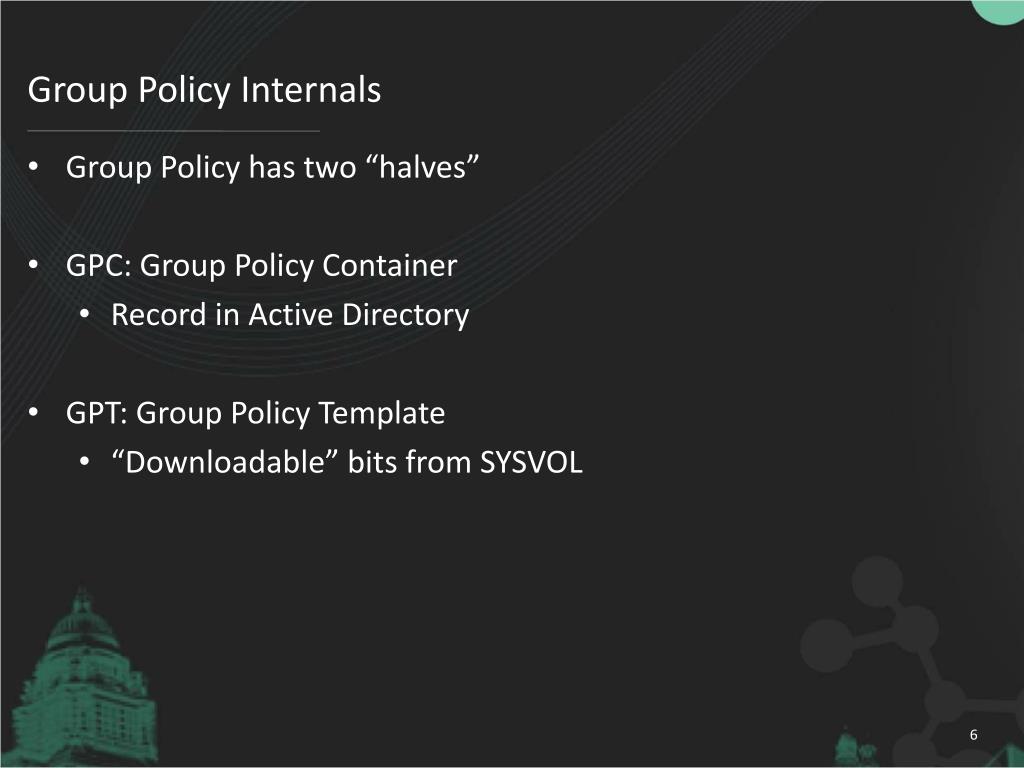

6. Group Policy Internals • Group Policy has two “halves” • GPC: Group Policy Container • Record in Active Directory • GPT: Group Policy Template • “Downloadable” bits from SYSVOL

7. Group Policy Troubleshooting (for the GPO iteself) • GPOtool • Determines general GPO health • Litmus Tests: • Creating new user in Active Directory Users & Computers • Creating new .txt file in SYSVOL • Deeper SYSVOL / DFS problems • Sonar • Ultrasound • “Troublehsooting FRS” • www.tinyurl.com/7lt5

8. Why did Microsoft move away from ADM files? • ADM files • Conf.adm • Inetres.adm • System.adm • Wmplayer.adm • Wuau.adm • Simple • But … problems (next page)

9. Problems to Solve • 1: How do we prevent burning 4MB within each Group Policy Object? • 2A: How do we deal with multiple languages and • 2B: …preventing “write overlaps”? • 3: How do we distribute new definitions updates to all admins?

10. Central Store Success / Problems • Central Store not created properly • ADML language files not in precise place • SYSVOL replication is damaged • Older clients are used to manage/edit GPOs

11. Why you need a Windows 7 management machine

12. Our Trouble Spot Road Map • New Areas – New potential problems • Updated “under the hood” changes • The Central Store. The “Why” and “Problems” • Updated logging model • RSoP differences for Windows XP vs. Windows Vista+ clients • Troubleshooting Group Policy Preference Extensions

13. Quick Review of XP Troubleshooting • Major events in the Event log • Step-by-step events in the \windows\debug\usermode\Userenv.log • Tip: Use SysProSoftPolicyReporter to make more “meaningful” • http://www.sysprosoft.com/policyreporter.shtml

14. Breakdown of Stuff in Userenv.log Red Herrings Clues Different Thread ID Different Thread ID Timestamp Same Process

15. Windows 7 Group Policy Troubleshooting • Userenv.log—going away… (Next slide) • “Basic news”—in System log

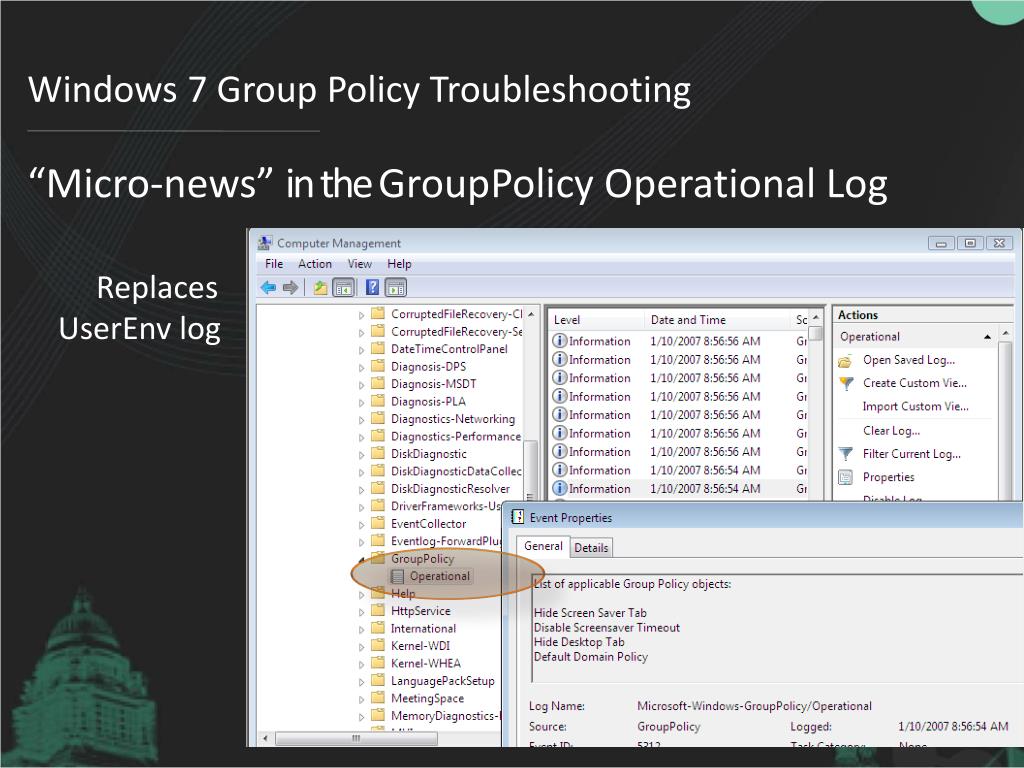

16. Windows 7 Group Policy Troubleshooting “Micro-news” in the GroupPolicy Operational Log Replaces UserEnv log

17. Making Lemonade from Logs • Focus in on ONE “Group Policy Event Cycle” • Use the Operational logs • Get ActivityID • and…

18. Make an Event Filter <QueryList><Query Id="0" Path="Application"><Select Path="Microsoft-Windows-GroupPolicy/Operational">*[System/Correlation/@ActivityID='{INSERT ACTIVITY ID HERE}']</Select></Query></QueryList>

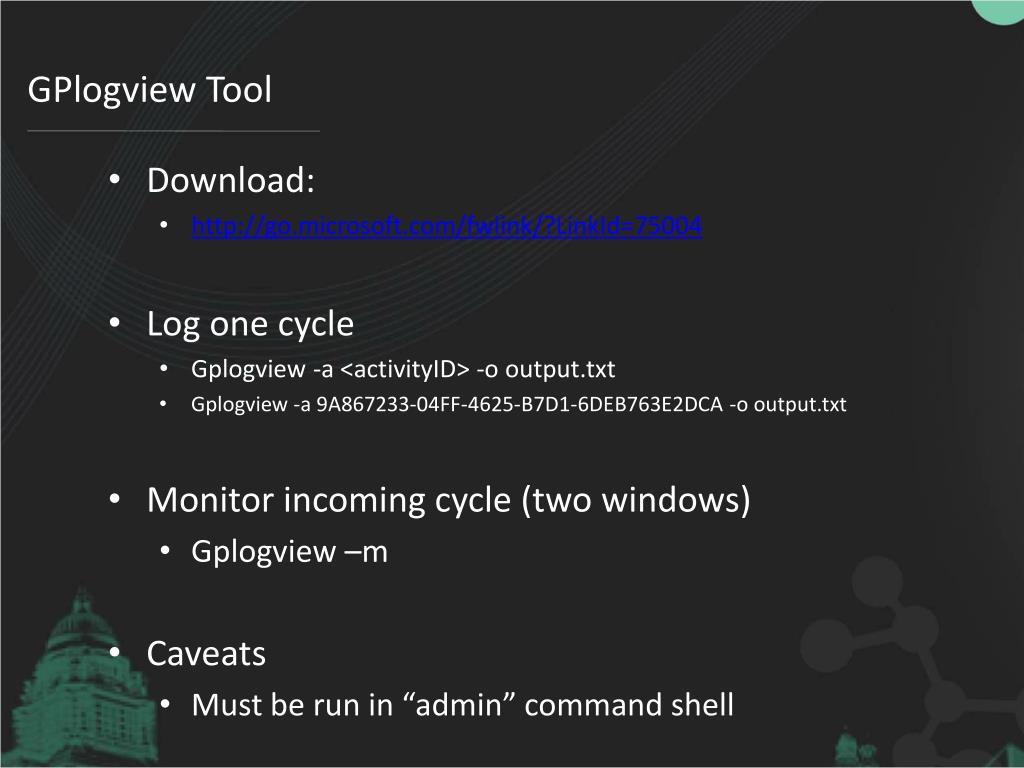

19. GPlogview Tool • Download: • http://go.microsoft.com/fwlink/?LinkId=75004 • Log one cycle • Gplogview -a <activityID> -o output.txt • Gplogview -a 9A867233-04FF-4625-B7D1-6DEB763E2DCA -o output.txt • Monitor incoming cycle (two windows) • Gplogview –m • Caveats • Must be run in “admin” command shell

20. Eventing and GPlogview

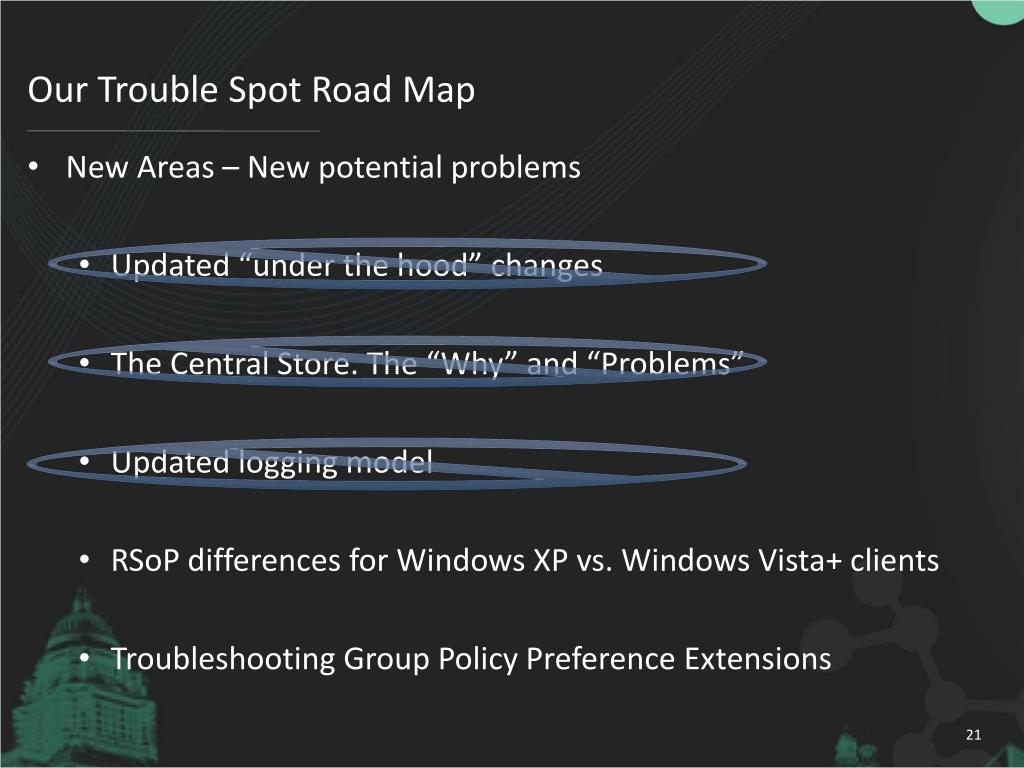

21. Our Trouble Spot Road Map • New Areas – New potential problems • Updated “under the hood” changes • The Central Store. The “Why” and “Problems” • Updated logging model • RSoP differences for Windows XP vs. Windows Vista+ clients • Troubleshooting Group Policy Preference Extensions

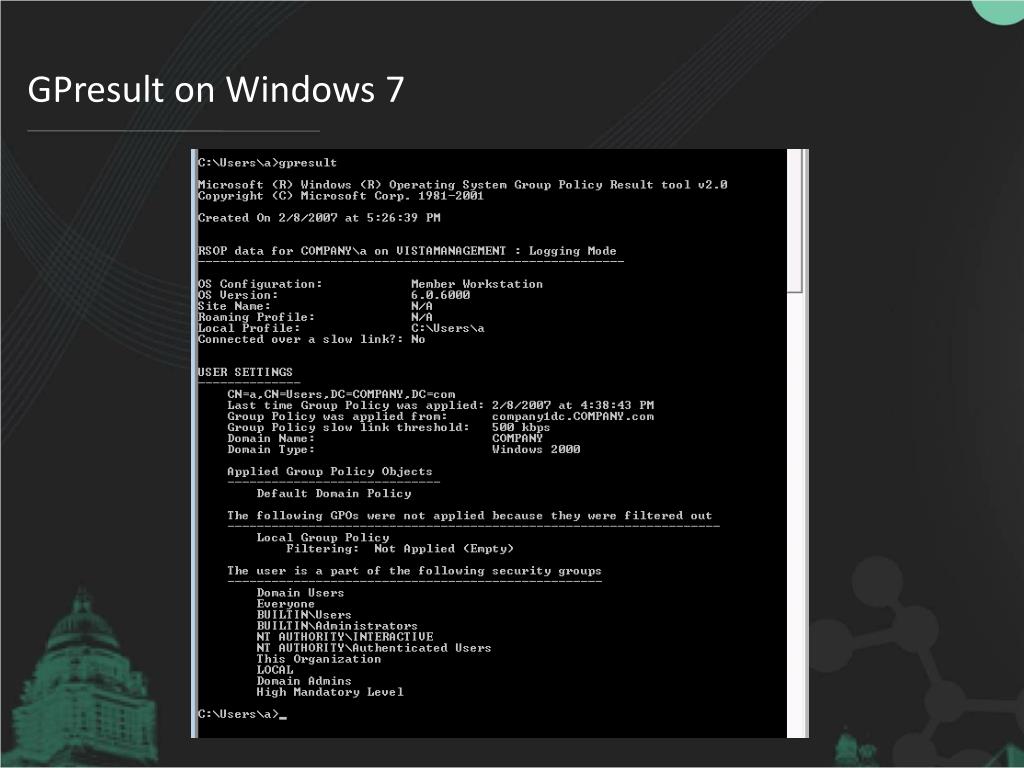

22. GPresult on Windows 7

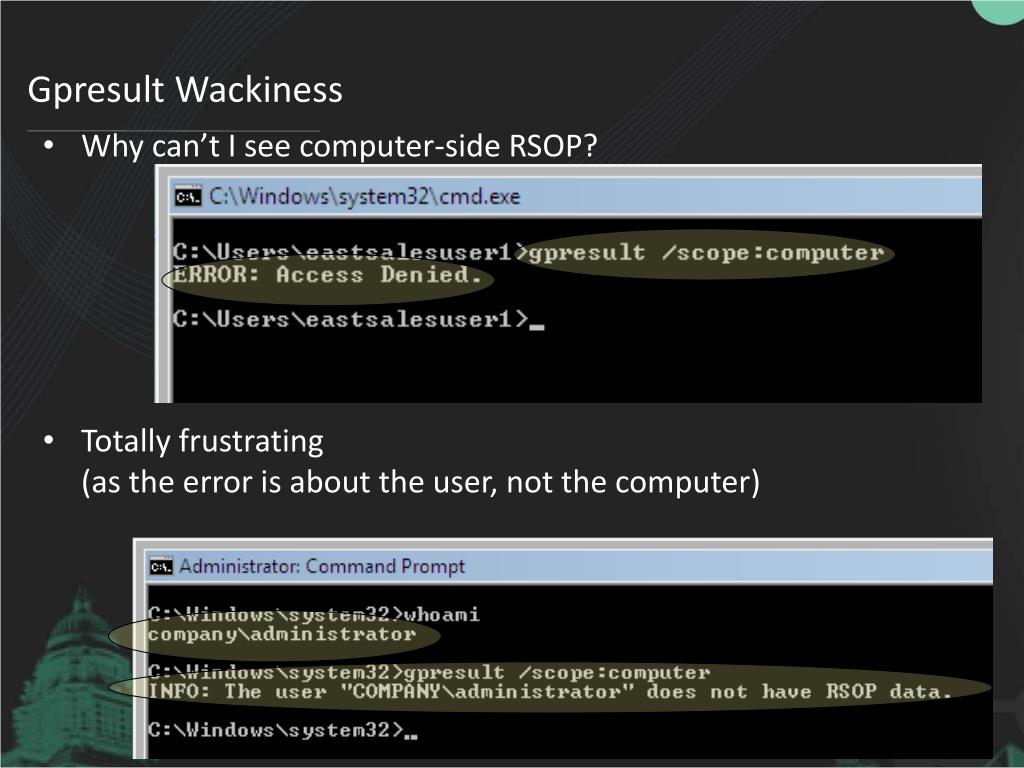

23. Gpresult Wackiness • Why can’t I see computer-side RSOP? • Totally frustrating (as the error is about the user, not the computer)

24. Permissions Delegation for Seeing Own Computer RSOP • Domain Level or OU level

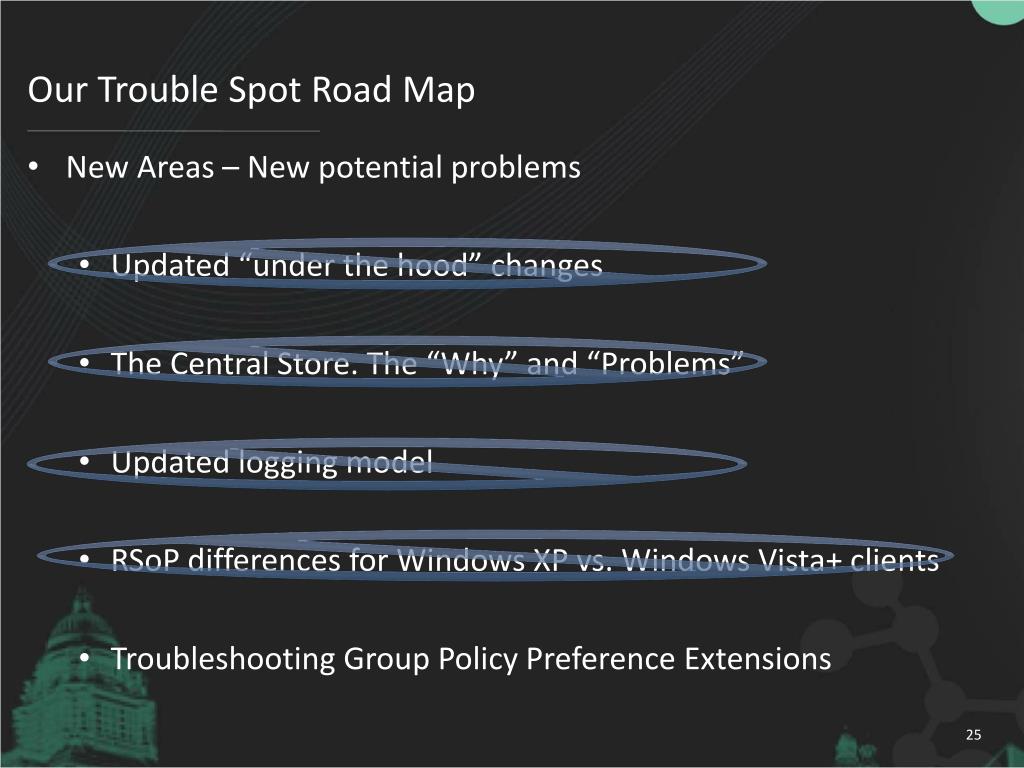

25. Our Trouble Spot Road Map • New Areas – New potential problems • Updated “under the hood” changes • The Central Store. The “Why” and “Problems” • Updated logging model • RSoP differences for Windows XP vs. Windows Vista+ clients • Troubleshooting Group Policy Preference Extensions

26. Troubleshooting Group Policy Prefs • Reporting… • Eventing… • Tracing…

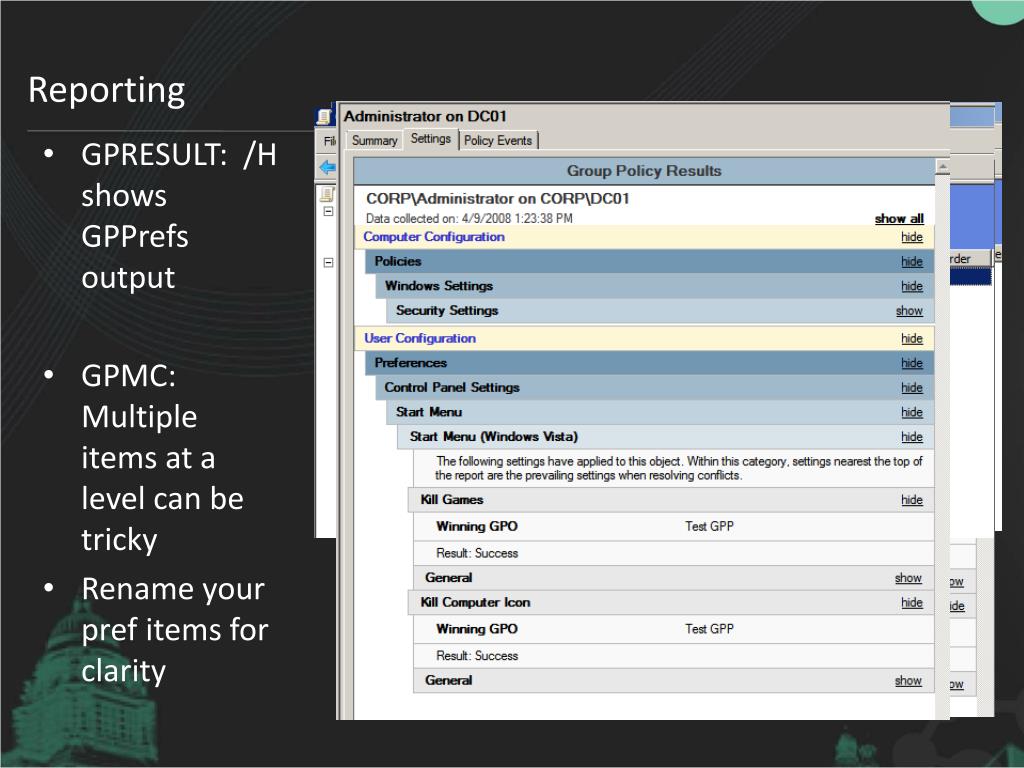

27. Reporting • GPRESULT: /H shows GPPrefs output • GPMC: Multiple items at a level can be tricky • Rename your pref items for clarity

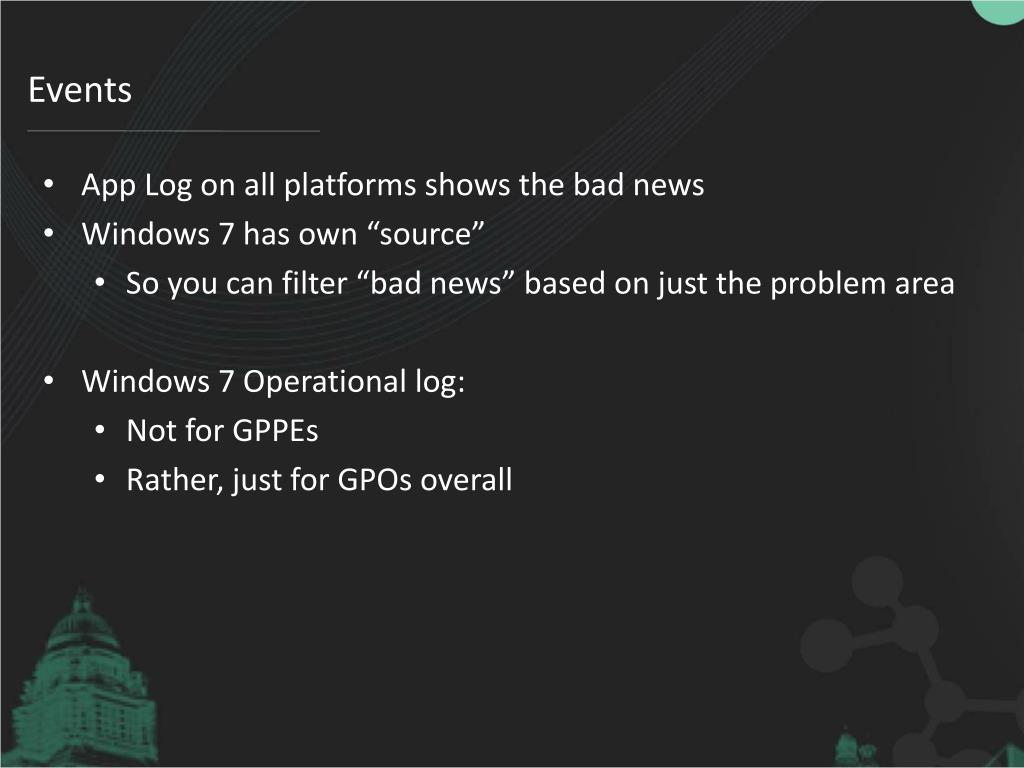

28. Events • App Log on all platforms shows the bad news • Windows 7 has own “source” • So you can filter “bad news” based on just the problem area • Windows 7 Operational log: • Not for GPPEs • Rather, just for GPOs overall

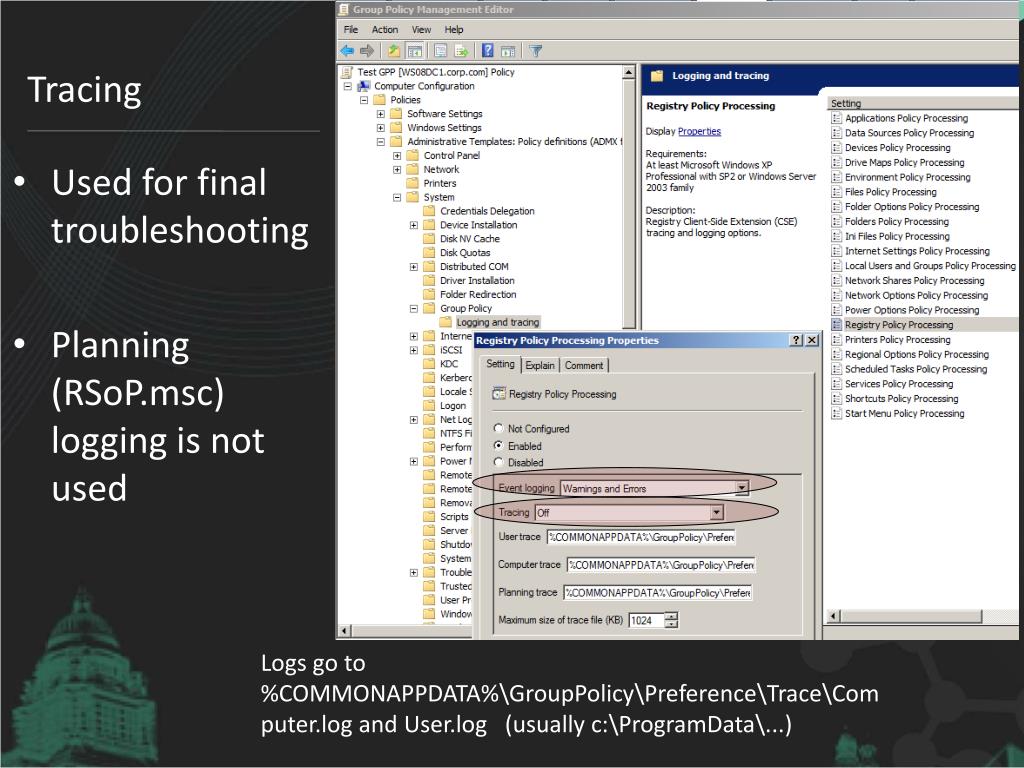

29. Tracing • Used for final troubleshooting • Planning (RSoP.msc) logging is not used Logs go to %COMMONAPPDATA%\GroupPolicy\Preference\Trace\Computer.log and User.log (usually c:\ProgramData\...)

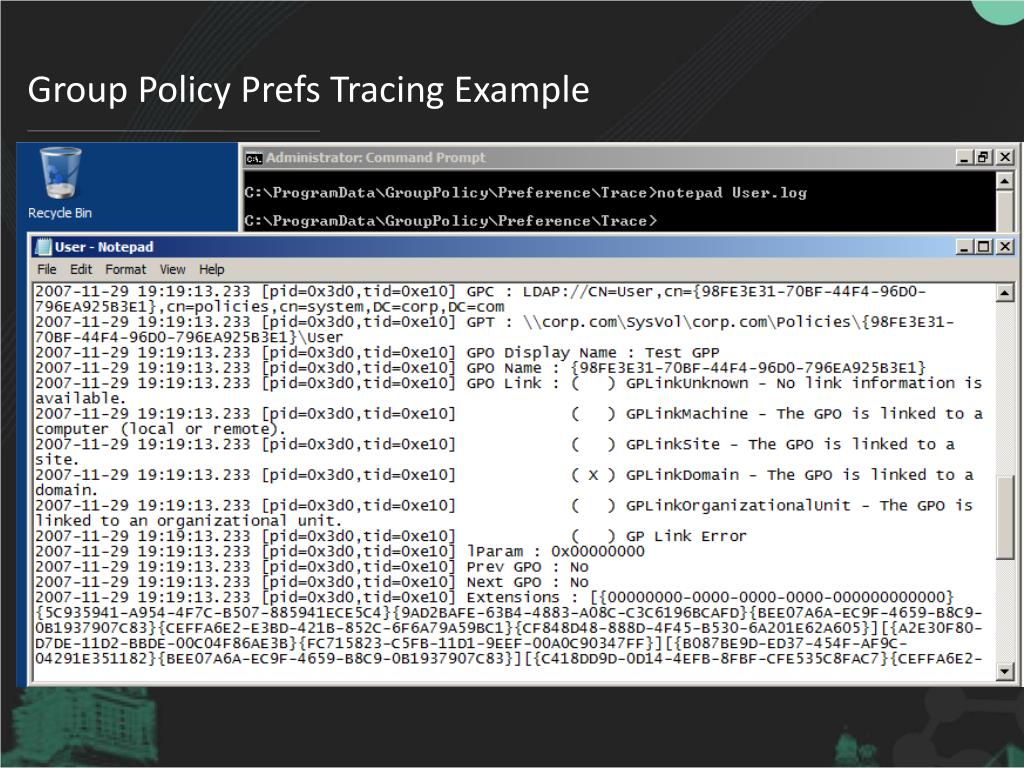

30. Group Policy Prefs Tracing Example

31. Tracing Gotchas • Win7 RSAT doesn’t contain the ADMX settings. • Option 1: • Copy the WS08 or R2 “GroupPolicyPreferences.admx/adml” to central store • Option 2: • Install the ADMX/ADML from MSI • http://tinyurl.com/ll22cf • Installs to C:\Program Files\Microsoft Group Policy\Preferences\ • Move up to Central Store
