Design for Testability

lupita avatar
lupita
115 diapositives · 3.3K Views · Sep 14, 2014

Design for Testability. 陳正斌 (03)5773693#157 jbchen@cic.org.tw. Agenda. Logic Testing Basic Concept Design for Testability RTL Rule Checker DFT Guidelines and Rules Synopsys DFT Design Flow Memory Testing Basic Concept Memory BIST SynTest SRAMBIST Flow.

Design for Testability - slide 1
01 / 115Design for Testability
1 / 17

Télécharger la présentation

Design for Testability
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. Design for Testability 陳正斌 (03)5773693#157 jbchen@cic.org.tw

  2. Agenda • Logic Testing • Basic Concept • Design for Testability • RTL Rule Checker • DFT Guidelines and Rules • Synopsys DFT Design Flow • Memory Testing • Basic Concept • Memory BIST • SynTest SRAMBIST Flow

  3. Chapter 1 Logic Testing

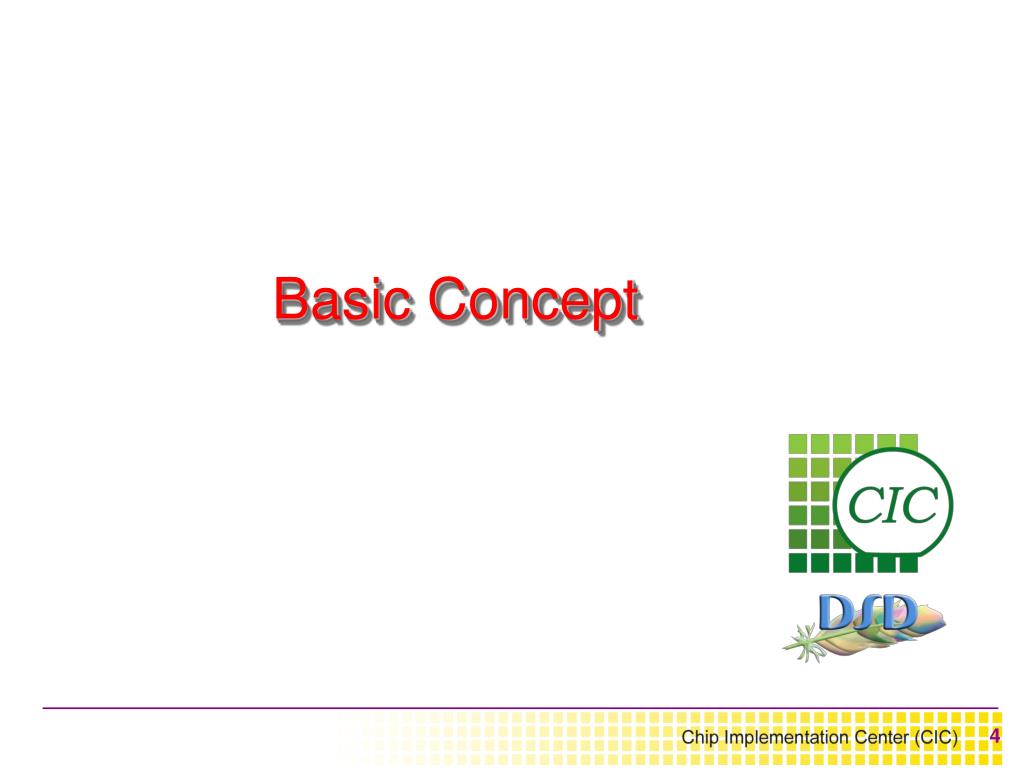

  4. Basic Concept

  5. Apply Input (Stimulus) Compare Output (Response) What is Testing • Testing is a process of determining whether a device is good (function correctly) or not • Testing includes test pattern generation, application and output evaluation Test Pattern DUT

  6. Defect detected during field testing Defect detected during system testing Defect detected during IC testing Why Testing • In order to guarantee the product quality, reliability, performances, etc. • Cost is the most important. • The rule of ten

  7. Simplified IC Production Flow Specification Layout Design Process Wafer Probe Test Packaging Final Test Marking QA Sample Test Shipping

  8. Verification v.s. Test (1/2) • Design verification ensures “design” matches intent • Manufacturing test ensures “parts” are manufactured correctly • How is manufacturing test performed ? Test Pattern (Test Problem) Fail Tester (ATE) Good Device Under Test (DUT)

  9. Verification v.s. Test (2/2) Design Manufacture Synthesis always @(a or b) begin c = a & b end Verification Test Verification Diagnosis

  10. Automatic Test Equipment • Tester (ATE) • Key features to be aware of • Number of pins • Number of clocks • Frequency • Accuracy • Precision • Number of scan channels • Amount of memory • Vector application formats • … … …

  11. Type of Testing • On Wafer Test • Characterization Test • Production Test • Burn-In Test • Diagnostic Test • … … …

  12. Test Items • Function Test • Verify functionality • Structural Test • Verify manufacturability • Parametric Test • Verify AC and DC parameters • At-Speed Test • Verify performance • Leakage Test • Defects may cause high leakage current

  13. 1.E+08 1.E+07 Pentium 486 1.E+06 Transistors 386 1.E+05 286 1.E+04 8080 1.E+03 1998 2002 1994 1970 1974 1978 1982 1986 1990 Year Pins/Gates TTL logic allowed easy access to individual gates. Pins / Gates << 0.001Hard to access to a chip.

  14. What is Fault & Fault Model • Fault is a physical defect in a circuit or system • Fault model is the logical effect of a fault (physical defect) • Reduce the test complexity • Independent of technology

  15. Yield & Fault Coverage • Yield (Y) is the ratio of the number of good dies per wafer to the number of dies per wafer • Y = (# of good dies) / (# of all dies) • Fault coverage (FC) is the measure of the ability of a test set to detect a given class of faults that may occur on the device under test (DUT) • FC = (# of detected faults) / (# of possible faults)

  16. Defect Level & Fault Coverage • Defect level (DL) is the fraction of devices that pass all the tests and are shipped but still contain some faults • DL = 1-Y(1-FC) [Williams and Brown 1981] • Defect level is measured in terms of DPM (detects per million), and typical requirement is less than 200 DPM i.e. 0.02 % DL = 200 DPM

  17. Board Failing Probability (%) Chip Defect Level (DPM) Y = 50% Y = 90% 10,000 1,000 100 10 99 99.99 99.9 90 Fault Coverage Defect Level (DPM) Data Source: Prof. Ed. McCluskey 1988, 1998 Defect Level & Quality • High fault coverage minimizes DPM • High fault coverage is imperative when yield is low

  18. The Testing Problem • Given a set of faults in a device under test (DUT), how to obtain a small number of test patterns which detects high fault coverage ? • What faults to test ? (fault modeling) • How are the test patterns obtained ? (test pattern generation) • How is the test quality (fault coverage) measure ? (fault simulation) • How are test patterns applied and results evaluated ? (ATE/BIST)

  19. Fault Model (1/3) • Single stuck-at fault • A line (gate input/output) in the circuit is fixed at logic 0 or logic 1 and independent of other signal values

  20. Fault Model (2/3) • Multiple stuck-at fault • several stuck-at faults occur at the same time • Bridging fault • Two or more normally distinct adjacent lines are shorted together • Other fault models • Single stuck-at fault is the most popular • reduce the complexity of testing • single stuck-at fault cover a lot of multiple stuck-at fault

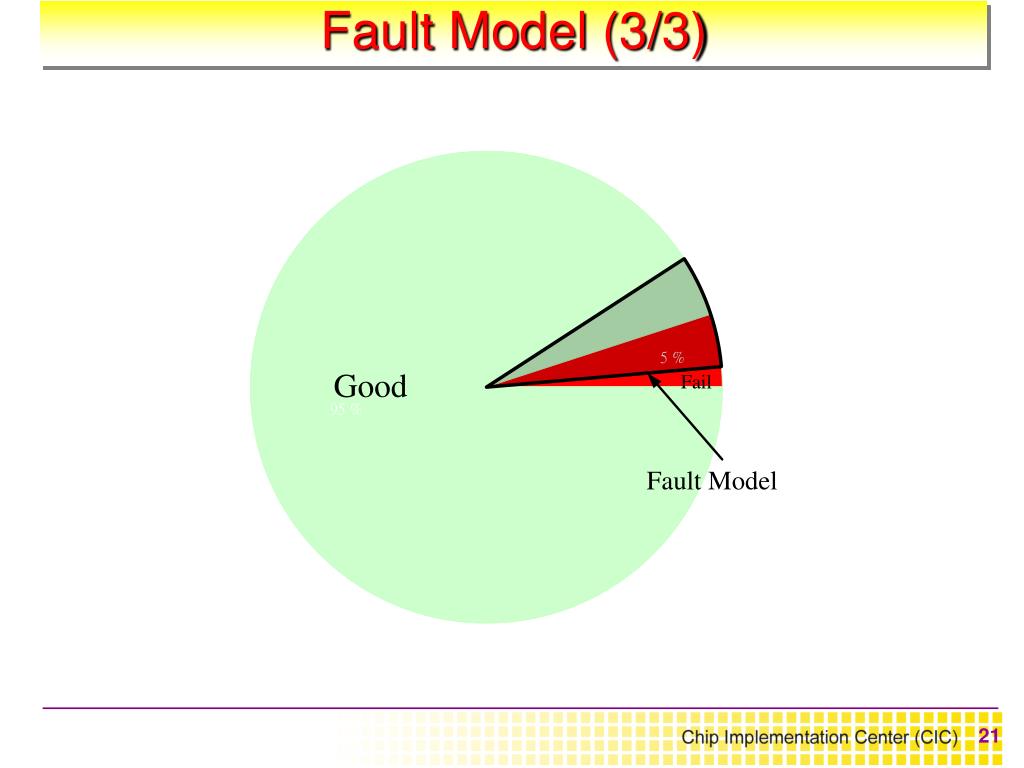

  21. Fault Model (3/3)

  22. Fault Simulation (1/2) • To evaluate the quality of a test set • i.e. to compute its fault coverage • Reduce the time of test pattern generation • A pattern usually detected multiple faults • Fault simulation is used to compute the faults accidentally detected by a particular pattern • To generate fault dictionary • For post test diagnosis • To analyze the reliability of a circuit

  23. Fault-free Circuit A B D C Fault Simulation (2/2) Patterns (Sequences) (Vectors) Faulty Circuit #1 (B/0) Response Comparison A B D C Detected? Primary Inputs (PIs) Primary Outputs (POs)

  24. Test Pattern Generation • TA/0={10}, TA/1={00} • TB/0={01}, TB/1={00} • TY/0={01}or{10}or{11},TY/1={00} • T= {00,01,10}

  25. Fault Coverage (Example) Test Pattern (A,B) Faults Detected FC {(0,0)} A/1, B/1, Y/1 3/6= 50% {(0,1)} B/0, Y/0 2/6=33.33% {(1,1)} Y/0 1/6=16.67% {(0,0),(0,1),(1,0)} all 6/6= 100% Functional test need four pattern => reduce test cost

  26. D C B A SA0 Z Test Pattern Generation (1/5) • Path-oriented Techniques • D-algorithm • Step 1. Target a specific stuck at fault

  27. D C B A SA0 / 0 1 Z Test Pattern Generation (2/5) • Fault activate • Step 2. Drive the fault site opposite value • D: 1/0 • D’: 0/1 D

  28. D C B A SA0 0 / 0 1 Z Test Pattern Generation (3/5) • Back tracing (controllability) • Step 3. Specify inputs value to generate the appropriate value at fault site D

  29. D C B A 1 1/0 SA0 0 / 0 1 Z Test Pattern Generation (4/5) • Fault propagation (observability) • Step 4. Select a path from the fault site to the primary output D D’ 0/1 D

  30. D C B A 1 1/0 SA0 0 / 0 1 Z 0/1 1 1 X Discrepancy Test Pattern T Test Pattern Generation (5/5) • Line justification • Step 5. specify all other inputs • Fault detection • If Z(T)faulty differs from Z(T)good D D’ D

  31. Automatic Test Pattern Generation • Goal • Generate the test patterns for target fault model and keep the number of test pattern as small as possible • How ? • Computer-Aided-Design Tools

  32. A/1 Y/1 B/1 Fault Equivalence • A set of faults is equivalent if no test pattern exists to tell them apart. • The function under these faults is equivalent for any input combination

  33. A/0 Y/0 B/0 Fault Collapsing • By testing for only one fault per equivalence set, we can greatly reduce (or collapse) the fault universe • Speed up fault simulation Y/1

  34. a b a c F b c f s-a-0 0 0 1 1 Untestable fault • A fault cannot be excited and/or propagated • Untestable fault is caused by a redundant design of the DUT, that is the line and the associate gate can be removed without changing the logic function of the DUT • Untestable fault is also called as redundant fault • F=ab+a’b+bc • F=ab+a’b

  35. SA0 occurs at here Observe/Verify output at PO 1 0 1 0 Apply test input at PI and set value here to test SA0 Sequence Logic is Harder to Test • Testing requires a sequence of test vectors • Requires initialization of the machine, which may be difficult • Long initialization sequence • Invalid state justification • Faults may cause increasing of internal states

  36. Primary inputs Primary inputs Combinational Logic Combinational Logic Pseudo- PI’s Pseudo- PO’s Primary outputs Primary outputs F/F present state next state Sequential circuit model A single time-frame Sequence ATPG • Time-frame Expansion Cost Issue: For large sequential logic blocks with complexcircuits, sequential ATPG is just not practical.

  37. Design for Testability

  38. Design for Testability (1/2) • The design technologies which make test generation and diagnosis easier • Testability = controllability + observability • DFT Methods • Ad-hoc methods • Scan, full and partial • Built-In Self-Test (BIST) • Boundary scan

  39. Design for Testability (2/2) • No single DFT technique solves all VLSI testing problems • No single DFT technique is effective for all kinds of circuits • No DFT approach is free • Manpower and tool costs • Area overhead and performance penalty

  40. Scan Design (1/2) • Provide controllability and observability at internal flip-flops for testing • Method • Add scan enable control signal(s) to circuit • Connect flip-flops to form shift registers in test mode • Make inputs/outputs of the flip-flops in the shift register controllable and observable • Types • Internal scan • Full scan • Partial scan • Boundary scan

  41. Primary Input Primary Output Combinational Logic Mode Switch (normal or test) scan_en Scan In FF FF FF Scan Out Scan Design (2/2) • scan_en=1, shift in the scan pattern (clk trig.) • scan_en=0, apply pattern in PI, CL evaluates the response (clk not trig.) • scan_en=0, observe the PO (clk not trig.) • scan_en=0, capture the response (clk trig. once) first scan out • scan_en=1, shift out response (clk trig.)

  42. Scan Test Waveform (1/2)

  43. Scan Test Waveform (2/2)

  44. Non-Scan Register Impact of Scan Design If you plan to insert internal scan, you must account for the impact of scan registers on a chip early in the design flow! Larger area than non-scan registers; (Area overhead) Larger setup time requirement. (Timing impact) TI 1 TI 1 DO DI 0 0 DI TE CLK CLK Multiplexed Scan Register Chain Additional pin overhead

  45. Why DFT ? • Product quality • Reduce field returns (Defect Level) • Improve yield • Test cost • Reduce the complexity of test generation • Reduce the cost of testing

  46. DFT Tools • Synopsys • LEDA • DFT Compiler • TetraMAX • BSD Compiler • SynTest • TurboCheck-RTL • TurboCheck-Gate • TurboScan • TurboBSD • TurboFault • Mentor • DFTAdvisor • FastScan • BSDArchitect • LBISTArchitect

  47. RTL Rule Checker

  48. Why RTL Rule Checker? • Motivation • Early identification of RTL design errors. • Reusability of RTL code. • Testability of RTL code. • Fast iteration process

  49. Synopsys LEDA • Features • Check for syntatic/semantic, coding style for synthesis • DFT rules check • RMM rules check • Many Synopsys tools (DC,VCS,Formality ……) • Report the file name and line number of problematic code • Support User defined rule

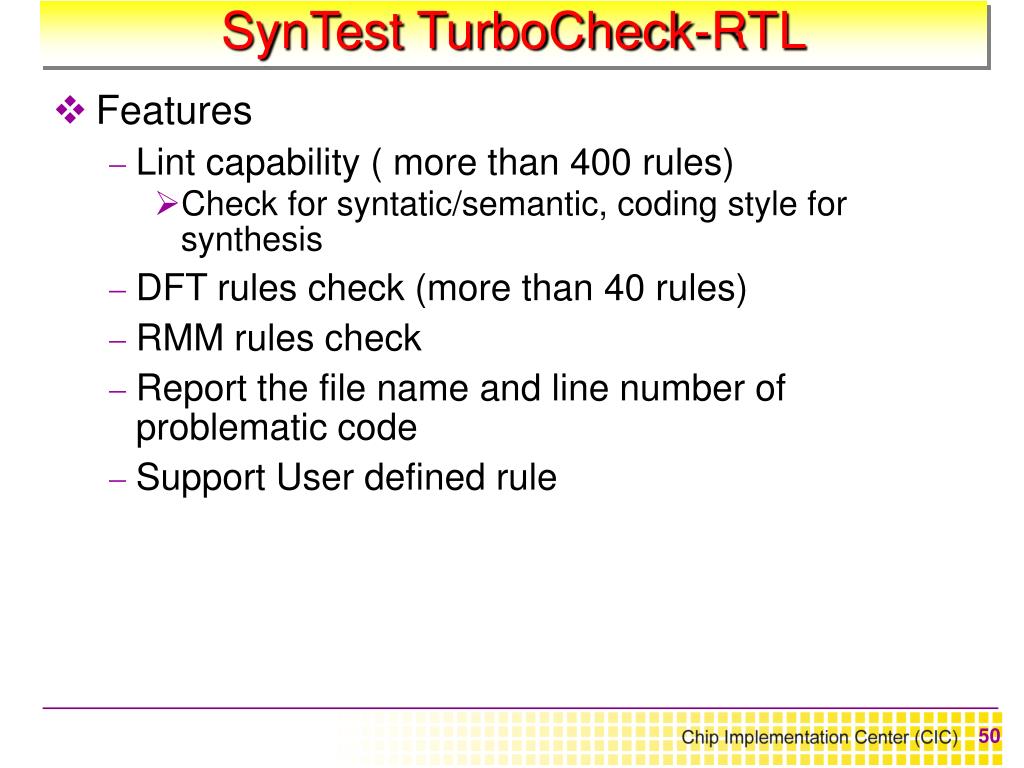

  50. SynTest TurboCheck-RTL • Features • Lint capability ( more than 400 rules) • Check for syntatic/semantic, coding style for synthesis • DFT rules check (more than 40 rules) • RMM rules check • Report the file name and line number of problematic code • Support User defined rule
