  1. UNFCCC – NAI SOFTWARE Sector: Land-Use Change and ForestryPractical Aspects and Exercises CGE Greenhouse Gas Inventory Hands-on Training Workshop

  2. CONTENT • Details on use of the UNFCCC-NAI Software to calculate and report GHG emissions in theLand Use, Land-Use Change and Forestry sector. • Practical exercises (to be solved by the participants after the presentation).

  3. BACKGROUND • The decision trees in the IPCC good practice guidance for land use, land-use change and forestry (GPG2003) are used to choose a good practice method that suits national circumstances. • The UNFCCC-NAI Software contains, basically, the methods of lesser complexity that countries can use to prepare their inventories. • However, in principle, the software can be used to report the estimated emissions independently of the complexity of method used (Tier 2, 3, etc).

  4. LUCF Sector: IPCC 1996 Guidelines Methodology Can be implemented at three different levels of complexity and geographic scale: • A simple first order approach based on aggregate default data (default approach) • More accuracy can be achieved by substituting country-specific values for general defaults.

  5. LULUCF Sector: GPG2003 Use of GPG2003 (and the higher Tiers) for GHG inventories is encouraged to reduce the uncertainty of emission estimates. GPG2003 contains good practices for the LULUCF Sector (not covered in GPG2000): • overcomes many of the problems detected in the use of the IPCC Guidelines to estimate LUCF emissions • updates information necessary for calculations(AD, EF and other emission parameters).

  6. LULUCF Sector: GPG2003 Methodology Uses the same basic conceptual approach as in the IPCC Guidelines but with some important inclusions, updates and improvements: • Provides three hierarchical Tiers of methods (nearly corresponding to the three levels of complexity of the IPCC Guidelines) • Land-use category base approach (forest land, cropland, grassland, wetland, settlement and others) • A division is also made based on the status and recent history of the land use: a) lands that begin and end an inventory period in the same use,b) lands converted to other land use.

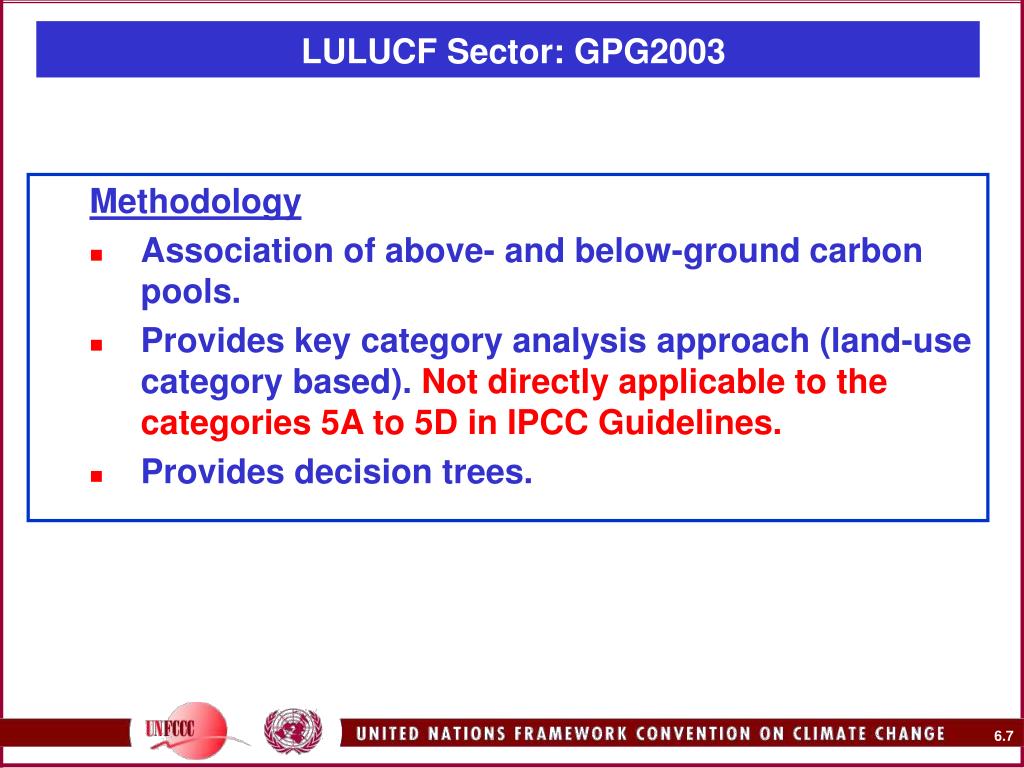

  7. LULUCF Sector: GPG2003 Methodology • Association of above- and below-ground carbon pools. • Provides key category analysis approach (land-use category based). Not directly applicable to the categories 5A to 5D in IPCC Guidelines. • Provides decision trees.

  8. LULUCF Sector: GPG2003 Methodology: Provides three methodological Tiers Tier 1 • Employs the basic method provided in IPCC Guidelines (Workbook) and the default EF (updated in GPG2003). • It includes other land uses and pools whose emissions or removals were assumed as default ‘zero’. Tier 2 • Can use the same approach as Tier 1 but applies EF and AD which are defined by the country. • Can also apply stock change methodologies based on country-specific data. Tier 3 • Higher order methods including models and inventory measurements.

  9. LULUCF Sector: IPCC Software and GPG2003 • Calculation of emissions using GPG2003, in this sector, is not completely possible using the IPCC Software (it was not designed for this). • Using the software with the IPCC Guidelines default approach it is not possible to cover all the land categories and carbon pools included in GPG2003.

  10. LULUCF Sector: UNFCCC-NAI Software and GPG2003 • A new module (Module 5B) has been added to the present software so that inventory compilers can apply the more recent methodologies developed by the IPCC to the Land Use, Land-Use Change and Forestry sector, as described in GPG2003. • The UNFCCC encourages the use of these methodologies, although the user may still choose to use the outdated Module 5 Land Use

  11. LULUCF Sector: UNFCCC-NAI Software and GPG2003 • In the current software you have the choice between two alternatives. • For preparing a complete inventory it is necessary to use either of the modules, but not both.

  12. LULUCF Sector: UNFCCC-NAI Software • When you open Module 5 you will be prompted with a dialogue box asking whether you would like to use the IPCC Good Practice Format (GPG2003) for the LULUCF Sector.

  13. LULUCF Sector: UNFCCC-NAI Software • If you would like to use the IPCC Good Practice Format (GPG2003) choose ‘YES’ in the dialogue box. Selecting ‘Yes’ opens the summary table of Module 5B.

  14. LULUCF Sector: UNFCCC-NAI Software • If you want to use the IPCC Guidelines Format (IPCC Guidelines) choose ‘NO’ in the dialogue box. Selecting ‘No’ opens Module 5, the Land-Use Change and Forestry module as described in the IPCC Guidelines.

  15. LULUCF Sector: GPG2003 The main differences introduced in GPG2003 are the following: • Inclusion of additional land categories. • Inclusion of additional carbon pools. • Inclusion of additional non-CO2 gases. • Estimation of biomass increment and losses in each land category.

  16. LULUCF Sector: GPG2003 • Linking of biomass and soil carbon for each land category. • There is no one-to-one linkage or correspondence between the IPCC Guidelines categories (5A to 5E) and GPG2003 land categories. • Methods given for all carbon pools: AGB, BGB, dead organic matter and soil carbon and all non-CO2 gases (in IPCC Guidelines methods were provided only for AGB and soil carbon).

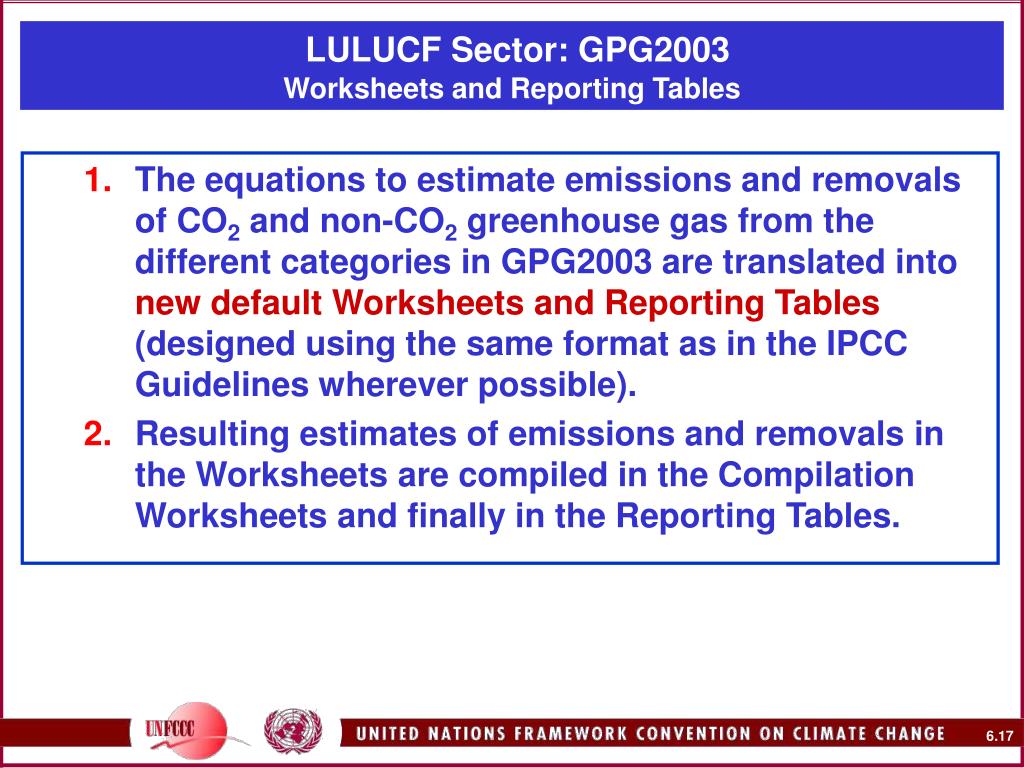

  17. LULUCF Sector: GPG2003Worksheets and Reporting Tables • The equations to estimate emissions and removals of CO2 and non-CO2 greenhouse gas from the different categories in GPG2003 are translated into new default Worksheets and Reporting Tables (designed using the same format as in the IPCC Guidelines wherever possible). • Resulting estimates of emissions and removals in the Worksheets are compiled in the Compilation Worksheets and finally in the Reporting Tables.

  18. LULUCF Sector: GPG2003Worksheets and Reporting Tables • All users using GPG2003 should report their inventory information in the format prescribed by the Reporting Tables. • Includes a Tool for Estimation of Soil Carbon Stock Change.

  19. LULUCF Sector: GPG2003Worksheets • Worksheets are presented in modules and sub-modules. Each module corresponds to specific land-use category. • A module is divided into two sub-modules to distinguish between those lands that remain in the same land-use category and those lands converted to other land-use category. • Each sub-module consists of worksheets, which are mainly grouped into: living biomass worksheets; dead organic matter worksheets; soil worksheets (further sub-grouped into mineral and organic soils); and non-CO2 GHG emissions worksheets.

  20. LULUCF Sector: GPG2003Worksheets

  21. LULUCF Sector: GPG2003Worksheets Example: Module: Forest Land Sub-module: Forest Land Remaining Forest Land

  22. MODULE: FOREST LAND; SUBMODULE: FOREST LAND REMAINING FOREST LAND WORKSHEET FL-1a_1 OF 4 ANNUAL CHANGE IN CARBON STOCKS IN LIVING BIOMASS (INCLUDES ABOVE- AND BELOW-GROUND BIOMASS)

  23. LULUCF Sector: GPG2003Compilation Worksheets and Reporting Tables

  24. REPORTING TABLE (IN THE SOFTWARE INCLUDED IN THE WORKSHEET SUMMARY)

  25. IN OVERVIEW THERE IS ONE OPTIONAL SECTORAL REPORT TABLE FOR LULUCF FOR COUNTRIES USING GPG2003

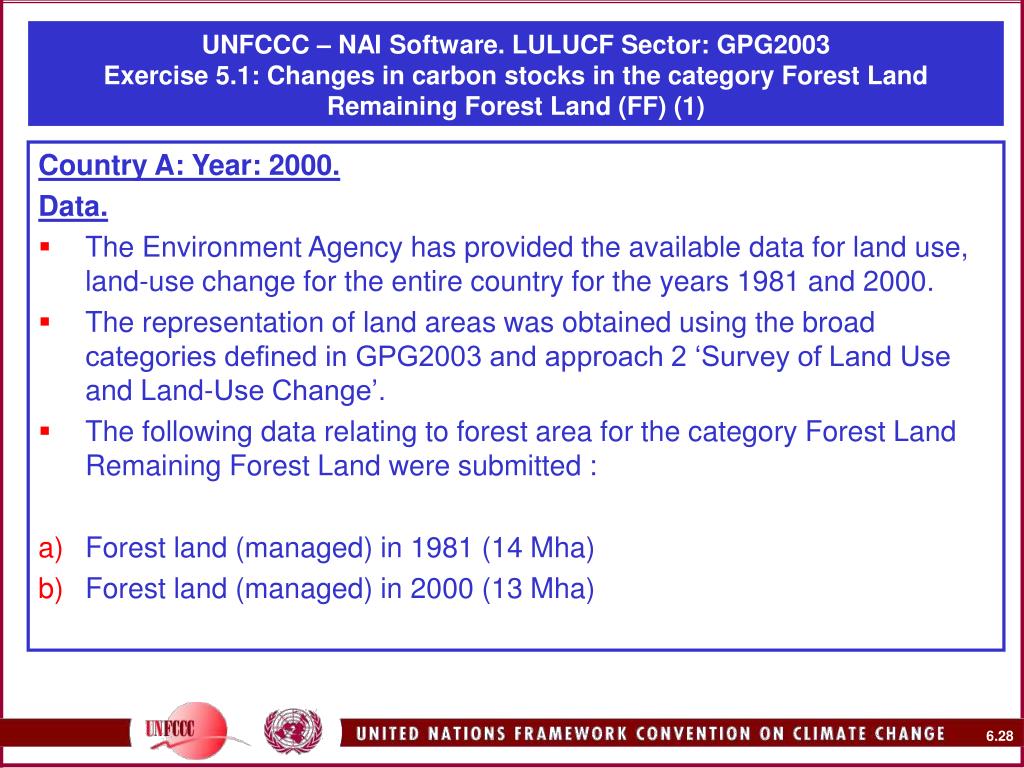

  26. UNFCCC – NAI Software. LULUCF Sector: GPG2003Exercise 5.1: Changes in carbon stocks in the category Forest Land Remaining Forest Land (FF) (1) Country A: Year: 2000. Data. • The Environment Agency has provided the available data for land use, land-use change for the entire country for the years 1981 and 2000. • The representation of land areas was obtained using the broad categories defined in GPG2003 and approach 2 ‘Survey of Land Use and Land-Use Change’. • The following data relating to forest area for the category Forest Land Remaining Forest Land were submitted : • Forest land (managed) in 1981 (14 Mha) • Forest land (managed) in 2000 (13 Mha)

  27. UNFCCC – NAI Software. LULUCF Sector: GPG2003Exercise 5.1: Changes in carbon stocks in the category Forest Land Remaining Forest Land (FF) (2) Country A: Year: 2000. Other data: Subdivision of forest area (forest land managed) for reporting year (2000) according to forest type and climatic zones (Mha)

  28. UNFCCC – NAI Software. LULUCF Sector: GPG2003Exercise 5.1: Changes in carbon stocks in the category Forest Land Remaining Forest Land (FF) (3) Country A: Year: 2000. Other data. (e.g. from Asia, continental conditions)

  29. UNFCCC – NAI Software. LULUCF Sector: IPCC GPG2003Exercise 5.1: Changes in carbons stocks in the category Forest Land Remaining Forest Land (FF) (4) Country A: Year: 2000. Other data.Carbon fraction of dry matter (default 0.5)

  30. UNFCCC – NAI Software. LULUCF Sector: GPG2003Exercise 5.1: Changes in carbon stocks in the category Forest Land Remaining Forest Land (FF) (5) Tasks Using the UNFCCC-NAI Software, GPG2003 and the Tier approach: • Calculate CO2 emissions or removals from changes in carbon stocks in the category Forest Land Remaining Forest Land (FF). • Incorporate the emission values obtained in the sheet ‘Summary’ from LULUCF and in the Sectoral Report Table 5B. • Print the worksheets used and the Sectoral Report Table.

  31. UNFCCC – NAI Software. LULUCF Sector: GPG2003Exercise 5.1: Changes in carbon stocks in the category Forest Land Remaining Forest Land (FF) (6) I) Annual change in carbon stocks in living biomass (above- and below-ground biomass) Steps • Open the software and select LULUCF from the GPG2003. • Go to the worksheet FL-1a Sheet 1 of 4. • Incorporate the land use subdivision for sub-categories according to forest type and climatic zones in the country. Use the blue button to introduce the sub-categories in the sheet. • In column A enter the area of forest lands remaining forest lands for reporting year (ha). • In column B enter the average annual net increment in volume suitable for industrial processing (m3 ha-1yr-1) (IV). • In column C enter the basic wood density (D) (tonne d.m. per m3 fresh). • In column D enter the Biomass Expansion Factor (BEF1). • In column E the software calculates the average annual above-ground biomass increment (Gw) (tonne d.m. ha-1 yr-1).

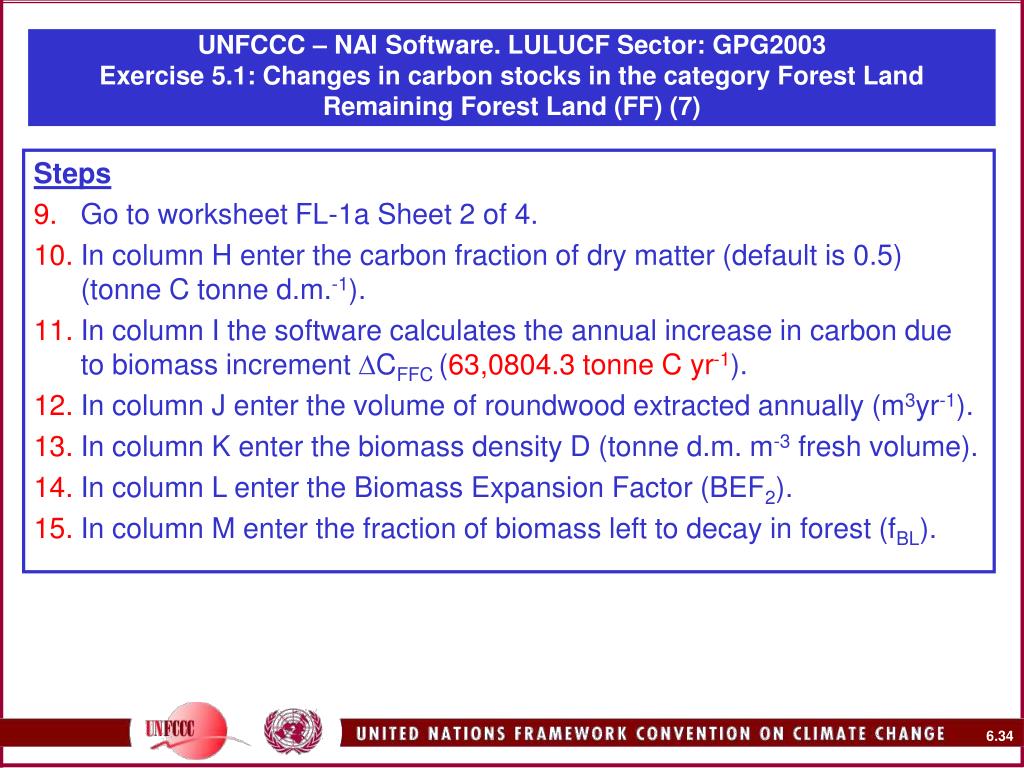

  32. UNFCCC – NAI Software. LULUCF Sector: GPG2003Exercise 5.1: Changes in carbon stocks in the category Forest Land Remaining Forest Land (FF) (7) Steps • Go to worksheet FL-1a Sheet 2 of 4. • In column H enter the carbon fraction of dry matter (default is 0.5) (tonne C tonne d.m.-1). • In column I the software calculates the annual increase in carbon due to biomass increment CFFC (63,0804.3 tonne C yr-1). • In column J enter the volume of roundwood extracted annually (m3yr-1). • In column K enter the biomass density D (tonne d.m. m-3 fresh volume). • In column L enter the Biomass Expansion Factor (BEF2). • In column M enter the fraction of biomass left to decay in forest (fBL).

  33. UNFCCC – NAI Software. LULUCF Sector: IPCC GPG2003Exercise 5.1: Changes in carbon stocks in the category Forest Land Remaining Forest Land (FF) (8) Steps • Go to worksheet FL-1a Sheet 3 of 4. • In column N the software calculates the annual carbon loss due to commercial fellings (Lfellings) (6,314.4 tonne C yr-1). • In column O enter the annual volume of fuelwood gathering (FG) (m3yr-1). • In column P enter the biomass density (D) (tonne d.m. m-3 fresh volume). • In column Q enter the Biomass Expansion Factor (BEF2). • In column R the software calculates the annual carbon loss due to fuelwood gathering (Lfuelwood) (1,040 tonne C yr-1). • In column S enter the forest areas affected by disturbances (Adisturbances) (ha yr-1). • In column T enter the average biomass stock of forest areas (Bw) (tonne d.m. ha-1).

  34. UNFCCC – NAI Software. LULUCF Sector: IPCC GPG2003Exercise 5.1: Changes in carbon stocks in the category Forest Land Remaining Forest Land (FF) (9) Steps • Go to worksheet FL-1a Sheet 4 of 4. • In column U enter the fraction of biomass left to decay in forest (fBL). • In column V the software calculates the annual other losses of carbon (Lother losses) (13,860 tonne C yr-1). • In column W the software calculates the annual decrease in carbon due to biomass loss CFFL) (21,214.4 tonne C yr-1). • In column X the software calculates the annual change in carbon stocks in living biomass CFFLB (60,9589.9 tonne C yr-1).

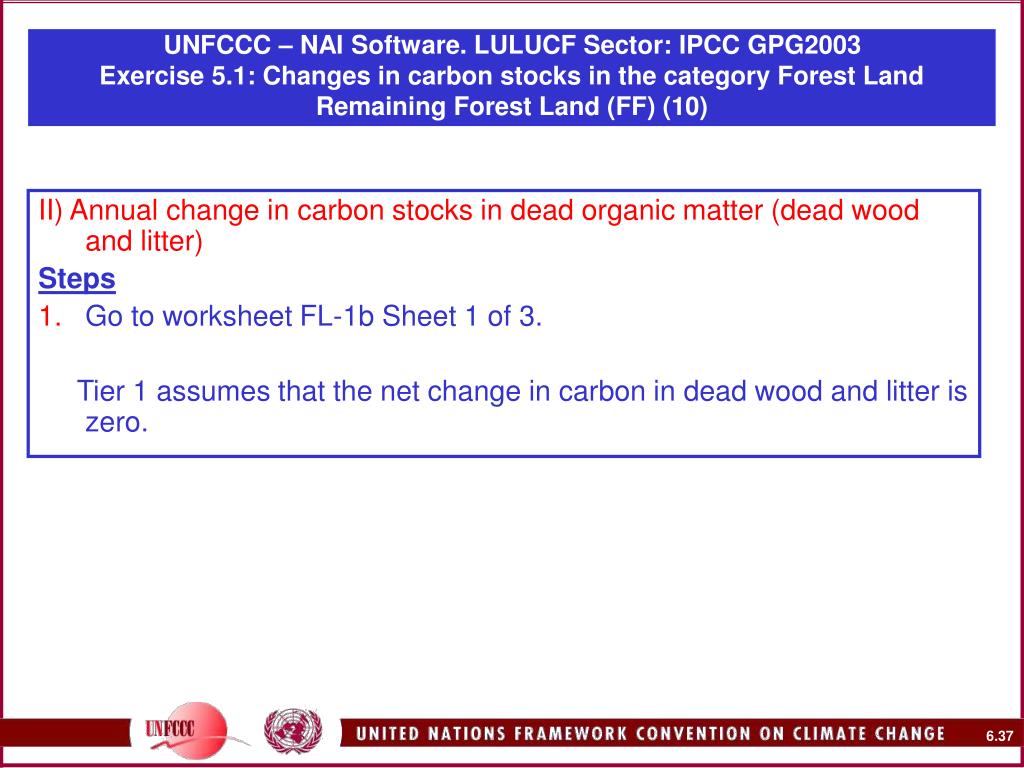

  35. UNFCCC – NAI Software. LULUCF Sector: IPCC GPG2003Exercise 5.1: Changes in carbon stocks in the category Forest Land Remaining Forest Land (FF) (10) II) Annual change in carbon stocks in dead organic matter (dead wood and litter) Steps • Go to worksheet FL-1b Sheet 1 of 3. Tier 1 assumes that the net change in carbon in dead wood and litter is zero.

  36. UNFCCC – NAI Software. LULUCF Sector: IPCC GPG2003Exercise 5.1: Changes in carbon stocks in the category Forest Land Remaining Forest Land (FF) (11) III) Annual change in carbon stocks in mineral soils Steps • Go to worksheet FL-1C1 Sheet 1 of 2. Tier 1 assumes that the net change in carbon in mineral soils for forest land remaining forest land is zero.

  37. UNFCCC – NAI Software. LULUCF Sector: IPCC GPG2003Exercise 5.1: Changes in carbon stocks in the category Forest Land Remaining Forest Land (FF) (12) IV) Annual change in carbon stocks in organic soils Steps • Go to worksheet FL-1C2 Sheet 1 of 1. • In column A enter the area of drained organic forest soils (ADrained) (ha). • In column B enter the EF for CO2 from drained organic forest soils (EFDrainage) (tonne C ha-1yr-1). • In column C the software calculates the CO2 emissions from drained organic forest soils CFFOrganic (1,360 tonne C yr-1).

  38. UNFCCC – NAI Software. LULUCF Sector: IPCC GPG2003Exercise 5.1: Changes in carbon stocks in the category Forest Land Remaining Forest Land (FF) (12) V) Annual change in carbon stocks in soils (summary worksheet) Steps • Go to worksheet FL-1C3 Sheet 1 of 1 to see the annual change in carbon stocks in soils CFFSoils (1,360 tonne C yr-1).

  39. UNFCCC – NAI Software. LULUCF Sector: IPCC GPG2003Exercise 5.1: Changes in carbon stocks in the category Forest Land Remaining Forest Land (FF) (12) VI) Reporting Table for Emissions and Removals of CO2 and non-CO2 gases from LULUCF in the reporting year. Steps • Go to the sheet Summary for LULUCF and enter manually the CO2 emissions/removals from the annual change in carbon stocks (in Gg CO2) in living biomass, dead organic matter and soils for FF. • Go to Table 5Bs1 Sectoral report for LULUCF and enter manually the CO2 emissions/removals obtained for FF in the sheet Summary for the Module 5B (LULUCF) (-2,240.15 Gg CO2). Make the same operation for the Summary of the inventory (Tables 7A and 7B). Note: Deliberately, the results from the worksheets are not linked automatically with the summary tables because: a) in the worksheets the headers are only emissions/removals whereas the summary tables need to report emissions and removals separately; b) Summary Table 7B uses the structure of the IPCC Guidelines whereas Table 5B uses the new structure. A “mapping back” is needed.

  40. Use the blue button to introduce the sub-categories in the sheet. Incorporate the land use subdivision for sub-categories according to forest type and climatic zones in the country

  41. ANNUAL INCREASE IN CARBON DUE TO BIOMASS INCREMENT

  42. ANNUAL CARBON LOSS DUE TO COMMERCIAL FELLINGS ANNUAL CARBON LOSS DUE TO FUELWOOD GATHERING

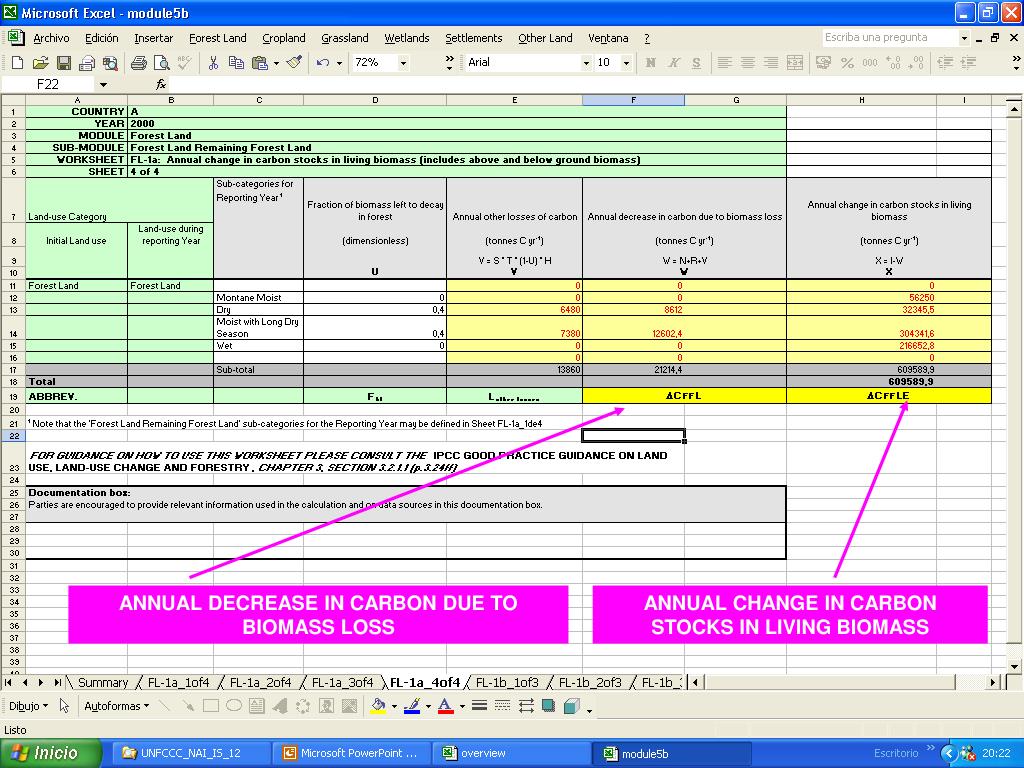

  43. ANNUAL DECREASE IN CARBON DUE TO BIOMASS LOSS ANNUAL CHANGE IN CARBON STOCKS IN LIVING BIOMASS

  44. TIER 1 ASSUMES THAT THE NET CHANGE IN CARBON IN DEAD WOOD AND LITTER IS ZERO

  45. TIER 1 ASSUMES THAT THE NET CHANGE IN CARBON IN MINERAL SOILS FOR FOREST LAND REMAINING FOREST LAND IS ZERO

  46. CO2 EMISSIONS FROM DRAINED ORGANIC FOREST SOILS

  47. ANNUAL CHANGE IN CARBON STOCKS IN SOILS

  48. ANNUAL CHANGE IN CARBON STOCKS CO2 EMISSIONS/REMOVALS IN FF
