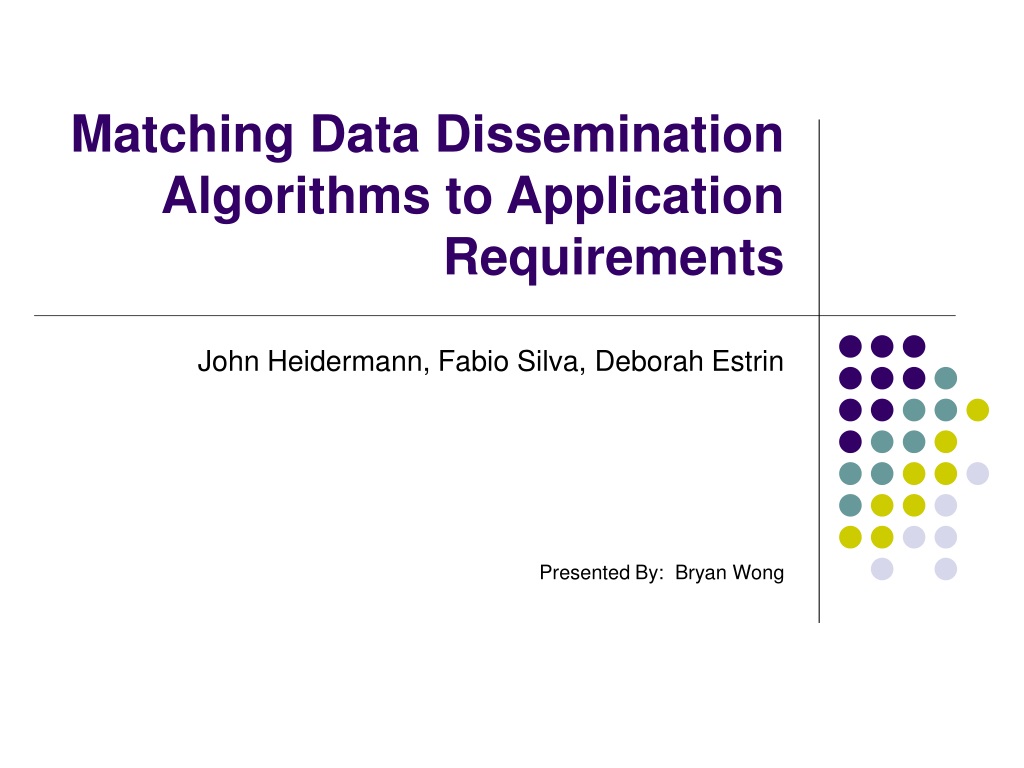

  1. Matching Data Dissemination Algorithms to Application Requirements John Heidermann, Fabio Silva, Deborah Estrin Presented By: Bryan Wong

  2. Outline • Introduction • Problem Description • Diffusion Routing Algorithms • Evaluation • Conclusion

  3. Introduction • Data dissemination algorithms are application specific • Reduces communications costs by replacing communication with computation in the network • As number of protocols and sophistication of applications grows, choice of communication algorithm becomes a problem

  4. Problem Description • How can diffusion address application-specific requirements?

  5. Robustness Requirements • Applications must be robust to change: • Wireless links come and go • Nodes fail or move • How can communication be robust but also efficient for many different applications?

  6. Application Requirements • Sensor network applications have different needs • Different traffic patterns (many-to-one, many-to-many, one-to-many, one-to-one) • Different data rates (fixed and variable, frequent and infrequent)

  7. Solution • Match routing algorithms to application requirements

  8. Multiple Diffusion Routing Algorithms • Two-Phase Pull Diffusion • One Phase Pull Diffusion • Push Diffusion • GEAR

  9. Two-phase pull diffusion • Initial diffusion implementation • Periodically floods data sink’s interests and exploratory data

  10. GEAR • Adds support for geographically scoped queries • If nodes know their locations, then geographic queries can influence data dissemination • Replaces network wide communication with geographically constrained communication

  11. Push Diffusion • Reverses the roles in the publish/subscribe API • Floods only exploratory data messages

  12. One-phase pull diffusion • Subscriber based system that avoids one of the two phases of flooding in two-phase pull • Only floods interests • No exploratory messages

  13. Sample Applications • Push reduces message count by ~60% compared to two phase pull

  14. Sample Applications • GEAR reduces message count by ~40%

  15. Systematic Evaluation

  16. Systematic Evaluation

  17. Systematic Evaluation

  18. Systematic Evaluation • One-phase pull is best with many sources, few sinks • Push works best with many sinks and few sources

  19. Conclusions • The break even point between the two algorithms depends upon specific control message frequency as well as application data rates • For networks with more than a few dozen nodes, the benefits of geographically-scoped queries can outweigh other algorithmic choices

  20. References • http://www.cens.ucla.edu/Education/RR_Posters/Research%20Review/015_Silva.pdf
