Windows 7 Test Prep

Windows 7 Test Prep. Based on this book. Ch 2 (Part 1). Configuring System Images. Lesson 1: Capturing System Images. Installing & Using WAIK (Windows Automated Installation Kit) Using the WPE (Windows Preinstallation Environment) Creating a Reference Image

lynn-vang
Télécharger la présentation

Windows 7 Test Prep

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Windows 7 Test Prep

  2. Based on this book

  3. Ch 2 (Part 1) Configuring System Images

  4. Lesson 1: Capturing System Images • Installing & Using WAIK (Windows Automated Installation Kit) • Using the WPE (Windows Preinstallation Environment) • Creating a Reference Image • Distributing an Image to Many Computers • Using the Deployment Image • Servicing and Management Tool • Sysprep

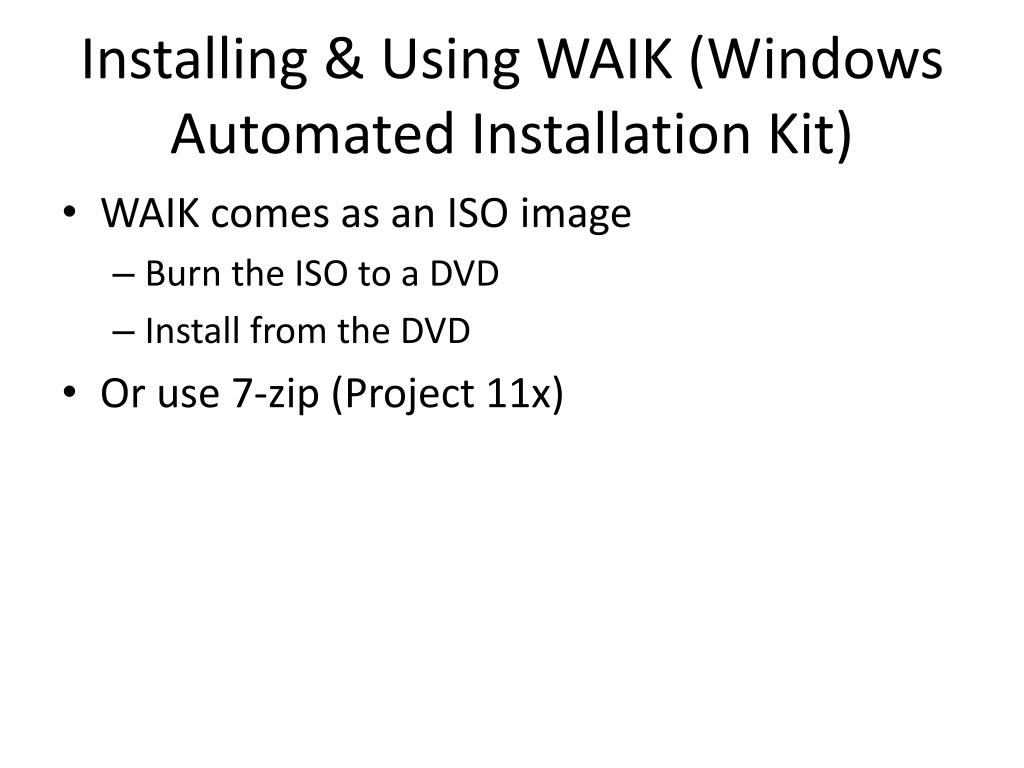

  5. Installing & Using WAIK (Windows Automated Installation Kit) • WAIK comes as an ISO image • Burn the ISO to a DVD • Install from the DVD • Or use 7-zip (Project 11x)

  6. WAIK Tools • Link TestPrep Ch 2a

  7. OSCDIMG • Used for creating ISO images

  8. Using the WinPE (Windows Preinstallation Environment) • Free lightweight version of Windows 7 • Can boot from • PXE (Network) • DVD • UFD (USB Flash Drive) • VHD (Virtual Hard Disk) • Hard disk

  9. Making a WinPE Boot Disk • Use the copycpe.cmd script • From C:\Program Files\Windows AIK\Tools\PETools • To create a local Windows PE Build Directory • Then use Oscdimg to create an ISO image of WinPE • Burn the ISO to DVD-ROM • Boot from the DVD-ROM and use ImageX to capture a WIM image

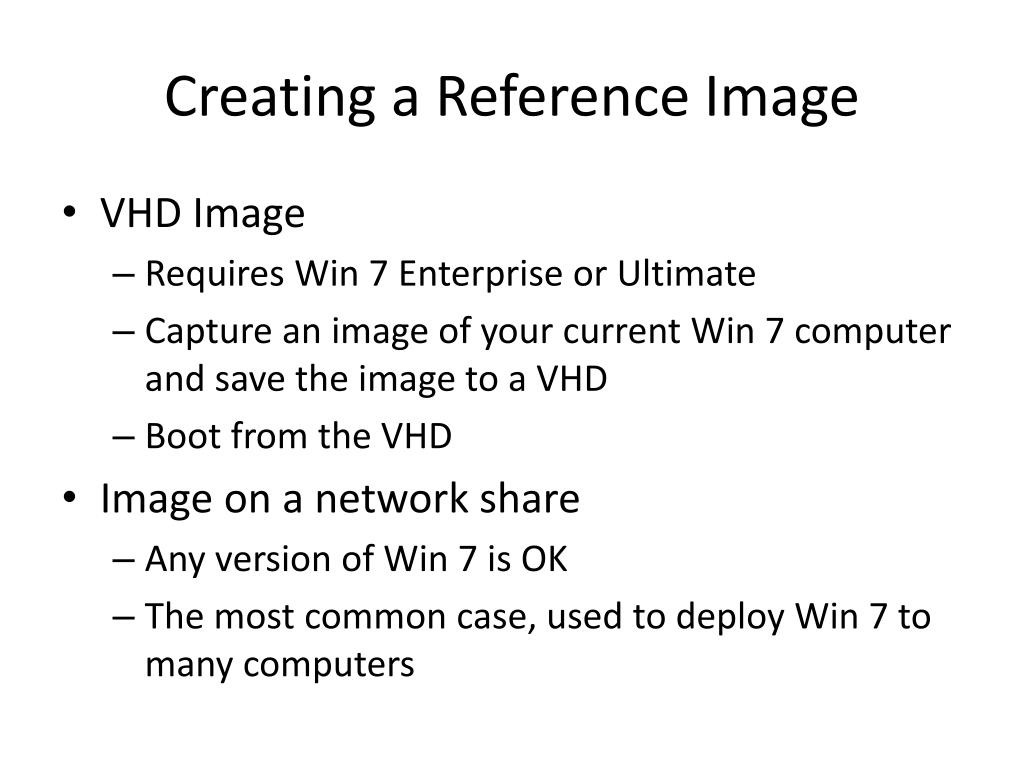

  10. Creating a Reference Image • VHD Image • Requires Win 7 Enterprise or Ultimate • Capture an image of your current Win 7 computer and save the image to a VHD • Boot from the VHD • Image on a network share • Any version of Win 7 is OK • The most common case, used to deploy Win 7 to many computers

  11. Building an Answer File • Configure default Internet Explorer settings, networking configuration, etc. • Permits unattended installation, by answering all required questions • Use Windows SIM to create the answer file • Example file is in WAIK • C:\Program Files\Windows AIK\Samples\Corp_autounattended_sample.xml

  12. Install.wim

  13. DEMO • Building an Answer File • Project 11x
