  1. LCLS-II UXTTunnel Length Considerations J. Welch, J. Wu, H-D. Nuhn, Z. Huang, M. Rowen, 10-5-11

  2. CD1 Layout BTH (Research Yard) UXT 304 m EH2

  3. Tunnel Length and Scenarios

  4. Limitations of Self-Seeding Options • Photon energy tunability • Not clear if S-S photon energy is flexible or if a different crystal is needed for different photon energies. • Pulse energy • single crystal scheme requires short, low charge bunches which may not generate much pulse energy. 1 TW x 1 fs = 1 mJ

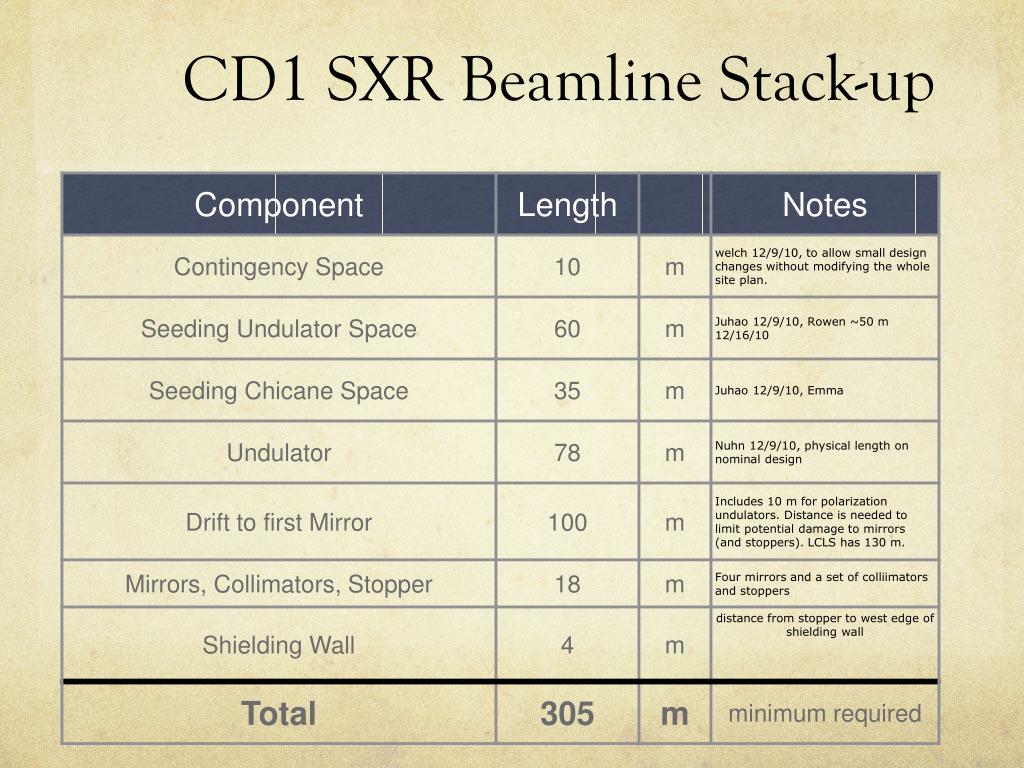

  5. CD1 SXR Beamline Stack-up

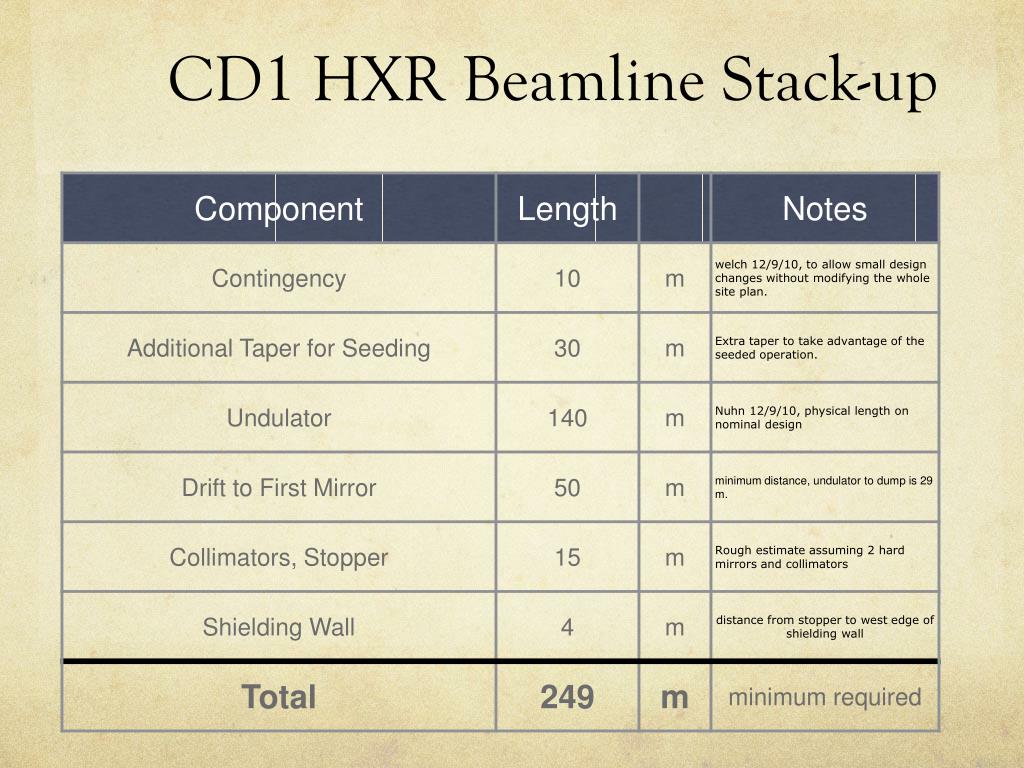

  6. CD1 HXR Beamline Stack-up
