  1. phase 3 workflow & tools S. Zampieri V. Forchi P. Nunes D. Sforna M. Klein Gebbinck 1 ESO Public Surveys Phase III Workshop30.11.2010

  2. workflow 1. Create Phase 3 Program 2. Manage Program Permissions 3. Create Collection and Release 4. Prepare Data 5. Validate Data 6. Upload Data 7. Close Release 8. Validate Release (automatic) 9. Validate Release (scientific) 10. Archive Release 11. Publish Release ESO/EDP PI PI/COI Legend:

  3. start

  4. login

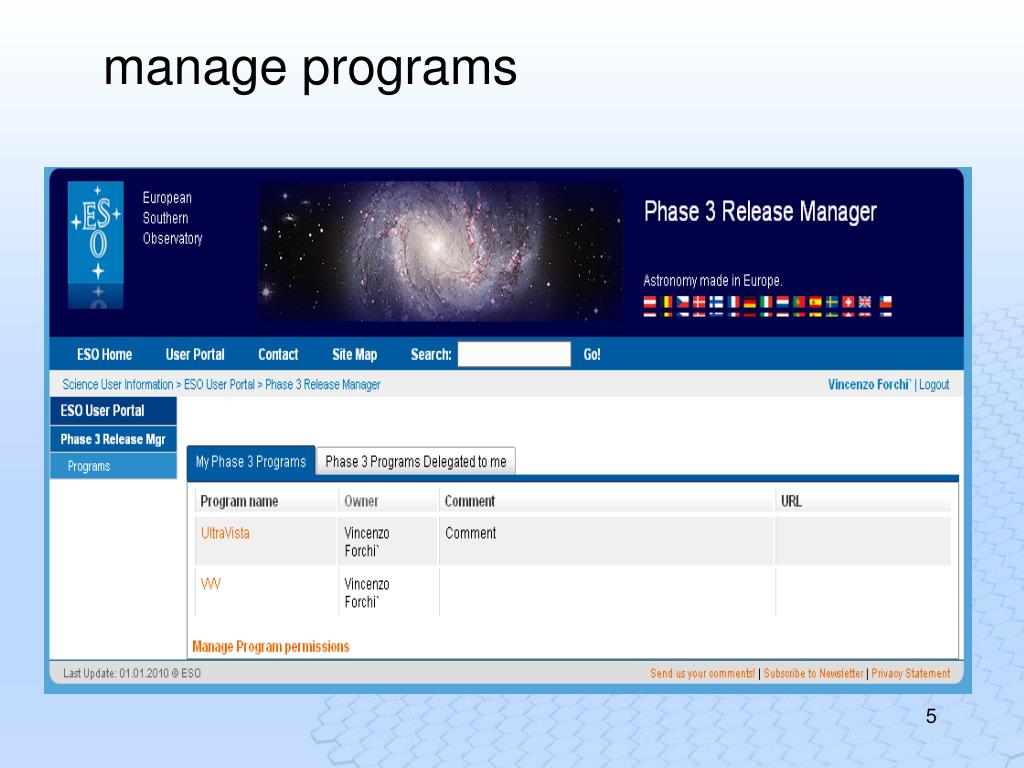

  5. manage programs

  6. manage program permissions

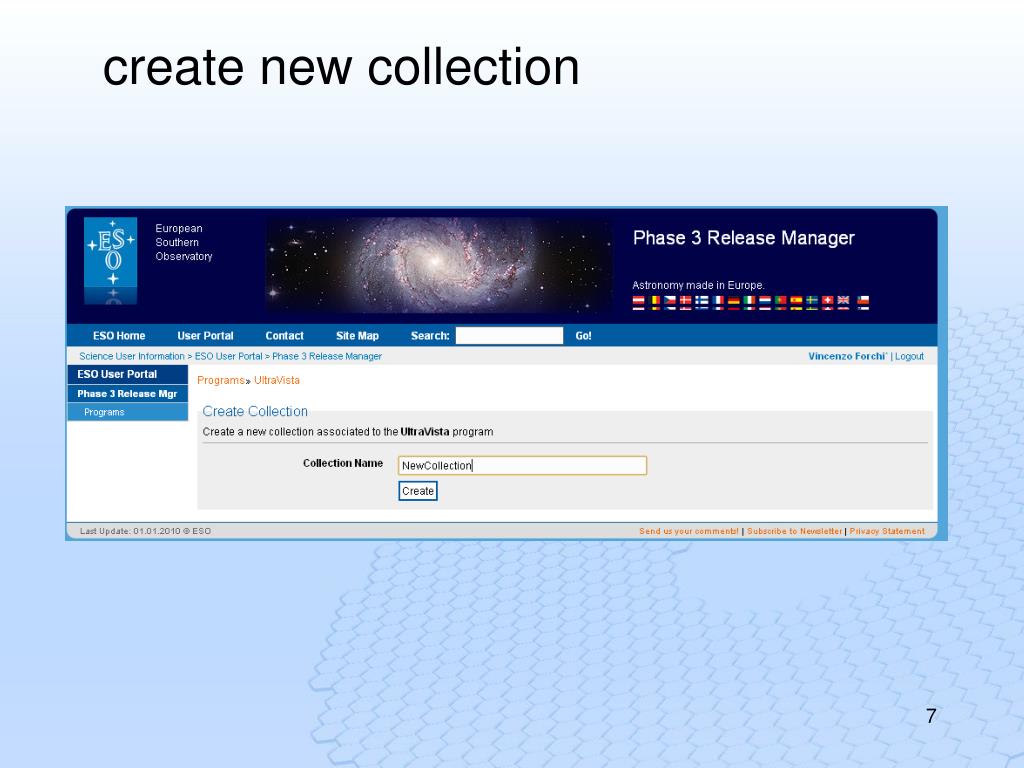

  7. create new collection

  8. manage collections

  9. create new release

  10. prepare data release science data: *.fits, *.fits.fz, PRODCATG ancillary data: *, associated to science data scientific meta-data: FITS keywords associations: ASSONi, ASSOCi provenance: PROVi description: release-description.tar See Phase 3 User Documentation See Jörg’s presentation

  11. validate data release • java –jar validator.jar –r <dir> \ • -m create|update • Output • Summary: console (OK | ERROR) • Table of contents: validator.toc • Validation errors: validator.error • Application log messages: validator.log

  12. upload data lftp –u user,pass phase3ftp.eso.org cd program/collection/release mput * Requires secure FTP client (FileZilla, lftp, etc.) Standard FTP doesn’t work

  13. close release Only PI can close a release Triggers automatic validation process FTP area becomes unavailable for the user

  14. release states 1. Open 2. Closed PI/COI 3a. Valid 3b. Error ESO/SYSTEM 4. ToBeArchived 5. Archived ESO/EDP

  15. view release contents (only for archived releases) download release description file

  16. updating or superseding a release To update a release: 1. Download release description file CONTENT.ESO 2. Create CHANGES.USER DELETE file REPLACE file 3. Validate -m update 4. Upload data + CHANGES.USER
