  1. Techniques to Prevent Power Analysis on Encryption HardwareCS252 Final ProjectBy Shengliang Song & Nikita BorisovProfessor: Jan Rabaey & Kurt Keutzer Smart Card Differential Power Analysis Divide-and-conquer approach

  2. Smart Card • Processing Power (Intel 8051, Motorola 6805) • Data Storage (EEPROM, FLASH, ROM, RAM) • IO & Power Source (Contact, Contactless)

  3. Smart Cards Power: A) Smart Card Reader Synchronous:powered, clocked and addressed under control of the outside world B) Inductive Coupling Asynchronous:RF/ID and RF/DC ISO 7816-3 (similar to RS232 operating at 9600 baud with even parity)

  4. Differential Power Analysis • Semiconductor logic gates • consuming power • producing electromagnetic radiation • DPA: plaintext or ciphertext => encryption or decryption keys • Observes m encryption operation • Captures power traces T[1..m][1..k] (k samples each) • records the ciphertexts C[1..m] • Delta D[1..k] (by finding the difference between the averages of the traces for which D(c,b,ks) is one and the average of the traces for which D(c,b,ks) is zero.)

  5. Measure a circuit’s power consumption • a small (50 ohm) resistor is inserted in series with the power or ground input Vcc I = Vout/R Vout R = 50 ohm

  6. DPA Traces

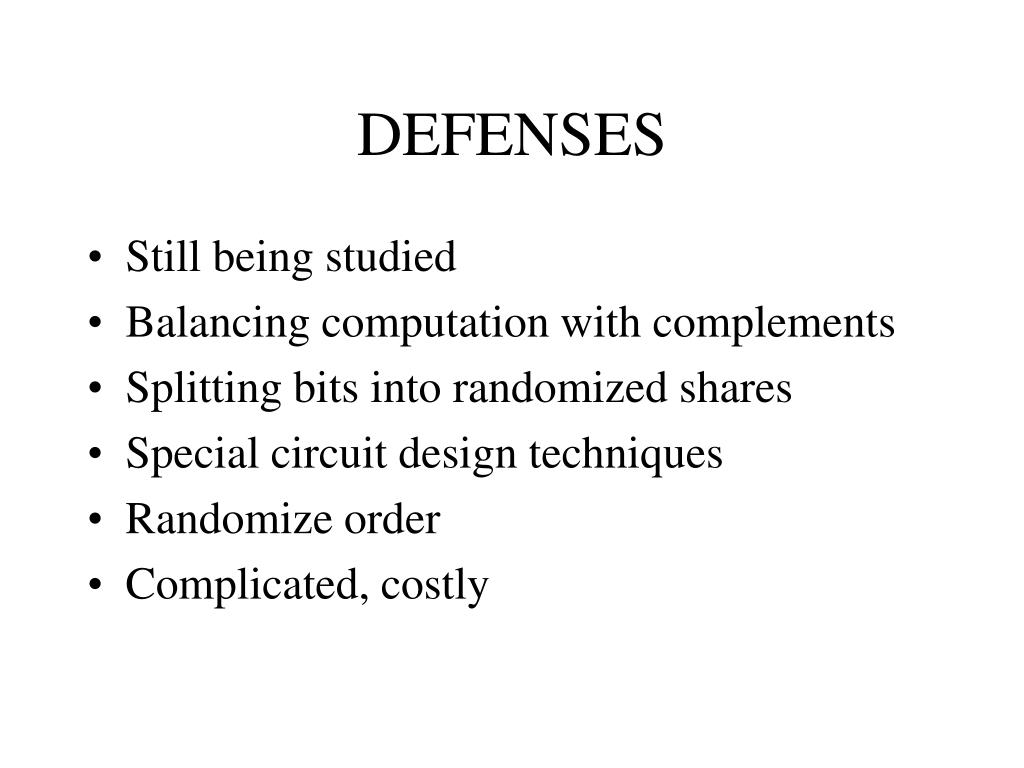

  7. DEFENSES Still being studied Balancing computation with complements Splitting bits into randomized shares Special circuit design techniques Randomize order Complicated, costly

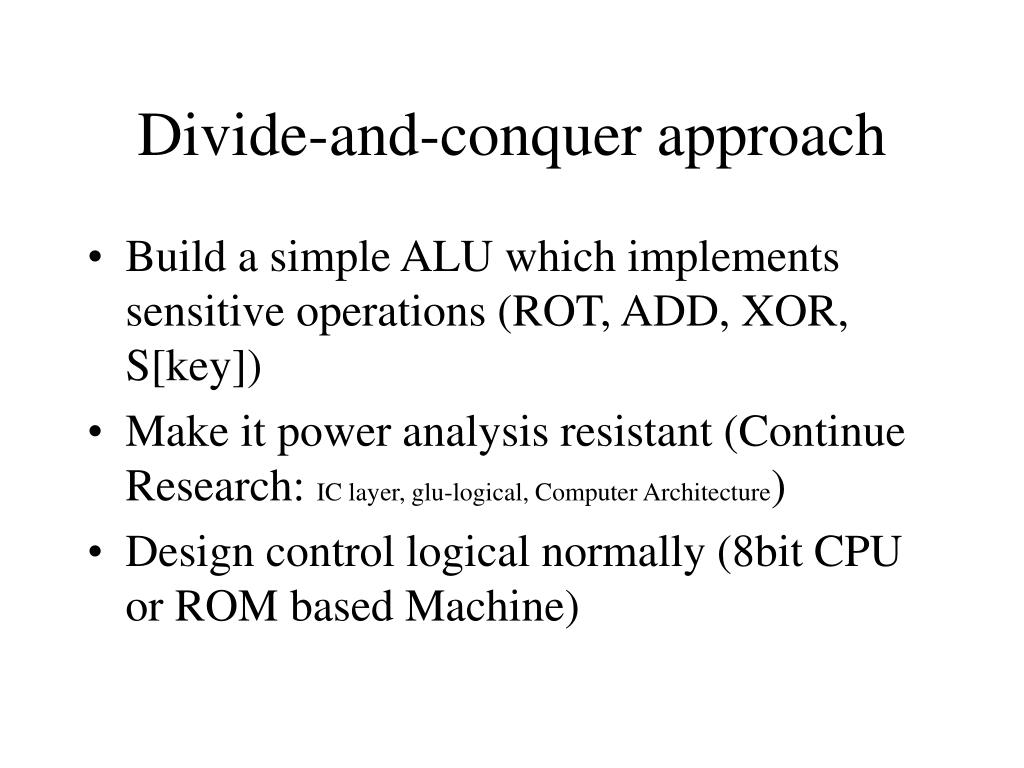

  8. Divide-and-conquer approach Build a simple ALU which implements sensitive operations (ROT, ADD, XOR, S[key]) Make it power analysis resistant (Continue Research: IC layer, glu-logical, Computer Architecture) Design control logical normally (8bit CPU or ROM based Machine)

  9. Control: CPU or ROM Based Machine sequencer control datapath control -Code ROM microinstruction () Decoders implement our -code language: For instance: rt-ALU rd-ALU mem-ALU -sequencer: fetch,dispatch, sequential micro-PC Decode Decode Dispatch ROM To DataPath Opcode

  10. ALU & SBox + 10ns ROT 8ns 8ns ALU XOR WE EN 8 AKey[7:0] SBox 8 • Basic Units: • ROT • ADD • XOR • SBox • Shielding will be less complex • Communication: (ALU, Sbox, Ctrl) S[Akey]

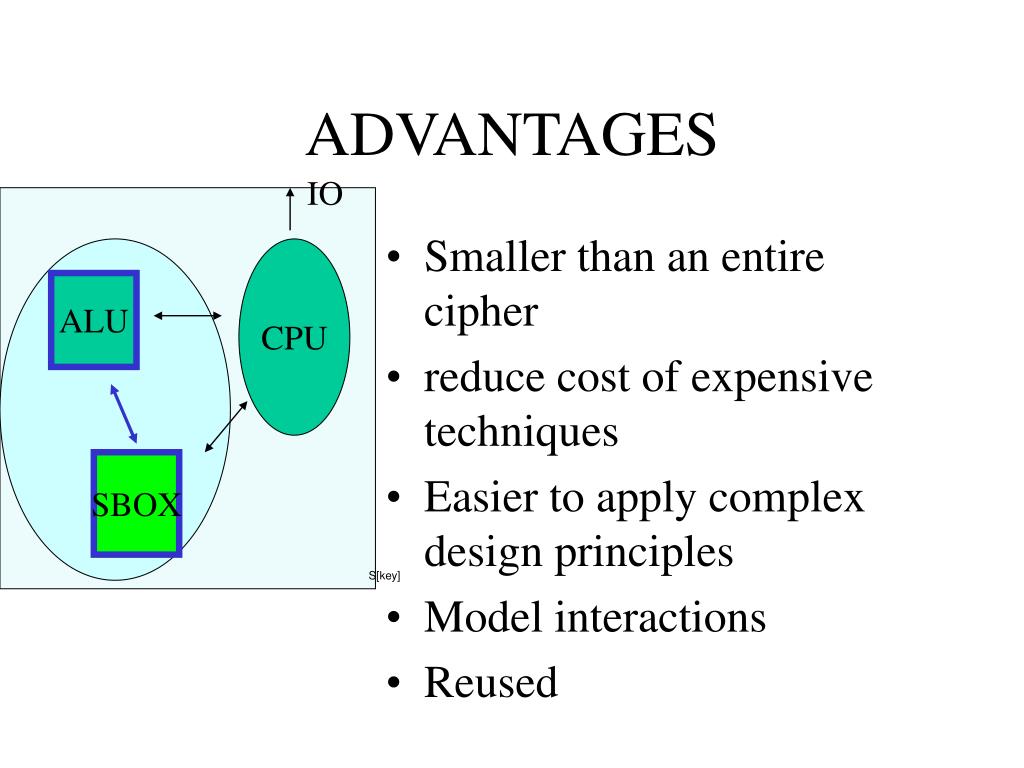

  11. ADVANTAGES Smaller than an entire cipher reduce cost of expensive techniques Easier to apply complex design principles Model interactions Reused IO CPU ALU SBOX S[key]

  12. PROBLEMS: communication between controller and ALU can be slow Asynchronous (Req, Ack, ALU takes more than one clock cycle time) Synchronous (ALU need run in a fast clock rate) some cipher specific techniques (eg. Randomized Sbox lookups) are harder to apply

  13. References Smart Cards: http://www.sjug.org/jcsig/others/smart_card.htm Differential Power Analysis: http://www.cryptography.com/dpa/Dpa.pdf
