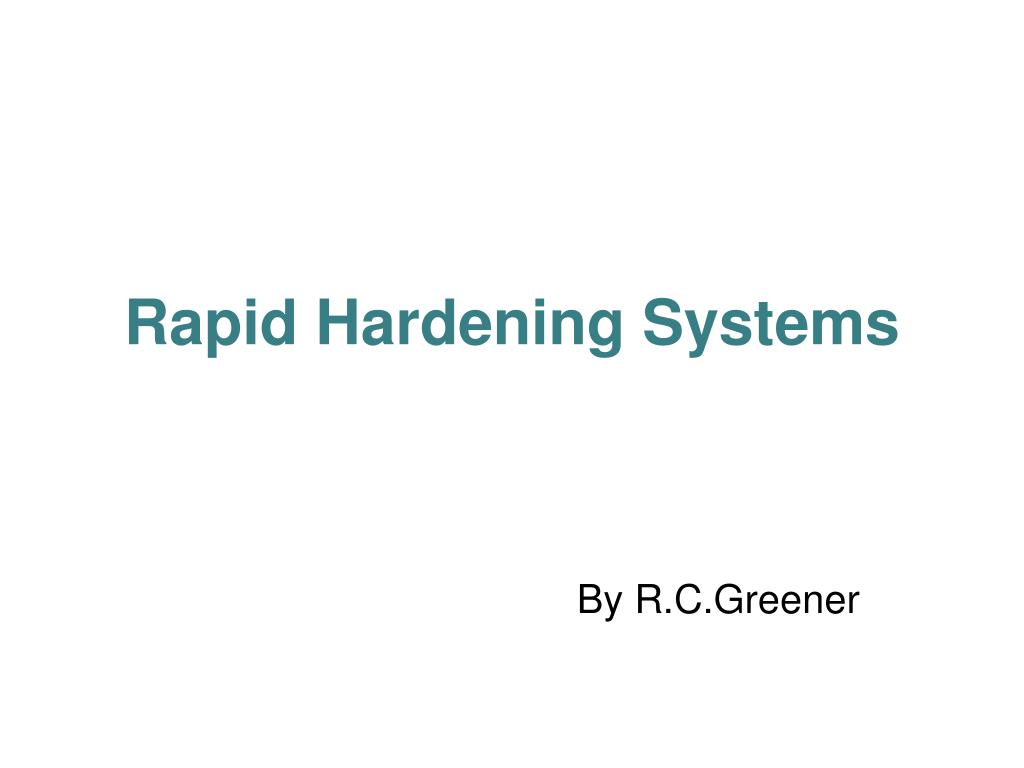

  1. Rapid Hardening Systems By R.C.Greener

  2. Which Would You Rather Buy? A or B

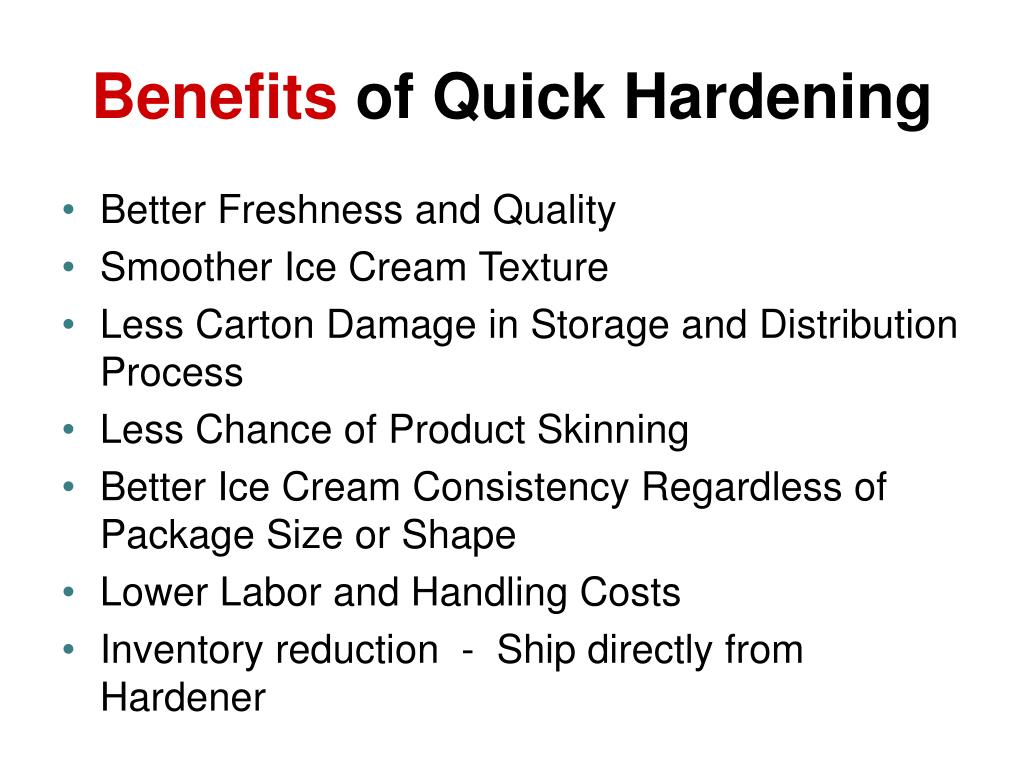

  3. Benefits of Quick Hardening • Better Freshness and Quality • Smoother Ice Cream Texture • Less Carton Damage in Storage and Distribution Process • Less Chance of Product Skinning • Better Ice Cream Consistency Regardless of Package Size or Shape • Lower Labor and Handling Costs • Inventory reduction - Ship directly from Hardener

  4. Costs to Harden Rapidly • More energy • Higher Capital Investment • Increased product shrinkage if design improper

  5. Percentage of H2O Frozen at Various Draw/Fill Temperatures Draw Temp % H2O Frozen +25oF 33.0 +24oF 41.0 +23oF 47.0 +22oF 52.0 +21oF 56.0 +20oF 59.0 -15oF 90.0

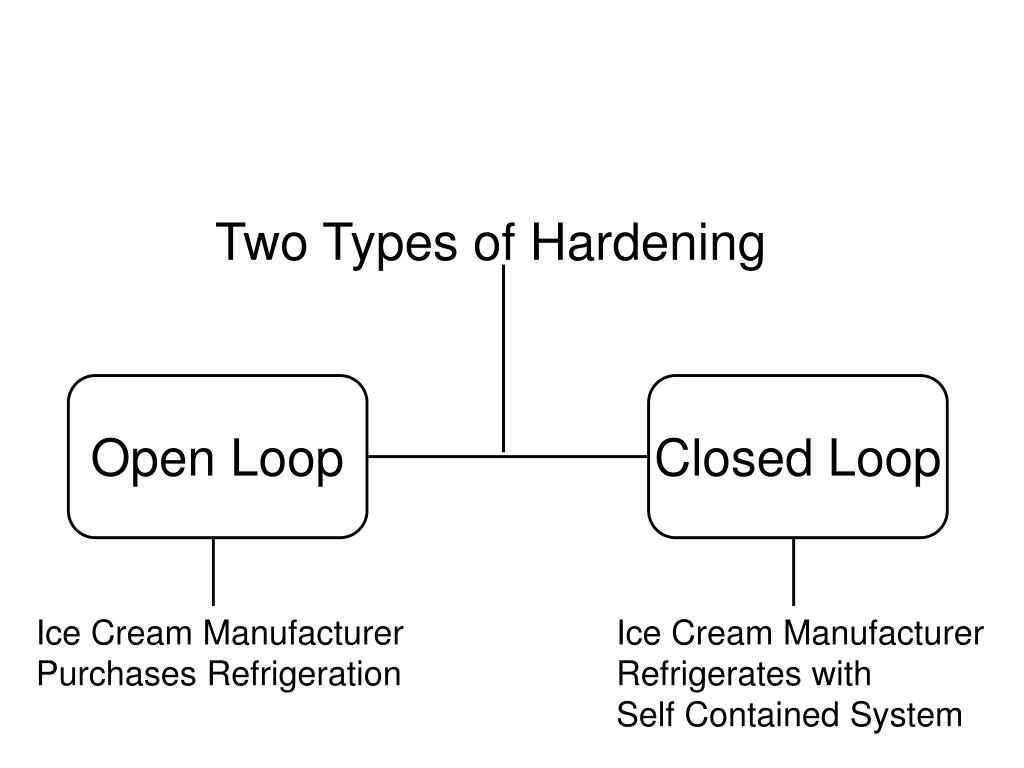

  6. Two Types of Hardening Open Loop Closed Loop Ice Cream Manufacturer Purchases Refrigeration Ice Cream Manufacturer Refrigerates with Self Contained System

  7. Open Loop Closed Loop

  8. Advantagesof Cryogenic Hardening • Lowest retention time for ice cream novelties & cakes • Excellent ice cream texture • Allows surface setting of novelty item prior to wrapping • Superior overall quality for cake items

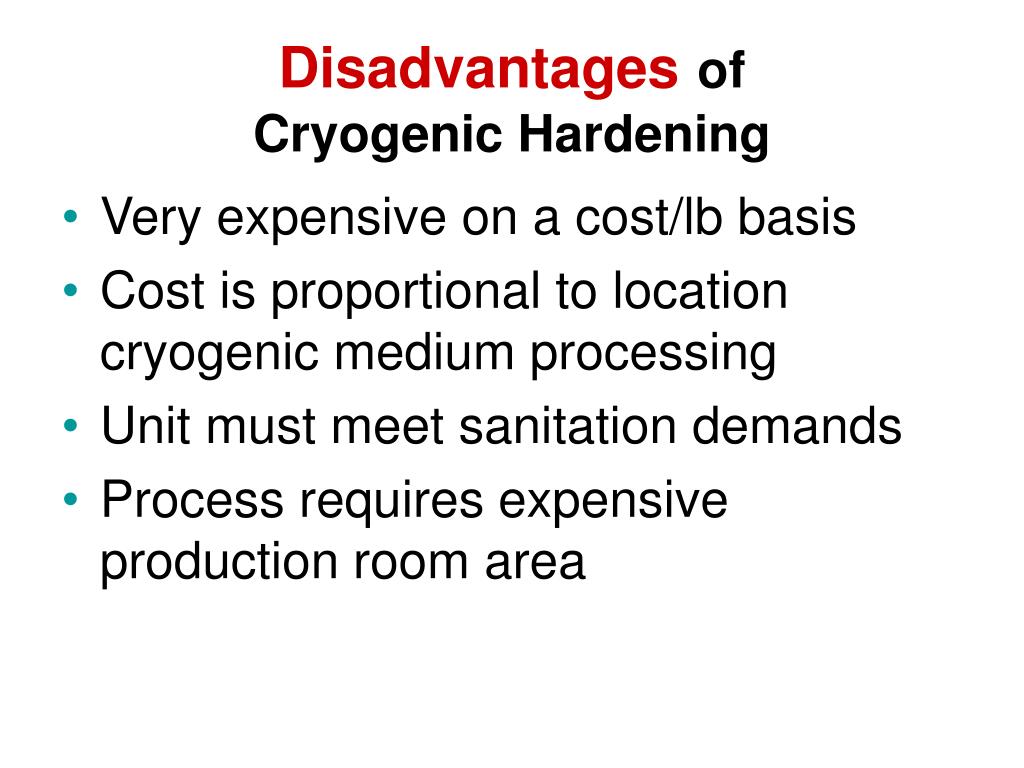

  9. Disadvantagesof Cryogenic Hardening • Very expensive on a cost/lb basis • Cost is proportional to location cryogenic medium processing • Unit must meet sanitation demands • Process requires expensive production room area

  10. How Immersion & Plate Systems Harden Ice Cream Mechanical Refrigeration System Evaporative Condenser Heat Transferred by Direct Conduction from Product to Refrigerant Energy Transferred from Refrigerant to Atmosphere

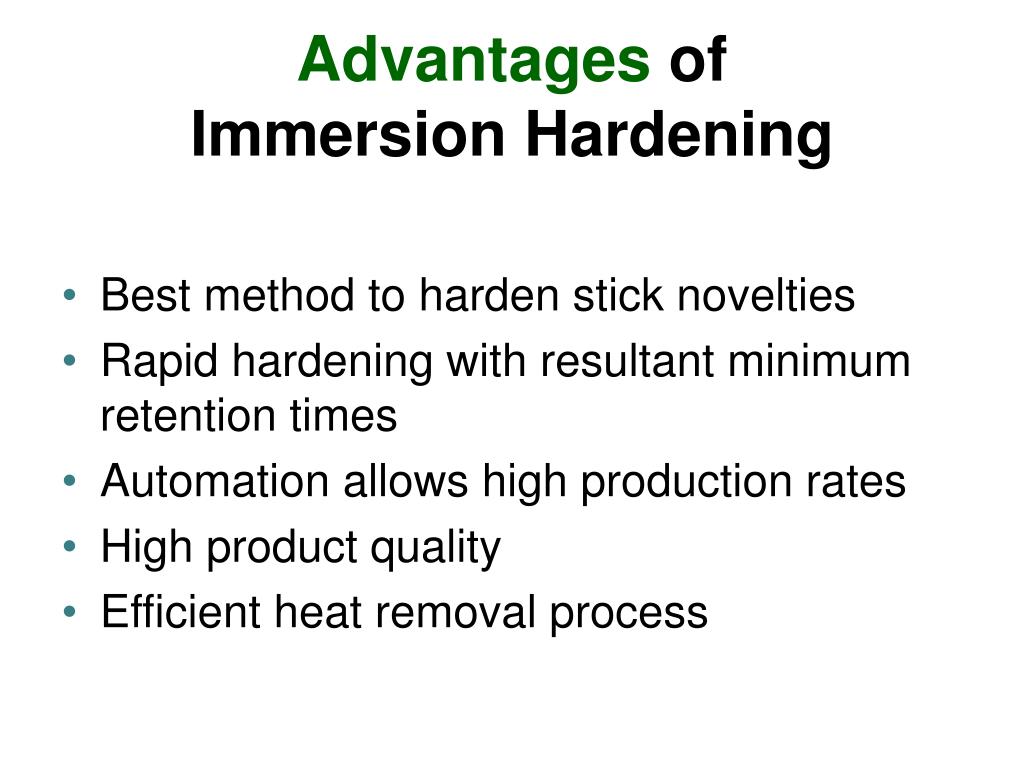

  11. Advantages of Immersion Hardening • Best method to harden stick novelties • Rapid hardening with resultant minimum retention times • Automation allows high production rates • High product quality • Efficient heat removal process

  12. Disadvantages of Immersion Hardening • Single item process • Requires expensive production room area • Must meet sanitation requirements • Some units subject to high waste water demands • Product shrinkage through process is relatively high • High capital expense for single item manufacture

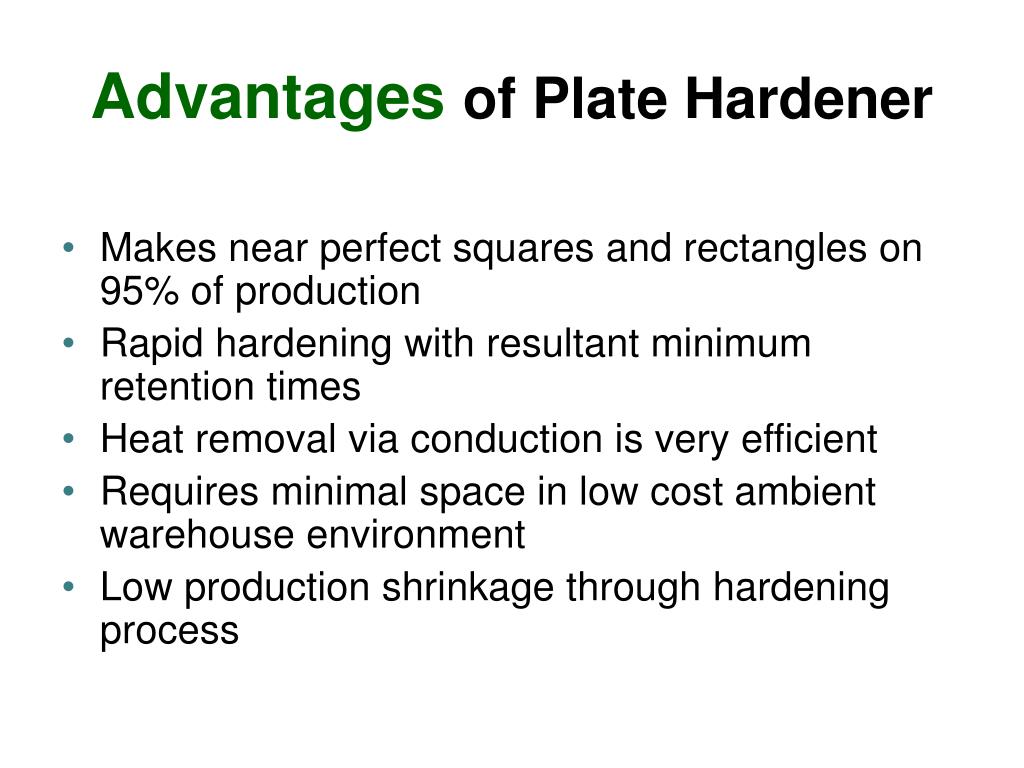

  13. Advantagesof Plate Hardener • Makes near perfect squares and rectangles on 95% of production • Rapid hardening with resultant minimum retention times • Heat removal via conduction is very efficient • Requires minimal space in low cost ambient warehouse environment • Low production shrinkage through hardening process

  14. Disadvantagesof Plate Hardener • Very limited item utility • Approximately 5% of product has shape irregularities • High capital cost in plants where all volume can not be hardened by plate process • Safety issue because refrigerant is in moving hollow plate • Requires low refrigerant temperature

  15. How Air Convection Hardens Cold Air Ice Cream Mechanical Refrigeration System Evaporative Condenser Coil Warm Air Conduction from Refrigerant to Atmosphere Conduction from Product to Air Conduction From Product to Refrigerant

  16. Air Convection Significance • Used for Hardening over 85% of Ice Cream in US. • Used by over 95% of Ice Cream Manufacturers in US

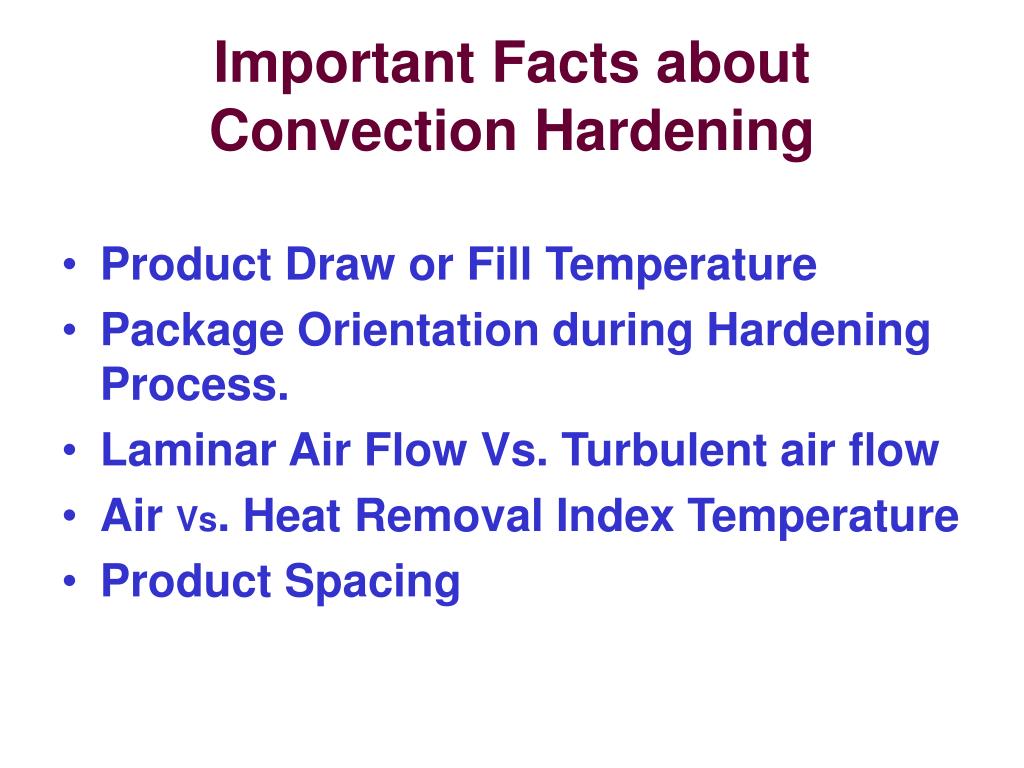

  17. Important Facts about Convection Hardening • Product Draw or Fill Temperature • Package Orientation during Hardening Process. • Laminar Air Flow Vs. Turbulent air flow • Air Vs. Heat Removal Index Temperature • Product Spacing

  18. Importance of Draw/Fill Temperatures Draw Temp % H2O Frozen +25oF 33.0 +24oF 41.0 +23oF 47.0 +22oF 52.0 +21oF 56.0 +20oF 59.0 -15oF 90.0

  19. Air Flow Perpendicular to Pak Length • Package: 4 – 56 oz. • Flavor: Choc. Peanut butter cup. • Air Temp.: -25o F • Air Velocity: 1000 FPM • Core Temp In: +20.3o F • Core Temp Out: -0.4o F • Retention Time = 5 Hr 48 Min

  20. Air Flow Parallel to Pak Length • Package: 4 – 56 oz. • Flavor: Choc. Peanut butter cup. • Air Temp.: -25o F • Air Velocity: 1000 FPM • Core Temp In: +19.8o F • Core Temp Out: -1.3o F • Retention Time = 4 Hr 18 Min

  21. Package: 4 – 56 oz. SqRd Flavor: Pumpkin Crème Air Temp.: -23o F Air Velocity: 1000 FPM Core Temp In: +23.2o F Core Temp Out: -0.1o F Retention Time = 5 Hr 28 Min Package: 4 – 56 oz. SqRd Flavor: Pumpkin Crème Air Temp.: -23o F Air Velocity: 1000 FPM Core Temp In: +19.3o F Core Temp Out: -0.2o F Retention Time = 4 Hr 4 Min Draw Temp vs. Hardening Times

  22. Laminar vs Turbulent Air Flow Definitions: Laminar Flow=Streamline flow in a viscous fluid near a solid boundary. Turbulent Flow=Fluid flow in which the velocity at a given point varies erratically in magnitude and direction.

  23. The requirement for an efficient air distribution system is Conversion from Turbulent Flow to Laminar Flow

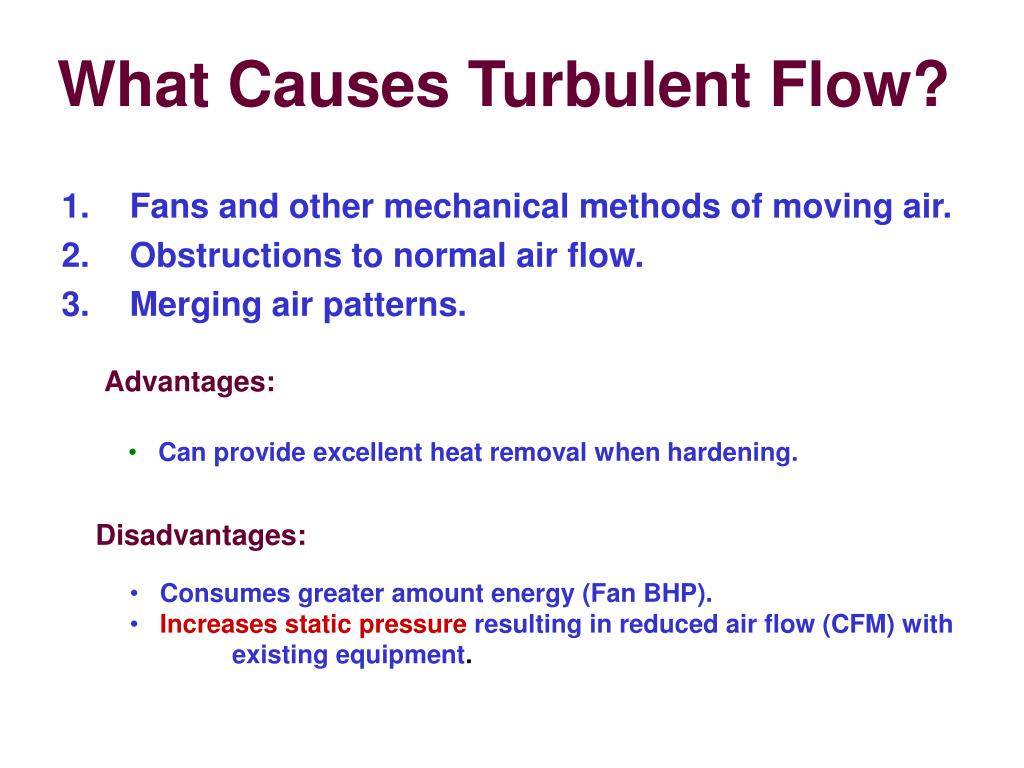

  24. What Causes Turbulent Flow? • Fans and other mechanical methods of moving air. • Obstructions to normal air flow. • Merging air patterns. Advantages: • Can provide excellent heat removal when hardening. Disadvantages: • Consumes greater amount energy (Fan BHP). • Increases static pressure resulting in reduced air flow (CFM) with existing equipment.

  25. Package Spacing Package Rows should have a minimum of 2.00 inch space between rows for air flow.

  26. Advantagesof Pallet Hardener • More mechanical simplicity than all other air convection hardeners • Low capital investment • Hardens multiple package sizes • Low maintenance costs

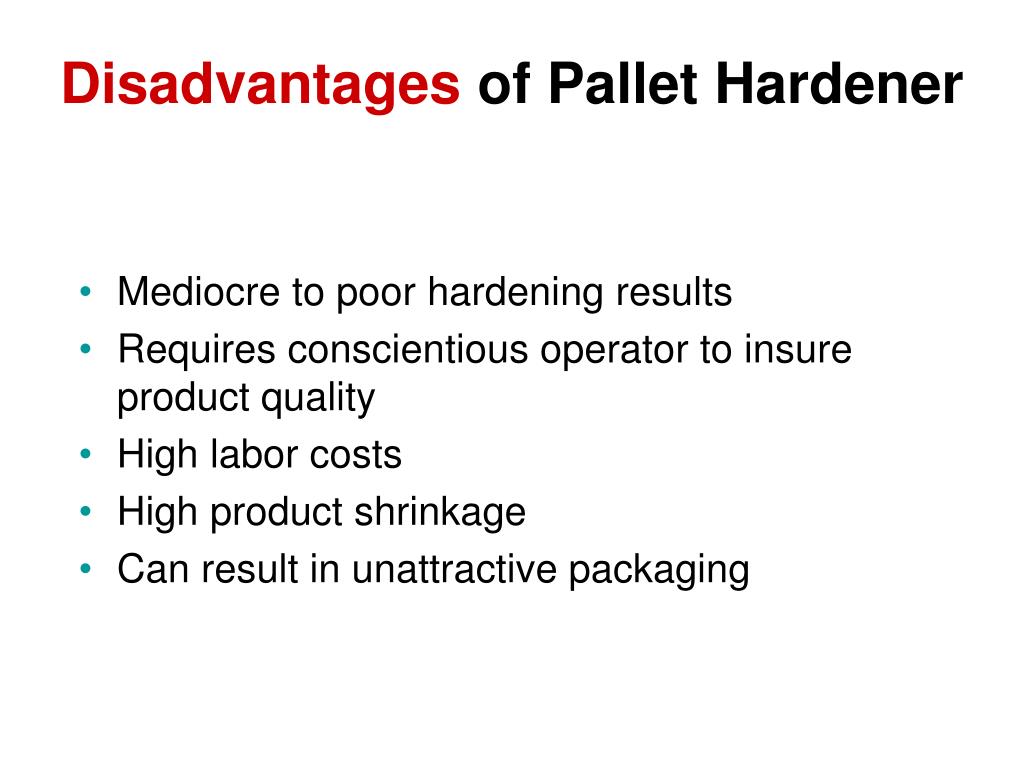

  27. Disadvantagesof Pallet Hardener • Mediocre to poor hardening results • Requires conscientious operator to insure product quality • High labor costs • High product shrinkage • Can result in unattractive packaging

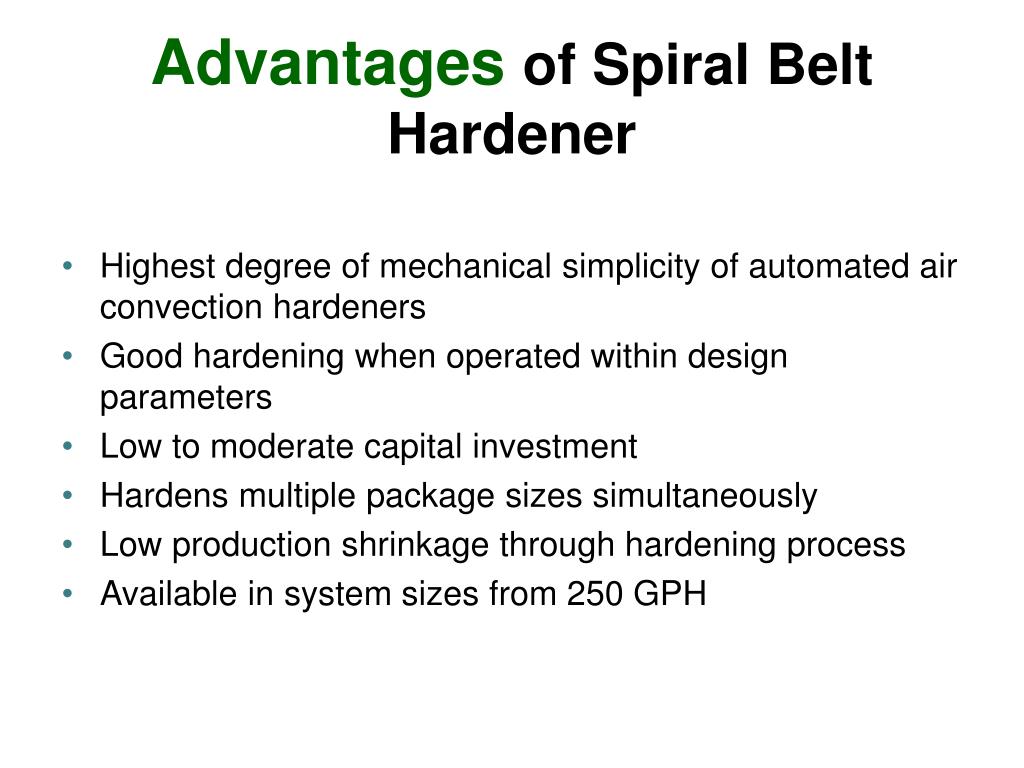

  28. Advantagesof Spiral Belt Hardener • Highest degree of mechanical simplicity of automated air convection hardeners • Good hardening when operated within design parameters • Low to moderate capital investment • Hardens multiple package sizes simultaneously • Low production shrinkage through hardening process • Available in system sizes from 250 GPH

  29. Disadvantagesof Spiral Belt Hardener • Belt loading limited to 10 lbs/ft of belt for good belt life • High fan horsepower results in high energy demands and cost • Requires low refrigerant temperatures • Very difficult to automate package handling in high output plants • High maintenance costs (belt cost represents 35% of typical system cost)

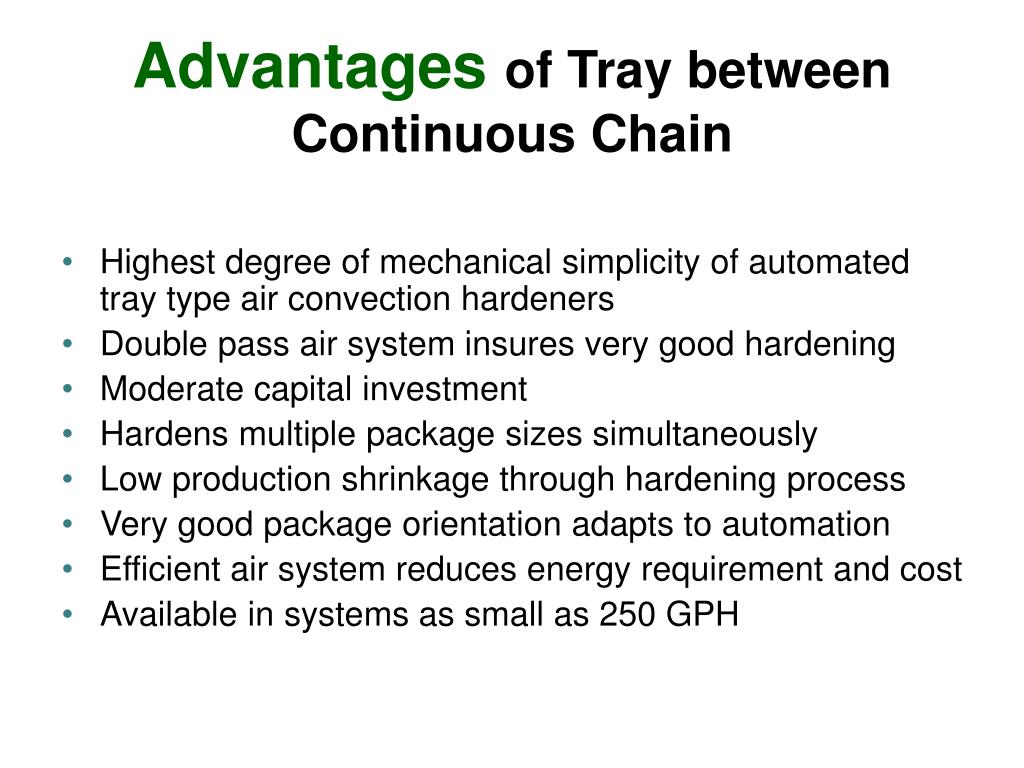

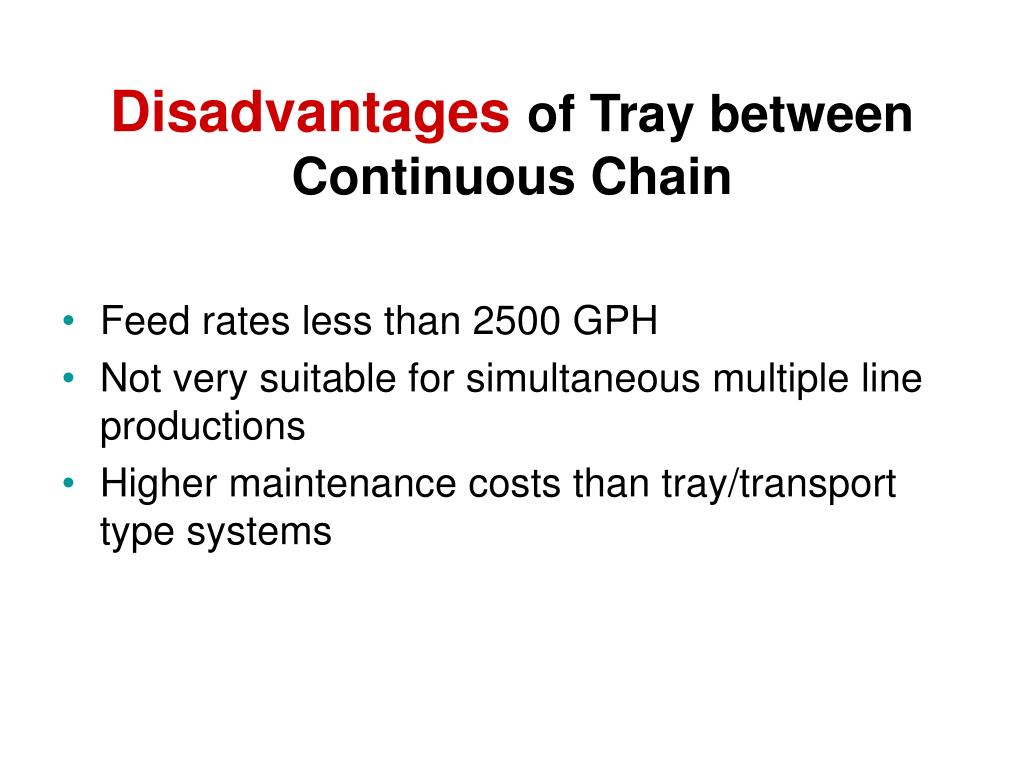

  30. Advantagesof Tray between Continuous Chain • Highest degree of mechanical simplicity of automated tray type air convection hardeners • Double pass air system insures very good hardening • Moderate capital investment • Hardens multiple package sizes simultaneously • Low production shrinkage through hardening process • Very good package orientation adapts to automation • Efficient air system reduces energy requirement and cost • Available in systems as small as 250 GPH

  31. Disadvantagesof Tray between Continuous Chain • Feed rates less than 2500 GPH • Not very suitable for simultaneous multiple line productions • Higher maintenance costs than tray/transport type systems

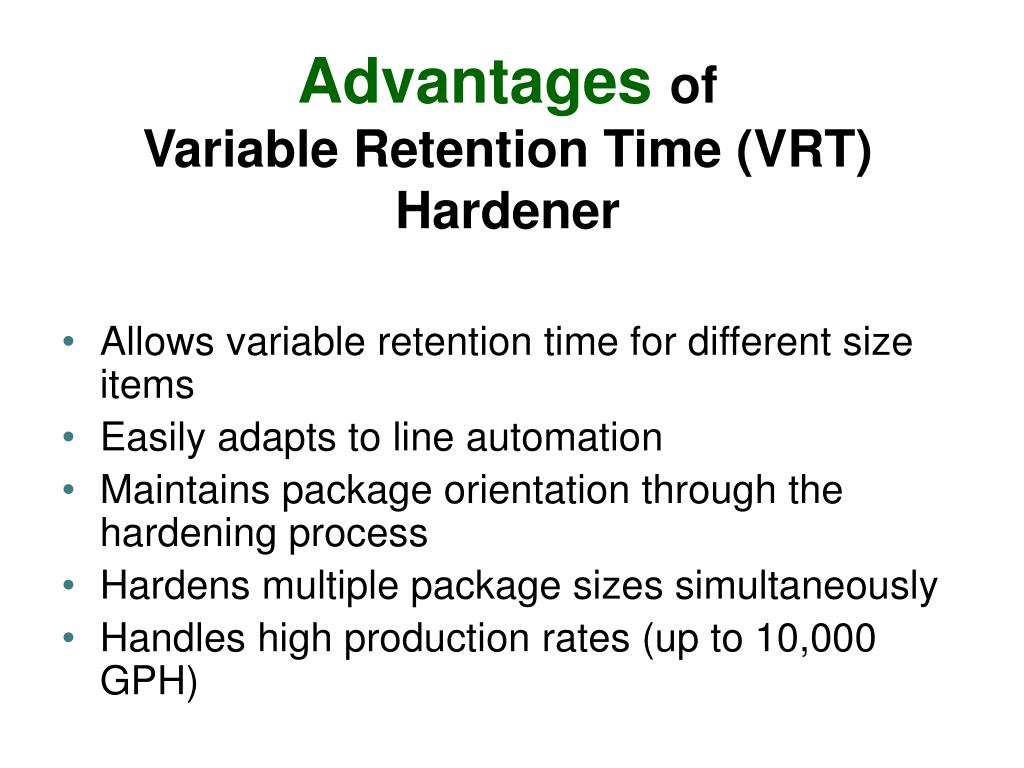

  32. Advantagesof Variable Retention Time (VRT) Hardener • Allows variable retention time for different size items • Easily adapts to line automation • Maintains package orientation through the hardening process • Hardens multiple package sizes simultaneously • Handles high production rates (up to 10,000 GPH)

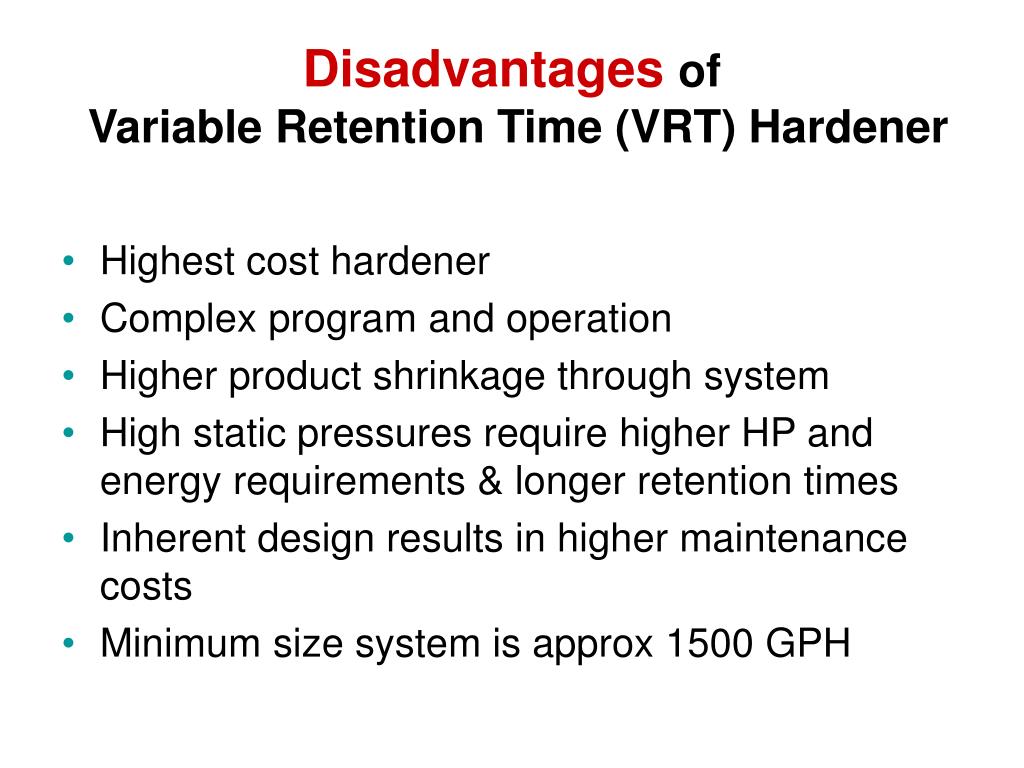

  33. Disadvantagesof Variable Retention Time (VRT) Hardener • Highest cost hardener • Complex program and operation • Higher product shrinkage through system • High static pressures require higher HP and energy requirements & longer retention times • Inherent design results in higher maintenance costs • Minimum size system is approx 1500 GPH

  34. Multiple Tray Transport

  35. Heart of the Multiple Tray Transport The Transport

  36. Advantagesof Multiple Tray Transport • Double pass air system insures very good hardening • Hardens multiple package sizes simultaneously • Very low production shrinkage through hardening process w/ good design • Moderate mechanical simplicity of automated tray type air convection hardeners • Moderate capital investment • Very low maintenance cost with long service life (40 + years) • Very good package orientation adapts to automation • Efficient air system reduces energy requirement and cost • Available in sizes to 10,000 GPH

  37. Disadvantagesof Multiple Tray Transport • No multiple retention time in standard form • Minimum size system is 750 GPH • More complex than spiral belt system • Higher product shrinkage w/ poor design

  38. Advantagesof Fusion Cell • Combination conduction/convection system hardens faster than any air convection system • Most efficient air hardening system -- rivals that of plate hardener • Hardens multiple package sizes simultaneously • Very low production shrinkage through hardening process • Moderate mechanical simplicity of automated tray type air convection hardeners • Overall capital investment lower than most air systems • Very low maintenance cost with long service life (30 + years) • Very good package orientation adapts to automation • Available in sizes to 10,000 GPH • Most compact of air convection hardeners • Allows same refrigerant suction temp for both freezer and hardener
