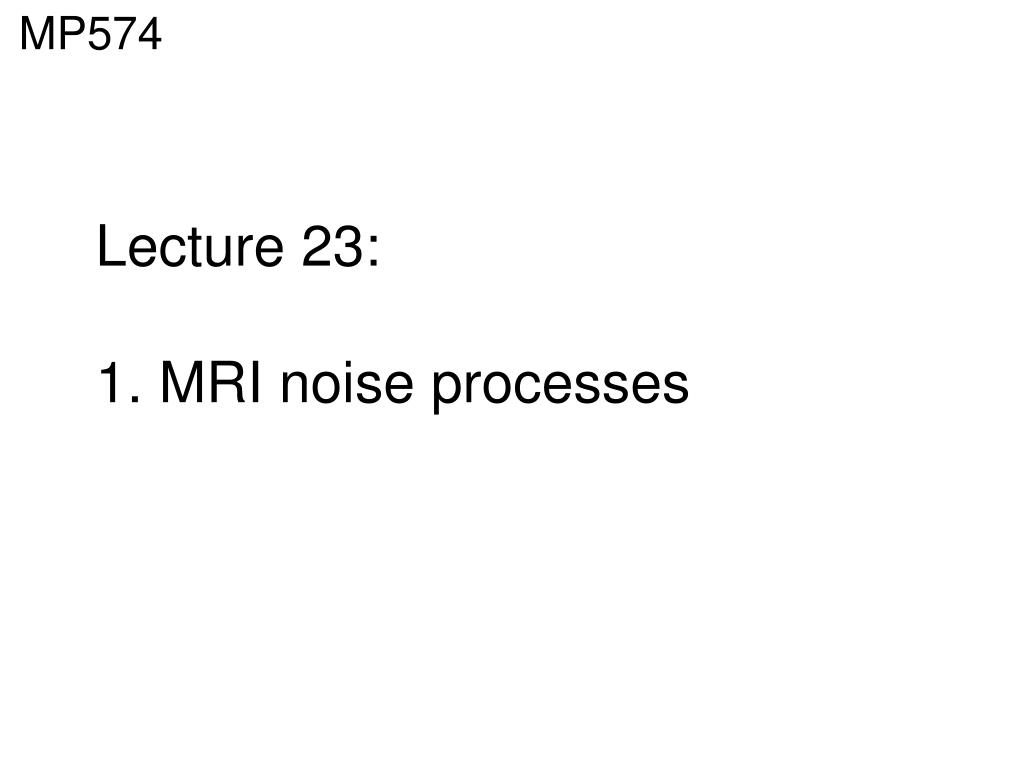

  1. Lecture 23: 1. MRI noise processes MP574

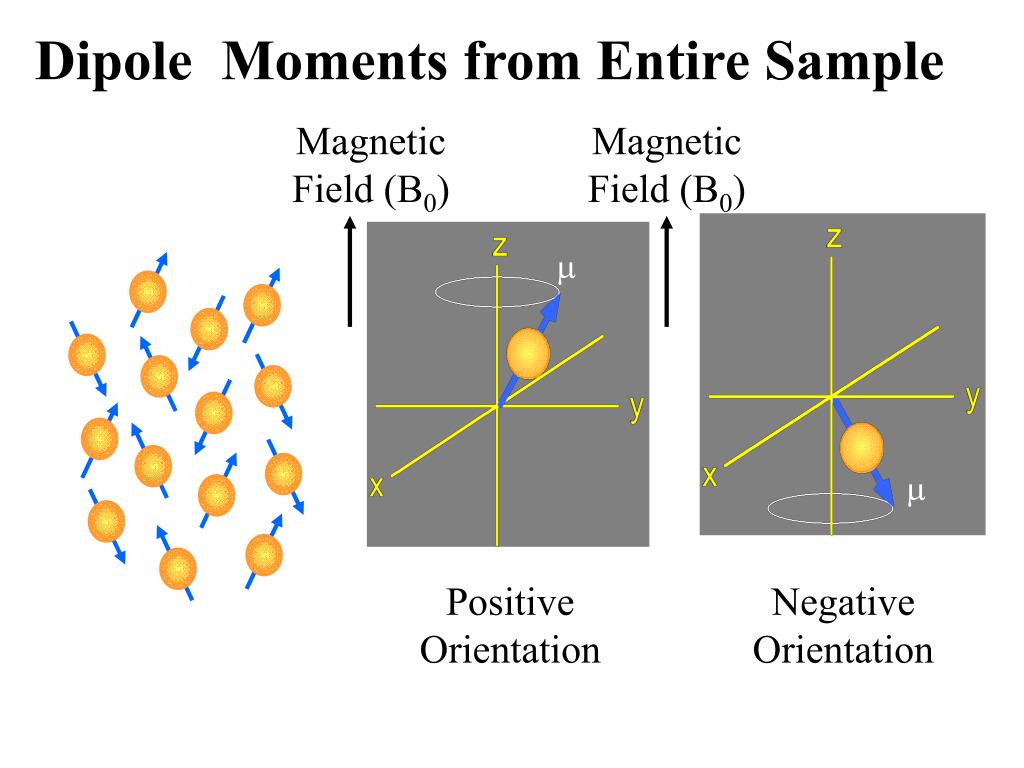

  2. Dipole Moments from Entire Sample Magnetic Field (B0) Magnetic Field (B0) m m Positive Orientation Negative Orientation

  3. Source of Signal • Proton or Water MRI • Bo Magnetic Field • Proton Nucleus • S = ±ħ/2 rg 2 2 h DE D µ = E M B z o 4 kT

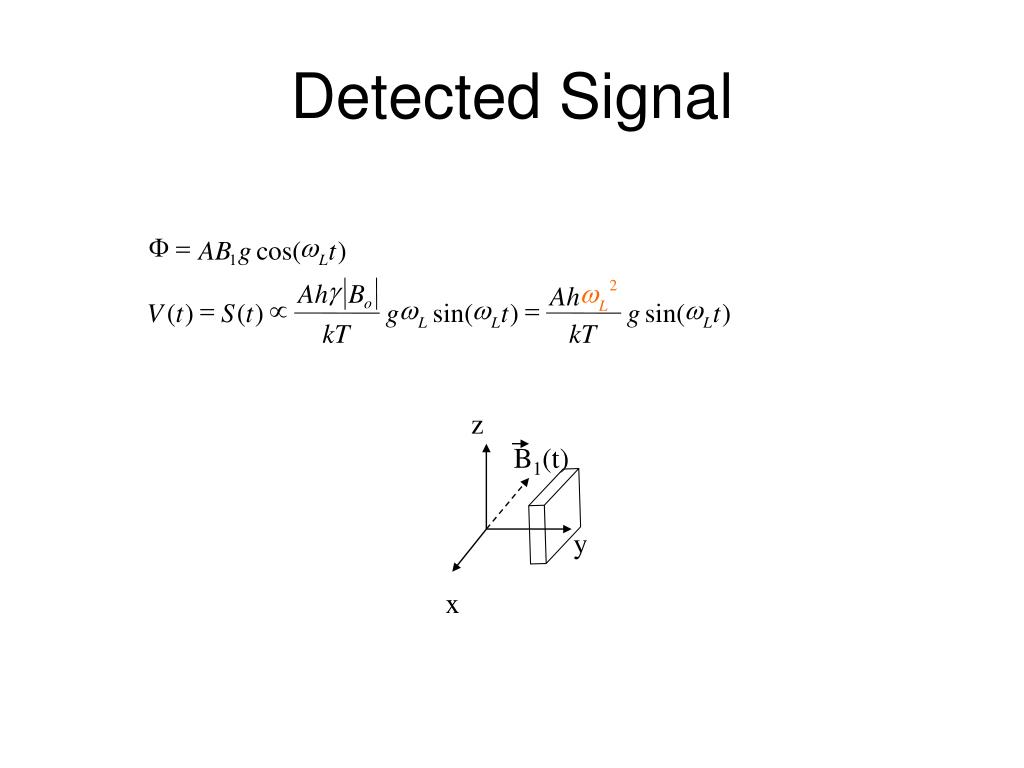

  4. z B1(t) F = w AB g cos( t ) 1 L g 2 w Ah B Ah = µ w w = w o L V ( t ) S ( t ) g sin( t ) g sin( t ) y L L L kT kT x Detected Signal

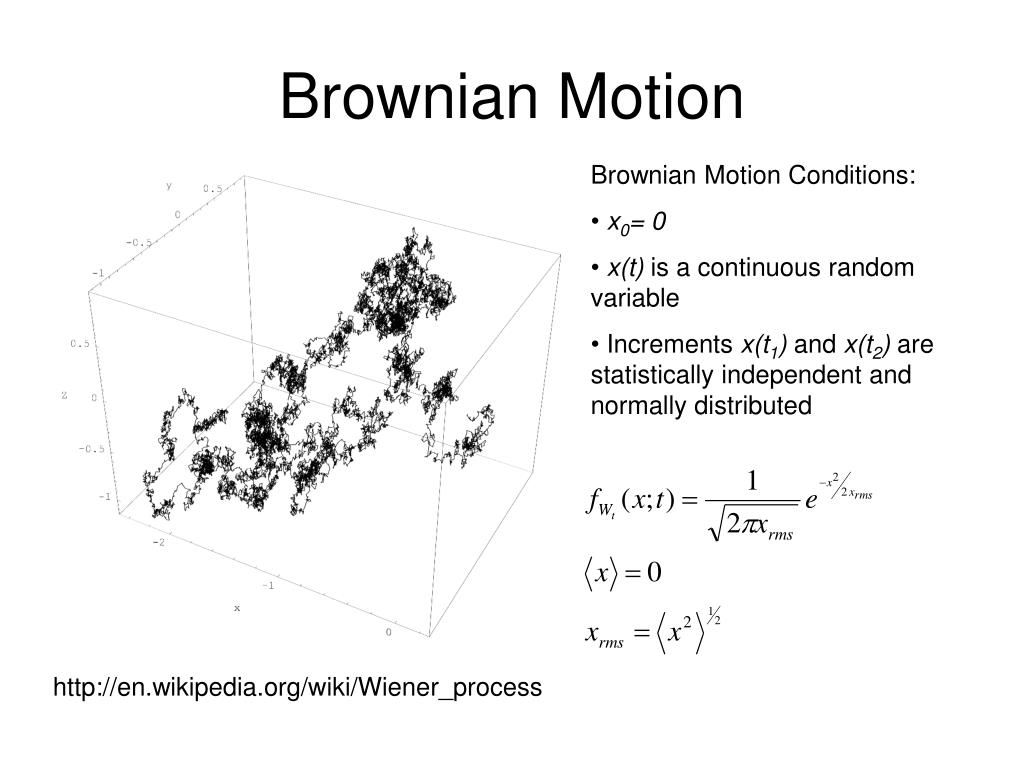

  5. Brownian Motion • Brownian Motion Conditions: • x0= 0 • x(t) is a continuous random variable • Increments x(t1) and x(t2) are statistically independent and normally distributed http://en.wikipedia.org/wiki/Wiener_process

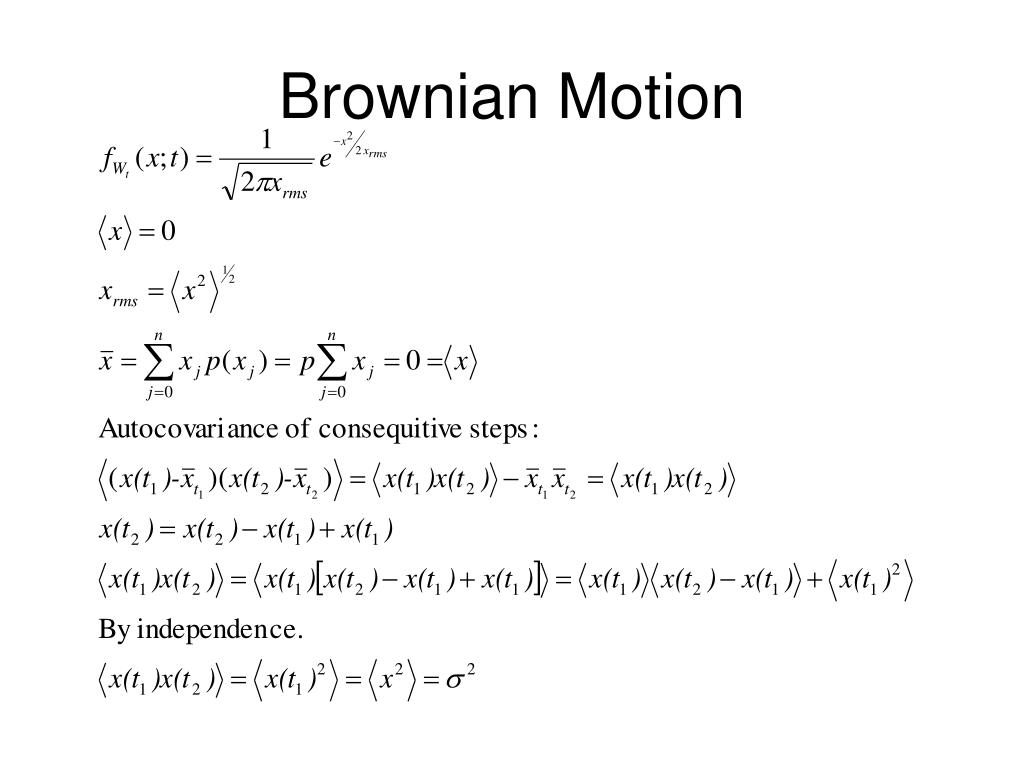

  6. Brownian Motion

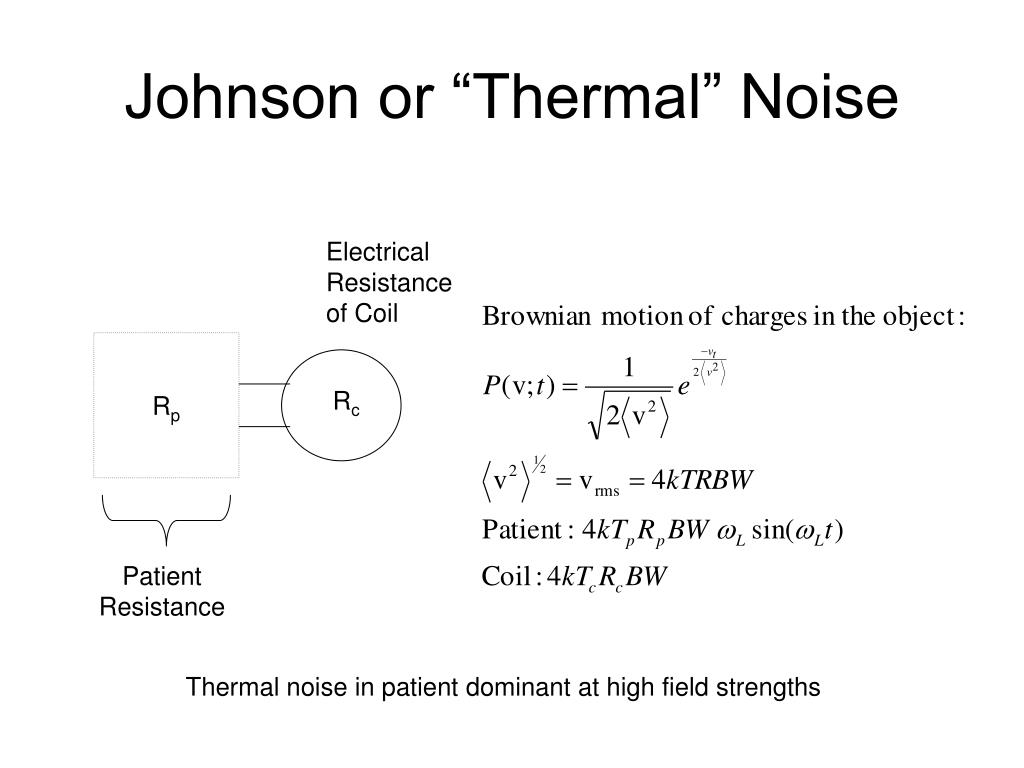

  7. Rp Rc Johnson or “Thermal” Noise Electrical Resistance of Coil Patient Resistance Thermal noise in patient dominant at high field strengths

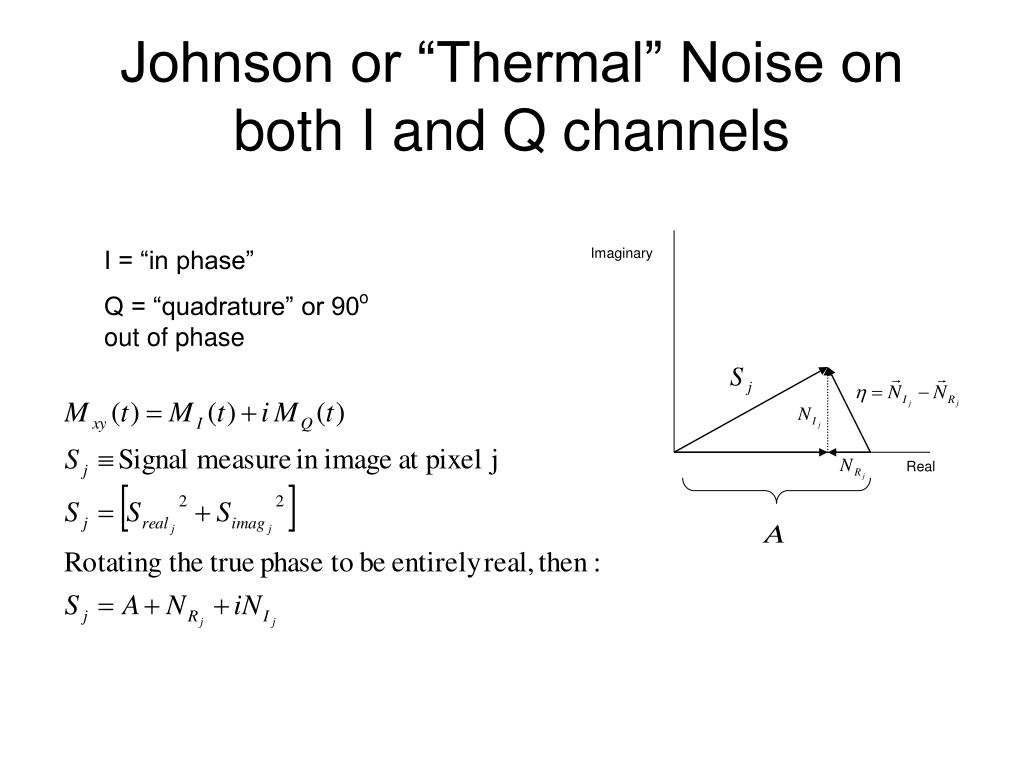

  8. Johnson or “Thermal” Noise on both I and Q channels I = “in phase” Q = “quadrature” or 90o out of phase Imaginary Real

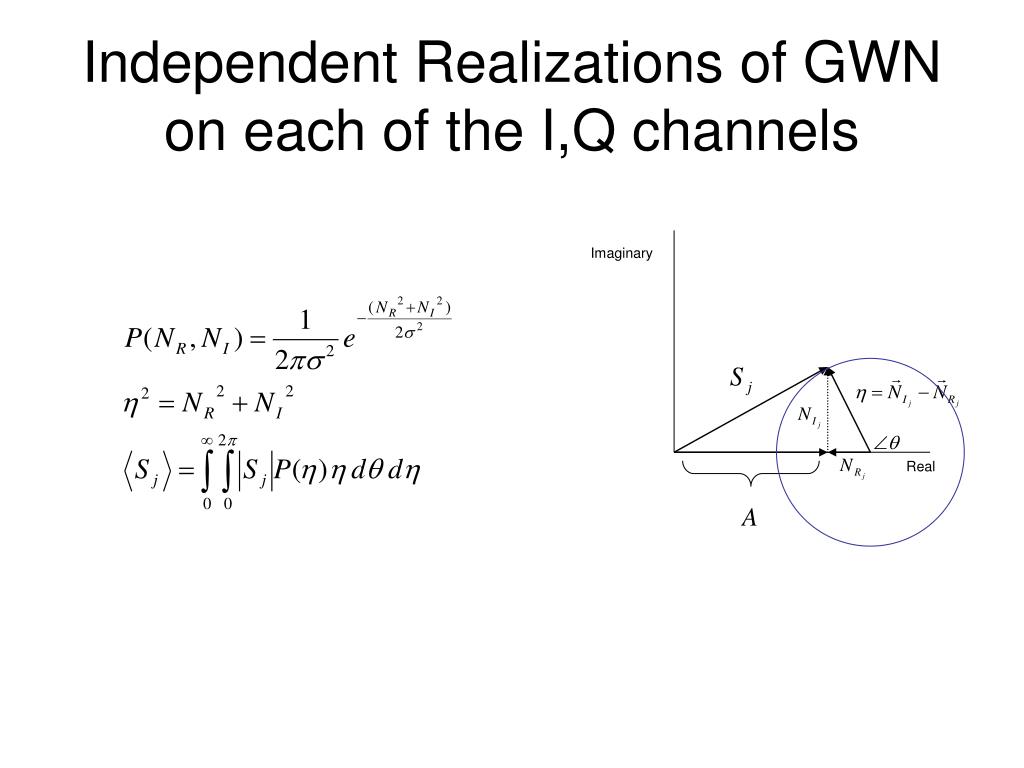

  9. Independent Realizations of GWN on each of the I,Q channels Imaginary Real

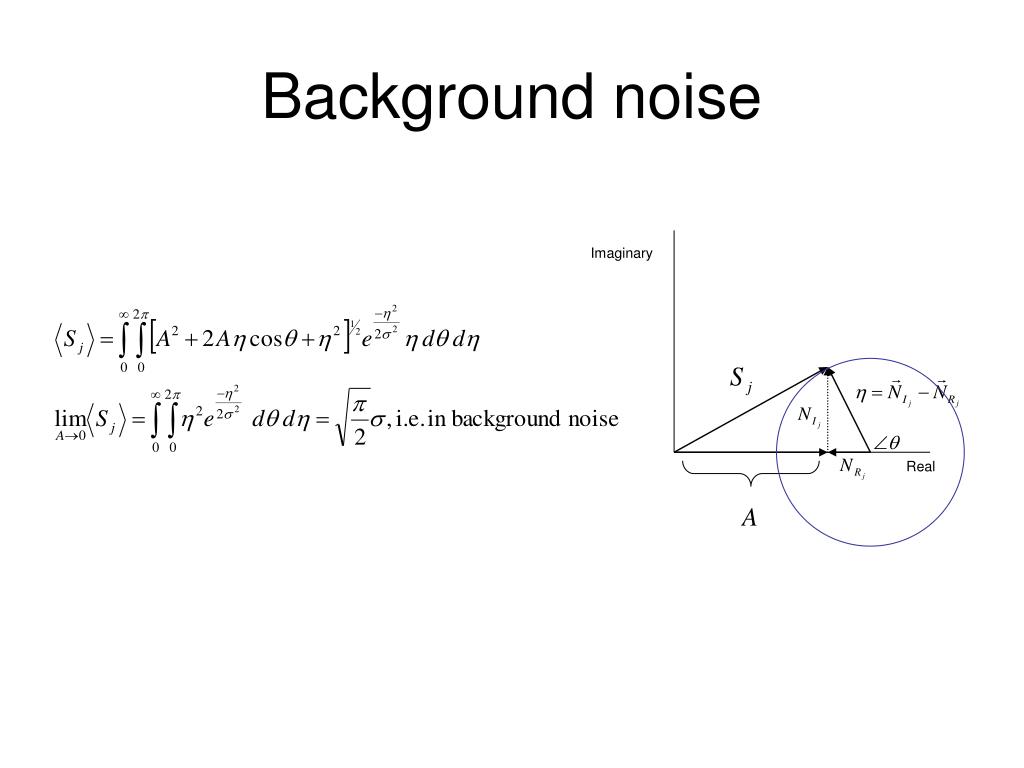

  10. Background noise Imaginary Real

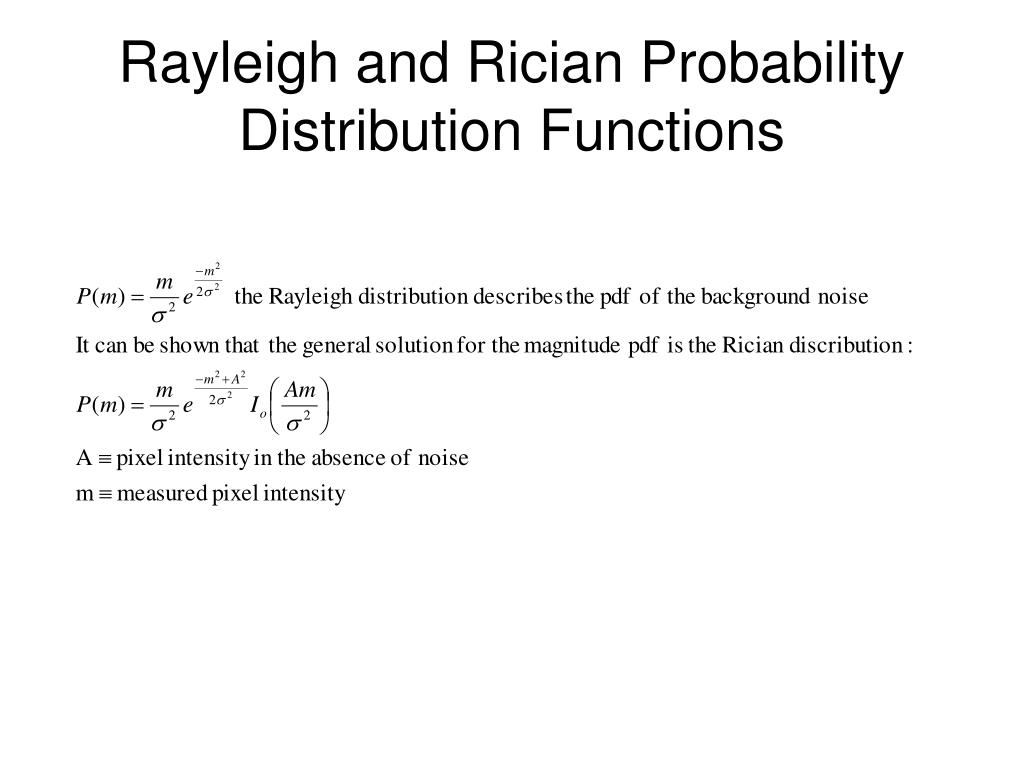

  11. Rayleigh and Rician Probability Distribution Functions

  12. High SNR

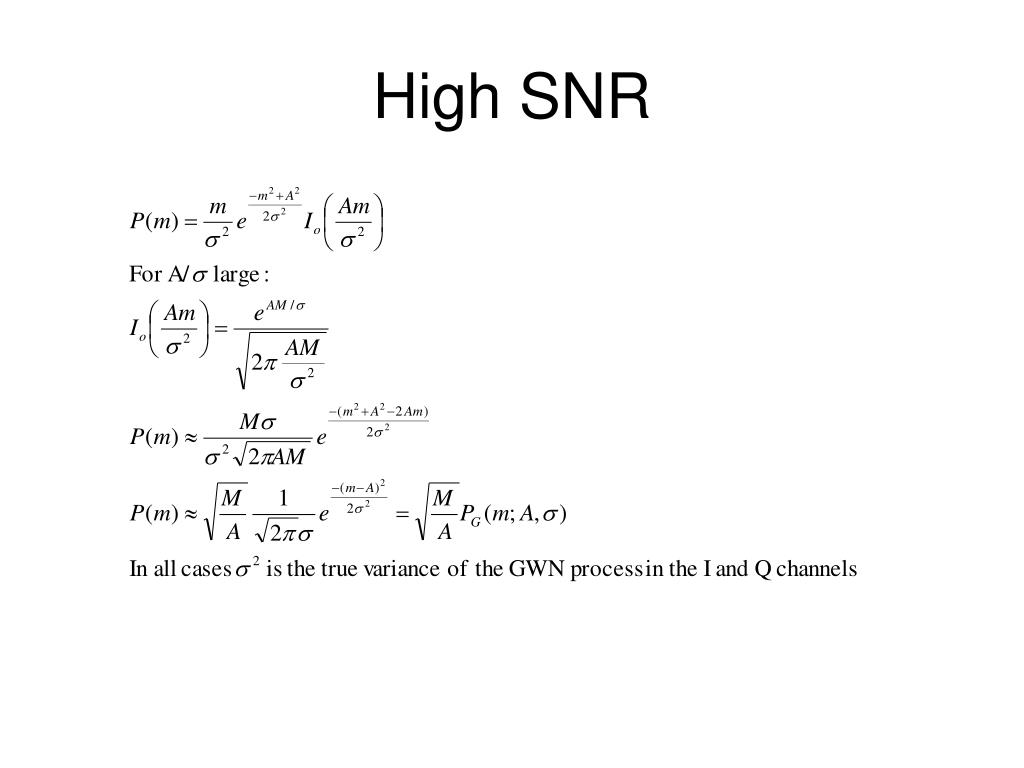

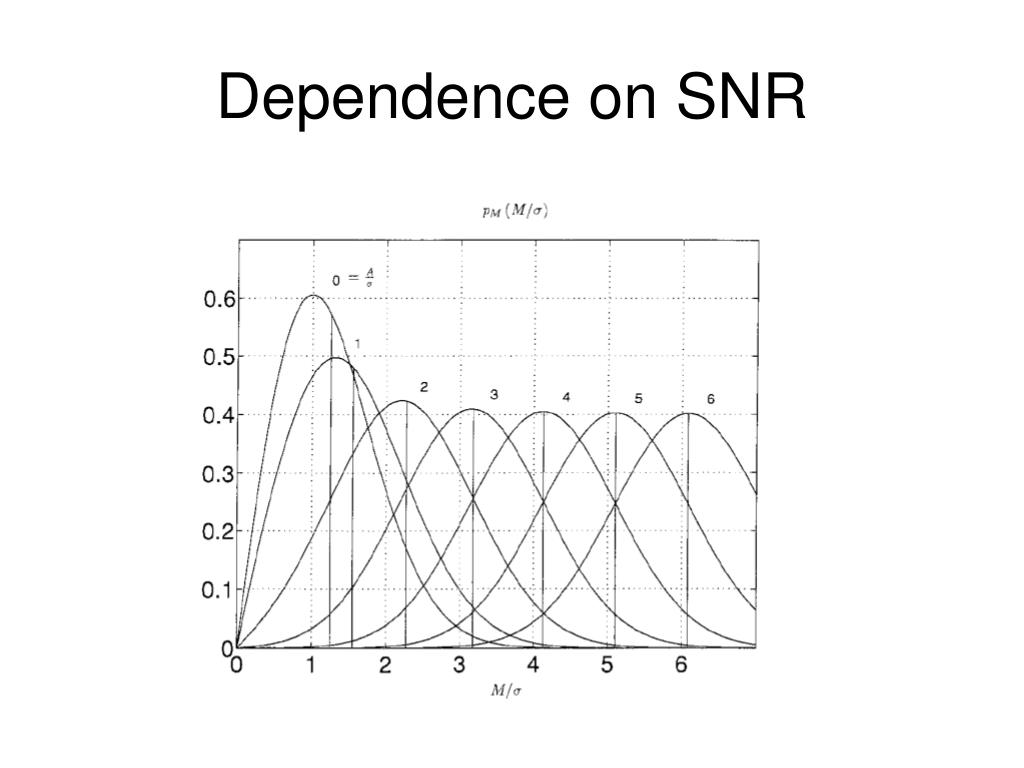

  13. Dependence on SNR
