  1. RAY TRACING IN MATLAB Ruiqing He University of Utah Feb. 2003

  2. Outline • Introduction • Modeling • Strategy and steps • Reflection and multiple ray tracing • Examples • Conclusion

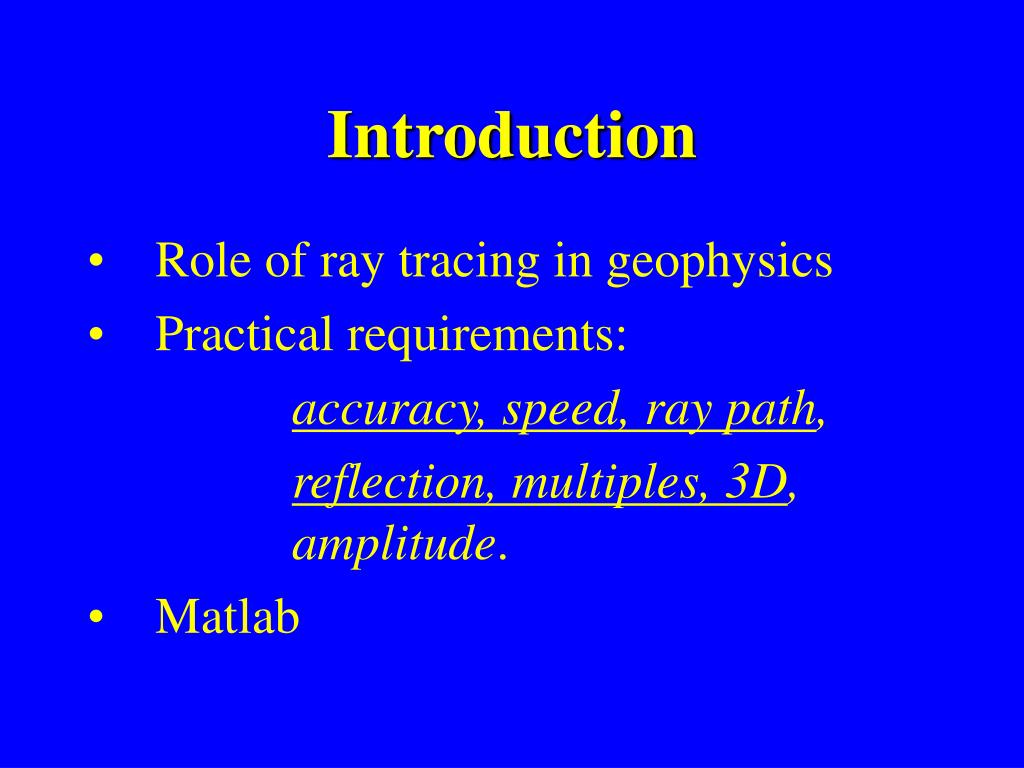

  3. Introduction • Role of ray tracing in geophysics • Practical requirements: accuracy, speed, ray path, reflection, multiples, 3D,amplitude. • Matlab

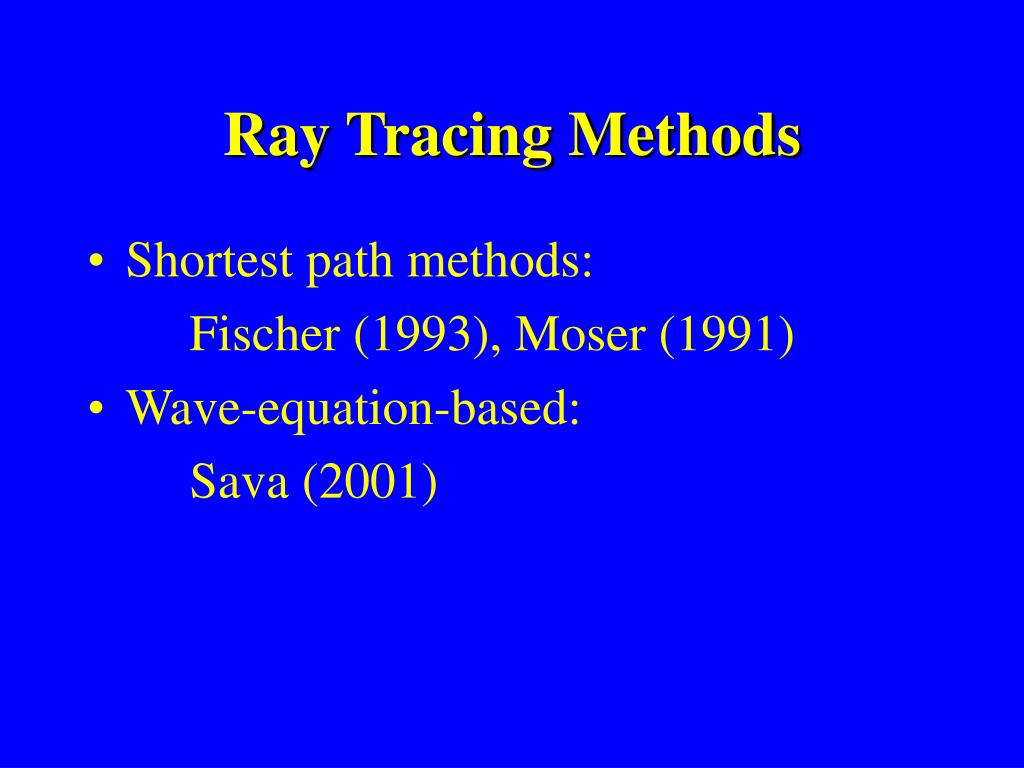

  4. Ray Tracing Methods • Shortest path methods: Fischer (1993), Moser (1991) • Wave-equation-based: Sava (2001)

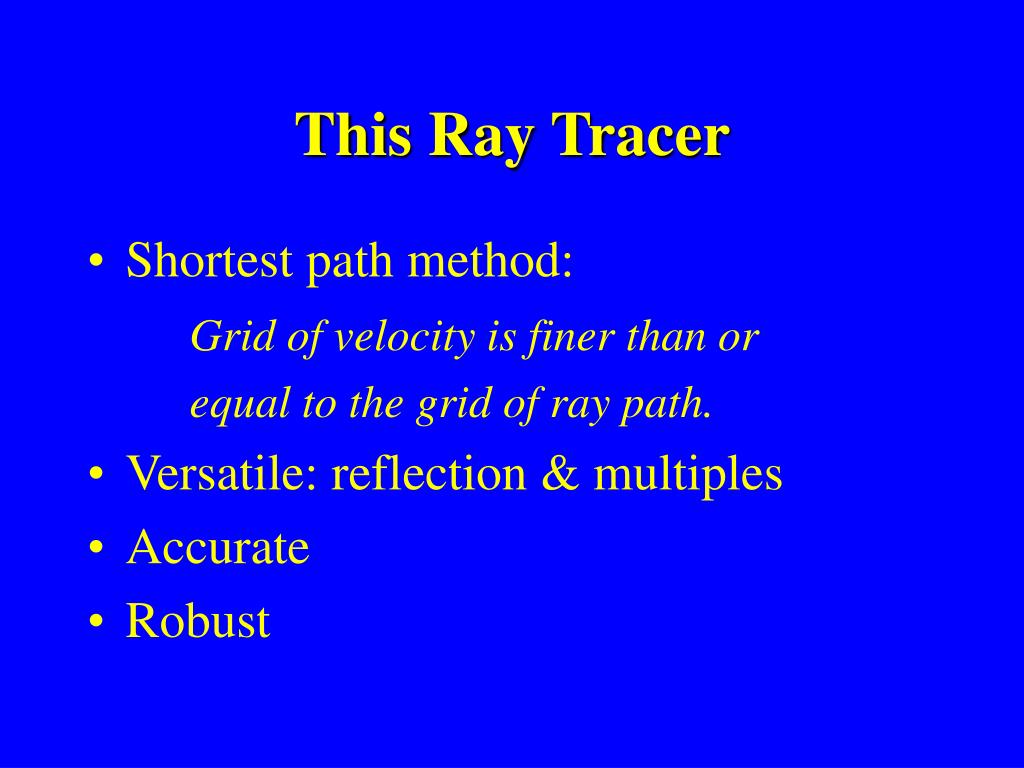

  5. This Ray Tracer • Shortest path method: Grid of velocity is finer than or equal to the grid of ray path. • Versatile: reflection & multiples • Accurate • Robust

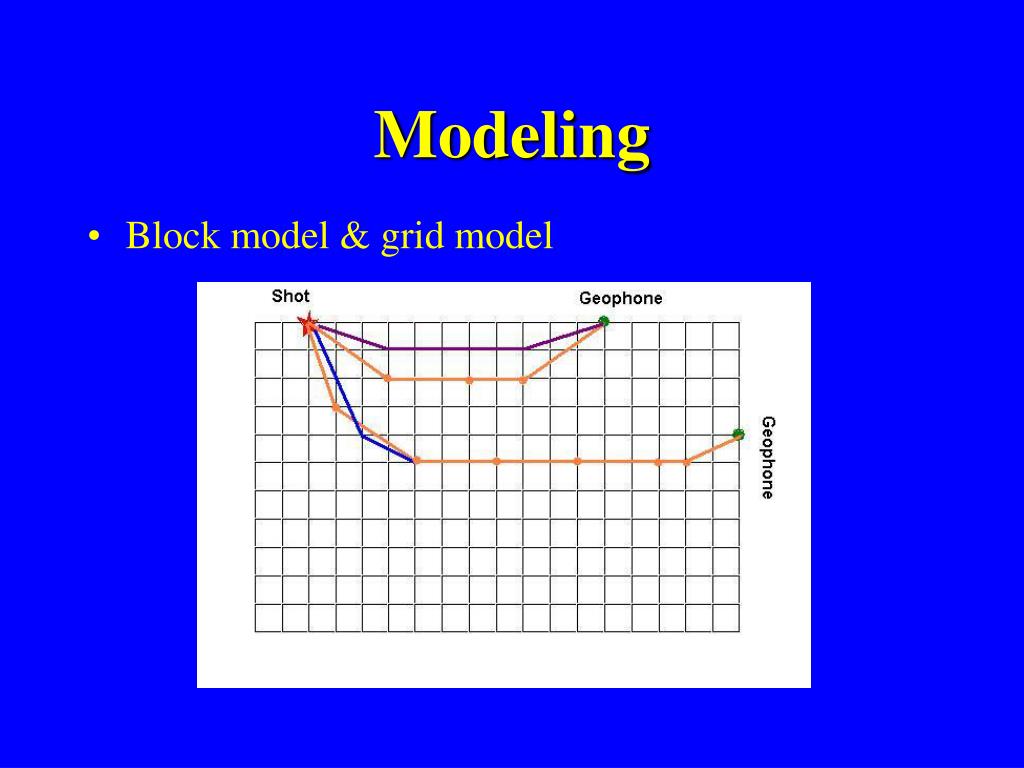

  6. Modeling • Block model & grid model

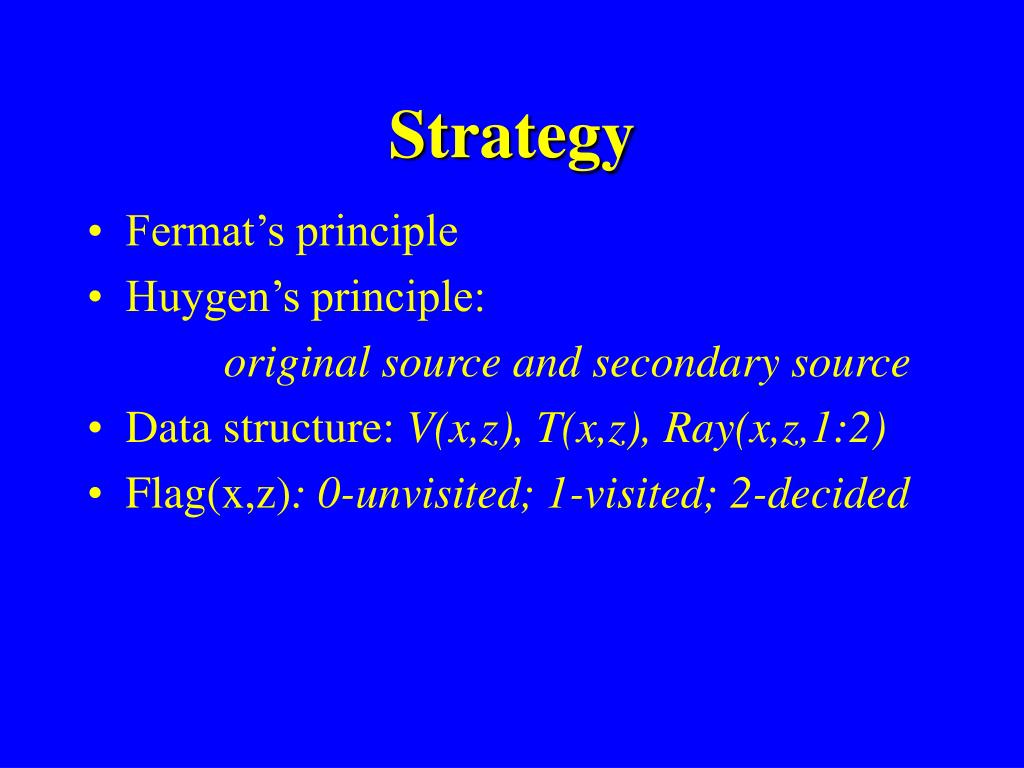

  7. Strategy • Fermat’s principle • Huygen’s principle: original source and secondary source • Data structure: V(x,z), T(x,z), Ray(x,z,1:2) • Flag(x,z): 0-unvisited; 1-visited; 2-decided

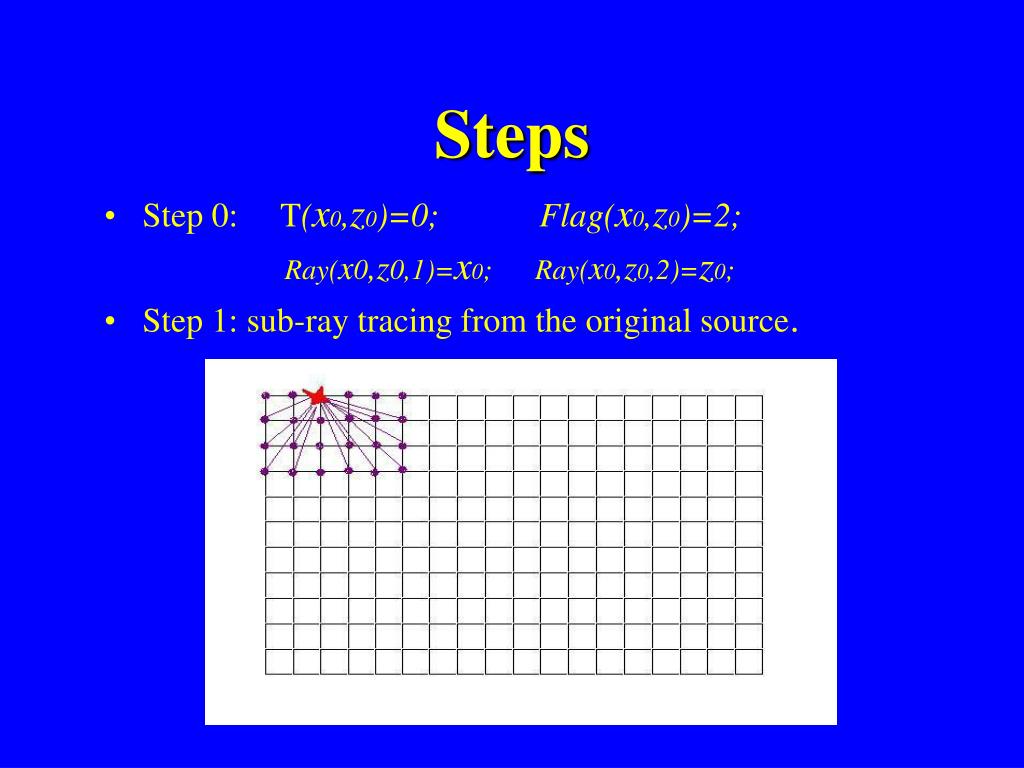

  8. Steps • Step 0: T(x0,z0)=0; Flag(x0,z0)=2; Ray(x0,z0,1)=x0; Ray(x0,z0,2)=z0; • Step 1: sub-ray tracing from the original source.

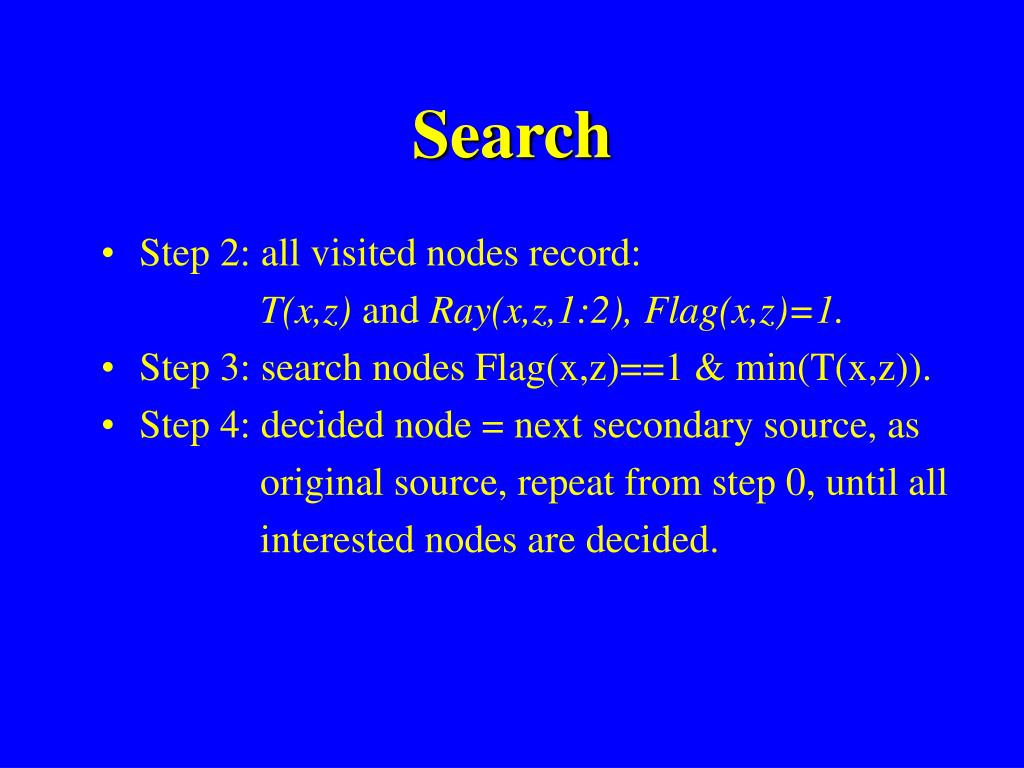

  9. Search • Step 2: all visited nodes record: T(x,z) and Ray(x,z,1:2), Flag(x,z)=1. • Step 3: search nodes Flag(x,z)==1 & min(T(x,z)). • Step 4: decided node = next secondary source, as original source, repeat from step 0, until all interested nodes are decided.

  10. Selection

  11. Reflections and Multiples • Step 1: do one transmission ray tracing until all nodes on the reflector are decided. • Step 2: keep these nodes and make them Flag=1, refresh all other nodes. • Step 3: jump directly into step 3 in the transmission ray tracing loop. So, 1 reflection ray tracing = 2 transmission ray tracing; 1 first order multiple ray tracing = 4 transmission ray tracing; 1 2nd order multiple ray tracing = 6 transmission ray tracing;

  12. Reflections and Multiples

  13. Reflections and Multiples Frozen exploding reflector

  14. Examples • Linear gradient model Travel time field Sec. 0.08 0.05 50 m 0 100 m 50 m 100 m

  15. Comparison 0.09 s T 0.07 s 75 m 95 m Distance

  16. Ray path 50 m 100 m 100 m 50 m

  17. Reflection ray tracing 50 m 100 m 50 m 100 m

  18. Multiple ray tracing 50 m 100 m 50 m 100 m

  19. 3D ray tracing

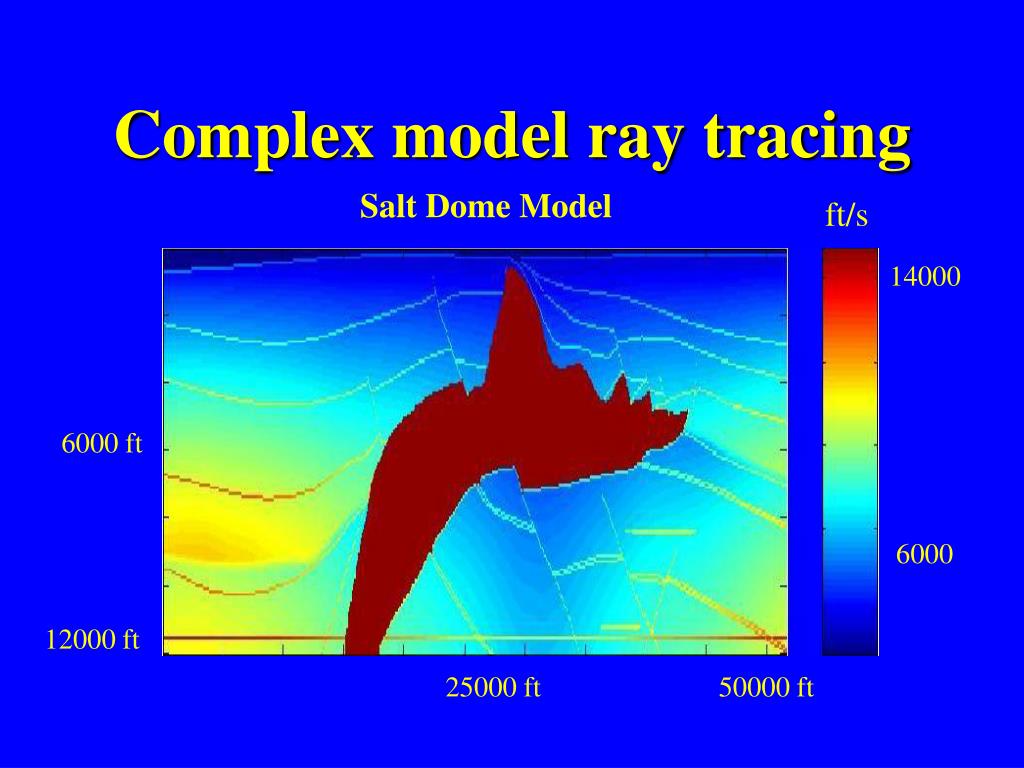

  20. Complex model ray tracing Salt Dome Model ft/s 14000 6000 ft 6000 12000 ft 25000 ft 50000 ft

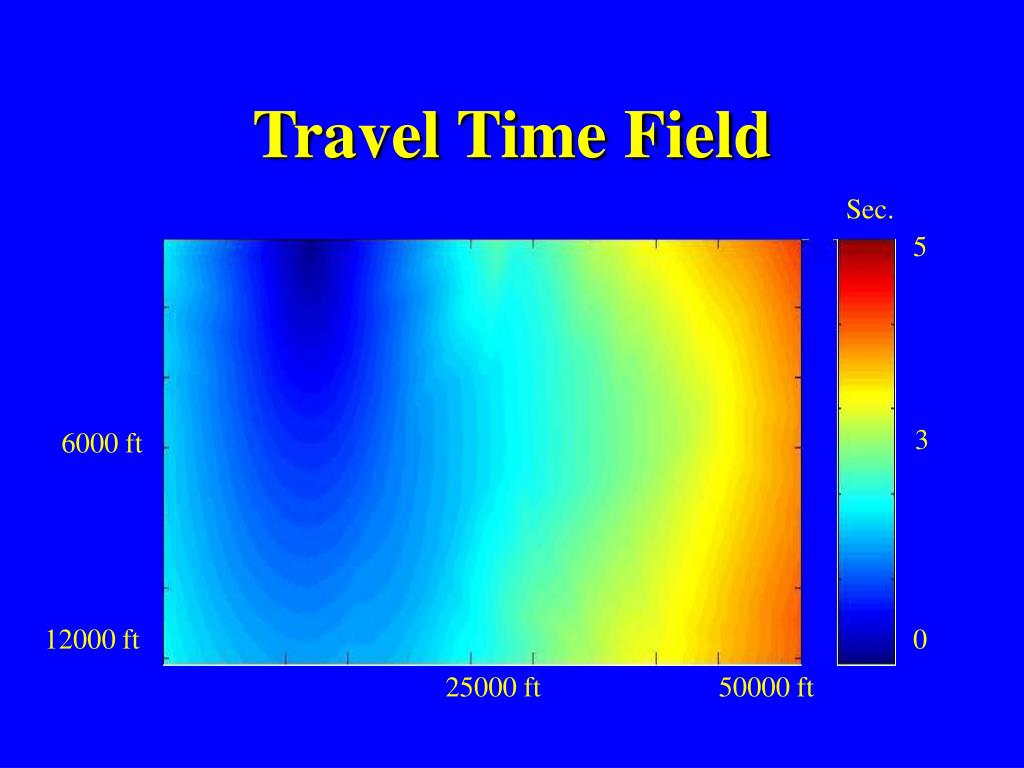

  21. Travel Time Field Sec. 5 3 6000 ft 12000 ft 0 25000 ft 50000 ft

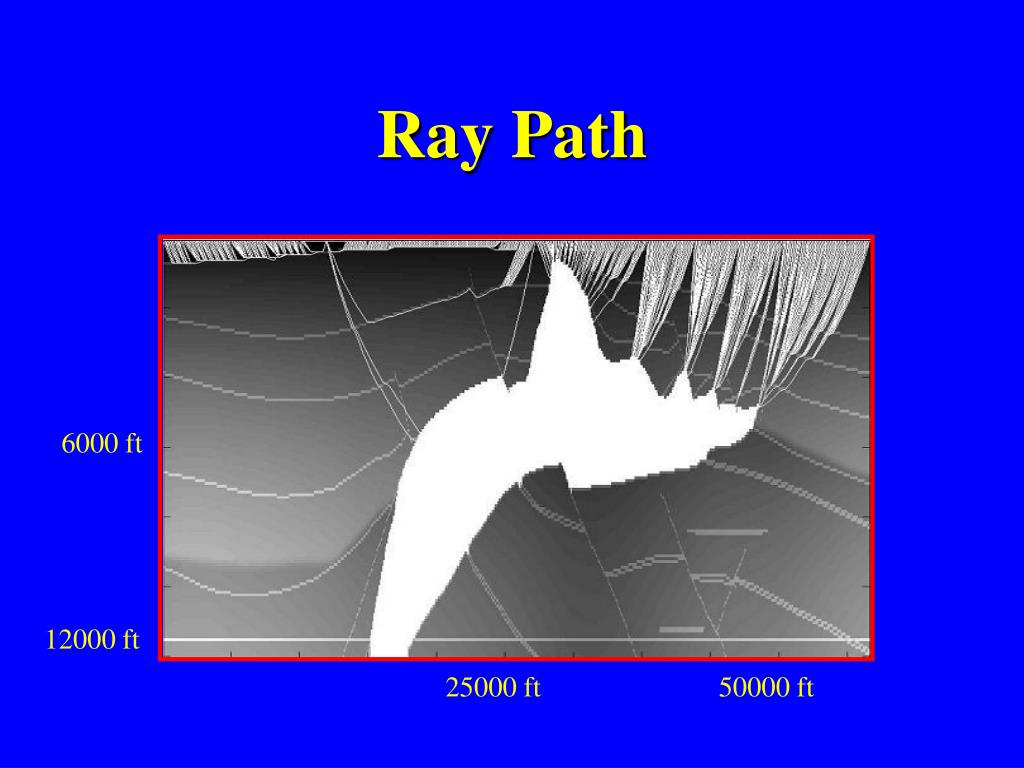

  22. Ray Path 6000 ft 12000 ft 25000 ft 50000 ft

  23. Speed CPU Time on a 2.2 GHZ AMD CPU Time (Sec.) 16 10 2 40,000 90,000 10,000 Grid size

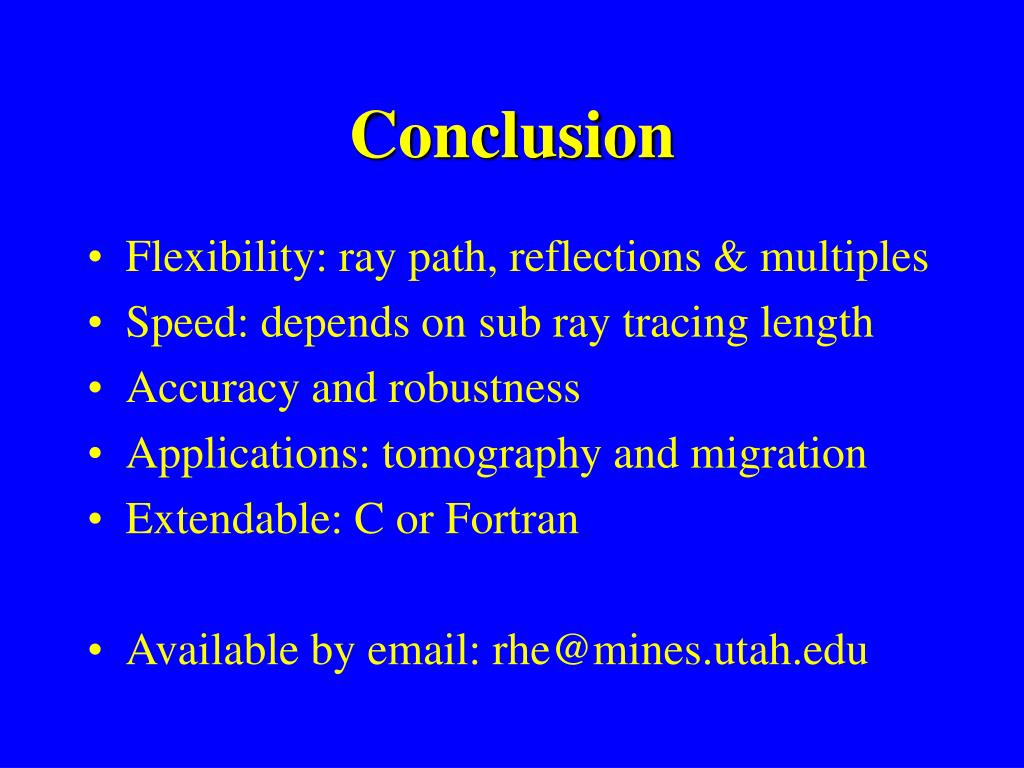

  24. Conclusion • Flexibility: ray path, reflections & multiples • Speed: depends on sub ray tracing length • Accuracy and robustness • Applications: tomography and migration • Extendable: C or Fortran • Available by email: rhe@mines.utah.edu

  25. Thanks • 2002 members of UTAM for financial support.
