  1. Electrical System

  2. Electrical System Overview • Main Components • Batteries • Primary (72VDC) • Secondary (12VDC) • Motor • Brushed DC • Motor Controller • DC-to-DC Converters • Microcontroller • Ignition Switch • Peripherals (5VDC) • Potentiometers • Hall Effect Sensors • Switches • Circuit Protection • Fuses • Diodes • Circuit Breakers • Optoisolators • Safety • Emergency Stop • Kill Switch

  3. Electrical System Functional Overview • System Functions • Store High Voltage (HV) and route current to electric motor to propel motorcycle • Maintain OEM-type motorcycle battery voltage used to power microcontroller and motor controller • Control rear wheel spin and front wheel lift by modifying the throttle input signal to the motor controller • Isolate HV battery from all HV components for safer operability and serviceability

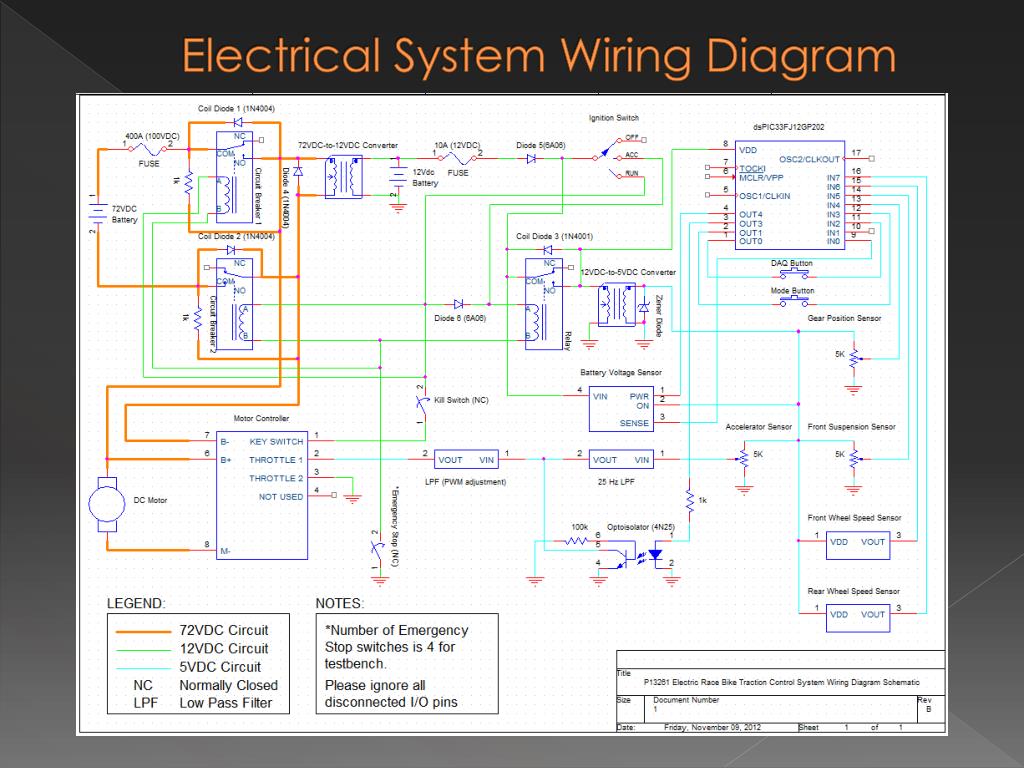

  4. Electrical System Wiring Diagram

  5. Electrical System Specifications

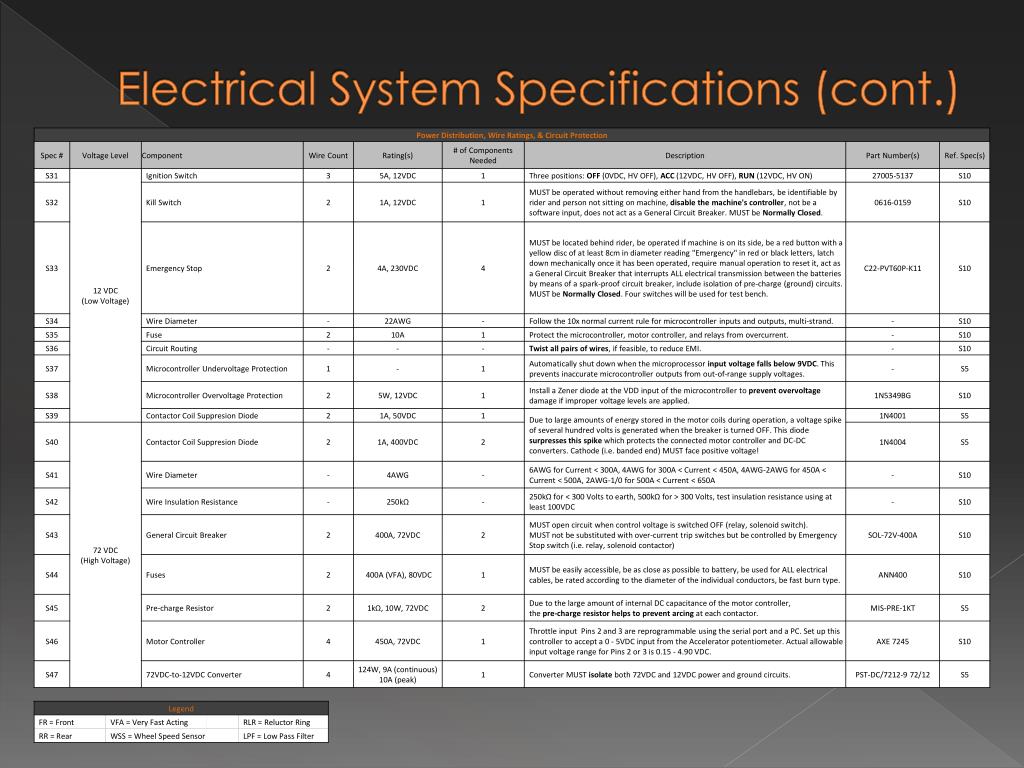

  6. Electrical System Specifications (cont.)

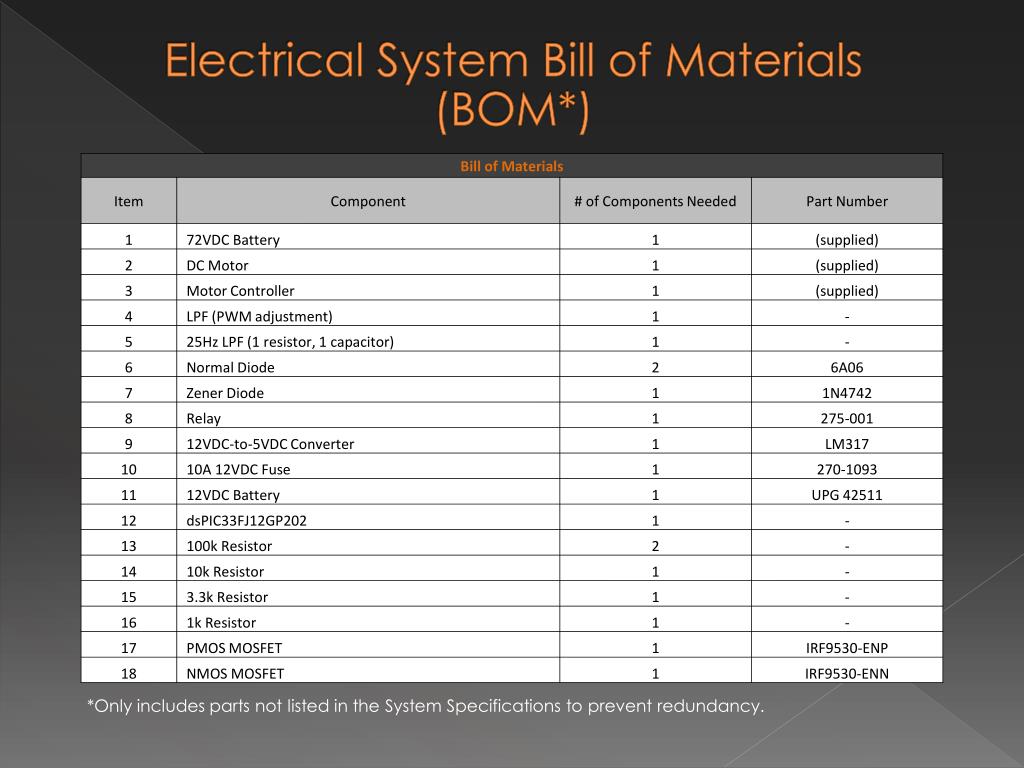

  7. Electrical System Bill of Materials (BOM*) *Only includes parts not listed in the System Specifications to prevent redundancy.

  8. Wrap-Up

  9. Feasibility Analysis

  10. Risk Assessment

  11. Questions?

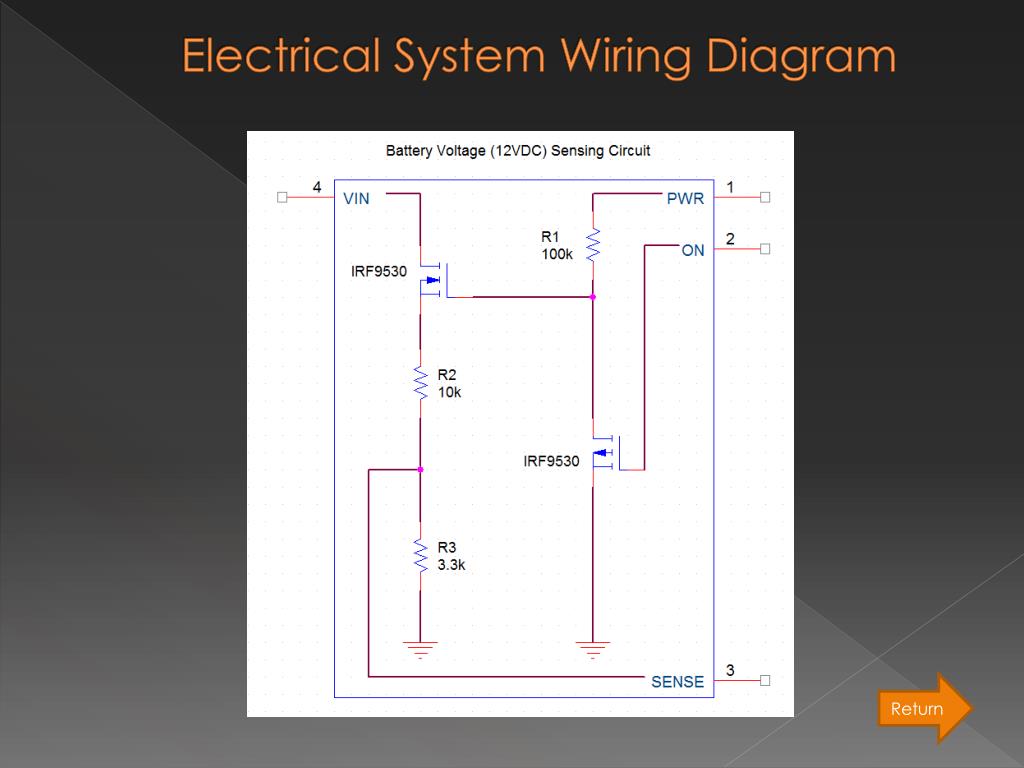

  12. Electrical System Wiring Diagram Return

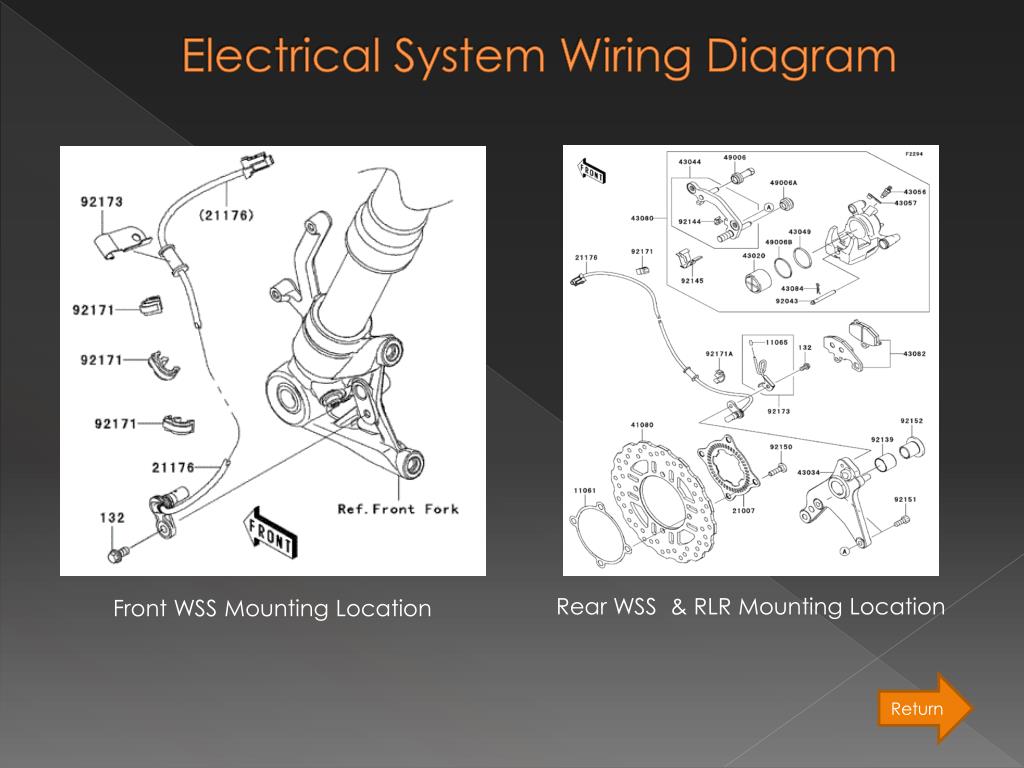

  13. Electrical System Wiring Diagram Rear WSS & RLR Mounting Location Front WSS Mounting Location Return

  14. Electrical System Wiring Diagram Solenoid Circuit Breaker Return

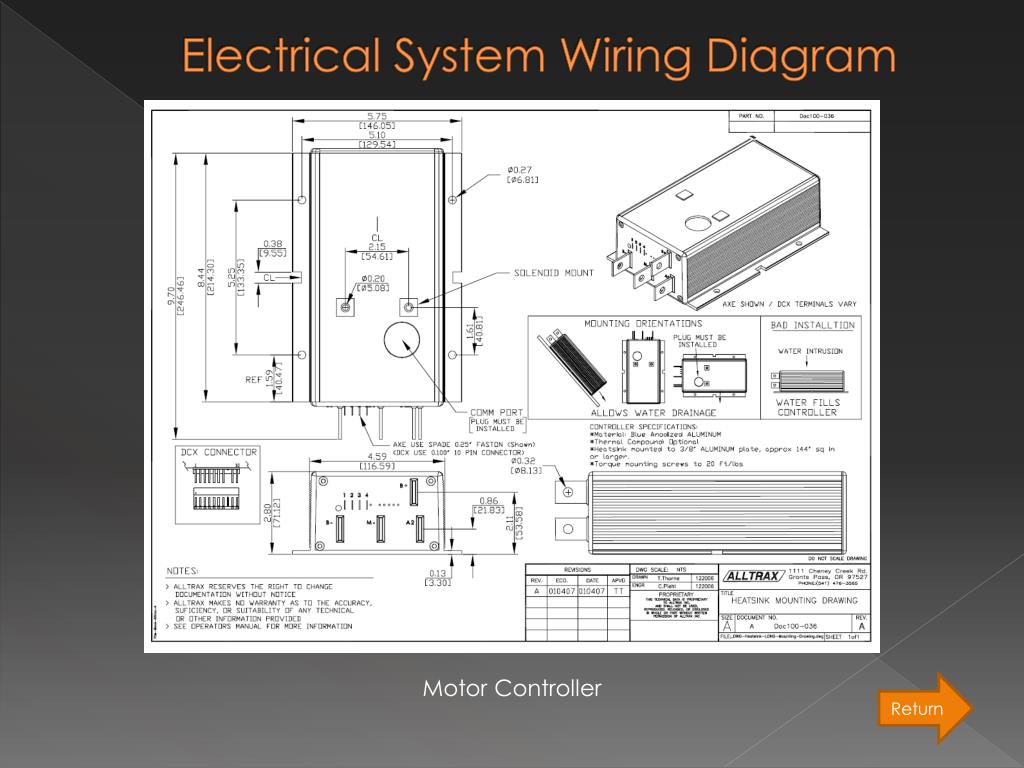

  15. Electrical System Wiring Diagram Motor Controller Return

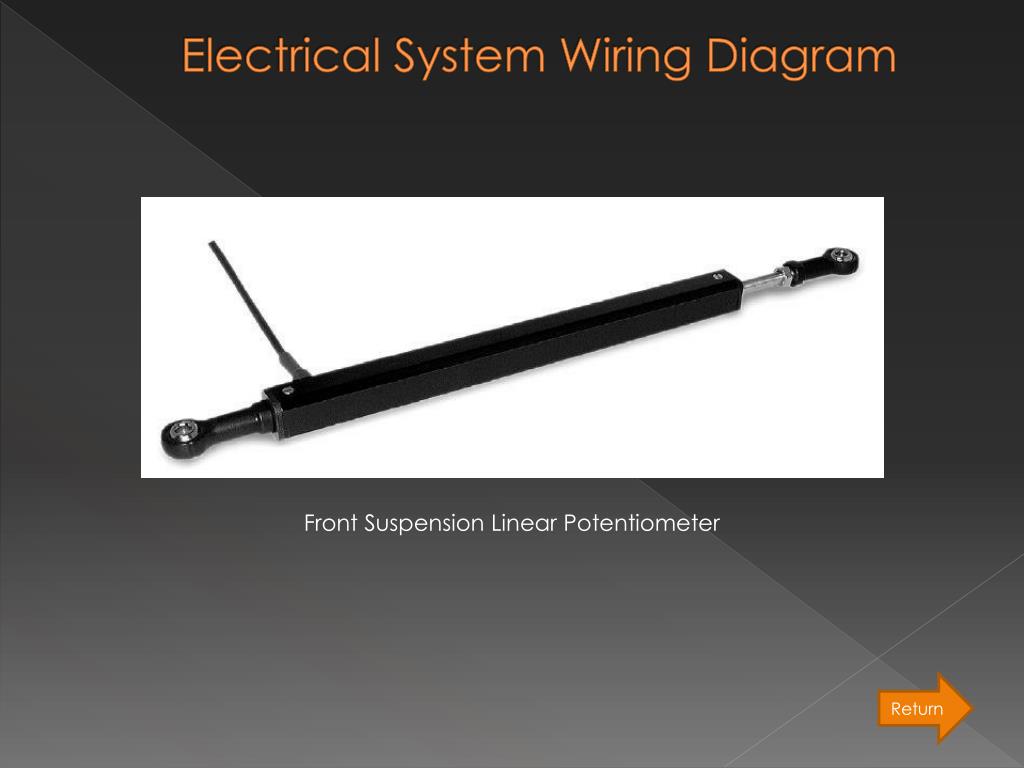

  16. Electrical System Wiring Diagram Front Suspension Linear Potentiometer Return

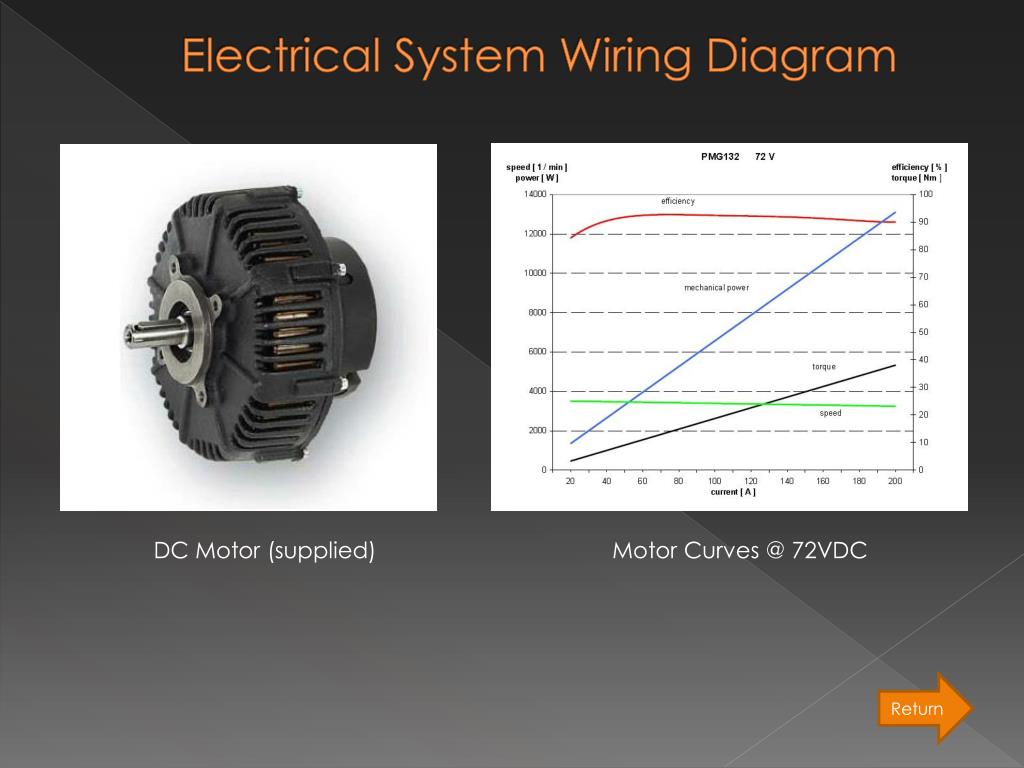

  17. Electrical System Wiring Diagram DC Motor (supplied) Motor Curves @ 72VDC Return
