Introduction to the Autonomic Nervous System

Introduction to the Autonomic Nervous System. George Howell III, Ph.D. Nervous system hierarchy. Enteric Nervous System. Autonomic nervous system. Independent – activities are not under direct conscious control (autonomic = automatic)

madison
Télécharger la présentation

Introduction to the Autonomic Nervous System

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Introduction to the Autonomic Nervous System George Howell III, Ph.D

  2. Nervous system hierarchy Enteric Nervous System

  3. Autonomic nervous system • Independent – activities are not under direct conscious control(autonomic = automatic) • Divided into parasympathetic, sympathetic, and sometimes ENS on an anatomical basis • Parasympathetic vs sympathetic divisions • Origin – IML vs CNS nuclei • Ganglia – paravertebral and prevertebralvs ganglia at target organ • Primary neurotransmitters – Ach vs NE

  4. Origination of the PNS What’s missing??

  5. Synapses of the PNS

  6. Synaptic transmission • Synthesis of neurotransmitter from precursors • Action potential spreading depolarization • Activation of VGCa+ channels • Ca+ dependent fusion of neurotransmitter containing vesicles with plasma membrane • Release of transmitters into cleft and binding to postsynaptic receptors • Termination of transmitter action via degradation or reuptake in presynaptic • Activation of postsynaptic cell

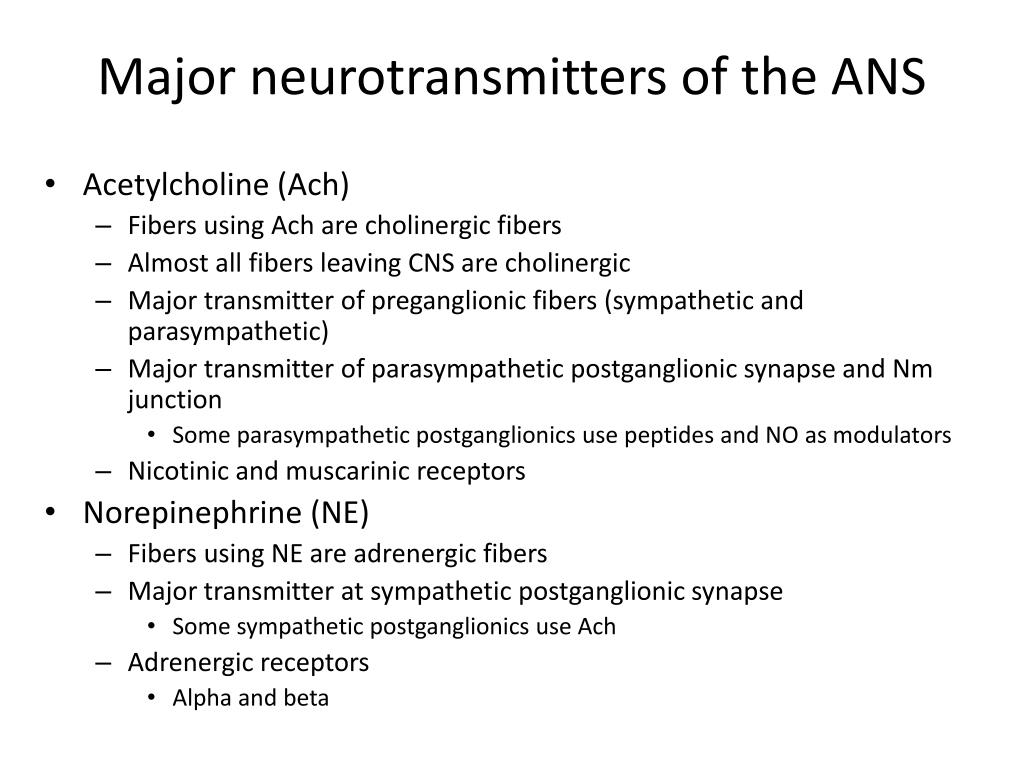

  7. Major neurotransmitters of the ANS • Acetylcholine (Ach) • Fibers using Ach are cholinergic fibers • Almost all fibers leaving CNS are cholinergic • Major transmitter of preganglionic fibers (sympathetic and parasympathetic) • Major transmitter of parasympathetic postganglionic synapse and Nm junction • Some parasympathetic postganglionics use peptides and NO as modulators • Nicotinic and muscarinic receptors • Norepinephrine (NE) • Fibers using NE are adrenergic fibers • Major transmitter at sympathetic postganglionic synapse • Some sympathetic postganglionics use Ach • Adrenergic receptors • Alpha and beta

  8. Other neurotransmitters of the ANS • Dopamine • Modulator in some ganglia and ENS • Sympathetic transmitter in renal blood vessels • Serotonin • Excitatory in ENS • GABA • Inhibitory • Substance P • Sensory neurotransmitter • Excitatory with Ach at Nm junction, vasodilator due to NO release, nociception at peripheral nerve synapses • Vasoactive intestinal peptide • Excitatory secretomotor transmitter in ENS, vasodilator, cardiac stimulant • Adenosine triphosphate (ATP) • Transmitter or cotransmitter at ANS effector synapses • Enkephalins and other endogenous opioids • Inhibitory effect on secretomotor interneurons in ENS, inhibit peristalsis, stimulate secretion • Gastrin releasing peptide (GRP) • Promotes gastrin release from G cells in stomach • Neuropeptide Y • Nitric oxide (NO) • Synthesized on demand by NOS…..not stored • Vasodilation

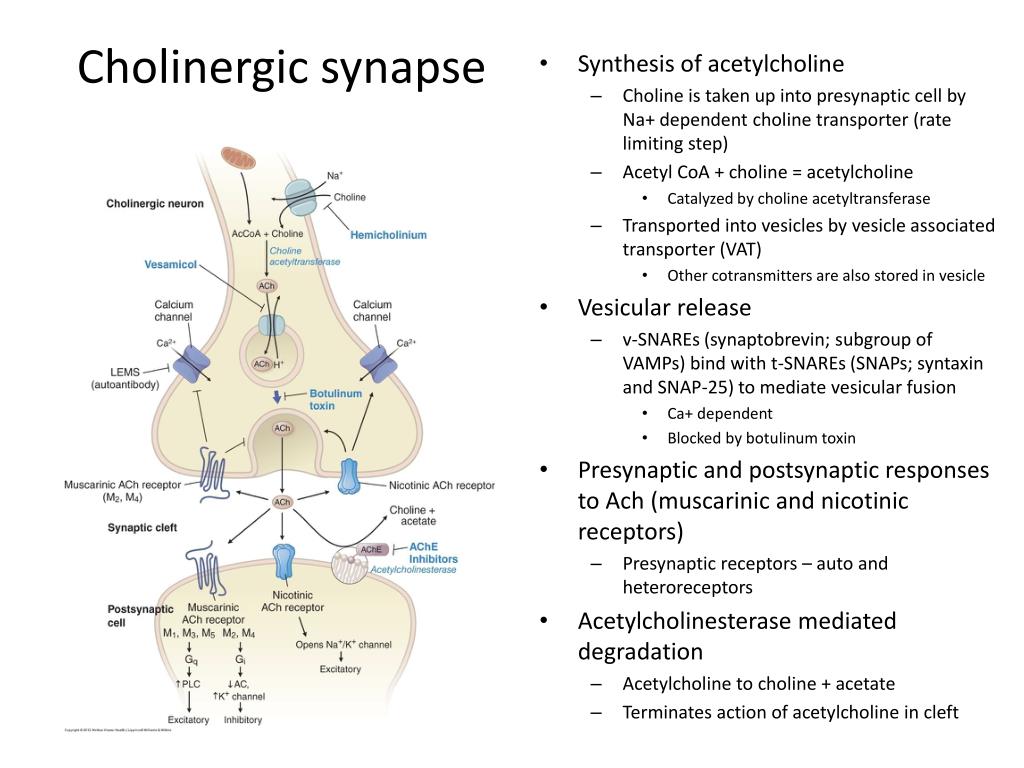

  9. Cholinergic synapse • Synthesis of acetylcholine • Choline is taken up into presynaptic cell by Na+ dependent choline transporter (rate limiting step) • Acetyl CoA + choline = acetylcholine • Catalyzed by choline acetyltransferase • Transported into vesicles by vesicle associated transporter (VAT) • Other cotransmitters are also stored in vesicle • Vesicular release • v-SNAREs (synaptobrevin; subgroup of VAMPs) bind with t-SNAREs (SNAPs; syntaxin and SNAP-25) to mediate vesicular fusion • Ca+ dependent • Blocked by botulinum toxin • Presynaptic and postsynaptic responses to Ach (muscarinic and nicotinic receptors) • Presynaptic receptors – auto and heteroreceptors • Acetylcholinesterase mediated degradation • Acetylcholine to choline + acetate • Terminates action of acetylcholine in cleft

  10. Cholinergic receptor subtypes and actions • Nicotinic • Ligand gated Na+ channels • Directly mediate depolarization in excitable cells • Two subtypes: neuronal (Nn) and muscular (Nm) • Muscarinic • GPCRs • 5 subtypes • M1, 3, 5 are coupled to Gq G-proteins • M2, 4 are coupled to Gi G-proteins

  11. Role of each cholinoceptor at autonomic ganglia • Nn– milliseconds • Excitatory postsynaptic potential (EPSP) • Temporal or spacial summation leads to AP • M2 – seconds • Inhibitory postsynaptic potential (IPSP) • Follows AP • Mediated by opening of K+ channels • M1 – seconds • Slow EPSP by closing K+ channels • Follows IPSP • Peptides – minutes • Late, slow EPSP • Modulates response of postsynaptic cell to subsequent inputs

  12. Adrenergic synapse • Synthesis of NE • Vesicular transport • VMAT • Dopamine converted to NE in vesicle • Neurotransmitter release • Vesicular fusion similar to that of the cholinergic synapse • Neurotransmitter actions • Postsynaptic and presynaptic receptors • Transmitter reuptake • NET and DAT terminate neurotransmitter action

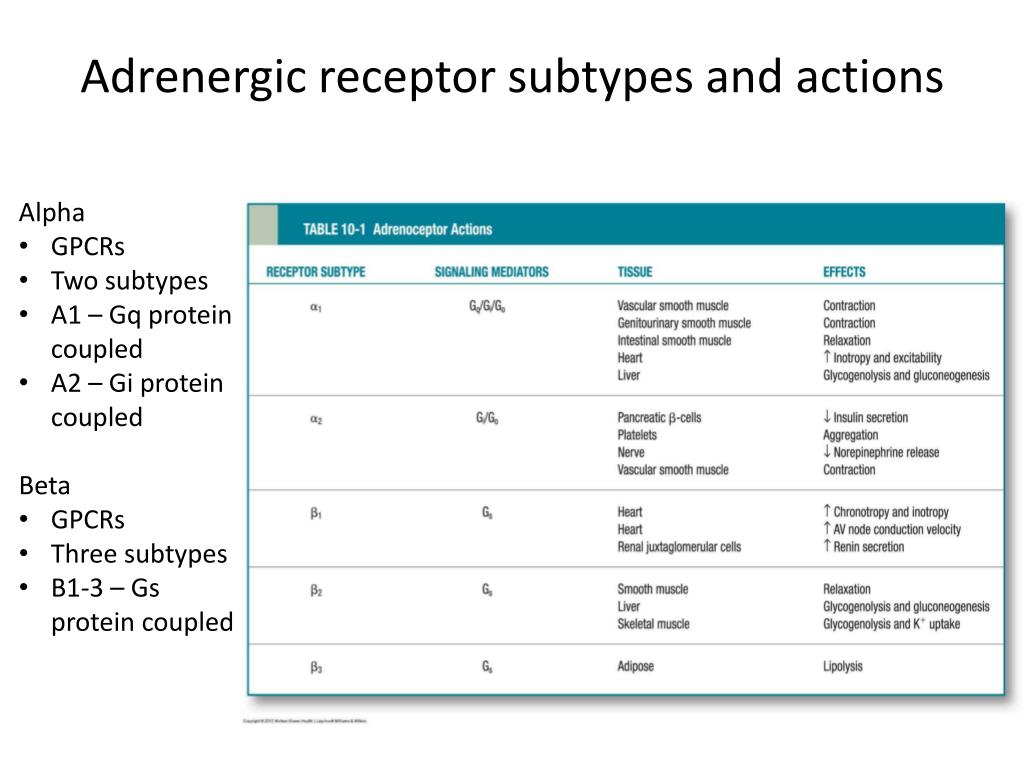

  13. Adrenergic receptor subtypes and actions • Alpha • GPCRs • Two subtypes • A1 – Gq protein coupled • A2 – Gi protein coupled • Beta • GPCRs • Three subtypes • B1-3 – Gs protein coupled

  14. Autonomic regulation of organ systems

  15. Autonomic regulation of cardiovascular function • Baroreceptor reflex • Increase in MAP • Increased baroreceptor firing • Increase parasympathetic tone • Decrease sympathatic tone • Decrease in MAP • Decreased baroreceptor firing • Decrease parasympathetic tone • Increase sympathetic tone

  16. Enteric Nervous System • Large and highly organized system of neurons located in the walls of the gastrointestinal system • It is often considered a third division of the autonomic nervous system • Includes the myenteric plexus (of Auerbach) and the submucous plexus (of Meissner)

  17. Enteric nervous system Parasympathetic Longitudinal muscle Myenteric plexus Circular muscle layer Submucosal plexus • Walls constricted and sphincters relaxed via M3 • Secretions increased via M3

  18. Autonomic regulation of structures associated with the eye Dominant tone = Parasympathetic Iris radial – contracted via alpha-1 Iris circular – contracted via M3 Ciliary muscle – contracted via M3

  19. Regulation of the heart Dominant tone = parasympathetic Sympathetic Increases heart rate and contractility via beta-1 and 2 (primarily beta-1) Parasympathetic Decreases heart rate and atrial contractility via M2

  20. Regulation of the blood vessels Veins Dominant tone = parasympathetic Arterioles/arteries Dominant tone = sympathetic Contraction via alpha1 Relaxation via beta-2

  21. Regulation of the liver • Sympathetic • Increase gluconeogenesis and glycogenolysis • Provide glucose to fuel “flight or fight” response • Primarily beta-2, possibly alpha-1

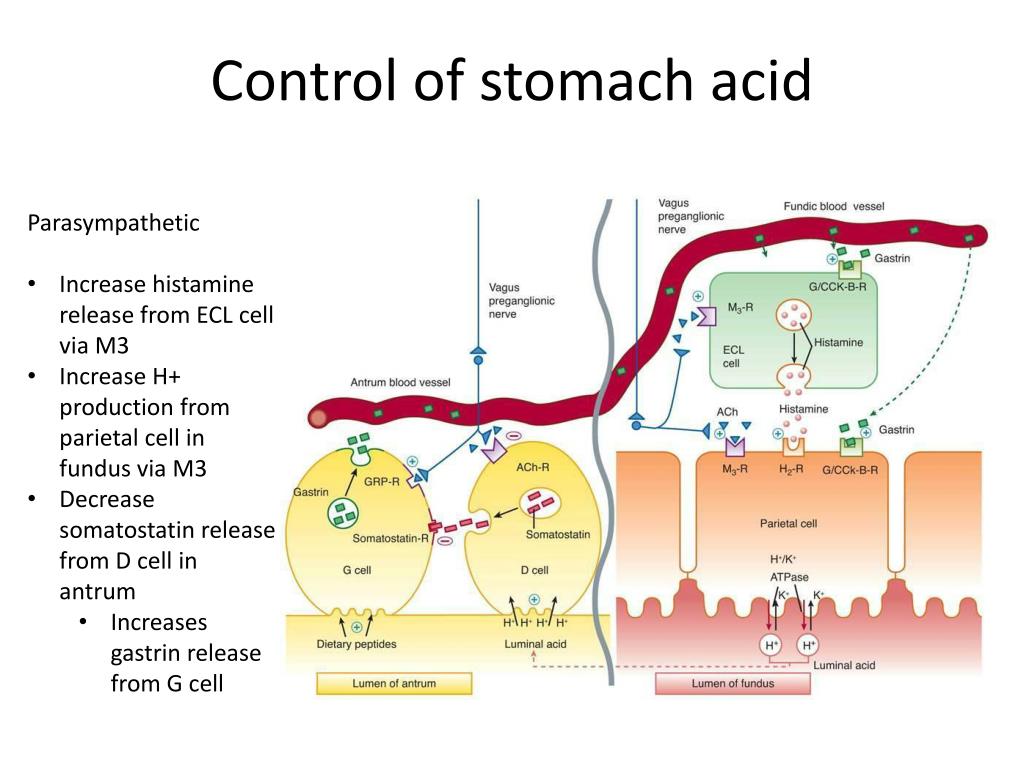

  22. Control of stomach acid • Parasympathetic • Increase histamine release from ECL cell via M3 • Increase H+ production from parietal cell in fundus via M3 • Decrease somatostatin release from D cell in antrum • Increases gastrin release from G cell

  23. Regulation of the bladder Parasympathetic • Bladder wall • Constriction via M3 • Relaxation via beta-2 • Sphincter • Relaxation via M3 • Constriction via alpha-1

  24. Glandular secretion Sweat Salivary Increased via M3 Appocrine – increased via alpha-1 Eccrine – increased via M Lacrimal gland (tear production) – increased via M

  25. Predominant tones of major organ systems • Heart - parasympathetic • Arterioles/arteries - sympathetic • Veins - sympathetic • Iris - parasympathetic • Ciliary muscle - parasympathetic • GI tract (ENS) - parasympathetic • Smooth muscle - parasympathetic • Bladder - parasympathetic • Sweat glands - sympathetic • Salivary glands – parasympathetic • Lacrimal glands – parasympathetic

  26. Physiological effects of autonomic innervation and receptors that govern the effect Parasympathetic Sympathetic Contracts the iris radial muscle via alpha-1 Relaxes the ciliary muscle via beta Accelerates the sinoatrial node via beta-1,2 Accelerates ectopic pacemakers via beta-1,2 Increases cardiac contractility via beta-1,2 Relaxes bronchiolar smooth muscle via beta-2 Relaxes GI walls via alpha-2, beta-2 Contracts GI sphincters via alpha-1 Relaxes bladder wall via beta-2 Contracts bladder sphincter via alpha-1 Contracts uterus via alpha, relaxes uterus via beta-2 Contracts pilomotor smooth muscle via alpha Activates sweat glands via alpha, M Increases gluconeogenesis and glycogenolysis in liver via beta-2 and alpha Induces lipolysis via beta-2 Increases renin release from kidney via beta-1 • Contracts the ciliary muscle via M-3 • Decelerates the sinoatrial node via M-2 • Decreases heart contractility via M-2 • Releases EDRF in the endothelium via M-3, M-5 • Contracts bronchiolar smooth muscle via M-3 • Contracts GI walls via M-3 • Relaxes GI sphincters via M-3 • Increases GI secretions via M-3 • Contracts the uterus via M-3 • Causes erection of the penis via M
