  1. Spezielle Anwendungen des VLSI – Entwurfs Applied VLSI design Phase 5 Reliability - Electromigration Robert Mars

  2. Metalwire • Thicknessfixedbyprocessparameters • Width canbeadaptedbydesigner

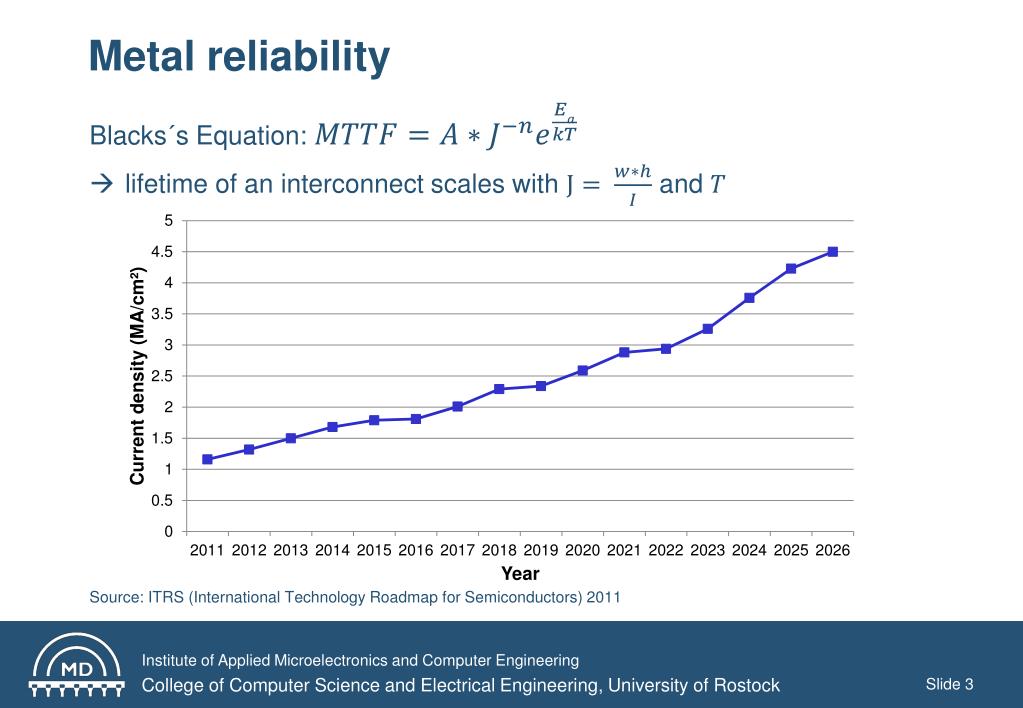

  3. Metalreliability • Blacks´s Equation: • lifetime of an interconnect scales with and • Source: ITRS (International Technology Roadmap for Semiconductors) 2011

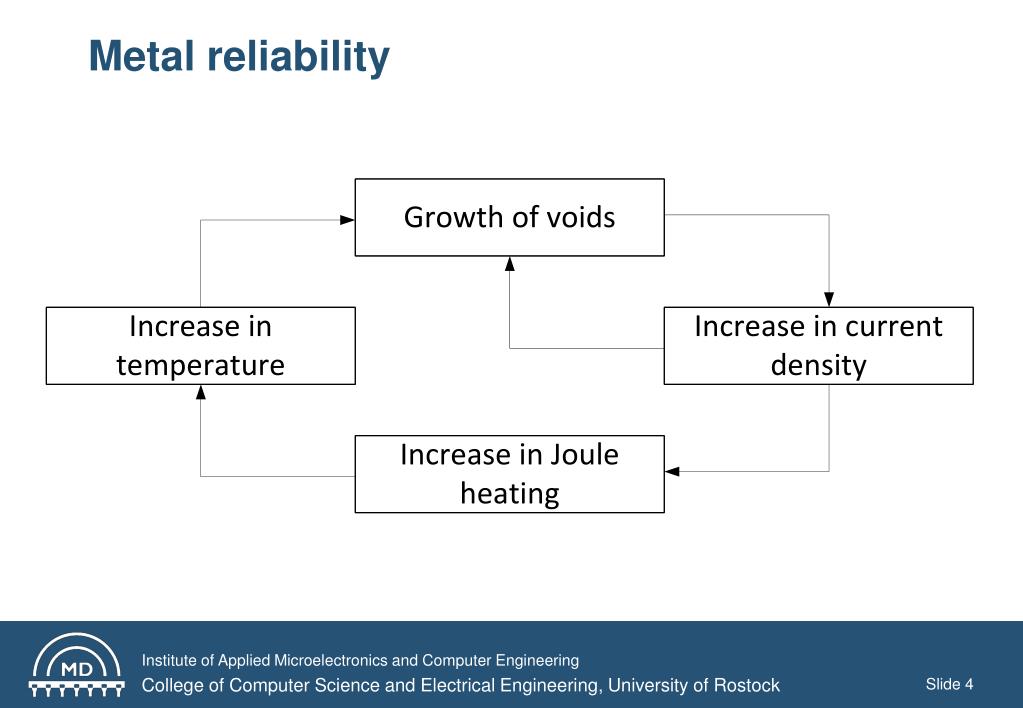

  4. Metalreliability

  5. Electromigration • Metalionsmovetowardstheanode • Force on ions due toelectronscattering in directionofelectronflow • Electricfield in metalcauseselectrostaticforce on ions • Damagecausedbydivergences in atomicflux

  6. Enhancingreliability • WireWidening •  increasingcross-sectionarea • Passivation Layer •  preventdiffusion, betterdissipationofjouleheat • Gold Metallizations •  very high activationenergy • AlloyingofMetallization •  additionofTi-Si orCuto Al • Deposition Techniques •  i.e. MTTF smallerforSputteringthanelectron-beam deposition • Wirelength •  ifwireisshorterthan Blech lengthmechanical stress compensates material flow

  7. Thank you for your attention

  8. Quellen • http://www.synopsys.com/Tools/Verification/CapsuleModule/CustomSim-RA-wp.pdf • http://www.doitpoms.ac.uk/tlplib/electromigration/index.php • http://www.ece.mtu.edu/faculty/goel/EE-4271/Web-Interconnects.pdf

  9. Stresses

  10. JmaxCalculation • Quelle: http://www.itrs.net/Links/2011ITRS/2011Chapters/2011Interconnect.pdf

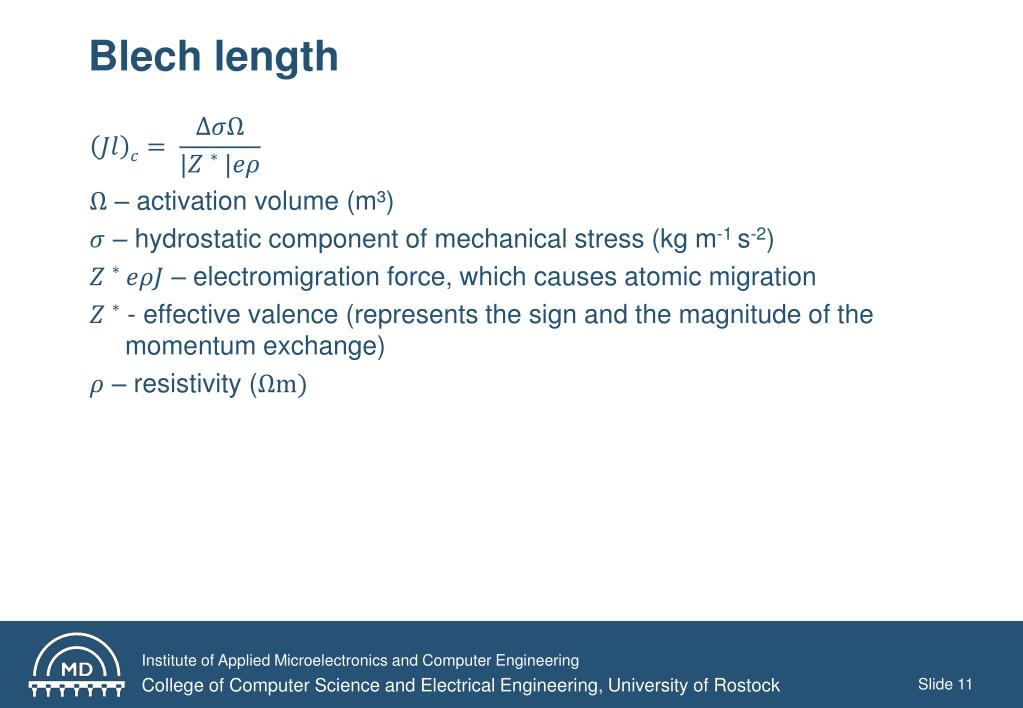

  11. Blech length • – activationvolume (m³) • – hydrostaticcomponentofmechanicalstress (kg m-1 s-2) • – electromigrationforce, whichcausesatomicmigration • - effectivevalence (represents the sign and the magnitude of the momentum exchange) • – resistivity (
