Chapter P.3 Lines In A Plane

Chapter P.3 Lines In A Plane. Outline of Topics -Forms of a line -standard -slope-intercept -point slope -Slope -Horizontal & Vertical Lines -Parallel Lines & Perpendicular Lines -Interpolation & Extrapolation. Presenters- Greg Estabrooks & Tim Problem Solver- Amanda Johnson

mai
Télécharger la présentation

Chapter P.3 Lines In A Plane

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

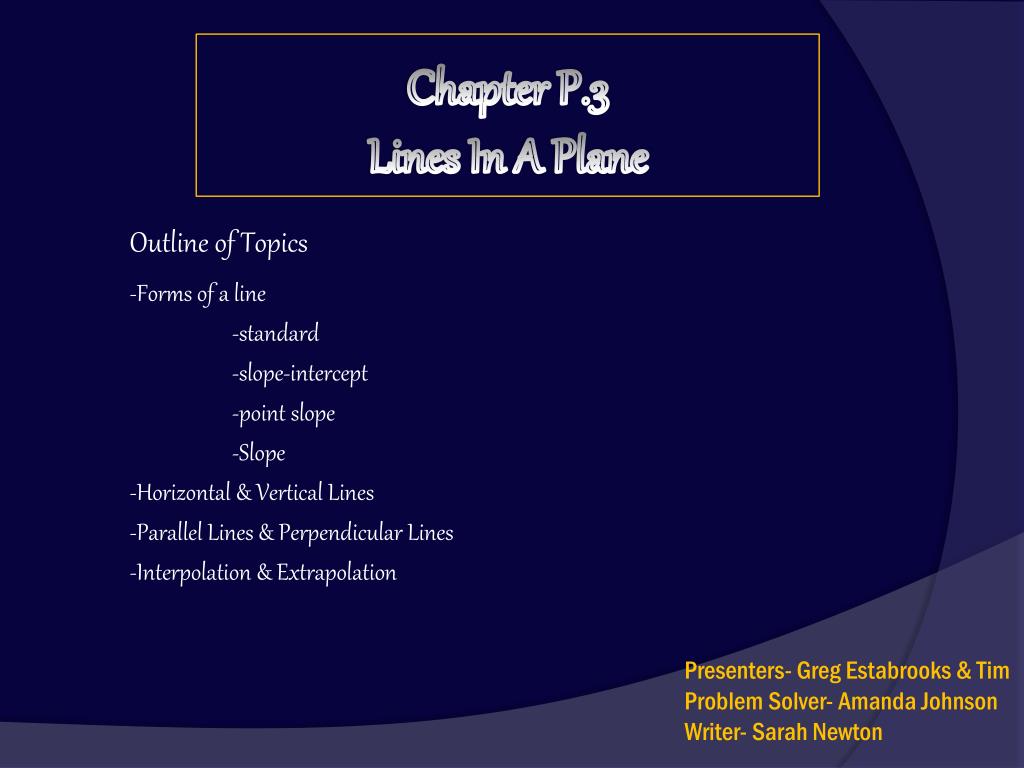

  1. Chapter P.3 Lines In A Plane Outline of Topics -Forms of a line -standard -slope-intercept -point slope -Slope -Horizontal & Vertical Lines -Parallel Lines & Perpendicular Lines -Interpolation & Extrapolation Presenters- Greg Estabrooks & Tim Problem Solver- Amanda Johnson Writer- Sarah Newton

  2. Review of Slope The Slope of a Line change in y change in x y2 - y1 x2 – x1

  3. Forms of a Line Standard Form Ax + By = C Point Slope Form y = mx + b Slope Intercept Form y - y1= m (x - x1) Short Cut Altering different equations to represent the same line. Standard Form to Slope Intercept m= -A/B b=C/B m=slope b= y-intercept Example Find the equation of the line that passes through the point (1,-2) and has a slope of 3. y-y1=m(x-x1) y-(-2)=3(x-1) y+2=3x-3 y=3x-5 m=slope x1= x coordinate of the point the line passes through y1= y coordinate of the point the line passes through

  4. Horizontal & Vertical Lines Horizontal Line -when the slope equals zero y = k k = all real numbers VerticalLine -when the slope is undefined x = k

  5. Parallel Lines Parallel Line - two lines are parallel if their slopes are equal Example y= 2/3x – 7/3 y – 4= 2/3 (x – 7) - Though they are different lines and in different forms, the slopes of these lines are equal and therefore parallel. Slope of l = m1 Slope of m = m2 m1 = m2

  6. Perpendicular Lines Perpendicular Line - two lines are perpendicular if their slopes are opposite reciprocals Example y= 2/3x – 7/3 y – 4= -3/2 (x – 7) - Though they are different lines and in different forms, the slopes of these lines are opposite reciprocals and therefore perpendicular. m1= -1/ m2

  7. Interpolation & Extrapolation • Interpolation • when the estimated point lies between two given points • Extrapolation • estimated point lies outside of the given points • the approximation of a point given a line l = best fit line a =the lower bound, smallest # in data b =the upper bound, largest # in data Interpolation- using the line of best fit to predict the value of x when it is between a and b a<x<b Extrapolation- a prediction using the line of best fit x<a or x>b
