Chapter 6: Motion in a Plane

Chapter 6: Motion in a Plane. Position and Velocity in 2-D. Displacement Velocity Average velocity Instantaneous velocity Instantaneous acceleration Average acceleration. Directions of Instantaneous and average velocities.

lee-cline
Télécharger la présentation

Chapter 6: Motion in a Plane

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Chapter 6: Motion in a Plane

  2. Position and Velocity in 2-D • Displacement • Velocity • Average velocity • Instantaneous velocity • Instantaneous acceleration • Average acceleration

  3. Directions of Instantaneous and average velocities • Instantaneous velocity at any point on the curve is along the tangent drawn at that point • Average velocity points in the direction of the displacement vector

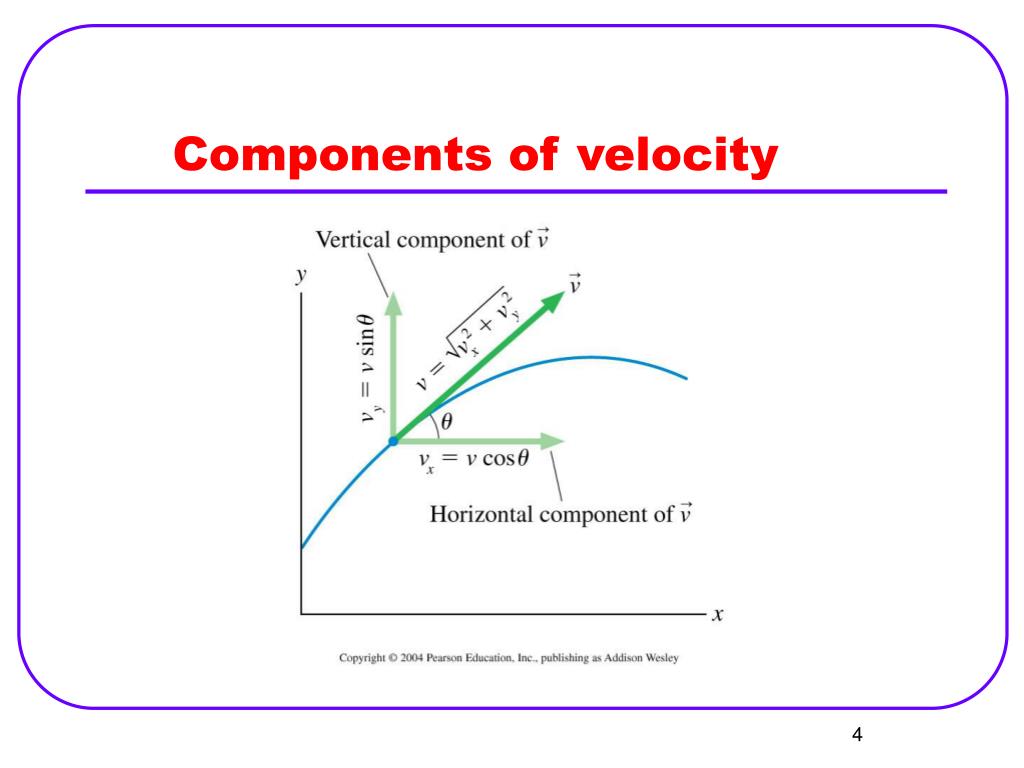

  4. Components of velocity

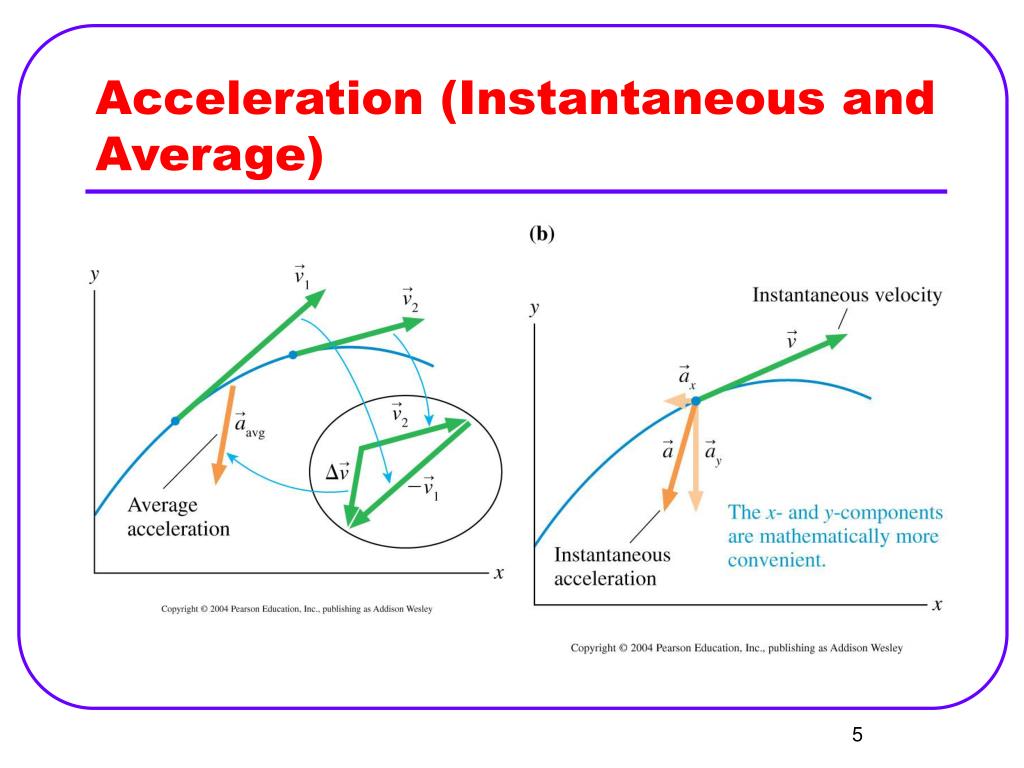

  5. Acceleration (Instantaneous and Average)

  6. Equations of Motion in 2-D

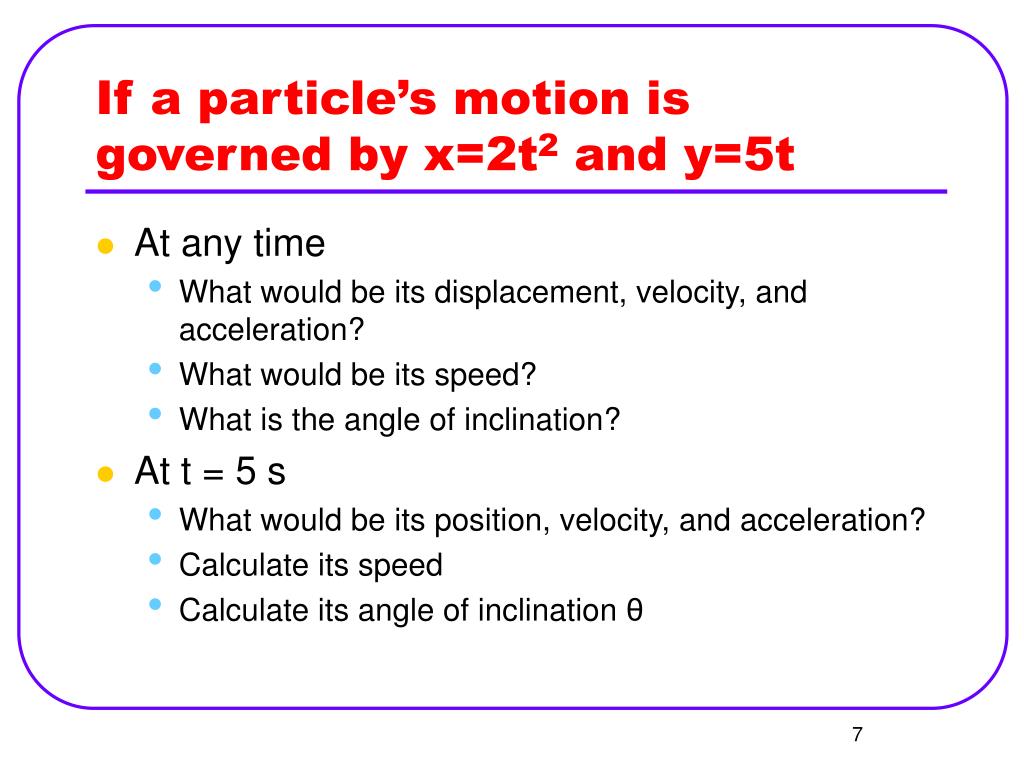

  7. If a particle’s motion is governed by x=2t2 and y=5t • At any time • What would be its displacement, velocity, and acceleration? • What would be its speed? • What is the angle of inclination? • At t = 5 s • What would be its position, velocity, and acceleration? • Calculate its speed • Calculate its angle of inclination θ

  8. Projectile Motion • A projectile is an object that moves in 2-D under the influence of only the gravitational force • For projectiles, ax=0 and ay=-g

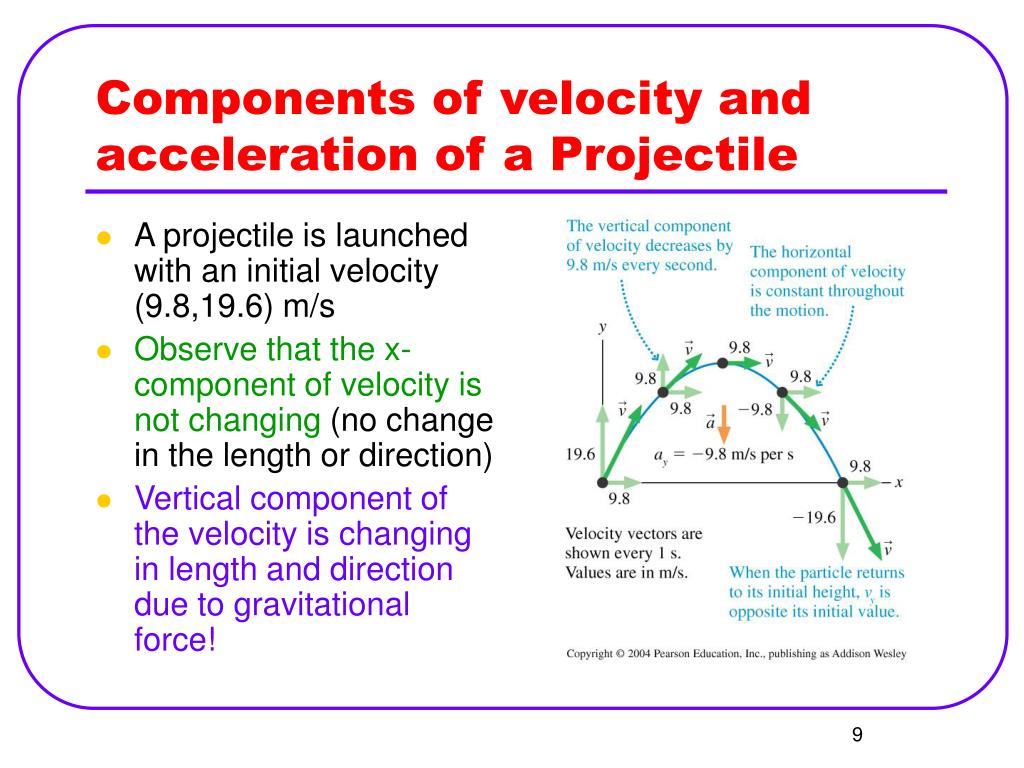

  9. Components of velocity and acceleration of a Projectile • A projectile is launched with an initial velocity (9.8,19.6) m/s • Observe that the x-component of velocity is not changing (no change in the length or direction) • Vertical component of the velocity is changing in length and direction due to gravitational force!

  10. Dynamics of a projectile • Projectile motion is made up of two independent motions Uniform motion with constant velocity along x- direction (horizontal) Free-fall motion in the vertical direction

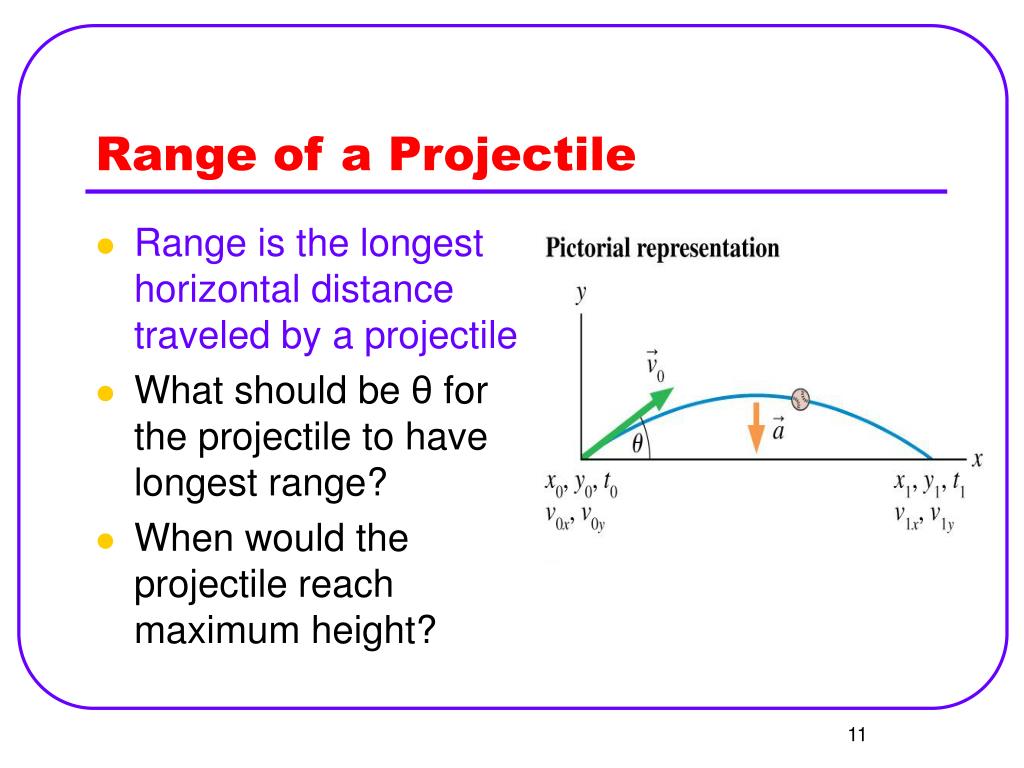

  11. Range of a Projectile • Range is the longest horizontal distance traveled by a projectile • What should be θ for the projectile to have longest range? • When would the projectile reach maximum height?

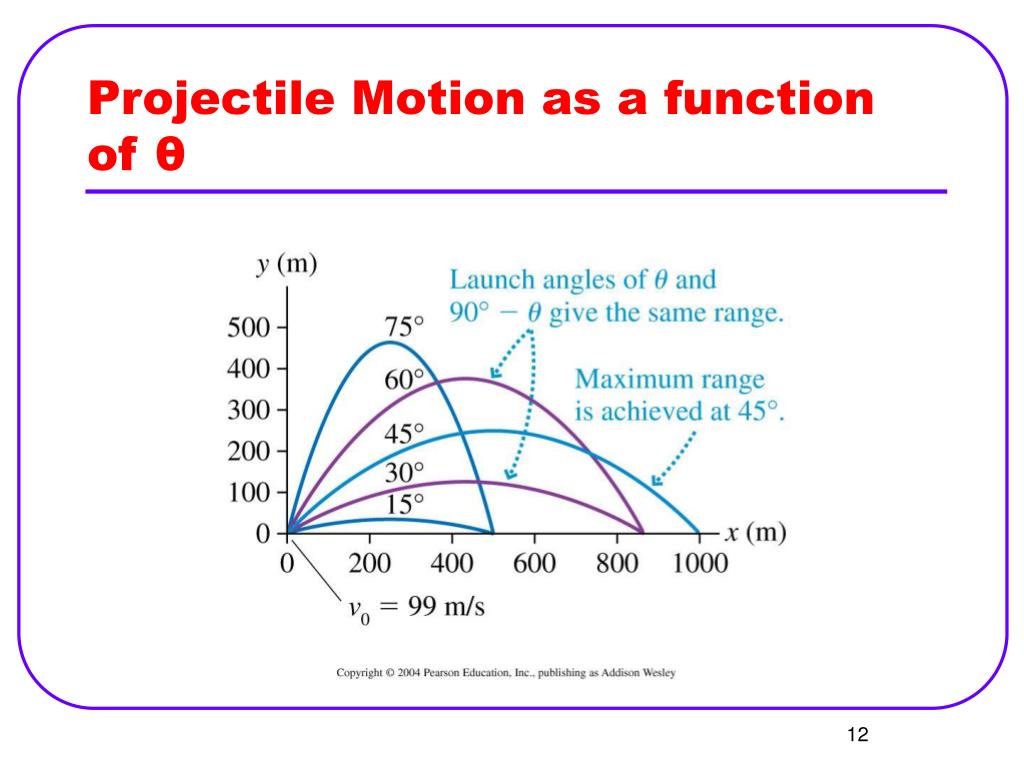

  12. Projectile Motion as a function of θ
