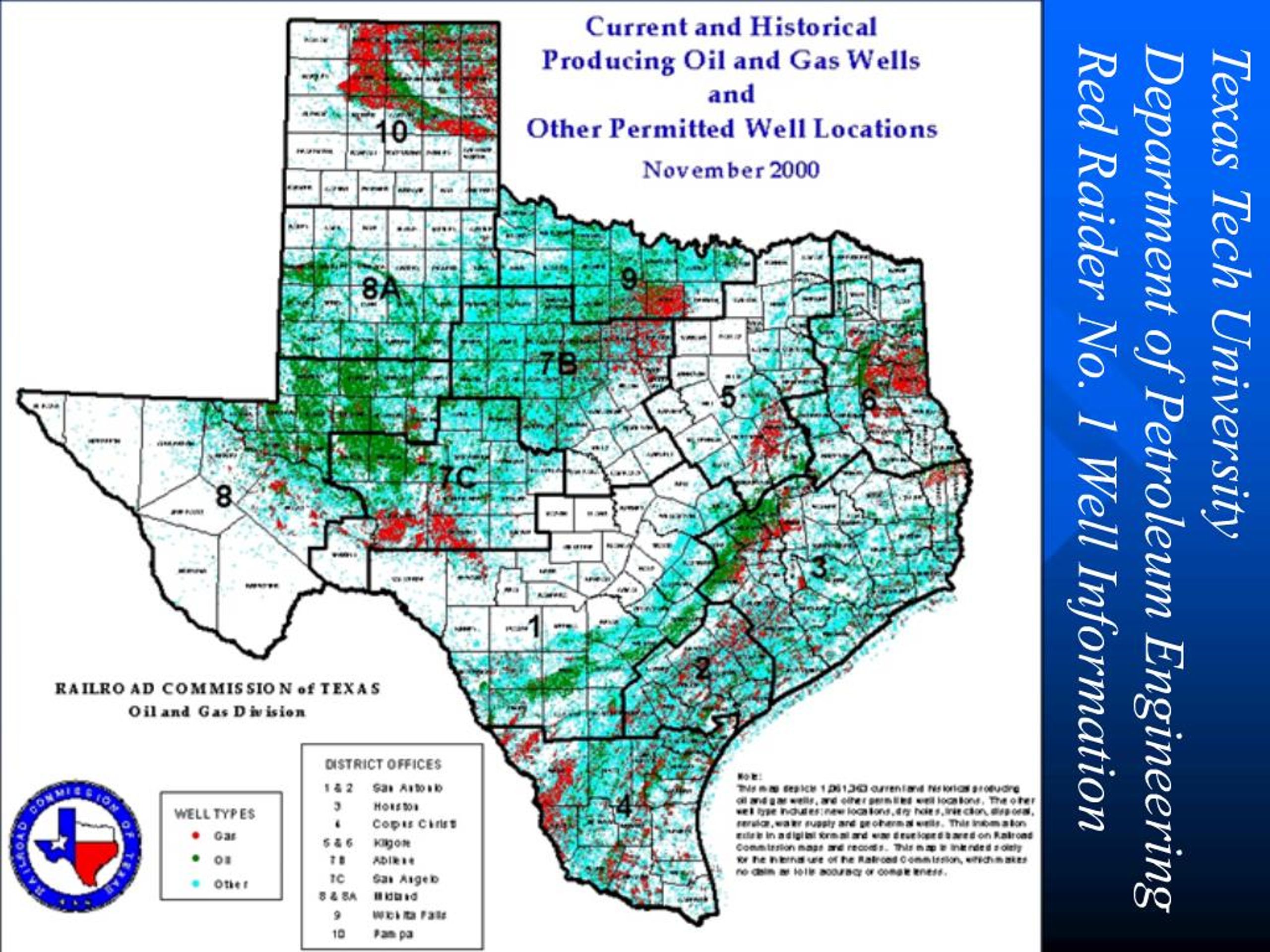

    1. April 16, 2003 SWPSC Meeting Lubbock, Texas

    2. April 16, 2003 SWPSC Meeting Lubbock, Texas 2 Texas Tech Test Well Facilities The purpose of the Test Well Facilities is: (1) to provide the faculty with a location for training undergraduate students in oil field operations. These facilities will be integrated into the Natural Gas and Production Engineering Laboratory curriculum. (2) to provide the Texas Tech University with a research location to work with graduate students on the full-scale testing and development of oil and gas production technologies.

    3. April 16, 2003 SWPSC Meeting Lubbock, Texas 3 Texas Tech Test Well Facilities Oil field Production Facilities (Design, and Installation) Tanks Separators Heater Treaters Production Piping Standards (ASME B31.3 B31.8) Operations Well completion Technologies (Wellhead and Wellbore Tubulars) API Measurement Standards (API MPMS) (Thieving, Sampling, Hydrometers, Quantity, and Quality) LACTS, VRU Work-over Rig Procedures Down-hole tools (packer, anchors, mandrels, ports, etc.) Safety and Rig Practices

    4. April 16, 2003 SWPSC Meeting Lubbock, Texas 4 Texas Tech Test Well Facilities Sucker Rod Pumping Pump plunger clearance and slippage Rod dynamics Pump-off control and monitoring Down-hole separation technologies New innovations (Pumps, equipment, etc.) Plunger Lift Critical Flow Correlations Plunger Performance (Rise and Fall Times) New Innovations

    5. April 16, 2003 SWPSC Meeting Lubbock, Texas 5 Texas Tech Test Well Facilities Artificial Lift Projects PCP Pumps New innovations (?) Electrical Submersible Pump Gas separation technologies PCP applications Solids separation Gas Lift Gas valve testing Multiphase flow correlations Annular multiphase flow correlations

    6. April 16, 2003 SWPSC Meeting Lubbock, Texas 6 Texas Tech Test Well Facilities Process Design Test Well (Red Raider No. 1) (Single and Dual) Separators (Three-Phase, and Two Phase) Stock Tanks (Three 500 bbl. Nominal tanks) Compressor Liquid Pump Packages Metering and Instrumentation (Internet Accessible) Electrical Line (500,000 VA Transformer) Gas Supply (ATMOS Energy 648,000 scf/D @ 30 psig) Pipe, Connection, and Fitting

    7. April 16, 2003 SWPSC Meeting Lubbock, Texas 7 Red Raider No. 1 Wellbore Well Depths and Casing Size Permanent Datum: Ground Level (GL), Elevation 3185 ft.   Log Measured: KB, 14 ft above perm. Datum   Cased Hole Logger TD: 4020 ft. RKB   Casing: 9-5/8 in., 43.5 lb/ft, N-80, LT&C, API 8RD ID: 8.755 in., Drift: 8.599 in. Set up for single and dual completion.   Pressure: Well bore full of Fresh water. No perforations.

    8. April 16, 2003 SWPSC Meeting Lubbock, Texas 8 Red Raider No. 1 Well bore

    9. April 16, 2003 SWPSC Meeting Lubbock, Texas 9

    10. April 16, 2003 SWPSC Meeting Lubbock, Texas 10 Test Well Facilities The Texas Tech University Test Well Facilities continues the procurement stage of the production facilities. Donations have been secured for the following items. Two-Phase separator and Heater Treater from NATCO GROUP. Lufkin C456D-305-144 Pumping Unit with Pump off Controller. Ajax Gas Compressor from Universal Compression VSD for ESP and Pumping unit from ABB, Inc. Sucker Rod wellhead assembly from R&M Energy Systems Sucker Rods and related Equipment from Norris Rods Plunger Lift Equipment from Ferguson Beauregard

    11. April 16, 2003 SWPSC Meeting Lubbock, Texas 11 Sucker Rod Donated Equipment Specifications Lufkin Pumping Unit C456D-305-144 SAMS Pump off Controller

    12. April 16, 2003 SWPSC Meeting Lubbock, Texas 12 Pumping Unit Pad Red Raider No. 1

    13. April 16, 2003 SWPSC Meeting Lubbock, Texas 13 Red Raider No. 1 Lufkin Pumping Unit (Odessa, Texas)

    14. April 16, 2003 SWPSC Meeting Lubbock, Texas 14 Red Raider No. 1 Pumping Unit Equipment (VFD)

    15. April 16, 2003 SWPSC Meeting Lubbock, Texas 15 Red Raider No. 1 R&M Energy Systems Equipment

    16. April 16, 2003 SWPSC Meeting Lubbock, Texas 16 Red Raider No. 1 Norris Rods Polish Rod and 4020 ft Sucker Rod String

    17. April 16, 2003 SWPSC Meeting Lubbock, Texas 17 Oil Field Motor (NEMA D) and Cutler Hammer Panel

    18. April 16, 2003 SWPSC Meeting Lubbock, Texas 18 Donated Equipment Specifications NATCO GROUP Two Phase Separator 16 in x 5 ft x 1440 psi. 800 bbls of Fluid per day

    19. April 16, 2003 SWPSC Meeting Lubbock, Texas 19 Donated Equipment Specifications NATCO GROUP Heater Treater 4 ft x 20 in. x 50 psi 860 bbls of Fluid per day

    20. April 16, 2003 SWPSC Meeting Lubbock, Texas 20 Red Raider No. 1 Equipment (Awaiting Delivery) Stock Tanks Three (3) 12ft x 25 ft, API 12F Type B Cone bottom, tanks with ¼ inch plate and 1 in roll lines with 8 in. ANSI 150# pump outlet flanges. OCTG Pipe (Tubing) Five Star Pipe (Odessa, Texas) 4150 ft, 2-7/8 inch, J-55, 6.5 #/ft, R2, SCC

    21. April 16, 2003 SWPSC Meeting Lubbock, Texas 21 Red Raider No. 1 Equipment (Awaiting Delivery) Dual Completion Tubing Head (5M Rating)

    22. April 16, 2003 SWPSC Meeting Lubbock, Texas 22 Red Raider No. 1 Equipment (Awaiting Delivery)

    23. April 16, 2003 SWPSC Meeting Lubbock, Texas 23 Pipe Racks Red Raider No. 1

    24. April 16, 2003 SWPSC Meeting Lubbock, Texas 24 Test Well Facilities

    25. April 16, 2003 SWPSC Meeting Lubbock, Texas 25 Storage Building

    26. April 16, 2003 SWPSC Meeting Lubbock, Texas 26 Utility Easements (Water, Electric, Gas, Data) Fence Line

    27. April 16, 2003 SWPSC Meeting Lubbock, Texas 27 LP&L Electric (12,100 Volt) 500,000 Volt-Amp Transformer

    28. April 16, 2003 SWPSC Meeting Lubbock, Texas 28 ATMOS Gas Line 648,000 scf/day @ 30 psig.

    29. April 16, 2003 SWPSC Meeting Lubbock, Texas 29 Trican Coiled Poly-Tubing Project February 2003

    30. April 16, 2003 SWPSC Meeting Lubbock, Texas 30 Trican Coiled Poly-Tubing Project February 2003

    31. April 16, 2003 SWPSC Meeting Lubbock, Texas 31 Test Well Web Page (1)

    32. April 16, 2003 SWPSC Meeting Lubbock, Texas 32 Test Well Web Page (2)

    33. April 16, 2003 SWPSC Meeting Lubbock, Texas 33 Test Well Facilities Schedule Fence Line should be installed by May 2003 Electrical and Gas lines by June 2003 We hope to have the Lufkin Unit set by June, 2003. We will move tubing to the racks after the pumping unit is set. The Separation facilities and stock tanks will be ready by the end of August 2003. We hope to have the pumping unit component ready for testing by August 2003.

    34. April 16, 2003 34 Corporate Project Sponsors
