  1. Sponsor: Gary Griffiths Variable Geometry Camshaft Scott Lake Matt Phillips Zachary Lightner Ryan Kowalewski Matt Griffey

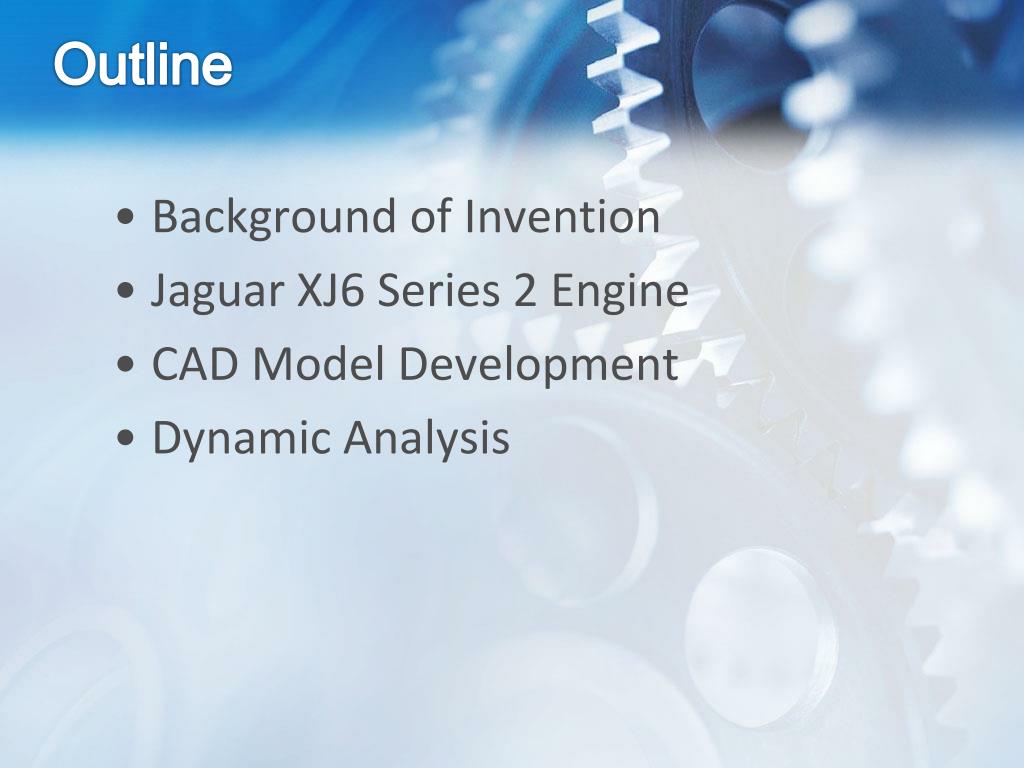

  2. Outline • Background of Invention • Jaguar XJ6 Series 2 Engine • CAD Model Development • Dynamic Analysis

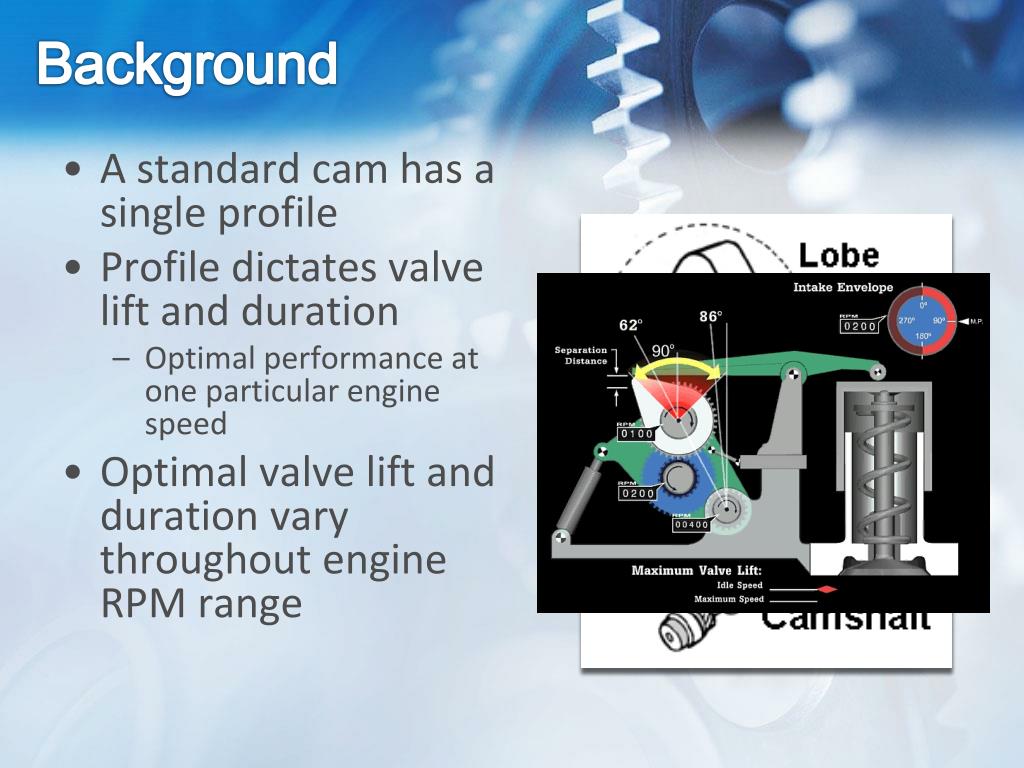

  3. Background • A standard cam has a single profile • Profile dictates valve lift and duration • Optimal performance at one particular engine speed • Optimal valve lift and duration vary throughout engine RPM range

  4. Engineering Requirements • Increased volumetric efficiency • 4:1 Gear ratio mechanism for transferring torque from the input gear to the camshaft • 180° of crankshaft rotation resulting in 90° of valve duration • 240° of crankshaft rotation resulting in 120° of valve duration • Fulcrum Rotation of no more than 24° • Translational movement of rocker tower

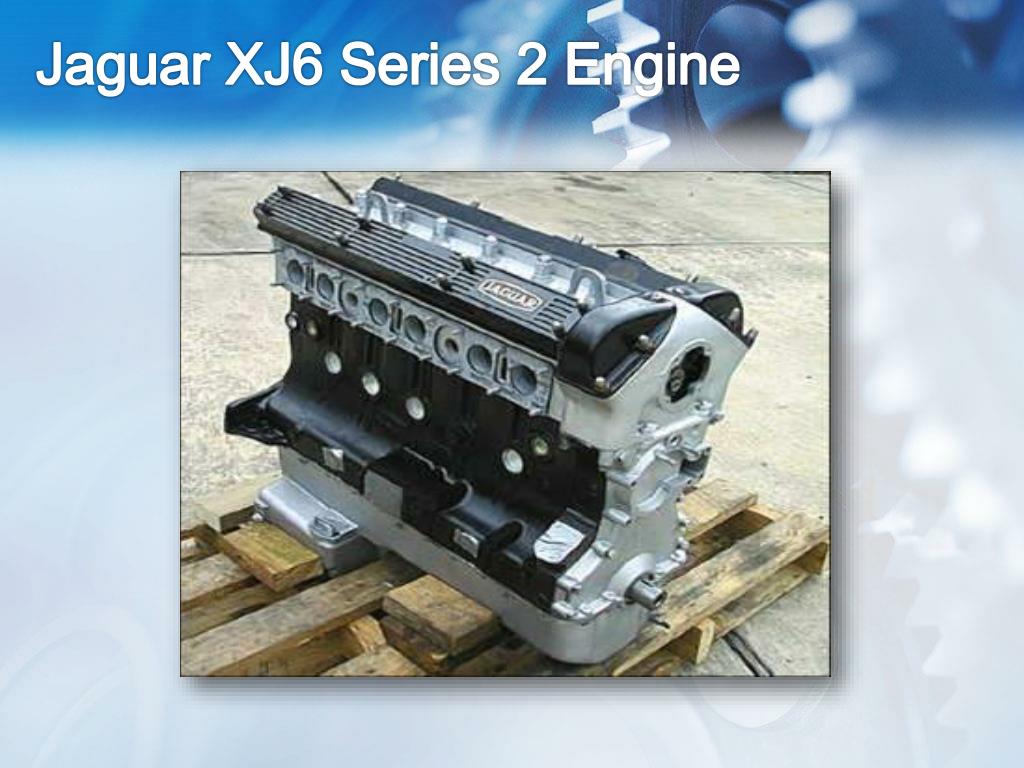

  5. Jaguar XJ6 Series 2 Engine

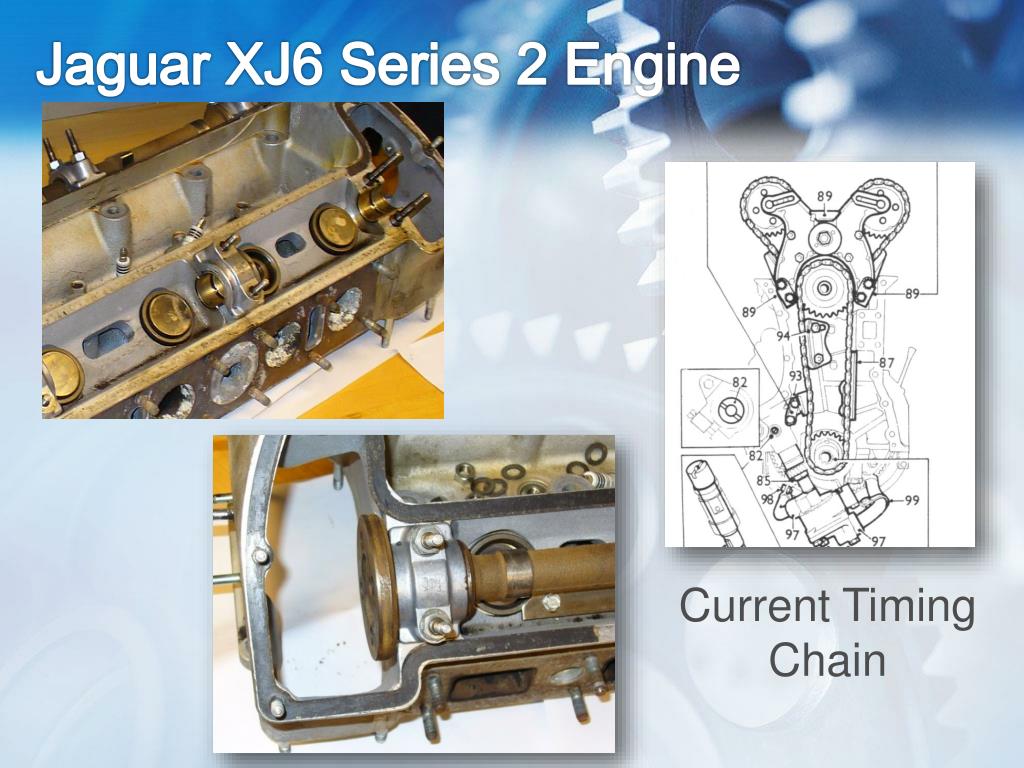

  6. Jaguar XJ6 Series 2 Engine Current Timing Chain

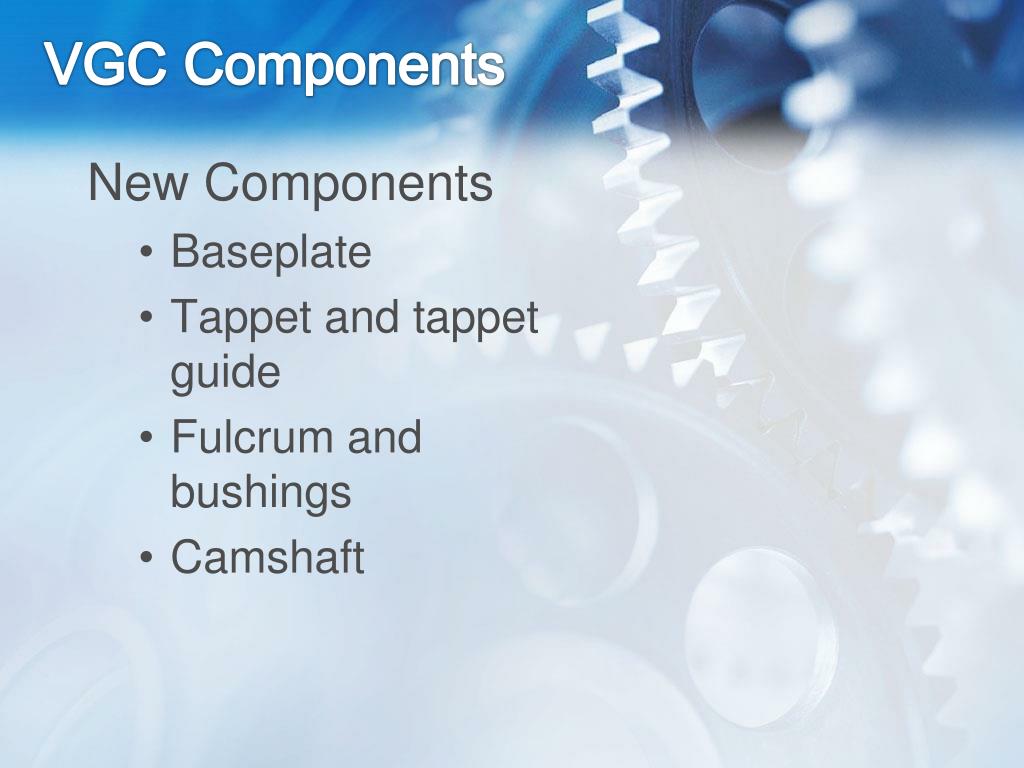

  7. VGC Components New Components • Baseplate • Tappet and tappet guide • Fulcrum and bushings • Camshaft

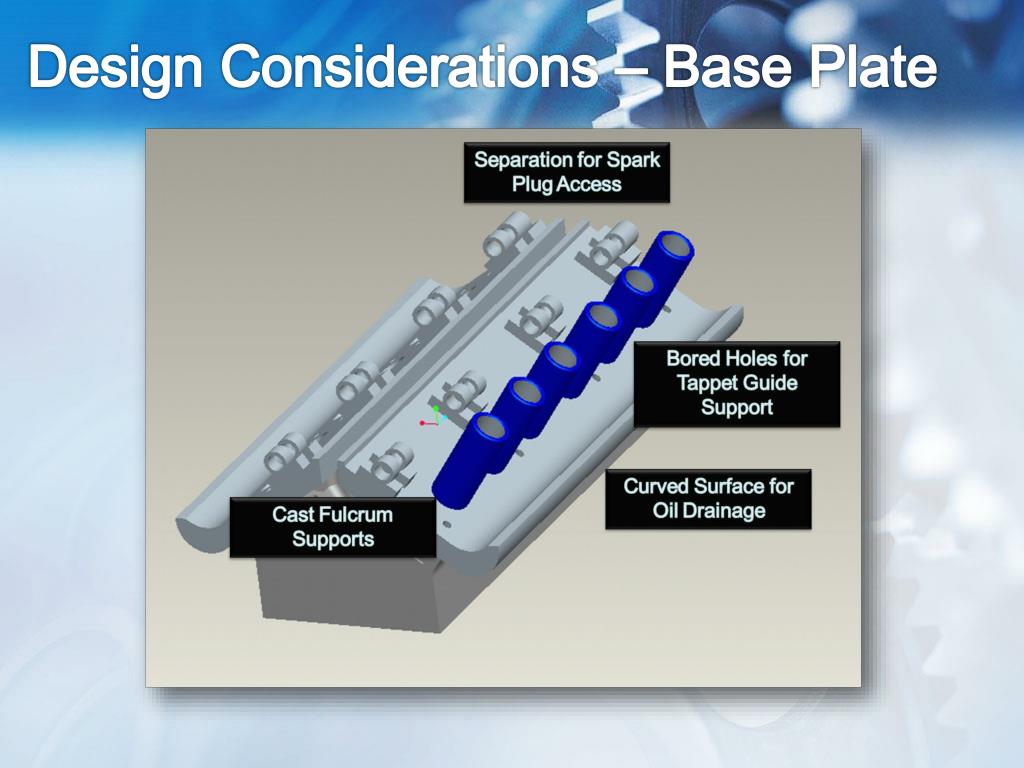

  8. Design Considerations – Base Plate

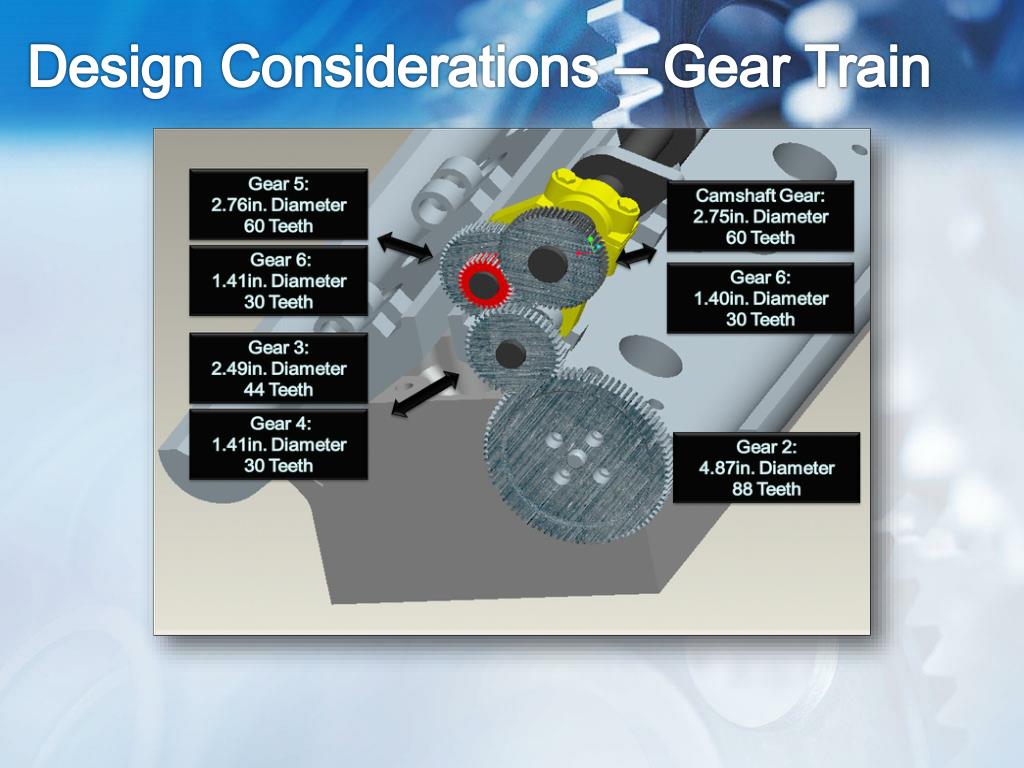

  9. Design Considerations – Gear Train

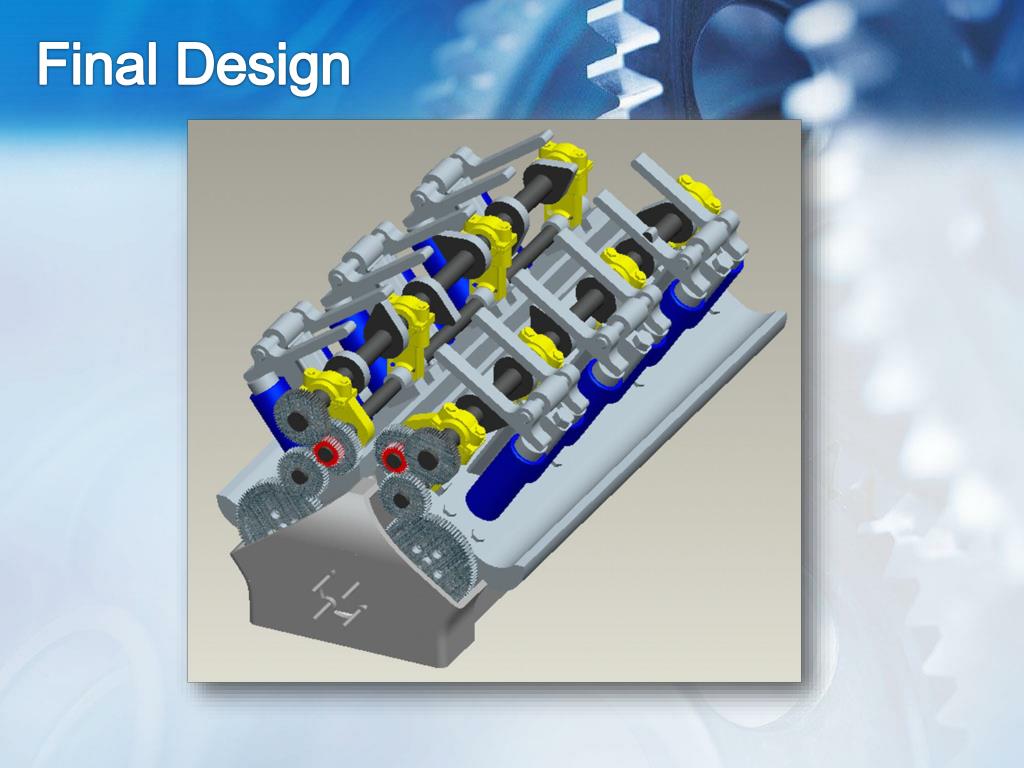

  10. Final Design

  11. Dynamic Analysis

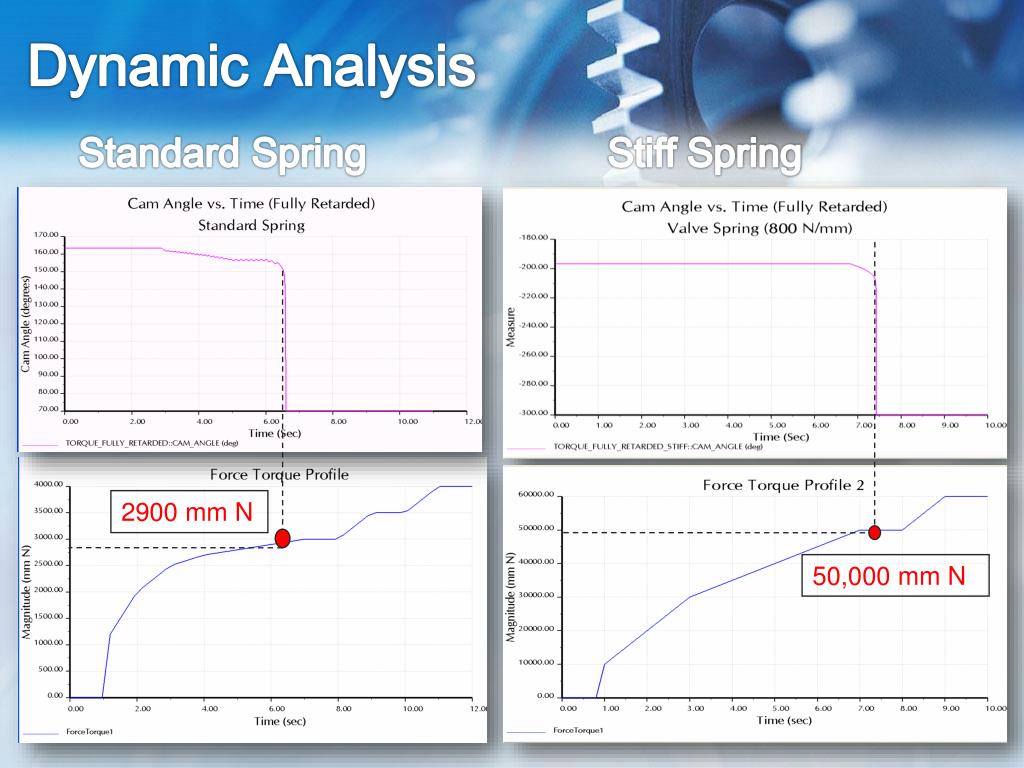

  12. Dynamic Analysis Standard Spring Stiff Spring 2900 mm N 50,000 mm N

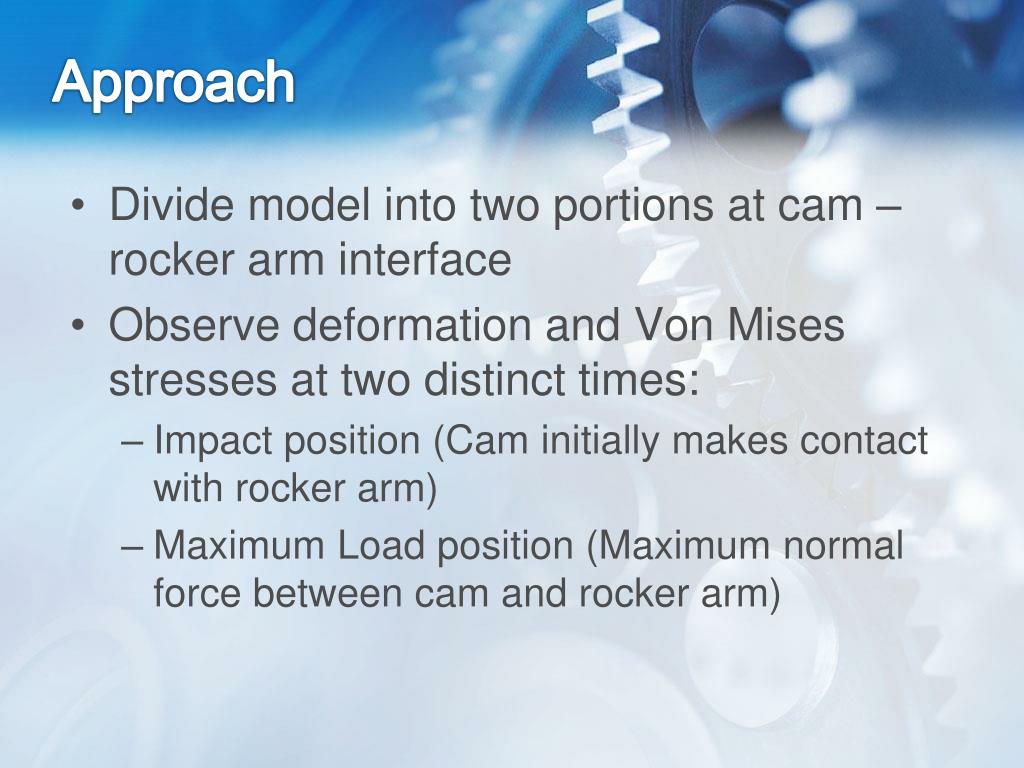

  13. Approach • Divide model into two portions at cam – rocker arm interface • Observe deformation and Von Mises stresses at two distinct times: • Impact position (Cam initially makes contact with rocker arm) • Maximum Load position (Maximum normal force between cam and rocker arm)

  14. Materials

  15. Mesh Statistics

  16. Loading Conditions Impact Load: Maximum Load:

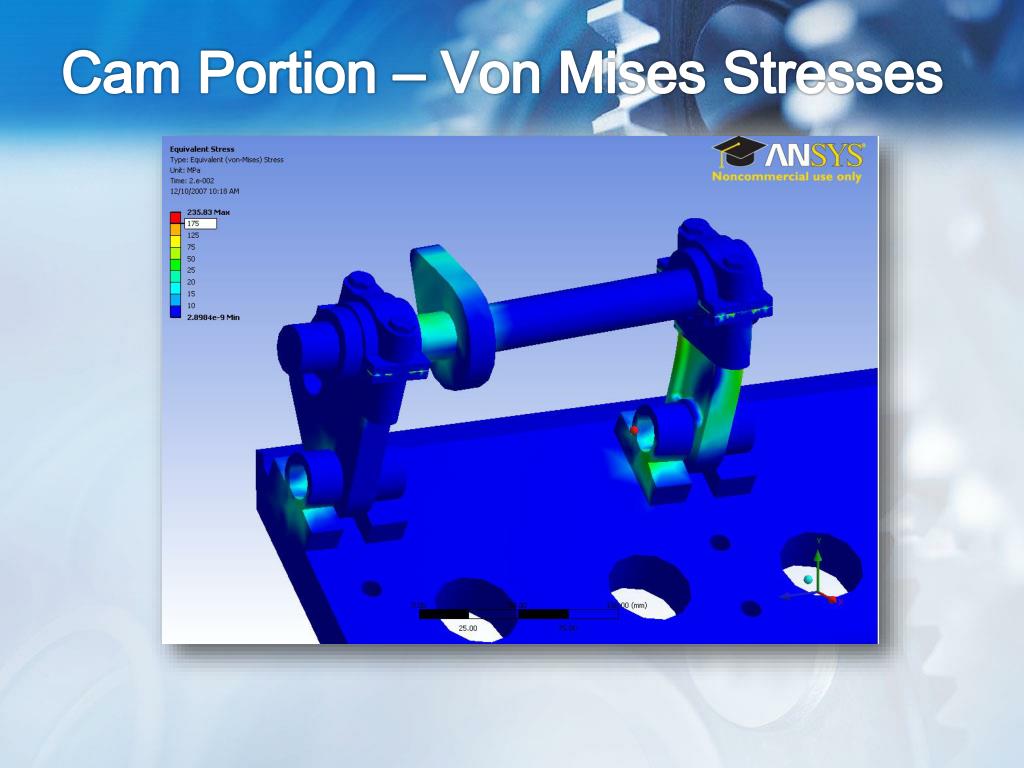

  17. Cam Portion – Von Mises Stresses

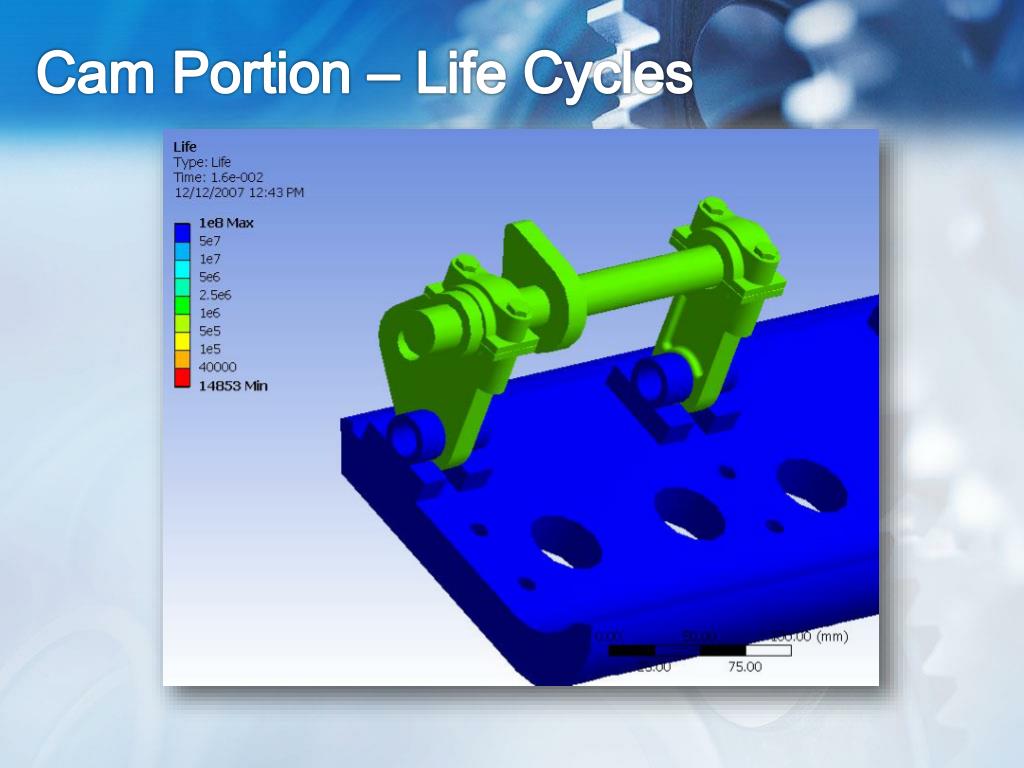

  18. Cam Portion – Life Cycles

  19. Cam Portion – Safety Factor

  20. Rocker Arm Portion – Deformation

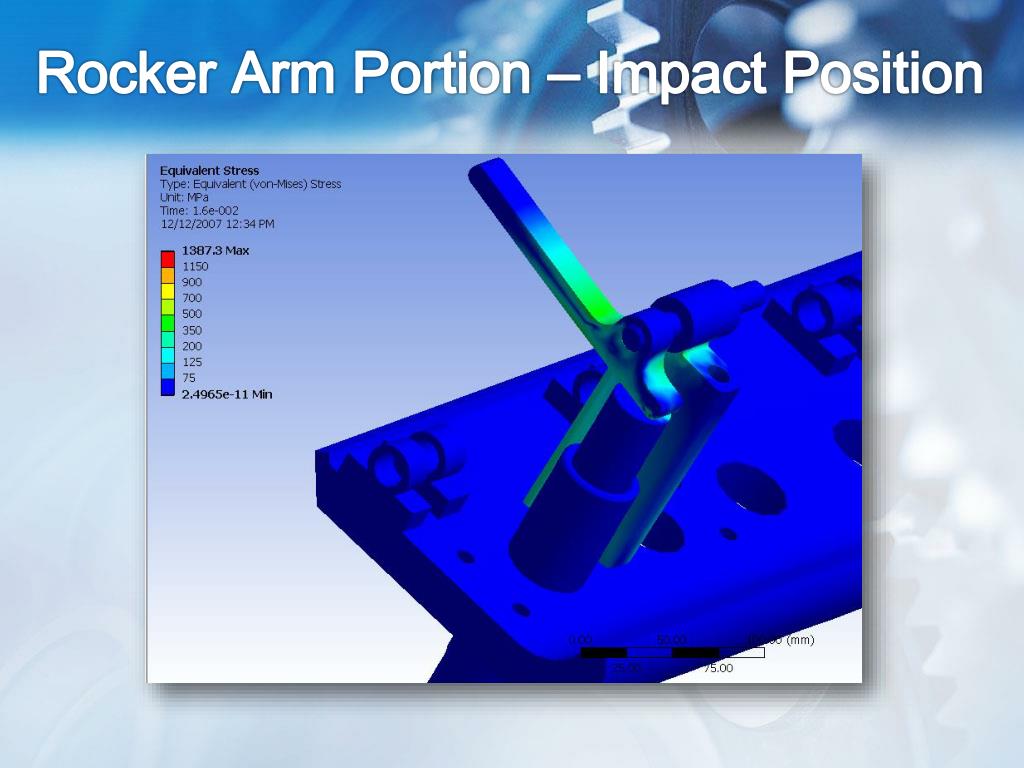

  21. Rocker Arm Portion – Impact Position

  22. Rocker Arm Portion – Life Cycles

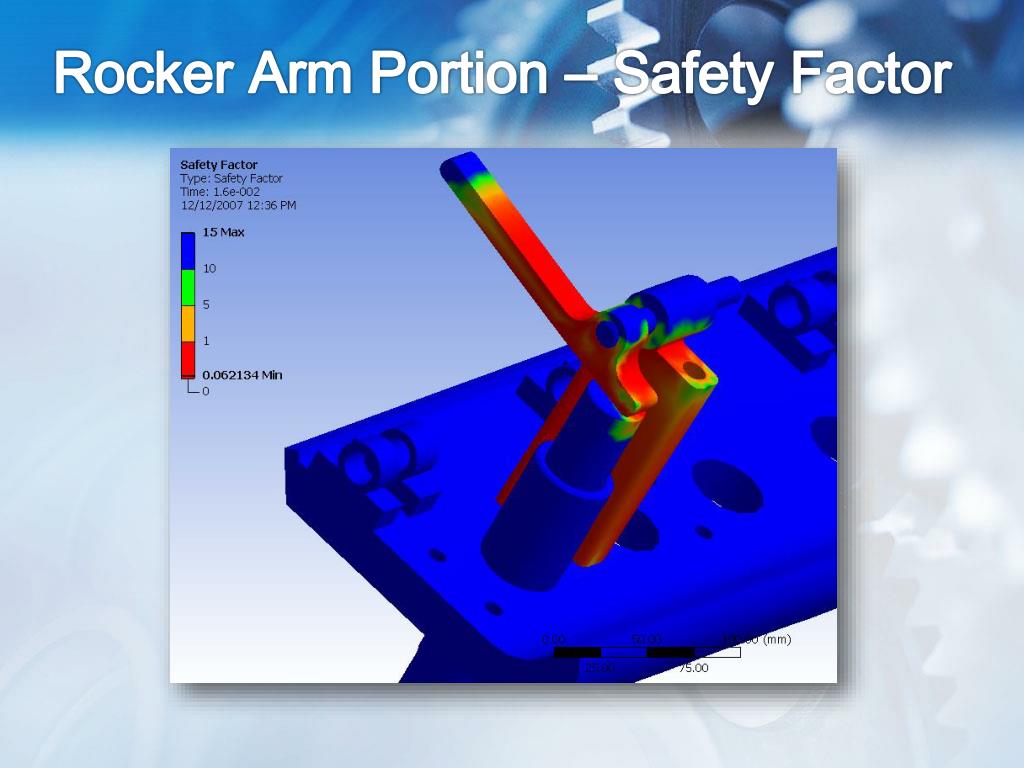

  23. Rocker Arm Portion – Safety Factor

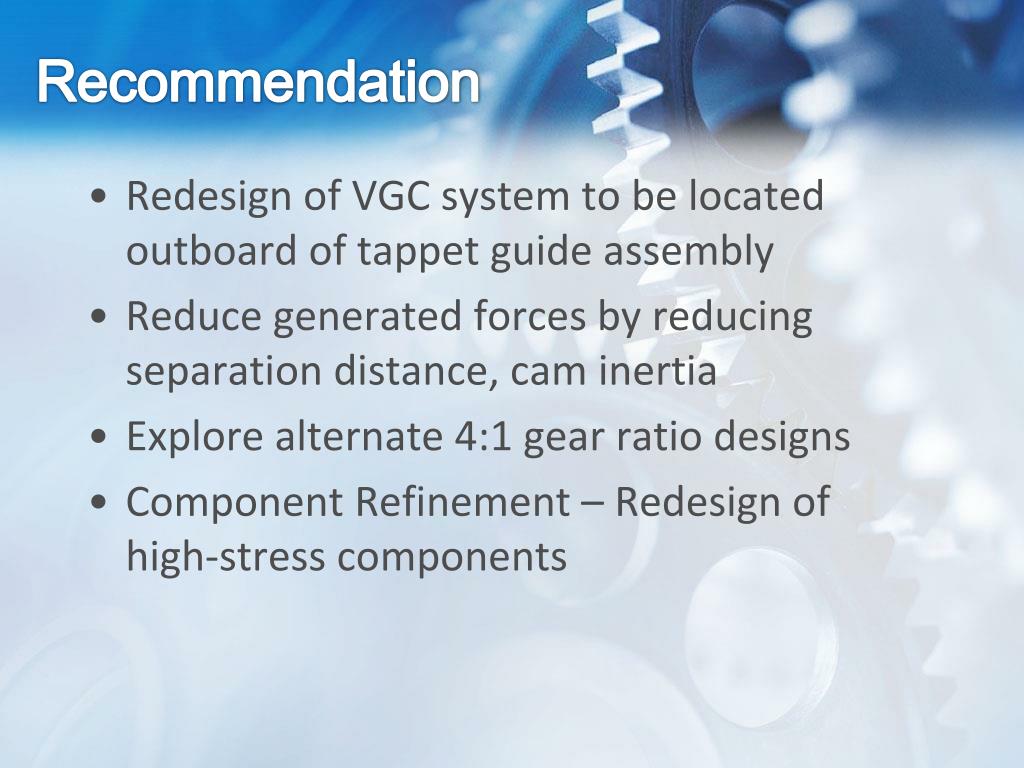

  24. Recommendation • Redesign of VGC system to be located outboard of tappet guide assembly • Reduce generated forces by reducing separation distance, cam inertia • Explore alternate 4:1 gear ratio designs • Component Refinement – Redesign of high-stress components

  25. Questions?

  26. Appendix

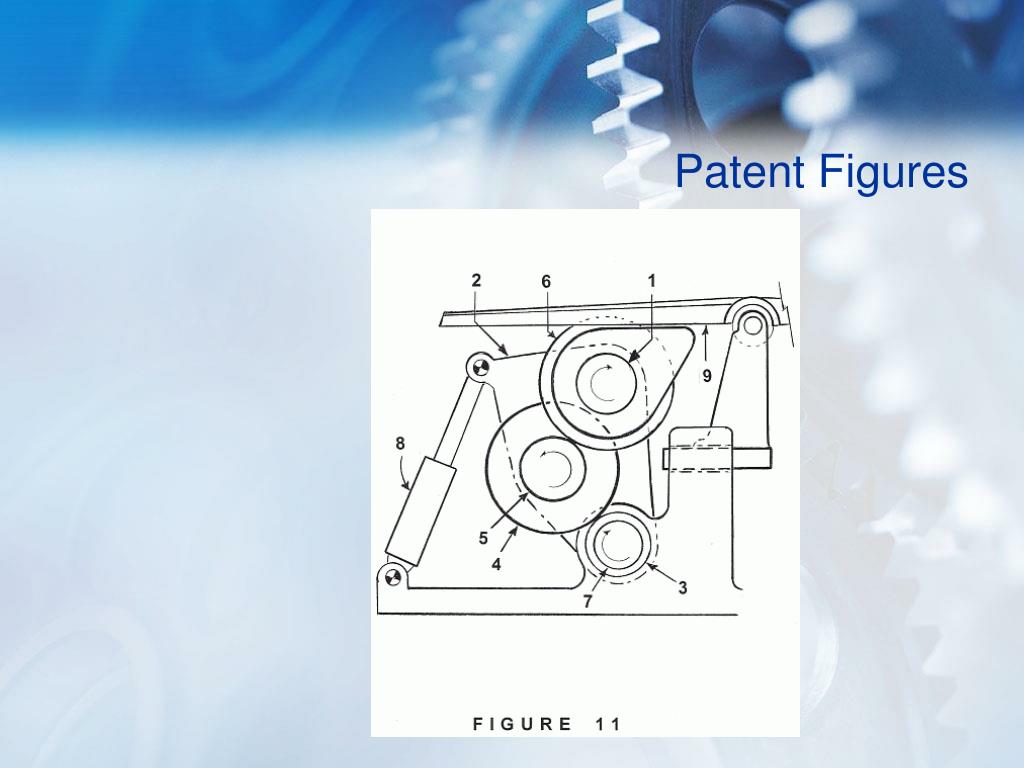

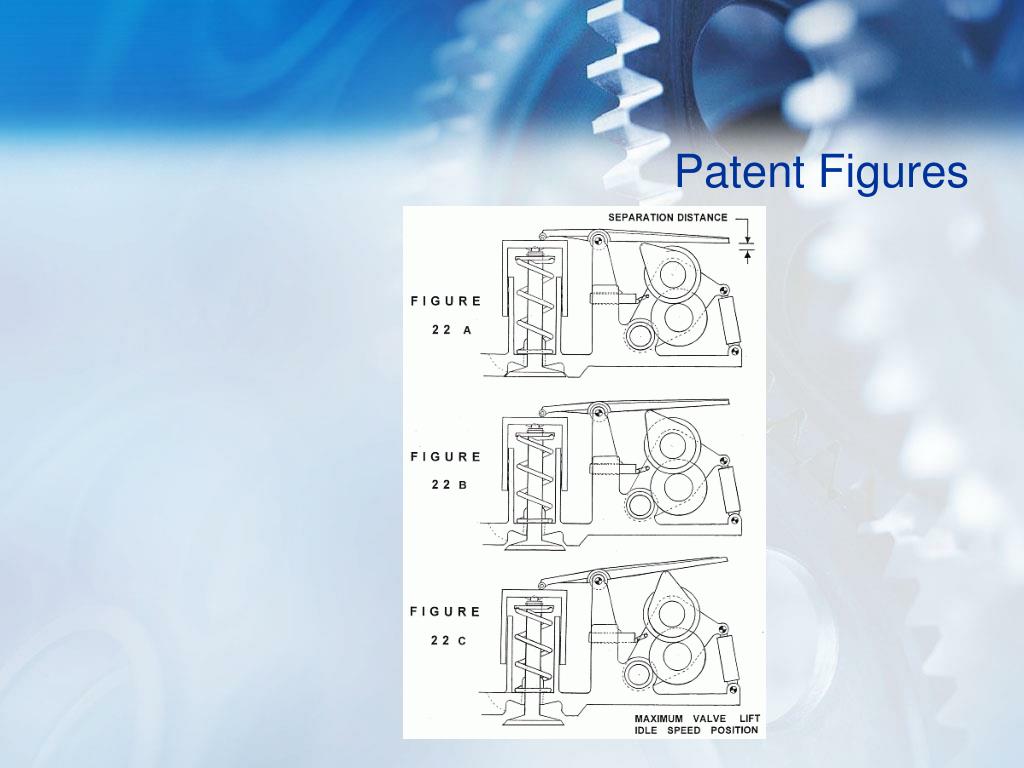

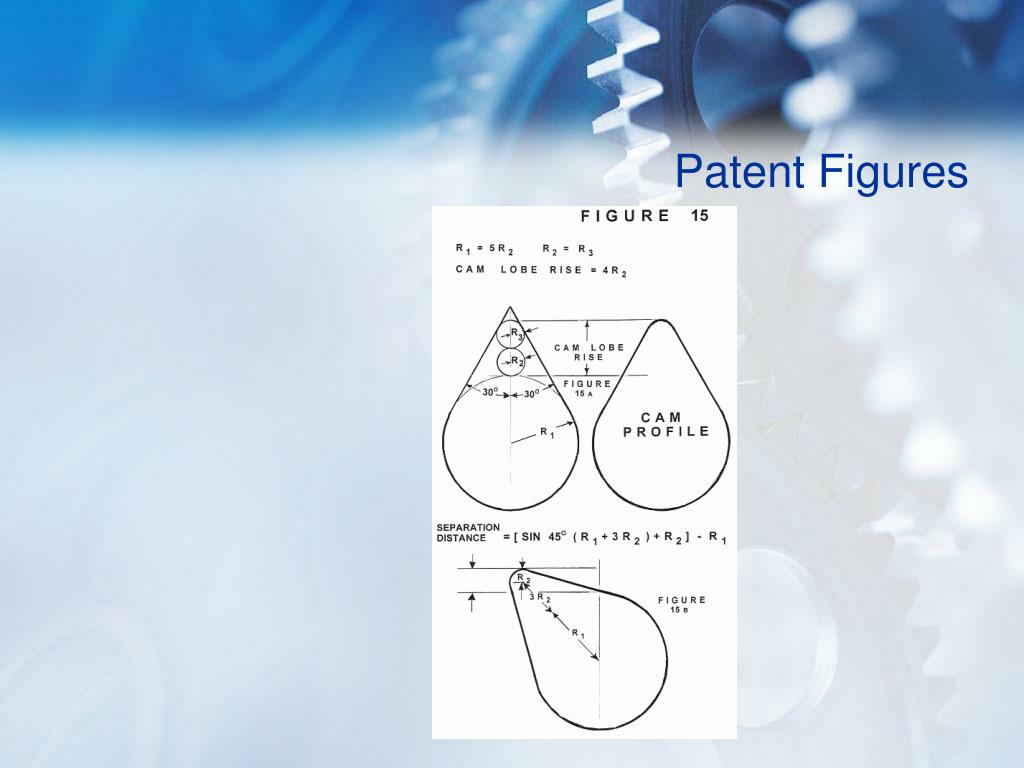

  27. Patent Figures

  28. Patent Figures

  29. Cam Contact

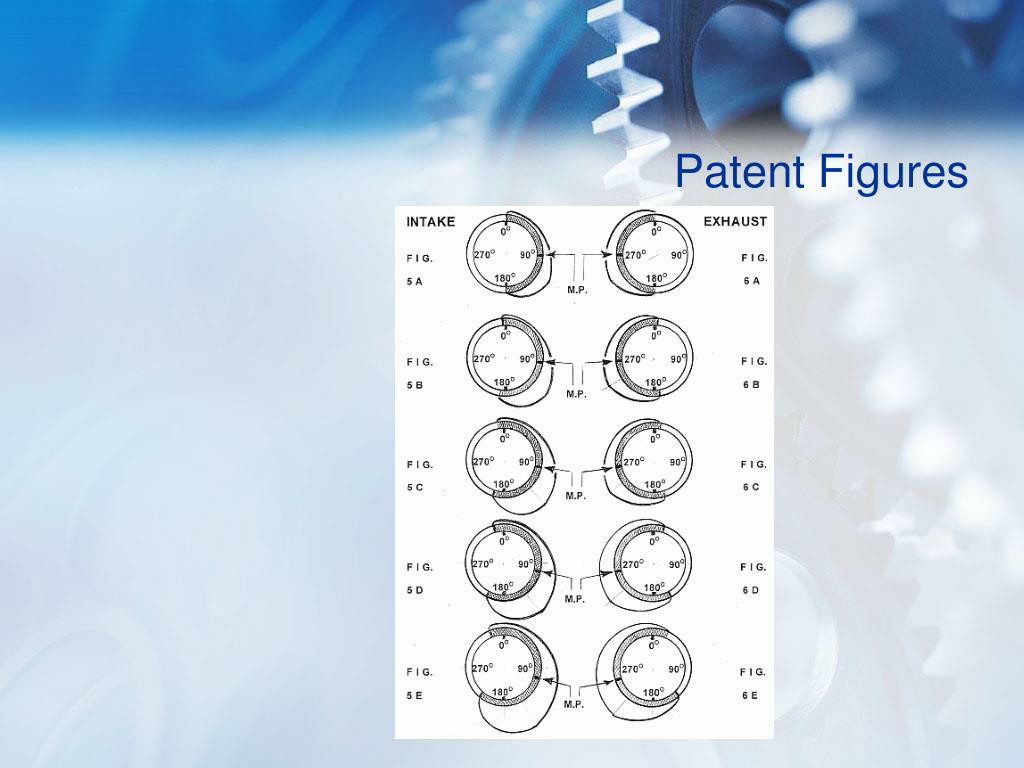

  30. Patent Figures

  31. Patent Figures

  32. Dynamic Analysis

  33. Rocker Arm Portion – Maximum Load

  34. Rocker Arm Portion – Maximum Load
