Web JSF Overview – Dynamic Content Web Pages – for EGL/JSF Developers

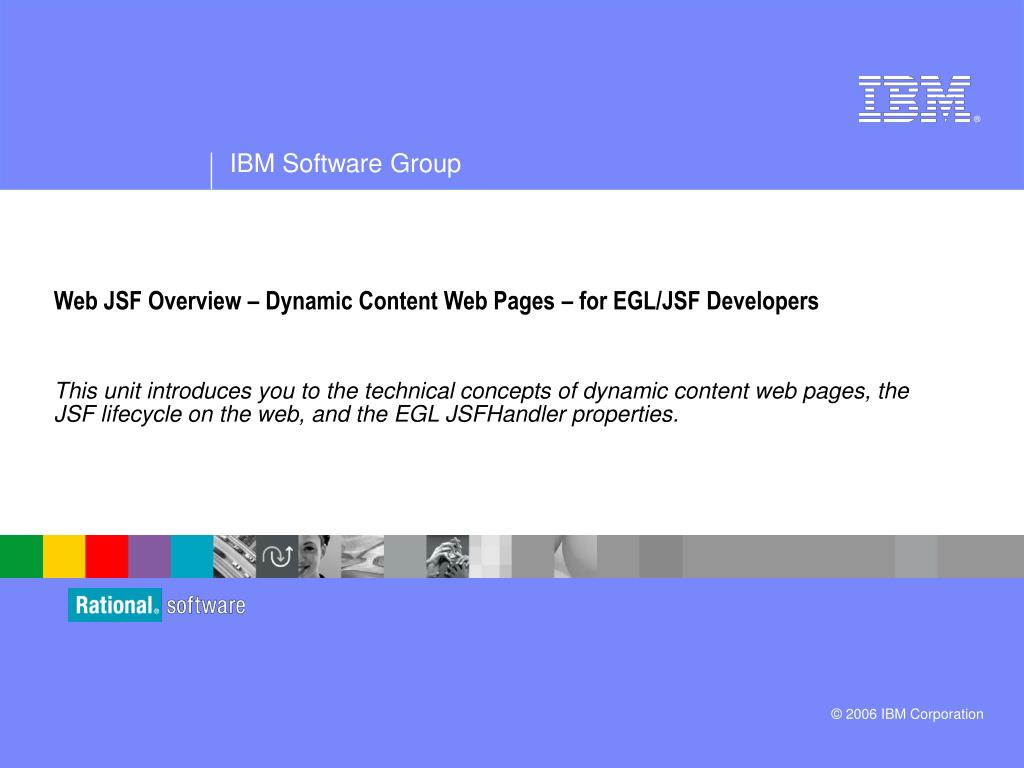

1. Web JSF Overview – Dynamic Content Web Pages – for EGL/JSF Developers This unit introduces you to the technical concepts of dynamic content web pages, the JSF lifecycle on the web, and the EGL JSFHandler properties.

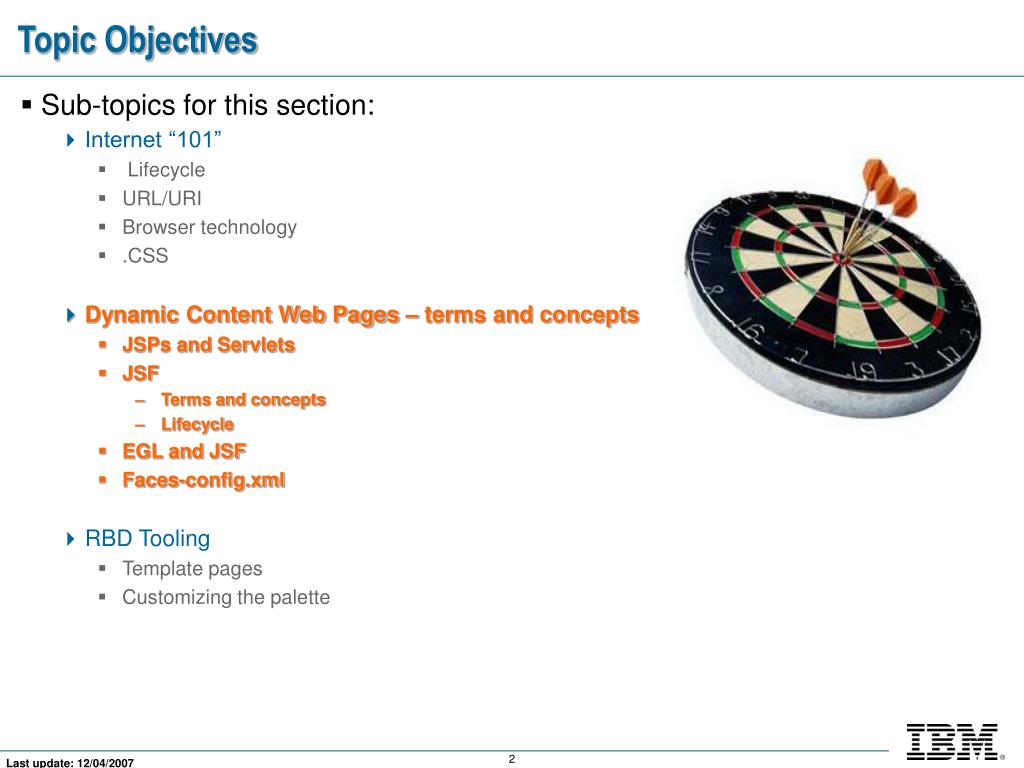

2. Topic Objectives • Sub-topics for this section: • Internet “101” • Lifecycle • URL/URI • Browser technology • .CSS • Dynamic Content Web Pages – terms and concepts • JSPs and Servlets • JSF • Terms and concepts • Lifecycle • EGL and JSF • Faces-config.xml • RBD Tooling • Template pages • Customizing the palette

3. Dynamic Data Content Web Technology • Using EGL and JSF you create web pages that render data dynamically • Translation – the data ultimately viewed by your users in the browser will be: • Dynamically read from a database (using EGL data access statement) • Processed by EGL business logic – which creates data bound to JSF components • Which are processed by JSP/Servlet technology and ultimately • Displayed in HTML pages. See Notes for additional details Browser Page HTTP Request Data Transfer HTML +CSS + data DB Application Server EGL Application Process data Access database Call legacy systems System I System z

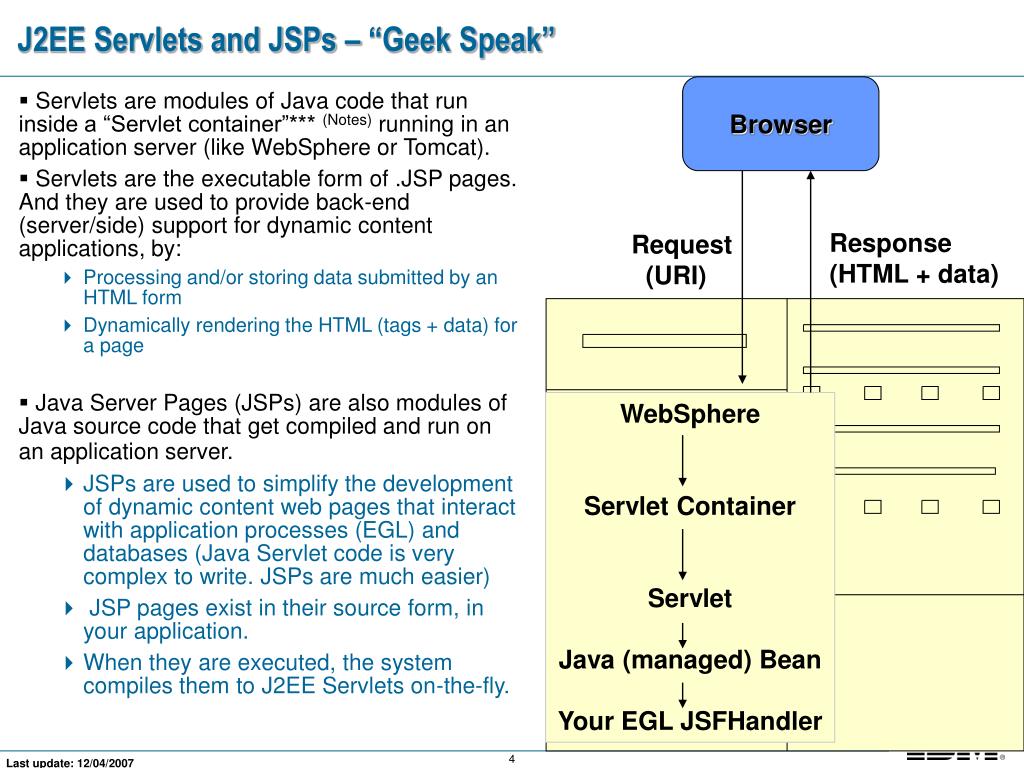

4. J2EE Servlets and JSPs – “Geek Speak” Browser • Servlets are modules of Java code that run inside a “Servlet container”*** (Notes) running in an application server (like WebSphere or Tomcat). • Servlets are the executable form of .JSP pages. And they are used to provide back-end (server/side) support for dynamic content applications, by: • Processing and/or storing data submitted by an HTML form • Dynamically rendering the HTML (tags + data) for a page • Java Server Pages (JSPs) are also modules of Java source code that get compiled and run on an application server. • JSPs are used to simplify the development of dynamic content web pages that interact with application processes (EGL) and databases (Java Servlet code is very complex to write. JSPs are much easier) • JSP pages exist in their source form, in your application. • When they are executed, the system compiles them to J2EE Servlets on-the-fly. Response (HTML + data) Request (URI) WebSphere Servlet Container Servlet Java (managed) Bean Your EGL JSFHandler

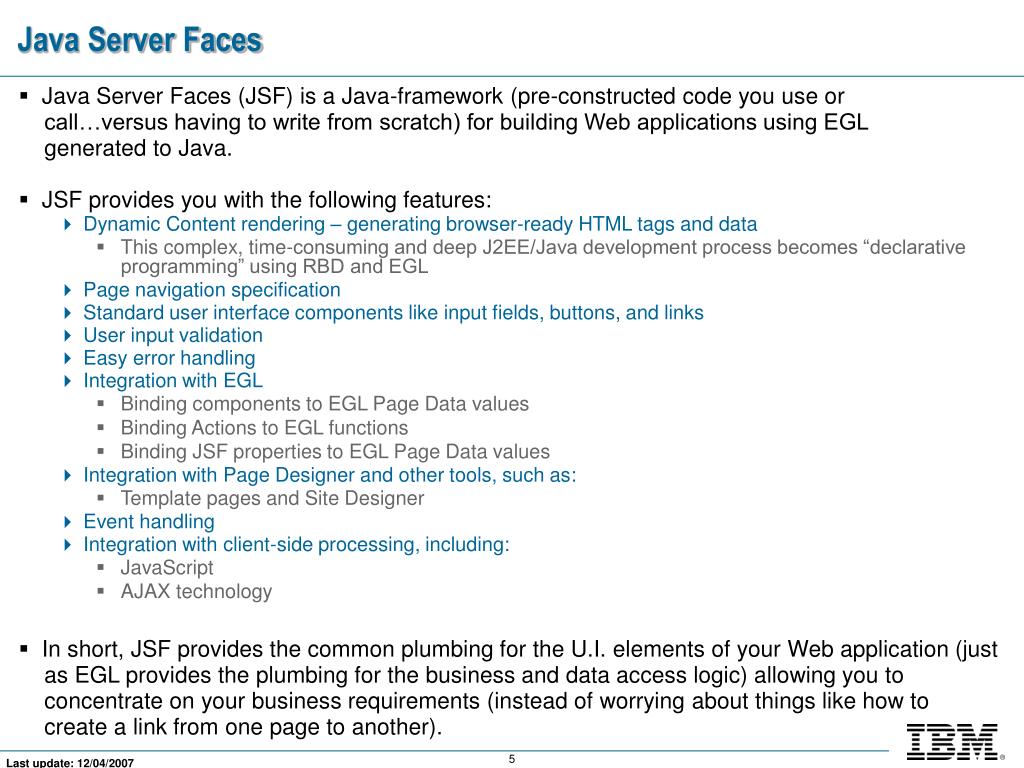

5. Java Server Faces • Java Server Faces (JSF) is a Java-framework (pre-constructed code you use or call…versus having to write from scratch) for building Web applications using EGL generated to Java. • JSF provides you with the following features: • Dynamic Content rendering – generating browser-ready HTML tags and data • This complex, time-consuming and deep J2EE/Java development process becomes “declarative programming” using RBD and EGL • Page navigation specification • Standard user interface components like input fields, buttons, and links • User input validation • Easy error handling • Integration with EGL • Binding components to EGL Page Data values • Binding Actions to EGL functions • Binding JSF properties to EGL Page Data values • Integration with Page Designer and other tools, such as: • Template pages and Site Designer • Event handling • Integration with client-side processing, including: • JavaScript • AJAX technology • In short, JSF provides the common plumbing for the U.I. elements of your Web application (just as EGL provides the plumbing for the business and data access logic) allowing you to concentrate on your business requirements (instead of worrying about things like how to create a link from one page to another).

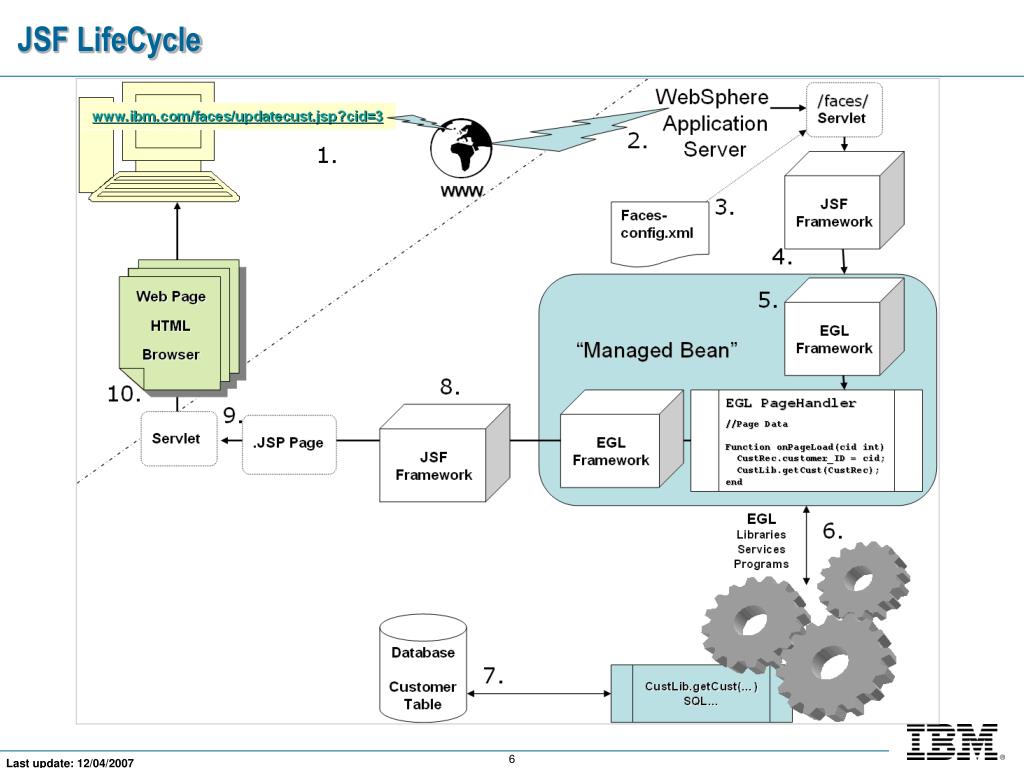

6. JSF LifeCycle

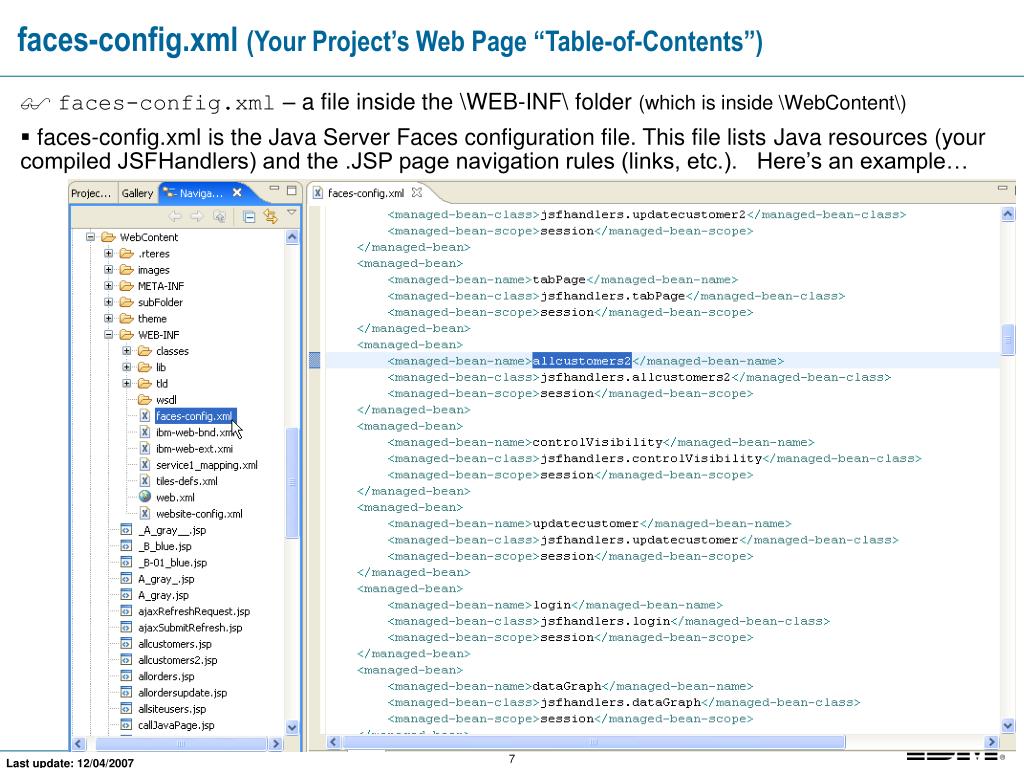

7. faces-config.xml (Your Project’s Web Page “Table-of-Contents”)  faces-config.xml – a file inside the \WEB-INF\ folder (which is inside \WebContent\) • faces-config.xml is the Java Server Faces configuration file. This file listsJava resources (your compiled JSFHandlers) and the .JSP page navigation rules (links, etc.). Here’s an example…

8. JSFHandlers and EGL Business Logic • Your JSFHandler controls the user’s run-time interaction with a web-page. It is responsible for retrieving and processing data bound to variables displayed on the page, and for handling user events that fire server-side logic (i.e. the user clicks a submit-button or dataTable row, or makes a selection from a combo-box that invokes a custom function in a JSFHandler.) JSFHandlers adhere to the standard EGL coding model. They have properties Global variables (Page Data variables) And functions Search Help on the topic: JSF Handler Part

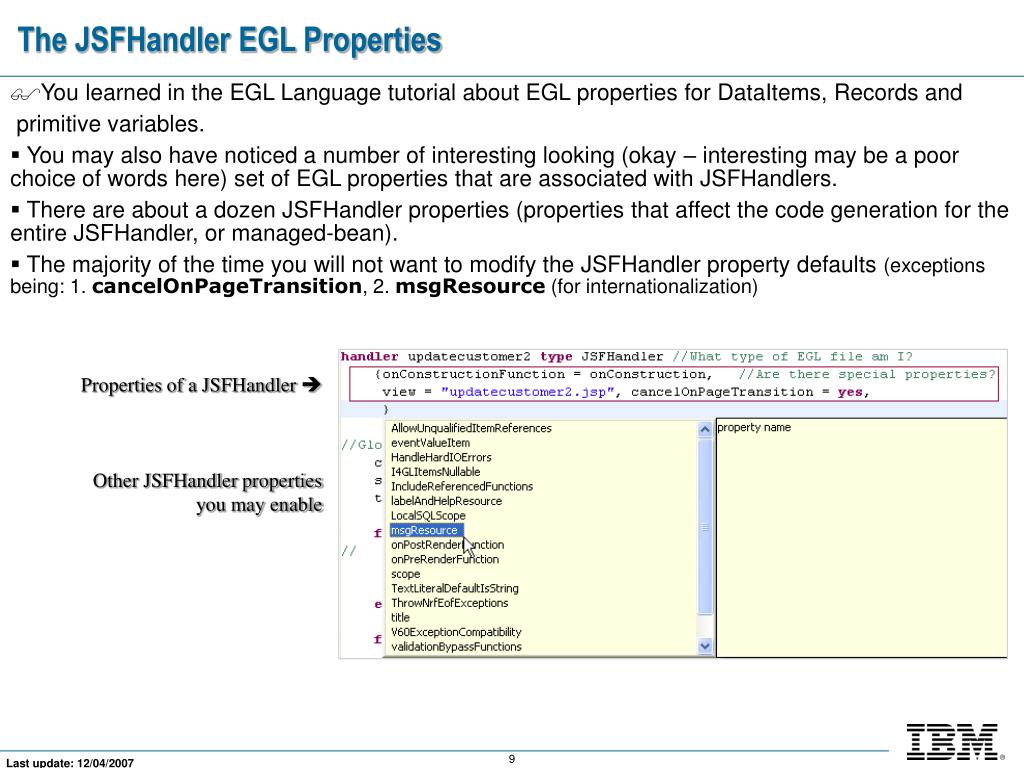

9. The JSFHandler EGL Properties You learned in the EGL Language tutorial about EGL properties for DataItems, Records and primitive variables. • You may also have noticed a number of interesting looking (okay – interesting may be a poor choice of words here) set of EGL properties that are associated with JSFHandlers. • There are about a dozen JSFHandler properties (properties that affect the code generation for the entire JSFHandler, or managed-bean). • The majority of the time you will not want to modify the JSFHandler property defaults(exceptions being: 1. cancelOnPageTransition, 2. msgResource (for internationalization) Properties of a JSFHandler  Other JSFHandler properties you may enable

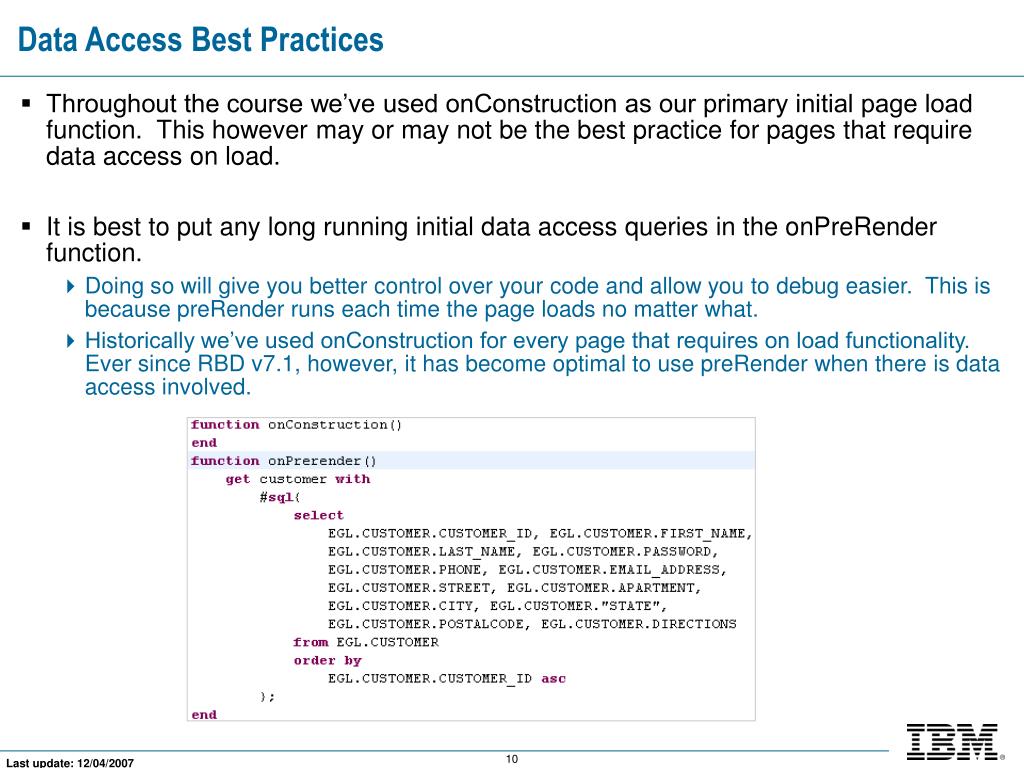

10. Data Access Best Practices • Throughout the course we’ve used onConstruction as our primary initial page load function. This however may or may not be the best practice for pages that require data access on load. • It is best to put any long running initial data access queries in the onPreRender function. • Doing so will give you better control over your code and allow you to debug easier. This is because preRender runs each time the page loads no matter what. • Historically we’ve used onConstruction for every page that requires on load functionality. Ever since RBD v7.1, however, it has become optimal to use preRender when there is data access involved.

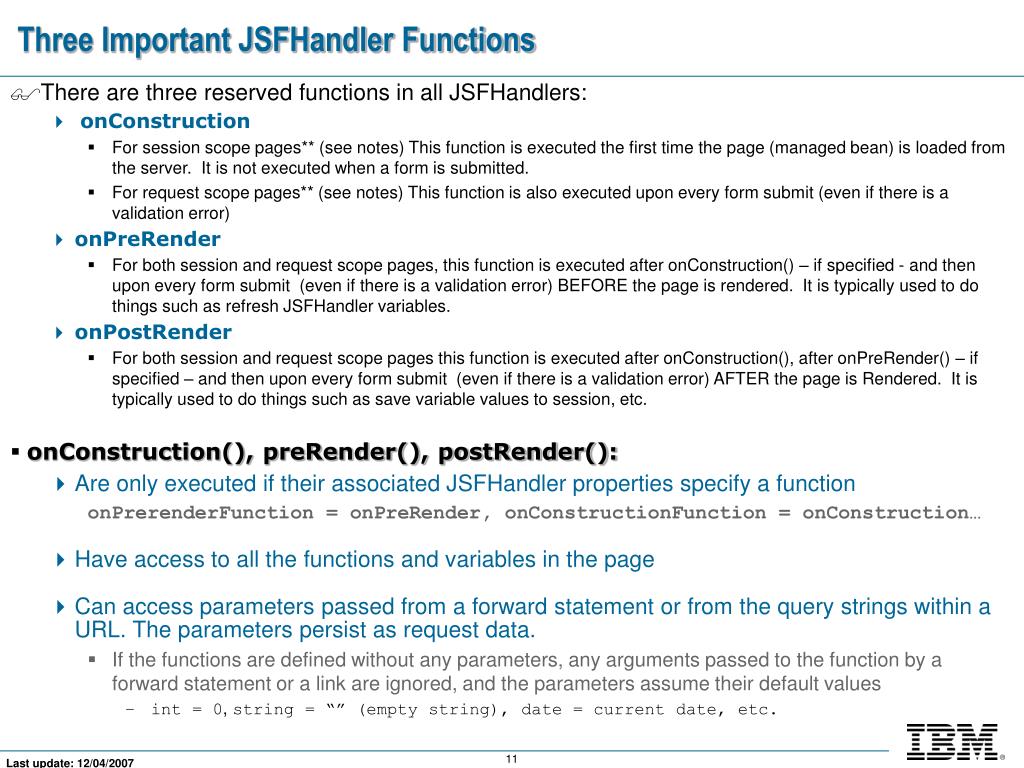

11. Three Important JSFHandler Functions • There are three reserved functions in all JSFHandlers: • onConstruction • For session scope pages** (see notes) This function is executed the first time the page (managed bean) is loaded from the server. It is not executed when a form is submitted. • For request scope pages** (see notes) This function is also executed upon every form submit (even if there is a validation error) • onPreRender • For both session and request scope pages, this function is executed after onConstruction() – if specified - and then upon every form submit (even if there is a validation error) BEFORE the page is rendered. It is typically used to do things such as refresh JSFHandler variables. • onPostRender • For both session and request scope pages this function is executed after onConstruction(), after onPreRender() – if specified – and then upon every form submit (even if there is a validation error) AFTER the page is Rendered. It is typically used to do things such as save variable values to session, etc. • onConstruction(), preRender(), postRender(): • Are only executed if their associated JSFHandler properties specify a function onPrerenderFunction = onPreRender, onConstructionFunction = onConstruction… • Have access to all the functions and variables in the page • Can access parameters passed from a forward statement or from the query strings within a URL. The parameters persist as request data. • If the functions are defined without any parameters, any arguments passed to the function by a forward statement or a link are ignored, and the parameters assume their default values • int = 0, string = “” (empty string), date = current date, etc.

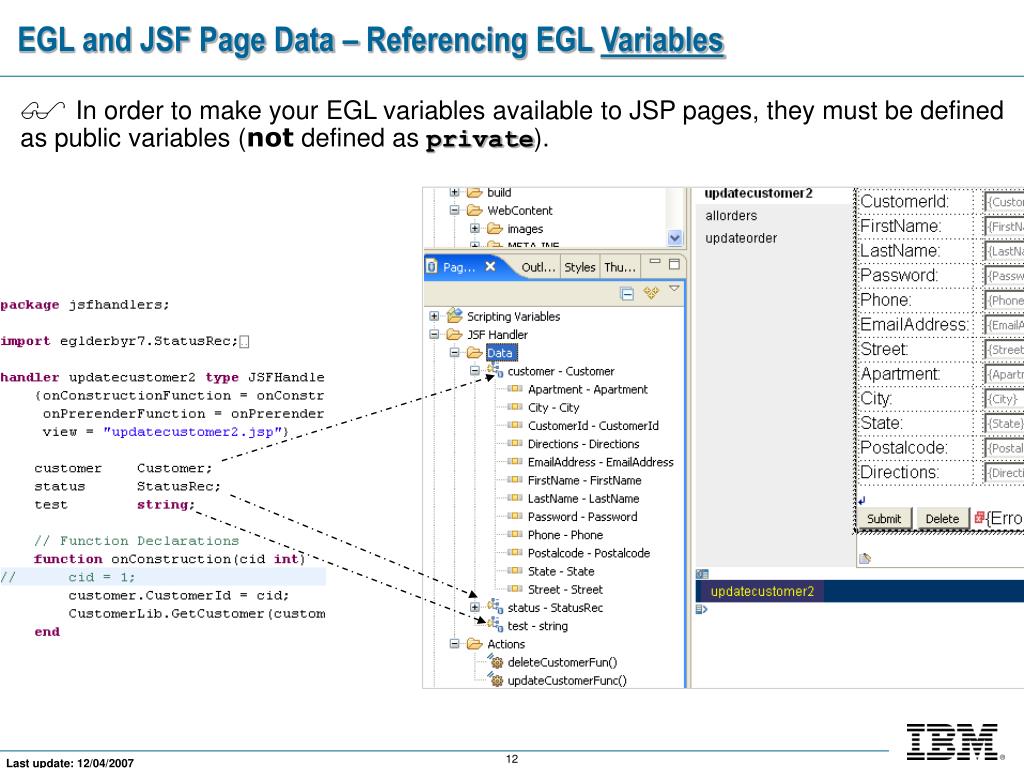

12. EGL and JSF Page Data – Referencing EGL Variables  In order to make your EGL variables available to JSP pages, they must be defined as public variables (not defined as private).

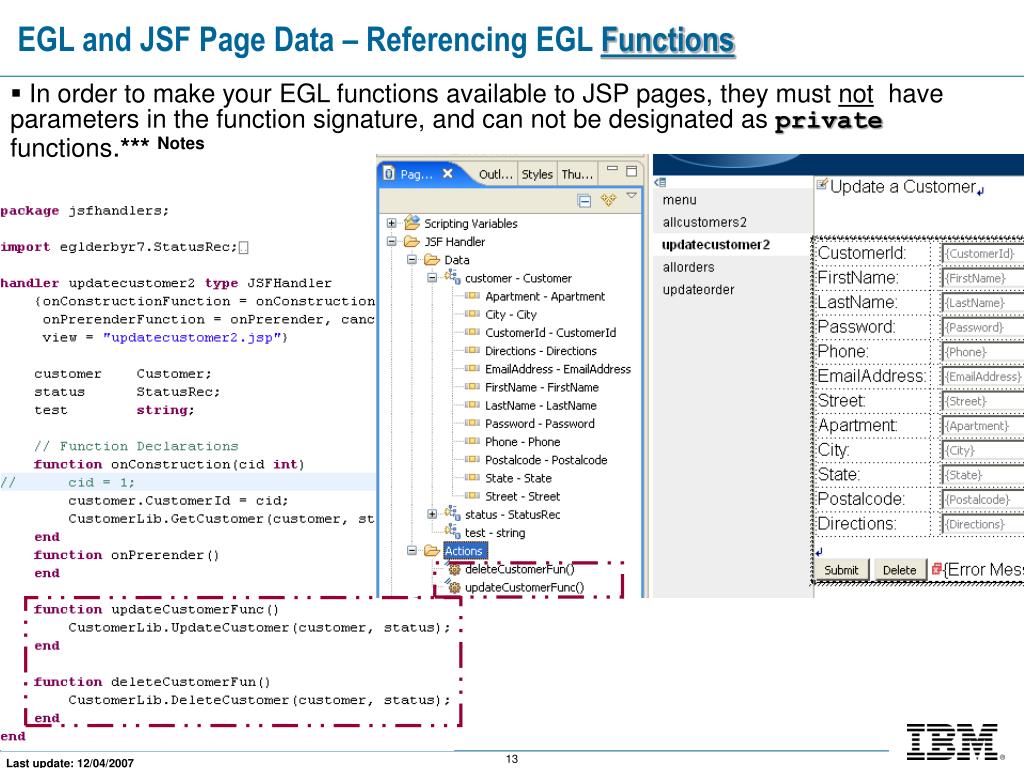

13. EGL and JSF Page Data – Referencing EGL Functions • In order to make your EGL functions available to JSP pages, they must not have parameters in the function signature, and can not be designated as private functions.*** Notes

14. EGL and JSF – Value Bindings - Refactoring? (not) • As soon as you drag and drop or bind an EGL variable to its JSF component, the RBD tooling makes a JSF source statement entry and hard-wires a generated name for the value. • At this point in time you can not simply change either the name or even the case of your EGL JSFHandler variable - or any part of it (i.e. record name, field name, etc.) – as your change will not be refactored in the JSF source, and a run-time error will occur, as Java will be looking for <originalVarName> (case and all) ***Notes • If you need to change EGL JSFHandler variable names, you can do so, if you re-drag the field from Page Data on top of the JSF component – and re-bind its value. • The above also holds true for JSF Submit Buttons (and the EGL functions that they invoke) – that is, once you drag the EGL functions onto a page and bind them to JSF Submit Buttons, if you change the function name, re-drag/bind. Time 1. Create a JSF component Time 2. Bind the component’s value to an EGL JSFHandler variable Time 3. Modify the spelling or case of the EGL variable name Time 4. Run the page on the server (will receive Java Run-time error)

15. EGL and JSF – Value Bindings – The Big Picture • (In Design Mode) Customer record dragged onto a page, which creates the form  – and individual controls to hold the record’s variable values – including the State variable • You can see this in source mode  updatecustomer2 = page name customer = record variable name State = field-within-record variable name JSF Design Mode view JSF Source Mode view JSFHandler Record Variable EGL Record Declaration (Field name)

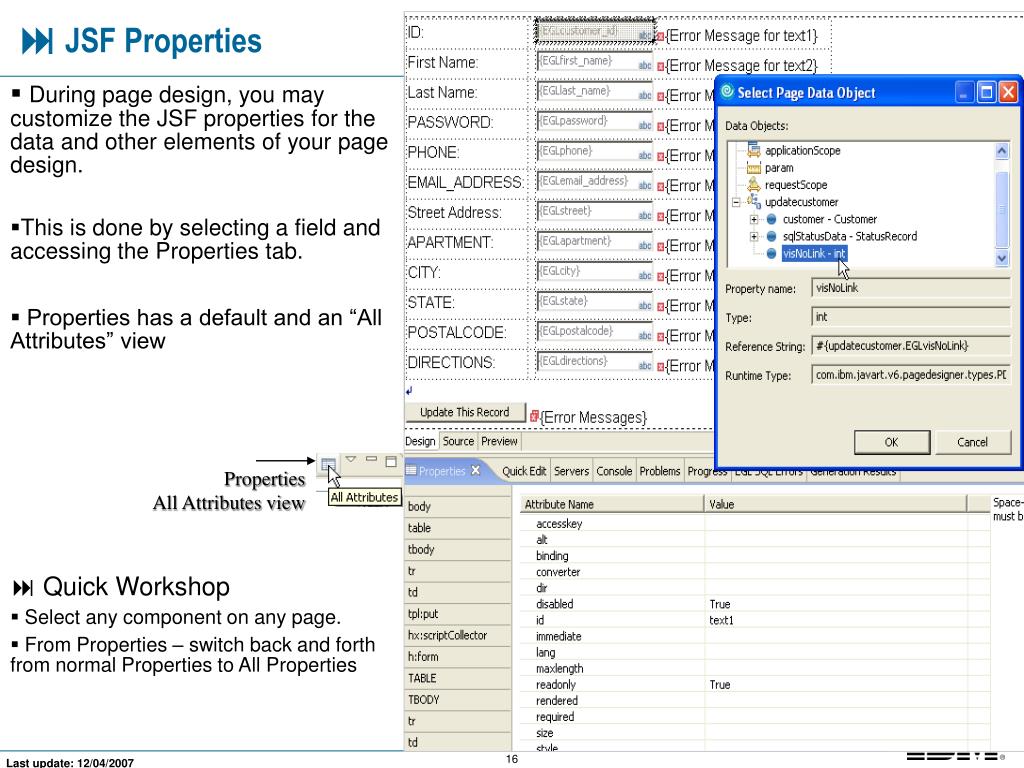

16.  JSF Properties • During page design, you may customize the JSF properties for the data and other elements of your page design. • This is done by selecting a field and accessing the Properties tab. • Properties has a default and an “All Attributes” view • Quick Workshop • Select any component on any page. • From Properties – switch back and forth from normal Properties to All Properties Properties All Attributes view

17. Selecting JSF Components in Page Designer  There are four different ways of selecting controls in Page Designer  Mouse-select • Left-click the control in the Content Area  Keyboard select •  (From any mouse-focus point in Page Designer) Move up/down and right/left using your keyboard • If you start from a component inside another component (example: a control within a dataTable) – the up arrow will select descendant/parent container components Note that you can combine the up/down/right/left arrow keys i.e. Use right arrow to navigate, left arrow to select  Properties menu select • Allows you to navigate to all JSF and HTML Tags on a page • For all complex components (container controls) you can access sub-properties not available from any other selection mode • Outline view

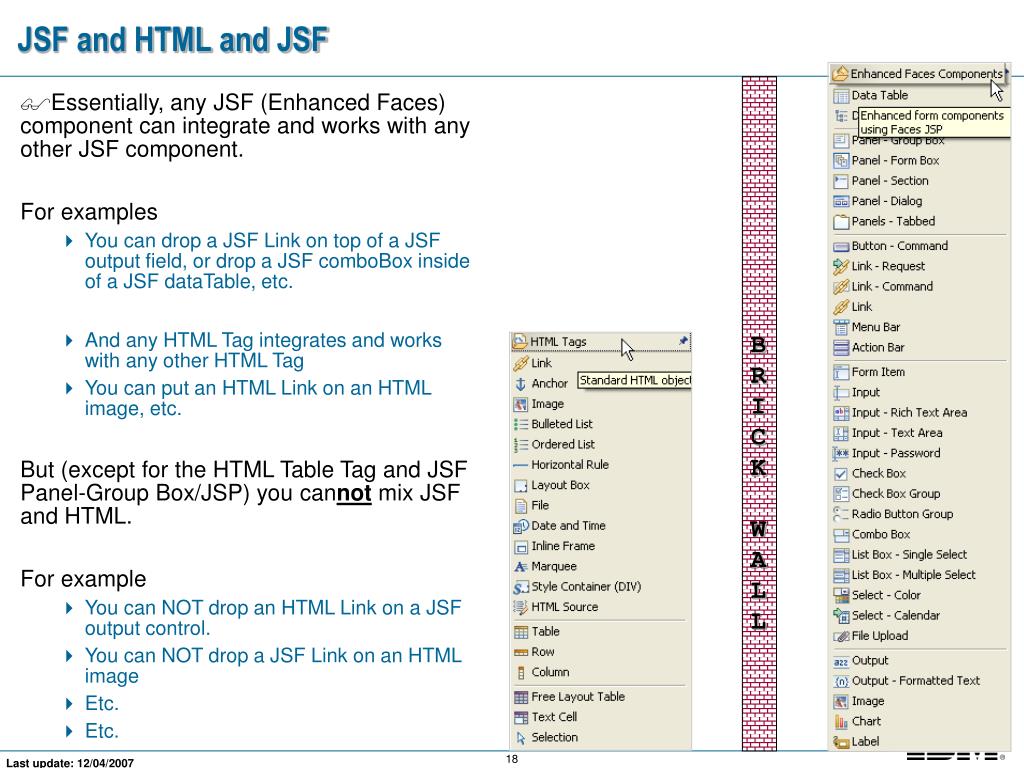

18. JSF and HTML and JSF • Essentially, any JSF (Enhanced Faces) component can integrate and works with any other JSF component. For examples • You can drop a JSF Link on top of a JSF output field, or drop a JSF comboBox inside of a JSF dataTable, etc. • And any HTML Tag integrates and works with any other HTML Tag • You can put an HTML Link on an HTML image, etc. But (except for the HTML Table Tag and JSF Panel-Group Box/JSP) you cannot mix JSF and HTML. For example • You can NOT drop an HTML Link on a JSF output control. • You can NOT drop a JSF Link on an HTML image • Etc. • Etc. B R I C K W A L L

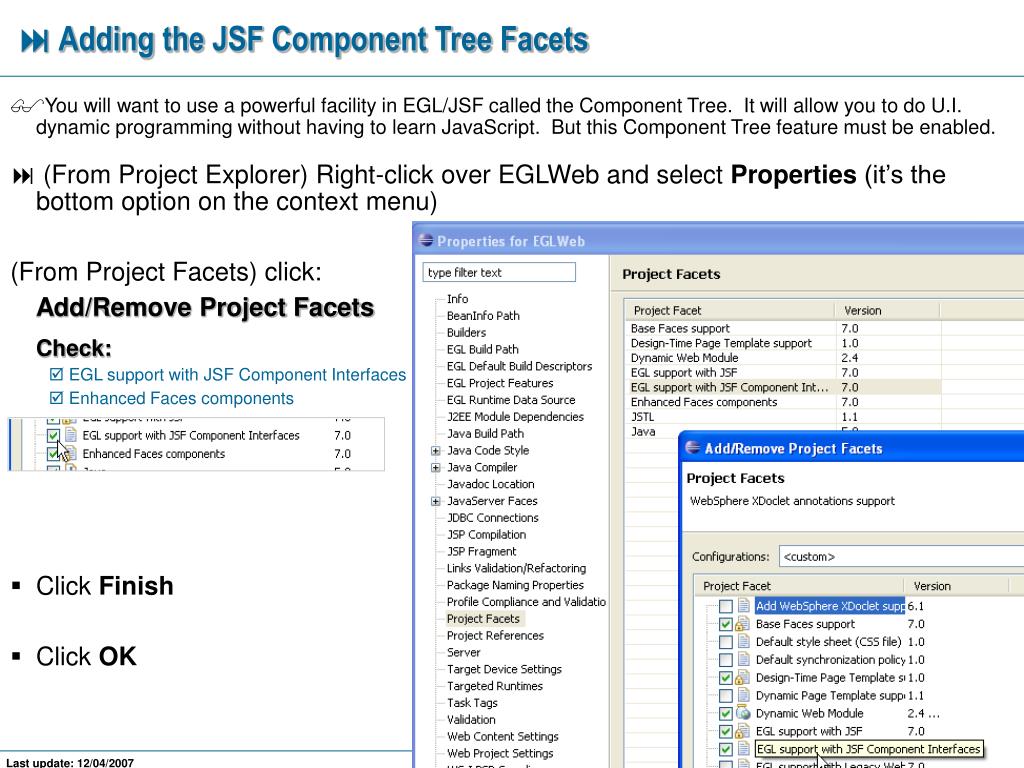

19.  Adding the JSF Component Tree Facets You will want to use a powerful facility in EGL/JSF called the Component Tree. It will allow you to do U.I. dynamic programming without having to learn JavaScript. But this Component Tree feature must be enabled.  (From Project Explorer) Right-click over EGLWeb and select Properties (it’s the bottom option on the context menu) (From Project Facets) click: Add/Remove Project Facets Check:  EGL support with JSF Component Interfaces  Enhanced Faces components • Click Finish • Click OK

20. Testing Your Pages (Removing JSFHandler Beans From App-Server Cache Memory)  As will be explained in an upcoming unit on Session Management, your EGL JSFHandler files (the java “page beans”) can often be held in persistent memory by your application server (either WebSphere or Tomcat). The App-Servers do this, in order to improve performance and response time. • However, this can wreak havoc - or at least it can be annoying  - during page testing, when you need to see “cause and effect” with your changes  To flush individual Page Beans (JSFHandlers) from App-Server memory: • From inside the JSFHandler .egl file • Set focus and press Ctrl/G  To flush all Page Beans from App-Server memory: • From the Servers tab • Right-click and select: Add and Remove Projects • Remove your project, then • Add your project back EGL JSFHandler Cache Memory EGL JSFHandler EGL JSFHandler …serves… App-Server Your .JSP pages

21. Best Practices – “MVC-Like” Software Architecture  By using JSFHandlers as they were meant – for U.I. logic, responding to user-events, managing state and for page navigation – you can architect an 3-tier environment, providing maximum: scalability, flexibility and reuse. AJAX/JavaScript
