Lecture 1. January 17, 2006. In this lecture. Types of tanks IS codes on tanks Modeling of liquid. Types of tanks. Two categories Ground supported tanks Also called at-grade tanks; Ground Service Reservoirs (GSR) Elevated tanks

mairi
Télécharger la présentation

Lecture 1

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

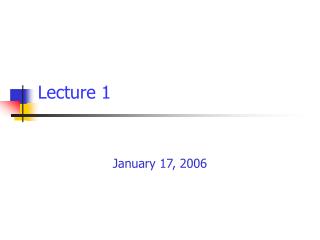

  1. Lecture 1 January 17, 2006

  2. In this lecture • Types of tanks • IS codes on tanks • Modeling of liquid E-Course on Seismic Design of Tanks/ January 2006

  3. Types of tanks • Two categories • Ground supported tanks • Also called at-grade tanks; Ground Service Reservoirs (GSR) • Elevated tanks • Also called overhead tanks; Elevated Service Reservoirs (ESR) E-Course on Seismic Design of Tanks/ January 2006

  4. Types of tanks • Ground supported tanks • Shape: Circular or Rectangular • Material : RC, Prestressed Concrete, Steel • These are ground supported vertical tanks • Horizontal tanks are not considered in this course E-Course on Seismic Design of Tanks/ January 2006

  5. Types of tanks • Elevated tanks Two parts: • Container • Staging (Supporting tower) E-Course on Seismic Design of Tanks/ January 2006

  6. Types of tanks • Elevated tanks Container: • Material: RC, Steel, Polymer • Shape : Circular, Rectangular, Intze, Funnel, etc. Staging: • RC or Steel frame • RC shaft • Brick or masonry shafts • Railways often use elevated tanks with steel frame staging • Now-a-days, tanks on brick or stone masonry shafts are not constructed E-Course on Seismic Design of Tanks/ January 2006

  7. Use of tanks • Water distribution systems use ground supported and elevated tanks of RC & steel • Petrochemical industries use ground supported steel tanks E-Course on Seismic Design of Tanks/ January 2006

  8. Indian Codes on Tanks • IS 3370:1965/1967 (Parts I to IV) • For concrete (reinforced and prestressed) tanks • Gives design forces for container due to hydrostatic loads • Based on working stress design • BIS is considering its revision E-Course on Seismic Design of Tanks/ January 2006

  9. Indian Codes on Tanks • IS 11682:1985 • For RC staging of overhead tanks • Gives guidelines for layout & analysis of staging • More about this code later • IS 803:1976 • For circular steel oil storage tanks E-Course on Seismic Design of Tanks/ January 2006

  10. Indian Codes on Tanks • IS 1893:1984 • Gives seismic design provisions • Covers elevated tanks only • Is under revision • More about other limitations, later • IS 1893 (Part 1):2002 is for buildings only • Can not be used for tanks E-Course on Seismic Design of Tanks/ January 2006

  11. Hydrodynamic Pressure • Under static condition, liquid applies pressure on container. • This is hydrostatic pressure • During base excitation, liquid exerts additional pressure on wall and base. • This is hydrodynamic pressure • This is in additional to the hydrostatic pressure E-Course on Seismic Design of Tanks/ January 2006

  12. Hydrodynamic pressure h • h • Hydrostatic pressure • Varies linearly with depth of liquid • Acts normal to the surface of the container • At depth h from liquid top, hydrostatic pressure = h Hydrostatic pressure E-Course on Seismic Design of Tanks/ January 2006

  13. Hydrodynamic pressure • Hydrodynamic pressure • Has curvilinear variation along wall height • Its direction is opposite to base motion Hydrodynamic pressure Base motion E-Course on Seismic Design of Tanks/ January 2006

  14. Hydrodynamic pressure • Summation of pressure along entire wall surface gives total force caused by liquid pressure • Net hydrostatic force on container wall is zero • Net hydrodynamic force is not zero E-Course on Seismic Design of Tanks/ January 2006

  15. Hydrodynamic pressure Circular tanks (Plan View) Hydrostatic pressure Hydrodynamic pressure Base motion Net resultant force ≠ zero Net resultant force = zero Note:- Hydrostatic pressure is axisymmetric; hydrodynamic is asymmetric E-Course on Seismic Design of Tanks/ January 2006

  16. Hydrodynamic pressure Rectangular tanks (Plan View) Hydrostatic pressure Hydrodynamic pressure Base motion Net resultant force = zero Net resultant force ≠ zero E-Course on Seismic Design of Tanks/ January 2006

  17. Hydrodynamic pressure • Static design: Hydrostatic pressure is considered • Hydrostatic pressure induces hoop forces and bending moments in wall • IS 3370 gives design forces for circular and rectangular tanks • Net hydrostatic force is zero on container wall • Hence, causes no overturning moment on foundation or staging • Thus, hydrostatic pressure affects container design only and not the staging or the foundation E-Course on Seismic Design of Tanks/ January 2006

  18. Hydrodynamic pressure • Seismic design: Hydrodynamic pressure is considered • Net hydrodynamic force on the container is not zero • Affects design of container, staging and foundation E-Course on Seismic Design of Tanks/ January 2006

  19. Hydrodynamic pressure • Procedure for hydrodynamic pressure & force: • Very simple and elegant • Based on classical work of Housner (1963a) • Housner, G. W., 1963a, “Dynamic analysis of fluids in containers subjected to acceleration”, Nuclear Reactors and Earthquakes, Report No. TID 7024, U. S. Atomic Energy Commission, Washington D.C. • We need not go in all the details • Only basics and procedural aspects are explained in next few slides E-Course on Seismic Design of Tanks/ January 2006

  20. Modeling of liquid • Liquid inbottom portion of the container moves with wall • This is called impulsive liquid • Liquid in top portion undergoes sloshing and moves relative to wall • This is called convective liquid or sloshing liquid Convective liquid (moves relative to tank wall) Impulsive liquid (moves with tank wall) E-Course on Seismic Design of Tanks/ January 2006

  21. Modeling of liquid • Impulsive liquid • Moves with wall; rigidly attached • Has same acceleration as wall • Convective liquid • Also called sloshing liquid • Moves relative to wall • Has different acceleration than wall • Impulsive & convective liquid exert pressure on wall • Nature of pressure is different • See next slide E-Course on Seismic Design of Tanks/ January 2006

  22. Modeling of liquid Impulsive Convective Base motion Base motion Hydrodynamic pressure E-Course on Seismic Design of Tanks/ January 2006

  23. Modeling of liquid • At this point, we will not go into details of hydrodynamic pressure distribution • Rather, we will first find hydrodynamic forces • Impulsive force is summation of impulsive pressure on entire wall surface • Similarly, convective force is summation of convective pressure on entire wall surface E-Course on Seismic Design of Tanks/ January 2006

  24. Modeling of liquid • Total liquid mass, m, gets divided into two parts: • Impulsive liquid mass, mi • Convective liquid mass, mc • Impulsive force = mi x acceleration • Convective force = mc x acceleration • mi & mc experience different accelerations • Value of accelerations will be discussed later • First we will find mi and mc E-Course on Seismic Design of Tanks/ January 2006

  25. Modeling of liquid • Housner suggested graphs for mi and mc • mi and mc depend on aspect ratio of tanks • Such graphs are available for circular & rectangular tanks • See Fig. 2a and 3a of Guidelines • Also see next slide • For taller tanks (h/D or h/L higher), mi as fraction of mis more • For short tanks, mc as fraction of m is more E-Course on Seismic Design of Tanks/ January 2006

  26. Modeling of liquid mi/m mi/m mc /m mc /m For circular tanks For rectangular tanks • See next slide for definition of h, D, and L E-Course on Seismic Design of Tanks/ January 2006

  27. Modeling of liquid D h L L Base motion Plan of Circular tank Elevation Base motion Plan of Rectangular tank E-Course on Seismic Design of Tanks/ January 2006

  28. Modeling of liquid Example 1: A circular tank with internal diameter of 8 m, stores 3 m height of water. Find impulsive and convective water mass. Solution: Total volume of liquid = /4 x 82 x 3 = 150.8 m3 • Total liquid mass, m = 150.8 x 1.0 = 150.8 t Note:- mass density of water is 1000 kg/m3; weight density of water is 9.81 x 1000 = 9810 N/m3. D = 8 m, h = 3 m  h/D = 3/8 = 0.375. E-Course on Seismic Design of Tanks/ January 2006

  29. mi/m mc /m E-Course on Seismic Design of Tanks/ January 2006

  30. Modeling of liquid From graph, for h/D = 0.375 mi/m = 0.42 and mc/m = 0.56 mi = 0.42 x 150.8 = 63.3 t and mc = 0.56 x 150.8 = 84.5 t E-Course on Seismic Design of Tanks/ January 2006

  31. Modeling of liquid Kc/2 Kc/2 mc Rigid mi • Impulsive liquid is rigidly attached to wall • Convective liquid moves relative to wall • As if, attached to wall with springs Convective liquid (moves relative to wall) Impulsive liquid (moves with wall) E-Course on Seismic Design of Tanks/ January 2006

  32. Modeling of liquid • Stiffness associated with convective mass, Kc • Kc depends on aspect ratio of tank • Can be obtained from graph • Refer Fig. 2a, 3a of guidelines • See next slide E-Course on Seismic Design of Tanks/ January 2006

  33. Modeling of liquid E-Course on Seismic Design of Tanks/ January 2006

  34. Modeling of liquid Example 2: A circular tank with internal diameter of 8 m, stores 3 m height of water. Find Kc. Solution: Total liquid mass, m = 150.8 t (from Example 1) = 150.8 x 1000 = 150800 kg g = acceleration due to gravity = 9.81 m/sec2 D = 8 m, h = 3m  h/D = 3/8 = 0.375. From graph, for h/D = 0.375; Kc h/mg = 0.65 E-Course on Seismic Design of Tanks/ January 2006

  35. Modeling of liquid • Kc= 0.65 mg/h •  Kc = 0.65 x150800 x 9.81/3.0 = 320,525.4N/m • Note: - Unit of m is kg, hence unit of Kc is N/m. If we take m in ton, then unit of Kc will be kN/m. E-Course on Seismic Design of Tanks/ January 2006

  36. Modeling of liquid • Now, we know liquid masses mi and mc • Next, we need to know where these are attached with the wall • Like floor mass in building acts at centre of gravity (or mass center) of floor • Location of mi and mc is needed to obtain overturning effects • Impulsive mass acts at centroid of impulsive pressure diagram • Similarly, convective mass E-Course on Seismic Design of Tanks/ January 2006

  37. Modeling of liquid • Impulsive mass acts at centroid of impulsive pressure diagram • Location of centroid: • Obtained by dividing the moment due to pressure distribution by the magnitude of impulsive force • Similarly, location of convective mass is obtained • See next slide E-Course on Seismic Design of Tanks/ January 2006

  38. Modeling of liquid Resultant of impulsive pressure on wall Resultant of convective pressure on wall hc hi • hi, hc can be obtained from graphs • They also depend on aspect ratio, h/D or h/L • Refer Fig. 2b, 3b of guidelines • See next slide E-Course on Seismic Design of Tanks/ January 2006

  39. Modeling of liquid hc/h hc/h hi/h hi/h For circular tanks For rectangular tanks E-Course on Seismic Design of Tanks/ January 2006

  40. Modeling of liquid Example 3: A circular tank with internal diameter of 8 m, stores 3 m height of water. Find hi and hc. Solution: D = 8 m, h = 3m  h/D = 3/8 = 0.375. E-Course on Seismic Design of Tanks/ January 2006

  41. hc/h hi/h E-Course on Seismic Design of Tanks/ January 2006

  42. Modeling of liquid • From graph,for h/D = 0.375; • hi/h = 0.375 • hi = 0.375 x 3 = 1.125 m • and hc/h = 0.55 • hc = 0.55 x 3 = 1.65 m • Note :- Since convective pressure is more in top portion, hc > hi. E-Course on Seismic Design of Tanks/ January 2006

  43. Modeling of liquid • Hydrodynamic pressure also acts on base • Under static condition, base is subjected to uniformly distributed pressure • Due to base motion, liquid exerts nonuniform pressure on base • This is in addition to the hydrostatic pressure on the base • See next slide E-Course on Seismic Design of Tanks/ January 2006

  44. Modeling of liquid Base motion Hydrostatic pressure on base Hydrodynamic pressure on base E-Course on Seismic Design of Tanks/ January 2006

  45. Modeling of liquid • Impulsive as well as convective liquid cause nonuniform pressure on base • Nonuniform pressure on base causes overturning effect • This will be in addition to overturning effect of hydrodynamic pressure on wall • See next slide E-Course on Seismic Design of Tanks/ January 2006

  46. Modeling of liquid hi Overturning effect due to wall pressure Overturning effect due to base pressure Note:- Both the overturning effects are in the same direction E-Course on Seismic Design of Tanks/ January 2006

  47. Modeling of liquid • Total overturning effect of wall and base pressure is obtained by applying resultant of wall pressure at height, hi* and hc*. • In place of hi and hc discussed earlier • For overturning effect due to wall pressure alone, resultant was applied at hi • For hi and hi*, see next slide E-Course on Seismic Design of Tanks/ January 2006

  48. Modeling of liquid h*i hi Location of Resultant of wall pressure when effect of base pressure is also included Location of resultant of wall pressure when effect of base pressure is not included E-Course on Seismic Design of Tanks/ January 2006

  49. Modeling of liquid hc • Similarly, hc and hc* are defined h*c Location of resultant of wall pressure when effect of base pressure is not included Location of Resultant of wall pressure when effect of base pressure is also included E-Course on Seismic Design of Tanks/ January 2006

  50. Modeling of liquid • hi and hi* are such that • Moment due to impulsive pressure on walls only = Impulsive force x hi • Moment due to impulsive pressure on walls and base = Impulsive force x hi* • hc and hc* are such that • Moment due to convective pressure on walls only = Convective force x hc • Moment due to convective pressure on walls and base = Convective force x hc* E-Course on Seismic Design of Tanks/ January 2006
