Presentation Transcript

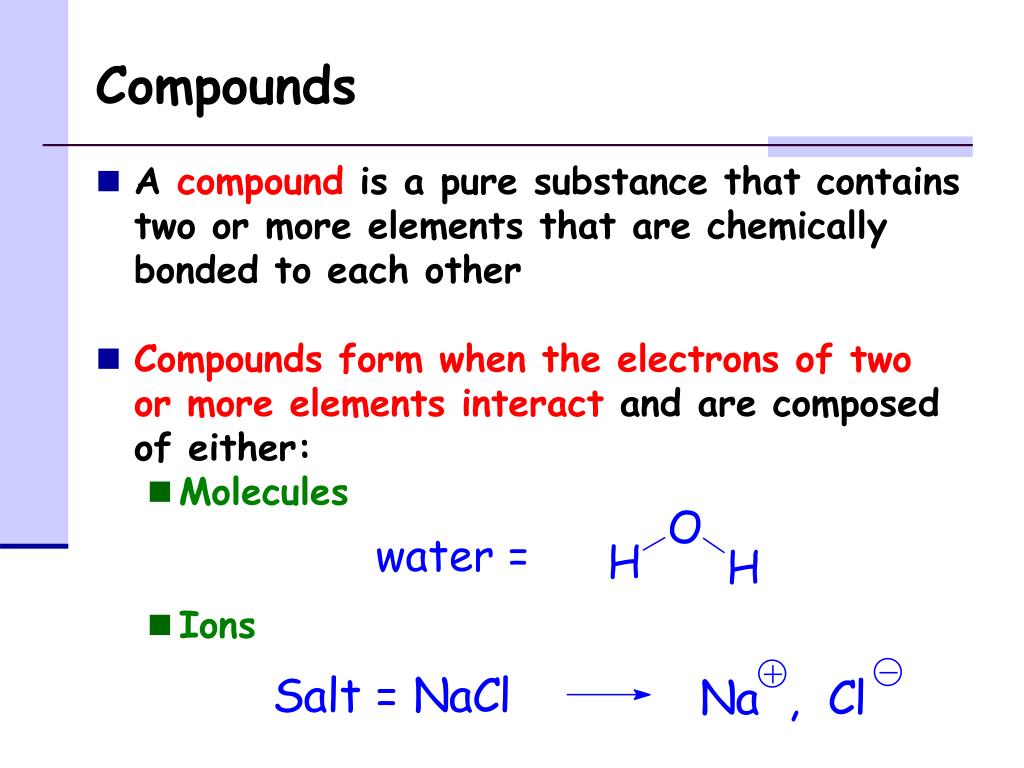

  1. Compounds • A compound is a pure substance that contains two or more elements that are chemically bonded to each other • Compounds form when the electrons of two or more elements interact and are composed of either: • Molecules • Ions

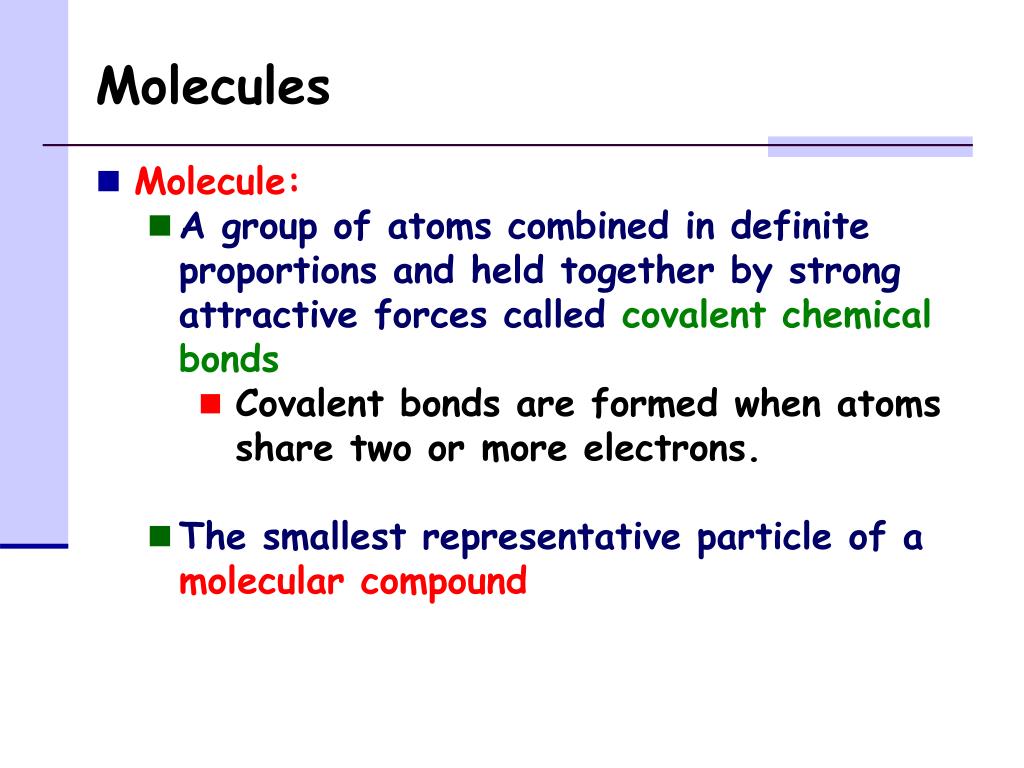

  2. Molecules • Molecule: • A group of atoms combined in definite proportions and held together by strong attractive forces calledcovalent chemical bonds • Covalent bonds are formed when atoms share two or more electrons. • The smallest representative particle of amolecular compound

  3. Molecular Compounds • Molecular compounds • composed of molecules that contain more than one type of atom • Most molecular substances are composed of non-metals only. • Examples: • Water (H2O) • Ethyl alcohol (C2H6O) • Carbon dioxide (CO2) • Ammonia (NH3)

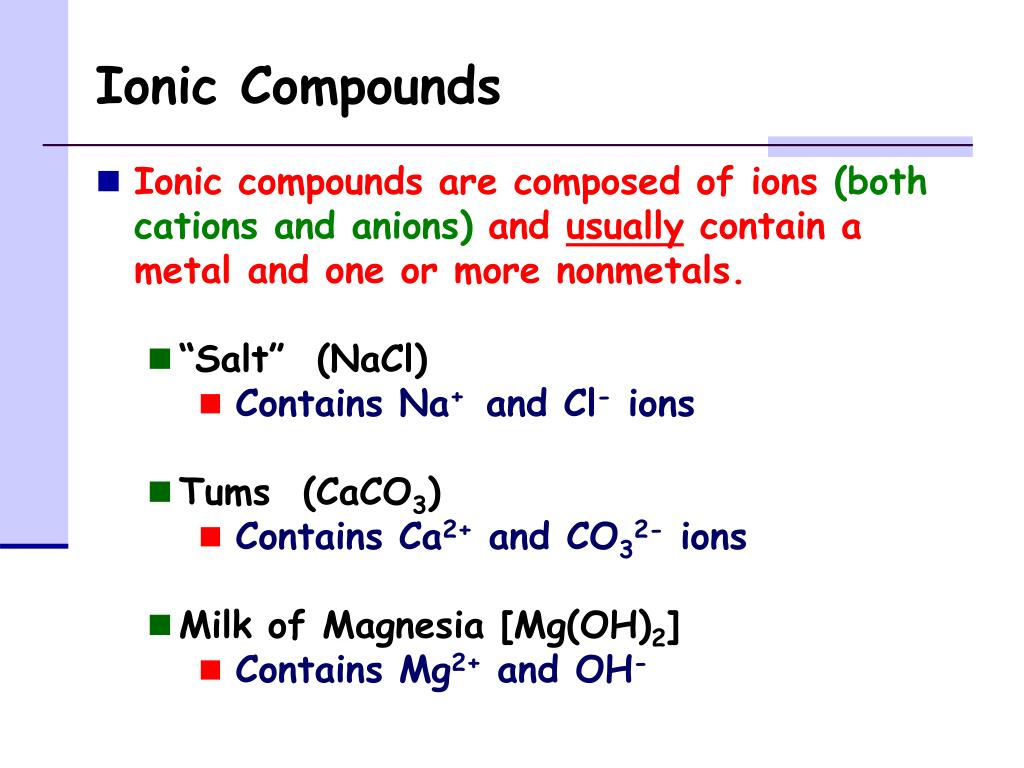

  4. Ionic Compounds • Ionic compounds are composed of ions(both cations and anions) and usually contain a metal and one or more nonmetals. • “Salt” (NaCl) • Contains Na+ and Cl- ions • Tums (CaCO3) • Contains Ca2+ and CO32- ions • Milk of Magnesia [Mg(OH)2] • Contains Mg2+ and OH-

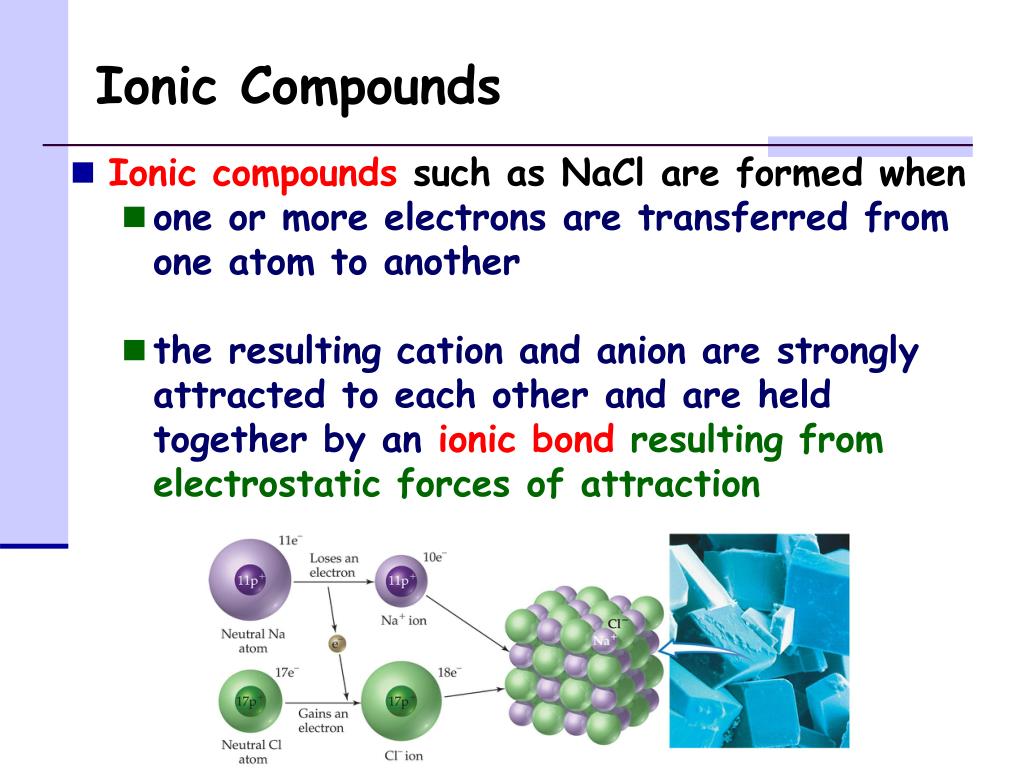

  5. Ionic Compounds • Ionic compounds such as NaCl are formed when • one or more electrons are transferred from one atom to another • the resulting cation and anion are strongly attracted to each other and are held together by anionic bond resulting from electrostatic forces of attraction

  6. Chemical Formulas • The composition of a compound is generally shown using a chemical formula: • A shorthand notation that describes the types and relative (or exact) numbers of each atom (or ion) present in a pure substance • Chemical formulas always contain: • Elemental symbols • Subscripts • Show the relative (or exact) number of each type of atom or ion

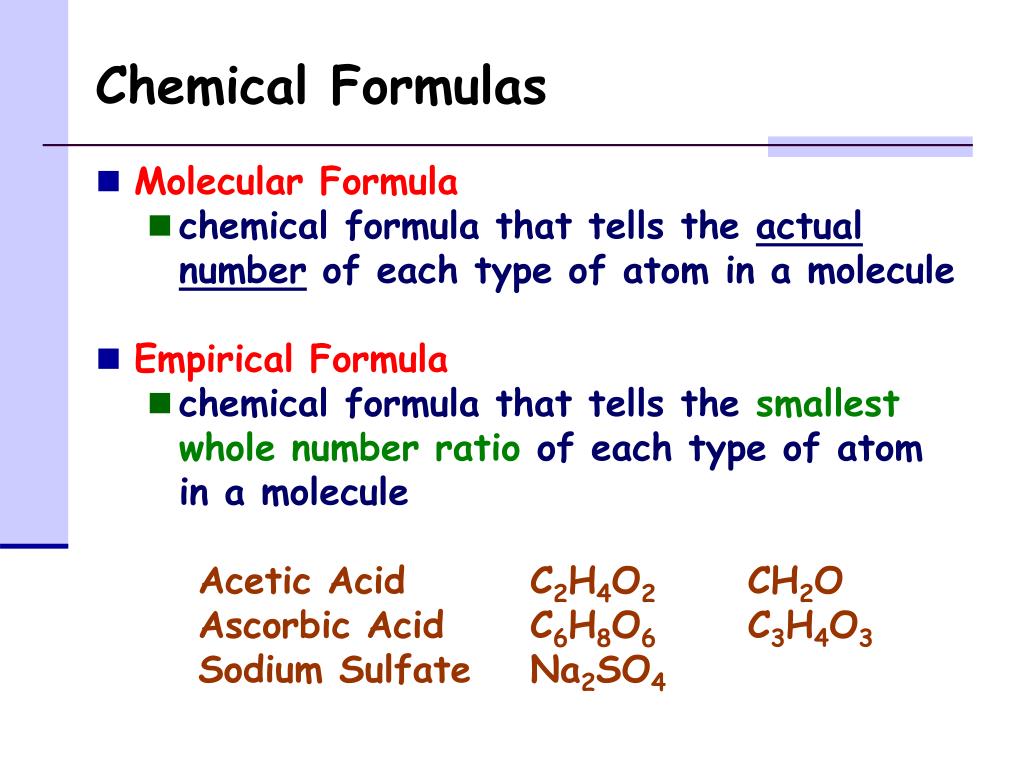

  7. Chemical Formulas • Molecular Formula • chemical formula that tells the actual number of each type of atom in a molecule • Empirical Formula • chemical formula that tells the smallest whole number ratio of each type of atom in a molecule Acetic Acid C2H4O2 CH2O Ascorbic Acid C6H8O6 C3H4O3 Sodium Sulfate Na2SO4

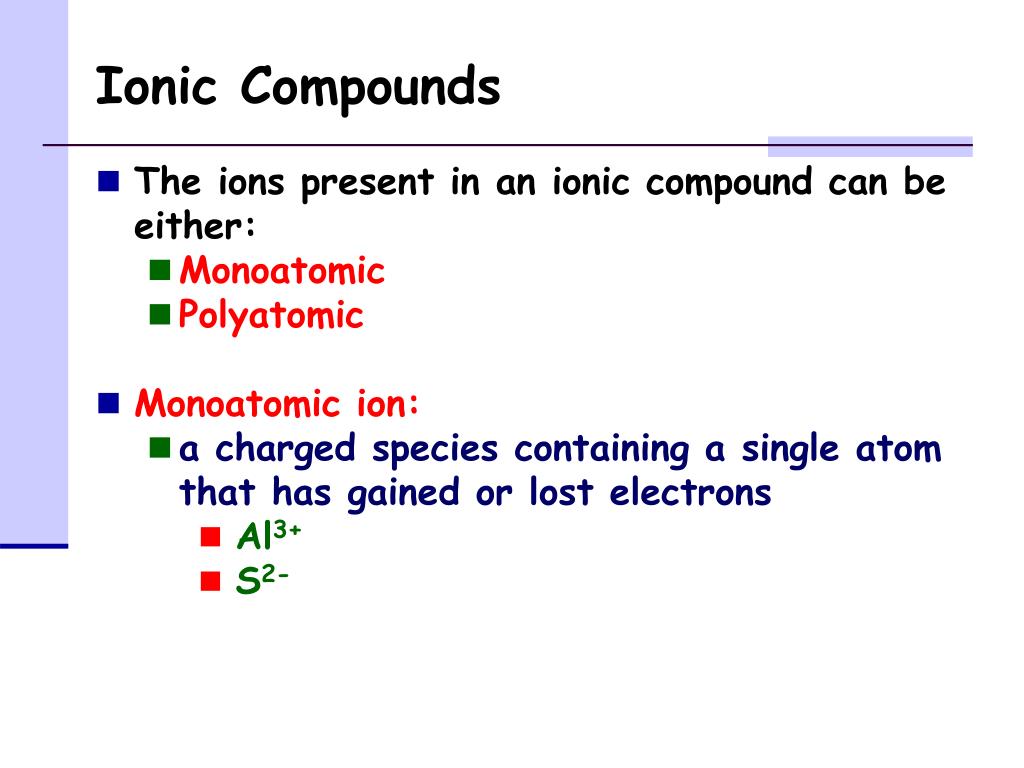

  8. Ionic Compounds • The ions present in an ionic compound can be either: • Monoatomic • Polyatomic • Monoatomic ion: • a charged species containing a single atom that has gained or lost electrons • Al3+ • S2-

  9. Predicting Ion Charge – Monoatomic Ions • Many atoms gain or lose electrons in such a way that they end up with the same number of electrons as the nearest (closest in atomic number) noble gas. • “octet” rule Ca (20p, 20e-)  Ca2+ (20p, 18e-) [Ar: 18p,18e-] O (8p, 8e-) O2- (8p, 10e-) [Ne: 10p, 10e-]

  10. Predicting Ion Charge – Monoatomic Ions • Using the octet rule you can easily determine the charge on most of the monoatomic ions formed by the main group elements. • Main group metal cations: • Charge = group number • Main group nonmetal anions: • Charge = group # - 8 (or simply count the number of “spaces” away from the nearest noble gas and add a negative sign)

  11. Common Monoatomic Ions Know These! P3- Zn2+ Ag+ In general: Metal atoms and hydrogen lose e- and form cations. Nonmetal atoms gain e- and form anions.

  12. Main group Cr2+ Cr3+ Mn2+ Mn3+ Fe2+ Fe3+ Co2+ Co3+ Cu+ Cu2+ Main group Sn2+ Sn4+ Pb2+ Pb4+ Bi3+ Bi5+ Common Monoatomic Ions Many transition metals and a few main group elements form more than one ion.

  13. Names of Monoatomic Ions - Cations • Cations formed by a metal have the same name as the metal. K+ potassium ion Ca2+ calcium ion Al3+ aluminum ion • If a metal forms more than one cation, use Roman numerals in ( ) after the name of the metal to show its charge. Fe2+ iron (II) ion Fe3+ iron (III) ion Cu+ copper (I) ion Cu2+ copper (II) ion

  14. Names of Monoatomic Ions - Anions • Monoatomic anions are named by: • dropping the ending of the element’s name • adding “ide” N nitrogen O oxygen N3- O2- nitride oxide

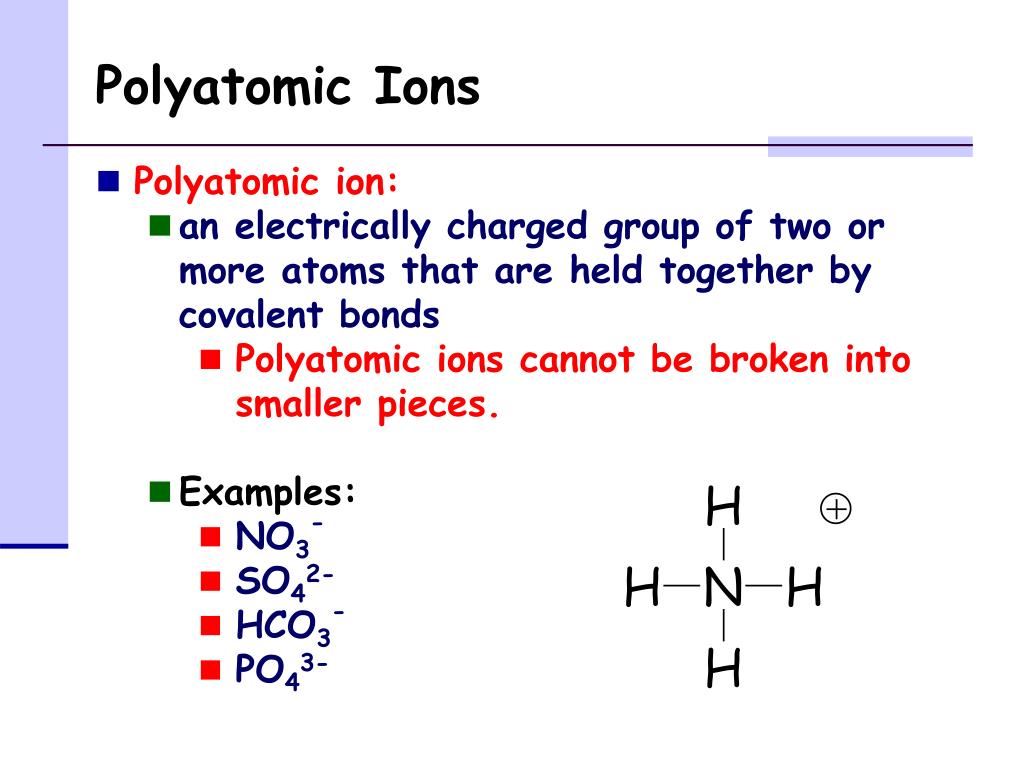

  15. Polyatomic Ions • Polyatomic ion: • an electrically charged group of two or more atoms that are held together by covalent bonds • Polyatomic ions cannot be broken into smaller pieces. • Examples: • NO3- • SO42- • HCO3- • PO43-

  16. Polyatomic Ions • You are responsible for knowing the names and formulas of all ions listed in your syllabus, including the common polyatomic ions: • Ammonium NH4+ • Hydroxide OH- • Cyanide CN- • Nitrate NO3- • Acetate C2H3O2- • Sulfate SO42- • Bisulfate (Hydrogen sulfate) HSO4- • Carbonate CO32- • Bicarbonate (Hydrogen carbonate) HCO3- • Phosphate PO43-

  17. Naming Oxyanions • Many of the polyatomic anions are oxyanions. • polyatomic anions containing one or more oxygens attached to a central atom • To name an oxyanion, drop the ending of the central atom name and add: • “ate” most common oxyanion of the element • “ite” 1 less oxygen NO3- nitrateSO42- sulfate NO2- nitrite SO32- sulfite CO32- carbonatePO43- phosphate PO33- phosphite

  18. 3A 4A 5A 6A 7A Noble gases Oxyanions “ate” oxyanions to memorize

  19. Oxyanions • The halogens typically form 4 different oxyanions: • “per” 1 more O than the “ate” oxyanion • “hypo” 1 less O than the “ite” oxyanion ClO4- perchlorate most oxygens ClO3- chlorate most common ClO2- chlorite 1 less O ClO- hypochlorite fewest oxygens

  20. Oxyanions • Anions derived by adding one or two H+ to an oxyanion: • add “hydrogen” or “dihydrogen” as prefix to oxyanion name CO32- carbonate HCO3- hydrogen carbonate (usually called bicarbonate) PO43- phosphate H2PO4- dihydrogen phosphate

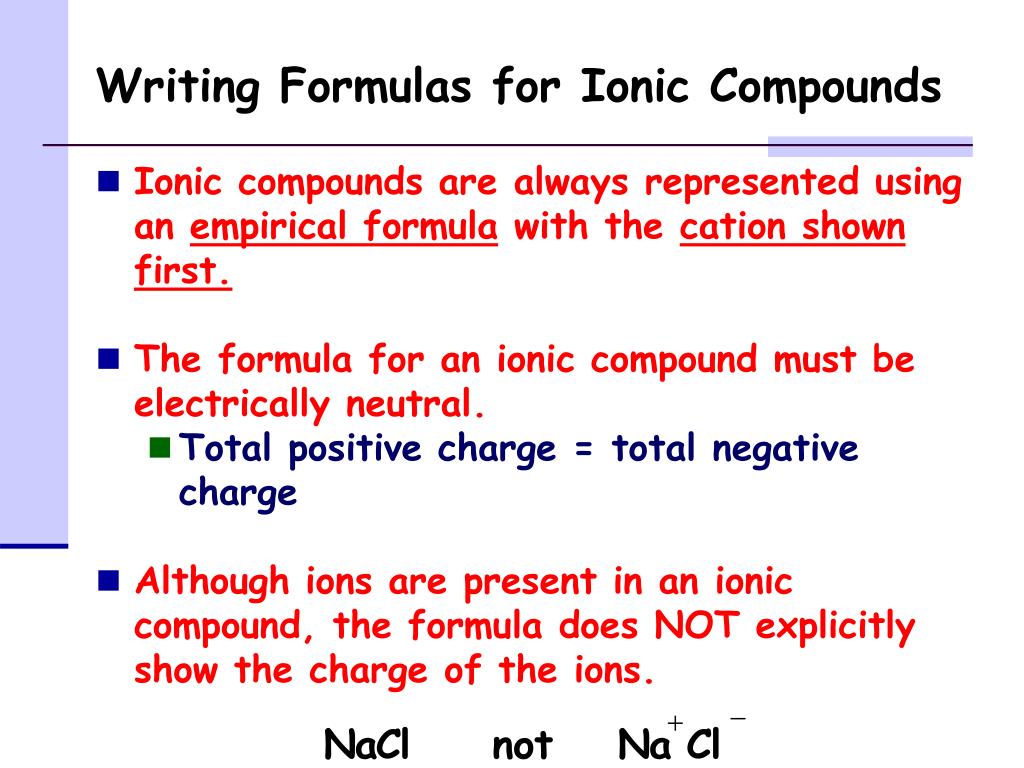

  21. Writing Formulas for Ionic Compounds • Ionic compounds are always represented using an empirical formula with the cation shown first. • The formula for an ionic compound must be electrically neutral. • Total positive charge = total negative charge • Although ions are present in an ionic compound, the formula does NOT explicitly show the charge of the ions.

  22. Na+ Na+ Cl- Writing Formulas for Ionic Compounds • Ionic compounds must be electrically neutral. • Total positive charge = total negative charge Na+ + Cl- NaCl (1 pos, 1 neg)

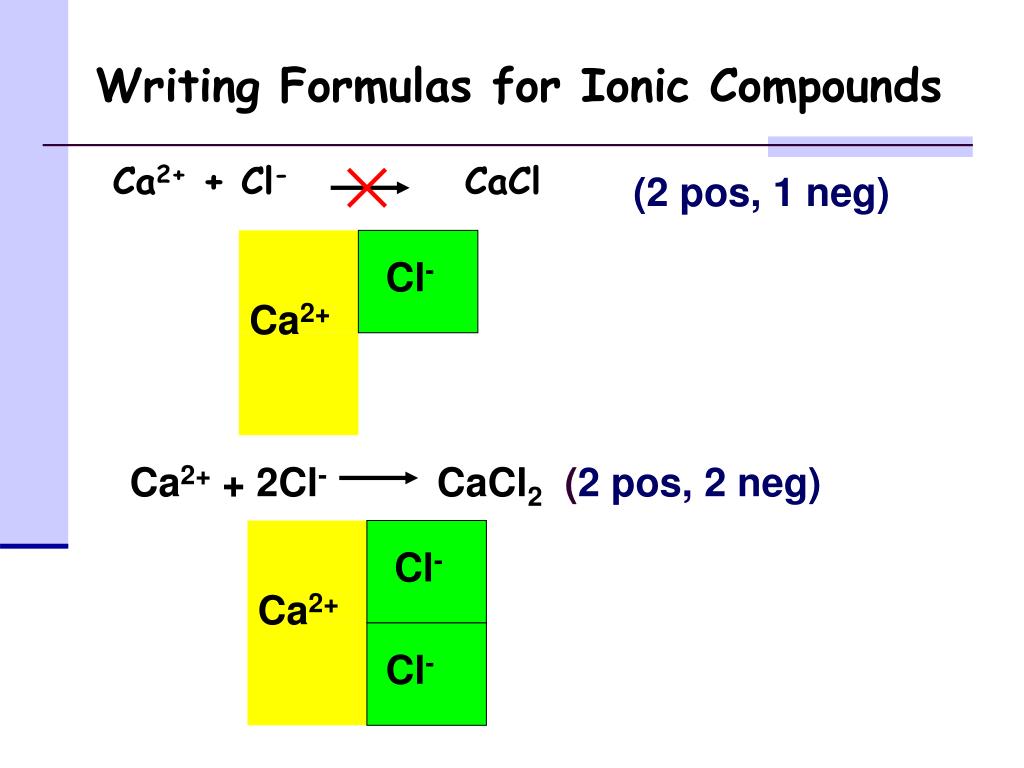

  23. Cl- Cl- Ca2+ Ca2+ Ca2+ + 2Cl- CaCl2(2 pos, 2 neg) Cl- Writing Formulas for Ionic Compounds Ca2+ + Cl- CaCl (2 pos, 1 neg)

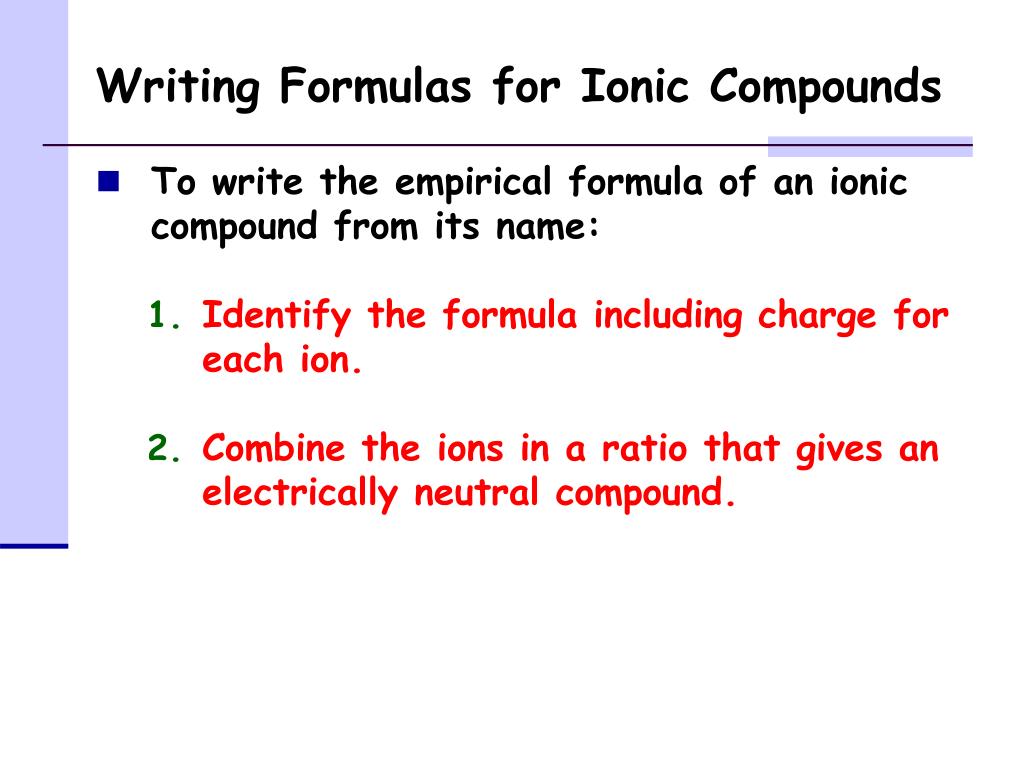

  24. Writing Formulas for Ionic Compounds • To write the empirical formula of an ionic compound from its name: • Identify the formula including charge for each ion. • Combine the ions in a ratio that gives an electrically neutral compound.

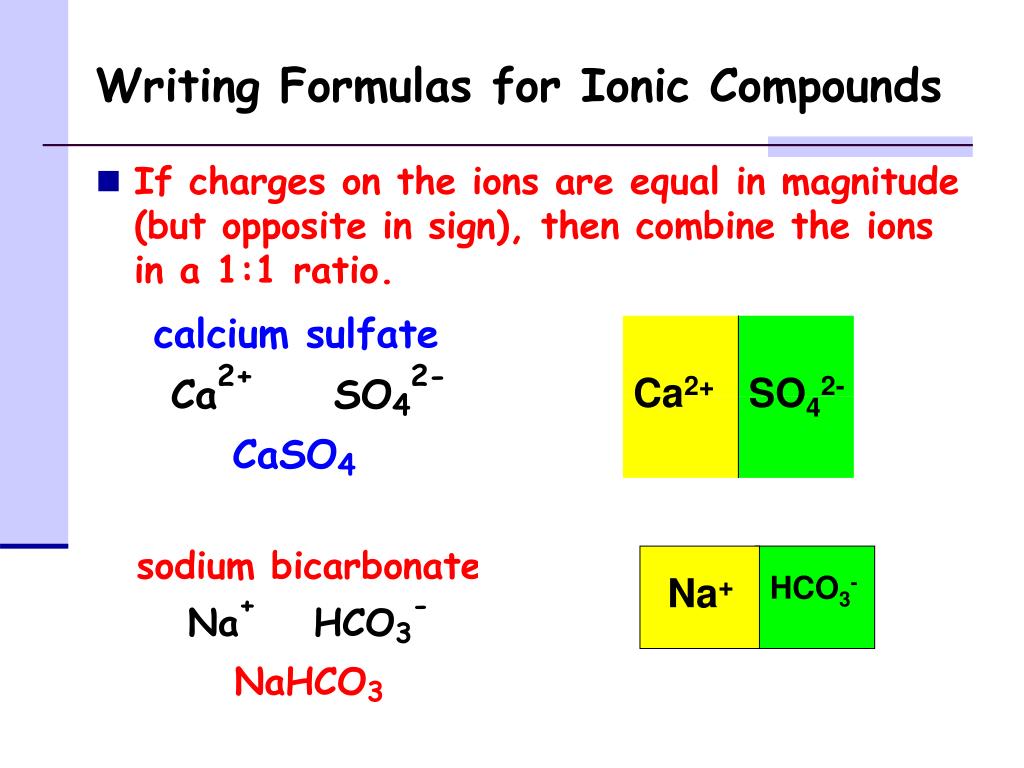

  25. Na+ HCO3- Ca2+ SO42- Writing Formulas for Ionic Compounds • If charges on the ions are equal in magnitude (but opposite in sign), then combine the ions in a 1:1 ratio.

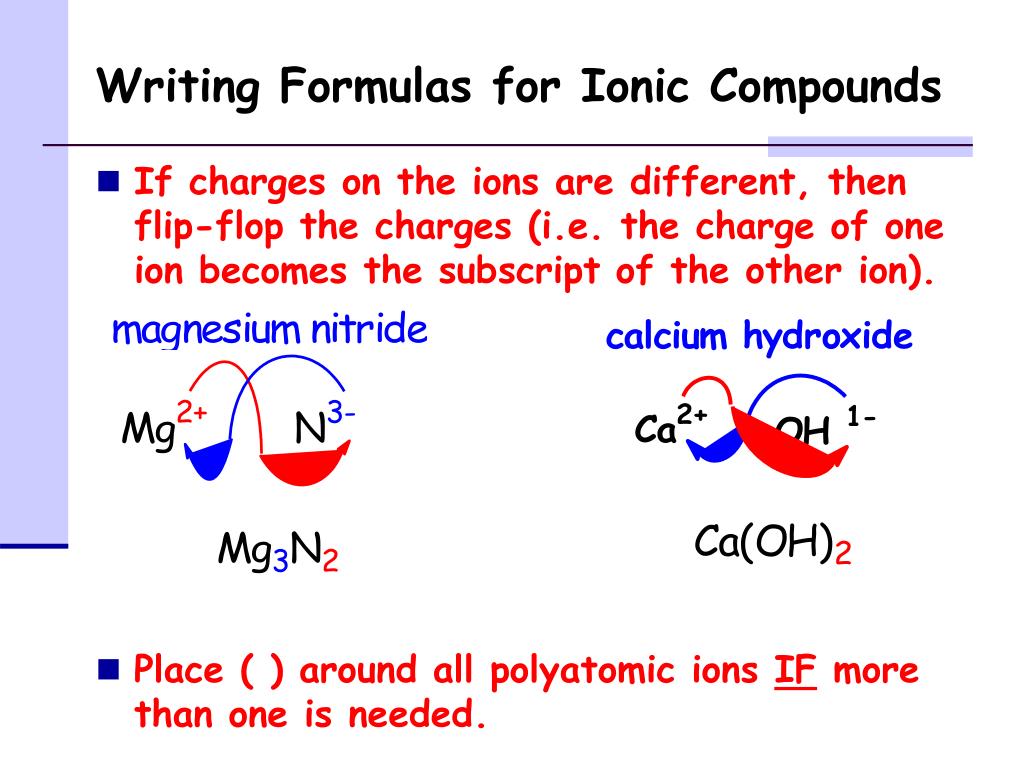

  26. Writing Formulas for Ionic Compounds • If charges on the ions are different, then flip-flop the charges (i.e. the charge of one ion becomes the subscript of the other ion). • Place ( ) around all polyatomic ions IF more than one is needed.

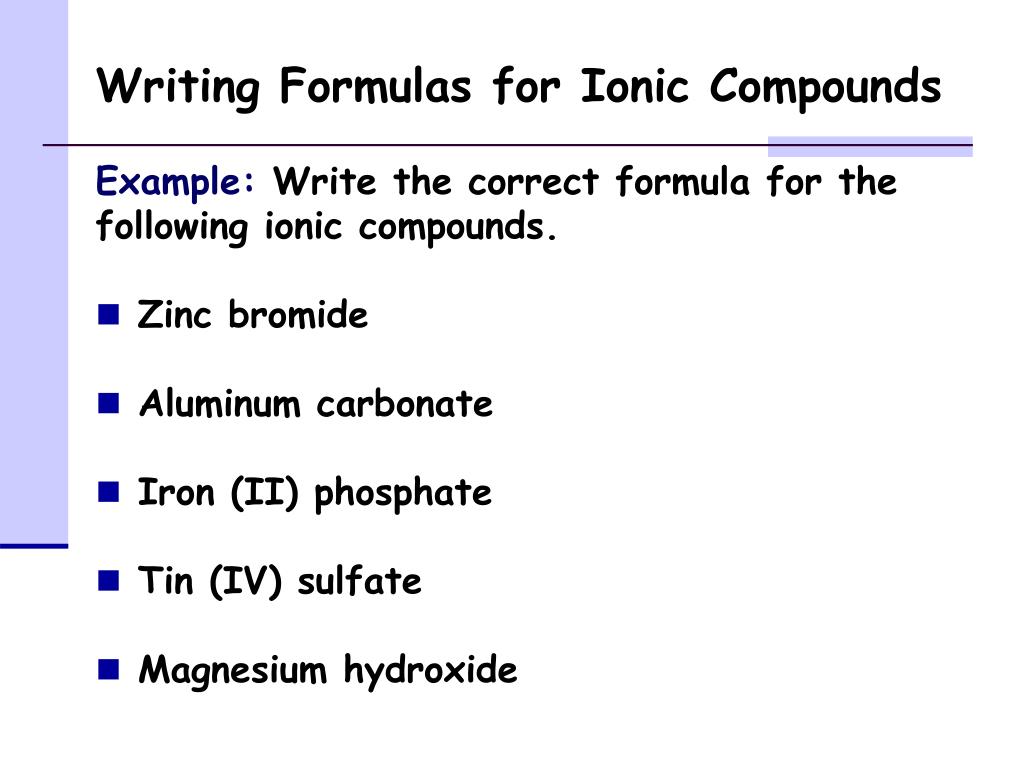

  27. Writing Formulas for Ionic Compounds Example: Write the correct formula for the following ionic compounds. • Zinc bromide • Aluminum carbonate • Iron (II) phosphate • Tin (IV) sulfate • Magnesium hydroxide

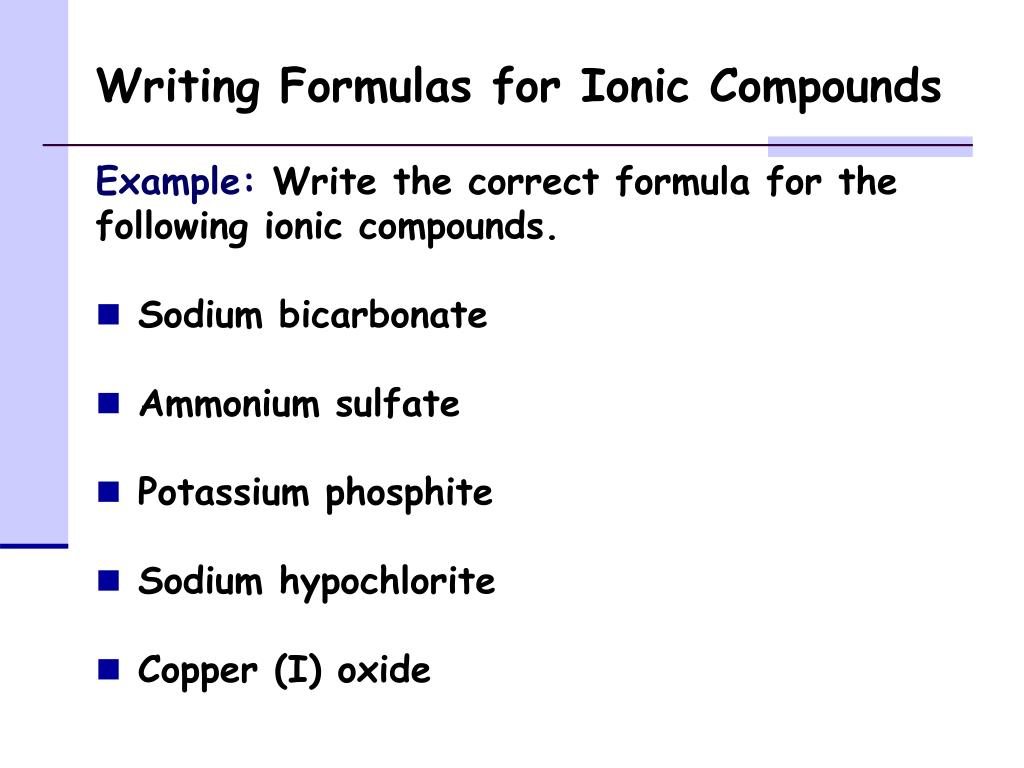

  28. Writing Formulas for Ionic Compounds Example: Write the correct formula for the following ionic compounds. • Sodium bicarbonate • Ammonium sulfate • Potassium phosphite • Sodium hypochlorite • Copper (I) oxide

  29. Writing Formulas for Ionic Compounds • Remember: • Use empirical formulas • Formulas must be electrically neutral • Do not show the charges of each ion in the final formula that you write • Use parentheses around polyatomic ions if more than one is present in the formula • Do not use ( ) around monoatomic ions • Do not use ( ) around a single polyatomic ion

  30. Naming Ionic Compounds • Ionic compounds are named using the cation name followed by the anion name CaBr2 calcium bromide NaClO sodium hypochlorite Mg3(PO4)2 magnesium phosphate • If the cation can form ions with more than one charge, you must specify the charge: Fe2S3 iron (III) sulfide PbO2 lead (IV) oxide

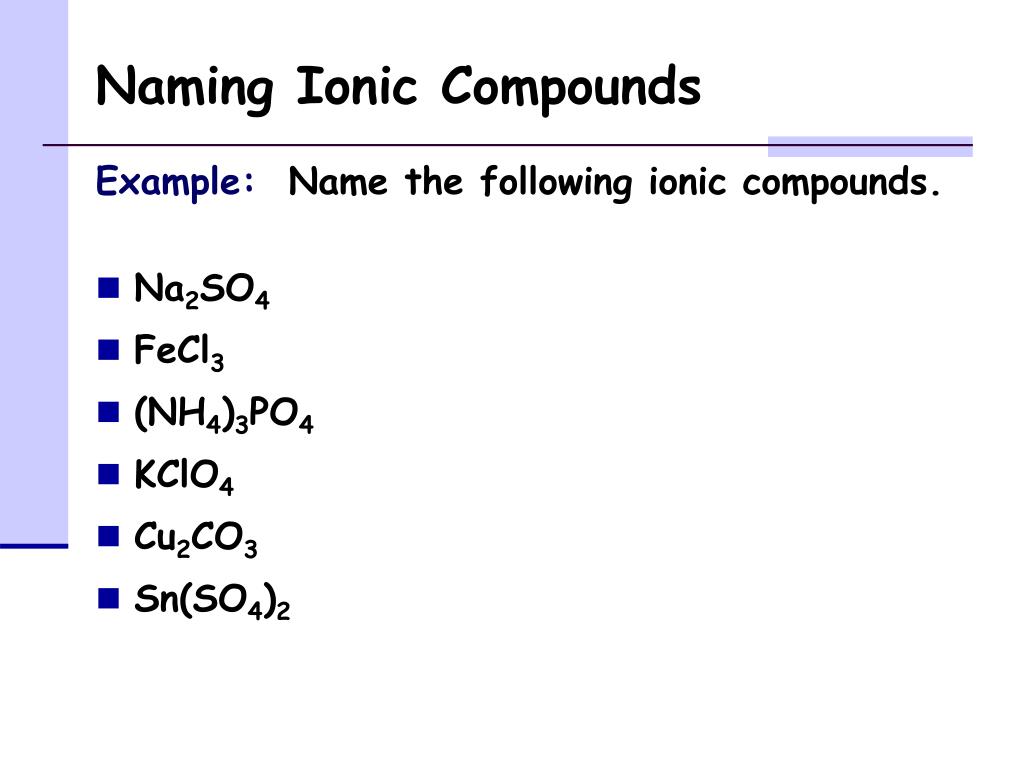

  31. Naming Ionic Compounds Example: Name the following ionic compounds. • Na2SO4 • FeCl3 • (NH4)3PO4 • KClO4 • Cu2CO3 • Sn(SO4)2

  32. Common “Household” Chemicals • You are responsible for knowing the names and formulas for the chemical present in: • Baking soda • sodium bicarbonate • NaHCO3 • Table salt • Sodium chloride • NaCl • Bleach • Sodium hypochlorite • NaClO or NaOCl
