  1. Chapter 3 Computer Hardware And Software

  2. Hardware vs. Software • Hardware • The physical equipment used to process information • Software • Instructions that, with the help of people, command the hardware to perform desired tasks Chapter 3

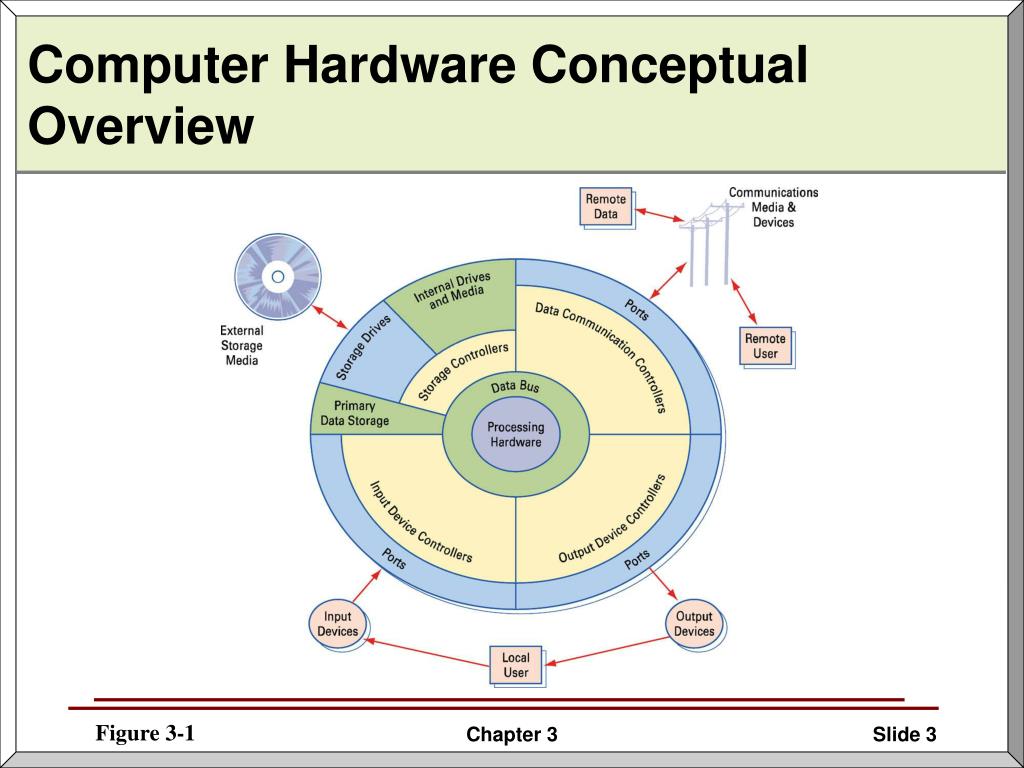

  3. Computer Hardware Conceptual Overview Figure 3-1 Chapter 3

  4. Computer Devices • Processing hardware • Controls the peripheral devices, as directed by computer software • Data bus • Electrical connection managing the flow of data between the processing hardware and the rest of the computer Chapter 3

  5. Computer Devices • Adaptors (controllers) • Reside inside the computer and convert commands and data from the data bus into signals that peripheral devices can use • Port • A connection between the computer box and a device outside the computer Chapter 3

  6. Computer Devices • Input, output, and communications devices • Transfer data between a computer and its users or other computers • Storage devices • Save data for later processing Chapter 3

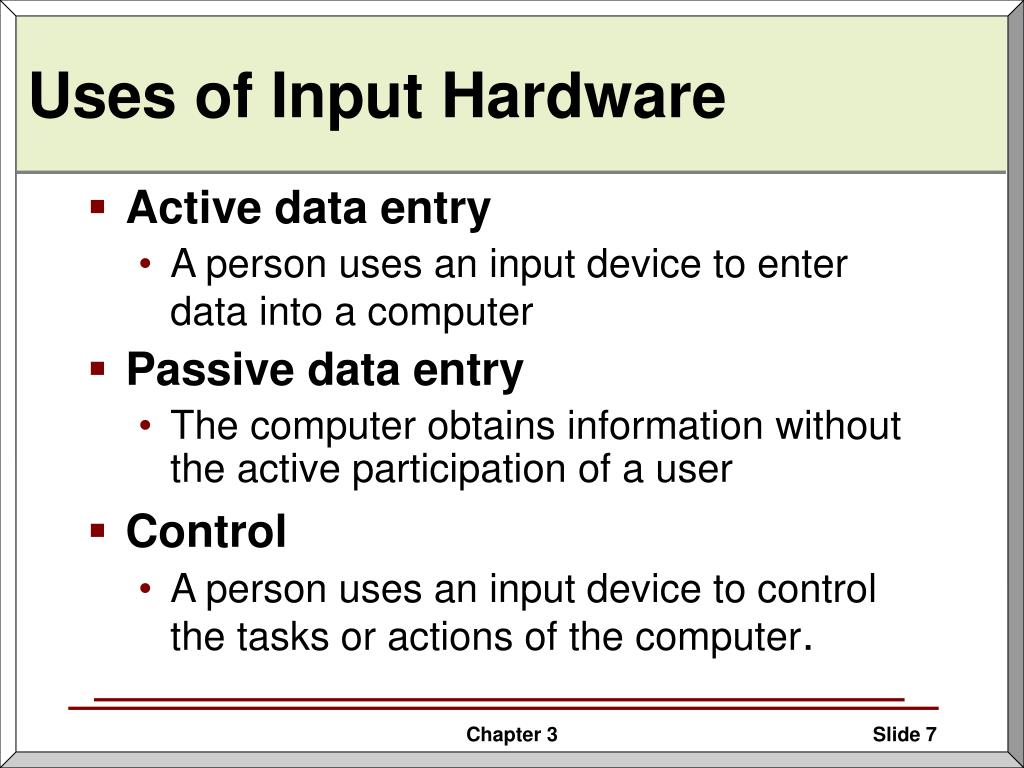

  7. Uses of Input Hardware • Active data entry • A person uses an input device to enter data into a computer • Passive data entry • The computer obtains information without the active participation of a user • Control • A person uses an input device to control the tasks or actions of the computer. Chapter 3

  8. Input Devices • Keyboard • Consists of a plastic or metal housing containing keys that, when pressed, send a signal to the computer • Pointingdevices • Allow the user to control the movement of a cursor (pointer) on the screen Chapter 3

  9. Input Devices • Formatted Text Readers • Read text formatted specifically for the device in use • Image Capture Devices • Include scanners, digital still cameras, and digital camcorders Chapter 3

  10. Input Devices • Instrumentation devices • Receive input through other devices, such as machines and musical instruments, that produce electrical output • Sensors • Devices that respond to the environment with a signal that a computer can interpret Chapter 3

  11. Processing Hardware – The Execution Cycle Figure 3-5 Chapter 3

  12. Measuring Processing Power • Word length and bus width • Speed of arithmetic • Instruction speed • Instruction set • Pipelining Chapter 3

  13. Processing Hardware • Parallel processing • Uses two or more processors in a single computer • Specialized processors • Processors, such as video accelerators, voice processors, cryptographic coprocessors, and DSPs, that perform highly specialized tasks Chapter 3

  14. Processing Trends • Moore’s Law • A 1965 prediction by Gordon Moore, a co-founder of Intel, that the amount of information storable in a square inch of silicon would double about every 18 months Chapter 3

  15. Types of Storage Hardware • Primary storage • Electrical, resides on the bus, and is directly accessible to the processor • Secondary storage • Storage that the processor cannot access directly Chapter 3

  16. Types of Storage Hardware • Volatile storage • Requires electrical power to retain its data • Non-volatile storage • Retains its data in the absence of electrical power Chapter 3

  17. Primary Storage Devices • Cache memory • Expensive super-fast primary storage • RAM (random access memory) • Volatile primary storage • ROM (read-only memory) • Non-volatile primary storage Chapter 3

  18. Secondary Storage Devices • Fixed media • Hard disk • RAID • Removable media • Includes diskettes, cartridge disks, magnetic tape, optical media, and flash memory Chapter 3

  19. Other Storage Technologies • Distributed Storage • Storage Area Networks (SANs) • Volumetric Storage • Holographic • MFD Chapter 3

  20. Hardware for Data Output • Softcopy • Output on an unmovable medium, such as a computer screen. • Hardcopy • Output on a medium, such as paper, that can be removed from the computer. • Robotic • Output into devices that physically move in response to signals from a computer. Chapter 3

  21. Types of Software - Overview Figure 3-12 Chapter 3

  22. Types of Software • Vertical application software • Performs tasks common to a specific industry, or a function within an industry • Horizontal application software • Addresses tasks that are common to users in all or almost all industries Chapter 3

  23. Types of Software • Systems Software • Performs tasks to manage the devices and resources of a computer and its network • Systems-development software • Used to create new software Chapter 3

  24. Vertical Software Issues • Make vs. Buy • Custom • Customized • Packaged (COTS) • Integration • Enterprise Resource Planning (ERP) • Middleware Chapter 3

  25. Horizontal Software Types • Office Automation • Business Function Application • Examples: Sales force management, Human resources management, Inventory management, Bookkeeping Chapter 3

  26. Systems Software • Operating System Kernel • Systems Utilities • Network and Systems Management Software Chapter 3

  27. Systems Development Software – Language Differences • Language Translation Method • Interpreted • Compiled • Level of Abstraction • Procedural vs. Non-Procedural • Command/Data Oriented vs. Object Oriented Chapter 3

  28. A Layered View of Software • Client/Server model • Divides a software application into at least two separate but interdependent parts called the clientand the server Chapter 3

  29. Client/Server Models • Two-tiered model • Client responsible for user interface • Server responsible for data storage and management • Result: Clients often need lots software and storage -- fat clients Chapter 3

  30. Client/Server Models • Three-tiered model • Client: User interface • 1st Tier Server: Business logic • 2nd Tier Server: Data handling • Results in “thin clients” • Multi-tiered models • Divide application into many components, each of which can call on the others to perform services Chapter 3

  31. Peek Into The Future – Nanotechnology • Nanotechnology • Refers to building structures on a scale of one-billionth of a meter, about five times the diameter of a carbon atom • Nanobots • Nanometer-sized robots, able to perform nano-assembly under the direction of a computer; perhaps able to reproduce Chapter 3

  32. Peek Into The Future – Artificial Intelligence • Rule-based systems • One in which the computer makes decisions based on logical rules • Neural network • Approach to artificial intelligence that operates by mimicking the human brain Chapter 3

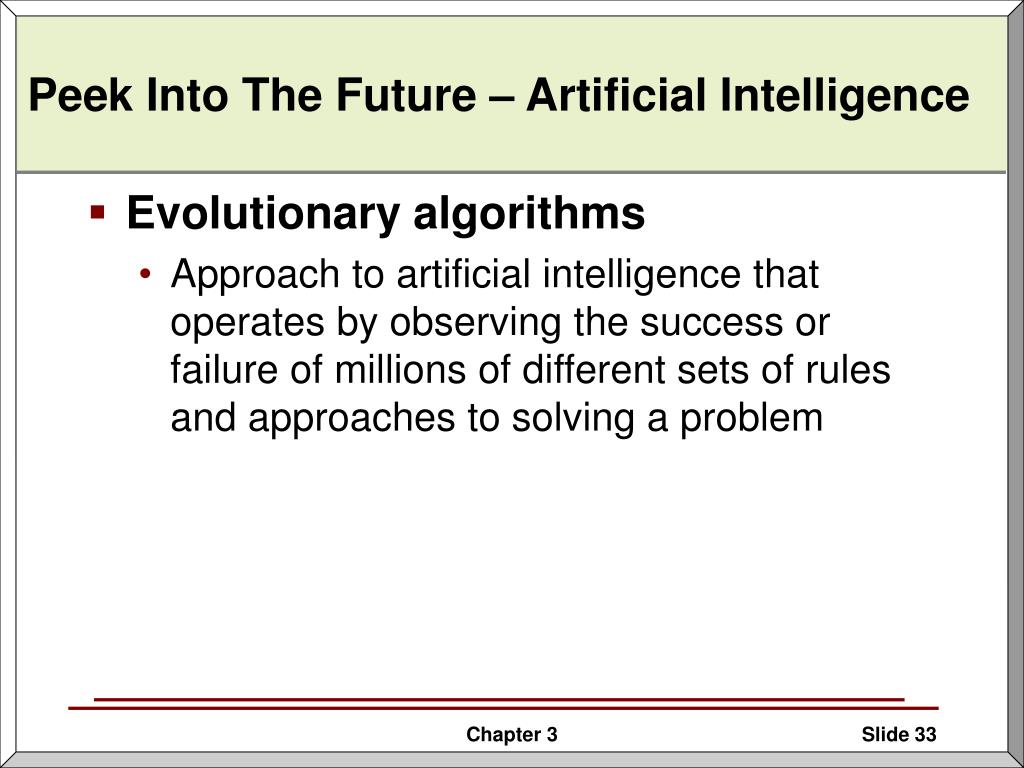

  33. Peek Into The Future – Artificial Intelligence • Evolutionary algorithms • Approach to artificial intelligence that operates by observing the success or failure of millions of different sets of rules and approaches to solving a problem Chapter 3

  34. End of Chapter 3 Computer Hardware And Software
