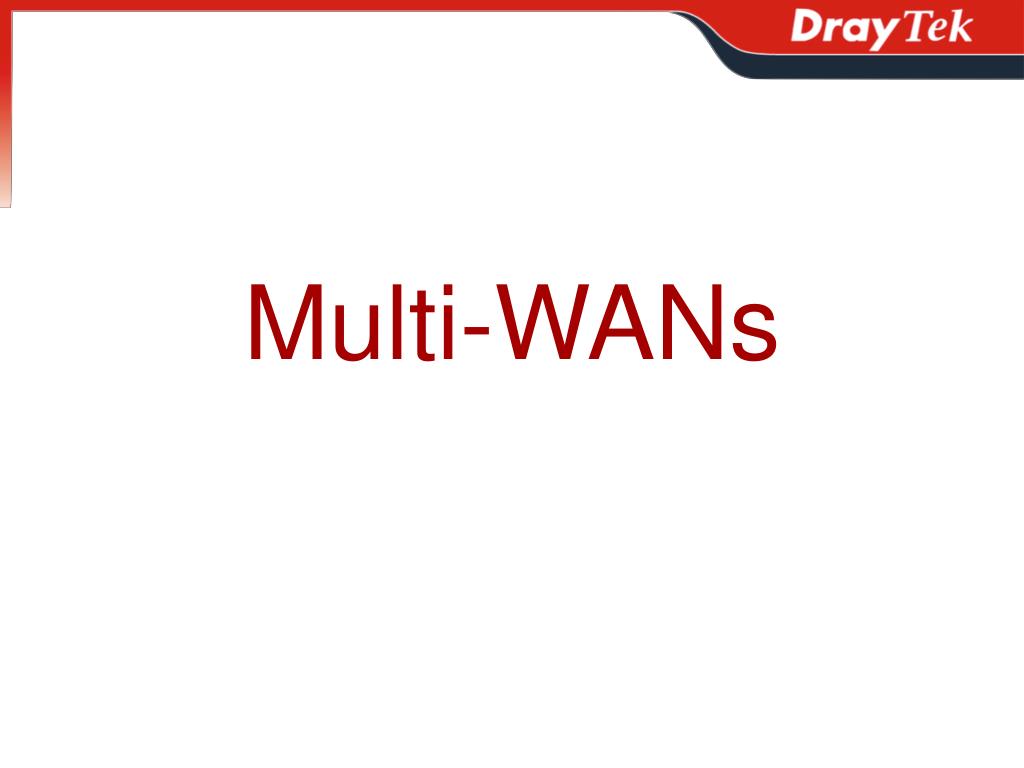

  1. Multi-WANs

  2. Outline • Why Need Dual/Multi WANs • Multi VLAN Usage • Supported WAN Interfaces • Internet Access Mode • WAN Budget Limit • Trouble Shooting

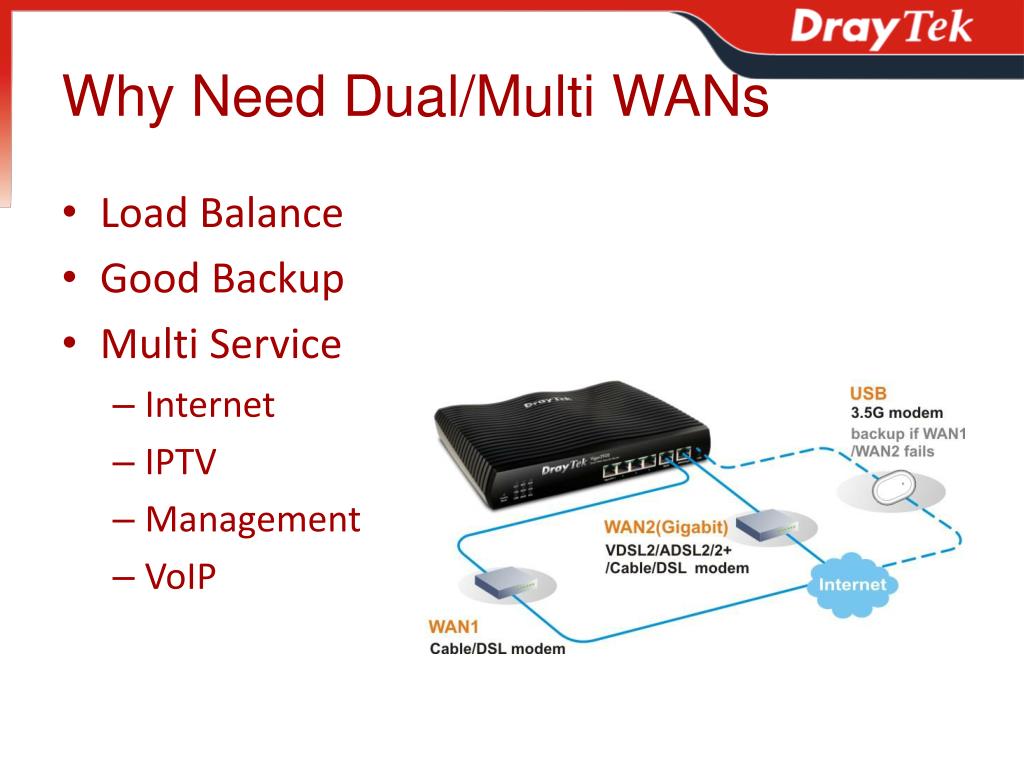

  3. Why Need Dual/Multi WANs • Load Balance • Good Backup • Multi Service • Internet • IPTV • Management • VoIP

  4. Why Need Dual/Multi WANs • LoadBalance

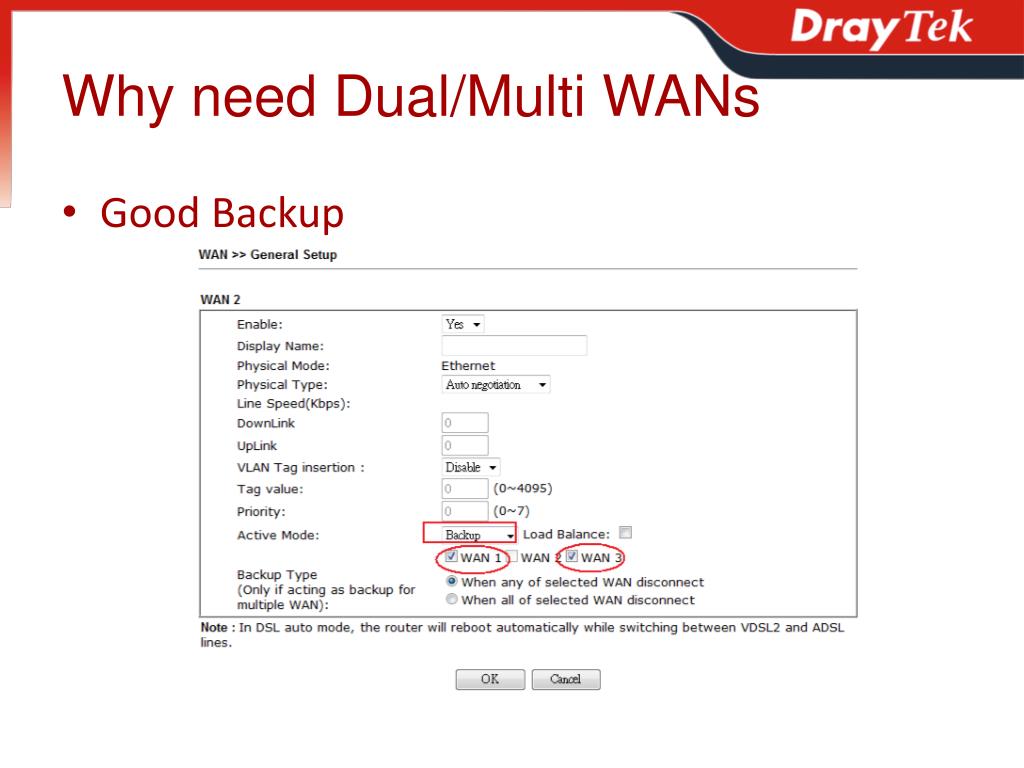

  5. Why need Dual/Multi WANs • Good Backup

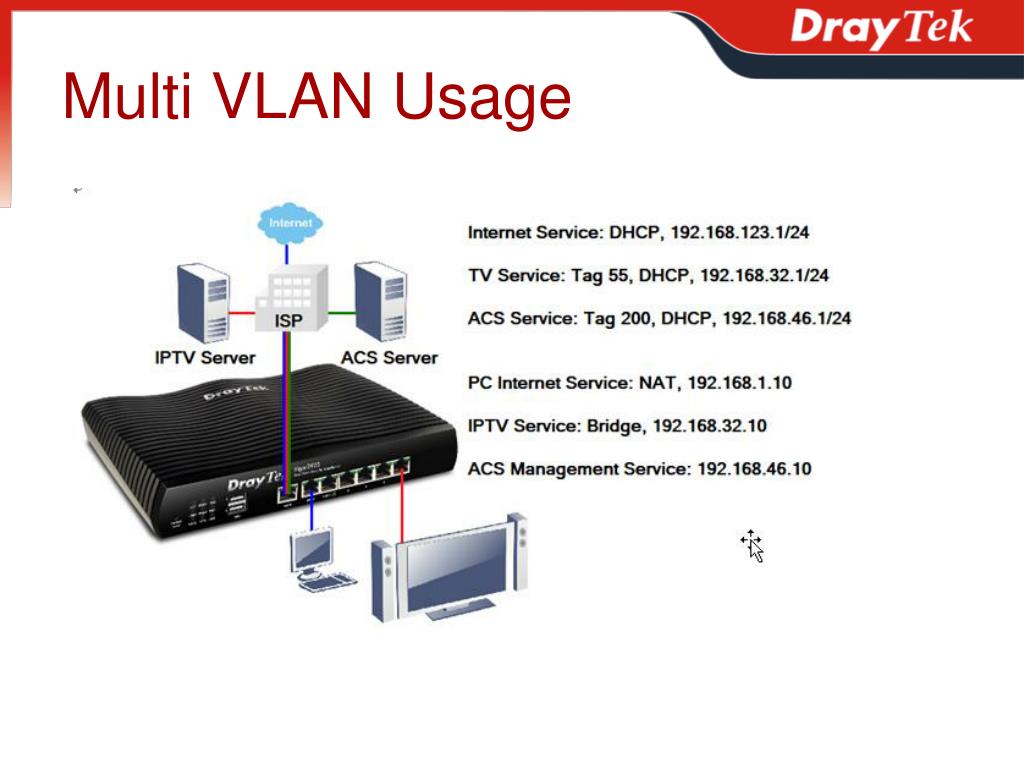

  6. Multi VLAN Usage

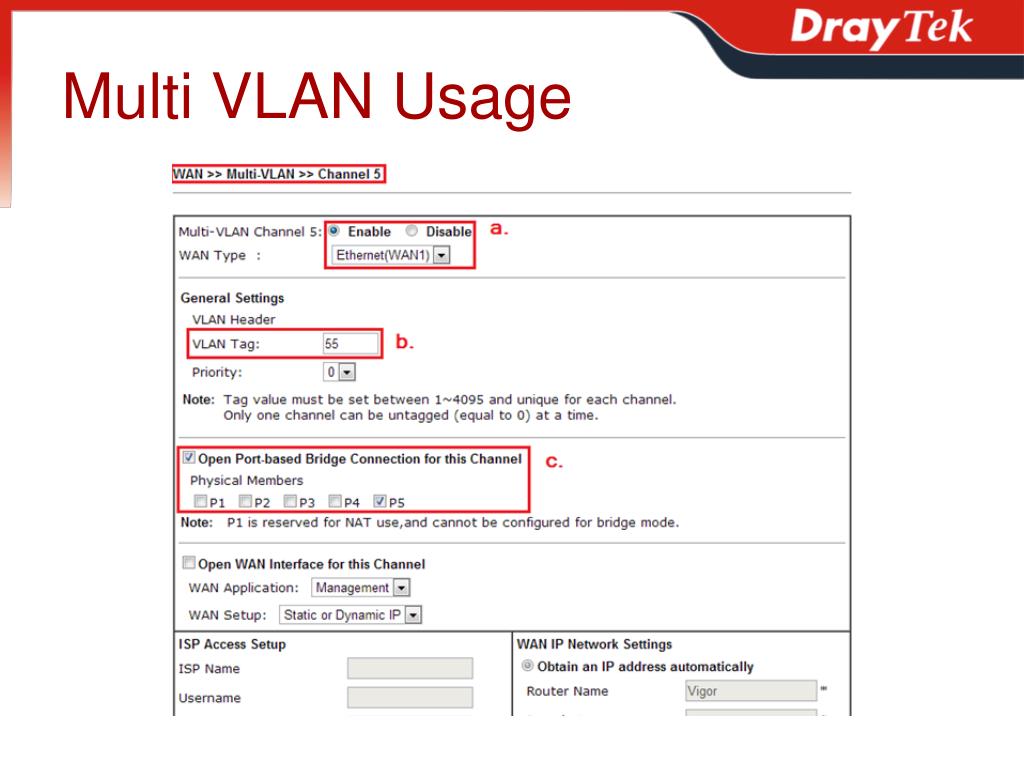

  7. Multi VLAN Usage

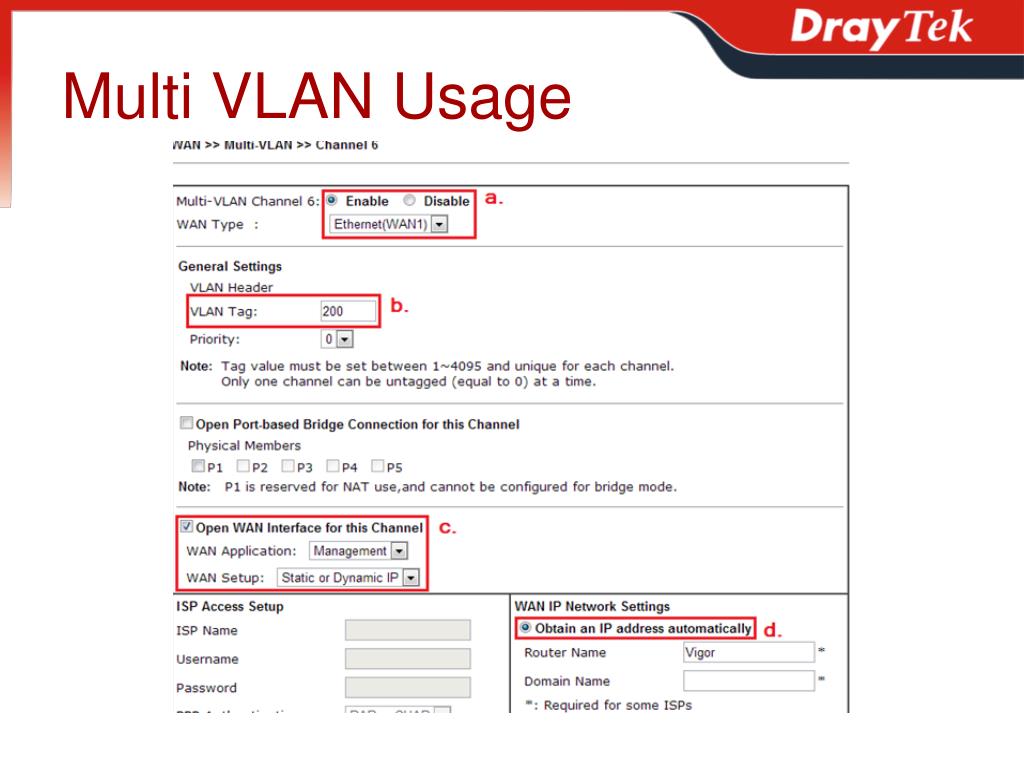

  8. Multi VLAN Usage

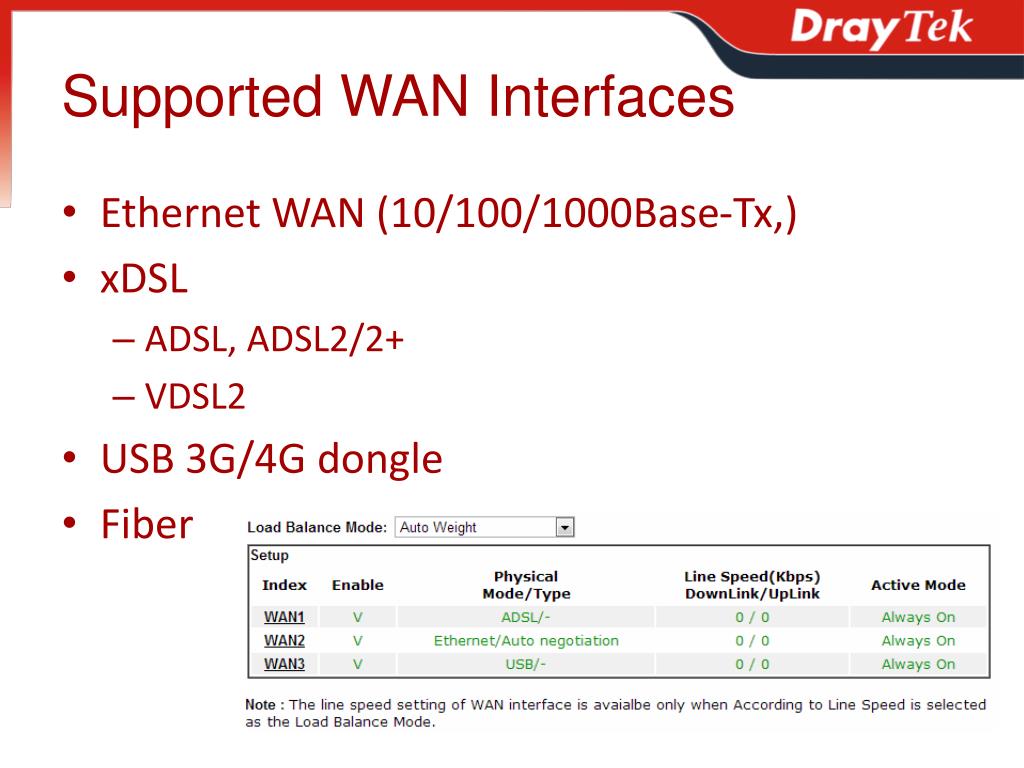

  9. Supported WAN Interfaces • Ethernet WAN (10/100/1000Base-Tx,) • xDSL • ADSL, ADSL2/2+ • VDSL2 • USB 3G/4G dongle • Fiber

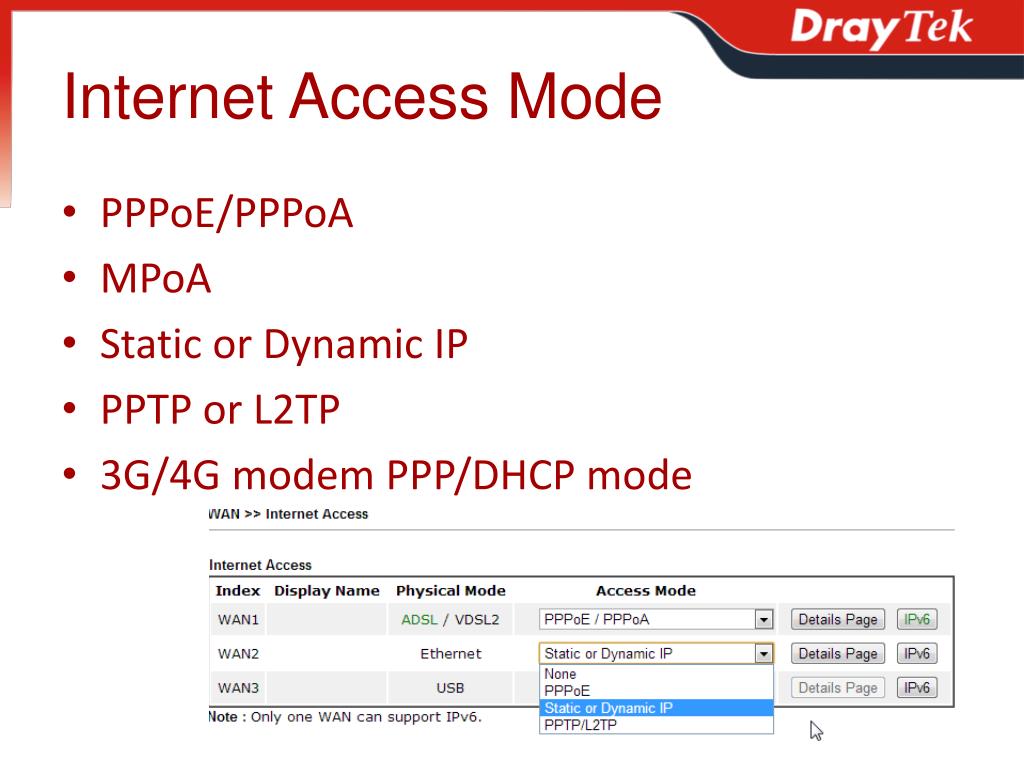

  10. Internet Access Mode • PPPoE/PPPoA • MPoA • Static or Dynamic IP • PPTP or L2TP • 3G/4G modem PPP/DHCP mode

  11. Internet Access Mode • IPv6 • How to Configure WAN for IPv6 Service • http://www.draytek.com.tw/index.php?option=com_k2&view=item&id=1809&Itemid=293&lang=en

  12. WAN Budget Limit

  13. WAN Budget Limit • SMS/Mail Alert • Set SMS/Mail Object and Notification Object • Include Notification Object into SMS/Mail Alert

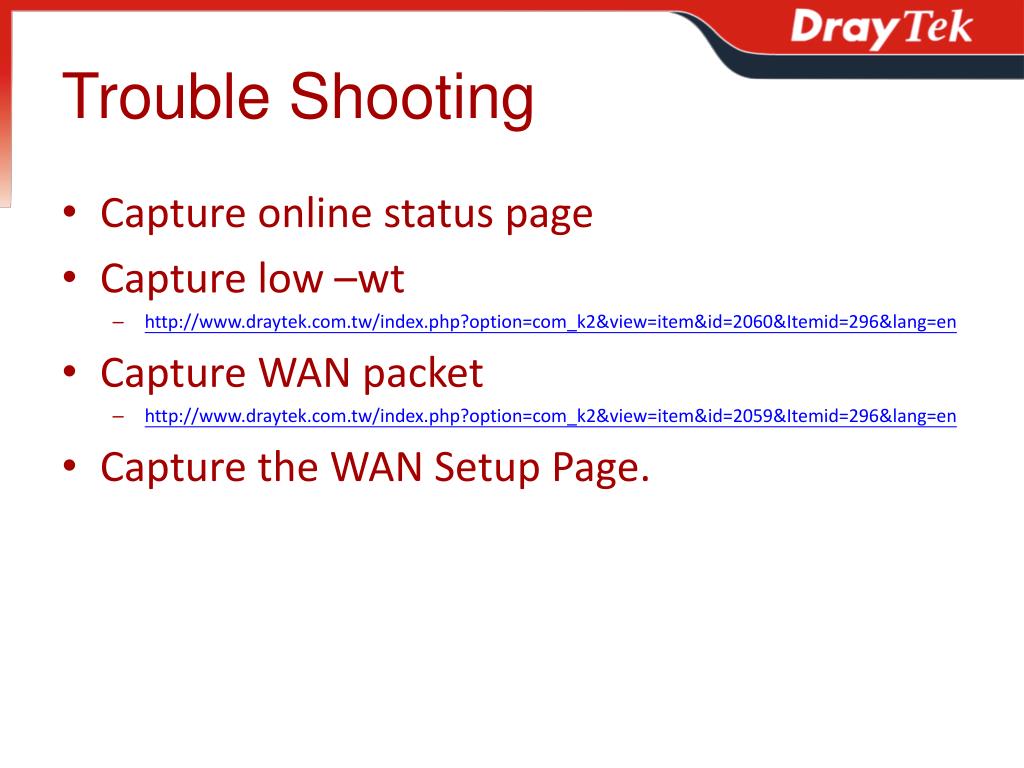

  14. Trouble Shooting • Capture online status page • Capture low –wt • http://www.draytek.com.tw/index.php?option=com_k2&view=item&id=2060&Itemid=296&lang=en • Capture WAN packet • http://www.draytek.com.tw/index.php?option=com_k2&view=item&id=2059&Itemid=296&lang=en • Capture the WAN Setup Page.
